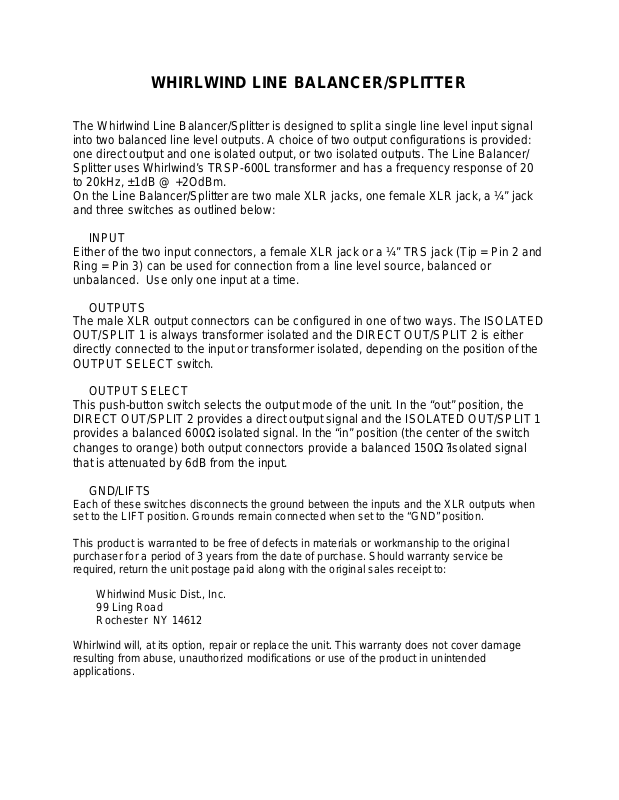

WHIRLWIND LINE BALANCER/SPLITTER

The Whirlwind Line Balancer/Splitter is designed to split a single line level input signal
into two balanced line level outputs. A choice of two output configurations is provided:
one direct output and one isolated output, or two isolated outputs. The Line Balancer/
Splitter uses Whirlwind’s TRSP-600L transformer and has a frequency response of 20
to 20kHz, ±1dB @ +2OdBm.
On the Line Balancer/Splitter are two male XLR jacks, one female XLR jack, a ¼” jack
and three switches as outlined below:

INPUT
Either of the two input connectors, a female XLR jack or a ¼” TRS jack (Tip = Pin 2 and
Ring = Pin 3) can be used for connection from a line level source, balanced or
unbalanced. Use only one input at a time.

OUTPUTS
The male XLR output connectors can be configured in one of two ways. The ISOLATED
OUT/SPLIT 1 is always transformer isolated and the DIRECT OUT/SPLIT 2 is either
directly connected to the input or transformer isolated, depending on the position of the
OUTPUT SELECT switch.

OUTPUT SELECT
This push-button switch selects the output mode of the unit. In the “out” position, the
DIRECT OUT/SPLIT 2 provides a direct output signal and the ISOLATED OUT/SPLIT 1
provides a balanced 600Ω isolated signal. In the “in” position (the center of the switch
changes to orange) both output connectors provide a balanced 150Ω ? isolated signal
that is attenuated by 6dB from the input.

GND/LIFTS

Each of these switches disconnects the ground between the inputs and the XLR outputs when
set to the LIFT position. Grounds remain connected when set to the “GND” position.

This product is warranted to be free of defects in materials or workmanship to the original
purchaser for a period of 3 years from the date of purchase. Should warranty service be
required, return the unit postage paid along with the original sales receipt to:

Whirlwind Music Dist., Inc.
99 Ling Road
Rochester NY 14612

Whirlwind will, at its option, repair or replace the unit. This warranty does not cover damage
resulting from abuse, unauthorized modifications or use of the product in unintended
applications.
