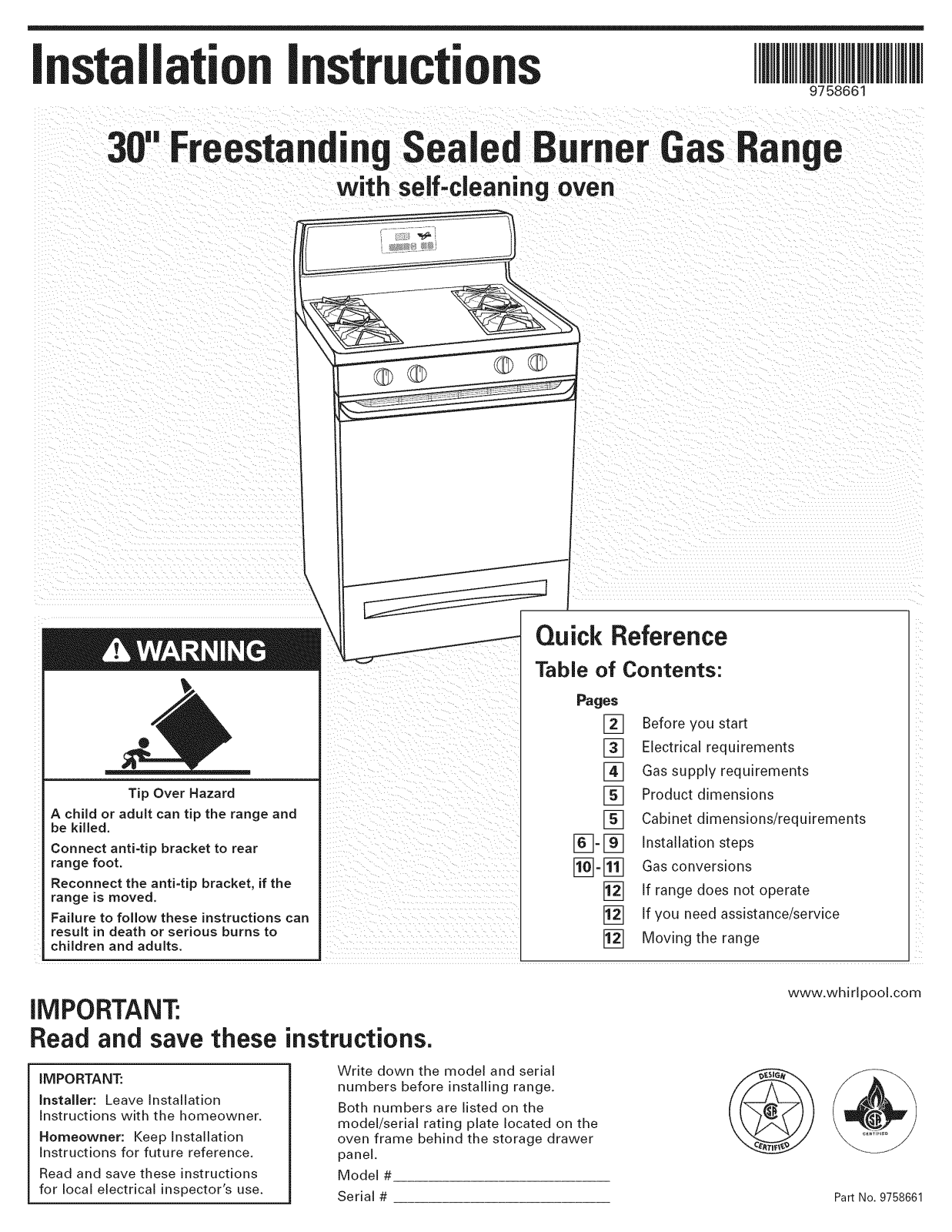

installationinstructions
9758661
" r30 Fee
ing Sealed Burner GasBan e
with self-cleaning oven
\
\
Tip Over Hazard
be killed. Connect anti-tip bracket to rear
range foot. Reconnect the anti=tip bracket, if the
range is moved. Failure to follow these instructions can
result in death or serious burns to
children and adults.
ii_ i ii
iil _i
_i iiiiiiiiiiiiiiiii
iMPORTANT: Read and savethese instructions.
iMPORTANT: Installer: Leave Installation
Instructions with the homeowner. Homeowner: Keep Installation
Instructions for future reference. Read and save these instructions
for local electrical inspector's use.
Write down the model and serial numbers before installing range.
Both numbers are listed on the
model/serial rating plate located on the oven frame behind the storage drawer panel.
Model # Serial #
Quick Reference
Table of Contents:
_ges
Before you start
[]
Electrical requirements
[]
Gas supply requirements
[]

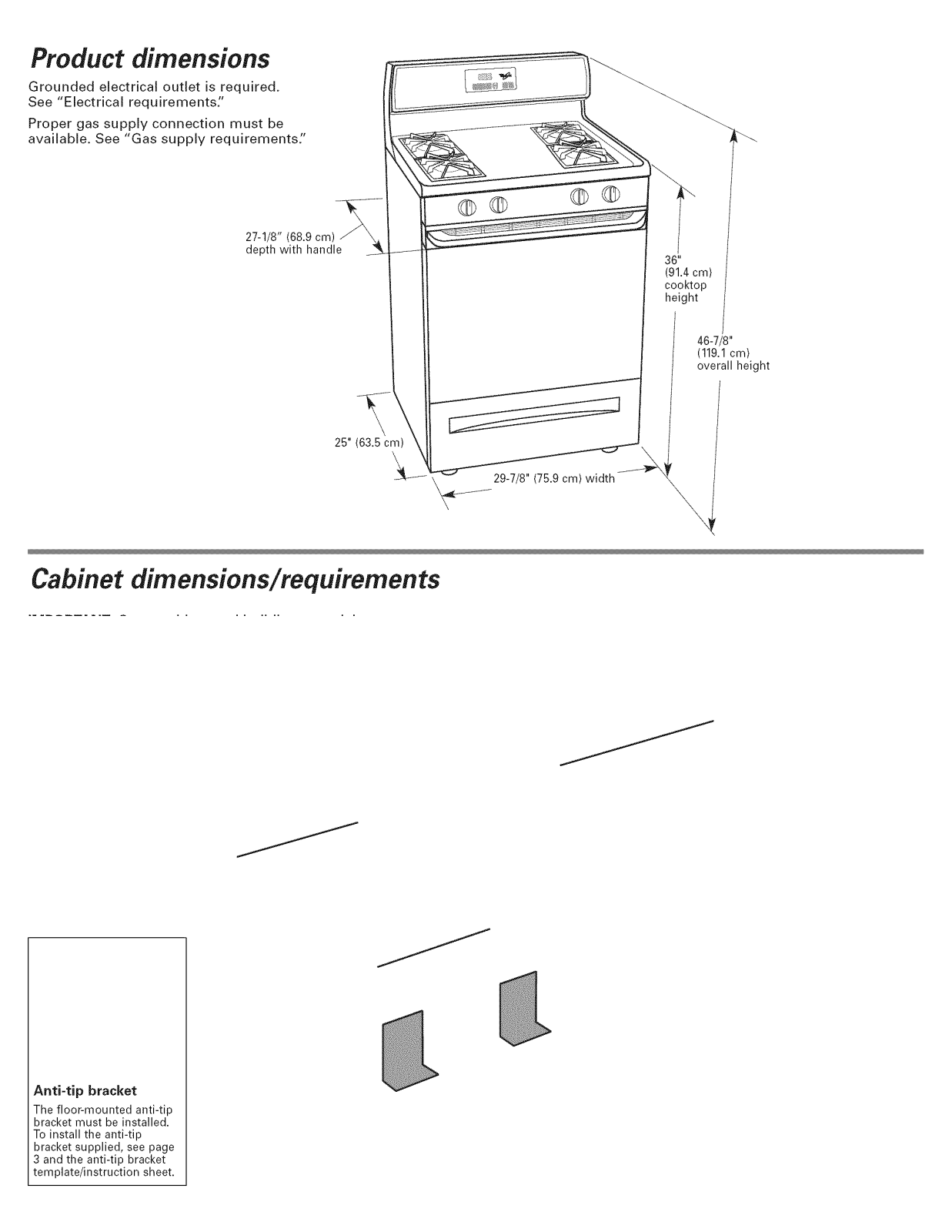

Product dimensions
[]
Cabinet dimensions/requirements
[]

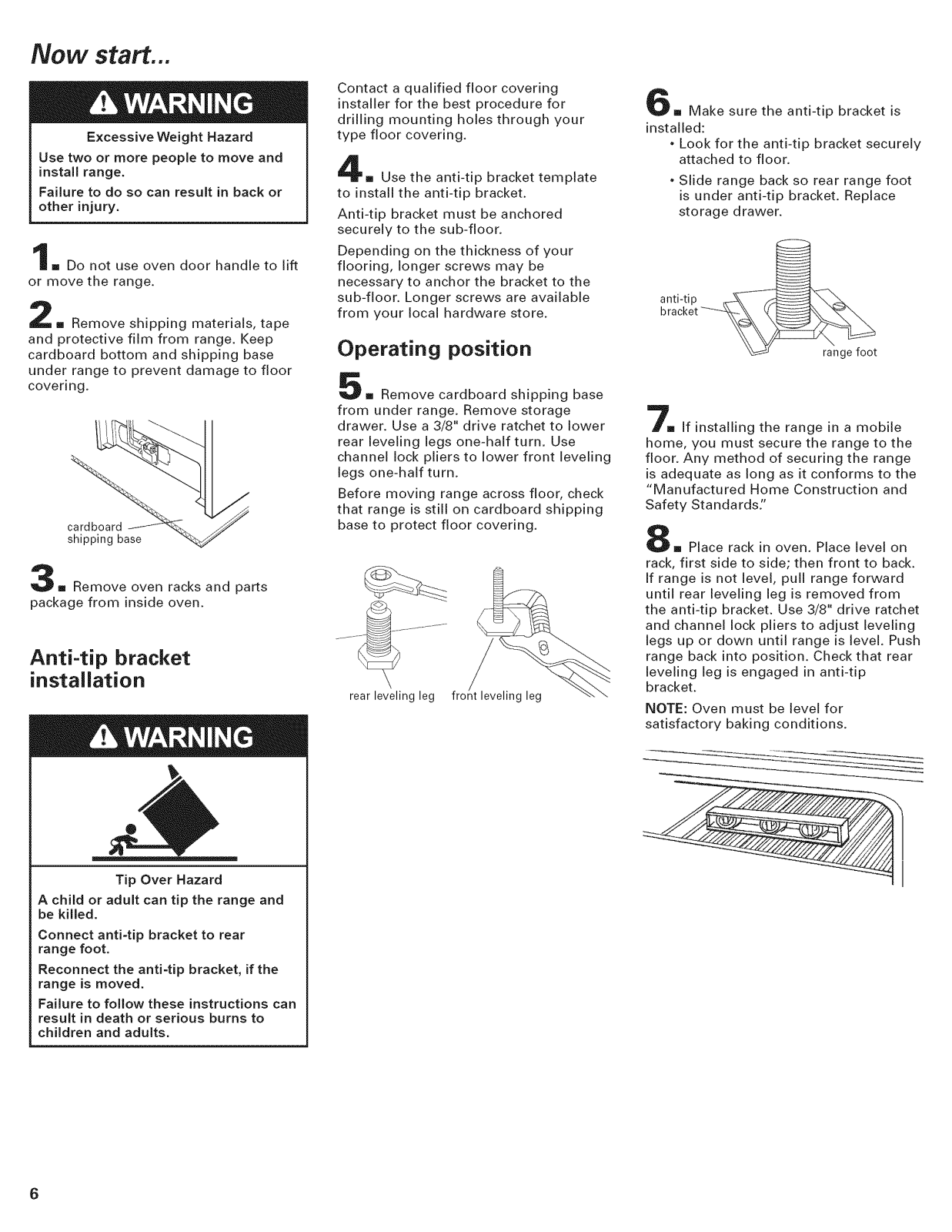

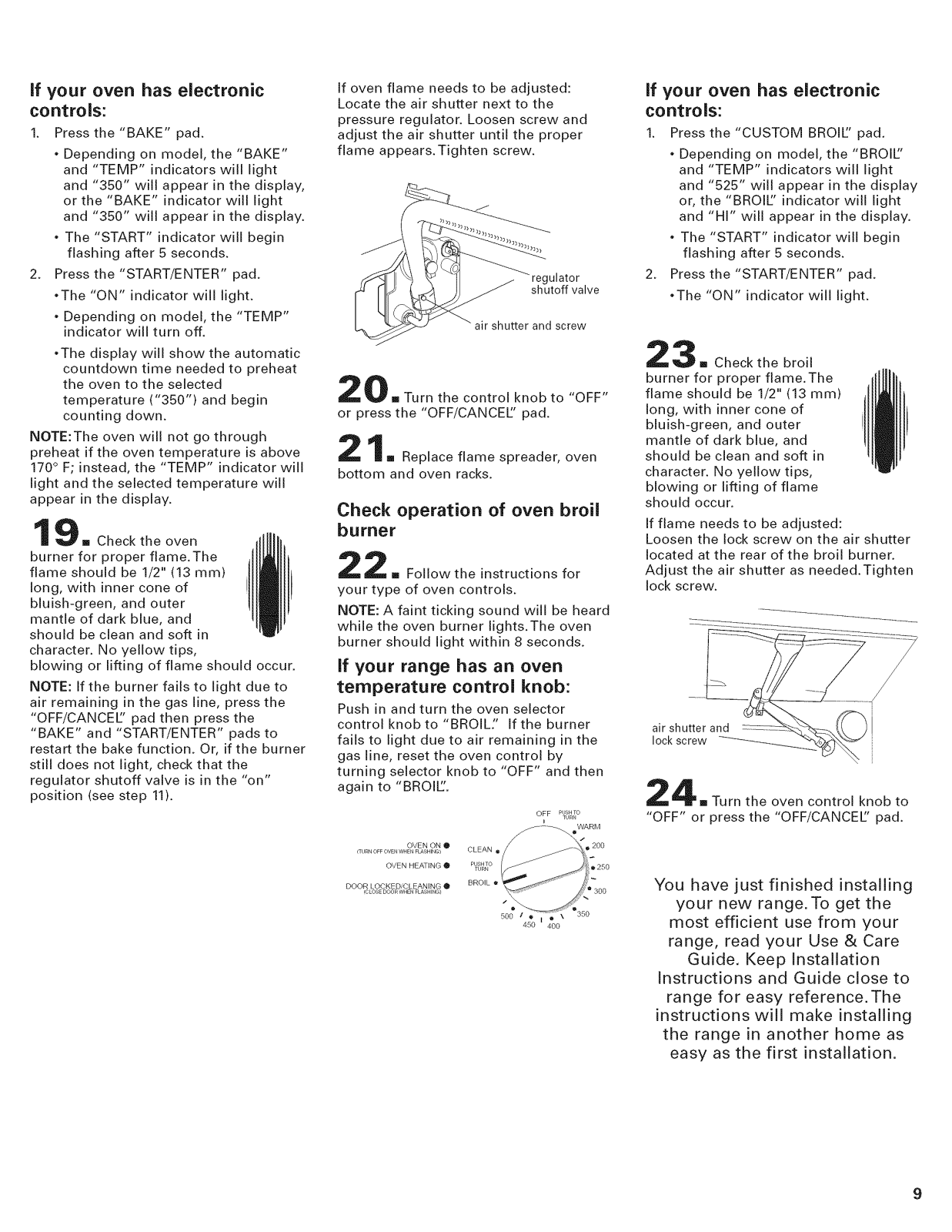

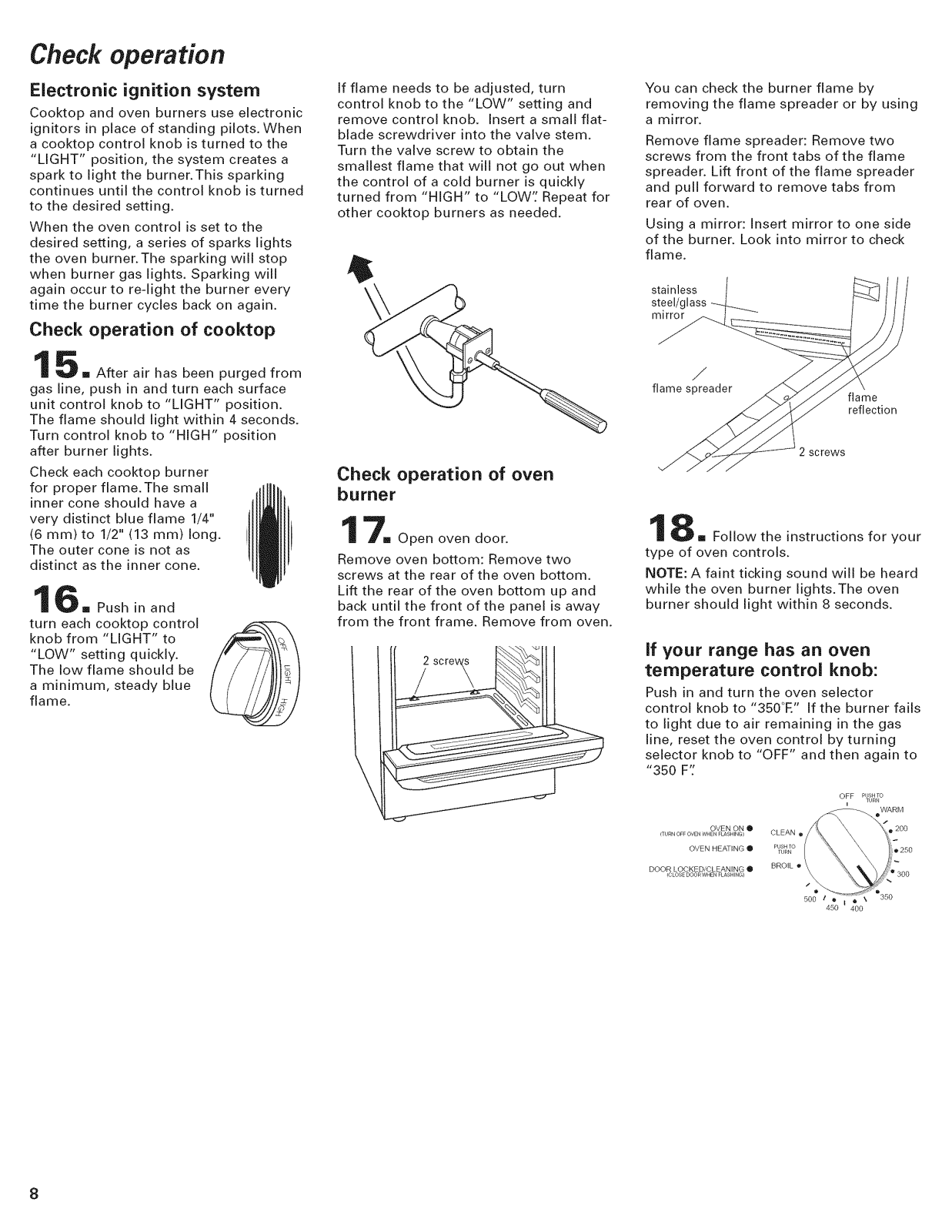

Installation steps
_-_

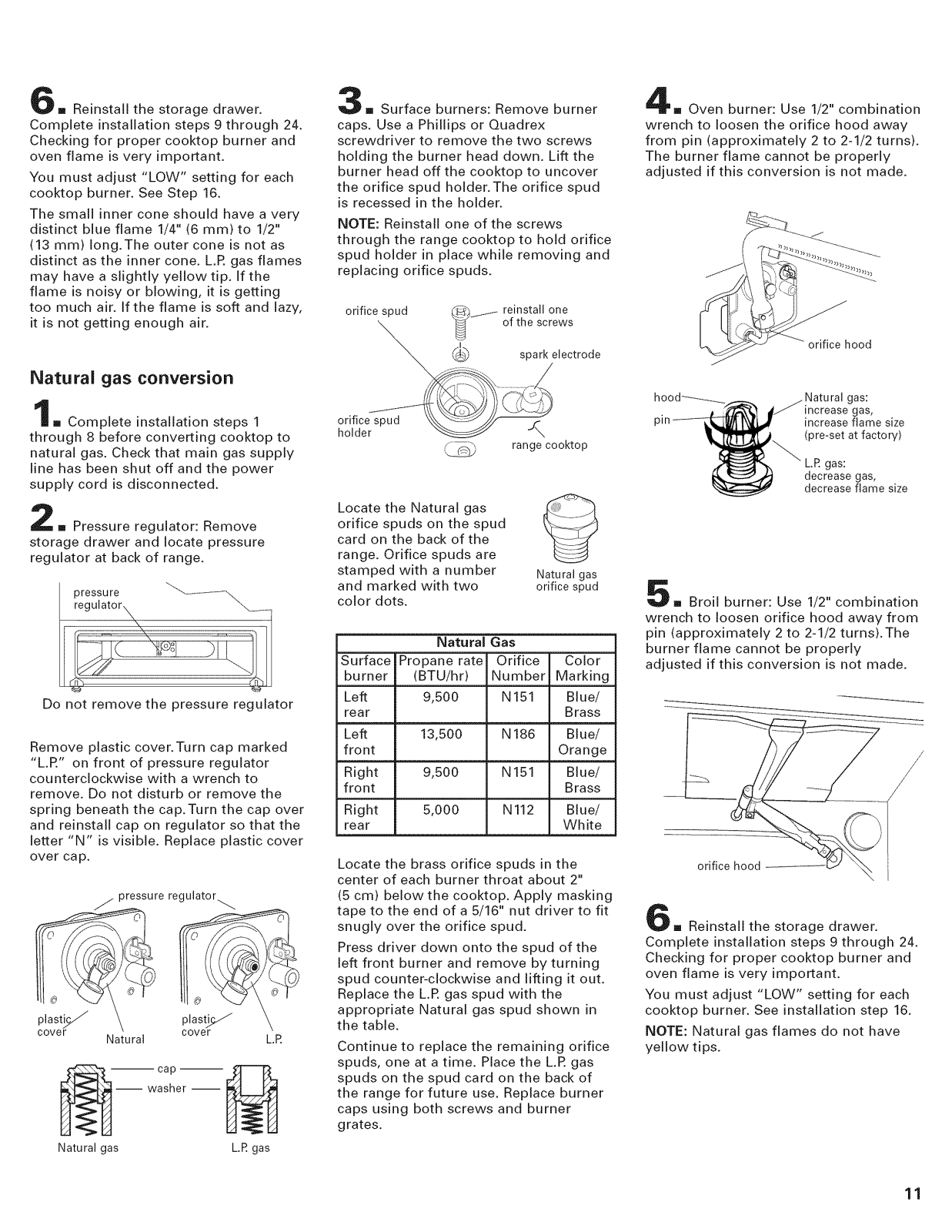

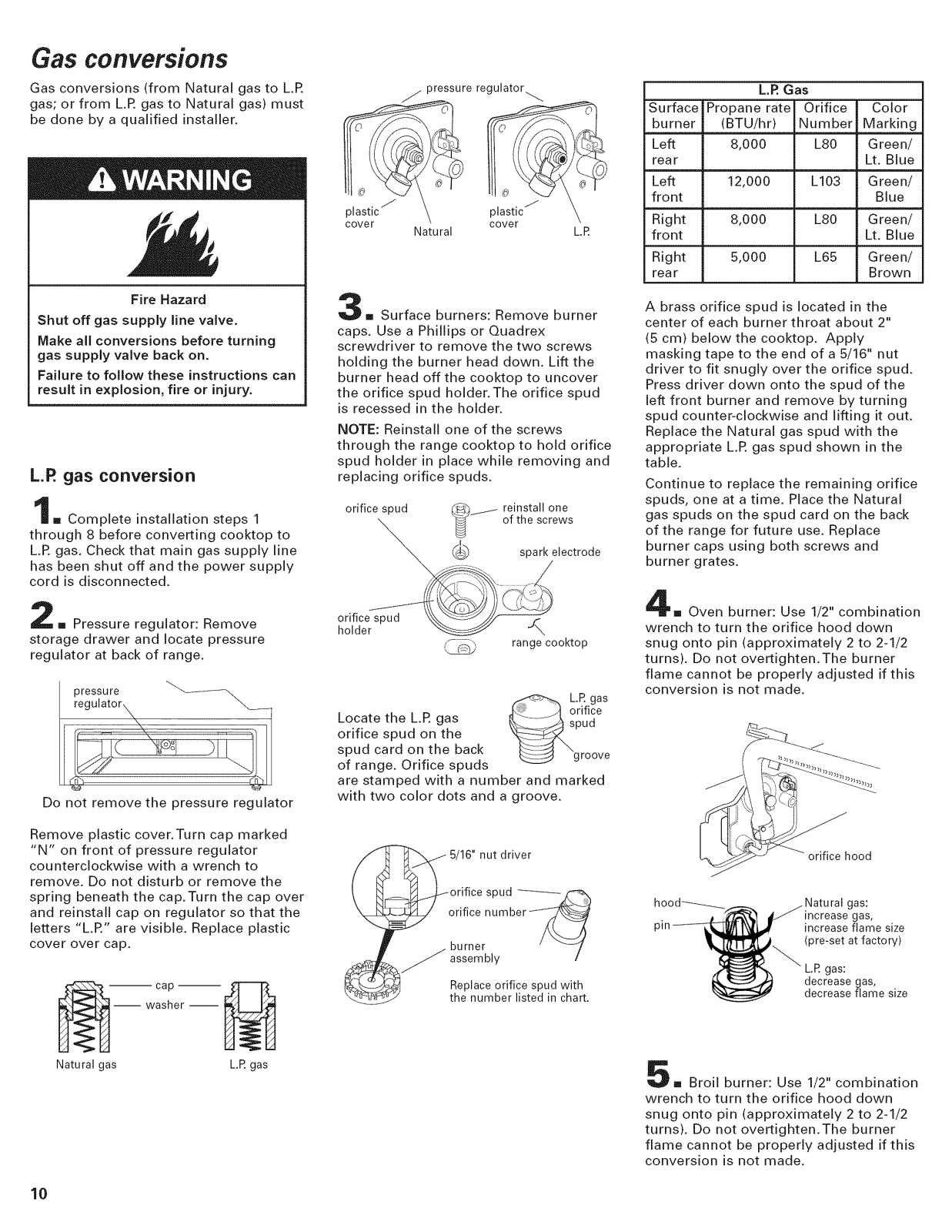

Gas conversions if range does not operate
[]
if you need assistance/service
[]

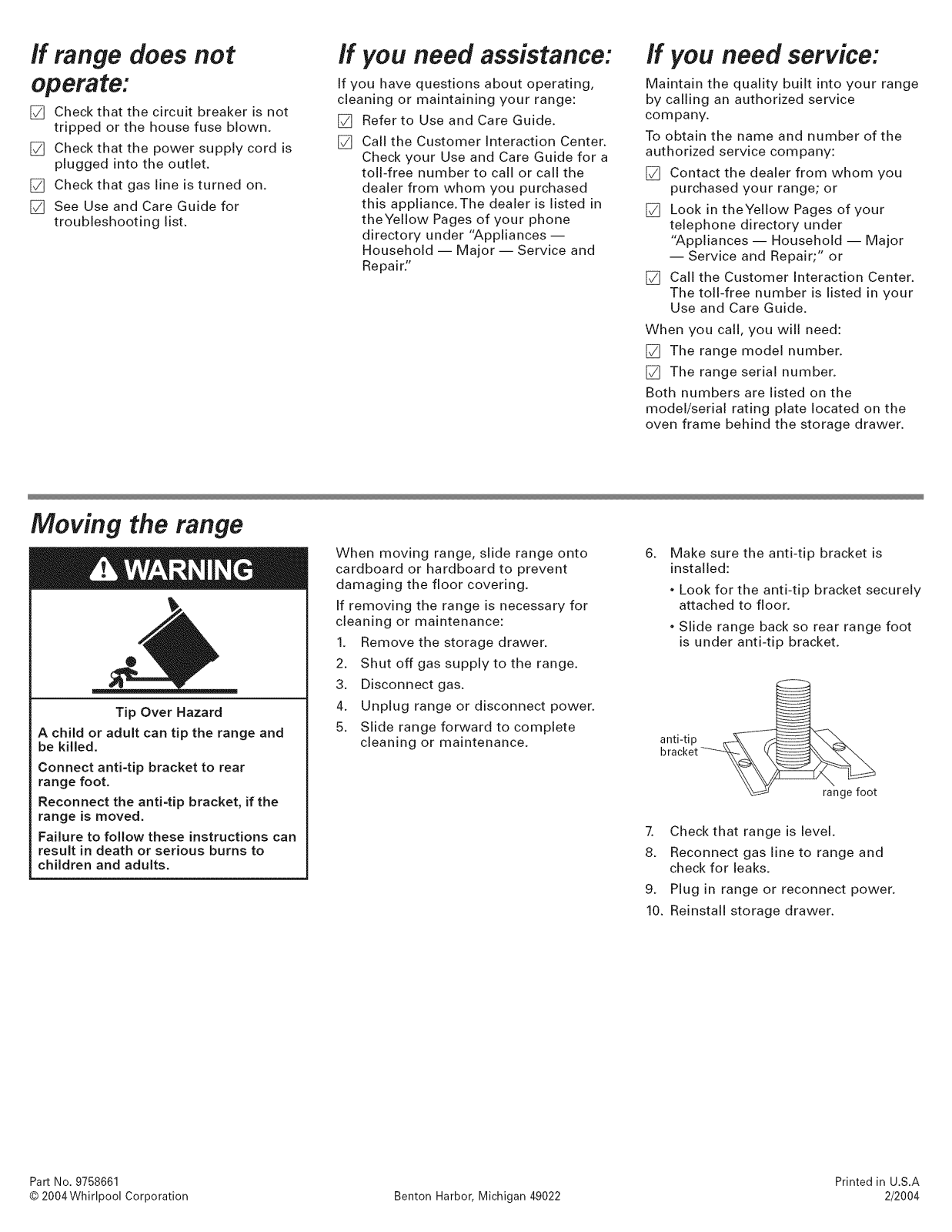

Moving the range
[]
www.whirlpool.com
Part No. 9758661

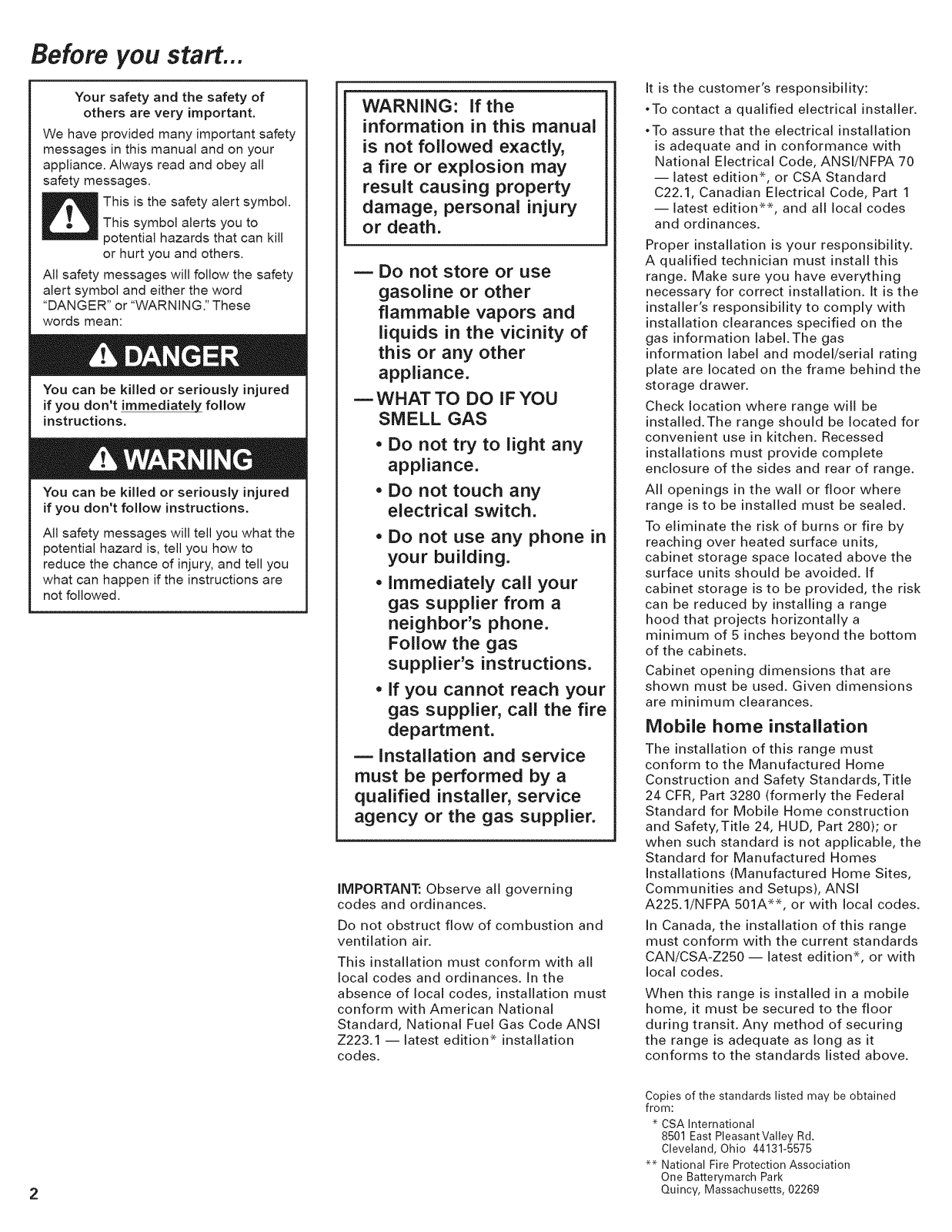

Before you start...
Your safety and the safety of
others are very important.
We have provided many important safety
messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts you to
potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word
"DANGER" or "WARNING." These words mean:
You can be ki!led or seriously injured
if you don't immediately follow
instructions,
You can be killed or seriously injured
if you don't follow instructions. All safety messages will tell you what the
potential hazard is, tell you how to
reduce the chance of injury, and tell you what can happen if the instructions are
not followed.
WARNING: If the
information in this manual is not followed exactly,
a fire or explosion may result causing property damage, personal injury
or death.
m Do not store or use
gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
mWHATTO DO IFYOU
SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
Installation and service
must be performed by a qualified installer, service agency or the gas supplier.
I_,IPORTANT: Observe all governing codes and ordinances.
Do not obstruct flow of combustion and ventilation air.
This installation must conform with all local codes and ordinances. In the
absence of local codes, installation must conform with American National
Standard, National Fuel Gas Code ANSI Z223.1 --latest edition* installation codes.
It is the customer's responsibility:
To contact a qualified electrical installer.
To assure that the electrical installation
is adequate and in conformance with National Electrical Code, ANSI/NFPA 70
-- latest edition*, or CSA Standard C22.1, Canadian Electrical Code, Part 1
-- latest edition**, and all local codes and ordinances.
Proper installation is your responsibility. A qualified technician must install this
range. Make sure you have everything necessary for correct installation. It is the
installer's responsibility to comply with installation clearances specified on the gas information label.The gas information label and model/serial rating
plate are located on the frame behind the storage drawer.
Check location where range will be installed.The range should be located for
convenient use in kitchen. Recessed installations must provide complete
enclosure of the sides and rear of range. All openings in the wall or floor where
range is to be installed must be sealed. To eliminate the risk of burns or fire by
reaching over heated surface units, cabinet storage space located above the surface units should be avoided. If
cabinet storage is to be provided, the risk can be reduced by installing a range
hood that projects horizontally a minimum of 5 inches beyond the bottom
of the cabinets. Cabinet opening dimensions that are
shown must be used. Given dimensions are minimum clearances.
Mobile home installation
The installation of this range must conform to the Manufactured Home
Construction and Safety Standards, Tkle 24 CFR, Part 3280 (formerly the Federal
Standard for Mobile Home construction and Safety, Title 24, HUD, Part 280); or
when such standard is not applicable, the Standard for Manufactured Homes
Installations (Manufactured Home Sites, Communities and Setups), ANSI A225.1/NFPA 501A**, or with local codes.
In Canada, the installation of this range must conform with the current standards
CAN/CSA-Z250 -- latest edition*, or with local codes.
When this range is installed in a mobile home, it must be secured to the floor
during transit. Any method of securing the range is adequate as long as it
conforms to the standards listed above.
Copies of the standards listed may be obtained from:
* CSA International
8501 East PleasantValley Rd. Cleveland, Ohio 44131-5575
** National Fire Protection Association
One Batterymarch Park Quincy, Massachusetts, 02269

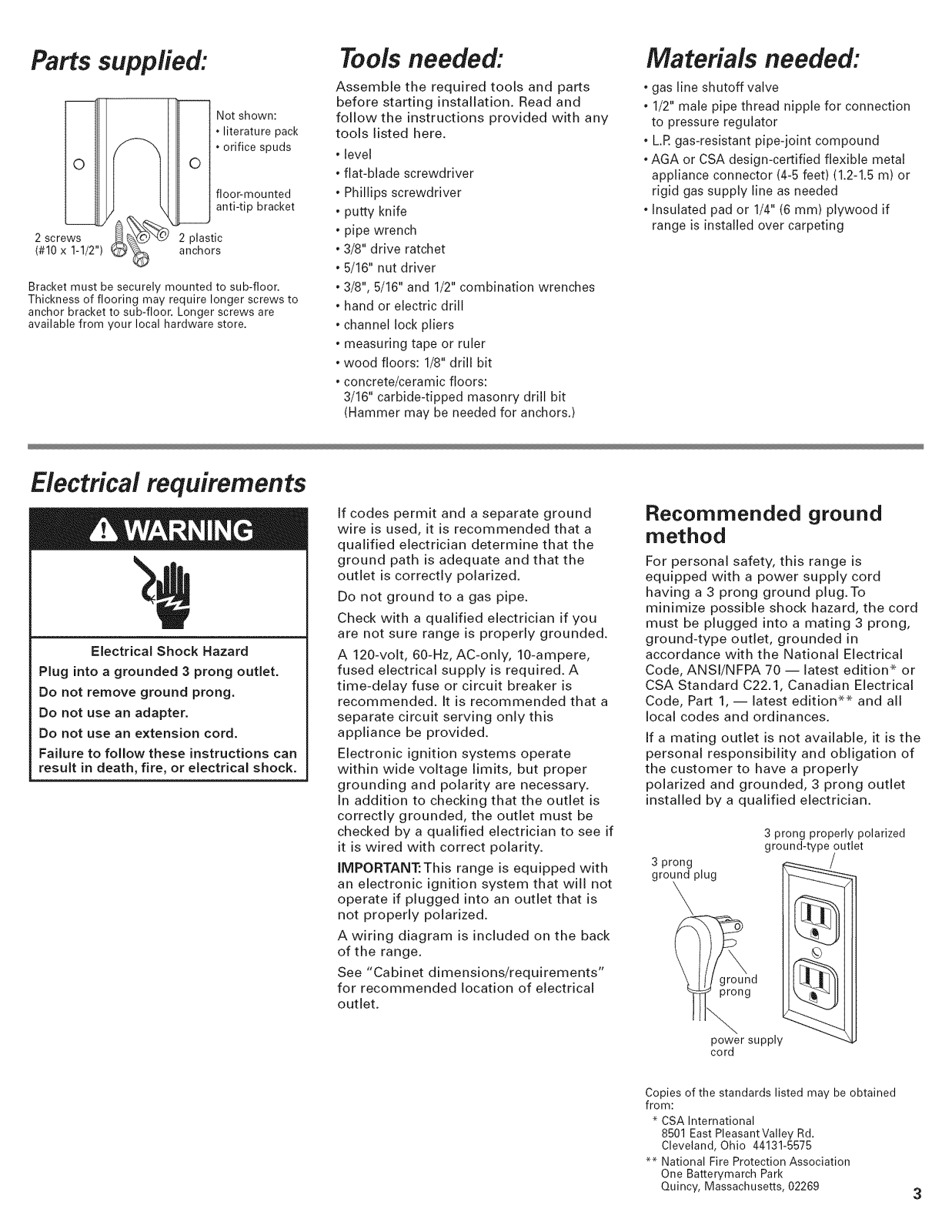

Parts supplied:
Not shown:
literature pack orifice spuds
Ol
floor-mounted anti-tip bracket
plastic
anchors
Bracket must be securely mounted to sub-floor. Thickness of flooring may require longer screws to
anchor bracket to sub-floor. Longer screws are available from your local hardware store.
Electrical requirements
Electrical Shock Hazard
Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter.
Do not use an extension cord. Failure to follow these instructions can
result in death, fire, or electrical shock.
Tools needed:
Assemble the required tools and parts
before starting installation. Read and follow the instructions provided with any
tools listed here.
level flat-blade screwdriver
Phillips screwdriver
puttyknife pipewrench
3/8" drive ratchet 5/16" nut driver
3/8", 5/16" and 1/2" combination wrenches hand or electric drill
channel lock pliers measuring tape or ruler wood floors: 1/8" drill bit concrete/ceramic floors:
3/16" carbide-tipped masonry drill bit (Hammer may be needed for anchors.)
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate and that the outlet is correctly polarized.
Do not ground to a gas pipe. Check with a qualified electrician if you
are not sure range is properly grounded. A 120-volt, 60-Hz, AC-only, 10-ampere,
fused electrical supply is required. A
time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit serving only this
appliance be provided. Electronic ignition systems operate
within wide voltage limits, but proper grounding and polarity are necessary. in addition to checking that the outlet is correctly grounded, the outlet must be checked by a qualified electrician to see if
it is wired with correct polarity. IMPORTANT:This range is equipped with
an electronic ignition system that will not operate if plugged into an outlet that is not properly polarized.
A wiring diagram is included on the back of the range.
See "Cabinet dimensions/requirements" for recommended location of electrical
outlet.
Materials needed:
gas line shutoff valve
1/2" male pipe thread nipple for connection to pressure regulator
L.R gas-resistant pipe-joint compound
AGA or CSA design-certified flexible metal appliance connector (4-5 feet) (1.2-1.5 m) or rigid gas supply line as needed
Insulated pad or 1/4" (6 mm) plywood if range is installed over carpeting
Recommended ground
method
For personal safety, this range is equipped with a power supply cord having a 3 prong ground plug.To minimize possible shock hazard, the cord must be plugged into a mating 3 prong, ground-type outlet, grounded in
accordance with the National Electrical Code, ANSI/NFPA 70 -- latest edition `×.or
CSA Standard C22.1, Canadian Electrical Code, Part 1, -- latest edition *×- and all
local codes and ordinances.
If a mating outlet is not available, it is the personal responsibility and obligation of
the customer to have a properly polarized and grounded, 3 prong outlet installed by a qualified electrician.
3 prong properly polarized
ground-type outlet
3 prong
grou_plug
power supply cord
Copies of the standards listed may be obtained from:
* CSA International
8501 East Pleasant Valley Rd. Cleveland, Ohio 44131-5575
** National Fire Protection Association
One Batterymarch Park Quincy, Massachusetts, 02269

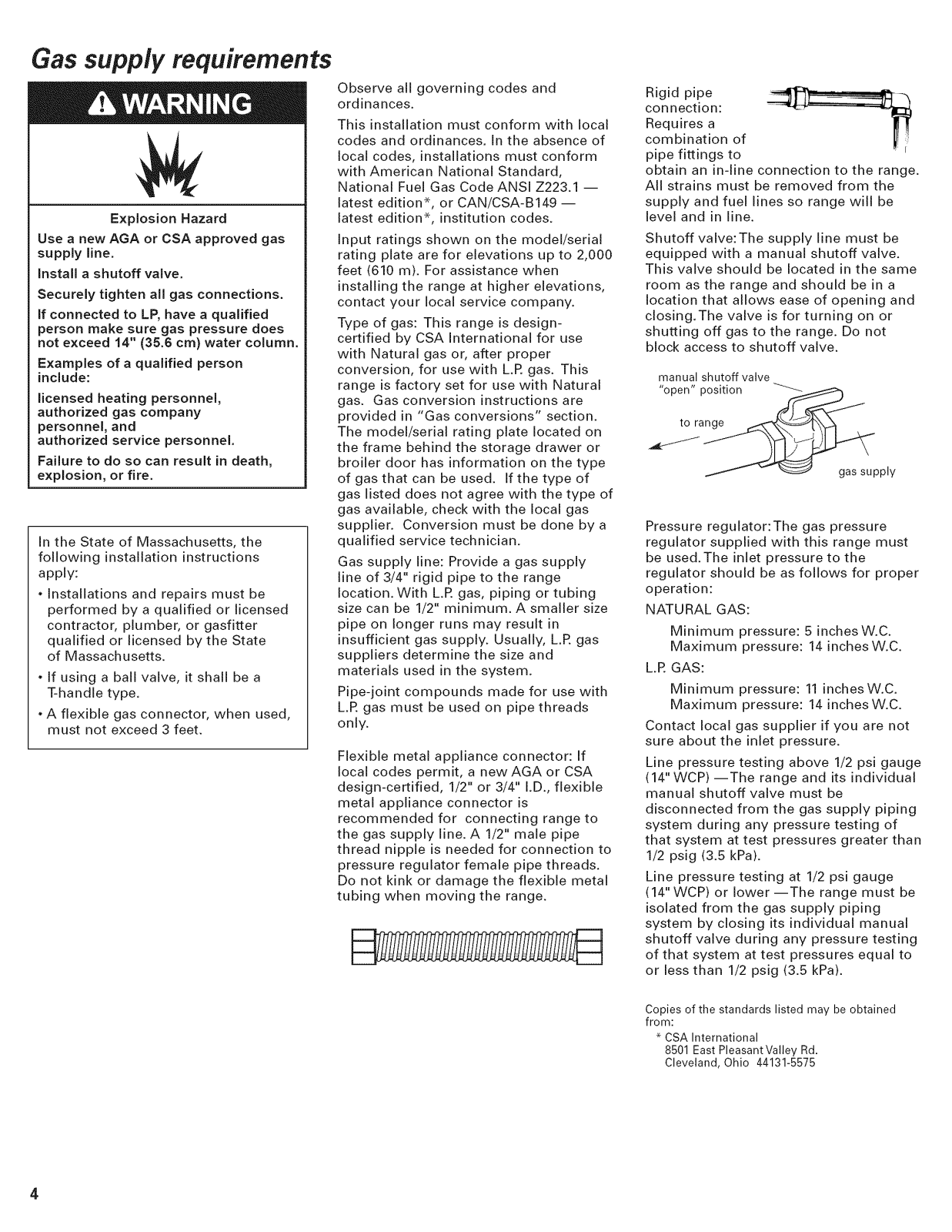

Gas supply requirements
Explosion Hazard
Use a new AGA or CSA approved gas supply line,
Install a shutoff valve.
Securely tighten all gas connections. If connected to LP, have a qualified
person make sure gas pressure does not exceed 14" (35.6 cm) water column,
Examples of a qualified person include:
licensed heating personnel, authorized gas company personnel, and authorized service personnel.
Failure to do so can result in death, explosion, or fire.
In the State of Massachusetts, the
following installation instructions
apply:
Installations and repairs must be performed by a qualified or licensed
contractor, plumber, or gasfitter qualified or licensed by the State
of Massachusetts.
. If using a ball valve, it shall be a
T-handle type.
. A flexible gas connector, when used,
must not exceed 3 feet.
Observe all governing codes and ordinances.
This installation must conform with local codes and ordinances. In the absence of
local codes, installations must conform with American National Standard,
National Fuel Gas Code ANSI Z223.1 -- latest edition*, or CAN/CSA-B149 --
latest edition*, institution codes. Input ratings shown on the model/serial
rating plate are for elevations up to 2,000 feet (610 m). For assistance when
installing the range at higher elevations, contact your local service company.
Type of gas: This range is design- certified by CSA International for use with Natural gas or, after proper conversion, for use with LR gas. This range is factory set for use with Natural gas. Gas conversion instructions are provided in "Gas conversions" section. The model/serial rating plate located on
the frame behind the storage drawer or
broiler door has information on the type of gas that can be used. If the type of gas listed does not agree with the type of gas available, check with the local gas supplier. Conversion must be done bya
qualified service technician. Gas supply line: Provide a gas supply
line of 3/4" rigid pipe to the range location. With LR gas, piping or tubing
size can be 1/2" minimum. A smaller size pipe on longer runs may result in
insufficient gas supply. Usually, LR gas suppliers determine the size and materials used in the system.
Pipe-joint compounds made for use with L.R gas must be used on pipe threads only.

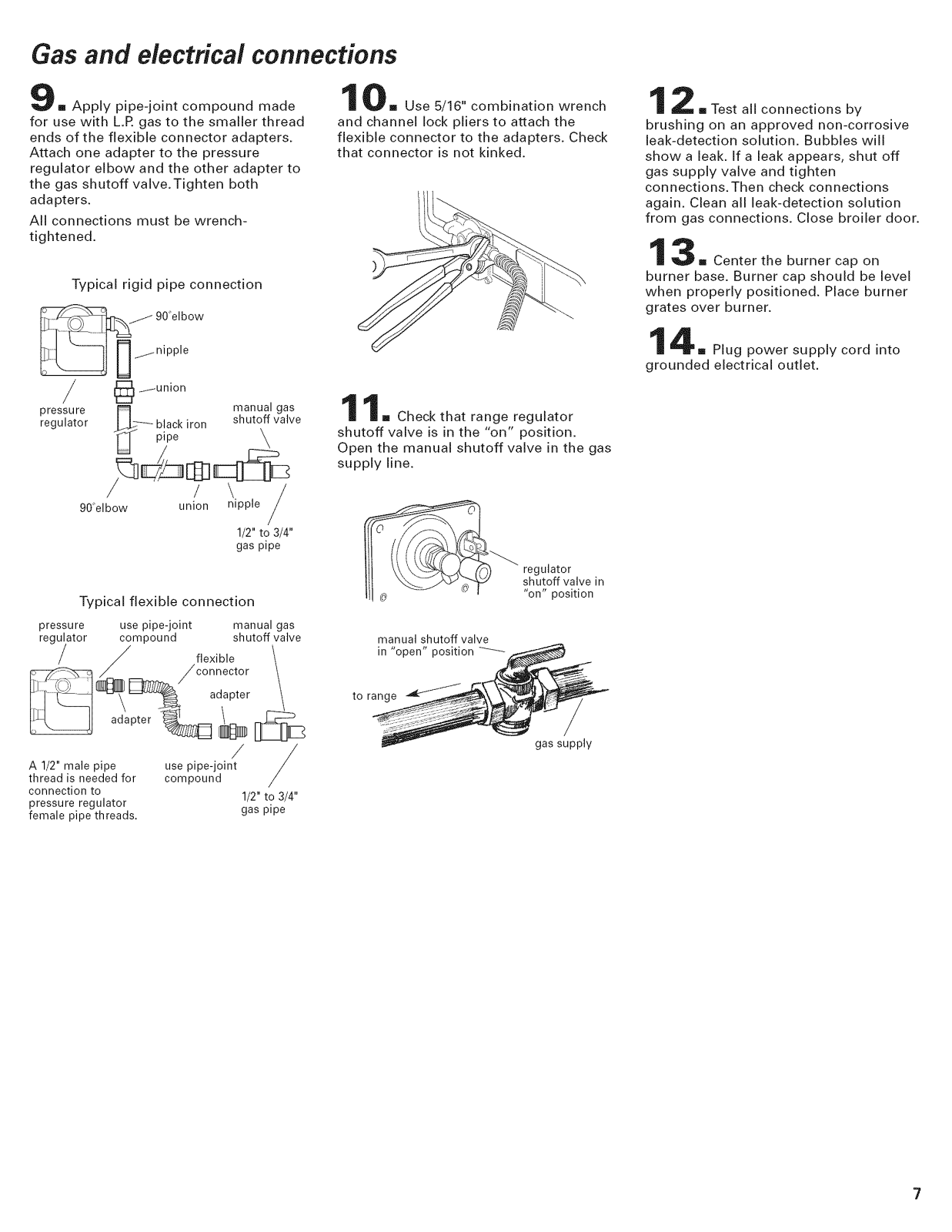

Flexible metal appliance connector: If local codes permit, a new AGA or CSA design-certified, 1/2" or 3/4" I.D., flexible metal appliance connector is
recommended for connecting range to the gas supply line. A 1/2" male pipe thread nipple is needed for connection to
pressure regulator female pipe threads.
Do not kink or damage the flexible metal tubing when moving the range.
connection: Requires a
Rioidpipe
combination of pipe fittings to
obtain an in-line connection to the range. All strains must be removed from the
supply and fuel lines so range will be level and in line.
Shutoff valve:The supply line must be equipped with a manual shutoff valve.
This valve should be located in the same room as the range and should be in a
location that allows ease of opening and closing.The valve is for turning on or shutting off gas to the range. Do not
block access to shutoff valve.
manual shutoff valve
"open" position
to ige
gas supply
Pressure regulator:The gas pressure regulator supplied with this range must
be used.The inlet pressure to the regulator should be as follows for proper
operation: NATURAL GAS:
Minimum pressure: 5 inchesW.C. Maximum pressure: 14 inches W.C.
L.R GAS:
Minimum pressure: 11 inchesW.C. Maximum pressure: 14 inches W.C.
Contact local gas supplier if you are not sure about the inlet pressure.
Line pressure testing above 1/2 psi gauge (14" WCP) --The range and its individual
manual shutoff valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test pressures greater than
1/2 psig (3.5 kPa).
Line pressure testing at 1/2 psi gauge (14" WCP) or lower--The range must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of that system at test pressures equal to or less than 1/2 psig (3.5 kPa).
Copies of the standards listed may be obtained from:
* CSA International
8501 East PleasantValley Rd. Cleveland, Ohio 44131-5575
