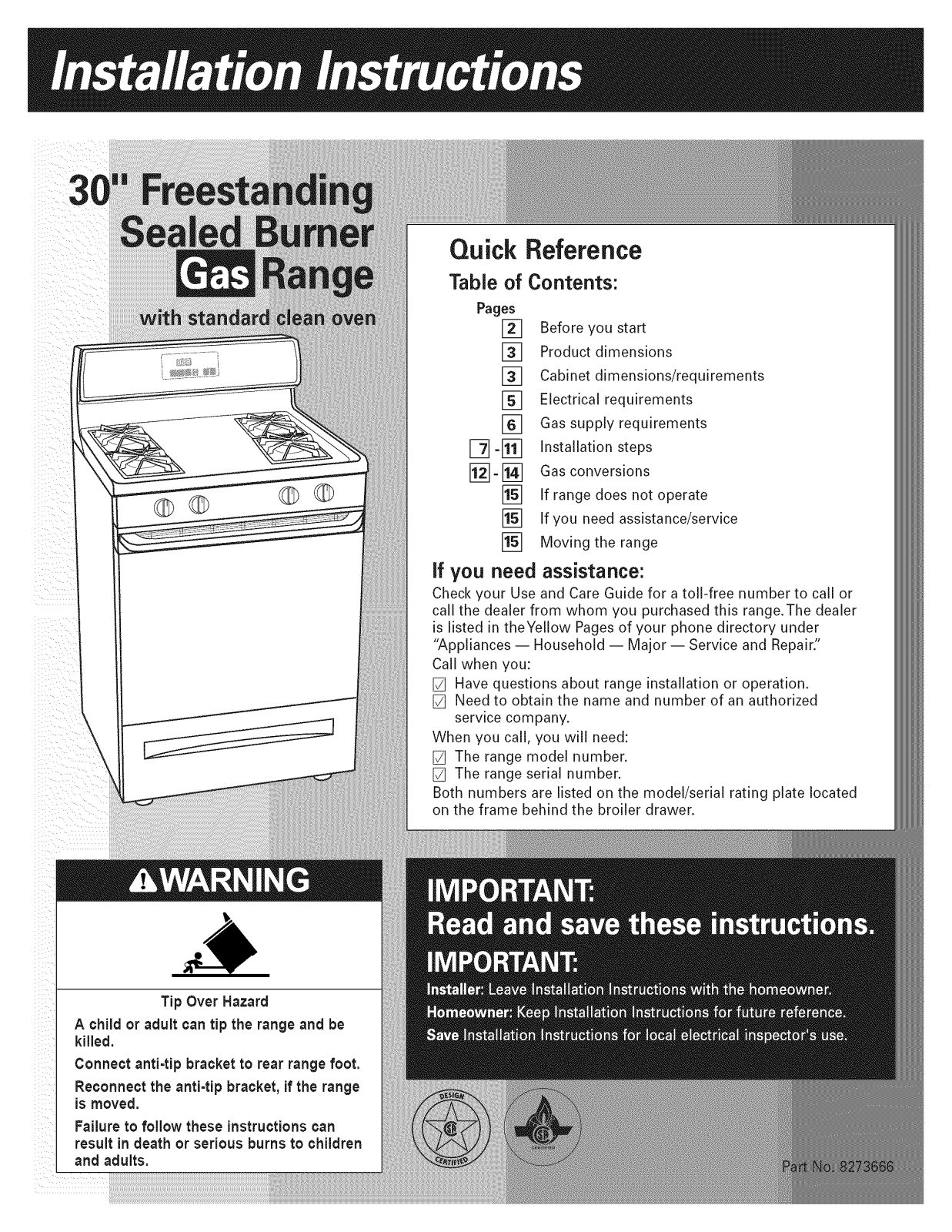

Whirlpool YSF315PEGW6, YSF315PEGQ6 Installation Guide

Quick Reference

Table of

Pages

[]-[]

if you need

Check your Use and Care Guide for a toll-free number to call or
call the dealer from whom you purchased this range.The dealer
is listed in theYellow Pages of your phone directory under

"Appliances -- Household -- Major -- Service and Repair."

Call when you:
[] Have questions about range installation or operation.

[] Need to obtain the name and number of an authorized

service company.

When you call, you will need:
[] The range model number.

[] The range serial number.

Both numbers are listed on the model/serial rating plate located

on the frame behind the broiler drawer.

Contents:

Before you start

[]

Product dimensions

[]

Cabinet dimensions/requirements

[]

Electrical requirements

[]
[]

Gas supply requirements

Installation steps

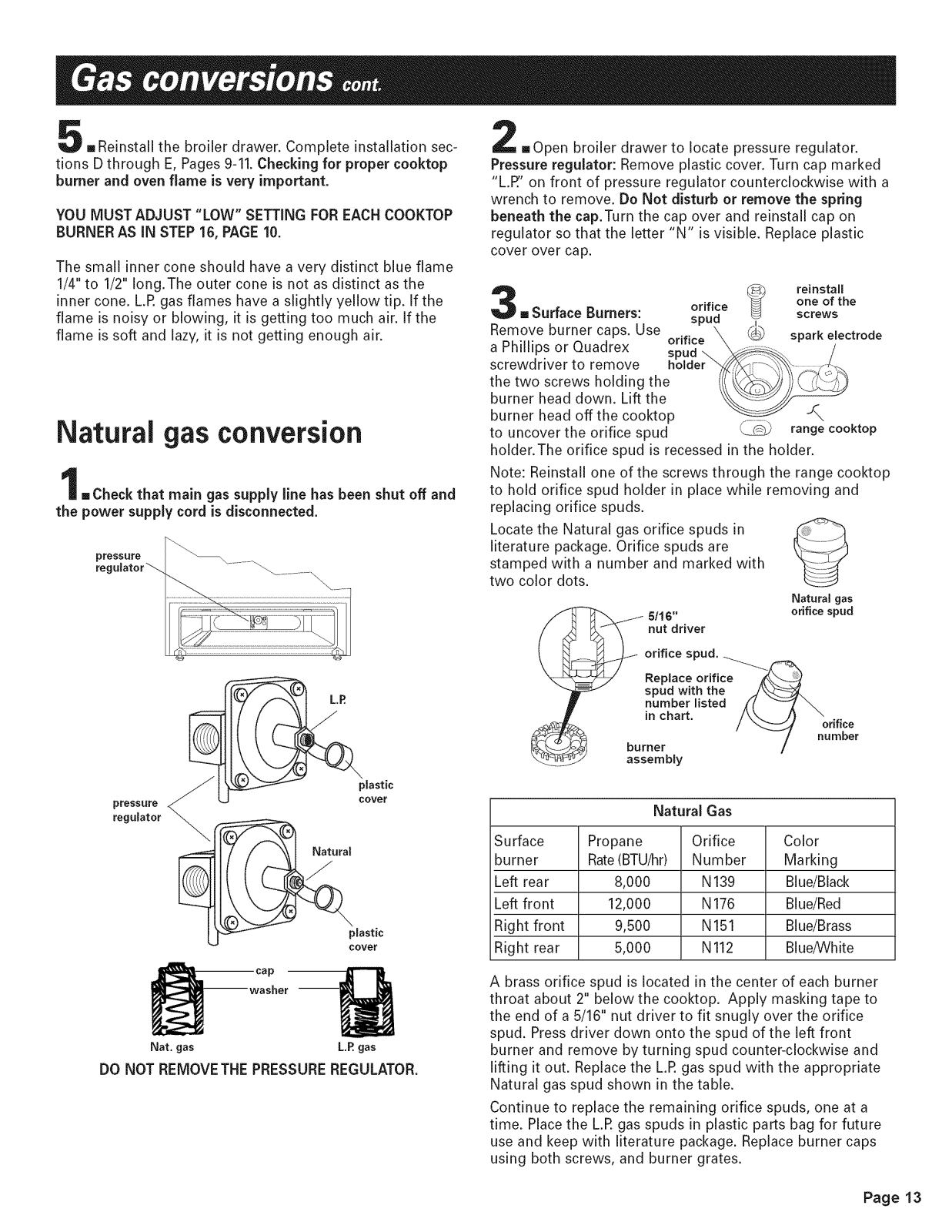

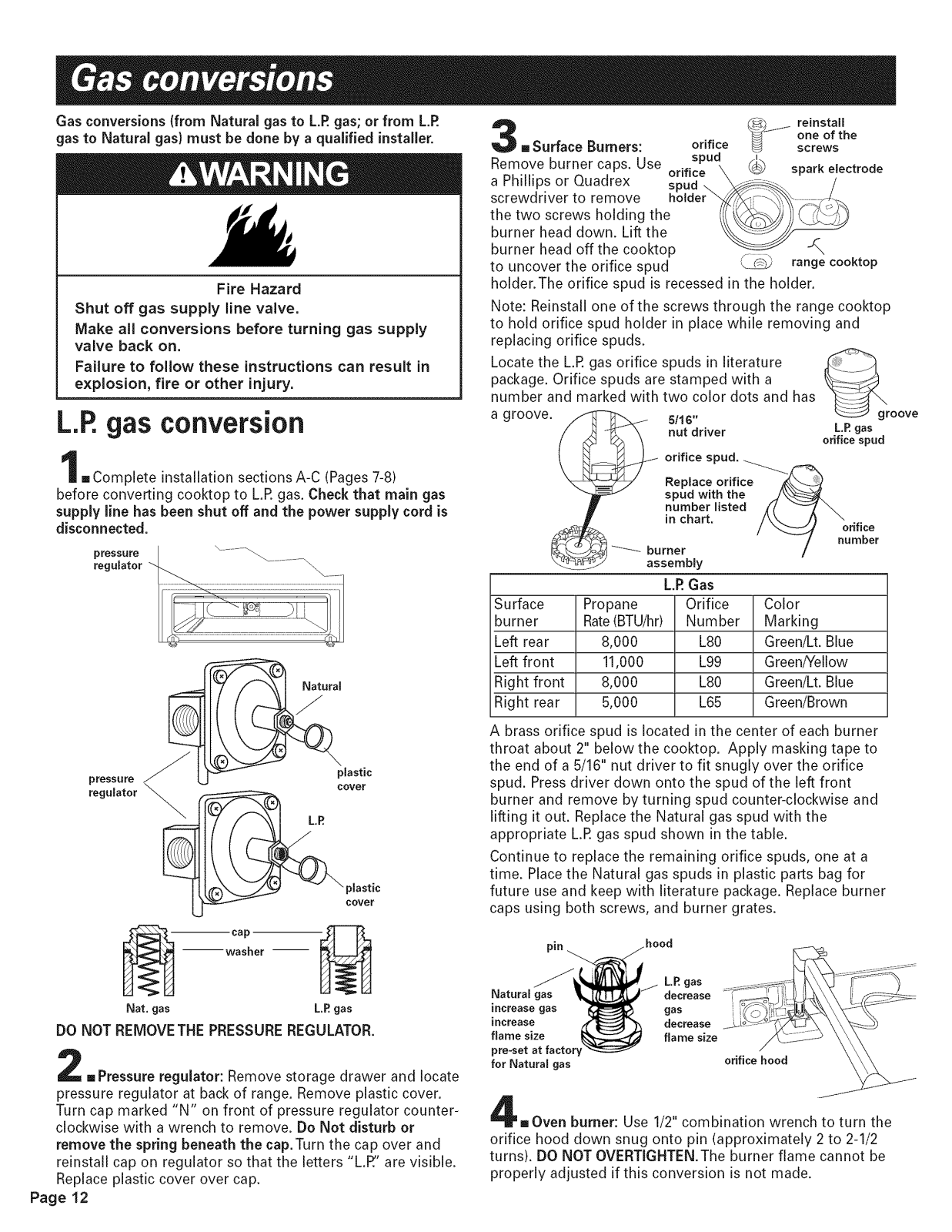

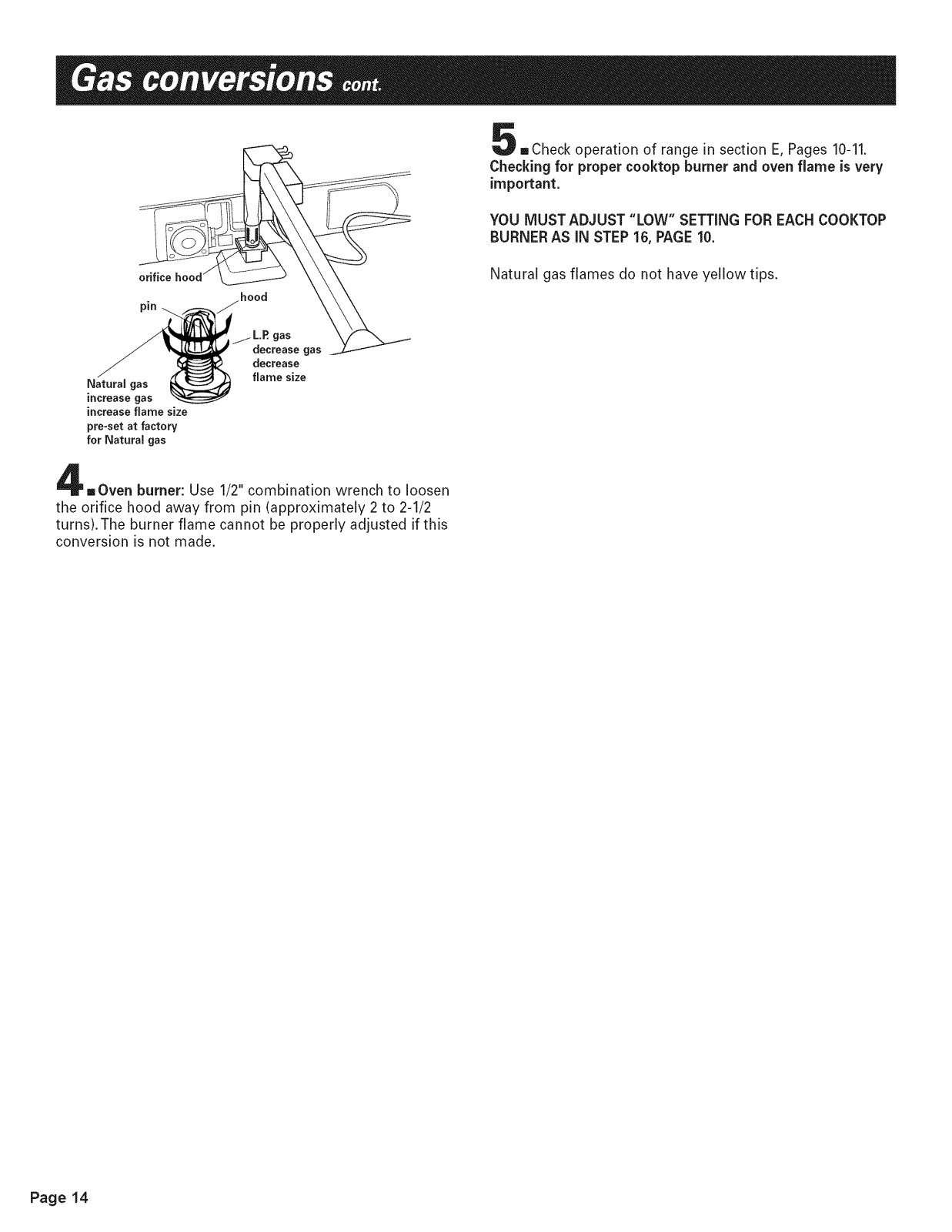

Gas conversions

[]

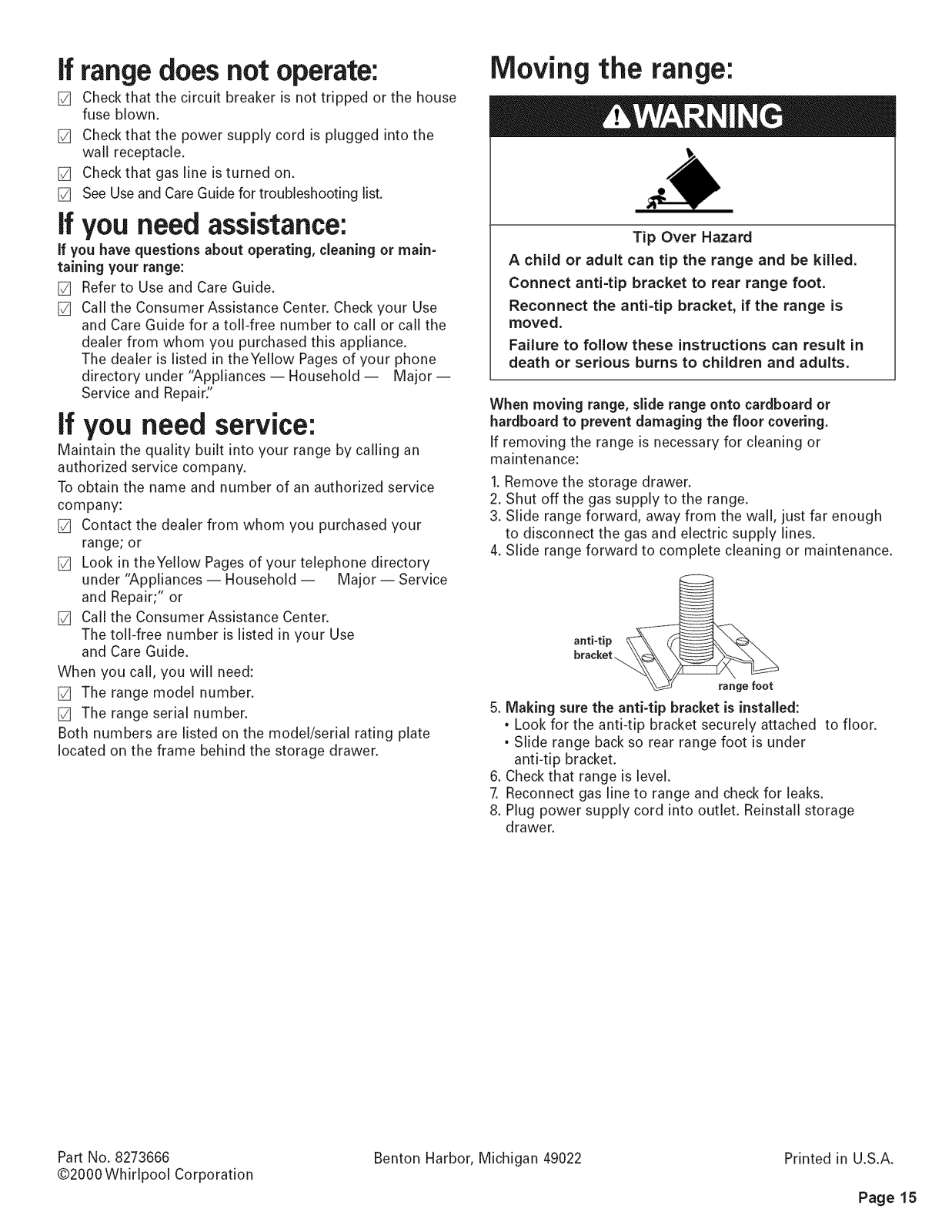

If range does not operate

[]

If you need assistance/service

[]

Moving the range

assistance:

Tip Over Hazard

A child or adult can tip the range and be
killed.

Connect anti-tip bracket to rear range foot.
Reconnect the anti=tipbracket, if the range

is moved.
Failure to follow these instructions can

result in death or serious burns to children

and adults.

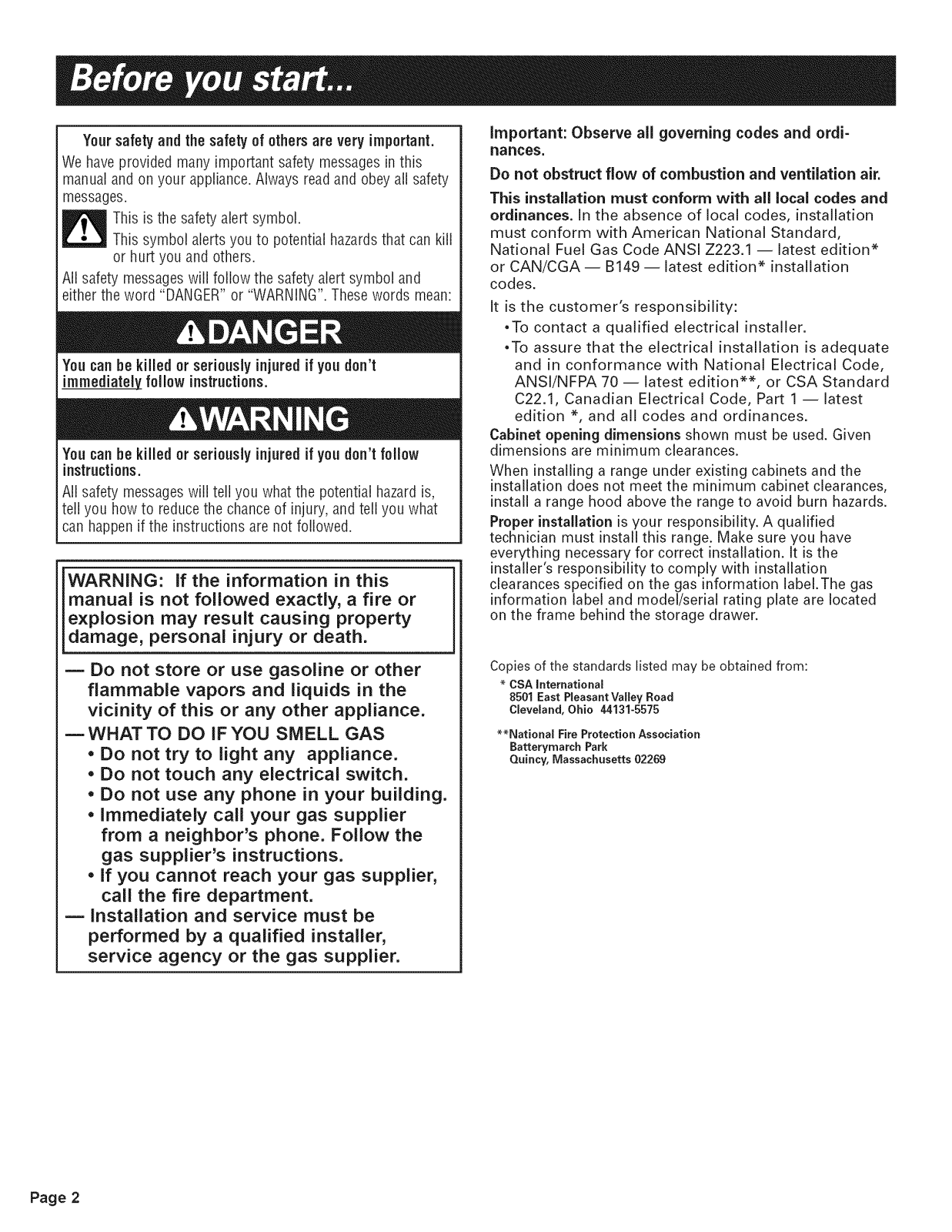

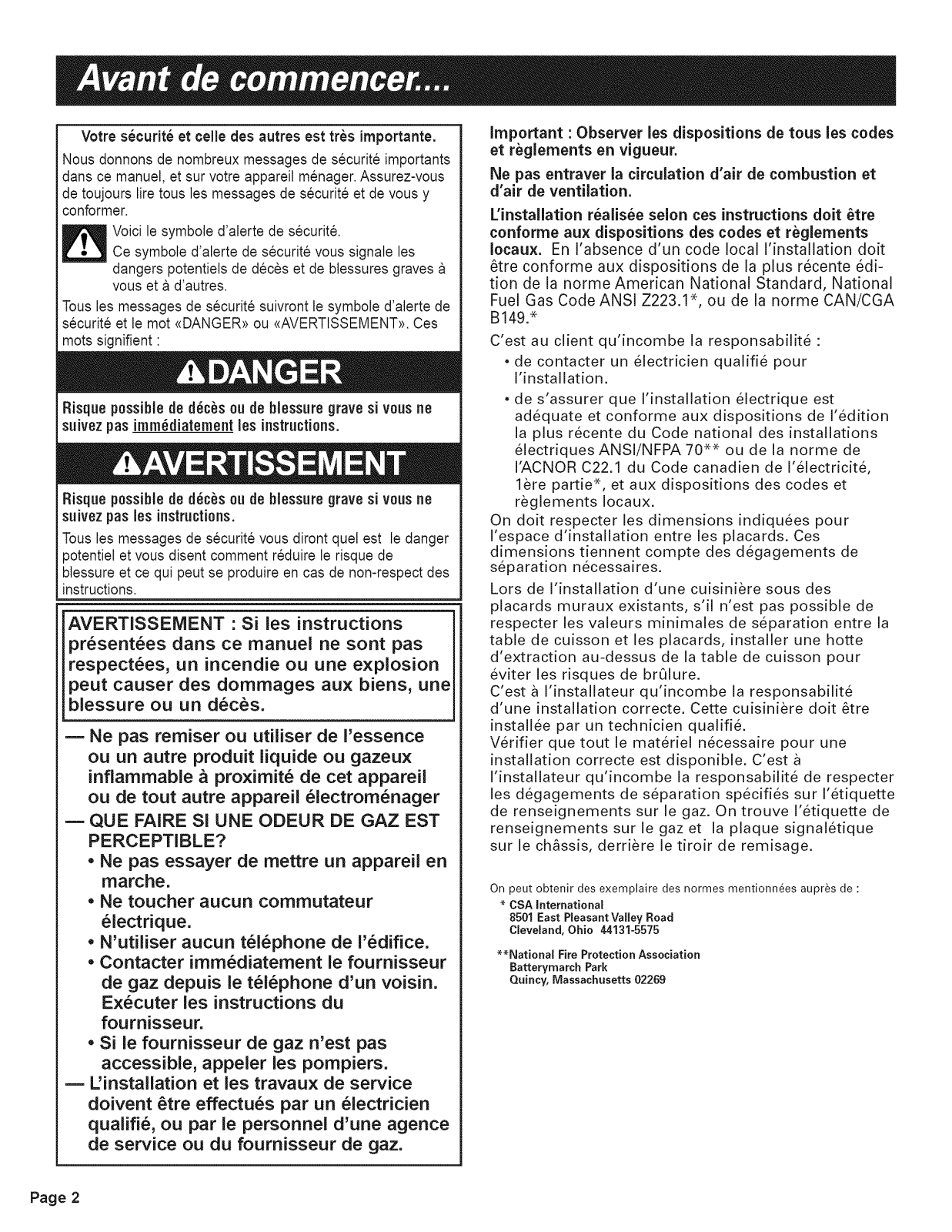

Yoursafetyand the safetyof othersare veryimportant.

Wehaveprovided many important safety messagesin this
manual and onyour appliance.Always read andobey all safety
messages.

This is the safety alert symbol.
This symbol alerts you to potential hazardsthat can kill

or hurt you and others.

All safety messageswill follow the safety alertsymbol and
either the word "DANGER"or "WARNING". Thesewords mean:

Youcan bekilled or seriously injuredif you don't
immediately follow instructions.

Youcan bekilled or seriouslyinjuredif you don'tfollow
instructions.

All safety messageswill tell you whatthe potential hazardis,
tell you how to reducethe chanceof injury, and tell you what
can happenif the instructions arenot followed.

WARNING: If the information in this

manual is not followed exactly, a fire or
explosion may result causing property

damage, personal injury or death.

important: Observe all governing codes and ordi-
nances.

Do not obstruct flow of combustion and ventilation air.
This installation must conform with all local codes and

ordinances. In the absence of local codes, installation

must conform with American National Standard,
National Fuel Gas Code ANSI Z223.1 -- latest edition*

or CAN/CGA -- B149 -- latest edition* installation
codes.

It is the customer's responsibility:

•To contact a qualified electrical installer.

•To assure that the electrical installation is adequate
and in conformance with National Electrical Code,

ANSl/NFPA 70 -- latest edition**, or CSA Standard
C22.1, Canadian Electrical Code, Part 1 -- latest

edition *, and all codes and ordinances.

Cabinet opening dimensions shown must be used. Given
dimensions are minimum clearances.

When installing a range under existing cabinets and the

installation does not meet the minimum cabinet clearances,
install a range hood above the range to avoid burn hazards.

Proper installation is your responsibility. A qualified

technician must install this range. Make sure you have
everything necessary for correct installation.It is the
installer's responsibility to comply with installation
clearances specified on the gas information label.The gas
information label and model/serial rating plate are located
on the frame behind the storage drawer.

m Do not store or use gasoline or other

flammable vapors and liquids in the
vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

, Do not try to light any appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.

• If you cannot reach your gas supplier,
call the fire department.

= Installation and service must be

performed by a qualified installer,

service agency or the gas supplier.

Copies of the standards listed may be obtained from:

CSA international
8501East PleasantValley Road

CleveEand,Ohio 44131-5575

**National Fire Protection Association

Batterymarch Park
Quincy, Massachusetts 02269

Page 2

Groundedelectricaloutletis required.

See "Electrical requirements;' Page 5.
Proper gas supply connection must be available.

See "Gas supply requirements" Page 6.

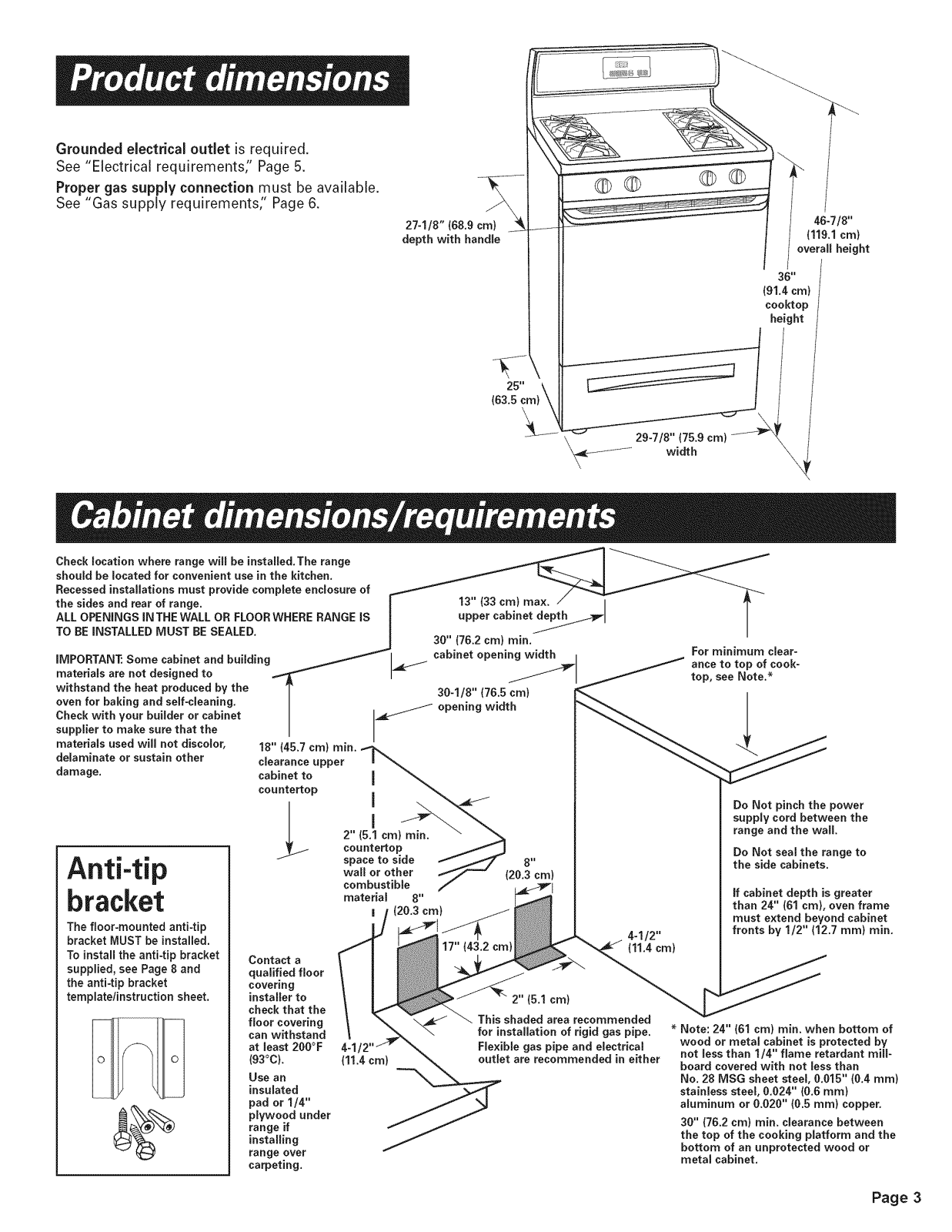

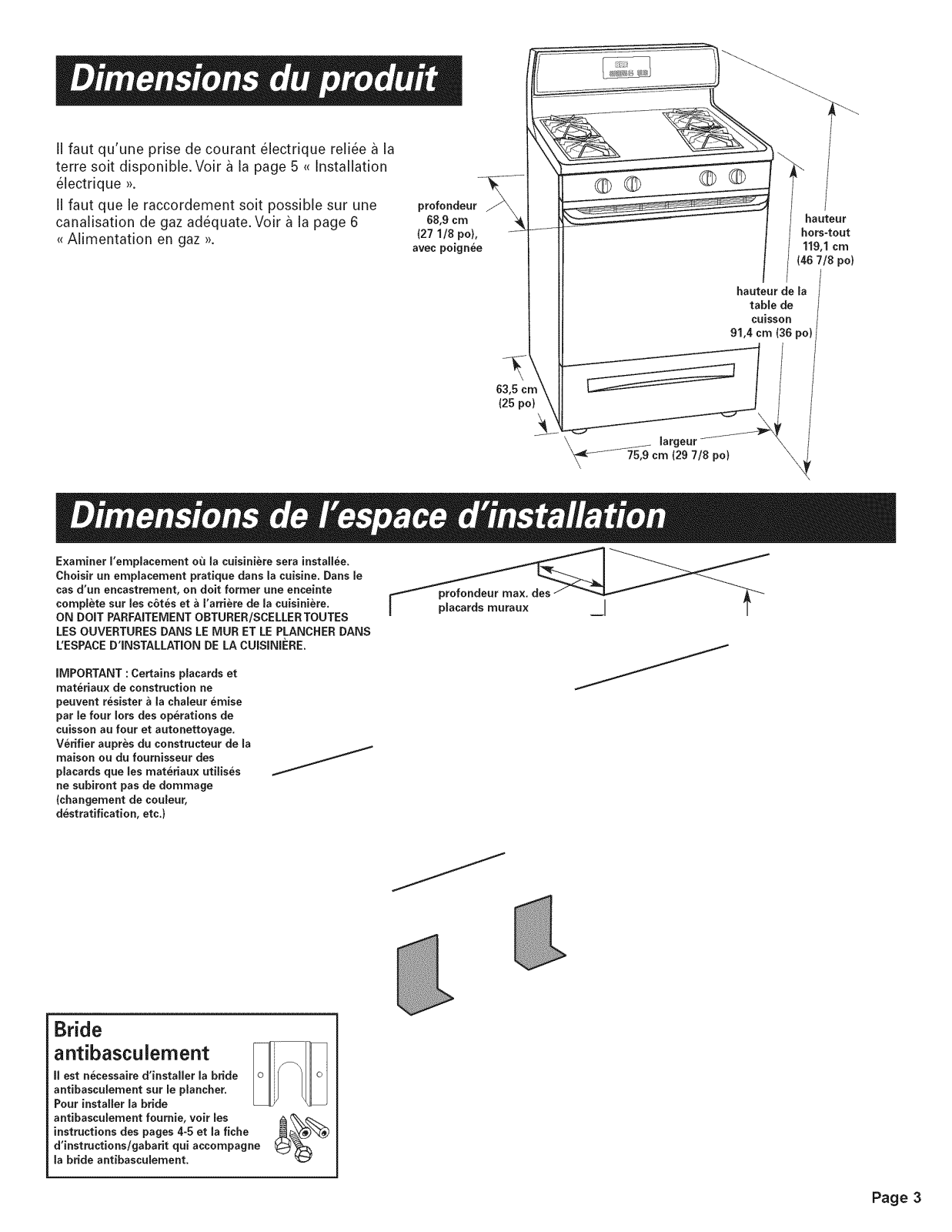

27-1/8" (68.9 cra)

depth with handle

46-7/8"

(119.1cra)

overaff height

36"

(91.4 cra)

cooktop

height

J

25"

(63.5 cra)\

,_ ........... width

Check location where range wiff be installed.The range _ _ /

should be located for convenient use in the kitchen. / _'_._ I_

Recessed installations must provide complete enclosure of t._ ........ _

2g-7/8" (76.9 cra) ....... -_

thesidesandrearofrange. I _'" I_ c_sx. _. I

ALL OPENINGS IN THE WALL OR FLOOR WHERE RANGE IS I upper cabinet dept_.4_l I

TO BE iNSTALLED MUST BE SEALED. J 30" (76.2 cra) min. _ . . . I
iMPORTANT Some cabinet and bui,ding __th _eminitmumfc'e:[ {"

• . _ P -

materials are not designed to I *
withstand the heat produced by the T 30-1/8" (76.5 cm) i

oven for baking and self-cleaning. I _° a_vv_'dth'"' I
Check with your builder or cabinet I i_ opemng w,dtn I

supplier to make sure that the I .I
materials used wii[ not discolor, _

delaraJnate or sustain other _/
damage.

18" (45.7 cra) rain.

clearance upper I

cabinetto I

countertop _

P g

Do Not pinch the power

supply cord between the

range and the wall.

Do Not seal the range to

the side cabinets.

Anti-tip
bracket

The floor-mounted anti-tip
bracket MUST be installed.

To install the anti-tip bracket
supplied, see Page 8 and
the anti-tip bracket
ternplate/instruction sheet.

Contact a
qualified floor

covering
installer to

check that the

floor covering

can withstand

at least 2OO°F
(93°C).

Use an

insulated
pad or 1/4"

plywood under
range if

installing

range over

carpeting.

material 8"

i (20.3 cra)

4-1/2"
(11.4cra)

2" (5.1 cre)

This shaded area recommended
for installation of rigid gas pipe.

Flexible gas pipe and electrica_

(11.4 cm) _ outlet are recommended in either

Note: 24" (61 cm) rain. when bottom of

wood or metal cabinet is protected by

not less than 1/4" flarae retardant reill-

board covered with not less than

No. 28 MSG sheet steel, 0.015" (0.4 ram)
stainless stee_, (}.024" (0.6 rata)
aluminura or 0.02(}" (0.5 mra) copper.

30" (76.2 cra) rain. clearence between

the top of the cooking platform and the

bottom of an unprotected wood or

metal cabinet.

if cabinet depth is greater
than 24" (61 cra), oven frame
must extend beyond cabinet
fronts by 1/2" (12.7 mm) rein,

q

Page 3

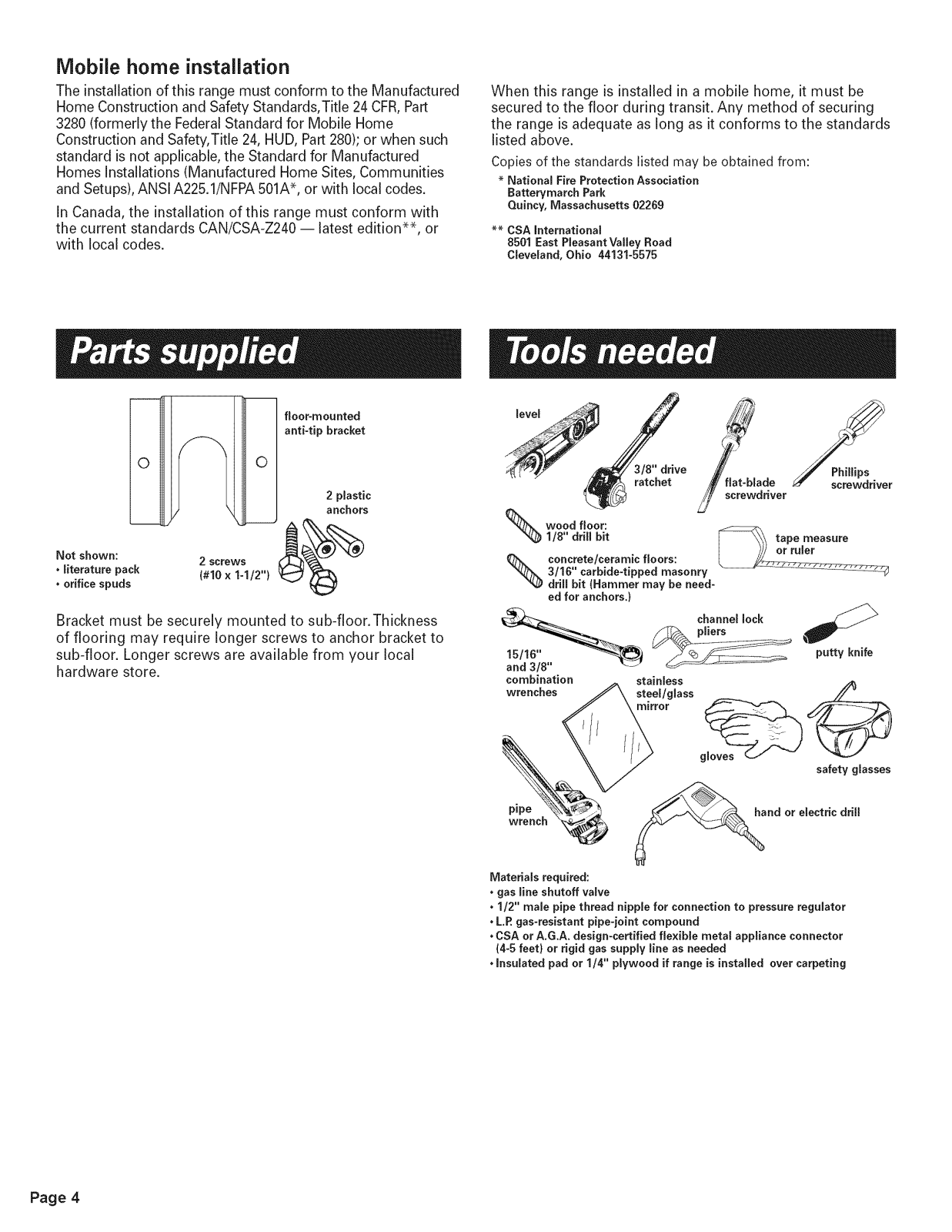

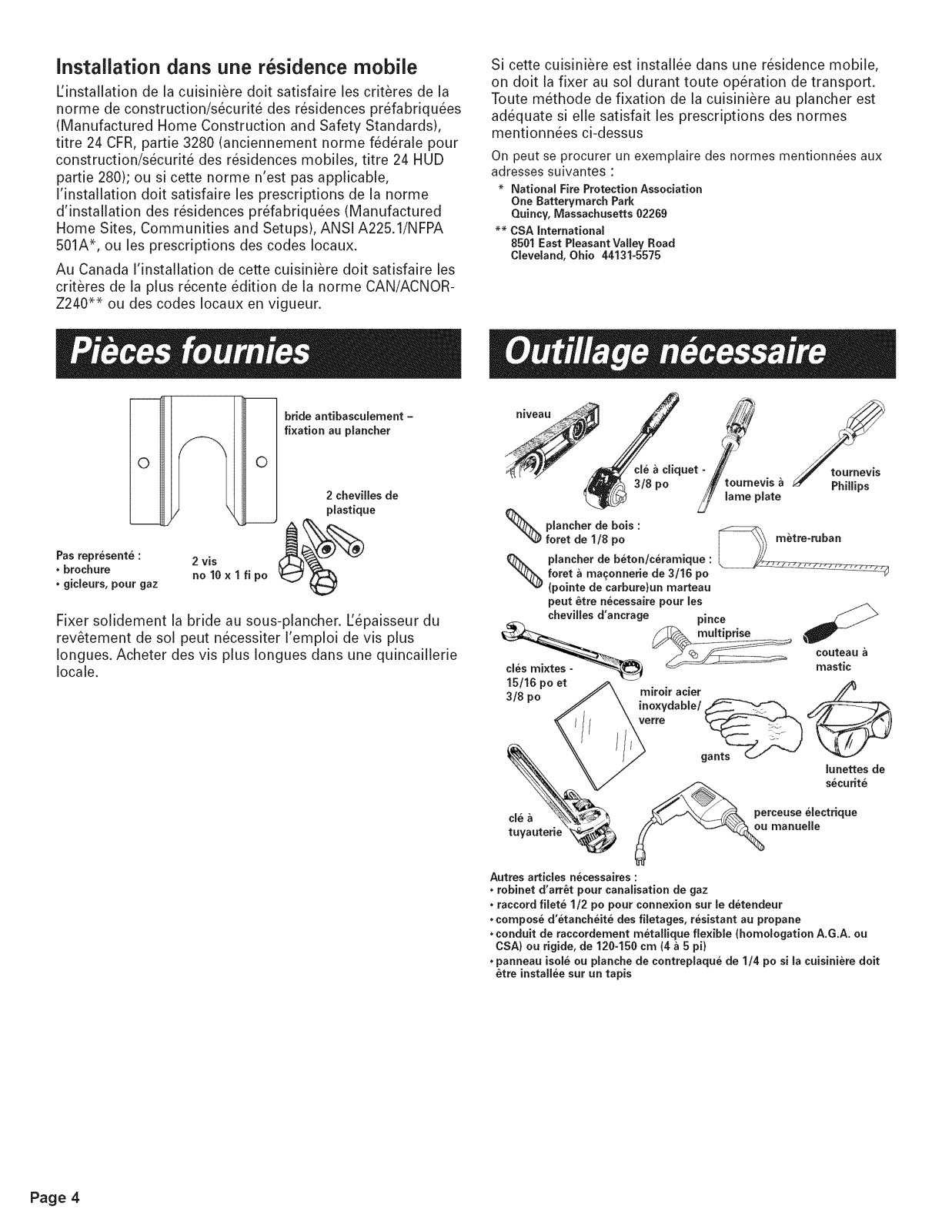

Mobile home installation

The installationof this range must conform to the Manufactured
Home Construction and Safety Standards,Title 24 CFR,Part

3280 (formerly the Federal Standard for Mobile Home
Construction and Safety,Title 24,HUD, Part280);or when such

standard is not applicable, the Standard for Manufactured
Homes Installations(Manufactured Home Sites,Communities

and Setups),ANSIA225.1/NFPA501A*, or with local codes.
In Canada, the installationof this range must conform with

the current standards CAN/CSA-Z240 -- latest edition **, or
with local codes.

floor-mounted
anti-tip bracket

0

2 plastic

anchors

Not shown:

• literature pack

• orifice spuds

Bracket must be securely mounted to sub-floor.Thickness
of flooring may require longer screws to anchor bracket to
sub-floor. Longer screws are available from your local

hardware store.

2 screws_ __%

1#10x 1-1/2"1

When this range is installedin a mobile home, it must be
secured to the floor during transit. Any method of securing

the range is adequate as long as itconforms to the standards

listed above.

Copies of the standards listed may be obtained from:

National Fire Protection Association

Ratter/march Park
Quincy, Massachusetts 02269

_ CSA Intereational

8501 East PleasantValley Road

Cleveland, Ohio 44131-5575

e t-blade screwdriver

J screwdriver

wood floor:

1/8" drill bit [_ tape measure

3/16" carbide-tipped masonry \ _ ,_,,_,,_-7_-_,_ _

concrete/ceramicfloors: I 22orruler

drill bit (Hammer may be need-
ed for anchors.}

_ pliers

channel lock

and3,8....

combination stainless

wrenches steel/glass

mirror

putty knife

Page 4

safety glasses

pipe
wrench

nd or electric drill

Materials required:

• gas line shutoff valve

• 1/2" male pipe thread nipple for connection to pressure regulator

• L.P gas-resistant pipe-joint compound

• CSA or A.G.A. design-certified flexible metal appliance connector
(4-5 feet) or rigid gas supply line as needed

• Insulated pad or 1/4" plywood if range is installed over carpeting

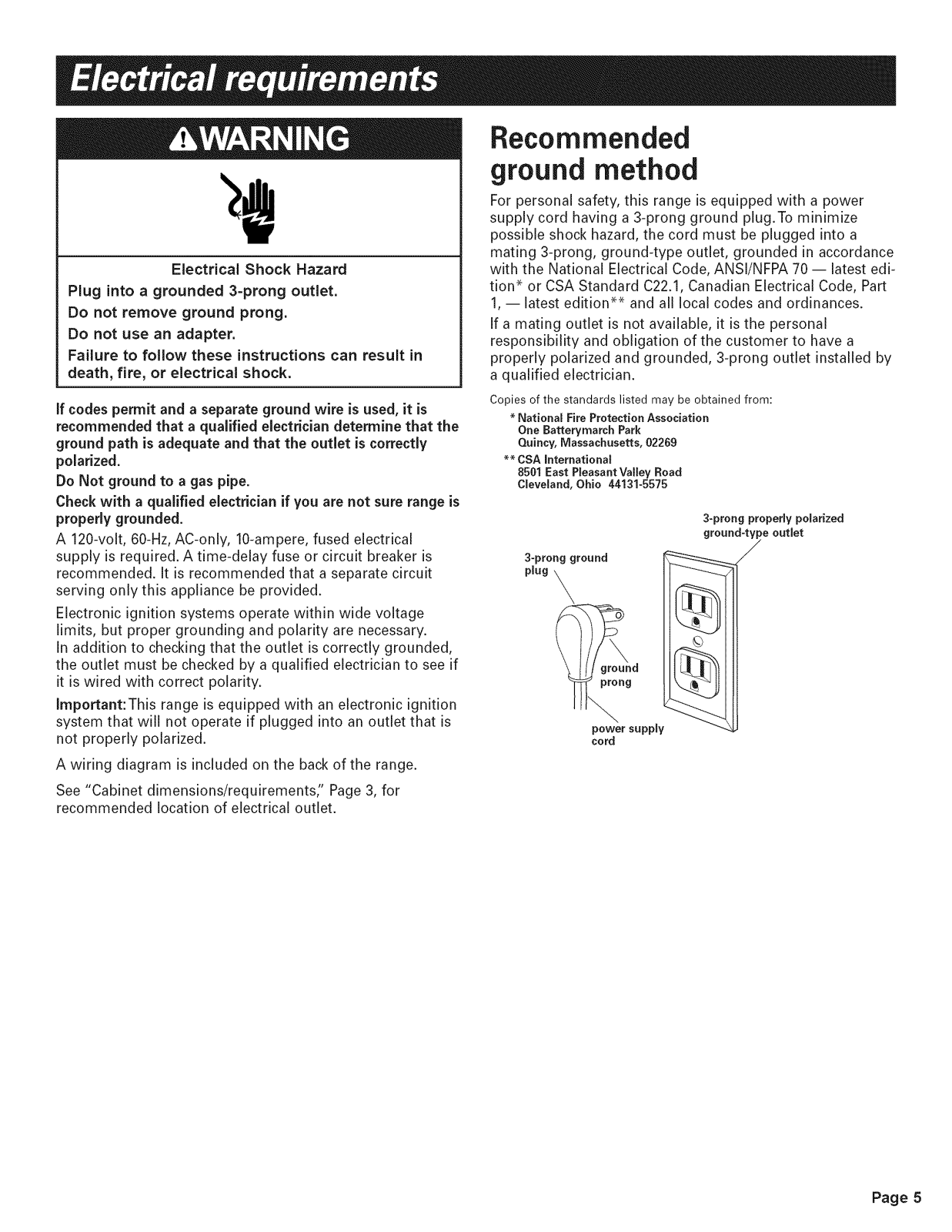

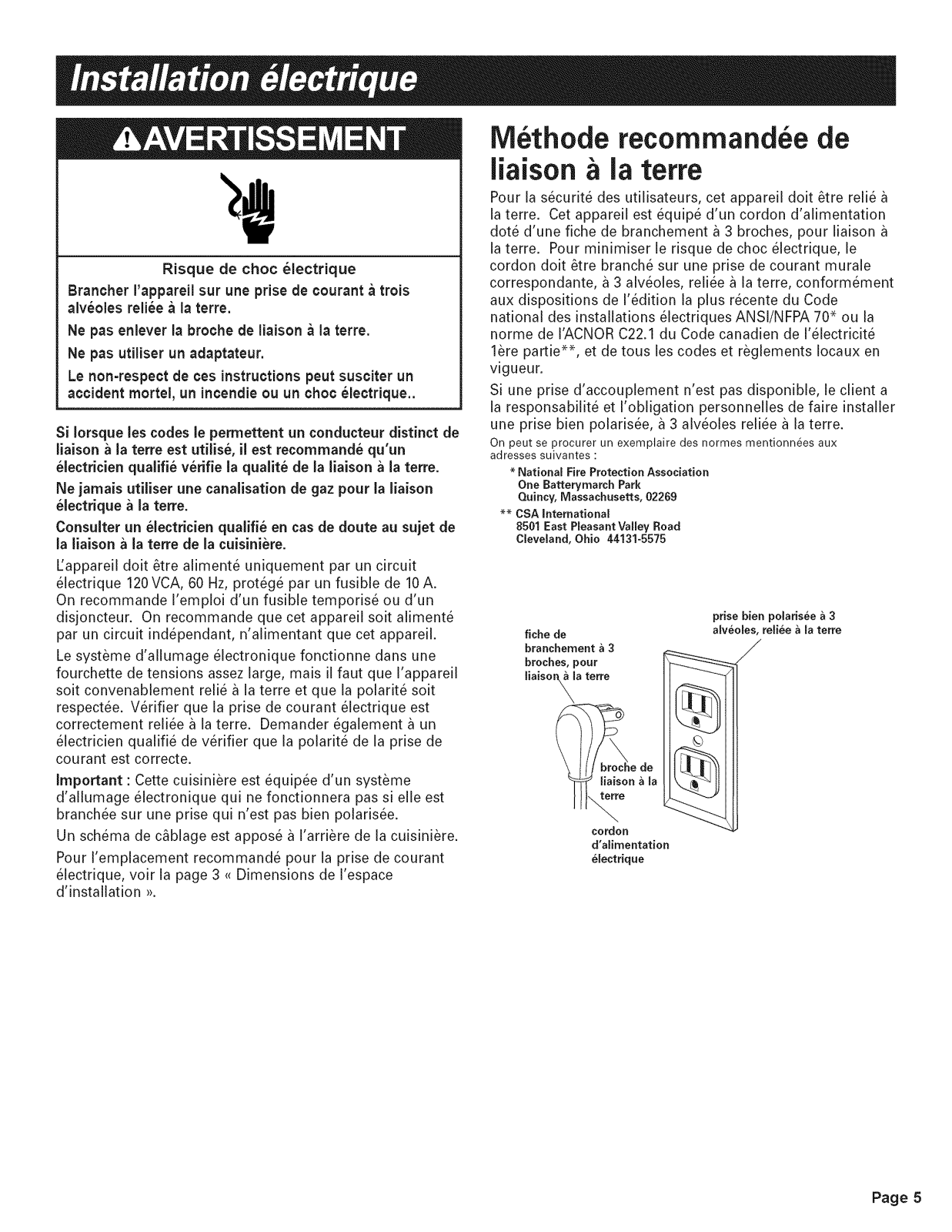

ElectricalShockHazard

Pluginto a grounded 3-prong outlet.

Do not remove ground prong.
Do not use an adapter.

Failure to follow these instructions can result in
death, fire, or electrical shock.

if codes permit and a separate ground wire is used, it is

recommended that a qualified electrician determine that the

ground path isadequate and that the outlet is correctly
polarized.

Do Not ground to a gas pipe.
Check with a qualified electrician if you are not sure range is

properly grounded.

A 120-volt, 60-Hz, AC-only, 10-ampere, fused electrical
supply is required. A time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit
serving only this appliance be provided.

Electronic ignition systems operate within wide voltage
limits, but proper grounding and polarity are necessary.
In addition to checking that the outlet iscorrectly grounded,

the outlet must be checked by a qualified electrician to see if

it is wired with correct polarity.
Important:This range isequipped with an electronic ignition

system that will not operate if plugged into an outlet that is
not properly polarized.

A wiring diagram is included on the back of the range.
See "Cabinet dimensions/requirements" Page3, for

recommended location of electrical outlet.

Recommended

ground method

For personal safety, this range isequipped with a power
supply cord having a 3-prong ground plug.To minimize
possible shock hazard, the cord must be plugged into a

mating 3-prong, ground-type outlet, grounded in accordance
with the National Electrical Code, ANSI/NFPA 70 -- latest edi-

tion* or CSA Standard C22.1, Canadian Electrical Code, Part

1,-- latest edition ** and all local codes and ordinances.

If a mating outlet is not available, it is the personal
responsibility and obligation of the customer to have a

properly polarized and grounded, 3-prong outlet installed by
a qualified electrician.

Copies of the standards listed may be obtained from:

* National Fire Protection Association

One Ratterymarch Park
Quincy, Massachusetts, 02269

_ CSA International

8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575

3-prong properly polarized

ground-type outlet

3-prong ground

plug _

power supply

cord

/

Page 5

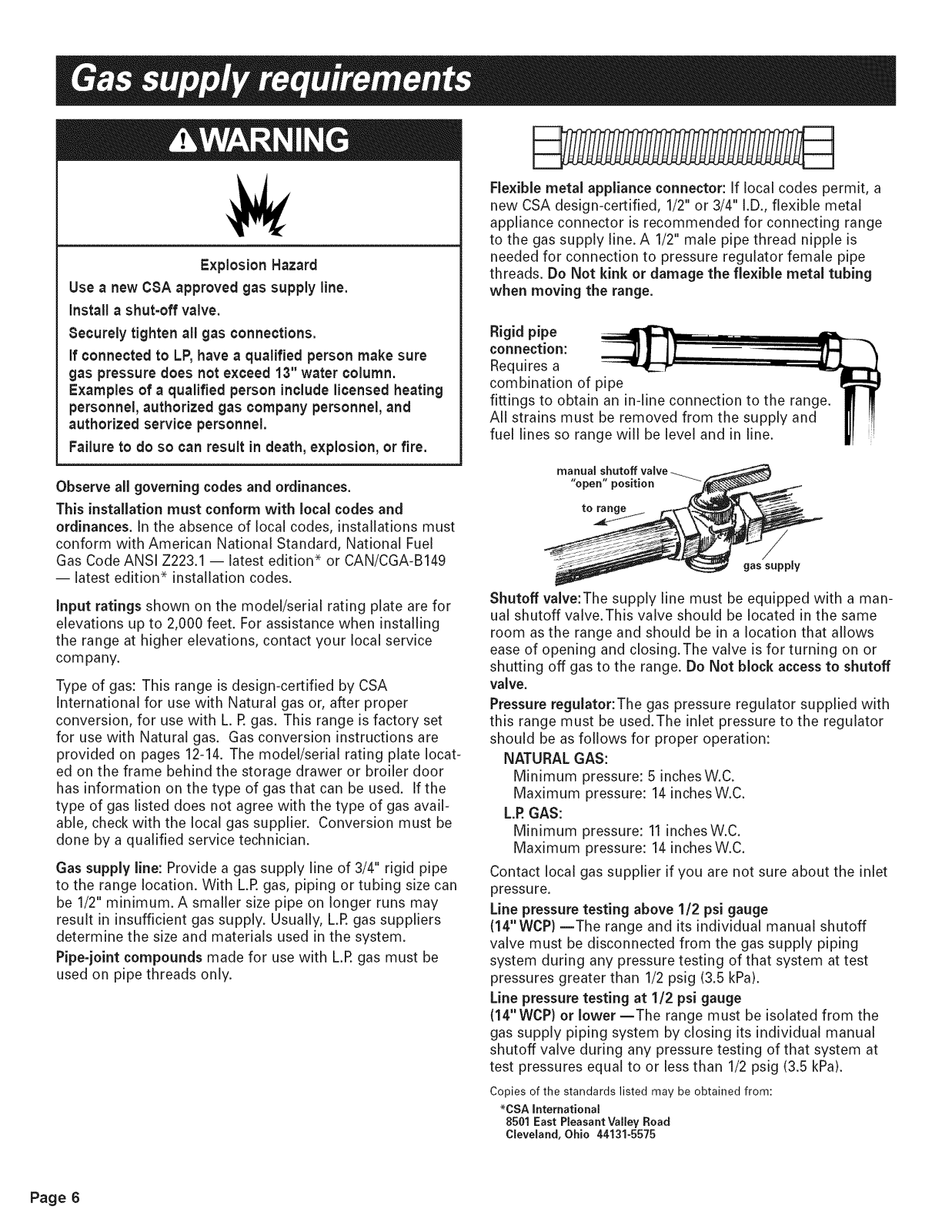

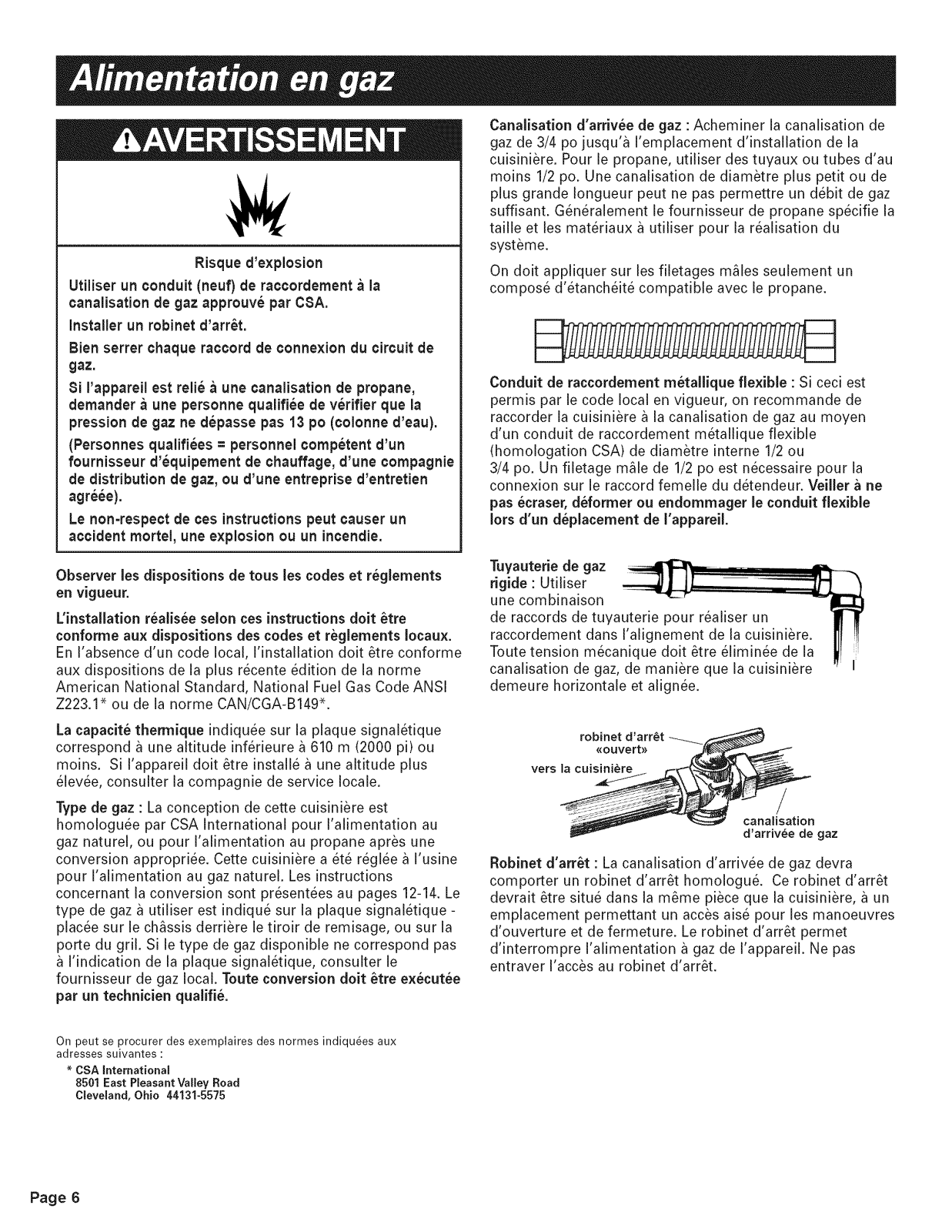

ExplosionHazard

Usea new C8A approved gas supply line.

Install a shut=offvalve.
Securely tighten all gas connections.

if connected to LP,have a qualified person make sure
gas pressure does not exceed 13" water column.
Examples of a qualified person include licensed heating
personnel, authorized gas company personnel, and
authorized service personnel.

Failure to do so can result in death,explosion, or fire.

Observe all governing codesand ordinances.
This installation must conform with localcodes and

ordinances. In the absence of local codes, installations must
conform with American National Standard, National Fuel

Gas Code ANSI Z223.1 -- latest edition* or CAN/CGA-B149

-- latest edition* installationcodes.

Input ratings shown on the model/serial rating plate are for
elevations up to 2,000 feet. For assistance when installing
the range at higher elevations, contact your local service

company.
Type of gas: This range isdesign-certified by CSA

International for use with Natural gas or, after proper
conversion, for use with L. R gas. This range is factory set
for use with Natural gas. Gas conversion instructionsare
provided on pages 12-14. The model/serial rating plate locat-
ed on the frame behind the storage drawer or broiler door
has information on the type of gas that can be used. If the
type of gas listed does not agree with the type of gas avail-
able, check with the local gas supplier. Conversion must be
done by a qualified service technician.

Gas supply line: Provide a gas supply line of 3/4" rigid pipe
to the range location. With L.R gas, piping or tubing sizecan

be 1/2" minimum. A smaller size pipe on longer runs may
result in insufficient gas supply. Usually, LR gas suppliers

determine the size and materials used in the system.
Pipe-joint compounds made for use with L.R gas must be

used on pipe threads only.

Flexible metal appliance connector: If local codes permit, a
new CSA design-certified, 1/2" or 3/4" I.D.,flexible metal

appliance connector is recommended for connecting range
to the gas supply line. A 1/2" male pipe thread nipple is

needed for connection to pressure regulator female pipe
threads. Do Not kink or damage the flexible metal tubing
when moving the range.

Rigid pipe _. , .._

connection:----111I! - -

Requires a _
combination of pipe
fittings to obtain an in-line connection to the range. _
All strains must be removed from the supply and _ll 'll
fuel lines so range will be level and in line. _I

manual shutoff valve __

"open" position ._ _.,_ _

Shutoff valve:The supply line must be equipped with a man-
ual shutoff valve.This valve should be located in the same

room asthe range and should be in a location that allows
ease of opening and closing.The valve is for turning on or
shutting off gas to the range. Do Not block access to shutoff

valve.

Pressure regulator:The gas pressure regulator supplied with
this range must be used.The inlet pressure to the regulator
should be as follows for proper operation:

NATURAL GAS:

Minimum pressure: 5 inchesW.C.
Maximum pressure: 14 inchesW.C.

L.R GAS:

Minimum pressure: 11inchesW.C.
Maximum pressure: 14 inchesW.C.

Contact local gas supplier if you are not sure about the inlet
pressure.

Line pressure testing above 1/2 psi gauge
(14" WCP)--The range and its individual manual shutoff
valve must be disconnected from the gas supply piping
system during any pressure testing of that system at test
pressures greater than 1/2 psig (3.5 kPa).

Line pressure testing at 1/2 psi gauge
(14"WCP} or lower--The range must be isolatedfrom the
gas supply piping system by closing its individual manual
shutoff valve during any pressure testing of that system at
test pressures equal to or lessthan 1/2 psig (3.5 kPa).

Copies of the standards listed may be obtained from:

_CSA international

8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575

Page 6

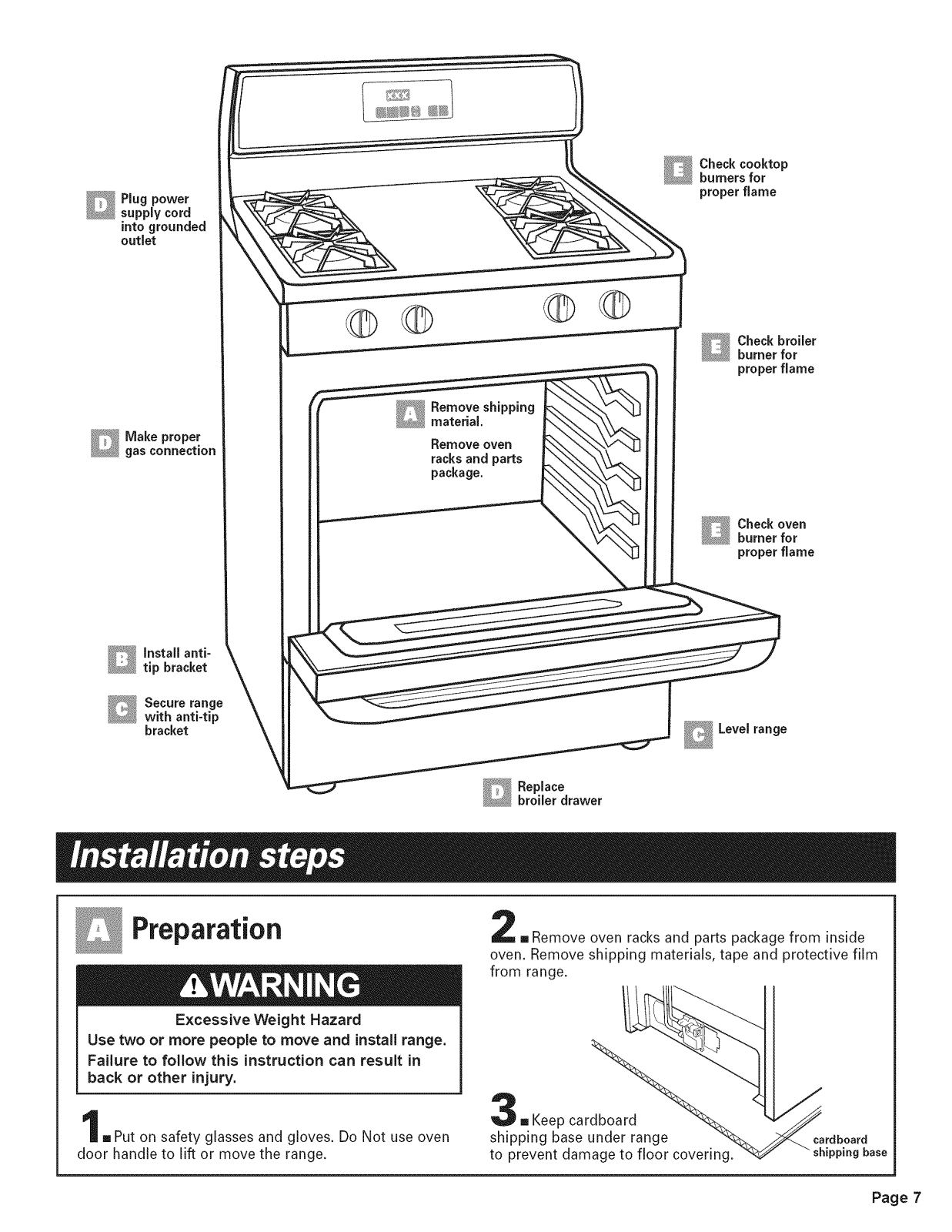

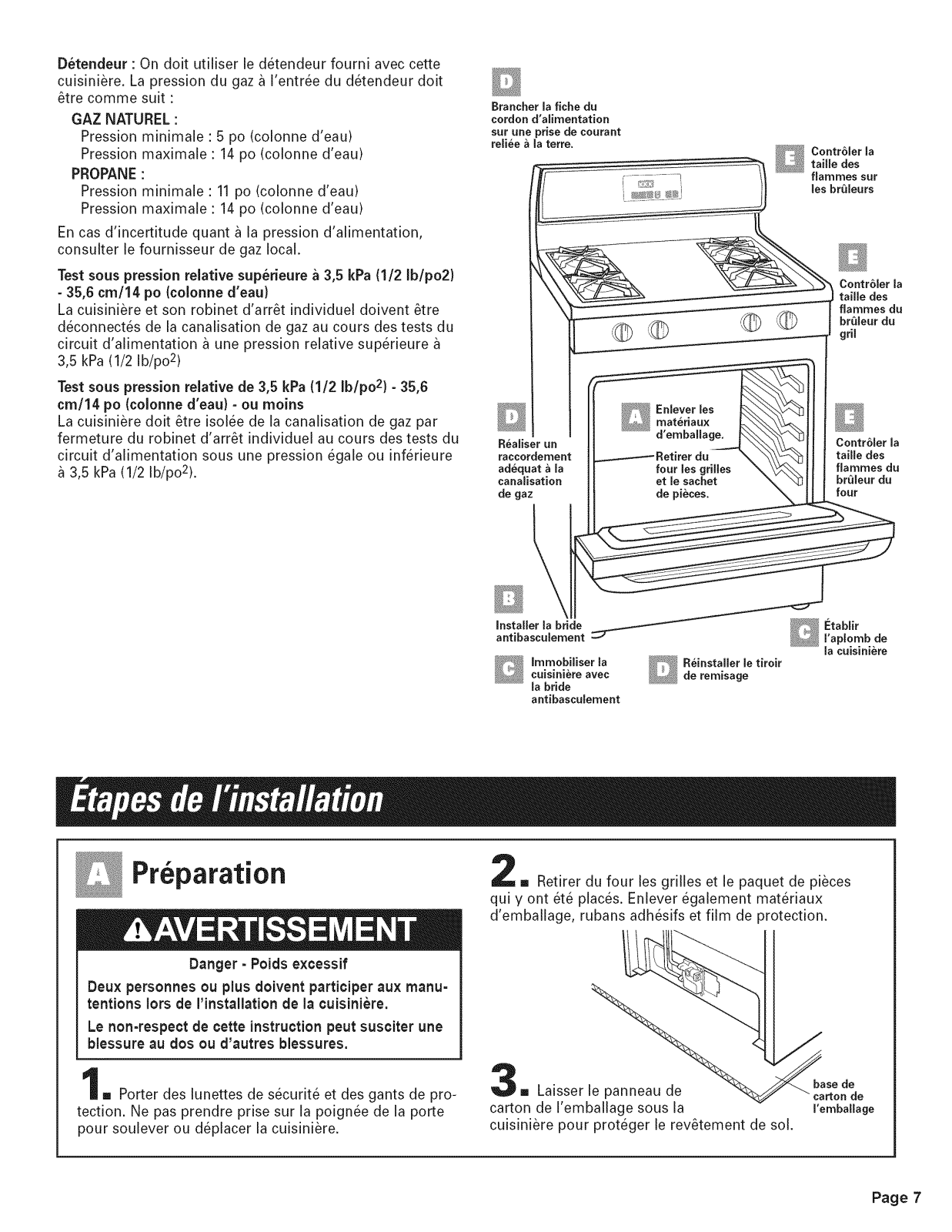

into grounded

outlet

® Check cooktop

burnersfor

proper flame

__' Make proper
_gas connection

Install anti-
tip bracket

_ Secure range

with anti-tip

bracket

©

©

Remove oven
racksand parts

package.

®

®

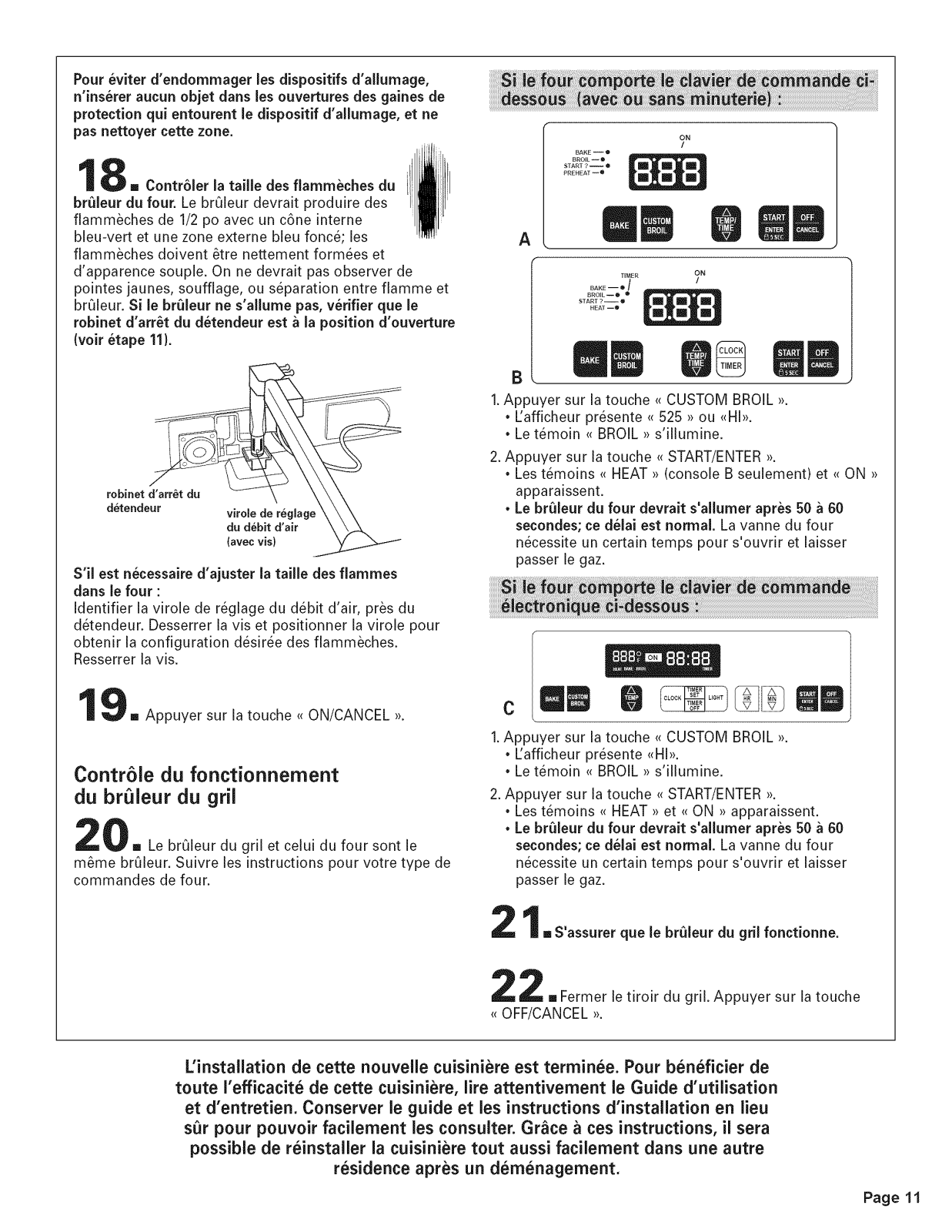

Check broiler

burner for
proper flame

'_ Check oven

burner for

proper flame

Levelrange

Preparation

Excessive Weight Hazard

Use two or more people to move and install range.
Failure to follow this instruction can result in

back or other injury.

-, Put on safety glasses and gloves. Do Not use oven

door handle to lift or move the range.

_;! Replace
_ broiler drawer

[] Remove oven racks and parts package from inside
oven. Remove shipping materials, tape and protective film
from range.

,, Keep cardboard
shipping base under range

to prevent damage to floor covering.

cardboard
shipping base

Page 7

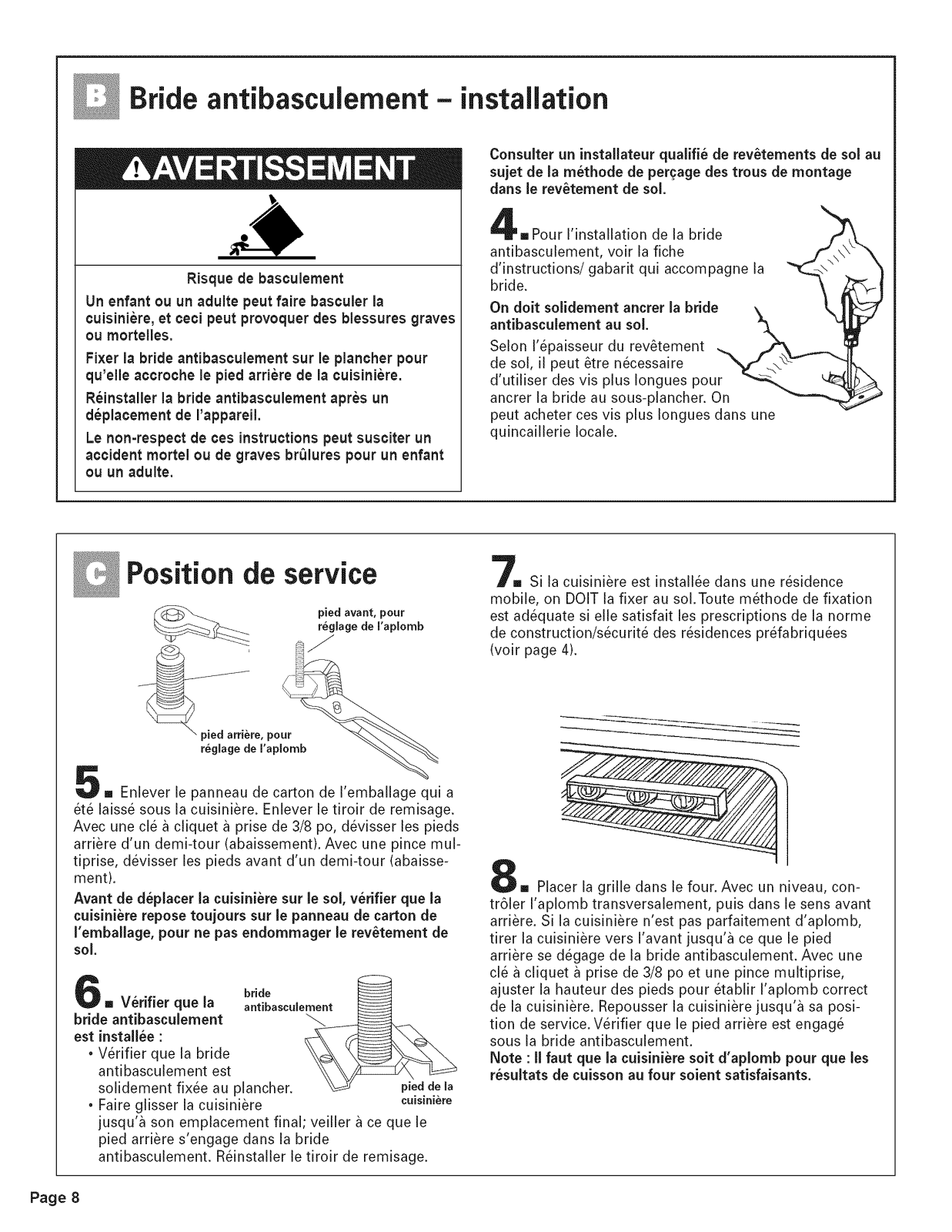

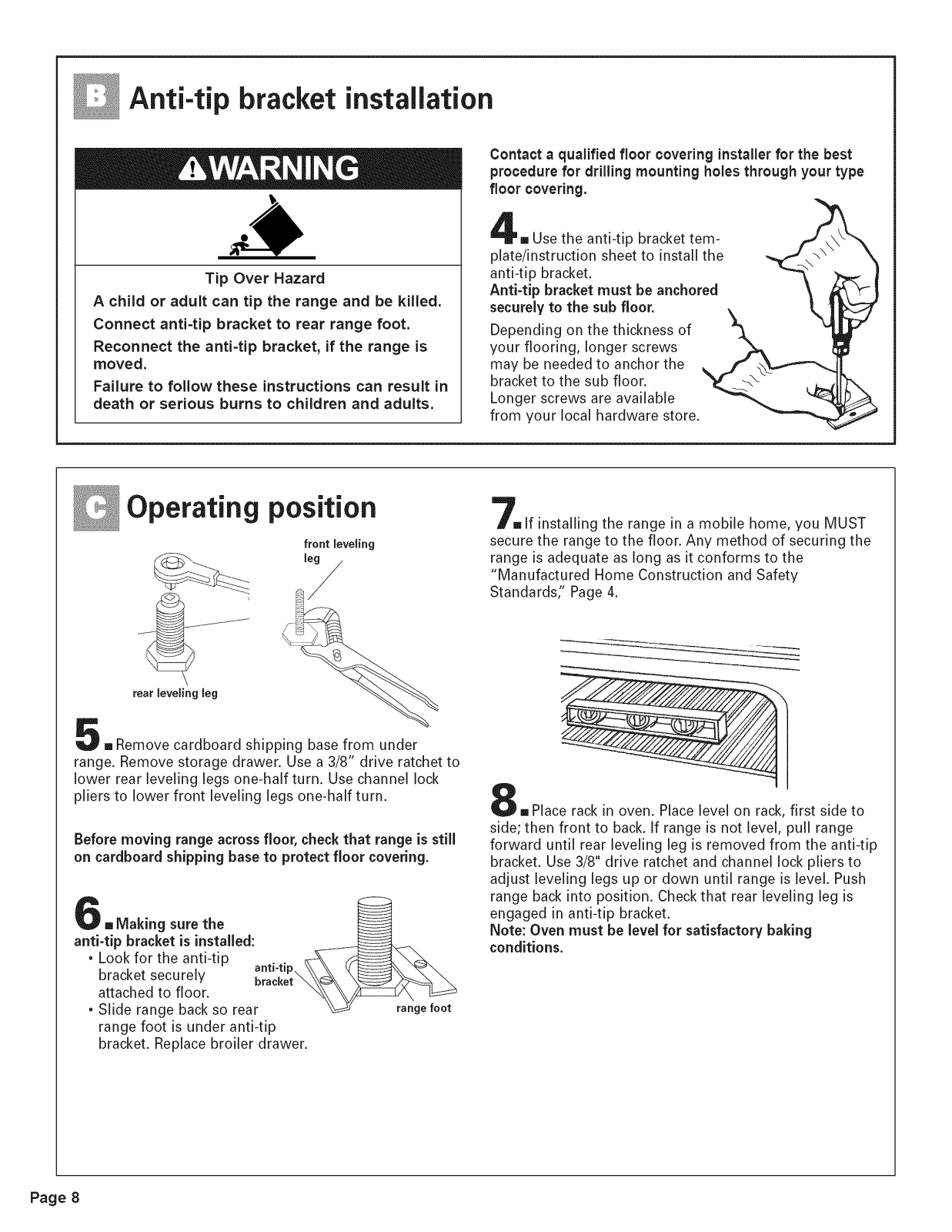

Anti-tip bracket installation

Tip Over Hazard

A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.

Reconnect the anti-tip bracket, if the range is

moved.
Failure to follow these instructions can result in

death or serious burns to children and adults.

Contact a qualified floor covering installer for the best
procedure for drilling mounting holes through your type
floor covering.

.. Use the anti-tip bracket tem-
plate/instruction sheet to installthe

anti-tip bracket.
Anti-tip bracket must be anchored
securelyto the sub floor.

Depending on the thickness of
your flooring, longer screws

may be needed to anchor the
bracket to the sub floor.

Longer screws are available
from your local hardware store.

Operating position

front leveling

leg /

rear leveling leg

mRemove cardboard shipping base from under
range. Remove storage drawer. Use a 3/8" drive ratchet to
lower rear leveling legs one-half turn. Use channel lock
pliers to lower front leveling legs one-half turn.

Before moving range across floor, checkthat range is still

on cardboard shipping base to protect floor covering.

anti-tip bracket is installed:
6m Making sure the \___

. Look for the anti-tip anti-tip

bracket securely bracket
attached to floor. __

• Slide range back so rear _ range foot
range foot is under anti-tip

bracket. Replace broiler drawer.

mlf installing the range in a mobile home, you MUST

secure the range to the floor. Any method of securing the
range is adequate as long as itconforms to the
"Manufactured Home Construction and Safety
Standards:' Page 4.

,, Place rack in oven. Place level on rack, first side to

side; then front to back. If range is not level, pull range
forward until rear leveling leg is removed from the anti-tip

bracket. Use 3/8" drive ratchet and channel lock pliers to
adjust leveling legs up or down until range is level. Push

range back into position. Checkthat rear leveling leg is
engaged in anti-tip bracket.

Note: Oven must be level for satisfactory baking
conditions.

Page 8

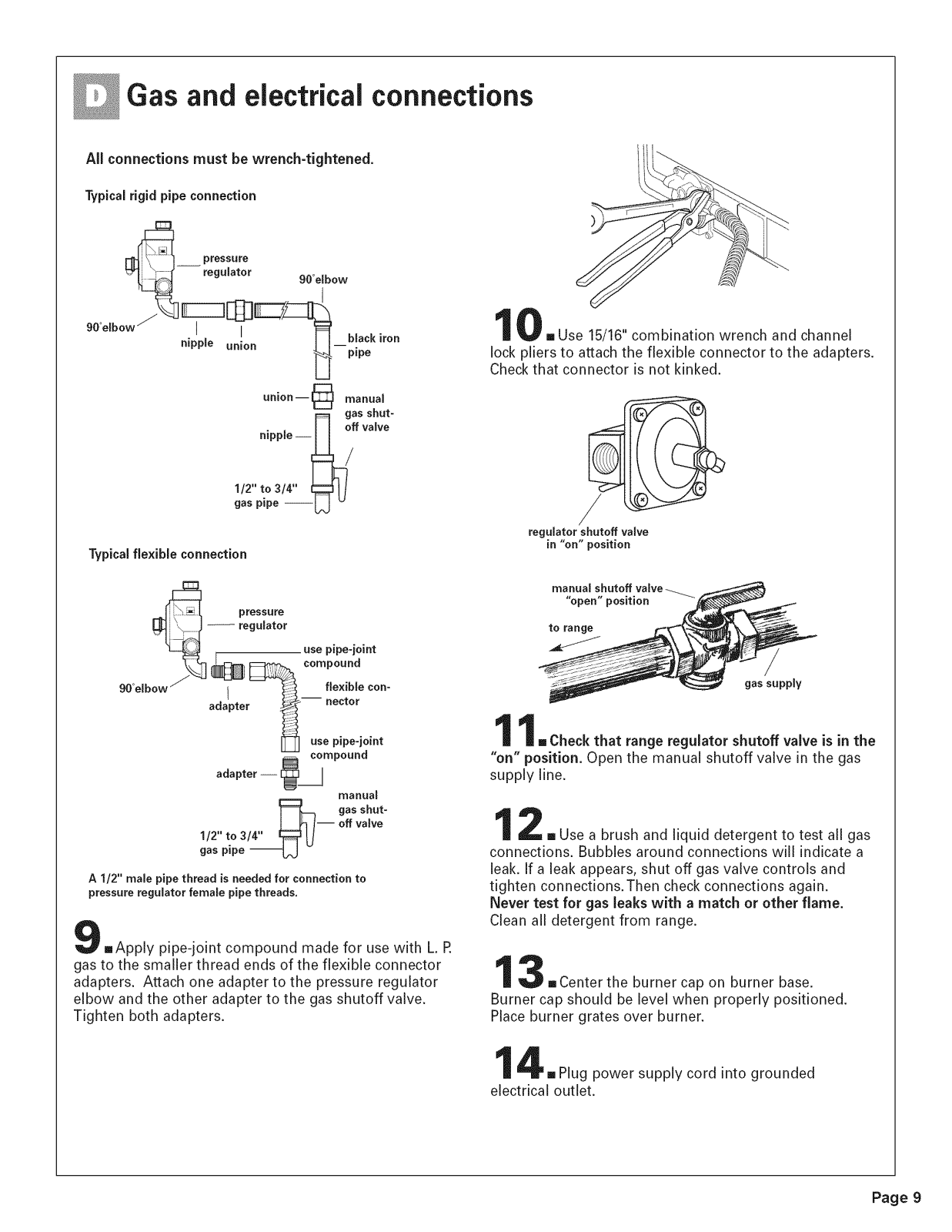

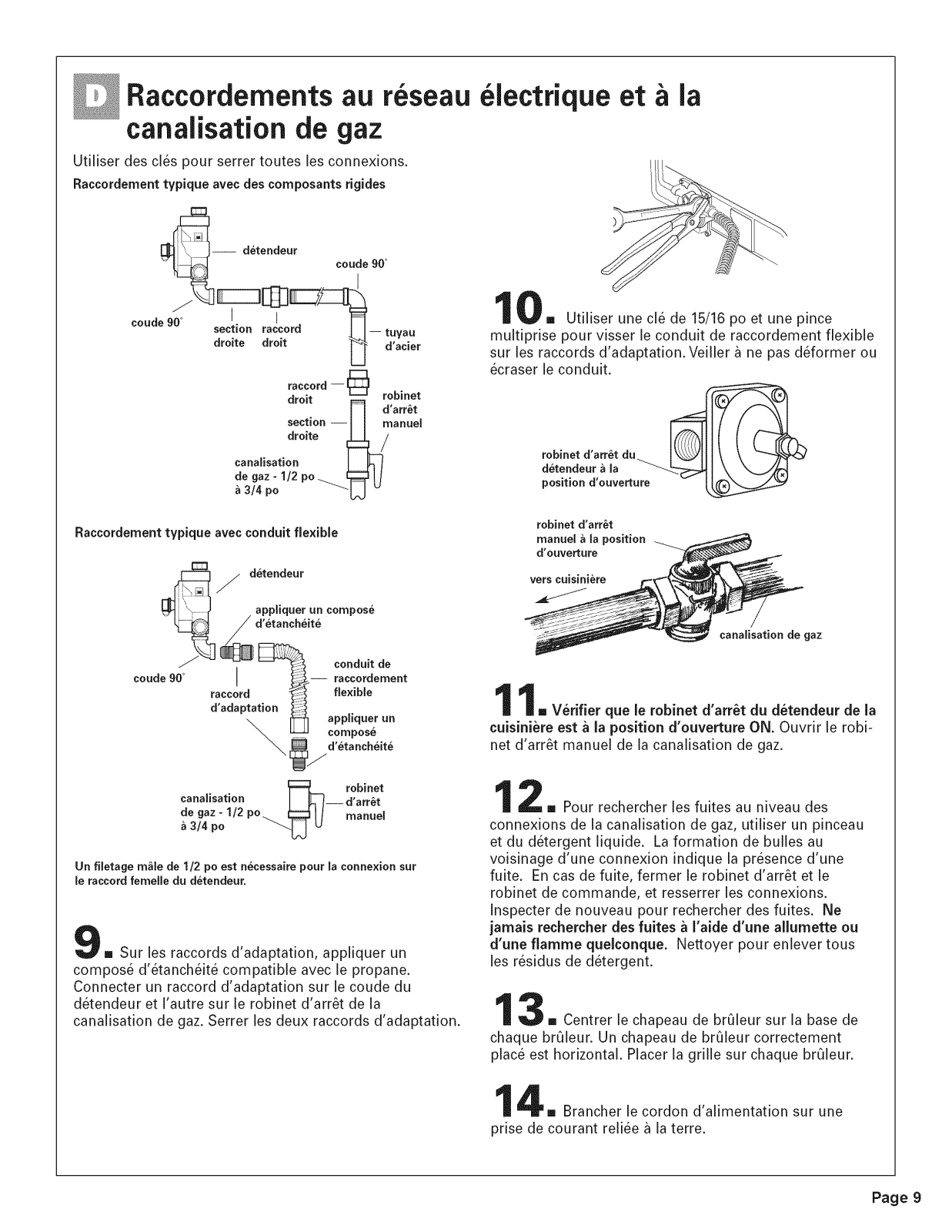

Gas and electrical connections

All connections must be wrench-tightened.

Typicalrigidpipeconnection

__ pressure

regulator 90Oelbow

90°elb°w . I I _ blackiron

nipple union _--pipe

union-- _ manual

gas shut-

nipple --_ff valve

1/2"to3/4"

gas pipe --L_

Typicalflexible connection

pressure

-- regulator

90°elb°w adalpter_ '2::ibol: c°n"

L_ use pipe-joint

compound

adapter -- E_

manual

gas shut-

t-- Off valve

1/2"t.o3/4" q'L/

gas pipe

A 1/2" male pipe thread is needed for connection to
pressure regulator female pipe threads,

O[] Use 15/16"combination wrench and channel

lock pliers to attach the flexible connector to the adapters.
Checkthat connector isnot kinked.

/

regulator shutoff valve

in "on" position

to range

gas supply

" Check that range regulator shutoff valve isin the
"on" position. Open the manual shutoff valve in the gas
supply line.

,, Use a brush and liquid detergent to test all gas

connections. Bubbles around connections will indicate a
leak. If a leak appears, shut off gas valve controls and

tighten connections.Then check connections again.
Never test for gas leaks with a match or other flame,
Clean all detergent from range.

[]Apply pipe-joint compound made for use with L. R
gas to the smaller thread ends of the flexible connector
adapters. Attach one adapter to the pressure regulator
elbow and the other adapter to the gas shutoff valve.
Tighten both adapters.

[]Center the burner cap on burner base.
Burner cap should be level when properly positioned.
Place burner grates over burner.

[] Plug power supply cord into grounded

electrical outlet.

Page 9
