User Manual
www.whirlpool.com.sg.
ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2
ENGLISH
USER MANUAL
EN
THANK YOU FOR BUYING AN WHIRLPOOL PRODUCT..
For even more complete user support, register your appliance at www..whirlpool..com..sg..
Index
Health and Safety guide
SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
IMPORTANT TO BE READ AND OBSERVE.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
User manual
PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
APPLIANCE.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 CONTROL PANEL.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 DETERGENT DISPENSER.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 TECHNICAL SPECIFICATIONS FOR THE WATER CONNECTION.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 DOOR .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
HOW TO USE THE APPLIANCE.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
FIRST TIME USE .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 DAILY USE .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 HINTS AND TIPS.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 PROGRAMME CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 PROGRAMMES.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 OPTIONS AND FUNCTIONS.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
CLEANING AND MAINTENANCE.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
CLEANING THE WASHER DRYER EXTERNALLY.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
CHECKING THE WATER INTAKE HOSE.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

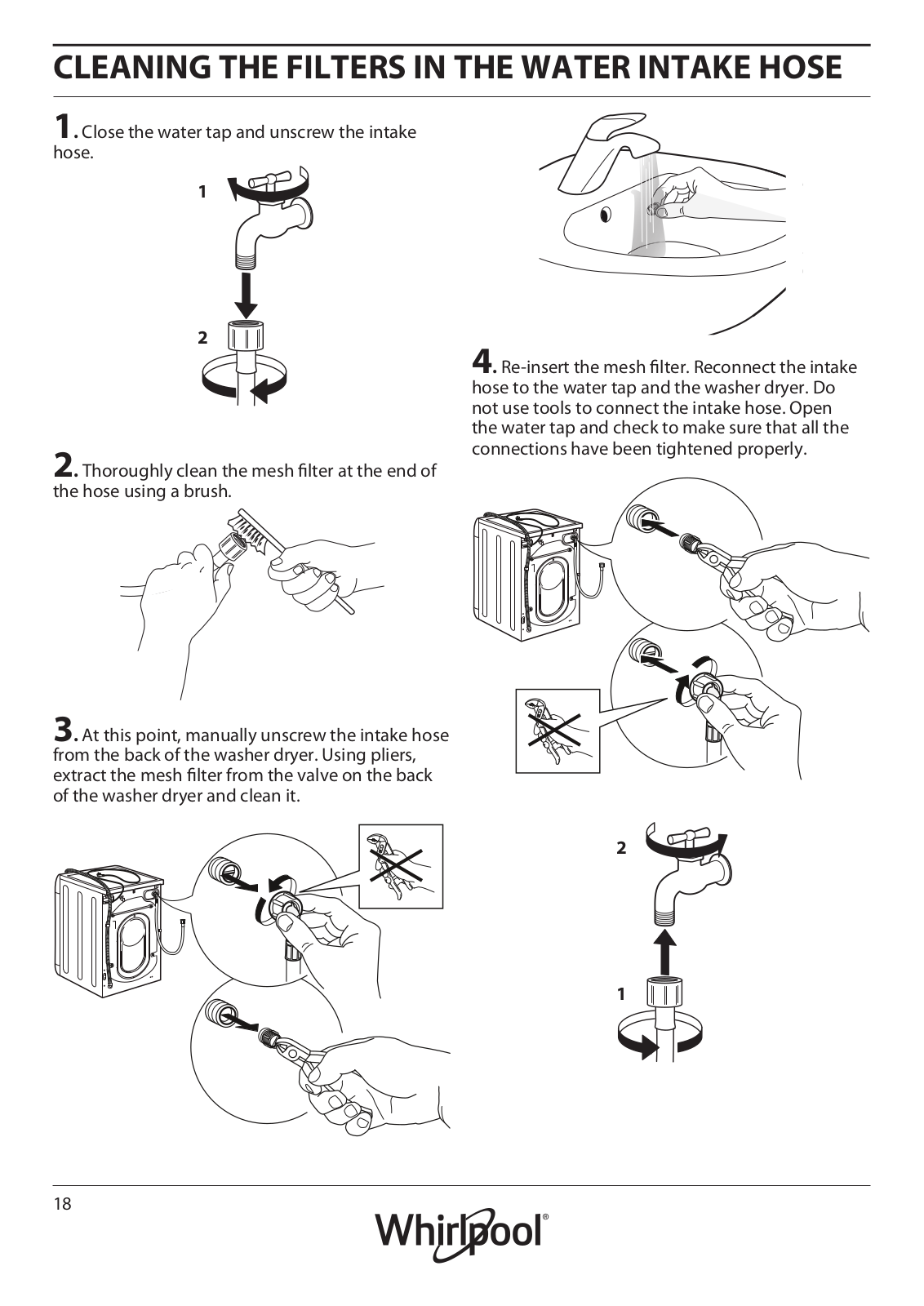

CLEANING THE FILTERS IN THE WATER INTAKE HOSE.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3
CLEANING THE DETERGENT DISPENSER.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 CLEANING THE WATER FILTER / DRAINING THE RESIDUAL WATER.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 TRANSPORT AND HANDLING.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
CUSTOMER SUPPORT SERVICE.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 INSTALLATION GUIDES.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4
|
|
|
EN |
Health & Safety guide |
|
|
|
|
|
||
SAFETY INSTRUCTIONS |
|
||
IMPORTANT TO BE READ AND OBSERVE |
|||
Before using the appliance, read these safety instructions.. Keep them nearby for future reference.. These instructions and the appliance itself provide important safety warnings, to be observed at all times.. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect
setting of controls..
Very young children (0-3 years) should be kept away from the appliance.. Young children (3-8 years) should be kept away from the appliance unless continuously supervised.. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved.. Children must not play with the appliance.. Cleaning and user maintenance must not be carried out by children without supervision.. Never open the door forcibly or use it as a step..
PERMITTED USE
CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system..
This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments..
Do not load the machine above the maximum capacity (kg of dry cloth) indicated in the programme table..
This appliance is not for professional use.. Do not use the appliance outdoors..
Do not use any solvents (e..g.. turpentine, benzene), detergents containing solvents, scouring powder, glass or general purpose cleaners, or flammable fluids; do not machine wash fabrics that have been treated with solvents or flammable liquids..
Do not dry unwashed items in the tumble dryer..
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer..
Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer..
Fabric softeners, or similar products, should be used as specified by the fabric softener instructions..
The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged..
Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated..
During the drying phase, the door tends to get quite hot..
Do not use the appliance to dry clothes that have been washed with flammable solvents (e..g.. trichlorethylene)..
Do not use the appliance to dry foam rubber or similar elastomers..
Make sure that the water tap is turned on during the drying cycles..
Remove all objects from pockets such as
lighters and matches..
INSTALLATION
The appliance must be handled and installed by two or more persons - risk of injury.. Use protective gloves to unpack and install - risk of cuts..
If you want to stack a dryer on top of your washing machine, first contact our After-Sales Service or your specialist dealer to verify whether this is possible.. This is only possible if the dryer is attached to the washing machine by means of appropriate stacking kit available through our AfterSales Service or your specialist dealer..
Move the appliance without lifting it by the worktop or top lid..
Installation, including water supply (if any) and electrical connections and repairs must be carried out by a qualified technician.. Do not repair or replace any part of the appliance unless specifically stated in the user manual.. Keep children away from the installation site.. After unpacking the appliance, make sure that it has not been damaged during transport.. In the event of problems, contact the dealer or your nearest After-sales Service.. Once installed, packaging waste (plastic, styrofoam parts etc..)
5
must be stored out of reach of children - risk of suffocation.. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock.. During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock.. Only activate the appliance when the installation has been completed..
Do not install your appliance where it may be exposed to extreme conditions, such as: poor ventilation, temperatures below 5 °C or above 35 °C..
When installing the appliance make sure that the four feet are stable and resting on the floor, adjusting them as required, and check that the appliance is perfectly to level using a spirit level..
If the appliance is being installed on wood or “floating” floors (certain parquet and laminate materials), secure a 60 x 60 x 3 cm (at least) sheet of plywood to the floor then place the appliance on top of this..
Connect the water inlet hose(s) to the water supply in accordance with the regulations of your local water company..
For cold fill only models: do not connect to the hot water supply..
For models with hot fill: the hot water inlet temperature must not exceed 60 °C..
The washing machine is fitted with transport bolts to prevent any possible damage to the interior during transport.. Before using the machine, it is imperative that the transport bolts are removed.. After their removal, cover the openings with the 4 enclosed plastic caps..
After installation of the device, wait a few hours before starting it so that it acclimates to the environmental conditions of the room..
Make sure that the ventilation openings in
the base of your washing machine (if available on your model) are not obstructed by a carpet or other material..
Use only new hoses to connect the appliance to the water supply.. The old hose-sets should not be reused..
The supply water pressure must be in the 0..1-1 Mpa range..
Health & Safety guide
ELECTRICAL WARNINGS
It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multipole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with
national electrical safety standards..
Do not use extension leads, multiple sockets or adapters.. The electrical components must not be accessible to the user after installation.. Do not use the appliance when you are wet or barefoot.. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped..
If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard -
risk of electric shock..
CLEANING AND MAINTENANCE
WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning
equipment - risk of electric shock..
DISPOSAL OF PACKAGING MATERIALS
The packaging material is 100% recyclable and is marked with the recycle symbol ..
The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal..
DISPOSAL OF HOUSEHOLD APPLIANCES
This appliance is manufactured with recyclable or reusable materials.. Dispose of it in accordance with local waste disposal regulations.. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance.. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).. By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health..
The symbol
on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment..
6
EN
User manual
PRODUCT DESCRIPTION
APPLIANCE
1..
2..
3..
4..
5..
6..
7..
1..Top
2..Detergent dispenser
3..Control Panel
4..Lid handle
5..Door
6..Water filter - behind kick panel
7..Removable kick panel
8..Adjustable feet (2)
8..
CONTROL PANEL
1.. |
2.. |
|
|
3.. |
4.. |
5.. |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10.. |
9.. |
8.. |
7.. |
6.. |
1..On/Off button
2..Programme selector
3..Start/Pause button
4..Temperature button
5..FreshCare+ button
6..Dry Only button / Lock button
7..Drying settings button
8..Display
9..Start delay button
10..Spin speed button
7
DETERGENT DISPENSER
Prewash Compartment
• Detergent for prewash
Main Wash Compartment
• Detergent for the main wash
• Stain remover
• Water softener
Softener compartment
• Softener
• Liquid starch
Pour softener or starch solution into the compartment without exceeding the “max” level..
Release button
(press to remove tray for cleaning)..
B A
Preferably use the partition A when washing with a liquid detergent for washing, to ensure that the correct quantity of detergent is used (the partition is included in the bag containing
the instructions)..
Move the partition into slot B when using detergent powder..
8
|
EN |
||
TECHNICAL SPECIFICATIONS FOR THE WATER |
|||
|
|
||
CONNECTION |
|
|
|
|
|
|
|
INPUT WATER |
Cold |
WATER TAP |
Threaded attachment for 3/4" flexible hose |
MINIMUM WATER INTAKE PRESSURE |
100 kPa (1 bar) |
MAXIMUM WATER INTAKE PRESSURE |
1000 kPa (10 bar) |
DOOR
To open the door, pull the handle.. |
To close the door, push on the handle until it clicks.. |
9
