Whirlpool WTW5700A, WTW5500B, WTW5800B, WTW5810B, WTW5840B INSTALLATION
Top Loading Automatic Washer
3"
(25 mm)
PRODUCT MODEL NUMBERS
WTW5700A, WTW5500B, WTW5800B, WTW5810B, WTW5840B
Washer Dimensions
1
/2"
27
(699 mm)
27"
(686 mm)
42"
(1067 mm)

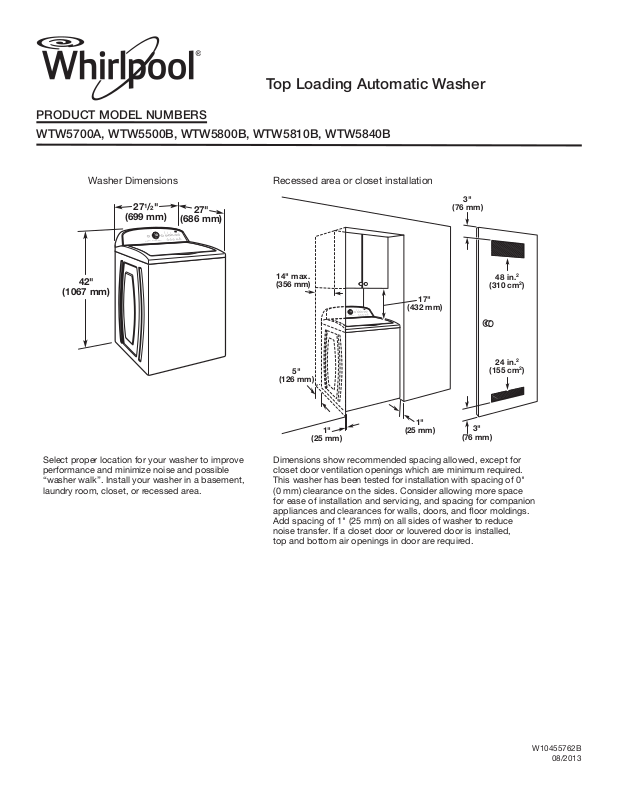

Select proper location for your washer to improve
performance and minimize noise and possible
“washer walk”. Install your washer in a basement,
laundry room, closet, or recessed area.
Recessed area or closet installation
(76 mm)
14" max.
(356 mm)
17"
(432 mm)
5"
(126 mm)
1"
1"
(25 mm)
3"
(76 mm)
Dimensions show recommended spacing allowed, except for
closet door ventilation openings which are minimum required.
This washer has been tested for installation with spacing of 0"
(0 mm) clearance on the sides. Consider allowing more space
for ease of installation and servicing, and spacing for companion
appliances and clearances for walls, doors, and oor moldings.
Add spacing of 1" (25 mm) on all sides of washer to reduce
noise transfer. If a closet door or louvered door is installed,
top and bottom air openings in door are required.
2
48 in.
(310 cm2)
2
24 in.
(155 cm2)
W10455762B
08/2013
ELECTRICAL REQUIREMENTS
4.5"
(114 mm)
n
A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical supply is required. A time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit breaker serving only this appliance be provided.
n
This washer is equipped with a power supply cord having a 3 prong grounding plug.
n
To minimize possible shock hazard, the cord must be plugged into a mating, 3 prong, grounding-type outlet, grounded in
accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of
the customer to have the properly grounded outlet installed by a qualied electrician.
n
If codes permit and a separate ground wire is used, it is recommended that a qualied electrician determine that the ground path
is adequate.
n
Do not ground to a gas pipe.
n
Check with a qualied electrician if you are not sure the washer is properly grounded.
n
Do not have a fuse in the neutral or ground circuit.
DRAIN SYSTEM
Drain system can be installed using a oor drain, wall standpipe, oor standpipe, or laundry tub. Select method you need.
Floor standpipe drain system
39"
4.5"
(114 mm)
(990 mm)
Minimum diameter for a standpipe drain: 2" (51 mm). Minimum
carry-away capacity: 17 gal. (64 L) per minute. Top of standpipe
must be at least 39" (990 mm) high; install no higher than 96"
(2.44 m) from bottom of washer. If you must install higher than
96" (2.44 m), you will need a sump pump system.
Wall standpipe drain system
4.5"
(114 mm)
See requirements for oor standpipe drain system.
Floor drain system
Floor drain system requires a Siphon Break Kit (Part Number
285834), 2 Connector Kits (Part Number 285835), and an
Extension Drain Hose (Part Number 285863) that may be
purchased separately. To order, please see toll-free phone
numbers in your “Use and Care Guide”. Minimum siphon break:
28" (710 mm) from bottom of washer. (Additional hoses may
be needed.)
Laundry tub drain system
39"
(990 mm)
Minimum capacity: 20 gal. (76 L). Top of laundry tub must be at
least 39" (990 mm) above oor; install no higher than 96" (2.44 m)
from bottom of washer.
IMPORTANT: To avoid siphoning, no more than 4.5" (114 mm)
of drain hose should be inside standpipe or below the top of
wash tub. Secure drain hose with cable tie.
Because Whirlpool Corporation policy includes a continuous commitment to improve Dimensions are for planning purposes only. For complete details, see Installation
our products, we reserve the right to change materials and specications without notice. Instructions packed with product. Specications subject to change without notice.
