DAILY REFERENCE
GUIDE
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance, please
register your appliance on: www.whirlpool.eu/register
Before using the appliance carefully read Health and Safety guide.

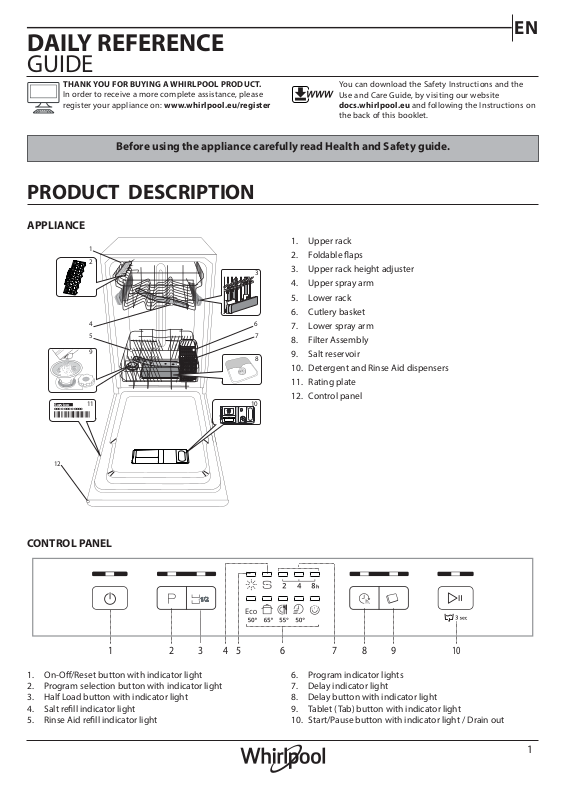

PRODUCT DESCRIPTION
APPLIANCE
1
2
4
5
9
Service:
0000 000 00000
EN
You can download the Safety Instructions and the
Use and Care Guide, by visiting our website
docs.whirlpool.eu and following the Instructions on
the back of this booklet.
1. Upper rack
2. Foldable aps
3
6
7
8
1011
3. Upper rack height adjuster
4. Upper spray arm
5. Lower rack
6. Cutlery basket
7. Lower spray arm
8. Filter Assembly
9. Salt reservoir
10. Detergent and Rinse Aid dispensers
11. Rating plate
12. Control panel
12
CONTROL PANEL
12
1. On-O /Reset button with indicator light
2. Program selection button with indicator light
3. Half Load button with indicator light
4. Salt re ll indicator light
5. Rinse Aid re ll indicator light
435 6 7
6. Program indicator lights
7. Delay indicator light
8. Delay button with indicator light
9. Tablet (Tab) button with indicator light
10. Start/Pause button with indicator light / Drain out
8
9
10
1
Page 2
FIRST TIME USE
SALT, RINSE AID AND DETERGENT
ADVICE REGARDING THE FIRST TIME USE
After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.
FILLING THE SALT RESERVOIR
The use of salt prevents the formation of LIMESCALE on the dishes and
on the machine’s functional components.
• It is important that the salt reservoir be never empty.
• It is important to set the water hardness.
The salt reservoir is located in the lower part of the dishwasher
(see Product Description) and should be lled when the SALT REFILL
indicator light
Make sure the cap is screwed on tightly, so that no detergent can get
into the container during the wash program (this could damage the
water softener beyond repair).
Whenever you need to add salt, we recommend carrying out the
procedure before the washing cycle is started.
SETTING THE WATER HARDNESS
To allow the water softener to work in a perfect way, it is essential that
the water hardness setting is based on the actual water hardness in
your house. This information can be obtained from your local water
supplier.
The factory setting is for average (3) water hardness.
• Switch on the appliance by pressing the ON/OFF button.
• Switch o the appliance by pressing the ON/OFF button.
• Hold down button START/Pause for 5 seconds, until you hear a
beep.
• Switch on the appliance by pressing the ON/OFF button.
• The program indicator light of the current set level ashes.
• Press button P to select the desired hardness level (see WATER
HARDNESS TABLE).
1 Soft 0 - 6 0 - 10
2 Medium 7 - 11 11 - 20
3 Average 12 - 17 21 - 30
4 Hard 17 - 34 31 - 60
5 Very hard 35 - 50 61 - 90
• Switch o the appliance by pressing the ON/OFF button.
Setting is complete!
As soon as this procedure is complete, run a program without loading.
Only use salt that has been speci cally designed for dishwashers.
After the salt has been poured into the machine, the SALT REFILL indicator light switches o .
If the salt container is not lled, the water softener and the
heating element may be damaged as a result.
in the control panel is lit .
1. Remove the lower rack and unscrew the
reservoir cap (anticlockwise).
2. Only the rst time you do this: ll the salt reservoir with water.
3. Position the funnel (see gure) and ll the salt
reservoir right up to its edge (approximately
1 kg); it is not unusual for a little water to leak
out.
4. Remove the funnel and wipe any salt residue
away from the opening.
Water Hardness Table
Level
°dH
German degrees
°fH
French degrees
FILLING THE RINSE AID DISPENSER
Rinse aid makes dish DRYING easier. The rinse aid dispenser A should
be lled when the RINSE AID REFILL indicator light in the control
panel is lit.
B
1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Pour in the rinse aid (max.110 ml), making sure it does not over ow
from the dispenser. If this happens, clean the spill immediately with
a dry cloth.
3. Press the lid down until you hear a click to close it.
NEVER pour the rinse aid directly into the appliance tub.
A
ADJUSTING THE DOSAGE OF RINSE AID
If you are not completely satis ed with the drying results, you can adjust the quantity of rinse aid used.
• Switch the dishwasher on using the ON/OFF button.
• Switch it o using the ON/OFF button.
• Press button START/Pause three times - a beep will be heard.
• Switch it on using the ON/OFF button.
• The program indicator light of the current set level ashes.
• Press button P to select the level of rinse aid quantity to be supplied.
• Switch it o using the ON/OFF button
Setting is complete!
If the rinse aid level is set to 1 (ECO), no rinse aid will be supplied. The
LOW RINSE AID indicator light will not be lit if you run out of rinse aid.
A maximum of 4 levels can be set according to the dishwasher model.
The factory setting is speci c to the model, please follow instruction
above to check this for your machine.
• If you see bluish streaks on the dishes, set a low number (2-3).
• If there are drops of water or limescale marks on the dishes, set a
mid-range number (4-5).
FILLING THE DETERGENT DISPENSER
To open the detergent dispenser use the opening device A.
Introduce the detergent into the dry dispenser B only. Place the
amount of detergent for pre-washing directly inside the tub.
1. When measuring out the detergent
refer to the mentioned earlier information to add the proper quantity.
B
A
The detergent dispenser automatically opens up at the right time
according to the program.
If all-in-one detergents are used, we recommend using the TABLET
button, because it adjusts the program so that the best washing and
drying results are always achieved.
Inside the dispenser B there are
indications to help the detergent
dosing.
2. Remove detergent residues from
the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent
dispenser by pulling it up until the
closing device is secured in place.
2
Page 3
PROGRAMS TABLE
EN
Program
1
Eco 50°
phase
Drying
Available
options
Detergent
container
*)
Tub
B
Duration
of wash
program
(h:min)
**)
4:00 11.5 0.83
Water
consumption
(litres/cycle)
consumption
(kWh/cycle)
Energy
2
Intensive 65°
-
2:30 15.0 1.50
3
Normal 55°
- 2:30 15.0 1.30
4
Rapid 30’ 50°
-
- 0:30 8.5 0.50
5
Pre-Wash -
-
--
0:10 4.5 0.01
ECO program data is measured under laboratory conditions according to European Standard EN 50242.
Note for Test Laboratories: For information on comparative EN testing conditions, please send an email to the following address: [email protected]
Pre-treatment of the dishes is not needed before any of the programs.
*) Not all options can be used simultaneously.
**) The duration of the program shown on the display or in the booklet is an estimate calculated on standard conditions. The actual time may vary
depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load,
load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.
Standby consumption: Left-on mode consumption: 5 W - O mode consumption: 0.5 W
PROGRAMS DESCRIPTION
Instructions on wash cycle selection.
1 ECO
Normally soiled crockery. Standard program, the most e cient in
terms of its combined energy and water consumption.
2 INTENSIVE
Program recommended for heavily soiled crockery, especially suitable
for pans and saucepans (not to be used for delicate items).
3 NORMAL
Mixed soil. For normally soiled dishes with dried food residues.
4 RAPID 30’
Program to be used for lightly-soiled dishes with no dried food
residues.
5 PRE-WASH
Use to refresh crockery planned to be washed later. No detergent to be
used with this program.
Notes:
Please note that cycles like Rapid or Fast are most e ective for lightly soiled
dishes.
To reduce consumption even further, only run the dishwasher
when it is full.
3
Page 4
OPTIONS AND FUNCTIONS
OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL).
If an option is not compatible with the selected program see PROGRAMS TABLE, the corresponding LED ashes rapidly 3 times
and beeps will sound. The option will not be enabled.
DELAY
It is possible to delay the start time of the program by 2, 4 or
8 hours:
1. After selecting the desired program and any other options,
press the DELAY button. The indicator light will go on.
2. Select the desired delay time by pressing the DELAY button
repeatedly. The 2 hours, 4 hours and 8 hours indicator lights
will go on in succession. If the DELAY button is pressed again,
the option is deselected and the indicator light goes o.
3. After the selection process, the countdown will begin if the
START/PAUSE button is pressed. The selected delay-period
indicator light is on and the Start/Pause button lights up
(xed light).
4. Once this time has elapsed, the DELAY indicator light goes
o and the program begins.
The DELAY function cannot be set once a program has
started.
TABLET (Tab)
This setting allows you to optimize the performance of the
program according to the type of detergent used.
Press the TABLET button (the indicator light will light up) if you
use combined detergents in tablet form (rinse aid, salt and
detergent in 1 dose).
If you use powder or liquid detergent, this option should
be o .
HALF LOAD
If there are not many dishes to be washed, a half load cycle
may be used in order to save water, electricity and detergent.
Select the program and press the HALF LOAD button: the
indicator light will light up. Press the HALF LOAD button to
deselect this option.
Remember to halve the amount of detergent.
DRAIN OUT
To stop and cancel the active cycle, the Drain Out function
can be used.
A long press of START/PAUSE button, will activate the DRAIN
OUT function. The active program will be stopped and the
water in the dishwasher will be drained out.
4
Page 5

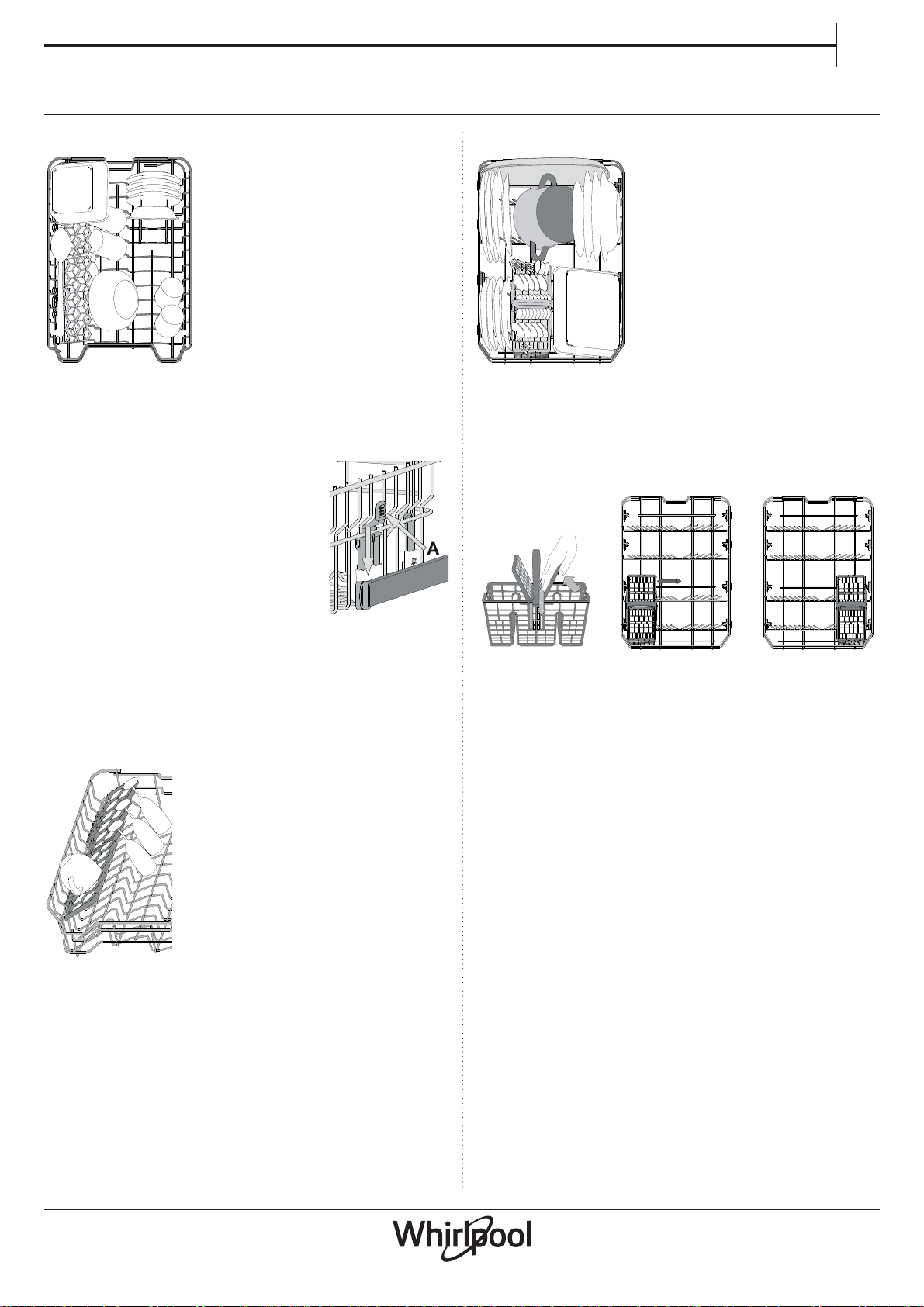

LOADING THE RACKS
EN
UPPER RACK
Load delicate and light dishes: glasses,
cups, saucers, low salad bowls.
(loading example for the upper rack)
ADJUSTING THE HEIGHT OF THE UPPER RACK
The height of the upper basket can be adjusted:
high position to place bulky crockery in the
lower basket and low position to make the most
of the tip-up compartments by creating more
space upwards.
The upper rack is equipped with a Upper Rack
height adjuster (see gure), without pressing
the levers, lift it up by simply holding the rack
sides, as soon as the rack is stable in its upper
position. To restore to the lower position, press
the levers (A) at the sides of the rack and move
the basket downwards.
We strongly recommend that you do not adjust the height of the
rack when it is loaded.
NEVER raise or lower the basket on one side only.
LOWER RACK
For pots, lids, plates, salad bowls, cutlery
etc... Large plates and lids should ideally be
placed at the sides to avoid interferences
with the spray arm.
(loading example for the lower rack)
CUTLERY BASKET
It is tted with top grids for improved cutlery arrangement.
It must only be positioned at the front of the lower rack.
Knives and other utensils with sharp edges must be placed in the
cutlery basket with the points facing downwards or they must be
positioned horizontally in the tip-up compartments on the upper
rack.
FOLDABLE FLAPS WITH ADJUSTABLE POSITION
The side foldable aps can be positioned at
three di erent heights to optimize the arrange
ment of crockery inside the rack.
Wine glasses can be placed safely in the
foldable aps by inserting the stem of each
glass into the corresponding slots.
For optimum drying results incline the foldable aps more. To change the inclination,
pull up the foldable ap, slide it slightly and
position it as you wish.
5
Page 6
DAILY USE
1. CHECK WATER CONNECTION
Check that the dishwasher is connected to the water supply and
that the top is open.
2. SWITCH ON THE DISHWASHER
Press the ON/OFF button.
3. LOAD THE RACKS
(see LOADING THE RACKS)
4. FILLING THE DETERGENT DISPENSER
(see PROGRAMS TABLE).
5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE
Select the most appropriate program in accordance with the type
of crockery and its soiling level (see PROGRAMS DESCRIPTION) by
pressing the P button.
Select the desired options (see OPTIONS AND FUNCTIONS).
6. START
Start the wash cycle by pressing the START/PAUSE button. When
the program starts you hear a beep.
7. END OF WASH CYCLE
The end of the wash cycle is indicated by beeps and by the ashing of the wash cycle indicator on the panel. Open the door and
switch o the appliance by pressing the ON/OFF button.
Wait for a few minutes before removing the crockery - to avoid
burns. Unload the racks, beginning with the lower one.
The machine will switch o automatically during certain extended
periods of inactivity, in order to minimise electricity consumption.
If the crockery is only lightly soiled or if it has been rinsed with
water before being placed in the dishwasher, reduce the amount
of detergent used accordingly.
MODIFYING A RUNNING PROGRAM
If a wrong program was selected, it is possible to change it, provided
that it has only just begun: press and hold the ON/OFF button, the
machine will switch o . Switch the machine back on using the
ON/OFF button and select the new wash cycle and any desired options; start the cycle by pressing the START/PAUSE button.
ADDING EXTRA CROCKERY
Without switching o the machine, open the door (be ware of HOT
steam!) and place the crockery inside the dishwasher. Close the door
and press the START/PAUSE button the cycle will begin from the
point at which it was interrupted.
ACCIDENTAL INTERRUPTIONS
If the door is opened during the wash cycle, or if there is a power cut,
the cycle stops. Once the door has been closed or the electricity supply is restored, to start again the cycle from where it was interrupted,
press the START/PAUSE button.
For more information about the functions, you can request or
download from the WEB a Use & Care Guide by following the
instructions on the last page.
ADVICE AND TIPS
TIPS
Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse beforehand
under running water.
Arrange the crockery so that it is held in place rmly and does not tip
over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing
the water to reach every surface and ow freely.
Warning: lids, handles, trays and frying pans do not prevent the
sprayer arms from rotating.
Place any small items in the cutlery basket.
Very soiled dishes and pans should be placed in the lower basket because in this sector the water sprays are stronger and allow a higher
washing performance.
After loading the appliance, make sure that the sprayer arms can
rotate freely.
HYGIENE
To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least one a month.
Use a tea spoon of detergent and run it without the loading to clean
your appliance.
UNSUITABLE CROCKERY
• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique crockery.
Their decorations are not resistant.
• Parts in synthetic material which do not withstand high temperatures.
• Copper and tin crockery.
• Crockery soiled with ash, wax, lubricating grease or ink.
The colours of glass decorations and aluminium/silver pieces can
change and fade during the washing process. Some types of glass
(e.g. crystal objects) can become opaque after a number of wash
cycles too.
DAMAGE TO GLASS AND CROCKERY
• Only use glasses and porcelain guaranteed by the manufacturer as
dishwasher safe.
• Use a delicate detergent suitable for crockery
• Collect glasses and cutlery from the dishwasher as soon as the
wash cycle is over.
6
Page 7

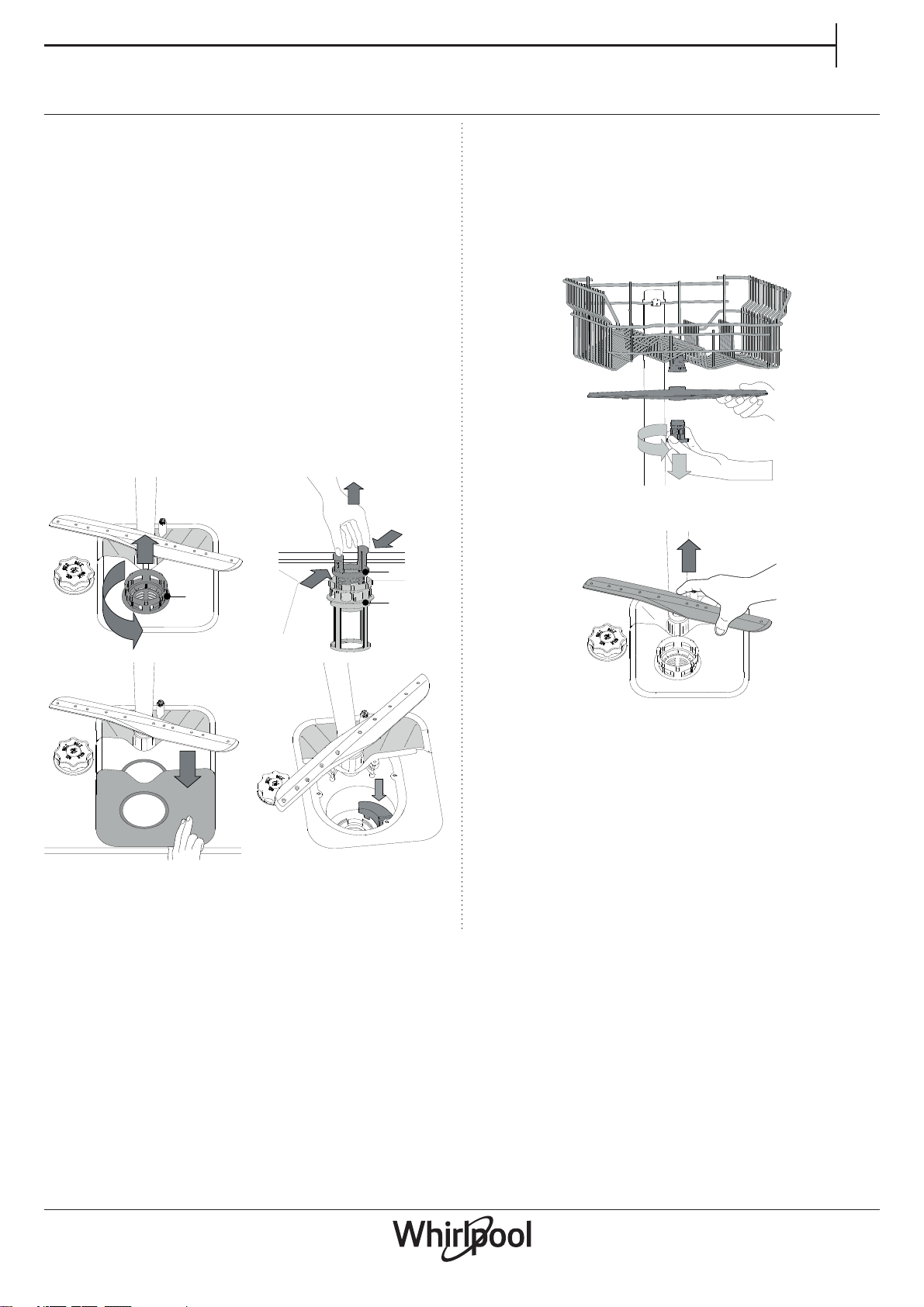

CARE AND MAINTENANCE
EN
CLEANING THE FILTER ASSEMBLY
Regularly clean the lter assembly so that the lters do not clog and
that the waste water ows away correctly.
The lter assembly consists of three lters which remove food residues
from the washing water and then recirculate the water: to obtain the
best washing results, you need to keep them clean.
The dishwasher must not be used without lters or if the lter is
loose.
After several washes, check the lter assembly and if necessary clean it
thoroughly under running water, using a non-metallic brush and following the instructions below:
1. Turn the cylindrical lter A in an anti-clockwise direction and pull
it out (Fig 1).
2. Remove the cup lter B by exerting a slight pressure on the side
aps (Fig 2).
3. Slide out the stainless-steel plate lter C (Fig 3).
4. Inspect the trap and remove any food residues. NEVER REMOVE
the wash-cycle pump protection (black detail) (Fig 4).
1 2
B
A
A
CLEANING THE SPRAY ARMS
On occasions, food residue may become encrusted onto the spray
arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them
with a small non-metallic brush.
To remove the upper spray arm, turn the plastic locking ring in an anti-clockwise direction. The upper spray arm should be replaced so that
the side with the greater number of holes is facing upwards.
The lower spray arm may be removed by pulling it upwards.
3 4
C
After cleaning the lters, re-place the lter assembly and x it in
position correctly; this is essential for maintaining the e cient
operation of the dishwasher.
CLEANING THE WATER INLET HOSE
If the water hoses are new or have not been used for an extended
period of time, let the water run to make sure it is clear and free of
impurities before performing the necessary connections. If this
precaution is not taken, the water inlet could become blocked and damage the dishwasher.
7
Page 8
TROUBLESHOOTING
Your dishwasher may not work properly.
Before contacting the Service Centre check if the problem can be solved by going through the following list.
PROBLEMS POSSIBLE CAUSES SOLUTIONS
The dishwasher
won’t start
or does not
respond to commands.
The appliance has not been plugged in
properly.
Power outage. The dishwasher starts automatically when the power returns.
The dishwasher door is not closed. Vigorously push the door until you hear the “click”.
Insert the plug into the socket.
The dishwasher
won’t drain.
The dishwasher
makes
excessive noise.
The dishes are
not clean.
It does not respond to commands.
The wash cycle has not nished yet. Wait until the wash cycle nishes.
The drain hose is bent. Check that the drain hose is not bent (see INSTALATION INSTRUCTION).
The sink drain pipe is blocked. Clean the sink drain pipe.
The lter is clogged up with food residues. Clean the lter (see CLEANING THE FILTER ASSEMBLY).
The dishes are rattling against each Position the crockery correctly (see LOADING THE RACKS).
An excessive amount of foam has been
produced.
The crockery has not been arranged
properly.
The spray arms cannot rotate freely, being
hindered by the dishes.
The wash cycle is too gentle. Select an appropriate wash cycle (see PROGRAMS TABLE).
An excessive amount of foam has been
produced.
The cap on the rinse aid compartment has
not been shut correctly.
Switch o the appliance by pressing the ON/OFF button, switch it back on
after approximately one minute and reset the program.
The detergent has not been measured out correctly or it is not suitable for
use in dishwashers (see FILLING THE DETERGENT DISPENSER). Reset dishwa-
sher by pressing the DRAIN button (see OPTIONS AND FUNCTIONS) and run
new program without detergent.
Arrange the crockery correctly (see LOADING THE RACKS).
Arrange the crockery correctly (see LOADING THE RACKS).
The detergent has not been measured out correctly or it is not suitable for use
in dishwashers (see FILLING THE DETERGENT DISPENSER).
Make sure the cap of the rinse aid dispenser is closed.
The lter is soiled or clogged. Clean the lter assembly (see CARE AND MAINTENANCE).
There is no salt. Fill the salt reservoir (see FILLING THE SALT RESERVOIR).
MAINTENANCE AND TROUBLESHOOTING GUIDE
For more information, maintenance procedures and troubleshooting,
see the Use and Care Guide
The Use and Care Guide can be obtained by:
• After-Sales Service; phone number see in warranty booklet.
• download from website: docs.whirlpool.eu
• use QR code
TECHNICAL DATASHEET
The technical data containing the energy consumption data can be
downloaded from the website: docs.whirlpool.eu
8
CONTACTING AFTER-SALES SERVICE
When you contact the After-Sales Service,
you must provide the codes shown on the
rating plate attached to the left or right side
inside the door of the dishwasher. The phone number is listed in the warranty booklet
or on the website: www.whirlpool.eu
:
400011246031B
04/2018 mk - Xerox Fabriano
IEC 436
Loading...
