Whirlpool WRF990SLAM02, WRF989SDAW02, WRF989SDAM01, WRF989SDAE03, WRF989SDAB02 Owner’s Manual
...
DOOR
OUNT
REFRIGERATOR
W10417009A
Congratulationson your purchaseandwelcometo
the Whirlpool Brand family of high-quality
appliances. Your new Whirlpool ®French Door
Refrigerator combines advanced cooling technology
with simple operation and high efficiency.
Each appliance that leaves our factory is inspected
thoroughly to ensure that it is working properly.
Please read the Use and Care Instructions in this
guide before operating your new refrigerator. Like
all appliances, your refrigerator may require
maintenance or repair from time to time, but you
can help to ensure that your refrigerator provides
many years of reliable service by following the
instructions in this guide.
REFRIGERATOR SAFETY ....................................................... 3
Proper Disposal of Your Old Refrigerator .............................. 3
PARTS AND FEATURES .......................................................... 4
What's New Behind the Doors? ............................................. 4
INSTALLATION INSTRUCTIONS ............................................ 5
Unpack the Refrigerator ......................................................... 5
Remove the Packaging ......................................................... 5
Clean Before Using ............................................................... 5

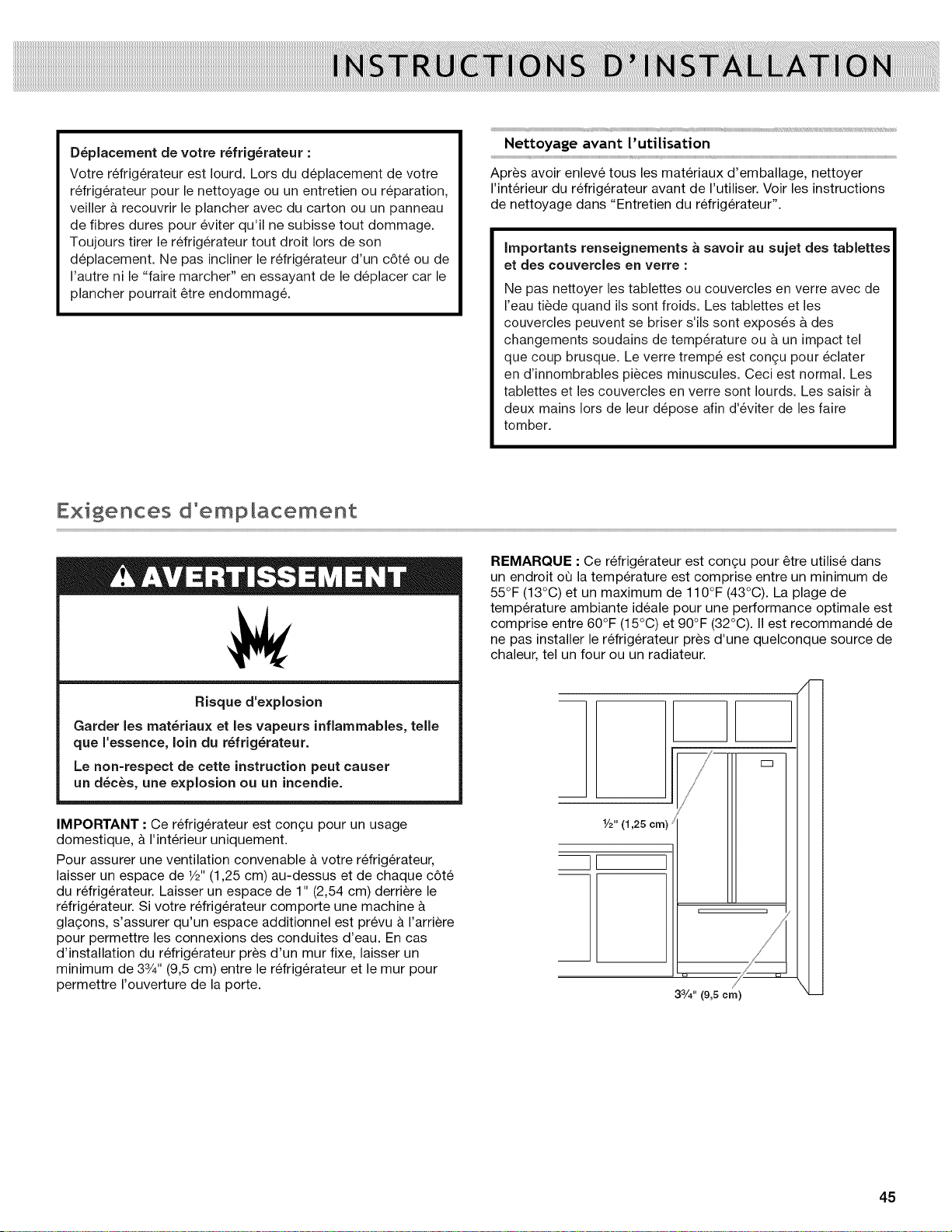

Location Requirements .......................................................... 5
Remove and Replace Refrigerator Doors .............................. 6
Remove Right-Hand Refrigerator Door ................................ 7
Remove Left-Hand Refrigerator Door .................................. 7
Replace Right-Hand Refrigerator Door ................................ 8
Replace Left-Hand Refrigerator Door. .................................. 8
- Final Steps ............................................................................ 8
Remove and Replace Freezer Drawer Front ......................... 9
Remove Drawer Front ........................................................... 9
Replace Drawer Front ........................................................... 9
- FinalSteps ............................................................................ 9
Electrical Requirements ....................................................... 10
Water Supply Requirements ................................................ 10
Connect the Water Supply ................................................... 11
Connect to Water Line ........................................................ 11
Connect to Refrigerator ...................................................... 11
Complete the Installation .................................................... 12
Handle Installation and Removal ......................................... 12
Install Handles ..................................................................... 12
Remove the Handles .......................................................... 13
Refrigerator Leveling, Door Closing and Alignment ............ 14
FILTERS AND ACCESSORIES .............................................. 15
Water Filtration System ........................................................ 15
- Install the Water Filter ......................................................... 15
The Water Filter Status Light .............................................. 15
- Replace the WaterFilter ..................................................... 16
Install Air Filter ...................................................................... 16
- Installing the Air Filter. ......................................................... 16
- Installing the Filter Status Indicator .................................... 16
Replacing the Air Filter. ....................................................... 17
Install Produce Preserver ..................................................... 17
- Installing the Produce Preserver ........................................ 17
- Installing the Status Indicator ............................................. 18
Replacing the Produce Preserver ....................................... 18
Accessories .......................................................................... 18
REFRIGERATOR USE ............................................................ 19

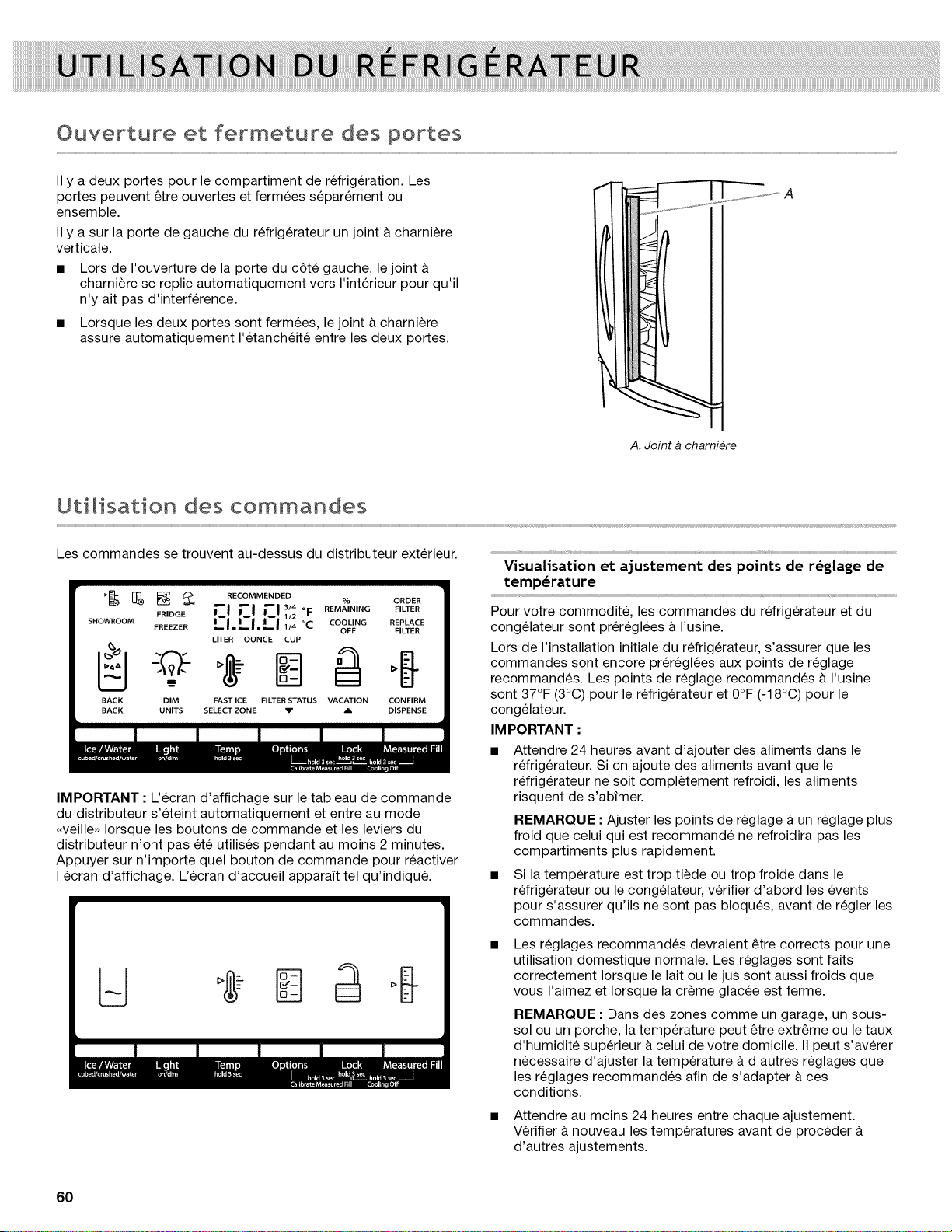

Opening and Closing Doors ................................................. 19
Using the Controls ............................................................... 19
Viewing and Adjusting Temperature Set Points ................. 19
Cooling On/Off. ................................................................... 20
Options ................................................................................ 20
- Additional Features ............................................................. 21
Water and Ice Dispensers .................................................... 21
Flush the Water System ...................................................... 22
Calibrate Measured Fill ....................................................... 22
Dispensing ........................................................................... 23
The Water Dispenser. .......................................................... 23
The Ice Dispenser ............................................................... 24
The Dispenser Light ............................................................ 24
The Dispenser Lock ............................................................ 24
Ice Maker and Ice Storage Bin ............................................. 25
Ice Production Rate ............................................................ 25
Style 1- Ice Maker in the Refrigerator ................................ 25
Style 2 - Ice Maker in the Freezer ....................................... 25
REFRIGERATOR FEATURES ................................................ 26
Refrigerator Shelves ............................................................. 26
Shelves and Sheff Frames .................................................. 26
Tuck Away Shelf.................................................................. 26
Crisper Drawers/Pantry Drawer/Crisper Cover ................... 26
Crisper Humidity Control ...................................................... 27
Temperature-Controlled Drawer .......................................... 27
Style 1- Electronic Control ................................................. 27
Style 2 - Manual Control ..................................................... 27
Drawer Removal and Replacement .................................... 28
Drawer Divider. .................................................................... 28
Meat Storage Guide ............................................................ 28
DOOR FEATURES .................................................................. 28
Door Bins .............................................................................. 28
FREEZER FEATURES ............................................................ 28
Pizza Pocket and Drawer Divider ......................................... 28
REFRIGERATOR CARE ......................................................... 29
Cleaning ................................................................................ 29
Exterior Cleaning ................................................................. 29
Interior Cleaning .................................................................. 29
Condenser Cleaning ........................................................... 30
Lights .................................................................................... 30
Vacation and Moving Care ................................................... 30
Vacations ............................................................................. 30
Moving ................................................................................. 30
TROUBLESHOOTING ............................................................ 31
Operation .............................................................................. 31
Noise ..................................................................................... 32

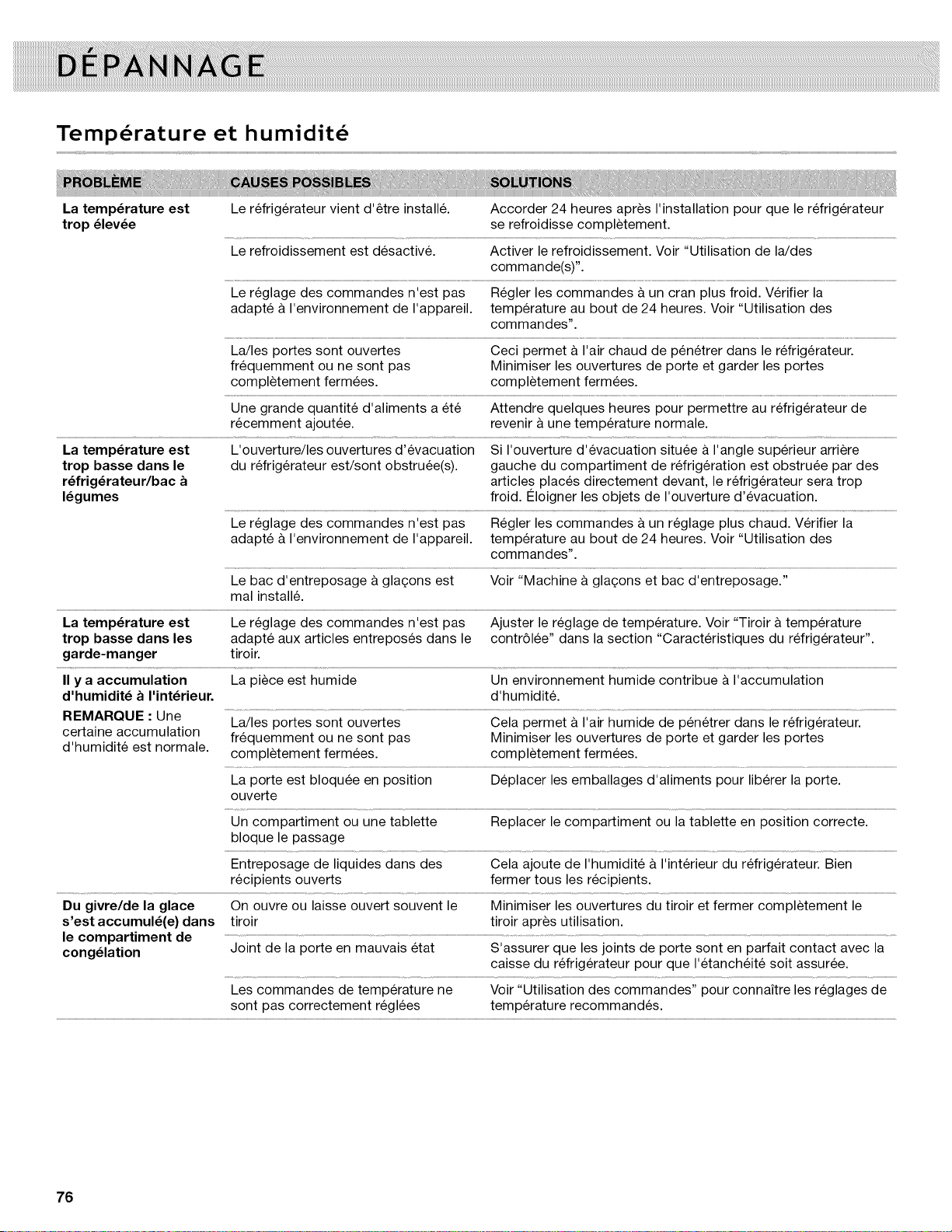

Temperature and Moisture ................................................... 33
Ice and Water ....................................................................... 34
Doors .................................................................................... 36
WATER FILTER CERTIFICATIONS ....................................... 37
PERFORMANCE DATA SHEET ............................................. 38
WARRANTY ............................................................................ 39
SERVICE NUMBERS .......................................... BACK COVER
2
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Disconnect power before servicing.
• Replace all parts and panels before operating.
• Remove doors from your old refrigerator.
SAVE THESE INSTRUCTIONS
• Use nonflammable cleaner.
• Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
• Use two or more people to move and install refrigerator.
[] Disconnect power before installing ice maker (on ice maker
kit ready models only).
• Use a sturdy glass when dispensing ice (on some models).
• Do not hit the refrigerator glass doors (on some models).
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
Proper D sposa of
Your Refrigerator
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
IMPORTANT: Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are still dangerous
- even if they will sit for "just a few days." If you are getting rid of
your old refrigerator, please follow these instructions to help
prevent accidents.
Before You Throw Away Your Old Refrigerator or
Freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easily
climb inside.
important information to know about disposal of
refrigerants:
Dispose of refrigerator in accordance with Federal and Local
regulations. Refrigerants must be evacuated by a licensed,
EPA certified refrigerant technician in accordance with
established procedures.
A B C
What's New Behind the Doors?
Your Whirlpool ®French Door Refrigerator comes equipped with various
innovative storage and energy efficient features.
Energy and Normal Operating Sounds
Your new French Door Bottom Mount refrigerator has been
designed to optimize energy efficiency, and better regulate
temperatures to match cooling demand. You may notice that it
operates differently from your previously owned refrigerator. It is
normal for the high-efficiency compressor to run for extended
periods of time at varying speeds in order to consume only the
energy necessary for optimum efficiency. In addition, during
various stages of the cooling cycle, you may hear normal
operating sounds that are unfamiliar to you.
More Storage Space
The French Door Bottom Mount has the most fresh food storage
space available, including a full-width, temperature controlled,
pantry drawer perfect for storing veggie trays or party platters.
In-Door-Ice ®Ice Dispensing System
The ice storage bin located in the door provides an entire extra
shelf of storage space, and the storage bin is removable for easy
access to filtered ice.
Dual Evaporator (on some models)
The refrigerator compartment and freezer compartment have
separate evaporators to provide fresh food and frozen food with
separate climates. The refrigerator stays cool and humid for the
optimum storage of fresh foods while the freezer stays cold and
dry. Humidity from the refrigerator does not mix with dry freezer
air, so frost is controlled, which reduces freezer burn. Since no air
is shared between the refrigerator and freezer, the transfer of food
odors and tastes from the refrigerator to the freezer is eliminated.
D
E
F
Water Filter
NSF®Certified filter reduces chlorine taste and odor, particulates
(class I), lead, and mercury. Replacing the water filter every
6 months ensures clean, filtered drinking water.
Air Filter
An air filter is 15 times more powerful than baking soda at
reducing common food odors inside the refrigerator.
A. Ice maker
B.Air filter
C. Water filter
D. Door bins
E. Crispers
F Pantry drawer
G. Freezer drawer
H. LED ramp-on lighting
I. In-Door-Ice ®ice
dispensing system
Produce Preserver (on some models)
Ethylene is a natural gas produced by fruits and vegetables to
promote ripening. The Produce Preserver absorbs ethylene, to
delay the over-ripening of fresh produce. As a result, certain
produce items will stay fresh longer.
Water Dispenser with Measured Fill
(on some models)
Themeasured fill featureallows you to dispensethe desired
amount of filtered water.
LED Lighting
The LED lights do not ever need to be replaced.
Door Alarm
A helpful alarm sounds when the refrigerator door or freezer
drawer is left ajar.
Power Outage Indicator
If the power should go out while you are away from home, this
indicator will let you know the refrigerator has been without power.
Unpack the Refrigerator
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the refrigerator for
cleaning or service, be sure to cover the floor with
cardboard or hardboard to avoid floor damage. Always pull
the refrigerator straight out when moving it. Do not wiggle or
"walk" the refrigerator when trying to move it, as floor
damage could occur.
Remove the Packaging
• Remove tape and glue residue from surfaces before turning
on the refrigerator. Rub a small amount of liquid dish soap
over the adhesive with your fingers. Wipe with warm water
and dry.
• Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see "Refrigerator Safety."
• Dispose of/recycle all packaging materials.
_______________________________________________________________________________________________________________________________r
Location Requirements
Clean Before Using
After you remove all of the packaging materials, clean the inside
of your refrigerator before using it. See the cleaning instructions
in "Refrigerator Care."
important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small,
pebble-size pieces. This is normal. Glass shelves and covers
are heavy. Use both hands when removing them to avoid
dropping.
NOTE: This refrigerator is intended for use in a location where the
temperature ranges from a minimum of 55°F (13°C) to a
maximum of 110°F (43°C). The preferred room temperature range
for optimum performance, which reduces electricity usage and
provides superior cooling, is between 60°F (15°C) and 90°F
(32°C). It is recommended that you do not install the refrigerator
near a heat source, such as an oven or radiator.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
IMPORTANT: This refrigerator is designed for indoor, household
use only.
To ensure proper ventilation for your refrigerator, allow for a 1/2"
(1.25 cm) of space on each side and at the top. Allow for a 1"
(2.54 cm) space behind the refrigerator. If your refrigerator has an
ice maker, allow extra space at the back for the water line
connections. When installing your refrigerator next to a fixed wall,
leave a 33/4'' (9.5 cm) minimum space between the refrigerator
and wall to allow the door to swing open.
1/2" (1.25 cm)
]1
I II I
/
3%" (9.5 cm)
/
Remove and Replace Refrigerator Doors
NOTE: Measure the width of your door opening, to see whether or not you need to remove the refrigerator doors to move the
refrigerator into your home. If door removal is necessary, see the following instructions.
IMPORTANT: If the refrigerator was previously installed and you are moving it out of the home, before you begin, turn the refrigerator
control OFR Unplug the refrigerator or disconnect power. Remove food and adjustable door or utility bins from doors.
Gather the required tools and read all instructions before removing doors.
TOOLS NEEDED: 3/le" hex key wrench and a #2 Phillips screwdriver
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.
Style I - Water Dispenser
Tubing Connection
\
\
\
\
\
\
\
A
A. Outer Ring
Wiring Plug
Style 2 - Water Dispenser
Tubing Connection
\
\
\
\
A
A. Outer Ring
A. _8" Internal Hex-Head Screws
B. Hinge Cover Screw
C. Top Hinge Cover
D. Top Hinge
Top Left Hinge
A B
ii
v
C
A. _6" InternalHex-HeadScrews
B. Ground Wire(Do Not Remove)
C. Do Not RemoveScrews
6
Remove Right-Hand Refrigerator Door
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.
1. Unplug refrigerator or disconnect power.
2. Keep the refrigerator doors closed until you are ready to lift
them free from the cabinet.
NOTE: Provide additional support for the refrigerator door
while the hinges are being removed. Do not depend on the
door gasket magnets to hold the door in place while you are
working.
3. Using a Phillips screwdriver, remove the cover from the Top
Hinge.
4. Using the 3/le"hex key wrench, remove the two internal hex
head screws from the top hinge, and set aside.
NOTE: Do not remove the two Iocator screws. These screws
will help you align the hinge when you replace the door.
Remove Left-Hand Refrigerator Door
IMPORTANT: The tubing and wiring for the water dispenser run
through the left-hand door hinge, so they must be disconnected
before removing the door.
1. Using a Phillips screwdriver, remove the cover from the top
hinge.
i
i
B
A. Top hinge cover screw B. Top hinge cover
2=
Disconnect the water dispenser tubing located on top of the
door hinge.
Style 1 - Press the outer ring against the face of the fitting
and gently pull the dispenser tubing free.
NOTE: The water dispenser tubing remains attached to the
left-hand refrigerator door.
A. Top hinge cover screw
B. Top hinge cover
C. _" Internal hex head screws
D. Top hinge A. Outer ring
Excessive Weight Hazard
Use two or more people to lift the refrigerator door.
Failure to do so can result in back or other injury.
5. Lift the refrigerator door from the bottom hinge pin. The top
hinge will come away with the door.
\
Style 2 - Firmly pull up on the clasp. Then, pull the tubing out
of the fitting.
NOTE: The water dispenser tubing remains attached to the
left-hand refrigerator door.
\
5.
Lift the refrigerator door from the bottom hinge pin. The top
hinge will come away with the door.
NOTE: It may not be necessary to remove the bottom hinges
and brake feet assemblies to move the refrigerator through a
doorway.
• Only if necessary, use a driver with a #2 square bit tip to
remove the bottom hinges and a 3/8"nut driver to remove
the brake feet screws.
Replace Right-Hand Refrigerator Door
1. Set the right-hand door onto the bottom hinge pin.
2. Insert the top hinge pin into the open hole in the top of the
refrigerator door.
3. Using the two 3/16"internal hex head screws, fasten the hinge
to the cabinet. Do not tighten the screws completely.
3.
Disconnect the wiring plug located on top of the door hinge.
• Grasp each side of the wiring plug. With your left thumb,
press down to release the catch and pull the sections of
the plug apart.
NOTE: Do not remove the green, ground wire. It should
remain attached to the door hinge.
4,
Using the 3/le"hex key wrench, remove the two internal hex
head screws from the top hinge, and set aside.
NOTES:
Provide additional support for the refrigerator door while
the hinges are being removed. Do not depend on the door
gasket magnets to hold the door in place while you are
working.
Do not remove the two Iocator screws. These screws will
help you align the hinge when you replace the door.
A B
Replace Left-Hand Refrigerator Door
IMPORTANT: Do not intertwine the water tubing and wiring
bundles when reconnecting them.
1. Set the left-hand door onto the bottom hinge pin.
2. Using the two 3/le"internal hex head screws, fasten the hinge
to the cabinet. Do not tighten the screws completely.
3. Reconnect the water dispenser tubing.
Style 1 - Insert the tubing into the fitting until it stops and the
outer ring is touching the face of fitting.
Style 2 - Insert the tubing firmly into the fitting until it stops.
Close the clasp around the tubing. The clasp snaps into place
between the fitting and the collar.
4. Reconnect the electrical wiring.
• Push together the two sections of the wiring plug.
Final Steps
1. Completely tighten the four internal hex head screws (two on
the right-hand door hinge and two on the left-hand door
hinge).
2. Replace both top hinge covers.
C
A. _" Internal hex head screws
B. Ground wire (do not remove)
8
C.Locator screws (do not
remove)
Remove and Replace Freezer Drawer Front
Depending on the width of your door opening, it may be
necessary to remove the freezer drawer front to move the
refrigerator into your home.
IMPORTANT:
• If the refrigerator was previously installed and you are moving
it out of the home, before you begin, turn the refrigerator
control OFF, and unplug the refrigerator or disconnect power.
Remove food from the freezer drawer.
Two people may be required to remove and replace the
freezer drawer front.
Tool Needed: 1/4"hex driver
Remove Drawer Front
r r
1. Open the freezer drawer to its full extension.
2. Remove the two screws at the top, inside the drawer front
(one on the left-hand side and one on the right-hand side)
that fasten the drawer front to the drawer glides.
3. Lift up on the drawer front to release the plastic studs from
the drawer glide bracket slots.
Replace Drawer Front
1. Pull out the freezer drawer glides to their full extension.
2. Holding the drawer front by its sides, align the two plastic
studs, located at the bottom, inside the drawer front, with the
drawer glide bracket slots.
NOTE: It helps if one person holds the drawer glides steady
while another person aligns the drawer front and inserts the
studs into the slots.
S sJJ'_
A. Drawer front screw
B. Drawer front plastic stud
3.
Replace and tighten the two screws at the top of the drawer
front (one on the left-hand side and one on the right-hand
side).
A.Drawer glide bracket slots
4.
Slide the drawer glides back into the freezer.
Final Steps
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
2. Reset the controls. See "Using the Control(s)."
3. Return all removable door parts to doors and the food to
refrigerator.
Electrical Requirements
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical
connection.
Recommended Grounding Method
A 115 volt, 60 Hz, AC only 15- or 20-amp fused, grounded
electrical supply is required. It isrecommended that a separate
circuit serving only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, turn Cooling OFF, and then disconnect the
refrigerator from the electrical source. When you have finished,
reconnect the refrigerator to the electrical source and turn
Cooling ON. See "Using the Control(s)."
Water Supply Requirements
A cold water supply with water pressure between 35 and 120 psi
(241 and 827 kPa) is required to operate the water dispenser and
ice maker. If you have questions about your water pressure, call a
licensed, qualified plumber.
NOTE: If the water pressure is less than what is required, the flow
of water from the water dispenser could decrease or ice cubes
could be hollow or irregular shaped.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a
reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 35 and 120 psi (241 and
827 kPa).
If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill
after heavy use. The tank capacity could be too small to keep
up with the requirements of the refrigerator.
NOTE: Faucet mounted reverse osmosis systems are not
recommended.
• If your refrigerator has a water filter, it may further reduce the
water pressure when used in conjunction with a reverse
osmosis system. Remove the water filter. See "Water
Filtration System."
If you have questions about your water pressure, call a licensed,
qualified plumber.
10
Connect the Water Supp(y
Read all directions before you begin.
IMPORTANT:
• Plumbing shall be installed in accordance with the
International Plumbing Code and any local codes and
ordinances.
• To avoid off-taste or odor in your ice or water, it is
recommended that you use copper tubing or Whirlpool ®
supply tubing, Part Number 8212547RP to connect the
household water line with the water line or water fitting
coming from the back of the refrigerator. Check for leaks.
• Install tubing only in areas where temperatures will remain
above freezing.
TOOLS NEEDED:
Gather the required tools and parts before starting installation.
• Flat-blade screwdriver
• 7/le"and 1/2"open-end wrenches or two adjustable wrenches
• 1/4"nut driver
NOTE: Do not use a piercing-type or ¾e" (4.76 mm) saddle valve
which reduces water flow and clogs easier.
Connect to Water Line
IMPORTANT: If you turn the refrigerator on before the water is
connected, turn the ice maker OFE
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
3. Use a quarter-turn shutoff valve or the equivalent, served by a
1/_,,household supply line.
NOTE: To allow sufficient water flow to the refrigerator, a
minimum 1/_,,size household supply line is recommended.
Slip compression sleeve and compression nut onto
copper tubing as shown. Insert end of tubing into outlet
end squarely as far as it will go. Screw compression nut
onto outlet end with adjustable wrench. Do not
overtighten.
A. Compression sleeve
B. Compression nut
5.
Place the free end of the tubing into a container or sink, and
C. Copper tubing
turn on main water supply to flush out tubing until water is
clear. Turn off shutoff valve on the water pipe.
NOTE: Always drain the water line before making the final
connection to the inlet of the water valve, to avoid possible
water valve malfunction.
6.
Bend the copper tubing to meet the water line inlet, which is
located on the back of the refrigerator cabinet as shown.
Leave a coil of copper tubing to allow the refrigerator to be
pulled out of the cabinet or away from the wall for service.
Connect to Refrigerator
Follow the connection instructions specific to your model.
Style 1
1. Remove plastic cap from water valve inlet port. Attach the
copper tube to the valve inlet using a compression nut and
sleeve as shown. Tighten the compression nut. Do not
overtighten. Confirm copper tubing is secure by pulling on
copper tubing.
2. Create a service loop with the copper tubing. Avoid kinks
when coiling the copper tubing. Secure copper tubing to
refrigerator cabinet with a "P" clamp.
A
B
C
A. Sleeve
B. Nut
4.
Now you are ready to connect the copper tubing to the
C. Copper tubing (to refrigerator)
D. Household supply line (_" minimum)
shutoff valve. Use 1/4"(6.35 mm) OD soft copper tubing to
connect the shutoff valve and the refrigerator.
• Ensure that you have the proper length needed for the
job. Be sure both ends of the copper tubing are cut
square.
B
u
D
A. Copper tubing
B. "P" clamp
3.
Turn on water supply to refrigerator and check for leaks.
C. Compression nut
D. Compression sleeve
Correct any leaks.
11
Style 2
1. Unplug refrigerator or disconnect power.
2. Remove and discard the short, black plastic part from the
end of the water line inlet.
3. Thread the nut onto the end of the tubing. Tighten the nut by
hand. Then tighten it with a wrench two more turns. Do not
overtighten.
NOTE: To avoid rattling, be sure the copper tubing does not
touch the cabinet's side wall or other parts inside the cabinet.
A B C D
A. Household water fine C. Ferrule (purchased)
B. Nut (purchased) D. Refrigerator water tubing
4. Install the water supply tube clamp around the water supply
line to reduce strain on the coupling.
5. Turn shutoff valve ON.
6. Check for leaks. Tighten any connections (including
connections at the valve) or nuts that leak.
7. On some models, the ice maker is equipped with a built-in
water strainer. If your water conditions require a second water
strainer, install it in the 1/4"(6.35 mm) water line at either tube
connection. Obtain a water strainer from your appliance
dealer.
Complete the Installation
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
2. Flush the water system. See "Water and Ice Dispensers."
NOTE: Allow 24 hours to produce the first batch of ice. Discard
the first three batches of ice produced. Allow 3 days to
completely fill the ice storage bin.
Handle nsta atJon and Removal
Parts Included: Refrigerator door handles (2), Freezer drawer
handle (1), 1/8"hex key, spare setscrew(s)
Install Handles
NOTE: Handle mounting setscrews are preinstalled inside the
handle.
1. Remove the handles from the packaging inside the
refrigerator, and place them on a soft surface.
2.
Open a refrigerator compartment door. On the closed door,
place a handle onto the shoulder screws so that the
setscrews are facing the adjacent door.
.4
_B
A. Shoulder screws
B. Setscrews inside the handle
3.
Firmly push the handle toward the door until the handle base
is flush against the door.
12
4,
While holding the handle, insert the short end of the hex key
into the upper hole and slightly rotate the hex key until it is
engaged in the setscrew.
5. Using a clockwise motion tighten the setscrew just until it
begins to contact the shoulder screw. Do not fully tighten.
6. Repeat steps 4 and 5 to fasten the lower setscrew.
7. Once both setscrews have been partially tightened as
instructed in the previous steps, fully tighten both setscrews.
IMPORTANT: When the screws feel tight, tighten them an
additional quarter-turn. The handle is not properly installed
without this extra tightening.
8. Repeat steps 2 through 7 to install the other handle onto the
adjacent refrigerator door.
9. With the freezer drawer closed, place the handle onto the
shoulder screws so that the setscrews are facing down
toward the floor.
,4
10. Firmly push the handle toward the drawer until the handle
base is flush against the drawer.
11. Insert the short end of the hex key into the left-hand hole and
slightly rotate the hex key until it is engaged in the setscrew.
12. Using a left to right motion tighten the setscrew a quarter-turn
at a time just until it begins to contact the shoulder screw. Do
not fully tighten.
13. Repeat steps 11 and 12 to fasten the right-hand setscrew to
the shoulder screw.
14. Once both setscrews have been partially tightened as
instructed in the previous steps, fully tighten both setscrews.
IMPORTANT: When the screws feel tight, tighten them an
additional quarter-turn. The handle is not properly installed
without this extra tightening.
15. Save the hex key and all instructions.
Remove the Handles
1. While holding the handle, insert the short end of the hex key
into a setscrew hole and slightly rotate the hex key until it is
engaged in the setscrew.
2. Using a right to left motion loosen the setscrew a quarter-turn
at a time.
3. Repeat steps 1 and 2 for the other setscrew. Slowly pull the
handle away from the door or drawer.
4. If necessary, use a Phillips screwdriver to remove the
shoulder screws from the door.
A. Shoulder screw
B. Setscrews inside the handle
B
13
Refrigerator LeveHng Door C os ng and AHgnment
The base grille covers the adjustable brake feet and roller
assemblies located at the bottom of the refrigerator below the
freezer drawer. Before making any adjustments, remove the base
grille and move the refrigerator to its final location.
Tools Needed: 1/4"hex driver
Tools Provided: 1/8"hex key wrench
1. Remove the base grille. Grasp the grille firmly and pull it
toward you. Open the freezer drawer to access the brake
feet.
NOTE: To allow the refrigerator to roll easier, raise the break
feet by turning them counterclockwise. The front rollers will
be touching the floor.
2. Move the refrigerator to its final location.
3. Lower the brake feet, by turning them clockwise, until the
rollers are off the floor and both brake feet are snug against
the floor. This keeps the refrigerator from rolling forward when
opening the refrigerator doors or freezer drawer.
IMPORTANT: If you need to make further adjustments
involving the brake feet, you must turn both brake feet the
same amount to keep the refrigerator level.
4. Make sure the doors close easily. If you are satisfied with the
door opening and closing, skip the next section and go to
"Align the Doors." If, however, the doors do not close easily
or the doors pop open, adjust the tilt.
To Adjust the Cabinet Tilt:
• Open the freezer drawer. Use a 1/4"hex driver to turn both
brake feet clockwise the same amount. This will raise the
front of the refrigerator. It may take several turns to allow
the doors to close easier.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the brake feet. This
makes it easier to turn them.
Style 1
Style 2
\
ii
\
f
A
A. Brake foot
5=
Make sure the doors are even at the top and that the space
between the bottom of the refrigerator doors and the top of
the freezer drawer is even. If necessary, align the doors.
To Align the Doors:
Keeping both refrigerator doors closed, pull out the
freezer drawer. Locate the bottom hinge pin of the
right-hand refrigerator door. The alignment screw is inside
the bottom hinge pin.
Insert the short end of the 1/8"hex key wrench (packed
with the Door Handle Installation Instructions) into the
bottom hinge pin until it is fully engaged in the alignment
screw.
To raise the refrigerator door, turn the hex key to the right.
To lower the door, turn the hex key to the left.
Continue to turn the alignment screw until the doors are
aligned.
I
14
_/4" 0
A. Brake foot
B. Front roller
A. Bottom hinge pin
B. _" Hex key wrench
6=
Make sure the refrigerator is steady. If the refrigerator seems
unsteady or rolls forward when the door or drawer is pulled
open, adjust the brake feet.
A
B
To Steady the Refrigerator:
Open the freezer drawer. Using a 1/4"hex driver, turn both
brake feet clockwise the same amount until the brake feet
are snug against the floor. Check again. If not satisfied,
continue to adjust the brake feet by half turns of the
screw until the refrigerator does not roll forward when the
drawer is opened.
Water F [tration System
Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction
may be used on disinfected waters that may contain
filterable cysts.
Install the Water Filter
1. Locate the accessory packet in the refrigerator and remove
the water filter.
2. Take the water filter out of its packaging and remove the
cover from the O-rings. Be sure the O-rings are still in place
after the cover is removed.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the brake feet. This
makes it easier to turn the screws.
7.
Replace the base grille by aligning the ends of the grille with
the leveling assemblies on each side and snapping the grille
into place.
4.
Align the arrow on the water filter label with the cutout notch
in the filter housing and insert the filter into the housing.
5.
Turn the filter clockwise 90 degrees (1/4turn), until it locks into
the housing.
NOTE: If the filter is not correctly locked into the housing, the
water dispenser will not operate. Water will not flow from the
dispenser.
A. O-ring cover
B. O-ring
3.
The water filter compartment is located in the right-hand side
of the refrigerator ceiling. Push up on the compartment door
to release the catch, then lower the door.
6.
While the compartment door is still open, lift the filter up into
the compartment. Then, close the filter compartment door
completely.
7.
Flush the water system. See "Flushing the Water Filter" in the
"Water and Ice Dispensers" section.
IMPORTANT: If you do not flush the water system, you may
experience dripping and/or decreased flow from the water
dispenser.
The Water Filter Status Light
Press OPTIONS on the control panel to launch the Options menu.
Press OPTIONS, under Filter Status, again to display the
percentage of filter life remaining (from 99% to 0%). Press ICE/
WATER, under Back, to return to the Normal screen.
The water filter status lights will help you know when to change
your water filter.
• ORDER FILTER (yellow) - it is almost time to change the water
filter. While you are dispensing water, "Order Filter" will blink
seven times and sound an alert tone three times.
• REPLACE FILTER (red) - Replace the water filter. While you
are dispensing water, "Replace Filter" will blink seven times
and an alert tone will sound three times.
15
RESET the water filter status tracking feature. After you
replace the disposable filter with a new filter, closing the filter
compartment door will automatically reset the filter status
tracking feature. See "Using the Control(s)."
NOTE: "REPLACE FILTER" will remain illuminated if a filter is
not installed or is installed incorrectly.
Replace the Water Filter
To purchase a replacement water filter, see "Accessories."
Replace the disposable water filter when indicated on the water
filter status display or at least every 6 months. If water flow to
your dispenser or ice maker decreases noticeably, change the
water filter sooner.
)nsta(( F (ter (on some mode(s)
1. Locate the water filter compartment in the right-hand side of
the refrigerator ceiling. Push up to release and lower the
compartment door.
2. Turn the water filter counterclockwise (to the left), and pull it
straight out of the compartment.
NOTE: There may be some water in the filter. Some spilling
may occur. Use a towel to wipe up any spills.
3. Install the replacement water filter by following steps 2
through 7 in the "Install the Water Filter" section.
An air filter is 15 times more powerful than baking soda at
reducing common food odors inside the refrigerator.
On some models, your refrigerator's accessory packet includes
an air filter, which must be installed prior to use.
Installing the Air Filter
Install the air filter behind the vented door, located on the rear
wall near the top of the refrigerator compartment.
1. Remove the air filter from its packaging.
2. Lift open the vented door.
3. Snap the filter into place.
Installing the Filter Status Indicator
The filter comes with a status indicator, which should be
activated and installed at the same time the air filter is installed.
1,
Place the indicator face-down on a firm, flat surface.
2.
Apply pressure to the bubble on the back of the indicator until
the bubble pops to activate the indicator.
3.
Lift open the vented air filter door. On some models, there are
notches behind the door.
Models with notches:
• With the indicator screen facing outward, slide the
indicator down into the notches.
NOTE: The indicator will not easily slide into the notches
if the bubble has not been popped.
16
A. Air filter
A. Air filter status indicator
B. Notches
Close the air filter door, and check that the indicator is
visible through the window in the door.
Models without notches:
• Place the indicator somewhere it is easily visible - either
inside the refrigerator, or elsewhere in your kitchen or
home.
Replacing the Air Filter
i "_
A............................../ /
A. Status indicator window
The disposable air filter should be replaced every 6 months,
when the status indicator has completely changed from white to
red.
To order a replacement air filter, contact us. See "Accessories"
for information on ordering.
1. Remove the used air filter by squeezing in on the side tabs.
2. Remove the used status indicator.
3. Install the new air filter and filter status indicator using the
Install Produce Preserver (on some models)
The produce preserver absorbs ethylene, to slow the ripening
process of many produce items. As a result, certain produce
items will stay fresh longer.
Ethylene production and sensitivity varies depending on the type
of fruit or vegetable. To preserve freshness, it is best to separate
produce with sensitivity to ethylene from fruits that produce
moderate to high amounts of ethylene.
Apples
Asparagus
Berries
Broccoli
Sensitivity to
Ethylene
High
Med.
Low
High
Ethylene
Production
Very High
Very Low
Low
1. Find the Produce Preserver housing inside the refrigerator.
Very Low
instructions in the previous sections.
Installing the Produce Preserver
CAUTION: IRRITANT
MAY IRRITATE EYES AND SKIN. DANGEROUS FUMES
FORM WHEN MIXED WITH OTHER PRODUCTS.
Do not mix with cleaning products containing ammonia,
bleach or acids. Do not get in eyes, on skin or clothing. Do
not breathe dust. Keep out of reach of children.
FIRST AIDTREATMENT: Contains potassium
permanganate. If swallowed, call a Poison Control Center or
doctor immediately. Do not induce vomiting. If in eyes, rinse
with water for 15 minutes. If on skin, rinse with water.
Cantaloupe
Carrots
Citrus Fruit
Grapes
Lettuce
Pears
Spinach
Med.
Low
Med.
Low
High
High
High
High
Very Low
Very Low
Very Low
Very Low
Very High
Very Low
2. Open the housing by pulling up and out on the back.
3. Remove the FreshFIow TM Produce Preserver pouches from
the packaging and place them into the housing.
NOTE: For best performance, always use two pouches.
4. Place the Produce Preserver housing onto the tab located on
the back wall of the crisper drawer.
17
Installing the Status Indicator
The produce preserver comes with a status indicator, which
should be activated and installed at the same time the pouches
are installed.
1. Place the indicator face-down on a firm, flat surface.
2. Apply pressure to the bubble on the back of the indicator until
the bubble pops, to activate the indicator.
3. Slide open the cap on the top of the produce preserver
housing.
4. Place the indicator in the top of the housing, facing outward.
5. Slide the cap closed, and check that the indicator is visible
through the rectangular hole in the cap.
NOTE: The cap will not easily close if the indicator's bubble
has not been popped.
Replacing the Produce Preserver
The disposable pouches should be replaced every 6 months or
when the status indicator changes completely from white to red.
To order replacements, contact us. See "Accessories" for
information on ordering.
1. Remove the used pouches from the produce preserver
housing.
2. Remove the used status indicator.
3. Install the replacement pouches and status indicator using
the instructions in the previous sections.
The following accessories are available for your refrigerator. To
order an accessory, contact us and ask for the Part Number.
In the U.S.A., visit our webpage www.whirlpool.com/
accessories or call 1-800-901-2042.
In Canada, visit our webpage www.whirlpoolparts.ca
or call 1-800-807-6777.
affresh ®Stainless Steel Cleaner:
In U.S.A., order Part #W10355016
In Canada, order Part #W10355016B
affresh ®Stainless Steel Wipes:
In U.S.A., order Part #W10355049
In Canada, order Part #W10355049B
affresh ®Kitchen & Appliance Cleaner:
In U.S.A., order Part #W10355010
In Canada, order Part #W10355010B
Water Filter:
Order Part #W10413645A or FILTER2
Air Filter:
Order Part #W10311524 or AIR1
Produce Preserver:
Order Part # W10346771A or FRESH1
Water Filter, Air Filter and Produce Preserver Bundle Pack:
Order Part # W10413643BL
18
Open n$ and C(os n$ Doors
There are two refrigerator compartment doors. The doors can be
opened and closed either separately or together.
There is a vertically-hinged seal on the left refrigerator door.
• When the left side door is opened, the hinged seal
automatically folds inward so that it is out of the way.
• When both doors are closed, the hinged seal automatically
forms a seal between the two doors.
Usin8 the Contro(s
The controls are located above the external dispenser.
IMPORTANT: The display screen on the dispenser control panel
will turn off automatically and enter "sleep" mode when the
control buttons and dispenser paddles have not been used for
2 minutes or more. Press any control button to reactivate the
display screen. The home screen will appear as shown.
A
A. Hinged seal
Viewing and Adjusting Temperature Set Points
For your convenience, your refrigerator and freezer controls are
preset at the factory.
When you first install your refrigerator, make sure that the
controls are still set to the recommended set points. The factory
recommended set points are 37°F (3°C) for the refrigerator and
0°F (-18°C) for the freezer.
IMPORTANT:
• Wait 24 hours before you put food into the refrigerator. If you
add food before the refrigerator has cooled completely, your
food may spoil.
NOTE: Adjusting the set points to a colder than
recommended setting will not cool the compartments any
faster.
• If the temperature is too warm or too cold in the refrigerator or
freezer, first check the air vents to be sure they are not
blocked before adjusting the controls.
• The recommended settings should be correct for normal
household use. The controls are set correctly when milk or
juice is as cold as you like and when ice cream is firm.
NOTE: Areas such as a garage, basement or porch, may
have higher humidity or extreme temperatures. You may need
to adjust the temperature away from the recommended
settings to accommodate for these conditions.
• Wait at least 24 hours between adjustments. Recheck the
temperatures before other adjustments are made.
View Temperature Set Points
1. Press and hold TEMP for 3 seconds to activate Temperature
mode.
NOTE: To view temperature in degrees Celsius, press the
LIGHT button, under Units, when adjust mode is activated. To
return the display setting to Fahrenheit, press the LIGHT
button again.
19
When Temperature mode is activated, press TEMP to toggle
between Fridge and Freezer. The display will show the
temperature set point of the selected compartment, and
temperature adjusting information will appear on the display
screen.
Recommended Refrigerator Temperature
Recommended Freezer Temperature
When adjusting temperature set points,
use the following chart as a guide:
REFRIGERATOR too cold REFRIGERATOR Setting
1° higher
FREEZER too cold FREEZER Setting
1° higher
i t
Cooling On/Off
Your refrigerator and freezer will not cool when cooling is
turned off.
• To turn cooling off, press and hold the LOCK and
MEASURED FILL buttons at the same time for 3 seconds.
The Cooling Off icon will blink seven times and then remain lit
as shown.
IMPORTANT:
• To avoid unintentionally locking the dispenser or changing
other settings, press both buttons at exactly the same
time.
• When cooling is off, the dispenser paddles and all
controls except Lock and Measured Fill are disabled.
Adjust Temperature Set Points
Refrigerator set point range: 33°F to 45°F (0°C to 7°C).
Freezer set point range: -5°F to 5°F (-21 °C to -15°C).
1. When Temperature mode is activated, press TEMPERATURE
to select the Refrigerator zone. The display will show the
temperature set point of the selected compartment, as
shown.
2. Press LOCK to raise the set point, or press OPTIONS to lower
the set point.
3. When you have finished viewing (and adjusting if desired) the
refrigerator set point, press TEMP, under Select Zone, to
change the display to show the freezer set point. When the
zone has been changed, "FREEZER" appears on the display
screen.
4. Press the LOCK button to raise the set point, or press the
OPTIONS button to lower the set point.
Save/Confirm Temperature Settings
• When you have finished adjusting both the refrigerator and
freezer set points, press MEASURED FILL to confirm and to
save the settings.
NOTE: To exit Temperature mode without saving changes, press
the ICE/WATER button under Back at any time, or allow about
60 seconds of inactivity. The temperature mode will turn off
automatically and return to the normal screen.
A.Press LOCK and MEASUREDFILL at the same time.
• Press and hold LOCK and MEASURED FILL for 3 seconds
again to turn cooling back on.
Options
Press the OPTIONS button to open the Options menu and select
between Fast Ice, Filter Status or Vacation mode.
Press the ICEANATER button at any time to return to the Normal
screen.
20
Fast Ice
The Fast Ice feature assists with temporary periods of heavy ice
use by increasing ice production.
• To turn on the Fast Ice feature, press the OPTIONS button to
access the Options menu, then press TEMP, under Fast Ice to
activate the feature. When the feature is on, the Fast Ice icon
will appear on the dispenser display screen. The Fast Ice
feature will remain on for 24 hours unless manually turned off.
%
To manually turn off the Fast Ice feature, press the OPTIONS
button to enter Options mode (unless you are already in
Options mode), then press TEMP, under Fast Ice, again.
When the feature has been turned off, the Fast Ice icon will
disappear from the dispenser display.
Filter Status
Displays the percentage of use remaining in the water filter (from
100% remaining to 0% remaining).
To access Filter Status, press the OPTIONS button to access the
Options menu, then press OPTIONS, under Filter Status, to
display the percent of liferemaining in the water filter.
ALSO
The water filter status lights will let you know when to change
your water filter.
• ORDER FILTER (Yellow) - Order a replacement water filter.
• REPLACE FILTER (Red) - Replace the water filter. Replacing
the disposable water filter will automatically reset the water
filter status tracking feature. See "Water Filtration System."
NOTE: REPLACE FILTER will remain illuminated if a filter is
not installed or installed incorrectly.
To turn off Vacation Mode, press the OPTIONS button to
access the Options menu, then press LOCK to turn off the
feature. The Vacation icon will disappear, and the screen will
display the settings as they were before Vacation Mode was
turned on.
NOTES:
• During the first hour after Vacation Mode is turned on,
opening and closing the refrigerator door will not affect the
setting. After 1 hour has passed, opening and closing the
refrigerator door will turn off Vacation Mode.
• While in Vacation Mode, if Fast Ice is turned on or the Door
Ajar alarm sounds, Vacation Mode will be canceled.
Additional Features
Door Ajar Alarm
The Door Ajar Alarm feature sounds an alarm when the
refrigerator door(s) or freezer drawer is open for 5 minutes and
cooling is turned on. The alarm will repeat every 2 minutes. Close
all doors and drawer to turn it off. The feature then is reset and
will reactivate when either door is left open again for 5 minutes.
• NOTE: To mute the audible alarm while keeping the doors
open, such as while cleaning the inside of the refrigerator,
press any button on the control panel. The alarm sound will
be temporarily turned off, but the Door Ajar icon will still be
displayed on the dispenser control panel.
Vacation Mode
In Vacation Mode, the freezer will defrost less often to conserve
energy.
• To turn on Vacation mode, press the OPTIONS button to
access the Options menu, then press LOCK, under Vacation,
to activate the feature. When the feature ison, the Vacation
icon will appear on the dispenser display screen as shown.
Water and Ice D spensers
IMPORTANT:
• Allow 3 hours for the refrigerator to cool down and chill water.
• Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
Disabling Sounds
• To turn off control and dispenser sounds, press and hold ICE/
WATER and MEASURED FILL at the same time for
3 seconds. All normal operating tones are disabled. Only alert
tones will be audible.
• To turn all sounds back on, press and hold ICE/WATER and
MEASURED FILL at the same time for 3 seconds again.
Showroom Mode
This mode is used only when the refrigerator is on display in a
retail store. If you unintentionally turn on Showroom mode, the
word "Showroom" will light up on the display. Exit Showroom
mode by pressing and holding LIGHT and LOCK at the same
time for 3 seconds.
• The dispensing system will not operate when either the
refrigerator door or freezer drawer is open.
21
Flush the Water System
Air in the water dispensing system can cause the water dispenser
to drip. After connecting the refrigerator to a water source or
replacing the water filter, flush the water system.
Flushing the water dispensing system forces air from the water
line and filter and prepares the water filter for use. Additional
flushing may be required in some households.
NOTE: As air is cleared from the system, water may spurt out of
the dispenser.
1. Using a sturdy container, depress and hold the water
dispenser paddle for 5 seconds.
2. Release the dispenser paddle for 5 seconds. Repeat steps 1
and 2 until water begins to flow.
3. Once water begins to flow, continue depressing and releasing
the dispenser pad (5 seconds on, 5 seconds off) until a total
of 3 gal. (12 L) has been dispensed.
3.
Press and release the ice/water dispenser paddle, as needed,
Calibrate Measured Fill
_HHHHHHHHH_H_H_H_H_H_HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH_H_HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH_HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH_
Household water pressure may affect the accuracy of the
to dispense water to the 1 cup fill line.
NOTE: If overfilling or spilling occurs, discard the water and
press ICE/WATER "Back" to restart the calibration process.
Measured Fill feature. So, for optimum performance of your water
dispenser, you must first calibrate Measured Fill.
IMPORTANT: Flush the water system before calibrating
Measured Fill.
1. Place a sturdy measuring cup (1 cup [237 mL] size) on the
dispenser tray centered in front of the ice/water dispenser
paddle.
NOTE: Depending on your model, a measuring cup may be
provided.
A. Ice/Water dispenser paddle
B. Measuring cup (1 cup)
2.
Press and hold the OPTIONS and LOCK buttons at the same
time for 3 seconds. The words "Back" and "1 Cup" will
appear on the display screen. Also, the Calibrate Measured
Fill icon will illuminate and remain lit while the Measured Fill
feature is being calibrated.
NOTE: You may press ICE/WATER "Back" at any time to exit
calibration mode. The Calibrate Measured Fill icon will
disappear.
22
4,
When 1 cup of water has been correctly dispensed into the
measuring cup, press the MEASURED FILL button under the
word "Confirm" to confirm the calibration.
A ..........
A. 1 cup of water
5,
When Measured Fill calibration has been confirmed the icons
will disappear and the display will return to the home screen.
Dispensing
Press ICE/WATER to toggle through the following choices in a
continuous loop:
• Water (default) - Dispenses water
• Cubed - Dispenses cubed ice.
• Crushed - Dispenses crushed ice
NOTES:
• The word "ICE" appears on the display screen when
either crushed or cubed ice is selected.
• For crushed ice, cubes are crushed before being
dispensed. This may cause a slight delay when
dispensing crushed ice. Noise from the ice crusher is
normal, and pieces of ice may vary in size.
• When changing from crushed to cubed, a few ounces of
crushed ice will be dispensed along with the first cubes.
Water Crushed Cubed
The Water Dispenser
IMPORTANT:
• Dispense at least 1 qt (1 L) of water every week to maintain a
fresh supply.
• If the flow of water from the dispenser decreases, it could be
caused by low water pressure.
• With the water filter removed, dispense 1 cup (237 mL) of
water. If 1 cup (237 mL) of water is dispensed in
8 seconds or less, the water pressure to the refrigerator
meets the minimum requirement.
• If it takes longer than 8 seconds to dispense 1 cup
(237 mL) of water, the water pressure to the refrigerator is
lower than recommended. See "Water Supply
Requirements" and "Troubleshooting" for suggestions.
To Dispense Water (Standard):
1. Select water.
2. Press a sturdy glass against the dispenser paddle.
NOTE: While dispensing water and for 3 seconds after
dispensing has stopped, the digital display will show how
much water has been dispensed.
3. Remove the glass to stop dispensing.
To Dispense Water (Measured Fill):
Measured Fill allows you to dispense a specified amount of water
with the touch of a few controls.
NOTE: The amount of water you select will be dispensed. Be
sure that the container is empty and can hold the entire volume. If
ice is in the container, you may need to adjust your selection.
1. Press MEASURED FILL to turn on the feature. When the
feature is on, the Measured Fill screen appears on the display.
NOTES:
The dispenser will automatically turn off Measured Fill
after 1 minute of inactivity. When Measured Fill is turned
off, any changes you have made will be lost and all
defaults will be restored.
• Press ICE/WATER "Back," to manually turn off the
Measured Fill feature.
2.
Press LIGHT, under Units, to toggle among ounce, cup and
liter. The default unit is ounce.
Default, minimum, and maximum volumes are listed below.
Units Default Minimum Maximum
Ounces 8 1 128
Cups 1 1/4 16
Liters 0.25 0.05 4.00
3.
Press LOCK or OPTIONS to adjust the water volume as
desired. The LOCK control increases the volume, and the
OPTIONS control lowers the volume.
NOTES:
When increasing or decreasing the dispense volumes, if
an adjustment button (-/+) is held for approximately
10 seconds or longer the control may stop responding.
Release the button for approximately 2 seconds and then
continue making the adjustment.
Most coffee cups (commonly 4 to 6 oz [118 to 177 mL]
per cup) are not the same size as a measuring cup (8 oz
[237 mL]). You may need to adjust the volume to avoid
unintentionally overfilling coffee cups.
4=
Dispense water.
NOTE: While dispensing water, the digital display will count
down how much water remains to be dispensed, according
to the volume you selected. The flow of water will
automatically stop once the desired volume has been
dispensed.
• Press a sturdy glass against the dispenser paddle.
OR
• Place the glass below the water dispenser and press
MEASURED FILL, under Dispense, for hands-free
dispensing.
23
5=
To stop dispensing before the selected volume has been
dispensed, remove the glass from the dispenser paddle OR
press MEASURED FILL a second time.
NOTE: If you stop dispensing before the desired volume has
been dispensed, the digital display will continue to show how
much water remains to be dispensed. The display will turn off
after 1 minute of inactivity.
• To select a new volume or start dispensing the same
volume again, you must first finish dispensing the
selected volume, or turn off the Measured Fill feature
(either by waiting 1 minute so it will automatically turn off
or by pressing ICE/WATER "Back" to manually turn it off)
and then turn it back on.
The Ice Dispenser
IMPORTANT:
• If the ice cubes are hollow or have an irregular shape, it could
be because of low water pressure. See "Water Supply
Requirements."
• Ice travels from the ice storage bin through the dispenser
chute to the dispenser. To turn off the ice maker, see "Ice
Maker and Storage Bin."
The Dispenser Light
When you use the dispenser, the light will automatically turn on.
To turn on the light when you are not dispensing:
Press LIGHT to toggle through the following choices in a
continuous loop:
• OFF (default) - The dispenser light is off
• ON - The dispenser light remains on at 100% brightness
• DIM - The dispenser light remains on at 50% brightness
The dispenser lights are LEDs that cannot be changed. If it
appears that your dispenser lights are not working, see
"Troubleshooting" for more information.
!
!
ON DIM
To Clean the Ice Dispenser Chute:
Humidity causes ice to naturally clump together. Ice particles can
build up until the ice dispenser chute becomes blocked.
If ice is not dispensed regularly, it may be necessary to empty the
ice storage bin and clean the ice delivery chute, the ice storage
bin and the area beneath the storage bin every 2 weeks.
• Remove the ice clogging the storage bin and delivery chute,
using a plastic utensil if necessary.
• Clean the ice delivery chute and the bottom of the ice storage
bin using a warm, damp cloth, then dry thoroughly.
To Dispense Ice:
1. Select the desired type of ice. To switch between cubed ice
and crushed ice, press ICE/WATER.
Cut Hazard
Use a sturdy glass when dispensing ice.
Failure to do so can result in cuts.
The Dispenser Lock
The dispenser can be turned off for easy cleaning or to avoid
unintentional dispensing by small children and pets.
NOTE: The lock feature does not shut off power to the
refrigerator, to the ice maker, or to the dispenser light. It simply
deactivates the controls and dispenser paddles. To turn off the
ice maker, see "Ice Maker and Storage Bin."
• Press and hold LOCK for 3 seconds to lock the dispenser.
• Press and hold LOCK asecond time to unlock the dispenser.
The display screen indicates when the dispenser is locked.
LOCKED UNLOCKED
2. Press a sturdy glass against the dispenser paddle. Hold the
glass close to the dispenser opening so ice does not fall
outside of the glass.
IMPORTANT: You do not need to apply a lot of pressure to
the paddle to activate the ice dispenser. Pressing hard will not
make the ice dispense faster or in greater quantities.
3. Remove the glass to stop dispensing.
NOTE: Ice may continue to dispense for several seconds after
removing the glass from the dispenser paddle. The dispenser may
continue to make noise for a few seconds after dispensing.
24
ice Maker and ice Storage Bin (on some models)
IMPORTANT: To avoid low ice production and poor quality ice,
flush the water system before turning on the ice maker. See
"Water Dispenser."
• Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced. Allow 2 to 3 days for the
storage bin to fill completely following installation.
• The quality of your ice will be only as good as the quality of
the water supplied to your ice maker. Avoid connecting the
ice maker to a softened water supply. Water softener
chemicals (such as salt) can damage parts of the ice maker
and lead to poor quality ice. If a softened water supply cannot
be avoided, make sure the water softener is operating
properly and is well maintained.
• If the ice in the storage bin clumps together, break up ice
using a plastic utensil and discard. Do not use anything sharp
to break up the ice. This can cause damage to the ice bin and
the dispenser mechanism.
• Do not store anything in the ice storage bin.
Ice Production Rate
• The ice maker should produce approximately 3 Ibs (1.4 kg) of
ice per day under normal operation.
• To increase ice production, select the increased ice
production feature from the Options menu on the control
panel. See "Using the Control(s)."
(on some models)
_HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH_SHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH__HHHHHHHHHHHHHHHHHHHHHHHHHHHH_SHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH_
The ice maker is located on the left-hand side of the refrigerator
compartment ceiling. Ice cubes are ejected into the ice storage
bin, located on the left-hand refrigerator door.
Turn the Ice Maker On/Off
1. Push up on the latch on the left-hand side of the ice
compartment to open the door.
NOTES:
To manually turn off the ice maker, move the control to the
OFF (right) position.
Your ice maker has an automatic shutoff. The sensor will
automatically stop ice production if the storage bin is full,
if the door is open or the storage bin is removed. The
control will remain in the ON (left) position.
A
A. Ice storage bin release latch
3. Close the ice compartment door.
Remove and Replace the Ice Storage Bin
• Remove the ice storage bin by inserting your fingers into the
hole at the base of the bin and squeezing the latch to release
the bin from the compartment. Lift the storage bin up and pull
it straight out.
• Replace the storage bin inside the ice compartment and push
down to make sure it is firmly in place.
Style 2. - Ice Maker in the Freezer (on some models)
Turn the Ice Maker On/Off
To turn the ice maker ON, simply lower the wire shutoff arm.
Tomanually turn the ice maker OFF, lift the wire shutoff arm to the
OFF (arm up) position and listen for the click.
NOTE: Your ice maker has an automatic shutoff. As ice is made,
the ice cubes will fill the ice storage bin and the ice cubes will
raise the wire shutoff arm to the OFF (arm up) position. Do not
force the wire shutoff arm up or down.
A.Ice compartment door latch
2.
Turn on the ice maker by moving the switch to the (left) ON
position.
NOTE: Turn off the ice maker before removing the ice storage bin
to serve ice or to clean the bin. This will keep the ice cubes from
dropping out of the ice maker and into the freezer compartment.
After replacing the ice storage bin, turn on the ice maker.
25
important information to know about glass shelves
and covers:
Do not clean glass shelves or covers with warm water when
they are cold. Shelves and covers may break if exposed to
sudden temperature changes or impact, such as bumping.
Tempered glass is designed to shatter into many small,
pebble-size pieces. This is normal. Glass shelves and covers
are heavy. Use both hands when removing them to avoid
dropping.
Refrigerator She ves
The shelves in your refrigerator are adjustable to meet your
individual storage needs.
Storing similar food items together in your refrigerator and
adjusting the shelves to fit different heights of items will make
finding the exact item you want easier. It will also reduce the
amount of time the refrigerator door is open, and save energy.
Shelves and Shelf Frames
To remove and replace a shelf/shelf frame:
1. Remove the shelf/frame by tilting it up at the front and lifting it
out of the shelf supports.
2. Replace the shelf/frame by guiding the rear shelf hooks into
the shelf supports. Tilt the front of the shelf up until rear shelf
hooks drop into the shelf supports.
3. Lower the front of the shelf and make sure that the shelf is in
position.
4
Tuck Away Shelf (on some models)
To retract and extend the front section of the shelf:
1. To retract the front-section of the shelf, slightly lift up on the
front edge and push the adjustable portion of the shelf back
toward the rear of the refrigerator.
2. Extend the front of the shelf by pulling the retracted portion of
the shelf outward until it is fully extended.
Crisper Drawers/Pantry Drawer/Crisper Cover
To remove and replace the drawers:
1. Slide the drawers straight out to the stop. Lift the drawers
from the rails and pull them out the rest of the way.
2. Replace the drawers by placing them on the rails and pushing
them back into position past the drawer stop.
26
