Whirlpool WPWADREC71202 Dimensions

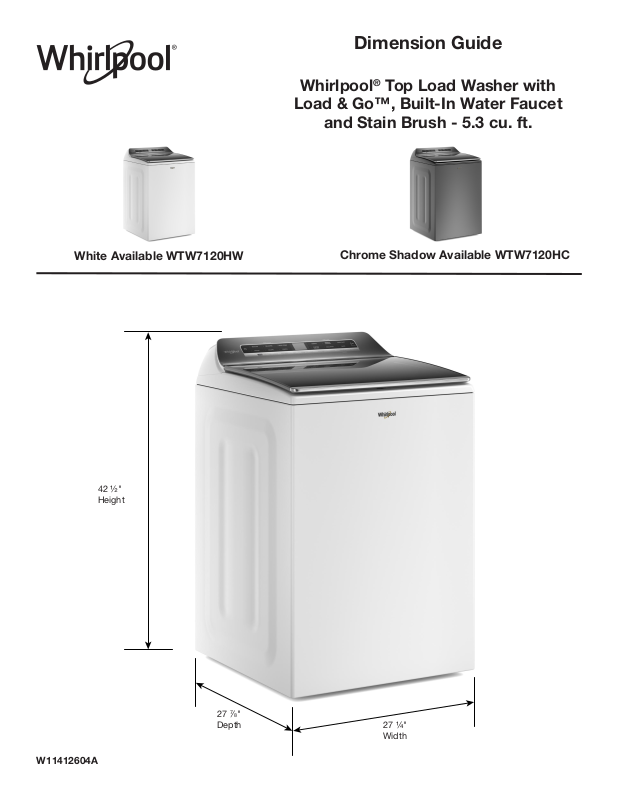

Dimension Guide
Whirlpool® Top Load Washer with
Load & Go™, Built-In Water Faucet
and Stain Brush - 5.3 cu. ft.
White Available WTW7120HW
42 ½"
Height
Chrome Shadow Available WTW7120HC
W11412604A
27 7∕8"
Depth
27 ¼"
Width
DETAILED PLANNING DIMENSIONS
WARNING: To reduce the risk of re, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS and
INSTALLATION INSTRUCTIONS, located in your appliance's Owner's Manual, before installing and operating this appliance.
Electrical Requirements
WTW7120HW
WTW7120HC
Minimum Circuit
Amperage Rating
5.3 cu. ft. DOE (US) 6.1 cu. ft. IEC (CAN)
15 A
Maximum AMP Draw 10.8 A
Operating Voltage 120 V - AC only
Operating Frequency 60 Hz
A
C
D
B
Product Dimensions
WTW7120HW
WTW7120HC
A Height (with feet) 42 ½ 1078.87 43 ½ 1104.27
B Width 27 ¼ 692.5 - C Top of Lid Height (with feet) 39 3∕
D Depth 27 7∕
2
5.3 cu. ft. DOE (US) 6.1 cu. ft. IEC (CAN)
in (min) mm (min) in (max) mm (max)
8
8
1000.58 40 3∕
708 - -
8
1024.98
DETAILED PLANNING DIMENSIONS
MI
G
J
F
E
H
K
L
Product Dimensions
WTW7120HW
WTW7120HC
E Height with Lid Open 58 ½ 1485.86 59 ½ 1511.26
F Height of Lid 19 1∕
G Width of Lid 26 3∕
H Water Inlet Valves Height 39 ½ 1003.26 40 ½ 1028.66
I Water Inlet Valves from Side 5 ¾ 146.75 - J Power Cord from Side 9 ½ 241.68 - K Power Cord Height 38 13∕
Power Cord Length 62 7∕
L Drain Hose Outlet Height 20 7∕
M Drain Hose Outlet from Side 2 13∕
Drain Hose Length 40 15∕
Diameter of Drain Hose 1 25 - -
5.3 cu. ft. DOE (US) 6.1 cu. ft. IEC (CAN)
in (min) mm (min) in (max) mm (max)
8
16
16
16
16
16
16
485.61 - -
664.65 - -
986.17 39 13∕
16
1011.57
1586 - -
519.85 21 7∕
16
545.25
71.3 - -
1040 - -
3
DETAILED PLANNING DIMENSIONS
(76 mm)
Recessed area or closet installation
3"
(76 mm)
14" max.
(356 mm)
2
48 in.
(310 cm2)
20"
(508 mm)
2
24 in.
5"
(155 cm2)
(127 mm)
1"
1"
(25 mm)
(25 mm)
3"
Dimensions show recommended spacing allowed, except for closet door ventilation openings which are minimum required.
This washer has been tested for installation with spacing of 0" (0 mm) clearance on the sides. Consider allowing more space for ease
of installation and servicing, and spacing for companion appliances and clearances for walls, doors, and oor moldings. Add spacing
of 1" (25 mm) on all sides of washer to reduce noise transfer. If a closet door or louvered door is installed, top and bottom air openings
in door are required.
4
