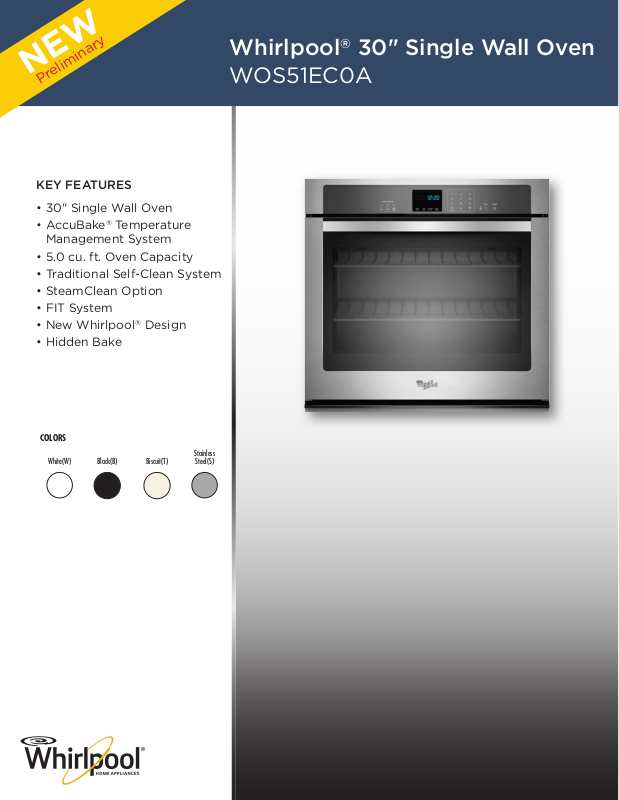

Whirlpool® 30" Single Wall Oven
NEW
Preliminary
KEY FEATURES
• 30" Single Wall Oven
®
• AccuBake Management System
• 5.0 cu. ft. Oven Capacity
• Traditional Self-Clean System
• FIT System
• New Whirlpool
• Hidden Bake
Temperature
®
Design
WOS51EC0A
COLORS
White(W) Black(B) Biscuit(T)
Stainless
Steel(S)
Whirlpool® 30" Single Wall Oven
WOS51EC0A
SPECIFICATIONS DIMENSIONS
ModEl # WoS51EC0A
TrANSiTioNEd FroM ModEl # rBS305PV
FEATurES
Capacity (cu. ft.) 5.0
Self-Cleaning Yes with Steam Clean
Rack Configuration 2 Racks with Integrated Handles
GENErAl oVEN FEATurES
Bake Element (Watts) @240/208 V 2800/2427
Broil Element (Watts) @240/208 V 3600/3120
Broil Passes 8
Oven Cavity Size (in.) 18 in. H x 25 in. W x 19 in. D
®
Temperature Management System Yes
AccuBake
Hidden Bake Yes
Delay Bake Yes
Sabbath Mode Yes
Closed Door Broiling Yes
Rack Positions 6
Control Type Membrane
Control Lockout Yes
Oven Controls Display Type VFD
Oven Controls Display Color Blue / Red
Oven Light(s) 2 Incandescent
Approved for Under-Cooktop Installation Yes
SPECiFiCATioNS
Power Supply Connection Location
3" Below Support Platform on Left
or Right Hand side
Sales Demo Mode Yes
Total Connected Load (kW) @ 240 volts 3.684
Total Connected Load (kW) @ 208 volts 2.788
Circuit (amps) 30
Approx. Shipping Weight (lbs.) 165
Handle Type Metal
FIT System feet and trims supplied with oven Yes
ColorS W, B, S, T
W=White, B=Black, S=Stainless Steel, T=Biscuit
PRODUCT DIMENSIONS
A
E
30" (76.2 cm) models
A. 28¾" (72.8 cm) max. overall
height
B. 28½" (72.4 cm) max. recessed
width
⁄
" (67.9 cm) recessed
C. 26
height
⁄
" (59.1 cm) max. recessed
D. 23
depth
E. 30" (76.2 cm) overall width
Bottom of cutout to floor (undercounter) 5 1/4
B
CABINET DIMENSIONS
Single Oven Undercounter (without cooktop installed above)
Bottom of cutout to floor (in-wall) 32
ProduCT diMENSioNS
Depth with door open 90 degrees 46 3/4
CABINET DIMENSIONS
Single Ovens Installed in Cabinet
C
D
NOTE: The cutout height can be between 26⁄" (68.4 cm) and
29⁄ " (74.8 cm) for single ovens.
A
E
D
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1⁄" (3.8 cm) min. top of
cutout to underside of countertop
C. 5⁄" (13.3 cm) bottom of
cutout to floor
D. 28⁄" (72.4 cm) cuto ut width E. 28" (71.2 cm) min. cutout
height
CuTouT diMENSioNS
Height 26 29/32 to 29 13/32
Width 28 1/2
Depth 24
Overall Height 28 3/4
Overall Width 30
Overall Depth 26 3/8
A
D
F
G
E
C
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 32" (81.3 cm) bottom of
cutout to floor
D. 28⁄" (72.4 cm) cu tout width E. 1⁄" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 28" (71.2 cm)* recommended
cutout height
G. 24" (60.7 cm) cutout depth
B
C
All dimensions are shown in inches.
B
®Registered trademark/™ Trademark of Whirlpool, U.S.A. ©2011. All rights reserved. All other trademarks are owned by their respective companies.
Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.
AA110107
Whirlpool® 30" Single Wall Oven
NEW
Preliminary
KEY FEATURES
• 30" Single Wall Oven
• True Convection System with Convection Conversion
• 5.0 cu. ft. Oven Capacity
®
• AccuBake Management System
• Rapid Preheat
• Traditional Self-Clean System
• FIT System
• New Whirlpool
• Hidden Bake
Temperature
®
Design
WOS92EC0A
COLORS
White(W) Black(B)
Black w/Silver
Handle(E)
White w/Silver
Stainless
Steel(S)
Handle(H)
Whirlpool® 30" Single Wall Oven
A
WOS92EC0A
SPECIFICATIONS DIMENSIONS
ModEl # WoS92EC0A
TrANSiTioNEd FroM ModEl # GBS309PV
FEATurES
PRODUCT DIMENSIONS
B
CABINET DIMENSIONS
Single Ovens Installed in Cabinet
A
Capacity (cu. ft.) 5.0
True Convection System Yes
Self-Cleaning Yes with Steam Clean
Rack Configuration 3 Racks with Integrated Handles
GENErAl oVEN FEATurES
Bake Element (Watts) @240/208 V 2800/2427
Broil Element (Watts) @240/208 V 3600/3120
Broil Passes 8
Oven Cavity Size (in.) 18 in. H x 25 in. W x 19 in. D
®
Temperature Management System Yes
AccuBake
Hidden Bake Yes
Delay Bake Yes
Sabbath Mode Yes
Closed Door Broiling Yes
E
30" (76.2 cm) models
A. 28¾" (72.8 cm) max. overall
height
B. 28½" (72.4 cm) max. recessed
width
⁄
" (67.9 cm) recessed
C. 26
height
⁄
" (59.1 cm) max. recessed
D. 23
depth
E. 30" (76.2 cm) overall width
D
C
NOTE: The cutout height can be between 26⁄" (68.4 cm) and
29⁄ " (74.8 cm) for single ovens.
D
F
G
E
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 32" (81.3 cm) bottom of
cutout to floor
D. 28⁄" (72.4 cm) cu tout width E. 1⁄" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 28" (71.2 cm)* recommended
cutout height
G. 24" (60.7 cm) cutout depth
B
C
Rapid Pre-heat Yes
Rack Positions 6
Control Type Membrane
Control Lockout Yes
CABINET DIMENSIONS
Single Oven Undercounter (without cooktop installed above)
B
A
Oven Controls Display Type VFD
Oven Controls Display Color Blue / Red
E
Oven Light(s) 2 Incandescent
Approved for Under-Cooktop Installation Yes
Power Supply Connection Location
SPECiFiCATioNS
3" Below Support Platform on Left
or Right Hand side
Sales Demo Mode Yes
Total Connected Load (kW) @ 240 volts 3.715
Total Connected Load (kW) @ 208 volts 2.819
D
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
B. 1⁄" (3.8 cm) min. top of
cutout to underside of countertop
C. 5⁄" (13.3 cm) bottom of
cutout to floor
D. 28⁄" (72.4 cm) cuto ut width E. 28" (71.2 cm) min. cutout
height
C
Circuit (amps) 30
Approx. Shipping Weight (lbs.) 165
Handle Type Metal
FIT System feet and trims supplied with oven Yes
ColorS W, B, S, E, H
E=Black w/Silver Handle, H=White w/Silver Handle
W=White, B=Black, S=Stainless Steel,
CuTouT diMENSioNS
Height 26 29/32 to 29 13/32
Width 28 1/2
Depth 24
Bottom of cutout to floor (undercounter) 5 1/4
Bottom of cutout to floor (in-wall) 32
ProduCT diMENSioNS
Overall Height 28 3/4
Overall Width 30
Overall Depth 26 3/8
Depth with door open 90 degrees 46 3/4
All dimensions are shown in inches.
Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.
®Registered trademark/™ Trademark of Whirlpool, U.S.A. ©2011. All rights reserved. All other trademarks are owned by their respective companies.
AA110107
Whirlpool® 27" Single Wall Oven
NEW
Preliminary
KEY FEATURES
• 27" Single Wall Oven
®
• AccuBake Management System
• 4.3 cu. ft. Oven Capacity
• Traditional Self-Clean System
• FIT System
• New Whirlpool
• Hidden Bake
Temperature
®
Design
WOS51EC7A
COLORS
Stainless
Steel(S)
Black w/Silver
Handle(E)
White w/Silver
Handle(H)
Whirlpool® 27" Single Wall Oven
WOS51EC7A
SPECIFICATIONS DIMENSIONS
ModEl # WoS51EC7A
TrANSiTioNEd FroM ModEl # rBS275PV
FEATurES
Capacity (cu. ft.) 4.3
Self-Cleaning Yes
Rack Configuration 2 Racks with Integrated Handles
GENErAl oVEN FEATurES
Bake Element (Watts) @ 240/208 V 2800/2427
Broil Element (Watts) @ 240/208 V 3600/3120
Broil Passes 8
Oven Cavity Size (in.) 18 in. H x 22 in. W x 19 in. D
®
Temperature Management System Yes
AccuBake
Hidden Bake Yes
Delay Bake Yes
Sabbath Mode Yes
Closed Door Broiling Yes
Rack Positions 6
Control Type Membrane
Control Lockout Yes
Oven Controls Display Type VFD
Oven Controls Display Color Blue / Red
Oven Light(s) 2 Incandescent
Approved for Under-Cooktop Installation Yes
SPECiFiCATioNS
Power Supply Connection Location
Sales Demo Mode Yes
Total Connected Load (kW) @ 240 volts 3.684
Total Connected Load (kW) @ 208 volts 2.788
Circuit (amps) 30
Approx. Shipping Weight (lbs.) 138
Handle Type Metal
FIT System feet and trims supplied with oven Yes
3" Below Support Platform on Left
or Right Hand side
ColorS W, B, S, T
W=White, B=Black, S=Stainless Steel, T=Biscuit
PRODUCT DIMENSIONS CABINET DIMENSIONS
Single Ovens Installed in Cabinet
B
A
27" (68.6 cm) models
A. 28¾" (72.8 cm) max. overall
height
⁷⁄₁₆
B. 25
width
³⁄₄
C. 26
height
¹⁄₄
D. 23
depth
E. 27" (68.6 cm) overall width
E
" (64.6 cm) max. recessed
" (67.9 cm) recessed
" (59.1 cm) max. recessed
C
D
NOTE: The cutout height can be between 26 29/32" (68.4 cm)
13
and 29
CABINET DIMENSIONS
Single Oven Undercounter (without cooktop installed above)
A
E
D
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1¹⁄₂" (3.8 cm) min. top of
cutout to underside of countertop
CuTouT diMENSioNS
Height 26 29/32 to 29 13/32
Width 25 1/2
Depth 24
Bottom of cutout to floor (undercounter) 5 1/4
Bottom of cutout to floor (in-wall) 32
ProduCT diMENSioNS
Overall Height 28 3/4
Overall Width 27
Overall Depth 26 3/8
Depth with door open 90 degrees 46 3/4
All dimensions are shown in inches.
D
F
G
E
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
B. 1" (2.5 cm) top of cutout to
bottom of upper cabinet door
C. 32" (81.3 cm) bottom of cutout
to floor
D. 25¹⁄₂" (64.8 cm) cutout width E. 1¹⁄₂" (3.8 cm) min. bottom of
cutout to top of cabinet door
F. 28" (71.2 cm)* recommended
cutout height
G. 24" (60.7 cm) cutout depth
/32" (74.8 cm) for single ovens.
B
C
A
B
C
®Registered trademark/™ Trademark of Whirlpool, U.S.A. ©2011. All rights reserved. All other trademarks are owned by their respective companies.
Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.
AA110107
