WHIRLPOOL WMIE 2B19 Daily Reference Guide
DAILY REFERENCE
0000 000 00000
Service:
1
2
3
4
5
6
10
12
7
11
9
8
1
2
3
4
5
GUIDE
EN
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance, please
register your appliance on:
www.whirlpool.eu/register
Before using the appliance carefully read Health and Safety guide.

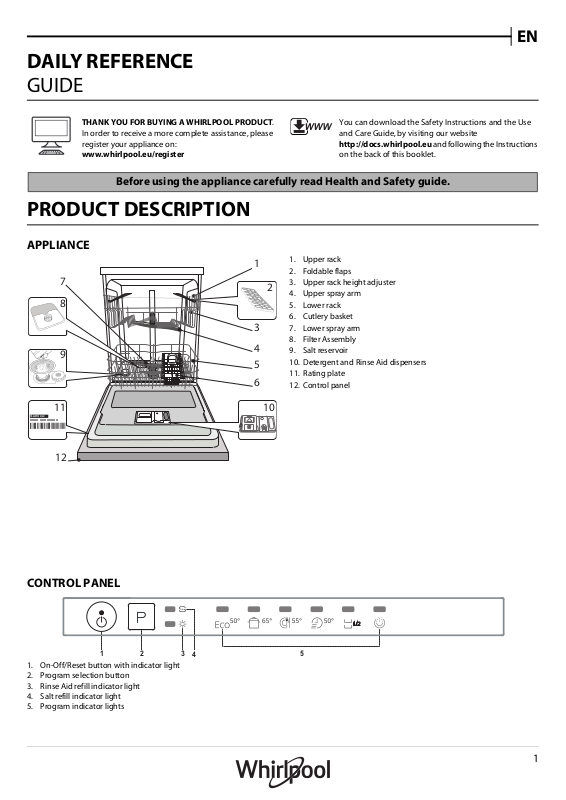

PRODUCT DESCRIPTION
APPLIANCE
You can download the Safety Instructions and the Use
and Care Guide, by visiting our website
http://docs.whirlpool.eu and following the Instructions
on the back of this booklet.
1. Upper rack
2. Foldable flaps
3. Upper rack height adjuster
4. Upper spray arm
5. Lower rack
6. Cutlery basket
7. Lower spray arm
8. Filter Assembly
9. Salt reservoir
10. Detergent and Rinse Aid dispensers
11. Rating plate
12. Control panel
CONTROL PANEL
1. On-Off/Reset button with indicator light
2. Program selection button
3. Rinse Aid refill indicator light
4. Salt refill indicator light
5. Program indicator lights
1
FIRST TIME USE
M
A
X
MAX
A
B
SALT, RINSE AID AND DETERGENT
ADVICE REGARDING THE FIRST TIME USE
After installation, remove the stoppers from the racks and the retaining
elastic elements from the upper rack.
FILLING THE SALT RESERVOIR
The use of salt prevents the formation of LIMESCALE on the dishes and
on the machine’s functional components.
• It is important that the salt reservoir be never empty (except when
the water hardness is set to - 1 “Soft”).
• It is important to set the water hardness.
The salt reservoir is located in the lower part of the dishwasher (see
PROGRAMS DESCRIPTION) and should be filled when the SALT REFILL
indicator light
Make sure the cap is screwed on tightly, so that no detergent can get
into the container during the wash program (this could damage the
water softener beyond repair).
Whenever you need to add salt, we recommend carrying out the
procedure before the washing cycle is started.
SETTING THE WATER HARDNESS
To allow the water softener to work in a perfect way, it is essential that
the water hardness setting is based on the actual water hardness in
your house. This information can be obtained from your local water
supplier.
The factory setting is for average (3) water hardness.
1. Switch on the appliance by pressing the
2. Switch off the appliance by pressing the
3. Hold down button
4. Switch on the appliance by pressing the
5. The program indicator light of the current set level flashes.
6. Press button
Hardness Table).
Level
1 Soft 0 - 6 0 - 10 NO
2 Medium 7 - 11 11 - 20
3 Average 12 - 17 21 - 30
4 Hard 17 - 34 31 - 60
5 Very hard 35 - 50 61 - 90
7. Switch off the appliance by pressing the
Setting is complete!
As soon as this procedure is complete, run a program without loading.
Only use salt that has been specifically designed for dishwashers.
After the salt has been poured into the machine, the SALT REFILL
indicator light switches off.
If the salt container is not filled, the water softener and the heating
element may be damaged as a result (except when the water
hardness is set to - 1 “Soft”).
in the control panel is lit.
1.Remove the lower rack and unscrew the
reservoir cap (anticlockwise).
2.Position the funnel
reservoir right up to its edge (approximately 1 kg);
it is not unusual for a little water to leak out.
3.Remove the funnel and wipe any salt residue
away from the opening.
P
for 5 seconds, until you hear a beep.
P
to select the desired hardness level
Water Hardness Table
°dH
German degrees
(see figure)
ON/OFF
ON/OFF
ON/OFF
French degrees
ON/OFF
and fill the salt
button.
button.
button.
°fH
button.
(see Water
Salt
needed
YES
FILLING THE RINSE AID DISPENSER
Rinse aid makes dish DRYING easier. The rinse aid dispenser A should
be filled when the RINSE AID REFILL indicator light
panel is lit.
1. Open the dispenser C by pressing and pulling up the tab on the lid.
2. Carefully introduce the rinse aid as far as the maximum (110 ml)
reference notch of the filling space - avoid spilling it. If this happens,
clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.
NEVER pour the rinse aid directly into the tub.
in the control
ADJUSTING THE DOSAGE OF RINSE AID
If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.
• Switch the dishwasher on using the ON/OFF button.
• Switch it off using the ON/OFF button.
• Press button P three times - a beep will be heard.
• Switch it on using the ON/OFF button.
The program indicator light of the current set level flashes.
•
• Press button P to select the level of rinse aid quantity to be
supplied.
• Switch it off using the ON/OFF button
Setting is complete!
If the rinse aid level is set to ZERO (ECO), no rinse aid will be supplied.
The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.
A maximum of 4 levels can be set according to the dishwasher model.
The factory setting is for a medium level.
• If you see bluish streaks on the dishes, set a low number (1-2).
• If there are drops of water or limescale marks on the dishes, set a
high number (3-4).
FILLING THE DETERGENT DISPENSER
To open the detergent
dispenser use the opening
device A.
Introduce the detergent into the
B
A
proper quantity. Compartment
maximum quantity of liquid or powder detergent that can be added
to each cycle.
2. Remove detergent residues from the edges of the dispenser and
close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the
closing device is secured in place.
The detergent dispenser automatically opens up at the right time
according to the program.
dry dispenser B only.
Place the amount of detergent
for pre-washing directly inside
the tub.
1.When measuring out the
detergent refer to the
PROGRAMS TABLE)
B
comprises a level showing the
(see
to add the
2
PROGRAMS TABLE
EN
Program
Detergent con-
Tub B
Drying
phase
tainer
Duration
of wash program
(h:min)
**)
Wate r
consumption
(litres/cycle)
Energy
consumption
(kWh/cycle)
1. Eco 50° 03:10 11 1,04
2. Intensive 65° 02:30 16,5 1,65
3. Normal 55° - 02:00 16 1,35
4. Rapid 40’ 50° - - 00:40 9 0,9
5. Half Load 50° - 01:20 12 1,1
6. PreWash - - - - 00:10 4 0,01
ECO program data is measured under laboratory conditions according to European Standard EN 50242.
*) Not all options can be used simultaneously.
**) The duration of the program shown on the display or in the booklet is an estimate calculated on standard conditions. The actual time may vary
depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load,
load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.
Standby consumption: Left-on mode consumption: 5 W - Off mode consumption: 0.5 W
PROGRAMS DESCRIPTION
Instructions on wash cycle selection.
ECO 50°
Normally soiled crockery. Standard program, the most efficient in terms
of its combined energy and water consumption.
INTENSIVE 65°
Program recommended for heavily soiled crockery, especially suitable
for pans and saucepans (not to be used for delicate items).
NORMAL 55°
Normally soiled crockery. Everyday cycle, that ensures optimal cleaning
performance in shorter time.
RAPID 40’ 50°
Program to be used for lightly-soiled dishes with no dried food
residues. (Ideal for 2 place settings).
HALF LOAD 50°
Ideal for washing a half load of lightly or normally soiled crockery.
PRE-WASH
Crockery to be washed later. No detergent to be used with this
program.
Notes:
Optimum performance levels when using the “Rapid” programs can be
achieved by observing the maximum amounts of specified place
settings.
To reduce consumption even further, only run the dishwasher
when it is full.
3
