24" (61 cm) and 27" (69 cm)
(1797 mm)
(25 mm)
(1797 mm)
(25 mm)
(683 mm)
(1797 mm)
(1105 mm)
(25 mm)
Gas Washer/Dryer
PRODUCT MODEL NUMBERS
WGT4027E

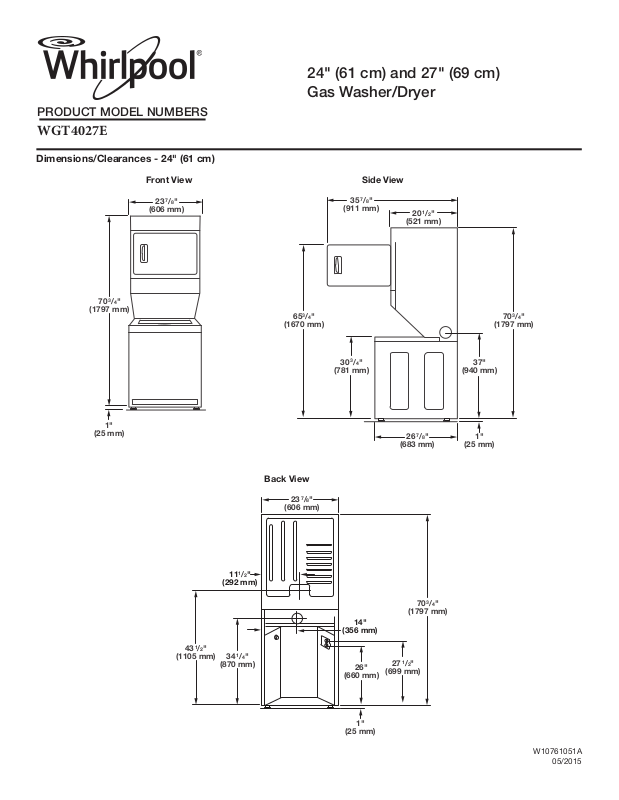

Dimensions/Clearances - 24" (61 cm)
Front View Side View
237/8"
(606 mm)
703/4"
357/8"
(911 mm)
653/4"
(1670 mm)
303/4"
(781 mm)
1
20
/2"
(521 mm)
703/4"
37"
(940 mm)
1"
43
1
/2"
111/2"
(292 mm)
341/4"
(870 mm)
Back View
237/8"
(606 mm)
14"
(356 mm)
26"
(660 mm)
267/8"
271/2"
(699 mm)
1"
703/4"
1"
W10761051A
05/2015
Page 2
Dimensions/Clearances - 27" (69 cm)
(822 mm)
271/4"
(692 mm)
713/4"
(1822 mm)
35
1
/4"
(895 mm)
41
1
/4"
(1,048 mm)
11"
(279 mm)
14"
(356 mm)
1"
(25 mm)
25"
(635 mm)
261/2"
(673 mm)
(25 mm)
(813 mm)
Front View Side View
1
/4
27.5 "
(692 mm)
3
/4
71.5 "
7
/8"
58
(1495 mm)
26"
(660 mm)
1"
(25 mm)
653/4"
(1670 mm)
Back View
321/8"
(816 mm)
32"
713/4"
(1822 mm)
34"
(864 mm)
1"
2
Page 3
Clearances
24 in.
2
(155 cm2)
48 in.
2
(310 cm2)
3"
(76 mm)
3"
(76 mm)
Closet
door
Front
View
(25 mm/0 mm
Side Clearances Front/Back/Top
(recommended/minimum) (recommended/minimum)
12"
(305 mm)
Recessed area or closet installation
1"/0"
)
1"/0"
(25 mm/0 mm)
1"
(25 mm)
(Closet)
5"
(127 mm)
GAS SUPPLY REQUIREMENTS
Gas supply: This dryer is equipped for use with Natural gas. Dryer can be converted to L.P. gas. When rigid pipe is used it should be
½" IPS. When acceptable to the gas supplier and local codes, 3⁄8" approved tubing may be used for lengths under 20 ft (6.1 m). For
lengths over 20 ft (6.1 m), larger tubing should be used. Pipe-joint compounds resistant to the action of L.P. gas must be used. An
individual manual shutoff valve must be installed within 6 ft (1.8 m) of the dryer in accordance with the National Fuel Gas Code
ANSI Z223.1.
ELECTRICAL REQUIREMENTS
A 120-volt, 60 Hz, AC-only, 15 or 20 amp fused electrical supply is required. A time-delay fuse or circuit breaker and a separate circuit
are recommended.
VENTING REQUIREMENTS
Exhaust venting: Exhaust your dryer to the outside. 4" (102 mm)
diameter vent is required. Rigid or flexible metal exhaust vent
must be used. Do not use plastic or metal foil vet. Exhaust hood
must be at least 12" (305 mm) from the ground or any object that
may be in the path of the exhaust.
Recommended Styles:
Acceptable Style:
The “Vent System Chart” provides venting requirements that
will help achieve best drying performance.
Vent System Chart, 24" Models
Number of
90° turns
or elbows
0 Rigid metal
1
Rigid metal
Type
of vent
Box/louvered
hoods
43 ft. (13.1 m)
33 ft. (10.1 m)
Angled
hoods
36 ft. (11.0 m)
26 ft. (7.9 m)
Louvered hood
Box hood Angled hood
2
Rigid metal
23 ft. (7.0 m)
16 ft. (4.9 m)
Vent System Chart, 27" Models
Number of
90° turns
Type
of vent
or elbows
0 Rigid metal
1
2
Rigid metal
Rigid metal
NOTE: Side exhaust installations have a 90º turn inside the
dryer. To determine maximum exhaust length, add one 90º
turn to the chart.
Box/louvered
hoods
37 ft. (11.3 m)
32 ft. (9.7 m)
23 ft. (7.0 m)
Angled
hoods
35 ft. (10.7 m)
27 ft. (8.2 m)
19 ft. (5.8 m)
3
Page 4

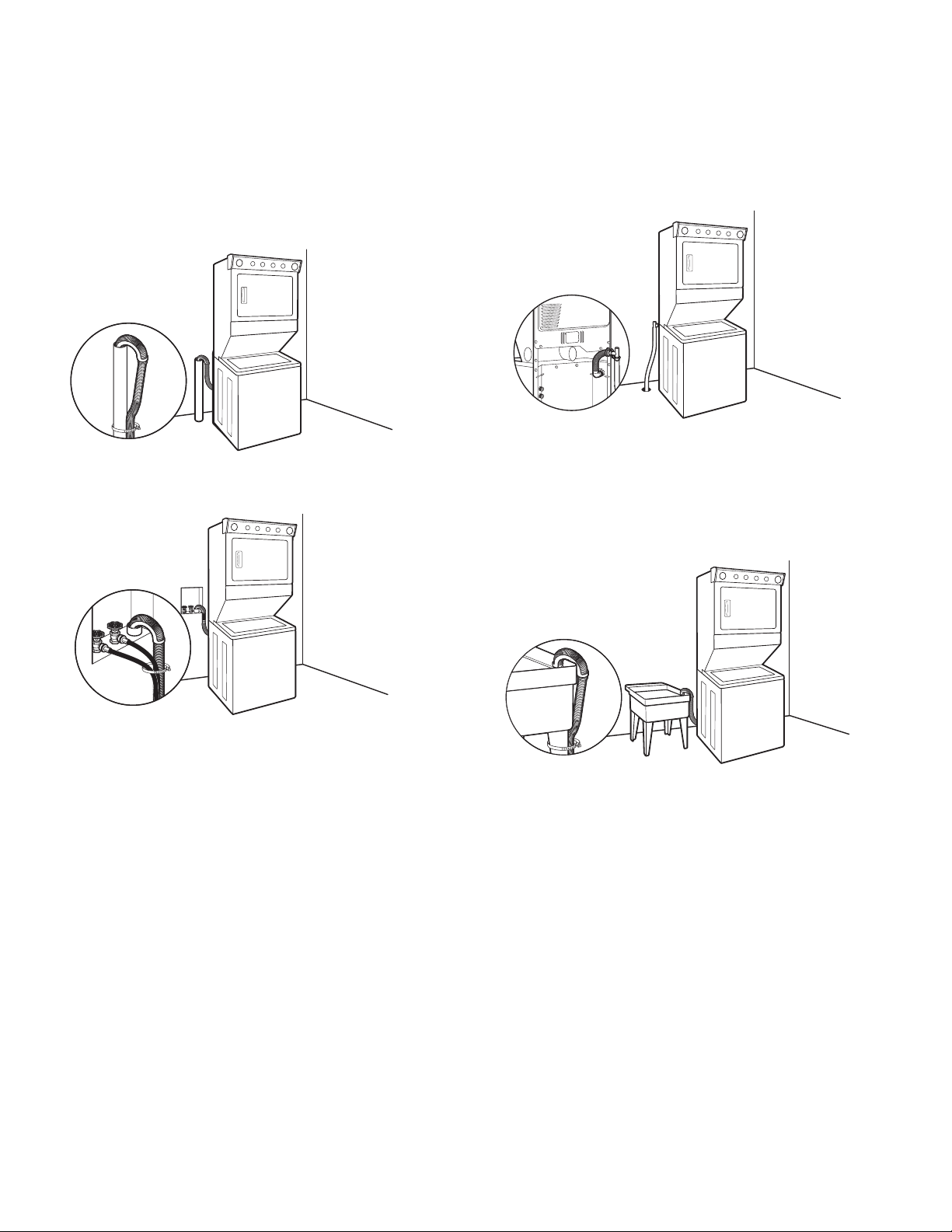

DRAIN SYSTEM
Drain system can be installed using a floor drain, wall standpipe,
floor standpipe, or laundry tub. Select method you need.
Floor standpipe drain system
Minimum diameter for a standpipe drain: 2" (51 mm). Minimum
carry-away capacity: 17 gal. (64 L) per minute. Top of standpipe
must be at least 39" (990 mm) high; install no higher than 96"
(2.4 m) from bottom of washer/dryer. If you must install higher
than 96" (2.4 m), you will need a sump pump system.
Wall standpipe drain system
See requirements for floor standpipe drain system.
Floor drain system
Floor drain system requires a Siphon Break Kit (Part Number
285834), 2 Connector Kits (Part Number 285385), and an
Extension Drain Hose (Part Number 285863) that may be
purchased separately. See “Use and Care Guide” for ordering
details. Minimum siphon break: 28" (710 mm) from bottom of
washer/dryer. (Additional hoses may be needed.)
Laundry tub drain system
Minimum capacity: 20 gal. (76 L). Top of laundry tub must be
at least 39" (990 mm) above floor; install no higher than 96"
(2.4 m) from bottom of washer/dryer.
IMPORTANT: To avoid siphoning, no more than 4.5" (113 mm)
of drain hose should be inside standpipe or below the top of
wash tub. Secure drain hose with shipping strap.
Because Whirlpool Corporation policy includes a continuous commitment to improve Dimensions are for planning purposes only. For complete details, see Installation
our products, we reserve the right to change materials and specifications without notice. Instructions packed with product. Specifications subject to change without notice.
