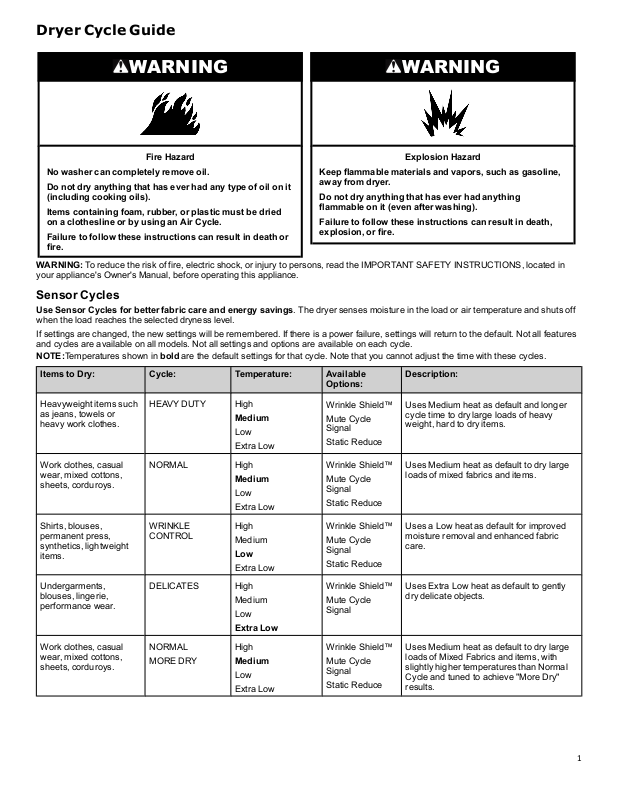

WARNING WARNING
Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any type of oil on it (including cooking oils).
Items containing foam, rubber, or plastic must be dried on a clothesline or by using an Air Cycle.
Failure to follow these instructions can result in death or fire.
Explosion Hazard
Keep flammable materials and vapors, such as gasoline, away from dryer.
Do not dry anything that has ever had anything flammable on it (even after washing).
Failure to follow these instructions can result in death, explosion, or fire.
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS, located in your appliance's Owner's Manual, before operating this appliance.
Sensor Cycles
Use Sensor Cycles for better fabric care and energy savings The dryer senses moisture in the load or air temperature and shuts.off when the load reaches the selected dryness level.
If settings are changed, the new settings will be remembered. If there is a power failure, settings will return to the default. Not all features and cycles are available on all models. Not all settings and options are available on each cycle.
NOTE: emperatures shown in bold are the default settings for thatT cycle. Note that you cannot adjust the time with these cycles.
Items to Dry: |
Cycle: |
Temperature: |
Available |
Description: |
|
|
|
Options: |
|
Heavyweight items such as jeans, towels or heavy work clothes.
Work clothes, casual wear, mixed cottons, sheets, corduroys.
Shirts, blouses, permanent press, synthetics, lightweight items.
Undergarments, blouses, lingerie, performance wear.
Work clothes, casual wear, mixed cottons, sheets, corduroys.
HEAVY DUTY |
High |
Wrinkle Shield™ |
|
Medium |
Mute Cycle |
|
Low |
Signal |
|
Static Reduce |
|
|
Extra Low |
|
|
|
|
NORMAL |
High |
Wrinkle Shield™ |
|
Medium |
Mute Cycle |
|
Low |
Signal |
|
Static Reduce |
|
|
Extra Low |
|
|
|
|
WRINKLE |
High |
Wrinkle Shield™ |
CONTROL |
Medium |
Mute Cycle |
|
Low |
Signal |
|
Static Reduce |
|
|
Extra Low |
|
|
|
|
DELICATES |
High |
Wrinkle Shield™ |
|
Medium |
Mute Cycle |
|
Low |
Signal |
|
|
|
|
Extra Low |
|
NORMAL |
High |
Wrinkle Shield™ |
MORE DRY |
Medium |
Mute Cycle |
|
Low |
Signal |
|
Static Reduce |
|
|
Extra Low |
|
|
|
Uses Medium heat as default and longer cycle time to dry large loads of heavy weight, hard to dry items.
Uses Medium heat as default to dry large loads of mixed fabrics and items.
Uses a Low heat as default for improved moisture removal and enhanced fabric care.
Uses Extra Low heat as default to gently dry delicate objects.
Uses Medium heat as default to dry large loads of Mixed Fabrics and items, with slightly higher temperatures than Normal Cycle and tuned to achieve "More Dry" results.
1
Jackets, comforters, |
BULKY ITEMS |
High |
pillows. |
|
Medium |
|
|
|
|
|
Low |
|
|
Extra Low |
Work clothes, casual |
LESS DRY |
High |
wear, mixed cottons, |
|
Medium |
sheets, corduroys. |
|
|
|
Low |
|
|
|
|
|
|
Extra Low |
Large loads of jeans, |
TOWELS |
High |
towels and heavyweight |
|
Medium |
items. |
|
|
|
Low |
|
|
|
|
|
|
Extra Low |
Wrinkle Shield™ Use for drying large, bulky items; do not |
||
Mute Cycle |
overfill dryer drum. Partway through the |
|
cycle, the signal will sound to indicate |
||
Signal |
||
when it is time to rearrange items for |
||
|
||
|
optimal drying. |
Wrinkle Shield™
Mute Cycle
Signal
Static Reduce
Wrinkle Shield™
Mute Cycle
Signal
Static Reduce
Uses Medium heat as default to dry loads of Mixed Fabrics and items, with slightly lower temperatures than Normal Cycle and tuned to achieve "Less Dry" results.
This is a long cycle with High heat as default. This cycle is not recommended for all fabrics. Use for large loads of heavyweight fabrics.
On steam models, you may select the “Static Reduce” setting. The dryer will automatically tumble, pause, and introduce a small amount of moisture into the load to help reduce static. This option adds approximately 3 minutes to the total cycle time.
Steam Refresh Cycle (on some models)
Steam cycles are designed for use with dry loads to loosen wrinkles, reduce odors, and refresh fabrics.
Not all cycles and settings are available on all models. Settings and options shown in bold are default settings for that cycle.
Items to Refresh: |
Cycle: |
Temperature: |
Available |
Description: |
|
|
|
Options: |
|
Shirts, blouses and |
STEAM REFRESH High |
Wrinkle Shield™ |
slacks |
Medium |
Mute Cycle |
|
|
Signal |
Use to smooth out wrinkles and reduce odors from loads left in the dryer too long. Do not add dryer sheets.
Timed Cycles
In these cycles, you can specify the drying time. Time options available are 15, 30, 60 and 90 minutes. If settings are changed, the new settings will be remembered (except on Quick Dry). If there is a power failure, settings will return to the default. Not all features and cycles are available on all models. Not all settings and options are available on each cycle.
Items to Dry: |
Cycle: |
Temperature: |
Available |
Description: |
|
|
|
Options: |
|
Any Load. |
TIMED DRY |
High |
Wrinkle Shield™ |
|
|
Medium |
Mute Cycle |
|
|
Low |
Signal |
|
|
|
|
|
|
Extra Low |
|
Use to dry items to a damp level for items that do not require an entire drying cycle. Select a drying temperature based on the type of fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting.
Small loads and |
QUICK DRY |
High |
Wrinkle Shield™ |
sportswear. |
|
Medium |
Mute Cycle |
|
|
Low |
Signal |
|
|
|
|
|
|
Extra Low |
|
Foam, rubber, plastic or |
AIR ONLY |
N/A |
Wrinkle Shield™ |
heat sensitive fabrics. |
|
|
Mute Cycle |
|
|
|
Signal |
For small loads of 3-4 items.
Uses unheated air to dry heat-sensitive items
2
Guide des programmes de la sécheuse
AVERTISSEMENT AVERTISSEMENT
Risque d’incendie
Aucune laveuse ne peut complètement enlever l’huile.
Ne pas faire sécher des articles qui ont été salis par tout genre d’huile (y compris les huiles de cuisson).
Les articles contenant mousse, caoutchouc ou plastique doivent être séchés sur une corde à linge ou par le programme de séchage à l’air.
Le non-respect de ces instructions peut causer un décè ou un incendie.
Risque d’explosion
Garder les matières et les vapeurs inflammables, telle que l’essence, loin de la sécheuse.
Ne pas faire sécher un article qui a déjà été touché par un produit inflammable (même après un lavage).
Le non-respect de ces instructions peut causer un décès, une explosion ou un incendie.
AVERTISSEMENT : Pour réduire le risque d’incendie, de décharge électrique ou de blessures, lire les INSTRUCTIONS IMPORTANTES DE SÉCURITÉ du guide d’utilisation de l’appareil avant de faire fonctionner cet appareil.
Programmes de détection
Utilisation des programmes avec détection pour un meilleur soin du tissu et plus d’économies d’énergie La sécheuse détecte l’humidité présente dans la charge ou la température de l’air et s’éteint lorsque la charge atteint le niveau de séchage sélectionné.
Si les réglages sont modifiés, l’appareil garde en mémoire les nouveaux réglages. Dans le cas d’une panne de courant, les réglages sont rétablis aux réglages par défaut. Certains programmes et certaines caractéristiques ne sont pas offerts sur certains modèles. Les réglages et les options ne sont pas tous disponibles sur chaque programme.
REMARQUE: températures indiquées en gras sont utilisées par défaut pour ce programme. À remarque qu’il est impossibleLesde régler la minuterie de ces programmes.
Articles à sécher : |
Programme : |
Température : |
Options |
|
|
|
accessibles : |
Articles lourds comme |
HEAVY DUTY |
High (Élevée) |
Wrinkle Shield™ |
les jeans, serviettes ou |
(service intense) |
Medium (Moyenne) |
(antifroissement) |
les vêtements de travail. |
|
Low (Basse) |
Mise en sourdine |
|
|
du signal du |
|
|
|
Extra Low (Très |
|
|
|
programme |
|
|
|
Basse) |
Static Reduce |
|
|
|
(réduction de |
|
|
|
l’électricité |
|
|
|
statique) |
Description :
Utilise une chaleur moyenne (Medium) et par défaut une durée de programme plus long pour sécher de grandes charges d’articles lourds et difficiles à sécher.
Vêtements de travail, |
NORMAL |
High (Élevée) |
Wrinkle Shield™ |
|
vêtements ordinaires, |
|
Medium (Moyenne) |
(antifroissement) |
|
mélanges de coton, |
|
Low (Basse) |
Mise en sourdine |
|
draps, articles en |
|
|||
|
du signal du |
|||
velours. |
|
Très basse |
||
|
programme |
|||
|
|
|||
|
|
|
Static Reduce |
|
|
|
|
(réduction de |
|
|
|
|
l’électricité |
|
|
|
|
statique) |
|
Chemises, chemisiers, |
WRINKLE |
High (Élevée) |
Wrinkle Shield™ |
|
tissus à pressage |
CONTROL |
Medium (Moyenne) |
(antifroissement) |
|
permanent et articles |
(antifroissement) |
Mise en sourdine |
||
Low (Basse) |
||||
synthétiques ou légers. |
|
|||
|
du signal du |
|||
|
|
Extra Low (Très |
||
|
|
programme |
||
|
|
Basse) |
Static Reduce |
|
|
|
|
(réduction de |
|
|
|
|
l’électricité |
|
|
|
|
statique) |
Utilise une chaleur modérée (Medium) par défaut pour le séchage de grandes charges composées de tissus et d’articles mixtes.
Utilise une chaleur basse (Low) par défaut pour améliorer l’élimination de l’humidité et l’entretien des tissus.
