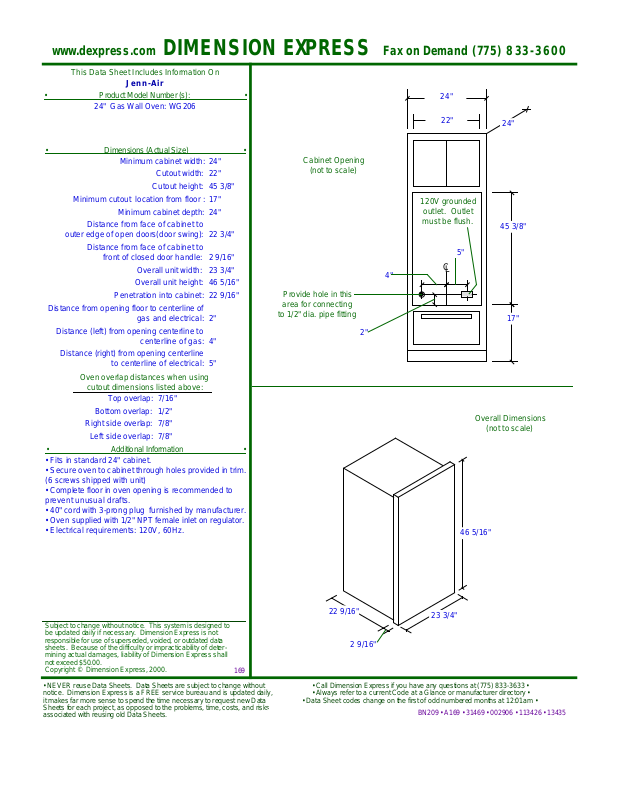

Whirlpool WG206 Dimension Guide
www.dexpress.com DIMENSION EXPRESS Fax on Demand (775) 833-3600
|
|
This Data Sheet Includes Information On |
|||
|
|
|
Jenn-Air |
|
|
• |
|
Product Model Number (s): |
|
• |
|
|
|
|
24" Gas Wall Oven: WG206 |
|
|
• |
|
Dimensions (Actual Size) |
|
• |
|
|
|
|
Minimum cabinet width: |
24" |
|
|
|
|
Cutout width: |
22" |
|
|
|
|
Cutout height: |
45 3/8" |
|
|
|
Minimum cutout location from floor : 17" |
|||
|
|
|
Minimum cabinet depth: 24" |
||
|
|
|
Distance from face of cabinet to |
|
|
|
|
outer edge of open doors(door swing): |
22 3/4" |
||
|
|
|
Distance from face of cabinet to |
|
|
|
|
|
front of closed door handle: |
2 9/16" |
|
|
|
|
Overall unit width: |
23 3/4" |
|
|
|
|
Overall unit height: |
46 5/16" |
|
|
|
|
Penetration into cabinet: |
22 9/16" |
|
|
Distance from opening floor to centerline of |
|
|
||
|
|
|
gas and electrical: 2" |
||
|
|
Distance (left) from opening centerline to |
|
|
|
|
|
|
centerline of gas: 4" |
||
|
|
Distance (right) from opening centerline |
|
|
|
|
|
|
to centerline of electrical: 5" |
||
|
|
|
Oven overlap distances when using |
|
|
|
|
|
cutout dimensions listed above: |
|
|
|
|
|
Top overlap: 7/16" |
|
|
|
|
|
Bottom overlap: 1/2" |
|
|
|
|
|
Right side overlap: 7/8" |
|
|
|
|
|
Left side overlap: 7/8" |
|
|
|
• |
|
Additional Information |
|
• |
•Fits in standard 24" cabinet.
•Secure oven to cabinet through holes provided in trim. (6 screws shipped with unit)
•Complete floor in oven opening is recommended to prevent unusual drafts.
•40" cord with 3-prong plug furnished by manufacturer.
•Oven supplied with 1/2" NPT female inlet on regulator.
•Electrical requirements: 120V, 60Hz.
Subject to change without notice. This system is designed to |
|
be updated daily if necessary. Dimension Express is not |
|
responsible for use of superseded, voided, or outdated data |
|
sheets. Because of the difficulty or impracticability of deter- |
|
mining actual damages, liability of Dimension Express shall |
|
not exceed $50.00. |
|
Copyright © Dimension Express, 2000. |
169 |
|
24" |
|
|
22" |
24" |
|
|
|
Cabinet Opening |
|
|
(not to scale) |
|
|
|
120V grounded |
|
|
outlet. Outlet |
|
|
must be flush. |
45 3/8" |
|
|
|
|
5" |
|
|
C |
|
|
L |
|
|
4" |
|
Provide hole in this |
|
|
area for connecting |
|
|
to 1/2" dia. pipe fitting |
|
17" |
|
|
|
2" |
|
|
Overall Dimensions
(not to scale)
46 5/16"
22 9/16"
23 3/4"
2 9/16"
• NEVER reuse Data Sheets. Data Sheets are subject to change without |
• Call Dimension Express if you have any questions at (775) 833-3633 • |
notice. Dimension Express is a FREE service bureau and is updated daily, |
• Always refer to a current Code at a Glance or manufacturer directory • |
it makes far more sense to spend the time necessary to request new Data |
• Data Sheet codes change on the first of odd numbered months at 12:01am • |
Sheets for each project, as opposed to the problems, time, costs, and risks |
BN209 • A169 • 31469 • 002906 • 113426 • 13435 |
associated with reusing old Data Sheets. |
