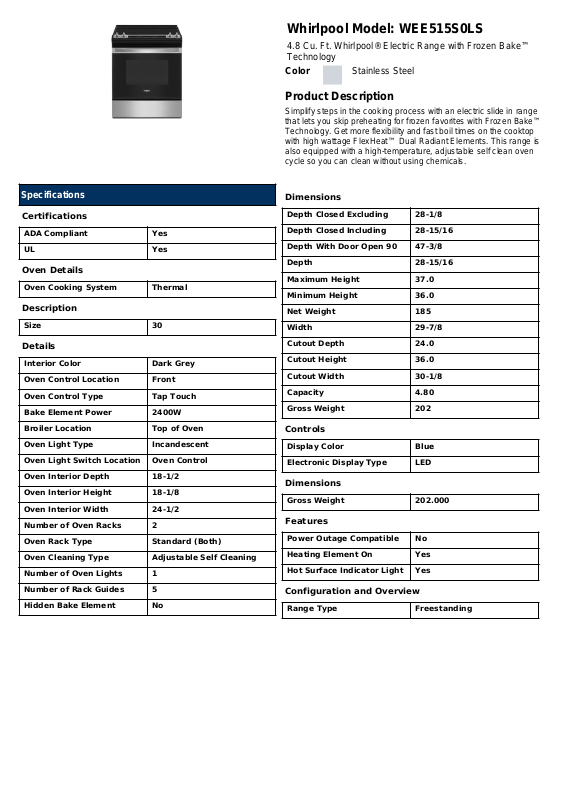

Page 1
Whirlpool Model: WEE515S0LS
4.8 Cu. Ft. Whirlpool® Electric Range with Frozen Bake™
Technology
Color Stainless Steel
Product Description
Simplify steps in the cooking process with an electric slide in range
that lets you skip preheating for frozen favorites with Frozen Bake™
Technology. Get more flexibility and fast boil times on the cooktop
with high wattage FlexHeat™ Dual Radiant Elements. This range is
also equipped with a high-temperature, adjustable self clean oven
cycle so you can clean without using chemicals.
Specifications
Certifications
ADA Compliant Yes
UL Yes
Oven Details
Oven Cooking System Thermal
Description
Size 30
Details
Interior Color Dark Grey
Oven Control Location Front
Oven Control Type Tap Touch
Bake Element Power 2400W
Broiler Location Top of Oven
Oven Light Type Incandescent
Oven Light Switch Location Oven Control
Oven Interior Depth 18-1/2
Oven Interior Height 18-1/8
Oven Interior Width 24-1/2
Number of Oven Racks 2
Oven Rack Type Standard (Both)
Oven Cleaning Type Adjustable Self Cleaning
Number of Oven Lights 1
Number of Rack Guides 5
Hidden Bake Element No
Dimensions
Depth Closed Excluding 28-1/8
Depth Closed Including 28-15/16
Depth With Door Open 90 47-3/8
Depth 28-15/16
Maximum Height 37.0
Minimum Height 36.0
Net Weight 185
Width 29-7/8
Cutout Depth 24.0
Cutout Height 36.0
Cutout Width 30-1/8
Capacity 4.80
Gross Weight 202
Controls
Display Color Blue
Electronic Display Type LED
Dimensions
Gross Weight 202.000
Features
Power Outage Compatible No
Heating Element On Yes
Hot Surface Indicator Light Yes
Configuration and Overview
Range Type Freestanding
Page 2
Cooktop Details
Cooktop Element Style Radiant
Cooktop Surface Material Glass
Number of Cooking Element- 4
Cooktop Control Knob Type Plastic
Cooktop Control Location Front
Cooktop Control Type Knobs
Cooktop Configuration All Burners
Cooktop Control Knob Color Stainless Steel
Cooktop Surface Color Black
Left Front Element-Burner Dual
Left Front Element-Burner 9"/6"
Left Rear Element-Burner 1200W
Left Rear Element-Burner 6"
Right Front Element-Burner 9"/6"
Right Front Element-Burner Dual
Left Front Element-Burner 3000W
Right Rear Element-Burner 6"
UPC Listing
Model : WEE515S0LB UPC : 883049616292
Model : WEE515S0LS UPC : 883049616247
Model : WEE515S0LV UPC : 883049616278
Model : WEE515S0LW UPC : 883049616322
Model : WEE515S0LZ UPC : 883049616353
Exterior
Handle Material Metal
Door Removable Yes
Oven Window Size Large
Handle Type Reach-Through Handle
Handle Color Stainless Steel
Key Features
Technologie Frozen Bake™
Deux elements radiants doubles FlexHeat™
Cycle d'autonettoyage reglable
Capacite de 4,8 pi³
Fonction garder au chaud
Reglage de grillage
Demarrage differe
Voyants lumineux de surface de cuisson
Conforme a l'ADA
Mode Sabbat
Table de cuisson en vitroceramique
Electrical Requirements
Hz 60
Power Cord Included No
