IMPORTANT:

INSTALLATION INSTRUCTIONS

FRONT CONTROL ELECTRIC RANGES

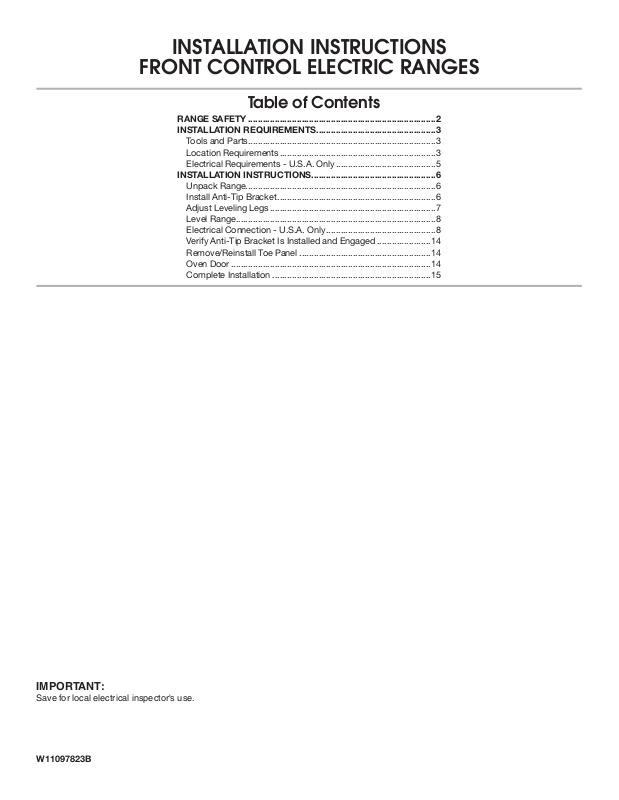

Table of Contents

RANGE SAFETY .............................................................................2

INSTALLATION REQUIREMENTS .................................................3

Tools and Parts .............................................................................3

Location Requirements ................................................................3

Electrical Requirements - U.S.A. Only .........................................5

INSTALLATION INSTRUCTIONS ...................................................6

Unpack Range..............................................................................6

Install Anti-Tip Bracket .................................................................6

Adjust Leveling Legs ....................................................................7

Level Range ..................................................................................8

Electrical Connection - U.S.A. Only .............................................8

Verify Anti-Tip Bracket Is Installed and Engaged ......................14

Remove/Reinstall Toe Panel ......................................................14

Oven Door ..................................................................................14

Complete Installation .................................................................15

ve for local electrical inspector's use.

W11097823B

Page 2

RANGE SAFETY

WARNING

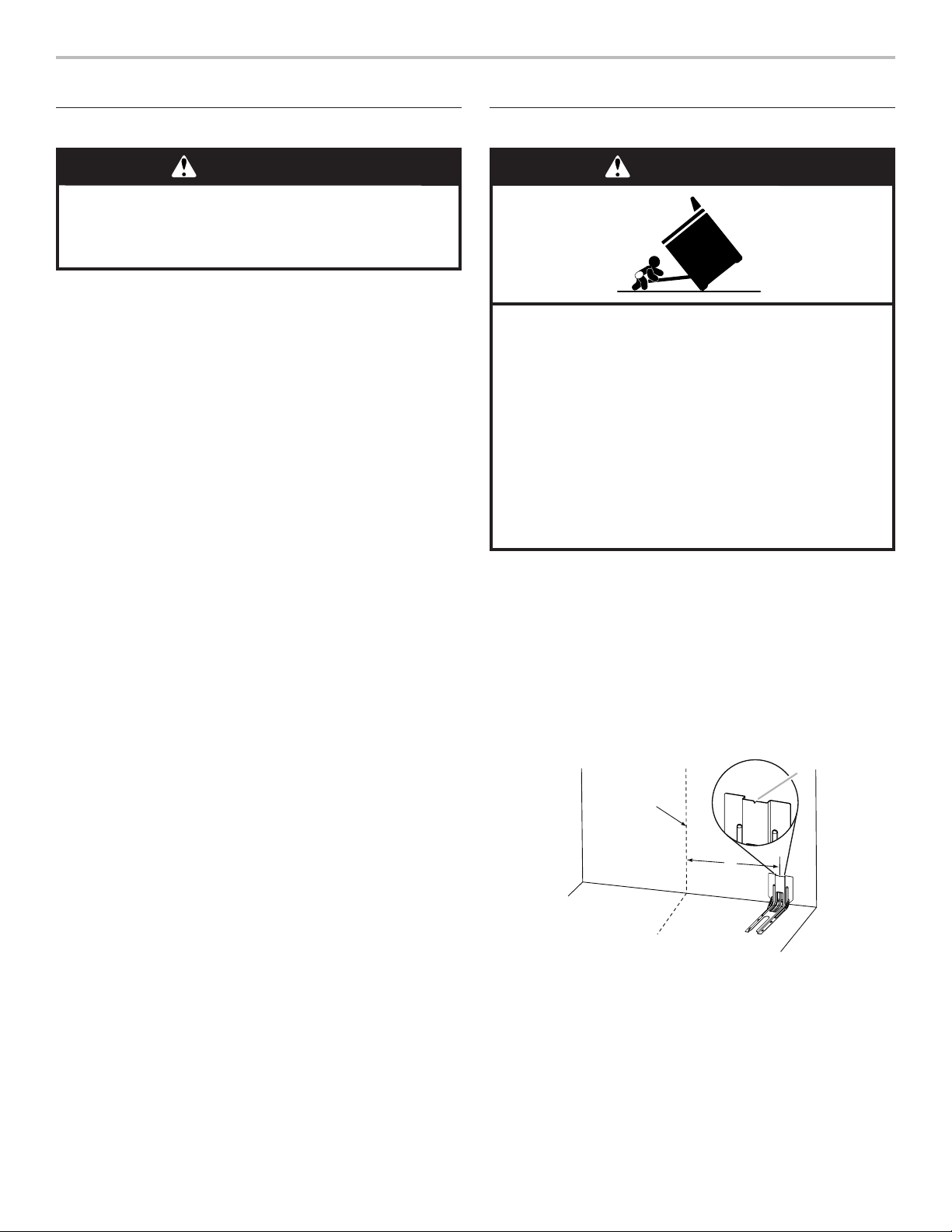

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

Range Foot

Anti-Tip Bracket

To verify the anti-tip bracket is installed and engaged:

• Slide range forward.

• Look for the anti-tip bracket securely attached to floor or wall.

• Slide range back so rear range foot is under anti-tip bracket.

• See installation instructions for details.

Page 3

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed

■ Tape measure

■ Flat-blade screwdriver

■ Phillips screwdriver

■ Level

■ Hand or electric drill

■ Wrench or pliers

■ Marker or pencil

Parts Supplied

Check that all parts are included.

■ 10-32 hex nuts (attached to terminal block) (3)

■ Direct wire lugs (3)

■ #10 x 1

■ Anti-tip bracket (inside oven cavity)

/8" (4.1 cm) screws (for mounting anti-tip bracket) (2)

Anti-tip bracket must be securely mounted to the back wall or ﬂoor. Thickness of ﬂooring may require longer screws to anchor bracket to subﬂoor. Longer screws are available from your local hardware store.

Parts Needed

If using a power supply cord kit:

■ A UL Listed power supply cord kit marked for use with

ranges. The cord should be rated at 250 volts minimum, 40 amps or 50 amps, that is marked for use with nominal 13/8" (3.5 cm) diameter connection opening and must end in ring terminals or open-end spade terminals with upturned ends.

■ A UL Listed strain relief.

Check local codes. Check existing electrical supply. See the appropriate “Electrical Requirements” section.

It is recommended that all electrical connections be made by a licensed, qualiﬁed electrical installer.

■ Masking tape

■ 1/4" (6.4 mm) drive ratchet

■ 1/4" (6.4 mm) nut driver

■ 3/8" (9.5 mm) and

5/16" (8 mm) nut driver

■ 1/8" (3.2 mm) drill bit (for

wood ﬂoors)

■ Tin snips or large wire

cutters (for cutting ground strap, if necessary)

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

■ It is the installer’s responsibility to comply with installation

clearances speciﬁed on the model/serial/rating plate. The model/serial/rating plate is located behind the oven door on the top right-hand side of the oven frame.

■ The range should be located for convenient use in the

kitchen.

■ Recessed installations must provide complete enclosure of

the sides and rear of the range.

■ To eliminate the risk of burns or ﬁre by reaching over the

heated surface units, cabinet storage space located above the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood or microwave hood combination that projects horizontally a minimum of 5" (12.7 cm) beyond the bottom of the cabinets.

■ All openings in the wall or ﬂoor where range is to be installed

must be sealed.

■ Cabinet opening dimensions that are shown must be used.

Given dimensions are minimum clearances.

■ The anti-tip bracket must be installed. To install the anti-tip

bracket shipped with the range, see “Install Anti-Tip Bracket” section.

■ Grounded electrical supply is required. See the appropriate

“Electrical Requirements” section.

■ Contact a qualiﬁed ﬂoor covering installer to check that the

ﬂoor covering can withstand at least 200°F (93°C).

■ Use an insulated pad or 1/4" (6.4 mm) plywood under range

if installing range over carpeting.

IMPORTANT: To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate, or sustain other damage. This oven has been designed in accordance with the requirements of UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194°F (90°C).

Page 4

Mobile Home — Additional Installation Requirements

The installation of this range must conform to the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD Part 280). When such standard is not applicable, use the Standard for Manufactured Home Installations, ANSI A225.1/NFPA 501A or with local codes.

In Canada, the installation of this range must conform with the current standards CAN/CSA-A240-latest edition, or with local codes.

Mobile Home Installations Require:

■ When this range is installed in a mobile home, it must be

secured to the ﬂoor during transit. Any method of securing the range is adequate as long as it conforms to the standards listed above.

■ Four-wire power supply cord or cable must be used in a

mobile home installation. The appliance wiring will need to be revised. See “Electrical Connection — U.S.A. Only” section.

Product Dimensions

These instructions cover several models. Your model may appear different from the models depicted. Dimensions given are maximum dimensions across all models.

Cabinet Dimensions

Cabinet opening dimensions shown are for 25" (64.0 cm) countertop depth, 24" (61.0 cm) base cabinet depth and 36" (91.4 cm) countertop height.

IMPORTANT: If installing a range hood or microwave hood combination above the range, follow the range hood or microwave hood combination installation instructions for dimensional clearances above the cooktop surface.

Range may be installed next to combustible walls with zero clearance.

A. 13/16" (3.0 cm) height from cooktop to top of vent

B. 297/8" (75.9 cm) C. Model/serial/rating plate (located

behind the oven door on the top right-hand side of the oven frame)

D. 34" (86.4 cm) height to top of cooktop edge with leveling legs screwed all the way in*

E. 2825/64" (72.1 cm) max. depth from front of console to back of range

F. 291/64" (73.7 cm) max. depth from handle to back of range

IMPORTANT: Range must be level after installation. Follow the instructions in the “Level Range” section. Using the cooktop as a reference for leveling the range is not recommended.

* Range can be raised approximately 1" (2.5 cm) by adjusting

the leveling legs.

A. 18" (45.7 cm) upper side cabinet to countertop B. 13" (33 cm) max. upper cabinet depth C. 30" (76.2 cm) min. opening width D. For minimum clearance to top of cooktop, see NOTE*. E. 30" (76.2 cm) min. opening width F. The shaded area is recommended for installation of grounded

outlet. G. 13¹⁄8" (33.3 cm) H. 511/16" (14.5 cm) I. 4¹³⁄16" (12.2 cm) J. 3¹¹⁄16" (9.4 cm) K. Cabinet door or hinges should not extend into the cutout.

* NOTE: 24" (61.0 cm) minimum when bottom of wood or

metal cabinet is shielded by not less than 1/4" (6.4 mm) ﬂame retardant millboard covered with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm)

aluminum or 0.020" (0.5 mm) copper.

30" (76.2 cm) minimum clearance between the top of the

cooking platform and the bottom of an uncovered wood or metal cabinet.

Page 5

Electrical Requirements — U.S.A. Only

If codes permit and a separate ground wire is used, it is recommended that a qualiﬁed electrical installer determine that the ground path and wire gauge are in accordance with local codes.

Do not use an extension cord. Be sure that the electrical connection and wire size are adequate

and in conformance with the National Electrical Code, ANSI/ NFPA 70-latest edition and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualiﬁed electrician or service technician if you are in doubt as to whether the appliance is properly grounded. Do not modify the power supply cord plug. If it will not ﬁt the outlet, have a proper outlet installed by a qualiﬁed electrician.

Electrical Connection

To properly install your range, you must determine the type of electrical connection you will be using and follow the instructions provided for it here.

■ Range must be connected to the proper electrical voltage

and frequency as speciﬁed on the model/serial/rating plate. The model/serial/rating plate is located behind the oven door on the top right-hand side of the oven frame.

■ This range is manufactured with the neutral terminal

connected to the cabinet. Use a 3-wire, UL Listed, 40- or 50-amp power supply cord (pigtail). See the following Range Rating chart. If local codes do not permit ground through the neutral, use a 4-wire power supply cord rated at 250-volts, 40- or 50-amps and investigated for use with ranges.

Range Rating* Speciﬁed Rating of

Power Supply Cord Kit and Circuit Protection

120/240 Volts 120/208 Volts Amps

8.8 - 16.5 KW 7.8 - 12.5 KW 40 or 50**

16.6 - 22.5 KW 12.6 - 18.5 KW 50

* The NEC calculated load is less than the total connected load listed on the model/serial/rating plate.

** If connecting to a 50-amp circuit, use a 50-amp rated cord

with kit. For 50-amp rated cord kits, use kits that specify use with a nominal 1³⁄8" (3.5 cm) diameter connection opening.

■ A circuit breaker is recommended.

■ The range can be connected directly to the circuit breaker

box (or fused disconnect) through ﬂexible or nonmetallic sheathed, copper or aluminum cable. See the “Electrical Connection — U.S.A. Only” section.

■ Allow at least 6 ft (1.8 m) of slack in the line so that the range

can be moved if servicing is ever necessary.

■ A UL Listed conduit connector must be provided at each

end of the power supply cable (at the range and at the junction box).

■ Wire sizes and connections must conform with the rating of

the range.

■ The tech sheet and wiring diagram are located on the back

of the range in a plastic bag.

If Connecting to a 3-Wire System:

Local codes may permit the use of a UL Listed, 3-wire, 250volt, 40- or 50-amp range power supply cord (pigtail). This cord contains three copper conductors with ring terminals or open-end spade terminals with upturned ends, terminating in a NEMA Type 10-50P plug on the supply end. Connectors on the appliance end must be provided at the point the power supply cord enters the appliance. This uses a 3-wire receptacle of NEMA Type 10-50R.

3-wire receptacle (10-50R)

If Connecting to a 4-Wire System:

This range is manufactured with the ground connected to the neutral by a link. The ground must be revised so the green ground wire of the 4-wire power supply cord is connected to the cabinet. See the “Electrical Connection — U.S.A. Only” section.

Grounding through the neutral conductor is prohibited for new branch-circuit installations (1996 NEC); mobile homes; and recreational vehicles, or an area where local codes prohibit grounding through the neutral conductor.

When a 4-wire receptacle of NEMA Type 14-50R is used, a matching UL Listed, 4-wire, 250-volt, 40- or 50-amp, range power supply cord (pigtail) must be used. This cord contains 4 copper conductors with ring terminals or open-end spade terminals with upturned ends, terminating in a NEMA Type 14-50P plug on the supply end.

The fourth (grounding) conductor must be identiﬁed by a green or green/yellow cover and the neutral conductor by a white cover. Cord should be Type SRD or SRDT with a UL Listed strain relief and be at least 4 ft (1.22 m) long.

4-wire receptacle (14-50R)

The minimum conductor sized for the copper 4-wire power cord are:

40-amp circuit 2 No.-8 conductors 1 No.-10 white neutral 1 No.-10 green grounding

Page 6

INSTALLATION INSTRUCTIONS

WARNING

Unpack Range

WARNING

Excessive Weight Hazard

Use two or more people to move and install range.

Failure to do so can result in back or other injury.

1. Remove shipping materials, tape, and ﬁlm from the range. Keep cardboard bottom under range. Do not dispose of anything until the installation is complete.

2. Remove oven racks and parts package from oven and shipping materials.

3. To remove cardboard bottom, ﬁrst take four cardboard corners from the carton. Stack one cardboard corner on top of another. Repeat with the other two corners. Place them lengthwise on the ﬂoor behind the range to support the range when it is laid on its back.

4. Using two or more people, ﬁrmly grasp the range and gently lay it on its back on the cardboard corners.

5. Remove cardboard bottom.

The leveling legs can be adjusted while the range is on its back. See the “Adjust Leveling Legs” section.

NOTE: To place range back up into a standing position, put a sheet of cardboard or hardboard on the ﬂoor in front of range to protect the ﬂooring. Using two or more people, stand range back up onto the cardboard or hardboard.

Install Anti-Tip Bracket

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

1. Remove the anti-tip bracket from the inside of the oven.

2. Determine which mounting method to use: ﬂoor or wall.

If you have a stone or masonry ﬂoor, you can use the wall mounting method. If you are installing the range in a mobile home, you must secure the range to the ﬂoor.

This anti-tip bracket and screws can be used with wood or metal studs.

3. Determine and mark centerline of the cutout space. The mounting bracket can be installed on either the left-hand or right-hand side of the cutout. Position mounting bracket against the wall in the cutout so that the V-notch of the bracket is 12½" (31.8 cm) from centerline as shown.

Centerline

A. 12½" (31.8 cm) B. Bracket V-notch

Page 7

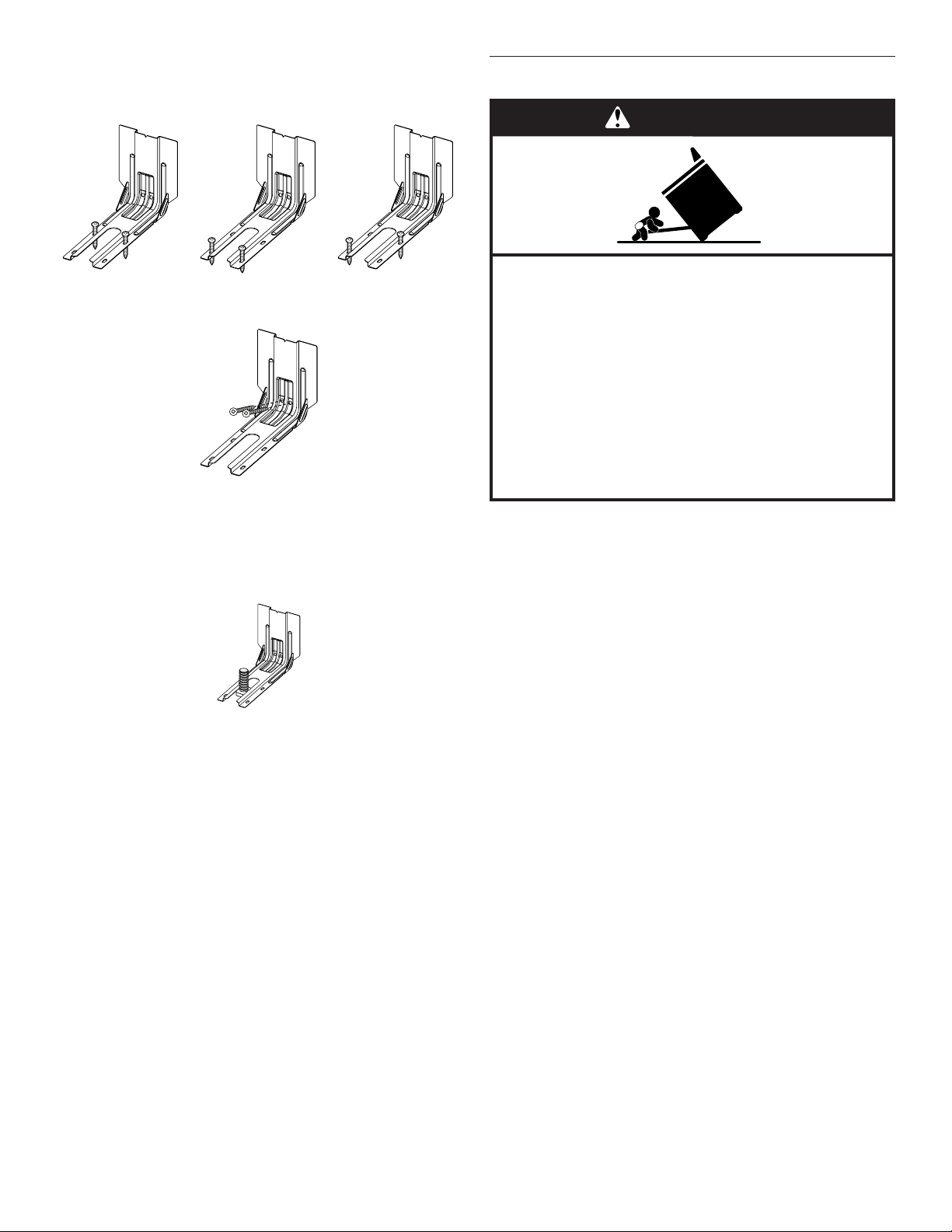

4. Drill two 1/8" (3 mm) holes that correspond to the bracket holes of the determined mounting method. See the following illustrations.

Floor Mounting

Rear position Front position Diagonal (2 options)

Wall Mounting

5. Using the two #10 x 15⁄8" (4.1 cm) Phillips-head screws

provided, mount anti-tip bracket to the wall or ﬂoor.

6. Move range close enough to opening to allow for ﬁnal electrical connections. Remove shipping base, cardboard or hardboard from under range.

7. Move range into its ﬁnal location, making sure rear leveling leg slides into anti-tip bracket.

8. Move range forward onto shipping base, cardboard or hardboard to continue installing the range, using the following installation instructions.

Adjust Leveling Legs

WARNING

Tip Over Hazard

A child or adult can tip the range and be killed.

Install anti-tip bracket to floor or wall per installation instructions.

Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.

Re-engage anti-tip bracket if range is moved.

Do not operate range without anti-tip bracket installed and engaged.

Failure to follow these instructions can result in death or serious burns to children and adults.

1. If range height adjustment is necessary, use a wrench or pliers to loosen the four leveling legs.

This may be done with the range on its back or with the range supported on two legs after the range has been placed back to a standing position.

NOTE: To place range back up into a standing position, put a sheet of cardboard or hardboard in front of range. Using two or more people, stand range back up onto the cardboard or hardboard.

2. Measure the distance from the top of the counter to the ﬂoor.

3. Measure the distance from the top of the cooktop to the

bottom of the leveling legs. This distance should be the same. If it is not, adjust the leveling legs to the correct height. The leveling legs can be loosened to add up to a maximum of 1" (2.5 cm). A minimum of 3/16" (5 mm) is needed to engage the anti-tip bracket.

NOTE: If height adjustment is made when range is standing, tilt the range back to adjust the front legs, and then tilt forward to adjust the rear legs.

4. When the range is at the correct height, check that there is adequate clearance under the range for the anti-tip bracket. Before sliding range into its ﬁnal location, check that the antitip bracket will slide under the range and onto the rear leveling leg prior to anti-tip bracket installation.

NOTE: If a Trim Kit will be used, the top of the cooktop should be higher than the counter. See the Installation Instructions included with the Trim Kit for the correct height.

Page 8

Level Range

1. Place level on the oven bottom, as indicated in one of the two ﬁgures below, depending on the size of the level. Check with the level side-to-side and front to back.

2. If range is not level, use a wrench or pliers to adjust leveling legs up or down until the range is level.

NOTE: Range must be level for satisfactory baking performance and best cleaning results using AquaLift® Self-Clean Technology.

Electrical Connection — U.S.A. Only

If your home has a 3- or 4-wire receptacle, continue with “Install Using a Power Supply Cord.” If your home has a 3- or 4-wire direct connection, go to “Install Using Direct Wire.”

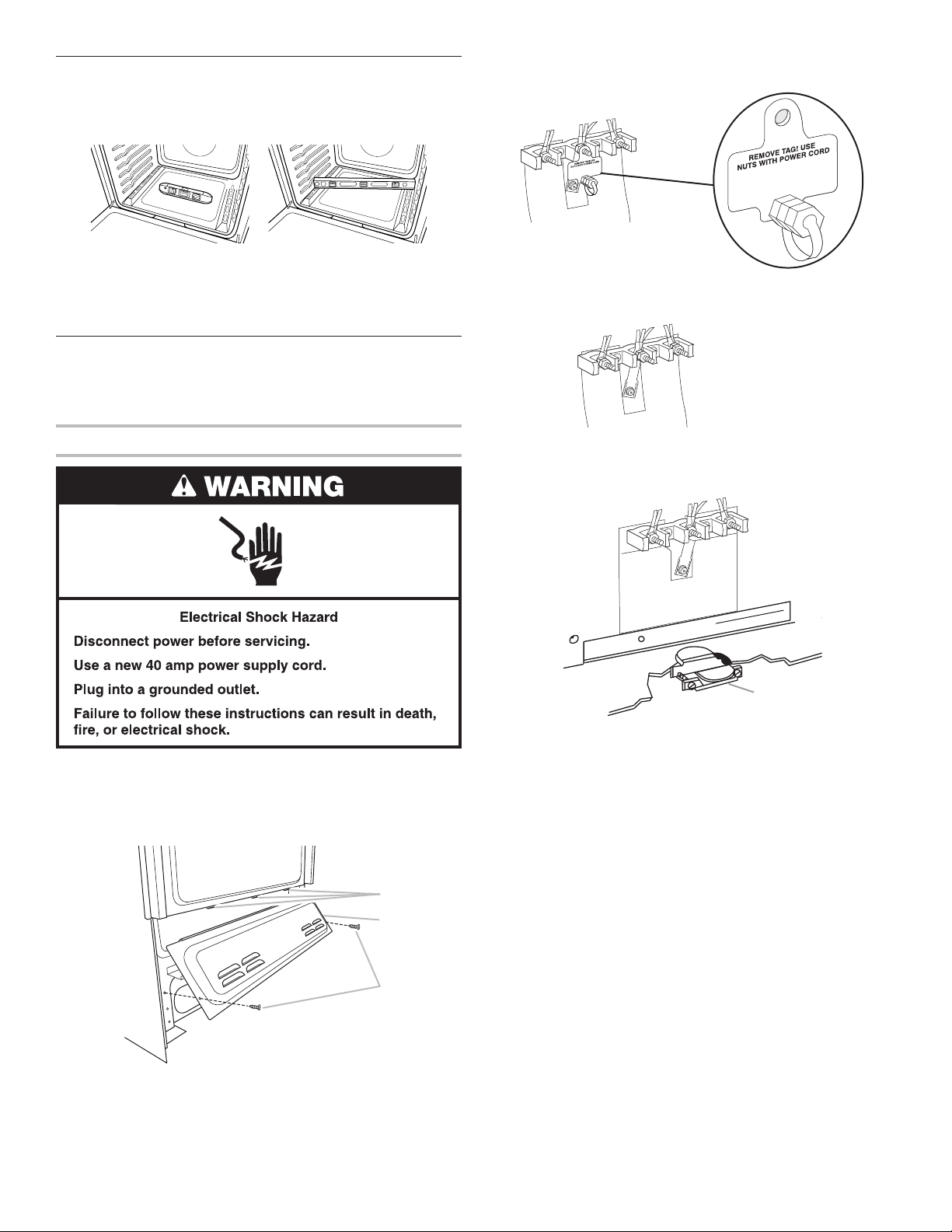

Install Using a Power Supply Cord

3. Depending on your model, remove plastic tag holding three

10-32 hex nuts from the middle post of the terminal block.

Remove the top 10-32 hex nut from each of the three terminal blocks and set aside.

4. Assemble a UL Listed strain relief in the opening.

Power Supply Cord Strain Relief

1. Disconnect power.

2. Remove the lower access cover screws located on the back

of the range. Pull the bottom of the cover toward you and out to remove cover from range.

A. Mounting tabs (3) B. Lower access cover C. Screws (2)

A. UL Listed strain relief

5. Complete installation following instructions for your type of electrical connection:

4-wire (recommended) 3-wire (if 4-wire is not available)

Electrical Connection Options

Page 9

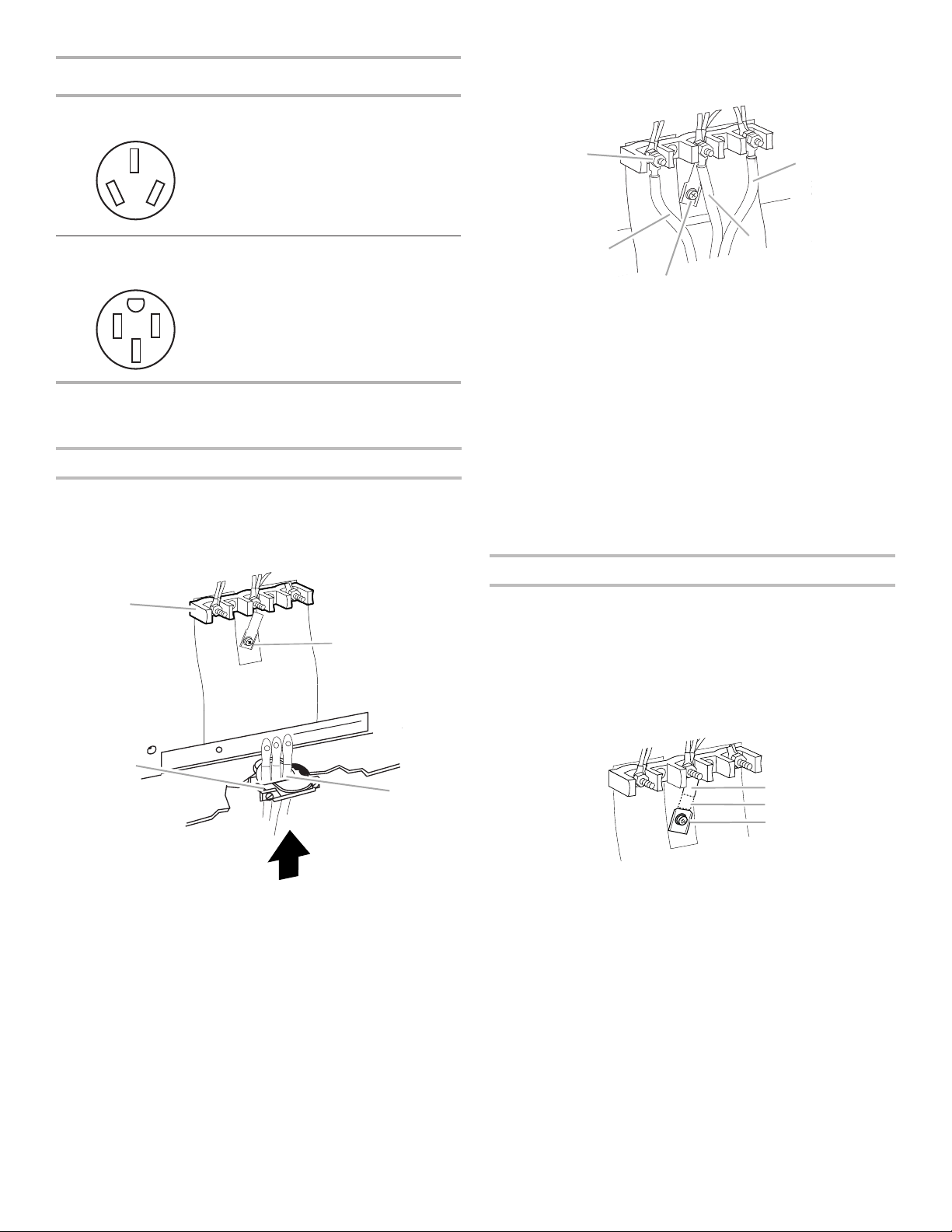

If your home has: And you will be

A B C

connecting to:

3-wire receptacle (NEMA type 10-50R)

A UL Listed, 250-volt minimum, 40- or 50-amp, range power supply cord

Go to Section:

3-Wire Connection: Power Supply Cord

2. Use 3⁄8" (9.5 mm) nut driver to connect the neutral (white) wire to the center terminal block post with one of the 10-32 hex nuts.

4-wire receptacle (NEMA type 14-50R)

A UL Listed, 250-volt

4-Wire Connection:

Power Supply Cord minimum, 40- or 50-amp, range power supply cord

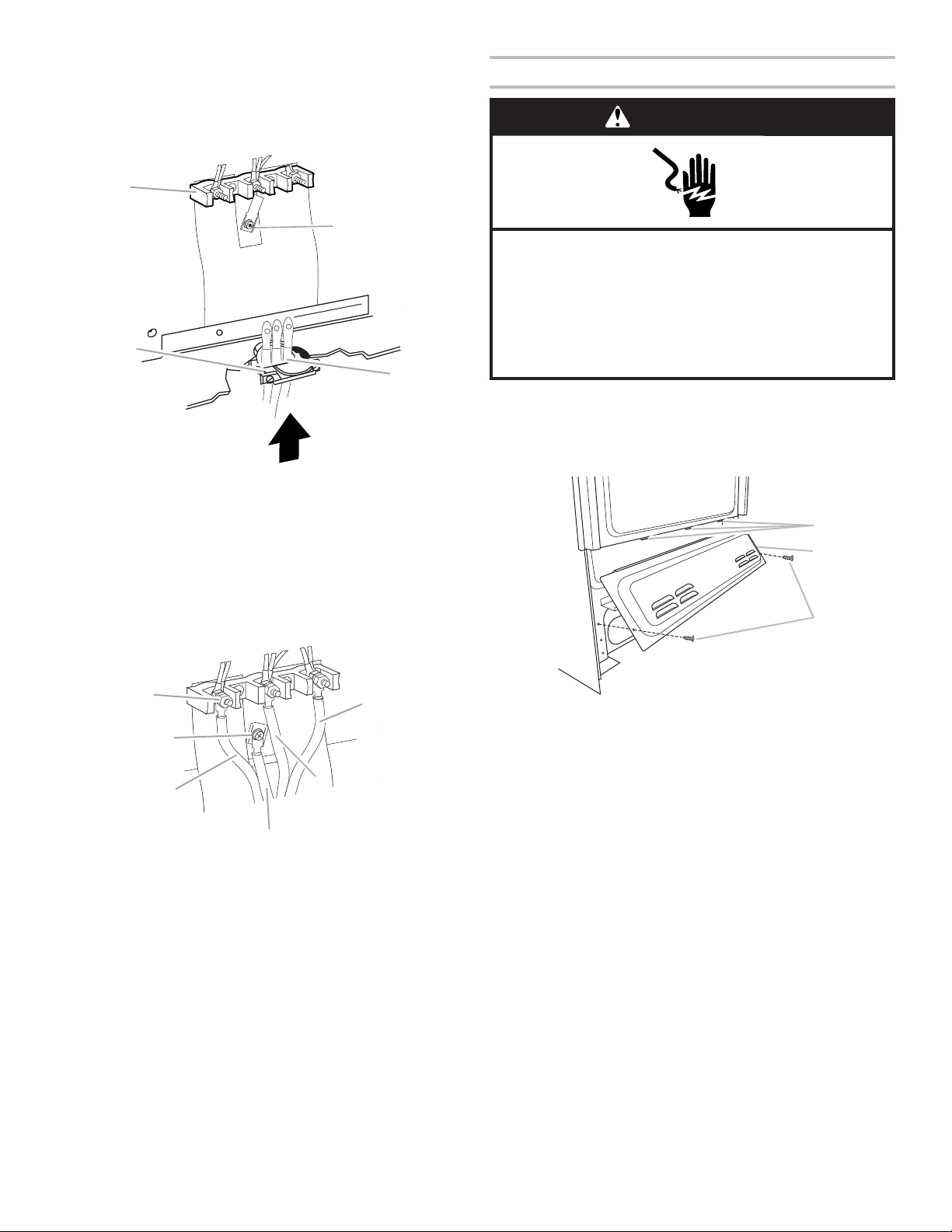

3-Wire Connection: Power Supply Cord

Use this method only if local codes permit connecting chassis ground conductor to neutral wire of power supply cord.

1. Feed the power supply cord through the strain relief on the cord/conduit plate on bottom of range. Allow enough slack to easily attach the wiring to the terminal block.

A. 10–32 hex nut B. Line 2 (red) wire C. Ground-link screw

D. Neutral (white) wire E. Line 1 (black) wire

3. Connect line two (red) and line one (black) wires to the outer terminal block posts with 10-32 hex nuts.

4. Firmly tighten hex nuts. NOTE: For power supply cord replacement, use only a

power cord rated at 250 volts minimum, 40- or 50-amps that is marked for use with nominal 1³⁄8" (3.5 cm) diameter connection opening, with ring terminals and marked for use with ranges.

5. Tighten strain relief screws. IMPORTANT: Verify the tightness of the hex nuts.

6. Replace lower access cover.

4-Wire Connection: Power Supply Cord

Use this method for:

■ New branch-circuit installations (1996 NEC)

■ Mobile homes

■ Recreational vehicles

■ In an area where local codes prohibit grounding through

the neutral

1. Cut out and remove part of metal ground strap, as shown.

A. Metal ground strap

A. Terminal block B. Ground-link screw C. UL Listed strain relief D. Power supply cord wires: large opening

B. Discard C. Ground-link screw

Page 10

2. Use a Phillips screwdriver to remove the ground-link screw from the back of the range. Save the ground-link screw and the end of the ground link under the screw.

3. Feed the power supply cord through the strain relief on the cord/conduit plate on bottom of range. Allow enough slack to easily attach the wiring to the terminal block.

A. Terminal block B. Ground-link screw C. UL listed strain relief D. Power supply cord wires

4. Use a Phillips screwdriver to connect the green ground wire from the power supply cord to the range with the groundlink screw and ground-link section. The ground wire must be attached over the ground-link section.

5. Use 3/8" (9.5 mm) nut driver to connect the neutral (white) wire to the center terminal block post with one of the 10-32 hex nuts.

Install Using Direct Wire

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Use 8 gauge copper or 6 gauge aluminum wire.

Electrically ground range.

Failure to follow these instructions can result in death, fire, or electrical shock.

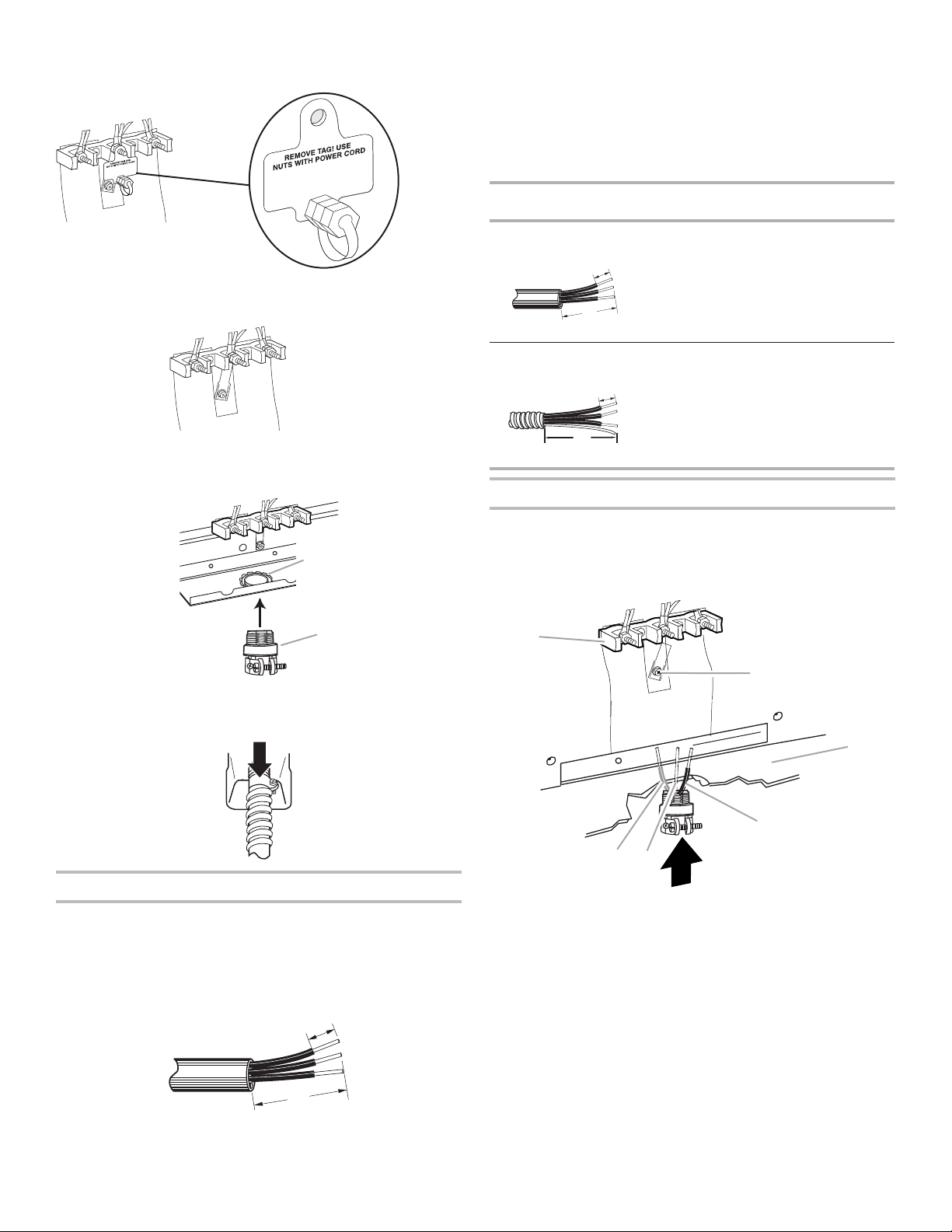

Direct Wire Strain Relief

1. Disconnect power.

2. Remove the lower access cover screws located on the back

of the range. Pull the bottom of the cover toward you and out to remove cover from range.

A. Mounting tabs (3)

A. 10–32 hex nut B. Ground-link screw C. Line 2 (red) wire

D. Green ground wire E. Neutral (white) wire F. Line 1 (black) wire

B. Lower access cover C. Screws (2)

6. Connect line two (red) and line one (black) wires to the outer terminal block posts with 10-32 hex nuts.

7. Firmly tighten hex nuts. NOTE: For power supply cord replacement, use only a

power cord rated at 250 volts minimum, 40- or 50-amps that is marked for use with nominal 1³⁄8" (3.5 cm) diameter connection opening, with ring terminals and marked for use with ranges.

8. Tighten strain relief screws. IMPORTANT: Verify the tightness of the hex nuts.

9. Replace lower access cover.

Page 11

3. Depending on your model, remove plastic tag holding three

(7.6 cm)

(12.7 cm)

(7.6 cm)

10-32 hex nuts from the middle post of the terminal block.

2. Allow enough slack in the wire to easily attach the wiring terminal block.

3. Complete installation following instructions for your type of electrical connection:

4-wire (recommended) 3-wire (if 4-wire is not available)

Electrical Connection Options

Remove the top 10-32 hex nut from each of the three terminal blocks and set aside.

4. Assemble a UL Listed conduit connector in the opening.

If your home has: And you will be

Go to Section:

connecting to:

3-wire direct A circuit breaker

³⁄₈

(1.0 cm)

box or fused disconnect

4-wire direct A circuit breaker

³⁄₈

(1.0 cm)

box or fused disconnect

3-Wire Connection: Direct Wire

4-Wire Connection: Direct Wire

3-Wire Connection: Direct Wire

Use this method only if local codes permit connecting ground conductor to neutral supply wire.

1. Pull the wires through the conduit on cord/conduit plate on bottom of range. Allow enough slack to easily attach the wiring to the terminal block.

A. Removable retaining nut B. Conduit

5. Tighten strain relief screw against the ﬂexible conduit.

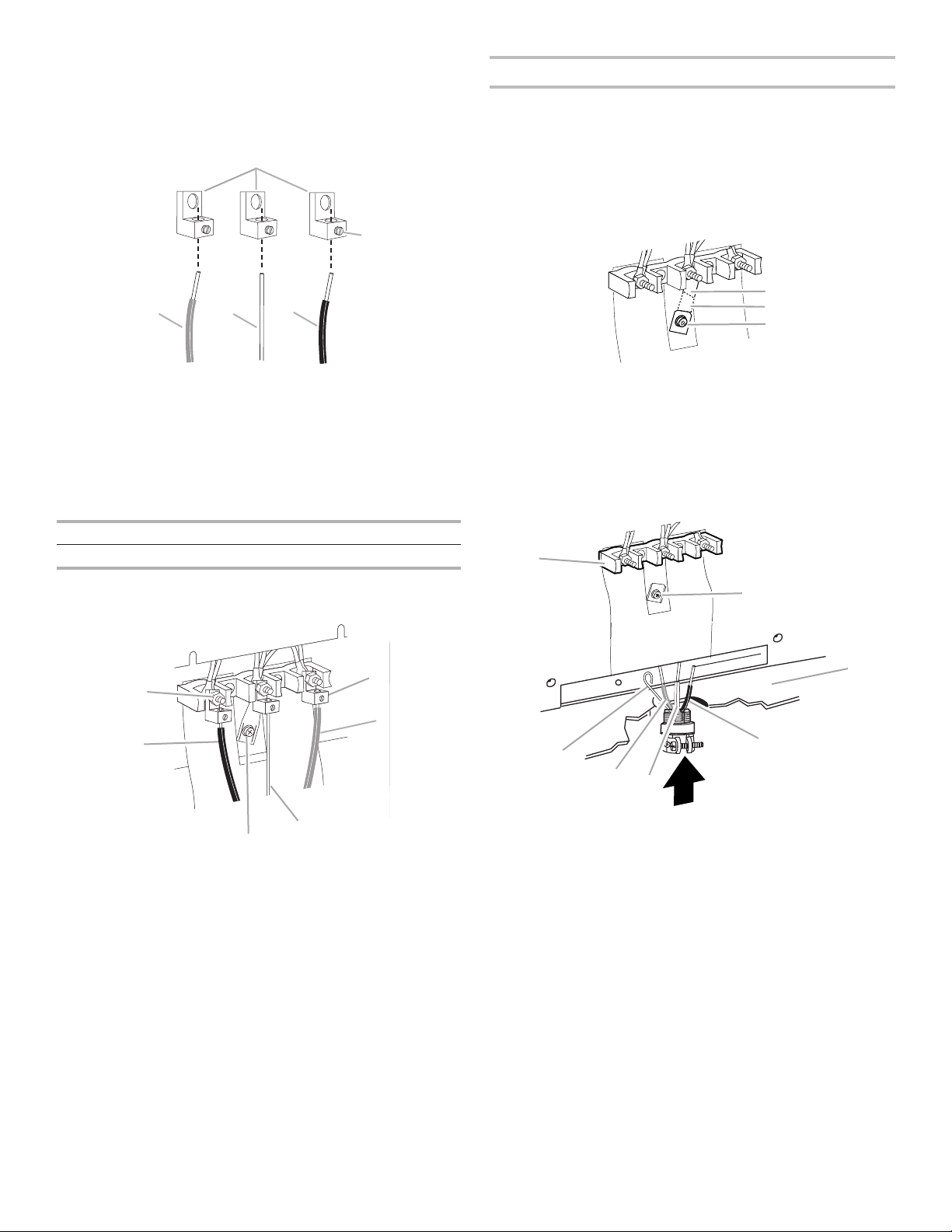

Direct Wire Installation: Copper or Aluminum Wire

This range may be connected directly to the fuse disconnect or circuit breaker box. Depending on your electrical supply, make the required 3-wire or 4-wire connection.

A. Terminal block B. Ground-link screw C. Cord/conduit plate

1. Strip outer covering back 3" (7.6 cm) to expose wires. Strip the insulation back 3/8" (9.5 mm) from the end of each wire.

³⁄₈

(1.0 cm)

D. Line 2 (red) wire E. Bare (green) ground wire F. Line 1 (black) wire

Page 12

A B

2. Attach terminal lugs to line two (red), bare (green) ground, and line one (black) wires. Loosen (do not remove) the setscrew on the front of the terminal lug and insert exposed wire end through bottom of terminal lugs. Securely tighten setscrew to torque as shown in the following Bare Wire Torque Speciﬁcations chart.

4-Wire Connection: Direct Wire

Use this method for:

■ New branch-circuit installations (1996 NEC)

■ Mobile homes

■ Recreational vehicles

■ In an area where local codes prohibit grounding through

the neutral

1. Cut out and remove part of metal ground strap, as shown.

A. Terminal lug B. Setscrew C. Line 2 (red) wire D. Bare (green) ground wire E. Line 1 (black) wire

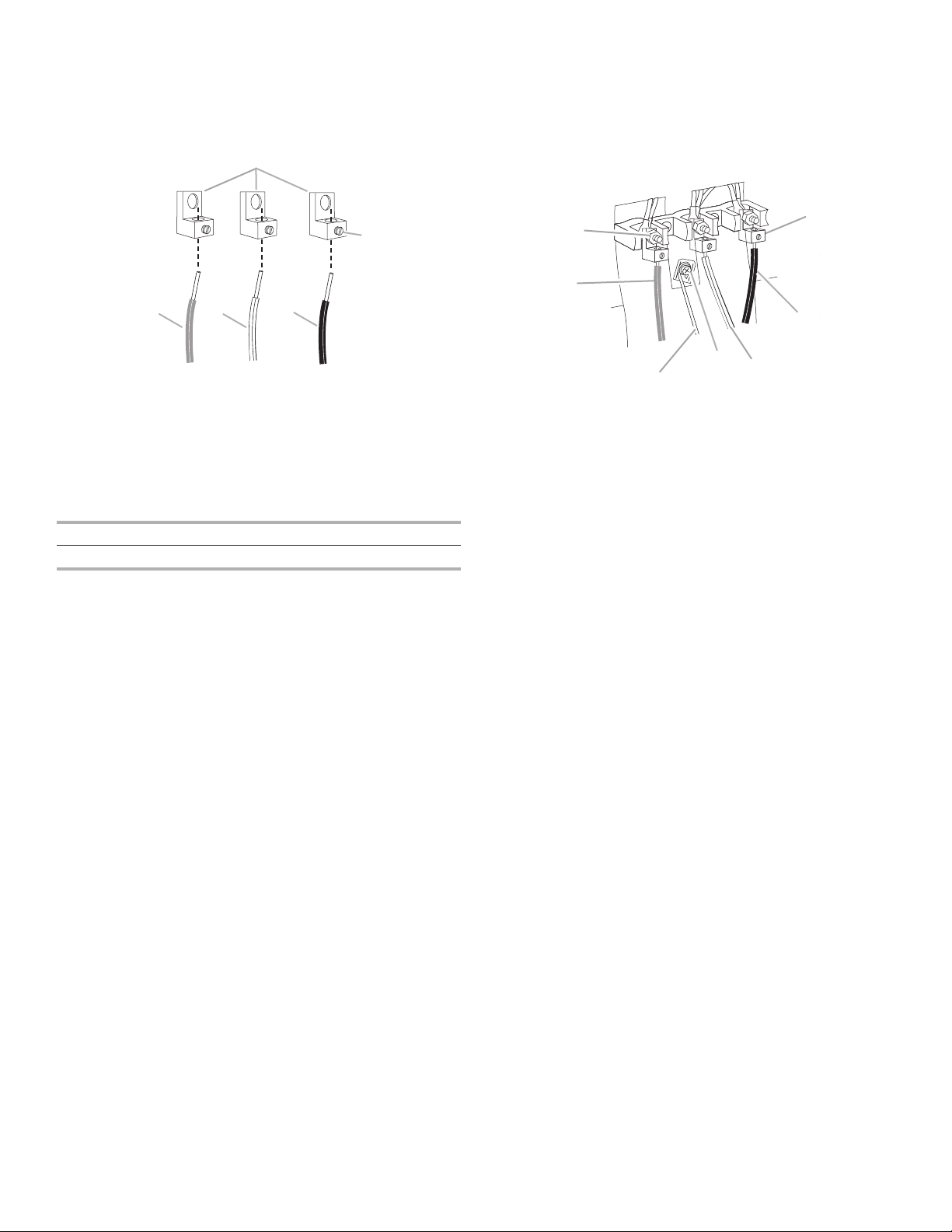

Bare Wire Torque Speciﬁcations

Attaching terminal lugs to the terminal block - 20 lbs-in. (2.3 N-m)

Wire Awg Torque

2. Use a Phillips screwdriver to remove the ground-link screw

from the back of the range. Save the ground-link screw and the end of the ground link under the screw.

3. Pull the wires through the strain relief on bottom of range. Allow enough slack to easily attach wiring to the terminal block.

A. Metal ground strap B. Discard C. Ground-link screw

8 gauge copper 25 lbs-in. (2.8 N-m)

6 gauge aluminum 35 lbs-in. (4.0 N-m)

3. Use 3/8" (9.5 mm) nut driver to connect the bare (green) ground wire to the center terminal block post with one of

the 10-32 hex nuts.

A. 10–32 hex nut B. Line 2 (red) wire C. Ground-link screw

D. Bare (green) ground wire E. Line 1 (black) wire F. Terminal lug

A. Terminal block B. Ground-link screw C. Cord/conduit plate D. Bare (green) ground wire

E. Line 2 (red) wire F. Neutral (white) wire G. Line 1 (black) wire

4. Connect line two (red) and line one (black) wires to the outer terminal block posts with 10-32 hex nuts.

5. Firmly tighten hex nuts. IMPORTANT: Verify the tightness of the hex nuts.

6. Replace lower access cover.

Page 13

4. Attach terminal lugs to line one (black), neutral (white), and

line two (red) wires. Loosen (do not remove) the setscrew on the front of the terminal lug and insert exposed wire end through bottom of terminal lugs. Securely tighten setscrew to torque as shown in the following Bare Wire Torque Speciﬁcations chart.

5. Use a hex or Phillips screwdriver to connect the bare (green) ground wire to the range with the ground-link screw and ground-link section. The ground wire must be attached over the ground-link section and must not contact any other terminal.

6. Use 3/8" (9.5 mm) nut driver to connect the neutral (white) wire to the center terminal block post with one of the 10-32 hex nuts.

A. Terminal lug B. Setscrew C. Line 2 (red) wire D. Neutral (white) wire E. Line 1 (black) wire

Bare Wire Torque Speciﬁcations

Attaching terminal lugs to the terminal block - 20 lbs-in. (2.3 N-m)

Wire Awg Torque

8 gauge copper 25 lbs-in. (2.8 N-m)

6 gauge aluminum 35 lbs-in. (4.0 N-m)

A. 10–32 hex nut B. Line 2 (red) wire C. Bare (green) ground wire D. Ground-link screw

E. Neutral (white) wire F. Line 1 (black) wire G. Terminal lug

7. Connect line two (red) and line one (black) wires to the outer terminal block posts with 10-32 hex nuts.

8. Firmly tighten hex nuts. IMPORTANT: Verify the tightness of the hex nuts.

9. Replace lower access cover.

Page 14

Verify Anti-Tip Bracket Is Installed and

Engaged

1. Slide range into ﬁnal location, making sure rear leveling leg slides into anti-tip bracket.

2. Remove the toe panel.

3. Use a ﬂashlight to look underneath the bottom of the range.

4. Visually check that the rear range foot is inserted into the slot

of the anti-tip bracket.

5. Replace the toe panel.

IMPORTANT: If the range is moved to adjust the leveling legs,

verify that the anti-tip bracket is engaged by repeating steps 1 to 5.

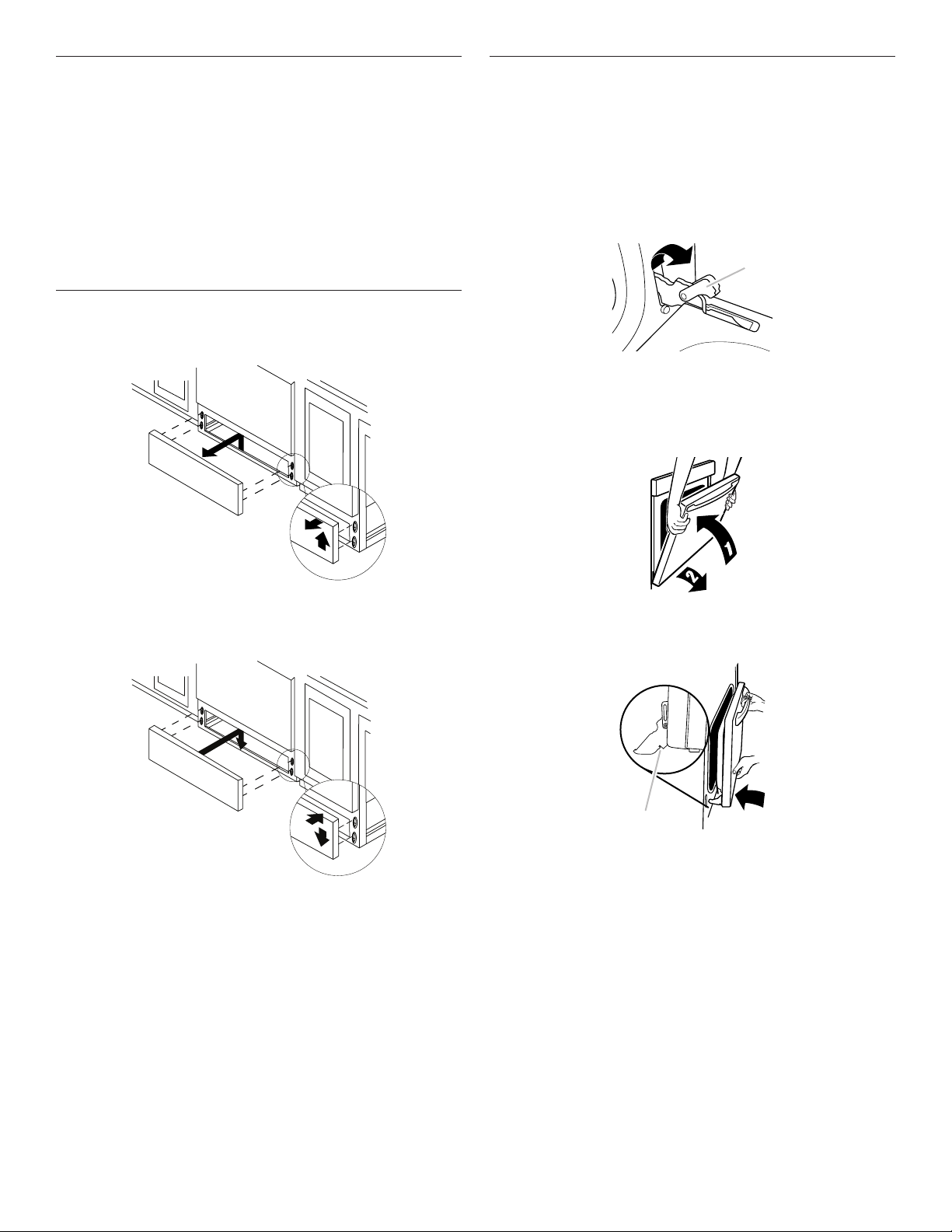

Remove/Reinstall Toe Panel

To Remove:

Pull upward and out to disengage the studs.

Oven Door

For normal range use, it is not suggested to remove the oven door. However, if removal is necessary, make sure the oven is off and cool. Then, follow these instructions. The oven door is heavy.

To Remove:

1. Open oven door all the way.

2. Pinch the hinge latch between two ﬁngers and pull forward.

Repeat on other side of oven door.

A. Hinge latch

3. Close the oven door as far as it will shut.

4. Lift the oven door while holding both sides.

Continue to push the oven door closed and pull it away from the oven doorframe.

To Reinstall:

Reinstall the access panel by aligning the studs with the keyhole slots on the range. Press the toe panel forward into the slots and push downward to enage the studs.

To Replace:

1. Insert both hanger arms into the door. Be sure that the hinge

notches are engaged in the oven doorframe.

A. Hinge notch

2. Open the oven door. The door should be able to open all the way.

3. Move the hinge levers back to the locked position. Check that the door is free to open and close and is level while closed. If it is not, repeat the removal and installation procedures.

Page 15

Complete Installation

1. Check that all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped.

2. Check that you have all of your tools.

3. Check that you have all of the range accessories, especially

oven racks. These accessories may be in the range packaging.

4. Dispose of/recycle all packaging materials.

5. Check that the range is level. See the “Level Range” section.

6. Use a mild solution of liquid household cleaner and warm

water to remove waxy residue caused by shipping material. Dry thoroughly with a soft cloth. For more information, see the “Range Care” section of the User Guide.

7. Read the User Guide.

8. Plug power cord into a grounded outlet. Turn power on.

9. Turn on surface elements and oven. See the User Guide for

speciﬁc instructions on range operation. NOTE: Odors and smoke are normal when the oven is used

the ﬁrst few times.

If Range Does Not Operate, Check the Following:

■ Household fuse is intact and tight; or circuit breaker has

not tripped.

■ Range is plugged into a grounded outlet.

■ Electrical supply is connected.

IMPORTANT: If the range control displays an “F9” or “F9, E0” error code, the electrical outlet in the home may be miswired. Disconnect power and contact a qualiﬁed electrician to verify the electrical supply.

10. When the range has been on for 5 minutes, check for heat. If the range is cold, turn off the range and contact a qualiﬁed electrician.

If You Need Assistance or Service:

Please reference the “Warranty” section of the User Guide to contact service.

Page 16

W11097823B

04/17
