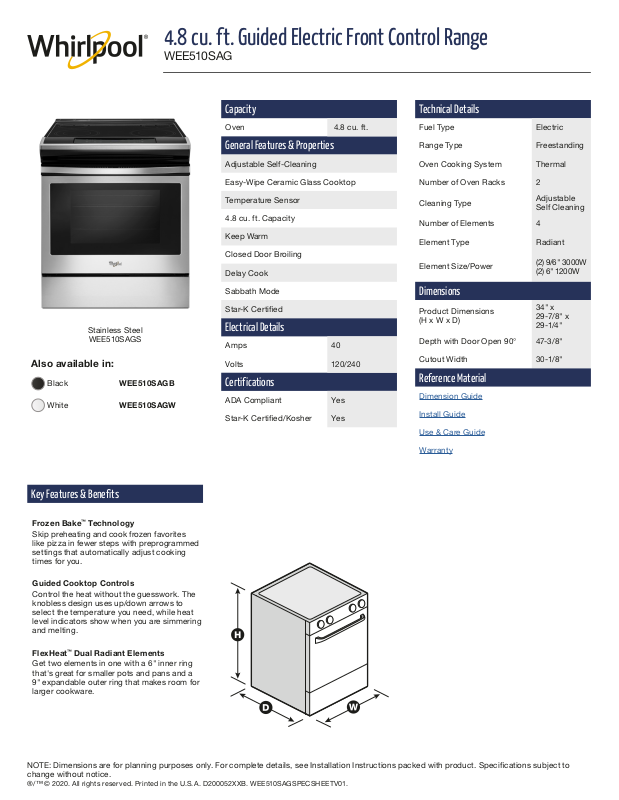

Whirlpool WEE510SAGS, WEE510SAGW, WEE510SAGB Specification Sheet

4.8 cu. ft. Guided Electric Front Control Range

WEE510SAG

Stainless Steel

WEE510SAGS

Also available in:

Black

White

WEE510SAGB

WEE510SAGW

Capacity

Oven 4.8 cu. ft.

General Features & Properties

Adjustable Self-Cleaning

Easy-Wipe Ceramic Glass Cooktop

Temperature Sensor

4.8 cu. ft. Capacity

Keep Warm

Closed Door Broiling

Delay Cook

Sabbath Mode

Star-K Certied

Electrical Details

Amps 40

Volts 120/240

Certifications

ADA Compliant Yes

Star-K Certied/Kosher Yes

Technical Details

Fuel Type Electric

Range Type Freestanding

Oven Cooking System Thermal

Number of Oven Racks 2

Cleaning Type

Number of Elements 4

Element Type Radiant

Element Size/Power

Adjustable Self Cleaning

(2) 9/6" 3000W (2) 6" 1200W

Dimensions

Product Dimensions (H x W x D)

Depth with Door Open 90° 47-3/8 "

Cutout Width 30 -1/8"

34" x 29-7/8" x 29 -1/4"

Reference Material

Dimension Guide

Install Guide

Use & Care Guide

Key Features & Benefits

Frozen Bake™ Technology

Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

Guided Cooktop Controls

Control the heat without the guesswork. The knobless design uses up/down arrows to select the temperature you need, while heat level indicators show when you are simmering and melting.

FlexHeat

Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 9" expandable outer ring that makes room for larger cookware.

™

Dual Radiant Elements

Warranty

NOTE: Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specications subject to change without notice.
