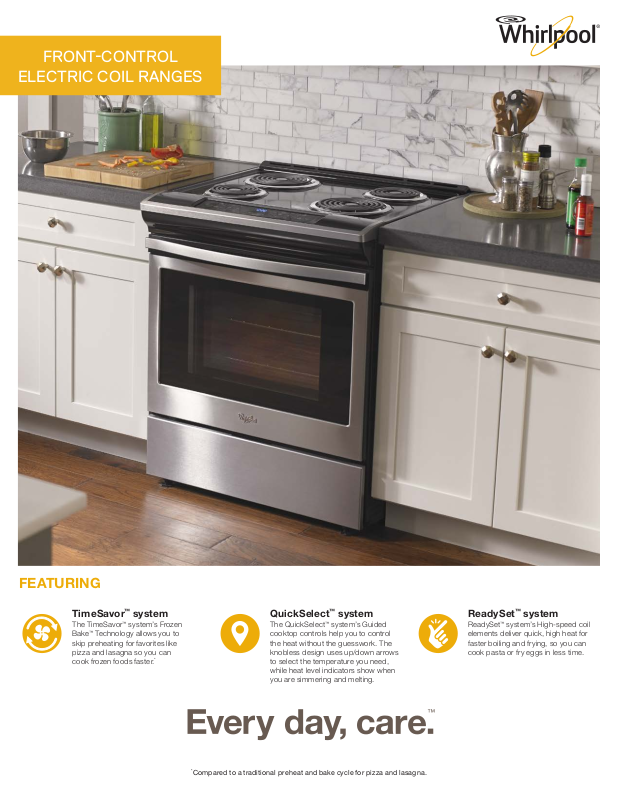

Whirlpool WEC310S0FS, WEC310S0FW, WEC310S0FB Specification Sheet
FRONT-CONTROL
ELECTRIC COIL RANGES
FEAT URING
TimeSavor™ system
The TimeSavor™ system’s Frozen
Bake™ Technology allows you to
skip preheating for favorites like
pizza and lasagna so you can
cook frozen foods faster.
QuickSelect™ system
The QuickSelect™ system’s Guided
cooktop controls help you to control
the heat without the guesswork. The
*
*
Compared to a traditional preheat and bake cycle for pizza and lasagna.
knobless design uses up/down arrows
to select the temperature you need,
while heat level indicators show when
you are simmering and melting.
ReadySet™ system
ReadySet™ system’s High-speed coil
elements deliver quick, high heat for
faster boiling and frying, so you can
cook pasta or fry eggs in less time.
Front-Control Electric Coil Ranges
PRODUCT DIMENSIONS
This manual covers several models. Your model may appear different
from the models depicted. Dimensions given are maximum dimensions
across all models.
CABINET DIMENSIONS
Cabinet opening dimensions shown are for 25" (64.0 cm) countertop depth, 24" (61.0 cm) base cabinet depth and 36" (91.4 cm) countertop height.
IMPORTANT: If installing a range hood or microwave hood combination above the range, follow the range hood or microwave hood combination
installation instructions for dimensional clearances above the cooktop surface.
Range may be installed next to combustible walls with zero clearance.
A. 18" (45.7 cm) upper side cabinet to countertop
B. 13" (33 cm) max. upper cabinet depth
C. 30" (76.2 cm) min. opening width
D. For minimum clearance to top of cooktop, see NOTE*.
E. 30" (76.2 cm) min. opening width
F. The shaded area is r ecommended for installation of grounded outlet.
G. 13
1
/8" (33.3 cm)
H. 7
11
/16" (19.5 cm)
I. 4
13
/16" (12.2 cm)
J. 3
11
/16" (9.4 cm)
K. Cabinet door or hinges should not extend into the cutout.
* NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet
is shielded by not less than
1
/4" (0.64 cm) flame retardant millboard
covered with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the cooking
platform and the bottom of an uncovered wood or metal cabinet.
Available Colors
W
White
B
Black
S
Stainless Steel
WEC310S0F
4.8 cu. ft.
TimeSavor™ system
• Frozen Bake™ technology
QuickSelect™ system
• Guided cooktop controls
ReadySet™ system
• High-speed coil elements
CompleteClean system
• Adjustable self-cleaning
NEW
Product Dimensions Cabinet Dimensions
A
D
A. 1³⁄16" (3.0 cm) height from cooktop to top of vent
7
B. 29
⁄8" (75.9 cm)
C. Model/serial/rating plate (located behind the oven door on the top
right-hand side of the oven frame)
D. 36" (91.4 cm) height to top of cooktop edge with leveling legs
screwed all the way in*
25
E. 28
⁄64” (72.1 cm) max. depth from front of console to back of range
1
F. 29
⁄64” (73.7 cm) max. depth from handle to back of range
IMPORTANT: Range must be level after installation. Follow the
instructions in the “Level Range” section. Using the cooktop as a
reference for leveling the range is not recommended.
* Range can be raised approximately 1" (2.5 cm) by adjusting the
leveling legs.
Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications
subject to change without notice.
B
E
F
C
B
C
A
F
I
A. 18" (45.7 cm) upper side cabinet to countertop
B. 13" (33 cm) max. upper cabinet depth
C. 30" (76.2 cm) min. opening width
D. For minimum clearance to top of cooktop, see NOTE*.
E. 30" (76.2 cm) min. opening width
F. The shaded area is recommended for installation of grounded outlet.
1
G. 13
/8" (33.3 cm)
11
H. 7
/16" (19.5 cm)
13
I. 4
/16" (12.2 cm)
11
J. 3
/16" (9.4 cm)
K. Cabinet door or hinges should not extend into the cutout.
* NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet
is shielded by not less than
covered with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the cooking
platform and the bottom of an uncovered wood or metal cabinet.
E
G
H
I
J
1
/4" (0.64 cm) flame retardant millboard
HeatRight™ system
• Temperature sensor
D
ADDITIONAL FEATURES
• Upswept SpillGuard
™
cooktop
• Keep Warm
• Closed door broiling
K
• Delay Cook
• Sabbath mode
• Star-K certified
• ADA compliant
®/™ ©2016 Whir lpool. All r ights res erved. 8/16. Fo rm No. WC160136A
