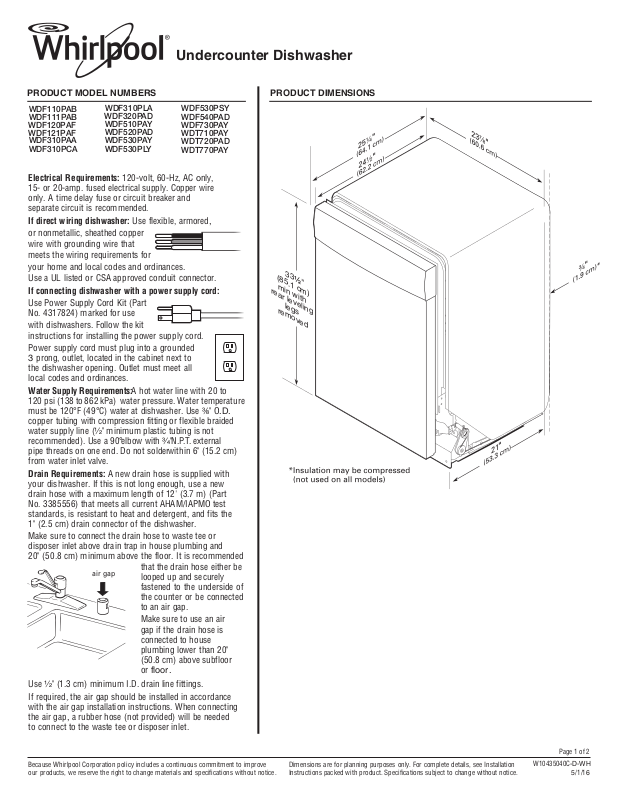

Whirlpool WDT720PADE, WDT720PADB, WDF110PABB, WDF110PABW, WDF120PAFS Specification Sheet
...
Undercounter Dishwasher
PRODUCT MODEL NUMBERS
WDF110PAB |
WDF310PLA |
WDF530PSY |
WDF111PAB |
WDF320PAD |
WDF540PAD |
WDF120PAF |
WDF510PAY |
WDF730PAY |
WDF121PAF |
WDF520PAD |
WDT710PAY |
WDF310PAA |
WDF530PAY |
WDT720PAD |
WDF310PCA |
WDF530PLY |
WDT770PAY |
Electrical Requirements: 120-volt, 60-Hz, AC only, 15or 20-amp. fused electrical supply. Copper wire only. A time delay fuse or circuit breaker and separate circuit is recommended.
If direct wiring dishwasher: Use flexible, armored, or nonmetallic, sheathed copper
wire with grounding wire that meets the wiring requirements for
your home and local codes and ordinances.
Use a UL listed or CSA approved conduit connector.
If connecting dishwasher with a power supply cord:
Use Power Supply Cord Kit (Part
No. 4317824) marked for use with dishwashers. Follow the kit
instructions for installing the power supply cord.
Power supply cord must plug into a grounded 3 prong, outlet, located in the cabinet next to the dishwasher opening. Outlet must meet all local codes and ordinances.
Water Supply Requirements:A hot water line with 20 to
120 psi (138 to 862 kPa) water pressure. Water temperature must be 120°F (49°C) water at dishwasher. Use ³⁄ " O.D. copper tubing with compression fitting or flexible braided water supply line (¹⁄ " minimum plastic tubing is not recommended). Use a 90°elbow with ³⁄ "N.P.T. external
pipe threads on one end. Do not solderwithin 6" (15.2 cm) from water inlet valve.
Drain Requirements: A new drain hose is supplied with your dishwasher. If this is not long enough, use a new drain hose with a maximum length of 12' (3.7 m) (Part No. 3385556) that meets all current AHAM/IAPMO test standards, is resistant to heat and detergent, and fits the 1" (2.5 cm) drain connector of the dishwasher.
Make sure to connect the drain hose to waste tee or disposer inlet above drain trap in house plumbing and
20" (50.8 cm) minimum above the floor. It is recommended that the drain hose either be
looped up and securely
fastened to the underside of
the counter or be connected
to an air gap.
Make sure to use an air gap if the drain hose is connected to house plumbing lower than 20"
(50.8 cm) above subfloor or floor.
Use ¹⁄ " (1.3 cm) minimum I.D. drain line fittings.
If required, the air gap should be installed in accordance with the air gap installation instructions. When connecting the air gap, a rubber hose (not provided) will be needed to connect to the waste tee or disposer inlet.
PRODUCT DIMENSIONS
|
. |
¹⁄ |
|||
|
|
1 |
|
||
|
33 |
|
cm) |
||
(85 |
|
|
|
||
min |
with |
||||
rear |
|
|
|||
|
legsleveling |
||||
remo |
ved |
||||
|
|||||
Page 1 of 2
Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation |
W10435040C-D-WH |
Instructions packed with product. Specifications subject to change without notice. |
5/1/16 |
