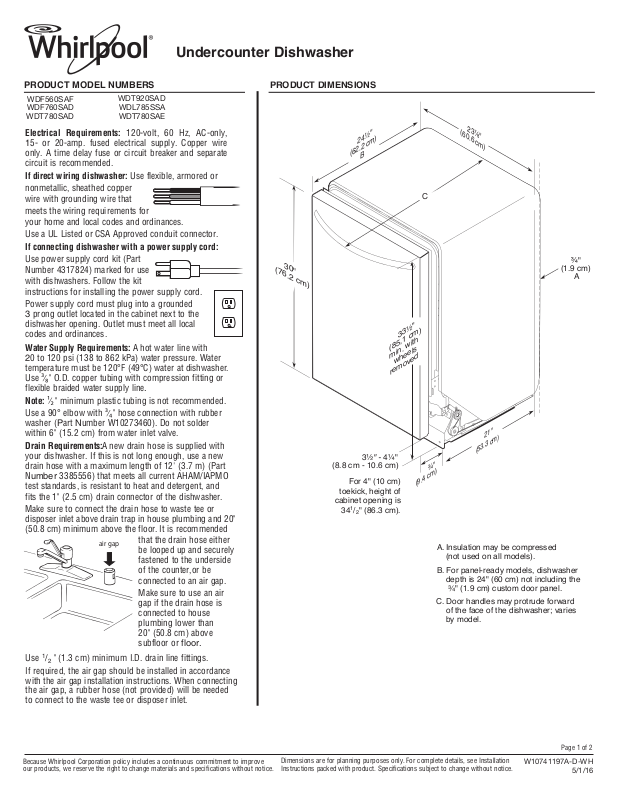

Whirlpool WDT920SADH, WDF560SAFB, WDF560SAFW, WDF560SAFM, WDT780SAEM Specification Sheet
...
Undercounter Dishwasher
PRODUCT MODEL NUMBERS
WDF560SAF
WDF760SAD
WDT780SAD WDT780SAE
WDT920SAD
WDL785SSA
Electrical Requirements: 120-volt, 60 Hz, AC-only,
15- or 20-amp. fused electrical supply. Copper wire
only. A time delay fuse or circuit breaker and separate
circuit is recommended.
If direct wiring dishwasher: Use flexible, armored or
nonmetallic, sheathed copper
wire with grounding wire that
meets the wiring requirements for
your home and local codes and ordinances.
Use a UL Listed or CSA Approved conduit connector.
If connecting dishwasher with a power supply cord:
Use power supply cord kit (Part
Number 4317824) marked for use
with dishwashers. Follow the kit
instructions for installing the power supply cord.
Power supply cord must plug into a grounded
3 prong outlet located in the cabinet next to the
dishwasher opening. Outlet must meet all local
codes and ordinances.
Water Supply Requirements: A hot water line with
20 to 120 psi (138 to 862 kPa) water pressure. Water
temperature must be 120°F (49°C) water at dishwasher.
Use " O.D. copper tubing with compression fitting or
flexible braided water supply line.
Note: " minimum plastic tubing is not recommended.
Use a 90° elbow with " hose connection with rubber
washer (Part Number W10273460). Do not solder
within 6" (15.2 cm) from water inlet valve.
Drain Requirements:A new drain hose is supplied with
your dishwasher. If this is not long enough, use a new
drain hose with a maximum length of 12' (3.7 m) (Part
Number
3385556) that meets all current AHAM/IAPMO
test standards, is resistant to heat and detergent, and
fits the 1" (2.5 cm) drain connector of the dishwasher.
Make sure to connect the drain hose to waste tee or
disposer inlet above drain trap in house plumbing and 20"
(50.8 cm) minimum above the floor. It is recommended
air gap
that the drain hose either
be looped up and securely
fastened to the underside
of the counter,or be
connected to an air gap.
Make sure to use an air
gap if the drain hose is
connected to house
plumbing lower than
20" (50.8 cm) above
subfloor or floor.
Use 1/2 " (1.3 cm) minimum I.D. drain line fittings.
If required, the air gap should be installed in accordance
with the air gap installation instructions. When connecting
the air gap, a rubber hose (not provided) will be needed
to connect to the waste tee or disposer inlet.
PRODUCT DIMENSIONS
24
(62.2 cm)
B
30"
(76.2 cm)
3" -
(8.8 cm - 10.6 cm)
For 4" (10 cm)
toekick, height of
cabinet opening is
341/2" (86.3 cm).
"
33
(85,1 cm)
min. with
wheels
removed
4 "
23
(60.6 cm)
"
C
"
21 "
(53.3 cm)
"
(9.4 cm)
A. Insulation may be compressed
(not used on all models).
B. For panel-ready models, dishwasher
depth is 24" (60 cm) not including the
" (1.9 cm) custom door panel.
C. Door handles may protrude forward
of the face of the dishwasher; varies
by model.
"
(1.9 cm)
A
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Page 1 of 2
W10741197A-D-WH
5/1/16
CABINET CUTOUT DIMENSIONS
NOTE: Shaded areas of cabinet walls show where utility
connections may be installed.
**Measure from the lowest point on the underside of the
countertop. May be reduced to 33 "
(85.1 cm) by
removing the rear leveling legs from dishwasher.
**Minimum,
measured from narrowest point of opening
34"
(86.4 cm)
min
D
24 "
(61 cm)
24 "
(61 cm)
E
Check that all surfaces have no protrusions
that would prohibit dishwasher installation.
6
(17.2 cm)
"
4"
(10.2 cm)
3"
1
(4.4 cm)
"
2
(6.4 cm)
"
10
(26.7 cm)
"
(7.6 cm)
6 "
(15.9 cm)
Clear
Area
2"
(5.1 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
"
1
(4.4 cm)
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Page 2 of 2
W10741197A-D-WH
5/1/16
