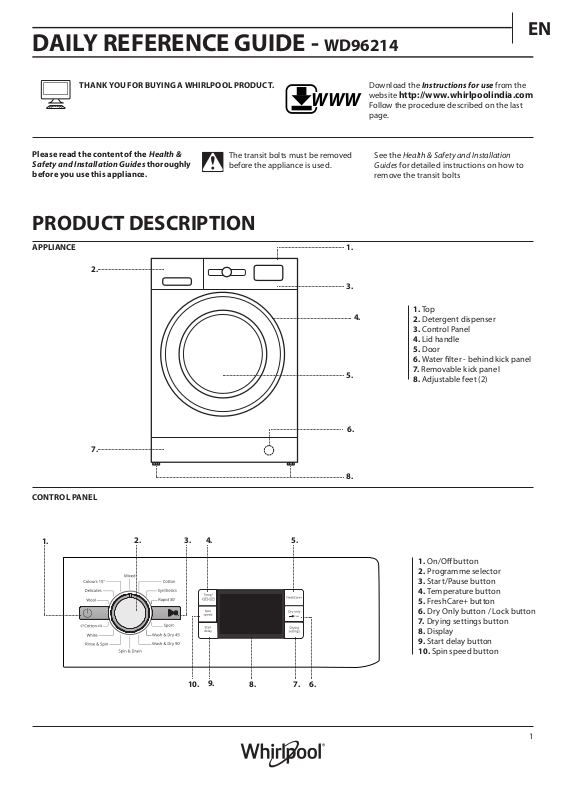

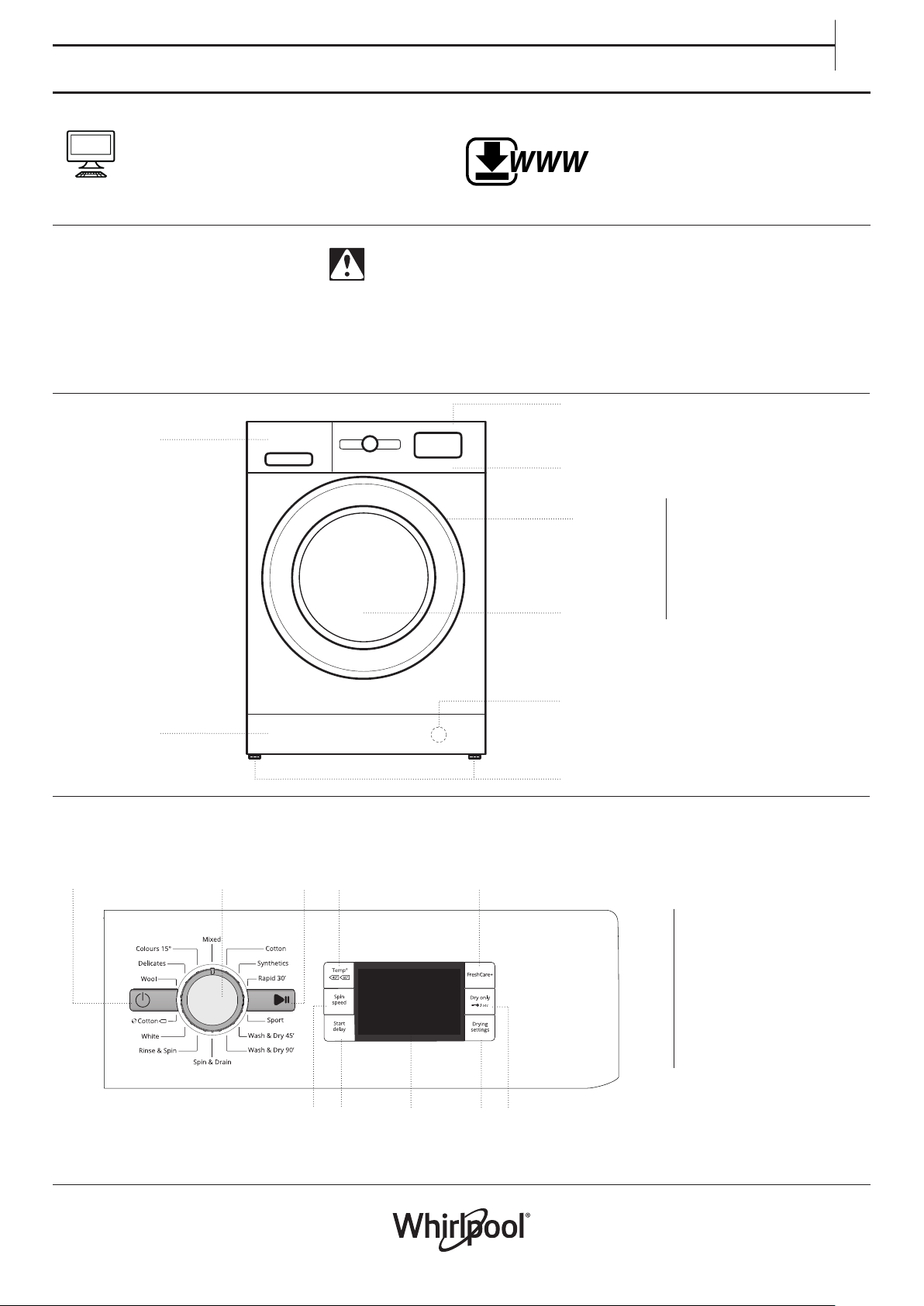

DAILY REFERENCE GUIDE - WD96214

WWW

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

Please read the content of the Health & Safety and Installation Guides thoroughly before you use this appliance.

The transit bolts must be removed before the appliance is used.

PRODUCT DESCRIPTION

APPLIANCE

Download the Instructions for use from the website http://www.whirlpoolindia.com Follow the procedure described on the last page.

See the Health & Safety and Installation Guides for detailed instructions on how to remove the transit bolts

1. Top

2. Detergent dispenser

3. Control Panel

4. Lid handle

5. Door

6. Water lter - behind kick panel

7. Removable kick panel

8. Adjustable feet (2)

CONTROL PANEL

3. 4.

10. 6.

1. On/O button

2. Programme selector

3. Start/Pause button

4. Temperature button

5. FreshCare+ button

6. Dry Only button / Lock button

7. Drying settings button

8. Display

9. Start delay button

10. Spin speed button

Page 2

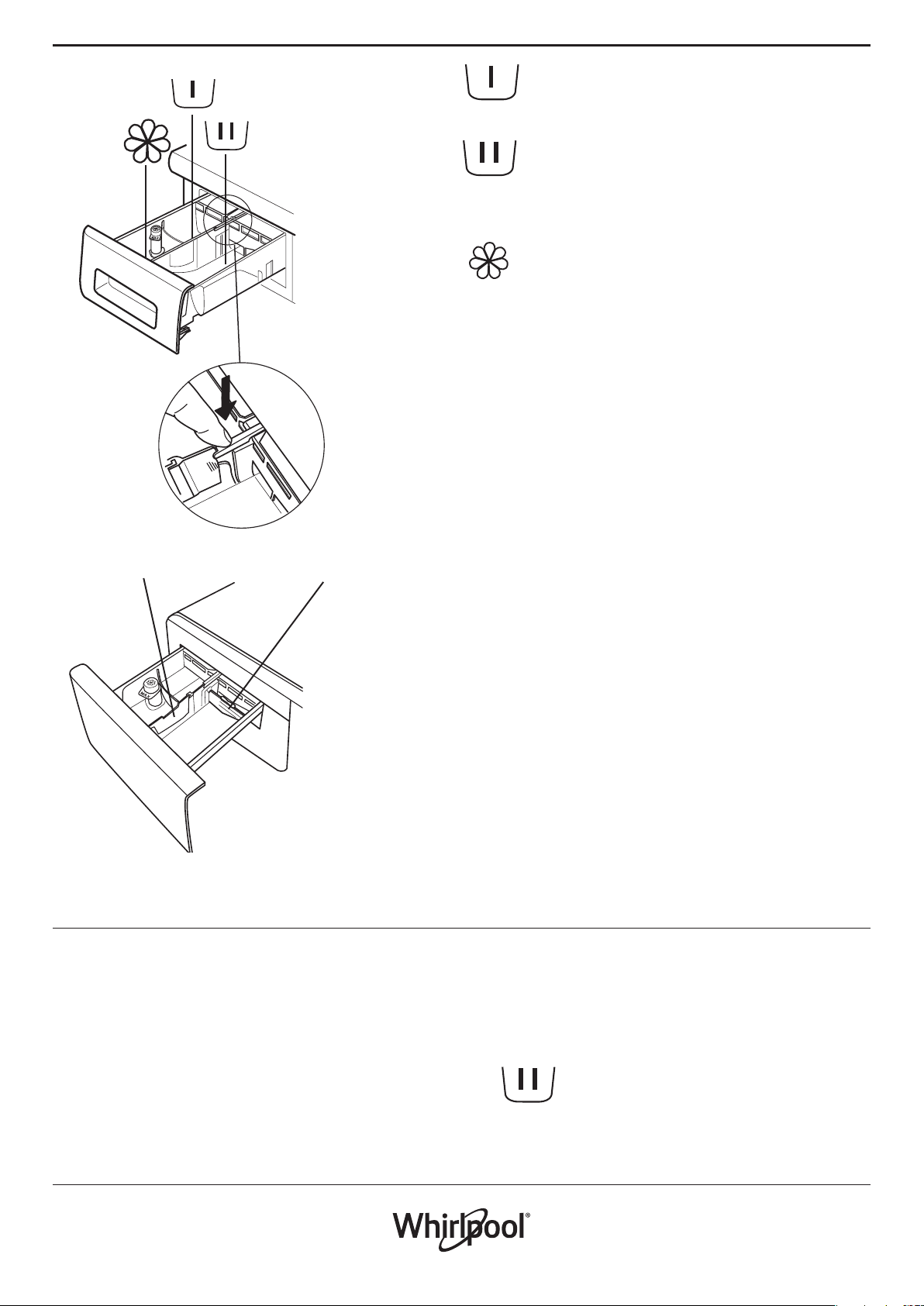

DETERGENT DISPENSER

Prewash Compartment

• Detergent for prewash

Main Wash Compartment

• Detergent for the main wash

• Stain remover

• Water softener

Softener compartment

• Softener

• Liquid starch

Pour softener or starch solution into the compartment without exceeding the “max” level.

Release button

(press to remove tray for cleaning).

FIRST TIME USE

See the section DAILY USE for instructions on selecting and starting a programme.

First cycle operation

Remove any manufacturing debris:

1. Select the “Cotton” programme with a temperature setting of 60 °C.

2. Pour a small quantity of detergent powder into the main wash compartment of the detergent dispenser (maximum 1/3 of the quantity the detergent manufacturer recommends for lightly soiled laundry).

3. Start the programme without loading the washer dryer machine (with empty drum).

Preferably use the partition A when washing with a liquid detergent for washing, to ensure that the correct quantity of detergent is used (the partition is included in the bag containing the instructions). Move the partition into slot B when using detergent powder.

Page 3

DAILY USE

For more information on functions, a more detailed guide may be requested or downloaded from the website following the instructions given on the last page.

WWW

1. LOADING LAUNDRY.

• Prepare the laundry, following the recommendations given in the section “HINTS AND TIPS”. - Open the door and load the laundry into the drum, without exceeding the maximum load capacities indicated in the Programme Chart.

• Close the door, pressing until the latch audibly locks, and check that there is no laundry trapped between the door glass and the rubber seal.

2. OPEN THE WATER TAP

Check that the washer dryer is connected correctly to the water mains. Open the water tap.

3. SWITCHING ON THE WASHER DRYER MACHINE.

Press button ; the lamp ashes slowly.

4. SELECTING A PROGRAMME AND CUSTOMISING A CYCLE.

The following functions are possible with this appliance:

• Wash only

• Wash and dry

• Dry only

Wash only

Select the required programme with the PROGRAMME selector dial. The duration of the wash cycle is shown on the display. The washer dryer machine automatically displays the maximum temperature and spin speed settings possible for the selected programme. Adjust the temperature and/or spin speed settings if needed with the relative buttons.

• Press button “Temp°” to cycle through progressively lower temperature settings until cold wash is set (“- -“) shown on display.

• Press button “Spin speed” to cycle through progressively lower spin speed settings until the spin cycle is turned o (“0” shown on display). Pressing the button again sets the highest possible setting.

Select the required options (if necessary).

• Pressthebuttontoselecttheoption;therespectivebutton

lamp illuminates.

• Pressthebuttonagaintocanceltheoption;thelamp

extinguishes.

! If the selected option is not compatible with the programme set, an error warning tone sounds and the indicator lamp ashes three times. The option is not selected.

Wash and dry

To wash and dry a load with no interruption between the

wash and dry cycles, make sure that the load does not exceed the maximum permissible drying load for the selected programme (see the column “Max. load for drying cycle” in the Programme chart).

1. Follow the instructions given in the paragraph “Wash Only” to select and, if necessary, customise the required programme.

2. Press “Drying settings” to select the required drying mode. Two drying modes are available: automatic or timer.

- Automatic drying with selectable levels: In automatic drying mode, the washer dryer machine dries the laundry until the set level of dryness is reached. Pressing button “Drying settings” once automatically selects the highest drying level available for the selected programme. Press the button again to reduce the drying level.

The following levels are available: Wardrobe : laundry is completely dry and ready to be put away in the wardrobe without ironing. Hanger : laundry is left slightly damp to minimise creasing. Garments must be hung to air dry completely. Iron : garments are left reasonably damp to make ironing easier.

- Timer drying mode:

Press button “Drying settings” repeatedly to set timer drying mode. After cycling through all the automatic drying levels, continue pressing button “Drying settings” until the desired time is displayed. Values from 210 to 30 minutes are settable.

To wash a load of laundry larger than the maximum permissible load for drying (see the column “Max. load for drying cycle” in the Programme chart), remove a few garments once the washing cycle has nished before starting the drying cycle. Proceed as follows:

1. Follow the instructions given in the paragraph “Wash Only” to select and, if necessary, customise the required programme.

2. Do not include a drying cycle.

3. Once the washing cycle is nished, open the door and remove a few garments to reduce the load. Now follow the instructions for “Dry only”.

N.B.: always allow a cooling down period after drying before opening the door.

When using the two preset cycles “Wash & Dry 45’” and “Wash & Dry 90’”, it is not necessary to select and start a drying cycle.

Dry only

This function is used to simply dry a wet load washed previously in the washer dryer or by hand.

1. Select a suitable programme for the laundry you want to dry (e.g. select cotton to dry wet cotton laundry).

2. Press button “Dry only” to dry without a wash cycle.

3. Press “Drying settings” to select the required drying mode. Two drying modes are available: automatic or timer.

- Automatic drying with selectable levels:

In automatic drying mode, the washer dryer machine dries the laundry until the set level of dryness is reached. Pressing button “Drying settings” once automatically selects the highest drying level available for the selected programme. Press the button again to reduce the drying level.

Page 4

- Timer drying mode:

5. USING THE CORRECT AMOUNT OF DETERGENT. Pull out

the tray and pour detergent into the relative compartments as described in “Detergent dispenser”. This is only necessary when using a wash only or a wash + dry programme.

6. DELAYING THE START OF A PROGRAMME. To set a

programme to start at a later time, see the section “Options and Functions”.

7. STARTING A PROGRAMME.

Press the START/PAUSE button. The relative indicator lamp

illuminates, the door locks and the door open symbol extinguishes. To change a programme while a cycle is in progress, press START/PAUSE to pause the washer dryer (the START/ PAUSE lamp ashes amber slowly); then select the required cycle and press START/PAUSE again. To open the door while a cycle is in progress, press START/PAUSE; the door may be opened if the symbol lights. Press the START/ PAUSE button again to resume the programme from where it was paused.

8. CANCELLING A RUNNING PROGRAMME IF NECESSARY

Press and hold the button until the washer dryer stops. If the water level and temperature are low enough, the door unlocks and may be opened. The door remains locked if there is water in the drum. To unlock the door, switch the washer dryer on, select the SPIN &

DRAIN programme and turn the spin function o by setting

the spin speed to 0. The water is emptied and the door unlocks at the end of the programme.

9. SWITCHING THE WASHER DRYER OFF AT THE END OF A

PROGRAMME.

At the end of the cycle, the message “END” is shown on the display. The door can only be opened when the symbol lights. Check that the door unlocked symbol is lit, then open the door and take out the laundry. Press to switch the washer dryer o. To save energy, if the washer dryer is not switched o manually with the button, it turns o automatically approximately 30 minutes after the end of the programme. Leave the door ajar to let the interior of the washer dryer dry.

Page 5

HINTS AND TIPS

RULES FOR SEPARATING LAUNDRY

• Fabric type / indications on label (cotton, mixed bres, synthetic, wool, handwash items)

• Colour (separate coloured garments from whites, wash new coloured items separately)

• Size (wash items of dierent sizes in the same load to improve washing ecacy and weight distribution in the drum)

• Delicates (place small items – such as nylon stockings – and garments with clasps – such as braziers – in a laundry bag or in a pillow case with a zip).

EMPTY POCKETS

• Objects such as coins or safety pins can damage laundry and the washer dryer drum.

WASH SYMBOLS

ON GARMENT LABELS

The value given in the tub symbol is the maximum temperature possible for washing the garment.

Normal mechanical action

Reduced mechanical action

Much reduced mechanical action

Hand wash only

Do not wash

CLEAN THE WATER FILTER REGULARLY

• This is needed to prevent the lter from blocking and preventing the water from draining correctly. See the section “Cleaning and Maintenance” / “Cleaning the water lter” in the detailed guide that may be requested or downloaded from the website.

WWW

SAVING ENERGY AND PROTECTING THE ENVIRONMENT

• Keeping within the load limits indicated in the programme chart will optimise energy, water and detergent consumption and reduce washing times.

• Do not exceed the detergent quantities recommended by the detergent manufacturer.

• Save energy by using a 60°C instead of a 90°C wash programme, or by using a 40°C instead of a 60°C wash programme. We recommend using the “ Cotton ” 60°C programme for cotton garments, which is longer but uses less energy.

• To save energy and time when washing and drying, select highest spin speed available for the programme to reduce the residual water remaining in the garments at the end of the wash cycle.

Page 6

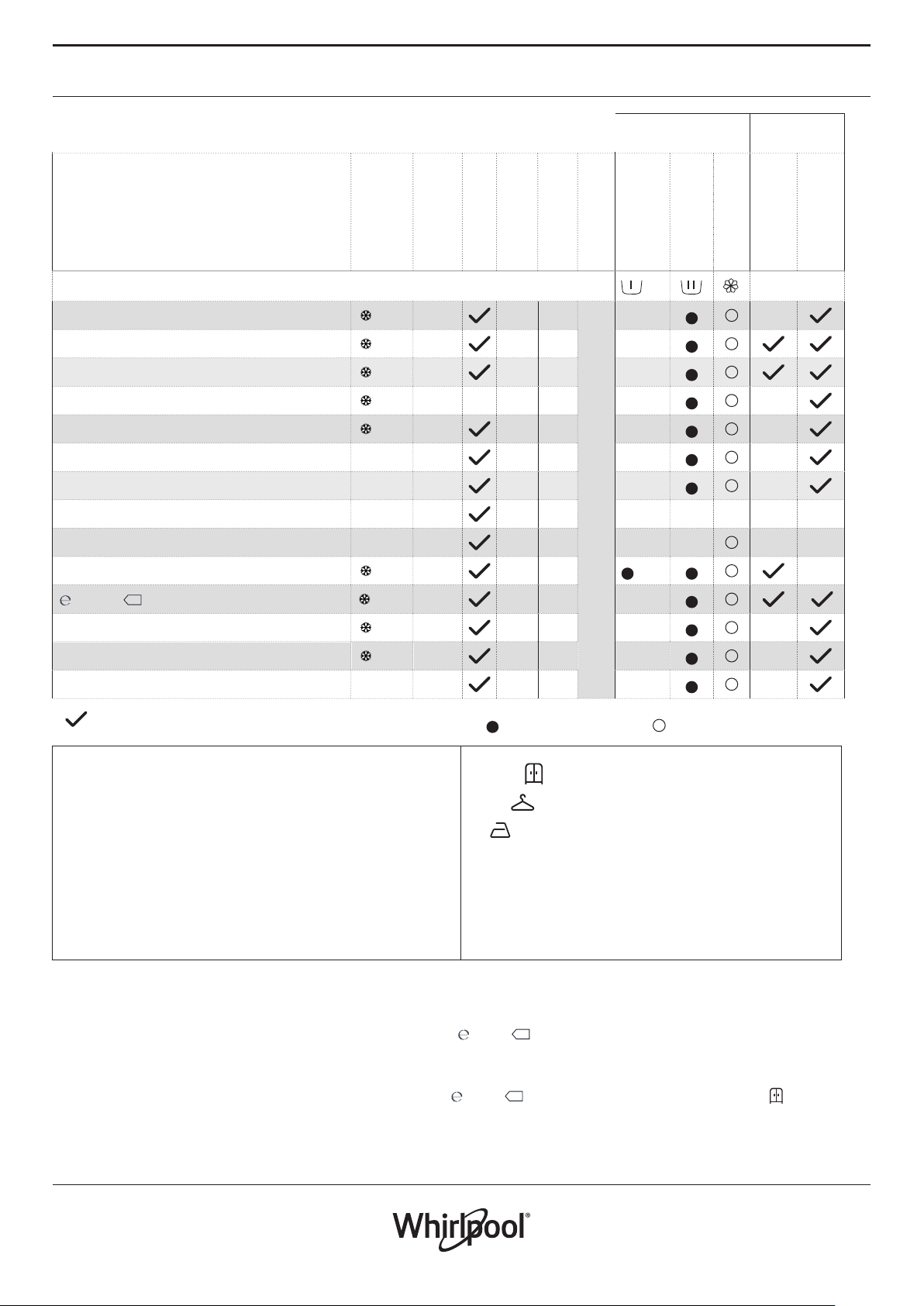

PROGRAMME CHART

Detergents and

additives

Programme

MIXED

COTTON 2

SYNTHETICS 3

RAPID 30’

SPORT

WASH & DRY 45’ 30°C 1400 1 1 - -

WASH & DRY 90’ 30°C 1200 2 2 - -

SPIN & DRAIN *

RINSE & SPIN - 1400

WHITE

Available tempera-

tures

Max. spin speed

(rpm)

Drying

Max. load for wash

cycle (kg)

Max. load for dry-

ing cycle (kg)

Duration (Minutes)

Prewash

- 40°C

- 60°C

- 30°C

- 40°C

- 90°C

1000

1400

1200

800 - 3,5 - -

600

- 1400 9 6 - - - - -

1400

4,5 4,5

9 6 -

4,5 4 -

4,0 4,0 - -

9 6 - - - -

9 6

- -

(90°)

Main

Recommend-

ed detergent

Softener

Powder

Liquid

COTTON 1

WOOL

DELICATES

COLOURS 15° 15°C 1000 4,5 4,5 - -

Selectable/optional

Drying

This function is used to simply dry a wet load washed previously in the washer dryer or by hand.

1. Select a suitable programme for the laundry you want to dry (e.g. select cotton to dry wet cotton laundry).

2. Press button “Dry only” to dry without a wash cycle.

3. Press “Drying settings” to select the required drying mode. Two drying modes are available: automatic or timer.

- Automatic drying with selectable levels:

For wash programmes with temperatures above 50°C, we recommend using powder detergent rather than liquid, and following the directions given on the detergent package.

Not selectable/applicable Required quantity Optional quantity

- 60°C

- 40°C

- 30°C

1400

800

The following levels are available: Wardrobe in the wardrobe without ironing. Hanger Garments must be hung to air dry completely. Iron

- Timer drying mode:

9 6 -

2 2 - -

The duration of the programme is shown on the display.

1 1 - -

: laundry is completely dry and ready to be put away

: laundry is left slightly damp to minimise creasing.

: garments are left reasonably damp to make ironing easier.

* Select the SPIN & DRAIN programme and set the spin speed to 0 to empty only.

1) Test programme in compliance with standard EN 50229 (Wash): select the “ Cotton ” programme with a temperature of 60°C.

2) Long cotton programme: set the “Cotton“ programme with a temperature of 40°C.

3) Synthetic program along: set the “Synthetics“ programme with a temperature of 40°C.

Test programme in compliance with standard EN 50229 (Drying): select the “ Cotton “ wash programme and set the drying level to “ ”, for both loads. The rst drying cycle must be carried out with the nominal load.

The cycle duration indicated on the display or in the manual is an estimated time calculated for standard conditions. The actual cycle time may vary in relation to a number of dierent factors, such as inlet water temperature and pressure, ambient temperature, quantity of detergent, size and type of load, load balancing and any additional optional functions selected.

Page 7

PROGRAMMES

Follow the directions indicated in the garment wash symbols.

MIXED

For washing lightly to normally soiled resilient garments in cotton, linen, synthetic bres and mixed bres.

SPIN & DRAIN

Designed for spinning and draining the water.

RINSE & SPIN

rinses and then spins. For resilient garments.

COTTON

for washing normally to heavily soiled towels, underwear, table and bed linen etc. in resilient cotton and linen.

SYNTHETICS

for washing normally soiled garments made from synthetic bres (such as polyester, polyacrylic, viscose etc.) or cotton/ synthetic blends.

RAPID 30’

for washing lightly soiled garments quickly: this cycle lasts only 30 minutes, saving time and energy. Maximum load 3,5 Kg.

SPORT

For washing lightly soiled sports clothing (tracksuits, shorts, etc.). For best results, we recommend not exceeding the maximum load indicated in the ‚‘‘PROGRAMME CHART‘‘. We recommend using liquid detergent , and adding the amount suitable for half-load.

WASH & DRY 45’

for washing and drying lightly soiled cotton and synthetic bre garments quickly. This cycle washes and dries a laundry load of up to 1 Kg in just 45 minutes.

WASH & DRY 90’

for washing and drying cotton and synthetic bre garments quickly. This cycle washes and dries a laundry load of up to 2 Kg in just 90 minutes.

WHITE

For washing normally to heavily soiled towels, underwear, table and bed linen, etc in resilient cotton and linen. Only when the temperature is selected at 90°C the cycle is provided with a prewash phase before main washing phase. In this case it is recommended to add detergent both, in the prewash and main wash section.

COTTON

for washing normally soiled cotton garments. At 40°C and 60°C, this is the standard cotton programme and the most ecient and terms of water and energy consumption.

WOOL

All wool garments can be washed using programme ‚“Wool“ even those carrying the “hand-wash only “ label. For best results, use special detergents and do not exceed max kg

declaration of laundry.

DELICATES

for washing particularly delicate garments. Preferably turn garments inside out before washing.

COLOURS 15°

This cycle helps protect colours by washing in cold water (15°C) and uses less energy to heat the water while still oering satisfactory wash results. Suitable for lightly soiled, unstained garments. This cycle oers wash results comparable to 40°C mixed at just 15°C

OPTIONS AND FUNCTIONS

OPTIONS selectable directly by pressing the relative button

! If the selected option is not compatible with the

programme set, an error warning tone sounds and the indicator lamp ashes three times. The option is not selected.

FRESHCARE+

If associated with wash cycles, this option increases their performances by generating steam to block proliferation of the main sources of unpleasant odours inside the appliance (exclusively for the wash). After the steam phase, the machine runs a delicate cycle with slow drum rotations. When the FRESHCARE+ option is associated with drying cycles, it prevents stubborn creases from stabilising on garments, thanks to slow drum rotations. The FreshCare+ cycle starts at the end of the wash or drying cycle and continues for maximum 6 hours; it can be interrupted at any time by pressing any button on the control panel, or by turning the knob. Wait roughly 5 minutes before opening the door.

START DELAY

To set the selected programme to start at a later time, press the button to set the desired delay time. The h. symbol lights on the display when this function is enabled. To cancel the delayed start, press the button again until the value “0” is shown on the display.

LOCK BUTTON

to lock the control panel, press and hold the button “Dry only” for approximately 3 seconds. the symbol lights on the display to indicate that the control panel is locked (with

the exception of the button). This prevents unintentional changes to programmes, especially with children near the machine. If any attempt is made to use the control panel, the symbol

ashes on the display. To unlock the control panel, press and hold the button “Dry only” for approximately 3 seconds.

Page 8

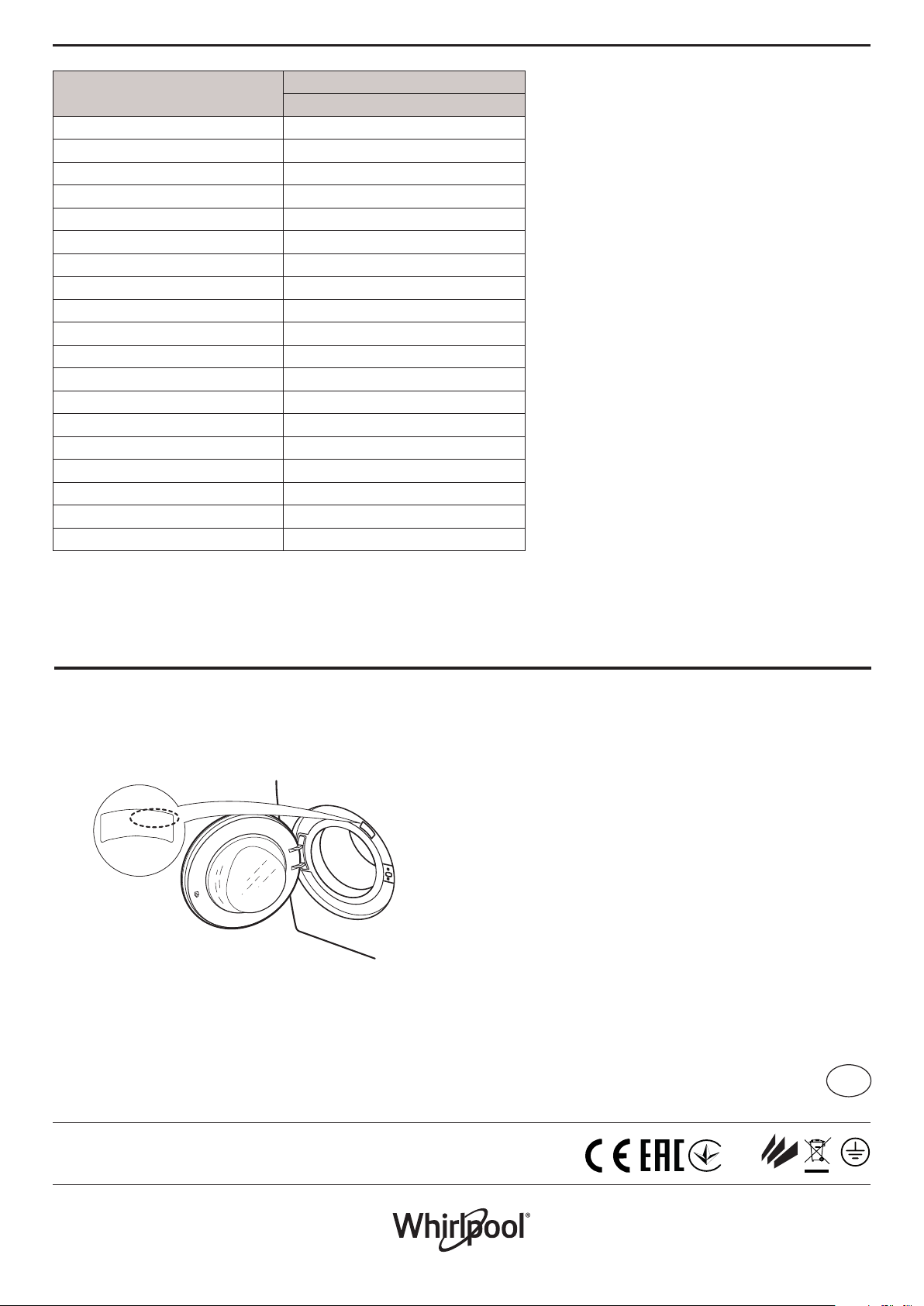

Type

FRESHCARE WASHER DRYER COMBO

WD96214

Wash/Dry Capacity 9/6 Kg Construction Type Freestanding Loading type Front Rated voltage 220-230 V , 50 Hz Spin Speed option Variable Maximum Spin speed 1400 Net weight 66Kg Drum Volume 58lt Maximum power 1850W Automatic Programes YES Delay Feature YES Auto restart YES Timer Type BIG DIGIT Motor Type CIM Outside dimension (mm) 850(H)x540(D)x595(W) Water pressure (0.2-8) kg/cm² Energy Consumption - Washing 1.17 (kWh) Energy Consumption - Wash + Dry 6.12 (kWh) Machine Class CLASS 1

Due to continuous R&D process, specications and features may change without prior notice. Features may vary from model to model. Power conitions as specied in IS 12360. Votlage 230V±10%, Frequency 50±3%. * Capacity of the washer with standard test clothes as specied in IS 14155 Dry weight as per the name plate, loaded in wet condition # Inlet water temperature considered 15°C

CONTACTING THE AFTERSALES SERVICE

When contacting the After-Sales Service, you will need to be able to provide the codes indicated on the adhesive label on the inner side of the door. The telephone number is indicated in the warranty booklet.
