WD 140 - WD 141
DE BE CH NL ES PT IT SE NO DK FI PL CZ SK HU RU

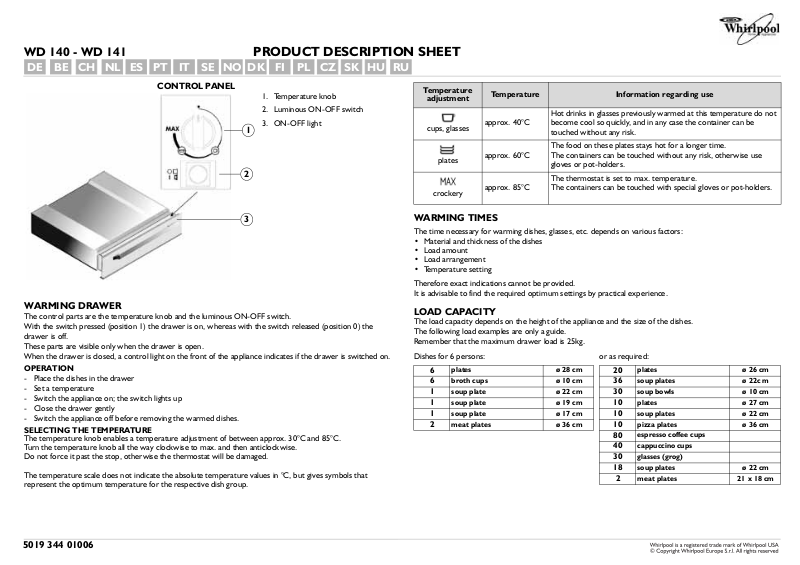

PRODUCT DESCRIPTION SHEET
CONTROL PANEL
1. Temperature knob
2. Luminous ON-OFF switch
3. ON-OFF light
1
2
3
WARMING DRAWER
The control parts are the temperature knob and the luminous ON-OFF switch.
With the switch pressed (position 1) the drawer is on, whereas with the switch released (position 0) the
drawer is off.
These parts are visible only when the drawer is open.
When the drawer is closed, a control light on the front of the appliance indicates if the drawer is switched on.
OPERATION
- Place the dishes in the drawer
- Set a temperature
- Switch the appliance on; the switch lights up
- Close the drawer gently
- Switch the appliance off before removing the warmed dishes.
SELECTING THE TEMPERATURE
The temperature knob enables a temperature adjustment of between approx. 30°C and 85°C.
Turn the temperature knob all the way clockwise to max. and then anticlockwise.
Do not force it past the stop, otherwise the thermostat will be damaged.
The temperature scale does not indicate the absolute temperature values in °C, but gives symbols that
represent the optimum temperature for the respective dish group.
Te m p e r a t u r e
adjustment
cups, glasses
plates
crockery
Te m p e r a t u r e Information regarding use
Hot drinks in glasses previously warmed at this temperature do not
approx. 40°C
approx. 60°C
approx. 85°C
become cool so quickly, and in any case the container can be
touched without any risk.
The food on these plates stays hot for a longer time.
The containers can be touched without any risk, otherwise use
gloves or pot-holders.
The thermostat is set to max. temperature.
The containers can be touched with special gloves or pot-holders.
WARMING TIMES
The time necessary for warming dishes, glasses, etc. depends on various factors:
• Material and thickness of the dishes
• Load amount
• Load arrangement
• Temperature setting
Therefore exact indications cannot be provided.
It is advisable to find the required optimum settings by practical experience.
LOAD CAPACITY
The load capacity depends on the height of the appliance and the size of the dishes.
The following load examples are only a guide.
Remember that the maximum drawer load is 25kg.
Dishes for 6 persons: or as required:
plates ø 28 cm
6
broth cups ø 10 cm
6
soup plate ø 22 cm
1
soup plate ø 19 cm
1
soup plate ø 17 cm
1
meat plates ø 36 cm
2
plates ø 26 cm
20
soup plates ø 22c m
36
soup bowls ø 10 cm
30
plates ø 27 cm
10
soup plates ø 22 cm
10
pizza plates ø 36 cm
10
espresso coffee cups
80
cappuccino cups
40
glasses (grog)
30
soup plates ø 22 cm
18
meat plates 21 x 18 cm
2
5019 344 01006
Page 2
REMOVING THE DRAWER
The drawer can be removed in order to clean the
inside.
Open the drawer fully (see pic. 1)
Undo the 2 front screws (1 on each side) - (pic. 2)
Lift the 2 hooks (1 on each side) - (pic. 3-4)
Hold the front part of the drawer on both sides,
because the rear part
of the side guides has been lubricated.
Remove the drawer by carefully lifting it upwards (pic.
5) and put it down.
The inside of the appliance can now be cleaned, using
water and detergent.
Do not place the drawer in the water once it has been
removed.
REFITTING the drawer
To refit the drawer, carry out the removal procedure
in reverse order.
To do this, place the drawer of the guides.
NB:
There is a fixing hook on the left and right side under
the warming drawer.
The drawer can be opened only if the fixing hook is in
the correct position.
Pic. 1
Pic. 2
hook
hook
Pic. 3
Pic. 4
drawer
side guide
Pic. 5
Page 3
SAFEGUARDING THE ENVIRONMENT
Disposal of packing material
The packing material is 100% recyclable and is
marked with the recycle symbol .
The various parts of the packing must be
disposed of in compliance with local regulations;
do not disperse in the environment.
Disposal of old electrical appliances
This appliance is marked in compliance with
European Directive 2002/96/EC, Waste Electrical
and Electronic Equipment (WEEE).
IMPORTANT NOTES
Important:
This appliance is not to be used by persons
(including children) with limited physical,
sensorial or mental capacities or with insufficient
knowledge or experience, unless they are under
supervision or have been instructed in advance
on how to use the appliance by those responsible
for their safety.

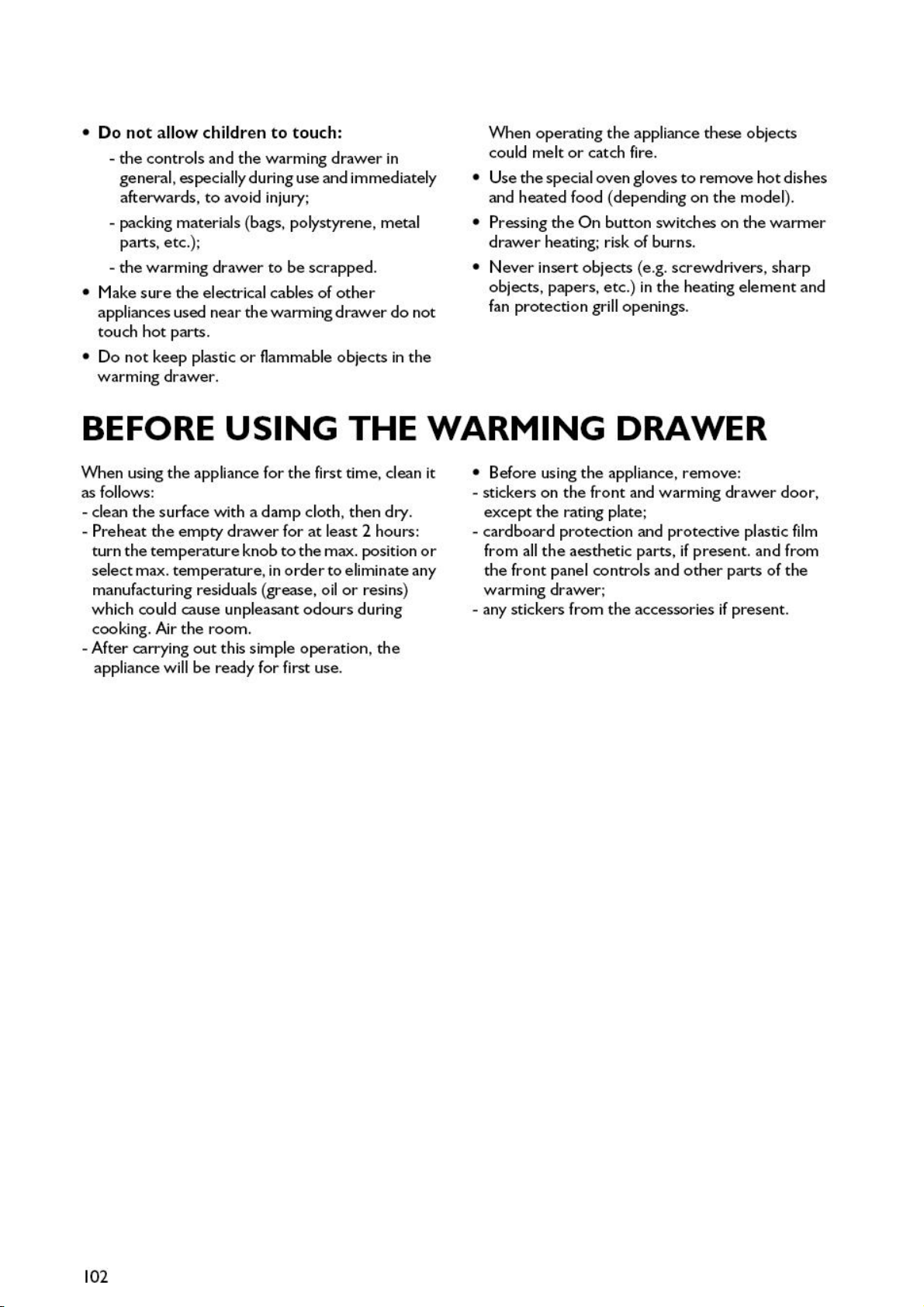

The warming drawer must not be used by young
children or the infirm without supervision.
Make sure children do not play with the
appliance.
The accessible parts of the warming drawer may
become hot during use; keep chi ldr en a way fro m
the appliance.
Do not use abrasive materials or substances to
clean the GLASS as they may damage it.
The appliance becomes very hot during use. Be
careful not to touch the heating elements inside
the warming drawer.
The warming drawer is only intended for domestic
use, for heating food or dishes (depending on the
model). Other uses are not allowed. The
Manufacturer declines any liability for improper use
or incorrect setting of the controls.
Any repairs or adjustments must be carried out
exclusively by a qualified technician.
Make sure the appliance is securely fixed to the
cabinet with the special screws supplied.
Do not expose the warming drawer to the
atmospheric agents.
By ensuring correct disposal of the product, the
user can help prevent potentially negative
consequences for the environment and the
health of persons.
The symbol on the product or on the
accompanying documentation indicates that it
should not be treated as domestic waste but
must be taken to an appropriate collection
centre for the recycling of electrical and
electronic equipment.
Scrap the appliance in accordance with local
regulations on waste disposal.
For further information regarding the treatment,
recovery and recycling of this appliance, contact
the competent local office, the domestic waste
collection service or the shop where you
purchased the product.
Do not rest or sit on the drawer when open, as
this will damage the telescopic slides.
The max. capacity of the drawer is 25Kg.
Do not cover the bottom of the warming
drawer with aluminium foil or other objects.
The drawer seals must be kept clean to ensure
that it closes properly.
Never pour water directly in warming drawer.
The juices of fruit dripping from the pan may
leave permanent stains. It is advisable to clean the
warming drawer before reusing it.
To avoid scratching, do not drag dishes on the
bottom of the warming drawer.
Never warm food and beverages directly on the
vitroceramic bottom of the drawer (depending on
the model). Use suitable containers or crockery.
If the vitroceramic surface breaks or cracks due
to a violent impact (falling objects, etc.), do not
use it; immediately contact the After-Sales
Technical Service.
Residual condensate could eventually damage the
warming drawer and surrounding cabinets. It is
advisable to:
- cover food;
- dry the wet parts when the warming drawer
is cold.
Do not touch the warming drawer with wet
parts of the body or use it when barefoot.
Do not pull the appliance or the power cable to
unplug it.

101
Page 4
Page 5
ELECTRICAL CONNECTION
Contact a qualified technician to carry out the
appliance electrical connection.
Important:
domestic power supply to check its operation,
always make sure the drawer power cable is
correctly fitted and NOT squashed or caught under
or behind the drawer or a combined appliance.
Important:
made with a cable having the same characteristics
as that supplied by the Manufacturer
(type H05RR-F, 3x1 mm
by the After-Sales Service or a qualified technician.
Before connecting the appliance to the power
supply, make sure that the technical specifications
(voltage: V and frequency: Hz) given on the rating
plate match those of the power mains.
In case of doubt, contact a qualified technician.
If the plug is removed from the power cable, contact
a qualified technician for fitting and connecting the
appliance. Contact an electrician aware of the local
regulations and the electricity company's regulations,
ensuring that the work is carried out in compliance
with the same.
Important:
to an approved earth wire, to guarantee electrical
safety. If necessary, have the system checked by a
specialised technician.
The Manufacturer declines any liability for injury
and damage due to the lack or interruption of the
earth wire.
Important: The earth connection is
compulsory by law.
If the appliance is connected to the power supply by
means of an extension cord, make sure the cord
and connection are insulated against moisture.
The appliance is designed to be used only when
correctly fitted.
Never open the appliance casing. In case of contact
with live wires or if the electrical and mechanical
structure of the appliance is modified, an appliance
fault may occur when it is used.
If the installation, maintenance or repair works are not
carried out correctly, there may be risks for the user.
The Manufacturer declines any liability for damage or
injury in such cases.
During the warranty period, repairs must only be
carried out by the authorised technical service,
otherwise the warranty right is lost.
Before connecting the drawer to the
Power cable replacement must be
2
or higher) and carried out
Make sure the appliance is connected
Installation, repair and cleaning operations must
only be carried out after ensuring that the appliance
is disconnected from the power supply. The
appliance is disconnected from the power supply in
the following cases:
- the main power switch is on.
- The safety switch is turned off.
- The appliance is unplugged.
Grip the plug and not power cable to unplug the
appliance.
It is advisable to connect the appliance to the power
supply by means of a socket;
this will facilitate technical assistance operations, if
necessary.
Ensure that the socket is accessible even once the
appliance has been fitted.
If connection is not made by means of an electrical
socket, contact an electrician aware of the local
regulations and the electricity company's regulations,
ensuring that the work is carried out in compliance
with the same.
If the socket is no longer accessible after fitting the
appliance or if a fixed connection is provided for, a
separation device for each pole must be arranged
by the installer.
Switches with contact opening of at least 3mm are
valid separation devices.
The specifications necessary for connection are
given on the dataplate. These specifications must
match those of the power supply.
The Manufacturer declines any liability for
injury or damage due to incorrect installation,
improper, wrong and unreasonable use of the
appliance.
The Manufacturer also declines any liability for
damage (e.g. electric shock) caused by the
lack or interruption of the earth wire.
After installation, all the parts of the appliance must
be insulated, to prevent accidents during operation.
105
Page 6
CARE AND CLEANING
Important:
pressure water or steam cleaning equipment.
Also avoid using:
or chlorides, abrasive detergents (in powder or
lotion), abrasive sponges (e.g. steel wool) or sponges
containing residuals of abrasive detergents, descaling
detergents, dishwasher detergents, oven sprays.
never clean the appliance with high
detergents containing soda, acids
Warming drawer exterior
Clean with a damp cloth. If it is very dirty, add a
few drops of dish washing detergent to the
water. Dry with a dry cloth.
Do not use corrosive or abrasive detergents, as
they can create dull areas.
If any of these products accidentally comes into
contact with the warming drawer, immediately
clean the appliance with a damp cloth.
Slight colour differences on the front of the
appliance are due to the use of different
materials, such as glass, plastic and metal.
Aluminium front panel
(depending on the model)
Use a mild detergent and a soft window cleaning
cloth or a microfibre cloth that does not leave fibres
on the surface. Wipe horizontally, without pressing.
Do not use corrosive products, hard sponges or
rough cloths for cleaning. Clean the aluminium
surfaces with a dry cloth.
Antislip drawer base
(depending on the model)
Extract the antislip base to access and clean the
bottom of the drawer.
Wash the base by hand with hot water and a mild
detergent. Dry it thoroughly.
Refit the antislip base in the drawer only when
completely dry.
Vitroceramic drawer base
(depending on the model)
It is advisable to clean the bottom of the drawer
after every use, making sure to allow it to cool. In
this way grime will not accumulate and cleaning is
easier.
Use a clean cloth, absorbent paper and dish
hand-wash detergent, or specific products for
cleaning the vitroceramic top.
Remove stubborn cooking grime with specific
products.
Remove any food residuals left on the
vitroceramic top; do not leave to harden.
Foods with a high sugar-content (coffee, fruit
juice, jam, etc.) that have boiled over or any sugar
stains due to cooking must be immediately
removed.
Do not use abrasive products, bleach, oven
cleaning sprays or steel wool.
It is advisable to periodically treat the vitroceramic
with the special waxes available on the market.
106
Page 7
TROUBLESHOOTING GUIDE
If the dish es or food ( depending on the model)
are not warm enough, make sure:
the appliance is on
the right temperature has been set
the heat openings are not covered by large dishes
or soup-plates
the dishes have been warmed for a long enough
time.
Different factors affect the warming time, e.g:
- the material and thickness of the dishes, the load
amount and its arrangement, temperature setting.
- Optimum dish warming times are subjective,
therefore it is advisable to carry out trials to
define them according to needs.
AFTER-SALES SERVICE
Before calling the After-Sales Service:
1.
Try to solve the problem on your own,
according to the points described in
“Troubleshooting Guide”.
2.
Switch the appliance off and then on again it to
see if the problem has been eliminated.
For the following problems, contact a qualified
technician or the After-Sales Service:
If the dishes are not warmed, make sure:
the main power switch is on;
the power cable is not disconnected or damaged.
If the dishes become too hot:
the temperature controller may be faulty.
The On/Off switch does not light up when the
appliance is switched on:
the switch control light is faulty.
If the fault persists after the above checks,
contact the nearest After-Sales Service.
Always specify:
a brief description of the fault;
the type and exact model of the warming
drawer;
the Service number (number after the word
Service on the rating plate), located on the
outer right edge of the drawer slide. The
service number is also indicated on the
guarantee booklet;
your full address;
your telephone number.
If any repairs are required, contact an
After-Sales Technical Service
use of original spare parts and correct repair).
Failure to comply with these instructions may
compromise the safety and quality of the
product.
DECLARATION OF CONFORMITY’
This drawer is suitable to come into contact
with food products and complies with
European Regulation (CE) No. 1935/2004.
This appliance is designed for use only as an
appliance for warming or keeping cooked
food or dishes warm.
Any other use (for example for room
heating) is considered improper and
therefore potentially dangerous.
This appliance has been designed,
manufactured and marketed in compliance
with:
- safety objectives of the “Low Voltage”
Directive 2006/95/EC
(which replaces 73/23/EEC and
subsequent amendments;
- The protection requirements of
EMC Directive 89/336/EEC;
- the requirements of Directive 93/68/EEC.
authorised
(to guarantee the
107
