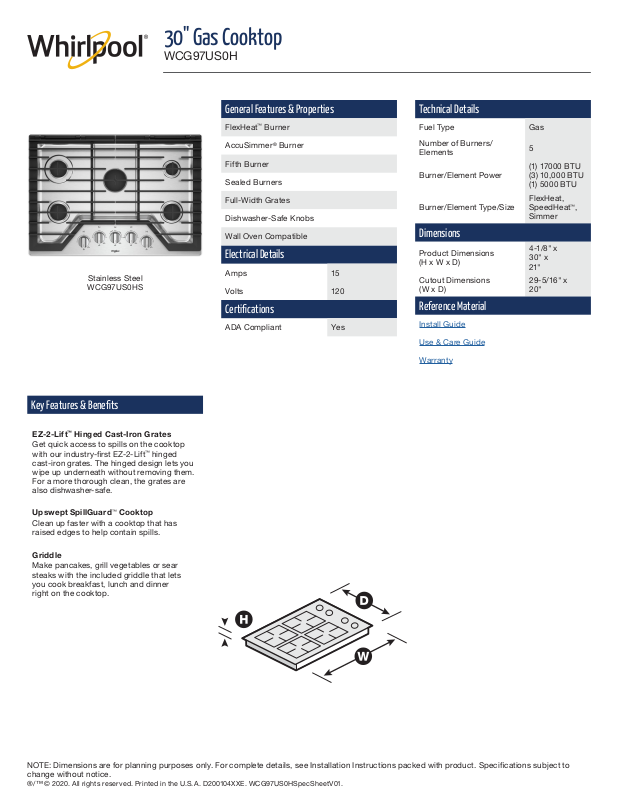

Whirlpool WCG97US0HS Specsheet

30" Gas Cooktop

WCG97US0H

Stainless Steel WCG97US0HS

General Features & Properties

FlexHeat™ Burner

AccuSimmer® Burner

Fifth Burner

Sealed Burners

Full-Width Grates

Dishwasher-Safe Knobs

Wall Oven Compatible

Electrical Details

Amps 15

Volts 120

Certications

ADA Compliant Yes

Technical Details

Fuel Type Gas

Number of Burners/ Elements

Burner/Element Power

Burner/Element Type/Size

(1) 17000 BTU (3) 10,000 BTU (1) 5000 BTU

FlexHeat, SpeedHeat Simmer

Dimensions

Product Dimensions (H x W x D)

Cutout Dimensions (W x D)

4-1/8" x 30" x 21"

29-5/16" x 20"

Reference Material

Install Guide

Use & Care Guide

Warranty

™

Key Features & Benets

EZ-2-Lift™ Hinged Cast-Iron Grates

Get quick access to spills on the cooktop with our industry-rst EZ-2-Lift cast-iron grates. The hinged design lets you wipe up underneath without removing them. For a more thorough clean, the grates are also dishwasher-safe.

Upswept SpillGuard

Clean up faster with a cooktop that has raised edges to help contain spills.

Griddle

Make pancakes, grill vegetables or sear steaks with the included griddle that lets you cook breakfast, lunch and dinner right on the cooktop.

™

Cooktop

™

hinged

NOTE: Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specications subject to change without notice.
