WHIRLPOOL WBC 3C24 P X Daily Reference Guide

DAILY REFERENCE

0000 000 00000

Service:

1

2

3

4

5

6

11

13

7

12

10

8
9

3

1

2

8

13

1454 6 7 10 11 129

GUIDE

EN

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance, please
register your appliance on:

www.whirlpool.eu/register

Before using the appliance carefully read Health and Safety guide.

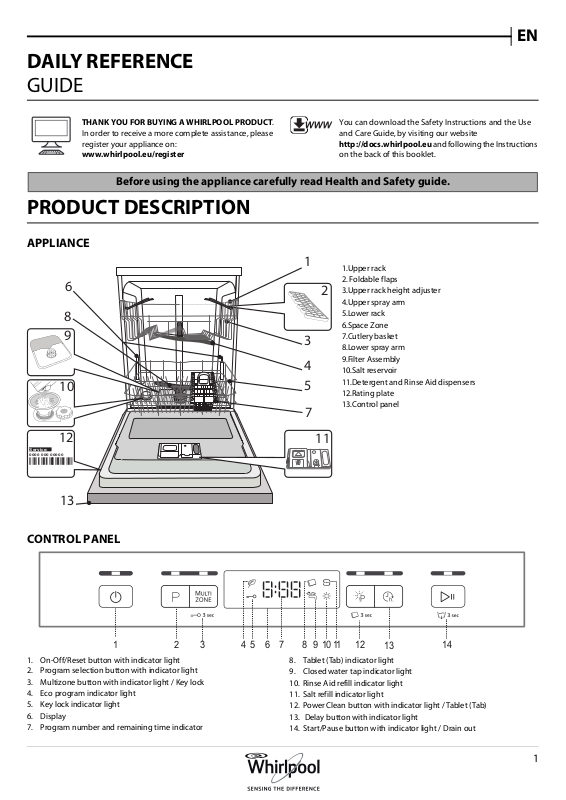

PRODUCT DESCRIPTION

APPLIANCE

You can download the Safety Instructions and the Use
and Care Guide, by visiting our website

http://docs.whirlpool.eu and following the Instructions
on the back of this booklet.

1.Upper rack

2. Foldable flaps

3.Upper rack height adjuster

4.Upper spray arm

5.Lower rack

6.Space Zone

7.Cutlery basket

8.Lower spray arm

9.Filter Assembly

10.Salt reservoir

11.Detergent and Rinse Aid dispensers

12.Rating plate

13.Control panel

CONTROL PANEL

1. On-Off/Reset button with indicator light

2. Program selection button with indicator light

3. Multizone button with indicator light / Key lock

4. Eco program indicator light

5. Key lock indicator light

6. Display

7. Program number and remaining time indicator

8. Tablet (Tab) indicator light

9. Closed water tap indicator light

10. Rinse Aid refill indicator light

11. Salt refill indicator light

12. Power Clean button with indicator light / Tablet (Tab)

13. Delay button with indicator light

14. Start/Pause button with indicator light / Drain out

1

FIRST TIME USE

M

A

X

A

B

35
25

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining
elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and
on the machine’s functional components.

• It is important that the salt reservoir be never empty.

• It is important to set the water hardness.
The salt reservoir is located in the lower part of the dishwasher (see

PROGRAMS DESCRIPTION) and should be filled when the SALT REFILL
indicator light

Make sure the cap is screwed on tightly, so that no detergent can get
into the container during the wash program (this could damage the
water softener beyond repair).

Whenever you need to add salt, we recommend carrying out the
procedure before the washing cycle is started.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that
the water hardness setting is based on the actual water hardness in
your house. This information can be obtained from your local water
supplier.
The factory setting is for average (3) water hardness.

• Switch on the appliance by pressing the ON/OFF button.

• Switch off the appliance by pressing the ON/OFF button.

• Hold down button START/PAUSE for 5 seconds, until you hear a
beep.

• Switch on the appliance by pressing the ON/OFF button.
The current selection level number and the salt indicator light both flash.

•

• Press button P to select the desired hardness level (see WATER

HARDNESS TABLE).

Level

1 Soft 0 - 6 0 - 10

2 Medium 7 - 11 11 - 20

3 Average 12 - 17 21 - 30

4 Hard 17 - 34 31 - 60

5 Very hard 35 - 50 61 - 90

• Switch off the appliance by pressing the ON/OFF button.

Setting is complete!
As soon as this procedure is complete, run a program without loading.

Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL
indicator light switches off.

If the salt container is not filled, the water softener and the heating
element may be damaged as a result .

in the control panel is lit.

1.Remove the lower rack and unscrew the
reservoir cap (anticlockwise).

2.Position the funnel
reservoir right up to its edge (approximately 1 kg);
it is not unusual for a little water to leak out.

3.Remove the funnel and wipe any salt residue
away from the opening.

Water Hardness Table

German degrees

°dH

(see figure)

and fill the salt

°fH

French degrees

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should
be filled when the RINSE AID REFILL indicator light
panel is lit.

1. Open the dispenser B by pressing and pulling up the tab on the lid.

2. Carefully introduce the rinse aid as far as the maximum (110 ml)
reference notch of the filling space - avoid spilling it. If this happens,
clean the spill immediately with a dry cloth.

3. Press the lid down until you hear a click to close it.

NEVER pour the rinse aid directly into the tub.

in the control

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can ad­just the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.

• Switch it off using the ON/OFF button.

• Press button

• Switch it on using the ON/OFF button.

• The current selection level number and rinse aid indicator light flash.

• Press button P to select the level of rinse aid quantity to be
supplied.

• Switch it off using the ON/OFF button

Setting is complete!
If the rinse aid level is set to 1 (ECO), no rinse aid will be supplied. The
LOW RINSE AID indicator light will not be lit if you run out of rinse aid.
A maximum of 4 levels can be set according to the dishwasher model.
The factory setting is for a medium level.

• If you see bluish streaks on the dishes, set a low number (2-3).

• If there are drops of water or limescale marks on the dishes, set a
high number (4-5).

START/PAUSE

three times - a beep will be heard.

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser
use the opening device A. Introduce
the detergent into the dry dispenser

B

A

showing the maximum quantity of liquid or powder detergent that
can be added to each cycle.

2. Remove detergent residues from the edges of the dispenser and
close the cover until it clicks.

3. Close the lid of the detergent dispenser by pulling it up until the
closing device is secured in place.

The detergent dispenser automatically opens up at the right time
according to the program.
If all-in-one detergents are used, we recommend using the
button, because it adjusts the program so that the best washing and
drying results are always achieved.

B only. Place the amount of
detergent for pre-washing directly
inside the tub.

1.When measuring out the detergent
refer to the
add the proper quantity.
Compartment B comprises a level

(see PROGRAMS TABLE)

TAB L ET

to

2

PROGRAMS TABLE

EN

Program

Drying

Available options

phase

Detergent

*)

container

Tub B

Duration of

wash program

(h:min)

**)

Wate r

consumption

(litres/cycle)

Energy

consumption

(kWh/cycle)

1. Eco 50° 3:10 9.0 0.93

th

2.

6

Sense

50-60° 1:25 - 3:00 7.0 - 14.0 0.90 - 1.40

3. Intensive 65° - 2:50 14.0 1.50

4. Daily 50° - 1:30 12.0 1.15

5. Silent 50° - 3:30 15.0 1.15

6. Rapid 30’ 50° - - 0:30 9.0 0.50

7. Cristal 45° - 1:40 11.0 1.10

8. PreWash - - - - 0:12 4.5 0.01

ECO program data is measured under laboratory conditions according to European Standard EN 50242.
*) Not all options can be used simultaneously.
**) The duration of the program shown on the display or in the booklet is an estimate calculated on standard conditions. The actual time may vary
depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load,
load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.
Standby consumption: Left-on mode consumption: 5 W - Off mode consumption: 0.5 W.

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

ECO 50°

Normally soiled crockery. Standard program, the most efficient in terms
of its combined energy and water consumption.

6th SENSE ®

For normally soiled dishes with dried food residues. Senses the level of
soiling on the dishes and adjusts the program accordingly. When the
sensor is detecting the soil level an animation appears in the display
and the cycle duration is updated.

INTENSIVE 65°

Program recommended for heavily soiled crockery, especially suitable
for pans and saucepans (not to be used for delicate items).

DAILY 50°

Normally soiled crockery. Everyday cycle, that ensures optimal cleaning
performance in shorter time.

SILENT 50°

Suitable for night-time operation of the appliance. Optimum
performance ensured.

RAPID 30’ 50°

Program to be used for lightly-soiled dishes with no dried food
residues. (Ideal for 2 place settings).

CRISTAL 45°

Cycle for delicate items, which are more sensitive to high temperatures,
for example glasses and cups.

PRE-WASH

Crockery to be washed later. No detergent to be used with this
program.

Notes:

Optimum performance levels when using the “1 Hour” and “Rapid”
programs can be achieved by observing the maximum amounts of
specified place settings.

To reduce consumption even further, only run the dishwasher
when it is full.

3
