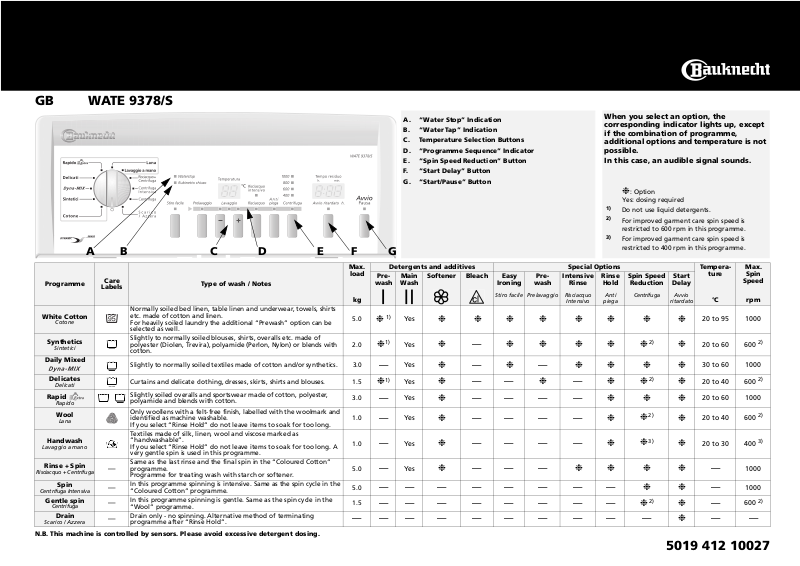

Whirlpool WATS 9378/S PROGRAM CHART

GB WATE 9378/S

BFCAGD E

Programme

White Cotton

Cotone

Synthetics

Sintetici

Daily Mixed

Delicates

Delicati

Rapid

Rapido

Wool

Lana

Handwash

Lavaggio a mano

Rinse + Spin

Risciacquo + Centrifuga

Spin

Centrifuga Intensiva

Gentle spin

Centrifuga

Drain

Scarico / Azzera

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

Care

Labels

—

—

—

—

Type of wash / Notes

Normally soiled bed linen, table linen and underwear, towels, shirts
etc. made of cotton and linen.
For heavily soiled laundry the additional “Prewash” option can be
selected as well.

Slightly to normally soiled blouses, shirts, overalls etc. made of
polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with
cotton.

Slightly to normally soiled textiles made of cotton and/or synthetics. 3.0

Curtains and delicate clothing, dresses, skirts, shirts and blouses. 1.5

Slightly soiled overalls and sportswear made of cotton, polyester,
polyamide and blends with cotton.

Only woollens with a felt-free finish, labelled with the woolmark and
identified as machine washable.
If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of silk, linen, wool and viscose marked as
“handwashable”.
If you select “Rinse Hold” do not leave items to soak for too long. A
very gentle spin is used in this programme.

Same as the last rinse and the final spin in the “Coloured Cotton”
programme.
Programme for treating wash with starch or softener.

In this programme spinning is intensive. Same as the spin cycle in the
“Coloured Cotton” programme.

In this programme spinning is gentle. Same as the spin cycle in the
“Wool” programme.

Drain only - no spinning. Alternative method of terminating
programme after “Rinse Hold”.

When you select an option, the
corresponding indicator lights up, except
if the combination of programme,
additional options and temperature is not
possible.

In this case, an audible signal sounds.

❉

: Option

Yes: dosing required

1)

Do not use liquid detergents.

2)

For improved garment care spin speed is
restricted to 600 rpm in this programme.

3)

For improved garment care spin speed is
restricted to 400 rpm in this programme.

Rinse

Spin Speed

Hold

Reduction

Anti

piega

Centrifuga

2)

2)

❉

❉

❉❉❉

2)

❉

❉

❉

3)

❉

❉❉

2)

Max.

load

kg

5.0

2.0

3.0

1.0

1.0

5.0

5.0

1.5

A. “Water Stop” Indication
B. “Water Tap” Indication
C. Temperature Selection Buttons
D. “Programme Sequence” Indicator
E. “Spin Speed Reduction” Button
F. “Start Delay” Button
G. “Start/Pause” Button

Detergents and additives Special Options

Pre-

Main

wash

❉

❉

—

❉

—

—

—

—

Softener Bleach Easy

Wash

1)

Yes

1)

Yes

Yes

1)

Yes

Yes

Yes

Yes

Yes

❉❉❉❉❉❉❉❉

❉
❉

❉
❉

❉

❉

❉

Ironing

Stiro facile

—

—

❉❉ ❉❉❉
❉

——
——— —

——— —

——— —

———

Pre-

wash

Prelavaggio

—

❉

Intensive

Rinse

Risciacquo

Intensivo

❉❉ ❉ ❉

—

❉❉ ❉ ❉

—— — — — — — —
—— — — — — — —❉

———— —— — —— —

Start

Delay

Avvio

ritardato

❉

❉

❉

❉

❉
❉

Tempera-

ture

°C

20 to 95 1000

20 to 60 600

30 to 60 1000

20 to 40 600

20 to 60 1000

20 to 40 600

20 to 30 400

—

—
—
——

Max.

Spin

Speed

rpm

1000

1000

600

2)

2)

2)

3)

2)

5019 412 10027

CONSUMPTION DATA

Programme

White Cotton
Coloured cotton
Coloured cotton

Synthetics
Synthetics

Daily Mixed

Rapid Extra

Delicates

Wool

Handwash

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized
conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values
in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The data on the “Energy Label” refer to the programme “Coloured Cotton 60°C”.

* The remaining time indicator can similarly deviate from the values in the table, because it takes into account the

household conditions applicable at that time.

**To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump

drains the water out.

Temperature Selector

(°C)

95 5.0 49** 1.60 2:00
60 5.0 48 0.95 2:05
40 5.0 48 0.60 2:00
60 2.0 54 0.70 1:30
40 2.0 50 0.50 1:15
40 3.0 45 0.45 1:00
30 3.0 35 0.40 0:30
40 1.5 50 0.50 0:45
40 1.0 50 0.50 0:45
30 1.0 35 0.40 0:35

PREPARATION OF WASH CYCLE

1. Close the drum flaps and check that they are
properly locked.

2. Add detergents and additives into the
dispenser to no more than the

“MAX“

mark, as follows:

• Programme with pre and main

wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

(4 chamber models only)

• Stain remover agents

• Ant-scale agents (if necessary)

3. Turn the

programme selector knob

desired programme.
The remaining time display shows the duration
of the chosen programme (in hours and
minutes) and the indicator light of the

“Start/Pause”

button flashes.
The programme sequence and the predefined
spin speed indication corresponding to the
selected programme lights up.

The preselected temperature can be altered by
pressing the “+” or “-” button.

SELECT THE DESIRED OPTION

When you select an option authorized by

level

to the

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes)*

“Easy Ironing” button

• Can be used together with “Cotton”,
“Coloured cotton” and “Synthetics”
programmes to make ironing easier.

• Increases the water quantity in rinsing and
the clothes are spun in a softer manner.

“Prewash” button

• Only for heavily soiled loads (for example
sand, granular dirt).

“Intensive Rinse” button

• The amount of water is increased to ensure
a more intensive rinse.

• This option is particularly suitable for areas
with very soft water, washing baby linen
and people with skin allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water
without progressing to the final spin cycle
to avoid creasing and prevent colours from
fading.

• This option is particularly recommended for
the “Synthetics” or “Delicates”
programmes.

• This function is particularly useful if you
want to postpone spinning to a later time,
or if you want to drain only.

The programme stops to “Rinse Hold”

Note:

when the “Rinse Hold” light indicator
programme is on during the cycle.

the programme, the corresponding
indicator lights up, except if the
combination of programme, additional
options and temperature is not possible.
In this case an audible signal sounds.

Appliance in “Rinse Hold”:

• Press the “Rinse Hold” button again: the
programme will terminate automatically
with the selected spin cycle.

• If you do not wish to spin the clothes, turn
the programme selector knob to the
“Drain” programme and press the “

” button again.

Pause

Start/

“Spin Speed Reduction” button

• Every programme has an automatically
allocated maximum spin speed.

• Press the button to set another spin speed.

• If you want to cancel the final spin, select
the rinse hold option and drain the water
after the cycle has finished (see

in “Rinse Hold”

).

Appliance

START DELAY

The “Start Delay” button allows the user to run
the machine at his convenience, for example at
night when electricity is cheaper.

• Select programme, temperature and
options.

• Press the “Start Delay” button several times
to select the delay time by 1 to 19 hours;

• Press the “

Start/Pause

indicator light of the

” button. The

“Start/Pause”

button
lights up and the lamp of the “Start Delay”
button flashes.

• The time delay indication disappears when
the programme starts and is replaced by the
remaining time.

• The number of hours preselected can be
reduced later by pressing the “Start Delay”
button again.

To cancel the “Start Delay” option

• Turn the programme selector to the “ ”
position.

• Reselect the desired programme and
options and press the “

Start/Pause

”

button.

PROGRAMME START

Turn on the tap and press the “

Start/Pause

button. The indicator light of the “

” button lights up. The indicator lamp

Pause

Start/

”

shows the sequence reached by the
programme. After starting the programme, the
programme sequence indicator signals the
Wash, Rinse and Spin phases.

: If there is a power interruption or if the

Note

appliance is disconnected during the cycle, the
programme will run again from the point
where it was interrupted.

DOOR LOCK

For safety reasons, the door is locked during
certain phases of the cycle. At the end of the
cycle or during an interruption, the door
unlocks automatically after about 1 minute.

END OF WASH CYCLE

• The remaining time is on “0:00” and all the
lights of the programme sequence
indication are off.

1. Turn the programme selector to the “ ”
position.

2. Turn the tap off.

3. Open the door and the drum flaps and
unload the machine.

CHANGE THE PROGRAMME OR OPTIONS
DURING THE CYCLE

1. Select the new programme using the
programme selector. If necessary, select the
additional options and the spin speed. The
luminous indicator of the

“Start/Pause”

button flashes.

the “Start Delay” and “Prewash”

Note:

options cannot be selected after a programme
change.

2. Press the

“Start/Pause

” button. The new
programme selected continues at the same
position where the previous programme was
interrupted.

Do not add detergent for this

Note:

programme.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the
programme for a certain time and continue it
later:

1. Press the

“Start/Pause”

button. The light

flashes.

2. After the desired pause, press again on the

“Start/Pause”

button.

CANCEL PROGRAMME

1. Set the programme selector to “Drain”.

2. Press the

“Start/Pause”

button to start the

“Drain” programme.
