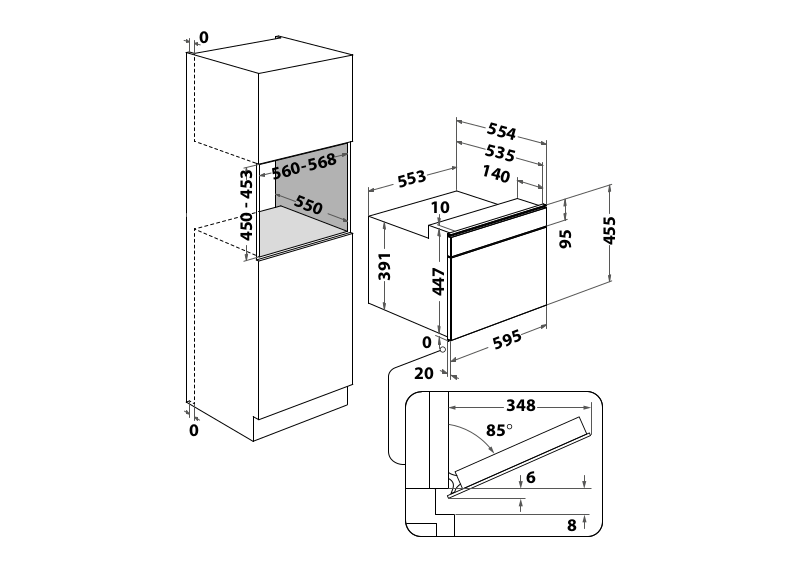

WHIRLPOOL W6 MW441 Extended Technical Drawing

391

455

595

553

140

447

554

535

550

450

453

568

560

348

85°

W6 MW441

12NC/Fx: 859991539170 GTIN (EAN) code:

8003437395840

DIMENSION MEASURE

OVERALL CABINET

MIN Height of the wall cabinet niche, including all required space for installation or ventilation 0 mm

MIN Height of the tall cabinet niche, including all required space for installation or ventilation 450 mm

MIN Height of the base cabinet niche, including all required space for installation or ventilation 450 mm

MAX Height of the wall cabinet niche, including all required space for installation or ventilation 0 mm

MAX Height of the tall cabinet niche, including all required space for installation or ventilation 453 mm

MAX Height of the base cabinet niche, including all required space for installation or ventilation 453 mm

MIN Width of the wall cabinet niche, including all required space for installation or ventilation 0 mm

MIN Width of the tall cabinet niche, including all required space for installation or ventilation 560 mm

MIN Width of the base cabinet niche, including all required space for installation or ventilation 560 mm

MAX Width of the wall cabinet niche, including all required space for installation or ventilation 0 mm

MAX Width of the tall cabinet niche, including all required space for installation or ventilation 568 mm

MAX Width of the base cabinet niche, including all required space for installation or ventilation 568 mm

MIN Depth of the wall cabinet niche, including all required space for installation or ventilation 0 mm

MIN Depth of the tall cabinet niche, including all required space for installation or ventilation 550 mm

MIN Depth of the base cabinet niche, including all required space for installation or ventilation 550 mm

Space in front, which is required to install bottom trim 8 mm

Indicates whether a ventilation opening is needed or not. Default is "N" No

WALL CABINET (vent-shaft incoming)

Indicates the position of the freespace for the inbound airflow (wall cabinet) -

Minimum space or inbound ventilation (wall cabinet) 0 mm

Minimum area for inbound ventilation cavity (wall cabinet) 0 cm²

WALL CABINET (vent-shaft outgoing)

Indicates the position of the freespace for the outbound airflow (wall cabinet) -

Minimum space or outbound ventilation (wall cabinet) 0 mm

Minimum area for outbound ventilation cavity (wall cabinet) 0 cm²

TALL CABINET (vent-shaft incoming)

Indicates the position of the freespace for the inbound airflow (tall cabinet) -

Minimum space for inbound ventilation (tall cabinet) 0 mm

Minimum area for inbound ventilation cavity (tall cabinet) 0 cm²

TALL CABINET (vent-shaft outgoing)

Indicates the position of the freespace for the outbound airflow (tall cabinet) -

Minimum space for outbound ventilation (tall cabinet) 0 mm

Minimum area for outbound ventilation cavity (tall cabinet) 0 cm²

BASE CABINET (vent-shaft incoming)

Indicates the position of the freespace for the inbound airflow (base cabinet) -

Minimum space for inbound ventilation (base cabinet) 0 mm

Minimum area for inbound ventilation cavity (base cabinet) 0 cm²

BASE CABINET (vent-shaft outgoing)

Indicates the position of the freespace for the outbound airflow (base cabinet) -

Minimum space for outbound ventilation (base cabinet) 0 mm

Minimum area for outbound ventilation cavity (base cabinet) 0 cm²

DIMENSION MEASURE

APPLIANCE

Height of the front 455 mm

Width of the front 595 mm

Depth of the front 20 mm

Maximum depth all protruding elements, e.g. handles, controls 38 mm

Lateral clearance between front edge and most protruding elements which avoid to open a neighbour front more than 90 degrees

Projection of front in relation to housing of appliance 10 mm

Projection of front in relation to bearing area of the appliance. Taken at minimum height of appliance, if height is adjustable

When product panel is missing, set to 0 95 mm

Space in front, which is required to guarantee full operability. The most protruding part gives this dimension

Height from bearing area of appliances and lower handle 318 mm

Frontal handle thickness 30 mm

Frontal handle width 561 mm

MIN Height of the product body 447 mm

MAX Height of the product body 447 mm

Width of the product body 553 mm

Depth of the product body 535 mm

Full depth of product excluding protruding interface elements 554 mm

Minimum height from bottom line hood to top line air outlet 0 mm

Maximum height from bottom line hood to top line air outlet 0 mm

Diameter minimum air outlet 0 mm

Diameter maximum air outlet 0 mm

Indicates measure between center of air outlet hole and rear wall 0 mm

Projection of the rear flap in relation to bearing area 0 mm

Height tube connection for air outlet 0 mm

Appliance can be used as base for other appliances from the same manufacturer. Default is "No" -

Appliance Flap door

Projection of the opened flap in relation to bearing area 6 mm

Maximum angle when flap door is opened totally 85 mm

Appliance Side swing door

Lateral projection of front incl. controls when door is opened totaly. At the side where the hinge is mounted

Lateral projection of opened front at the side where the hinge is fixed 0 mm

Maximum angle when door is opened totally 0 mm

Appliance other

Depth from front end of the niche to the front end of the freespace of the retrace 140 mm

Height from niche to bottom end of freespace for the retrace 391 mm

0 mm

348 mm

0 mm
