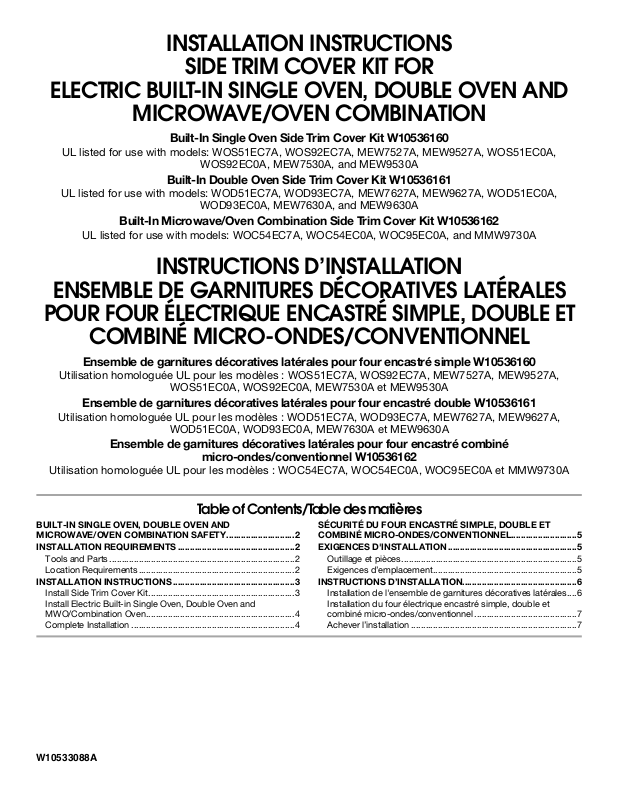

Whirlpool W10536160, W10536161, W10536162 Installation Guide

INSTALLATION INSTRUCTIONS

SIDE TRIM COVER KIT FOR

ELECTRIC BUILT-IN SINGLE OVEN, DOUBLE OVEN AND

MICROWAVE/OVEN COMBINATION

Built-In Single Oven Side Trim Cover Kit W10536160

UL listed for use with models: WOS51EC7A, WOS92EC7A, MEW7527A, MEW9527A, WOS51EC0A,

WOS92EC0A, MEW7530A, and MEW9530A

Built-In Double Oven Side Trim Cover Kit W10536161

UL listed for use with models: WOD51EC7A, WOD93EC7A, MEW7627A, MEW9627A, WOD51EC0A,

WOD93EC0A, MEW7630A, and MEW9630A

Built-In Microwave/Oven Combination Side Trim Cover Kit W10536162

UL listed for use with models: WOC54EC7A, WOC54EC0A, WOC95EC0A, and MMW9730A

INSTRUCTIONS D’INSTALLATION

ENSEMBLE DE GARNITURES DÉCORATIVES LATÉRALES

POUR FOUR ÉLECTRIQUE ENCASTRÉ SIMPLE, DOUBLE ET

COMBINÉ MICRO-ONDES/CONVENTIONNEL

Ensemble de garnitures décoratives latérales pour four encastré simple W10536160

Utilisation homologuée UL pour les modèles : WOS51EC7A, WOS92EC7A, MEW7527A, MEW9527A,

WOS51EC0A, WOS92EC0A, MEW7530A et MEW9530A

Ensemble de garnitures décoratives latérales pour four encastré double W10536161

Utilisation homologuée UL pour les modèles : WOD51EC7A, WOD93EC7A, MEW7627A, MEW9627A,

WOD51EC0A, WOD93EC0A, MEW7630A et MEW9630A

Ensemble de garnitures décoratives latérales pour four encastré combiné

micro-ondes/conventionnel W10536162

Utilisation homologuée UL pour les modèles : WOC54EC7A, WOC54EC0A, WOC95EC0A et MMW9730A

Table of Contents/Table des matières

BUILT-IN SINGLE OVEN, DOUBLE OVEN AND

MICROWAVE/OVEN COMBINATION SAFETY............................2

INSTALLATION REQUIREMENTS................................................2

Tools and Parts ............................................................................2

Location Requirements................................................................2

INSTALLATION INSTRUCTIONS..................................................3

Install Side Trim Cover Kit............................................................3

Install Electric Built-in Single Oven, Double Oven and

MWO/Combination Oven.............................................................4

Complete Installation ...................................................................4

SÉCURITÉ DU FOUR ENCASTRÉ SIMPLE, DOUBLE ET

COMBINÉ MICRO-ONDES/CONVENTIONNEL...........................5

EXIGENCES D'INSTALLATION.....................................................5

Outillage et pièces........................................................................5

Exigences d’emplacement...........................................................5

INSTRUCTIONS D’INSTALLATION...............................................6

Installation de l'ensemble de garnitures décoratives latérales....6

Installation du four électrique encastré simple, double et

combiné micro-ondes/conventionnel..........................................7

Achever l’installation ....................................................................7

W10533088A

BUILT-IN SINGLE OVEN, DOUBLE OVEN AND

You can be killed or seriously injured if you don't immediately

You

can be killed or seriously injured if you don't

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

MICROWAVE/OVEN COMBINATION SAFETY

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

■ Phillips screwdriver

■ Measuring tape

Parts supplied

■ Level

■ Flat-blade screwdriver

A. Left side trim cover B. Right side trim cover

IMPORTANT: Observe all governing codes and ordinances.

■ Follow the instructions below along with the instructions in

the Electric Built-In Single Oven, Double Oven and Microwave/Oven Combination Installation Instructions.

Product Dimensions

Side Trim Cover Kits

Single Built-In Oven L = 23¹⁄₁₆" (58.5 cm) Double Built-In Oven L = 45¹³⁄₁₆" (116.4 cm) MWO/Combination Built-In Oven L = 36⁷⁄₈" (93.6 cm)

Location Requirements

INSTALLATION INSTRUCTIONS

WARNING

Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.

WARNING

Excessive Weight Hazard

Use two or more people to move and install oven. Failure to do so can result in back or other injury.

Install Side Trim Cover Kit

Follow the instructions below to install the Side Trim Cover Kit on a built-in oven.

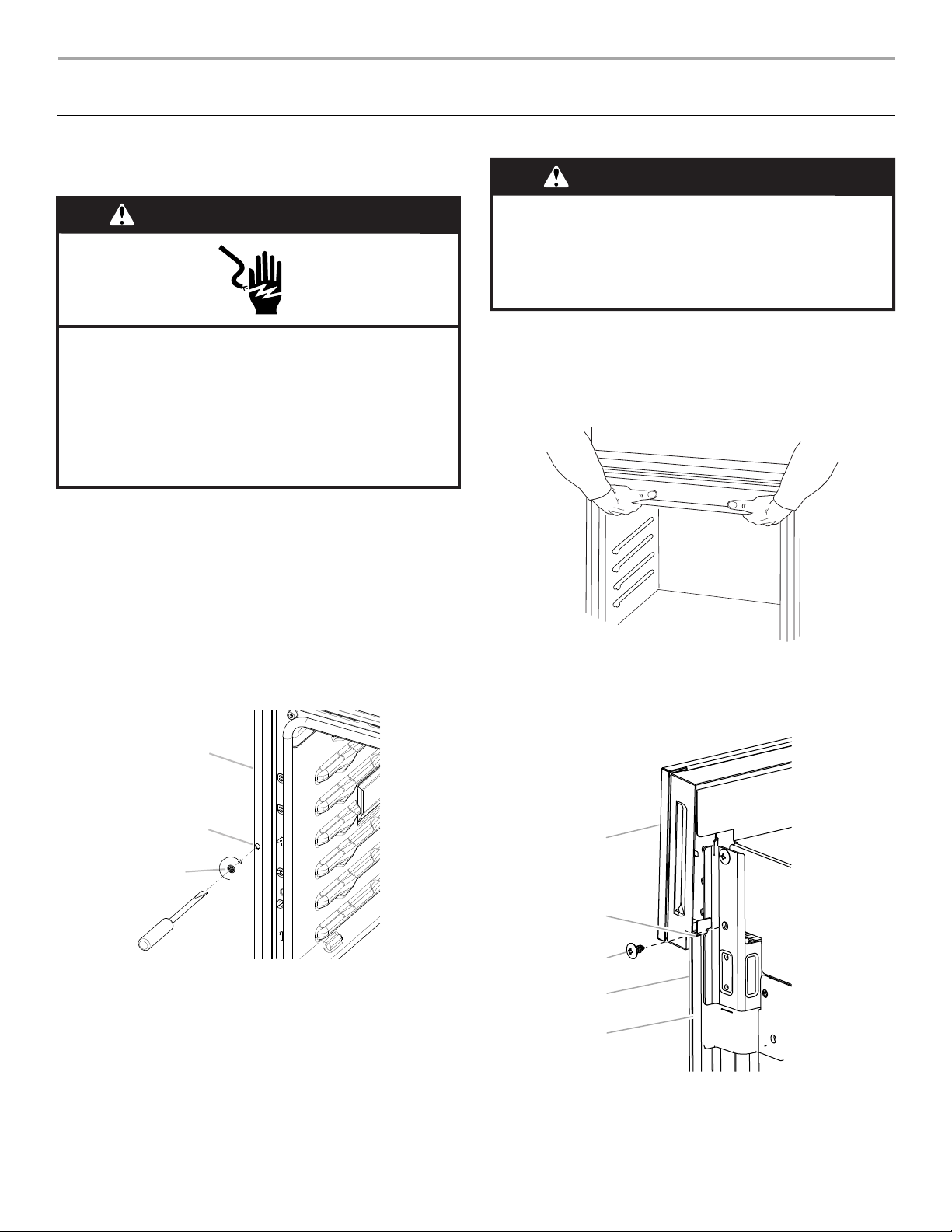

1. Disconnect power.

2. Remove the oven door(s). For more information, see the

“Remove Oven Door” section in the oven Installation Instructions. If the built-in oven is already installed in the cabinet, continue with Step 3. If the built-in oven is not installed into the cabinet, go to Step 5.

3. Use a Philips screwdriver to remove the #8-14 x1" screws

fastening the oven to the cabinet. Use a flat-blade screwdriver to remove the grommets from the mounting rail hole by inserting the screwdriver into the grommet and giving a clockwise ¼ turn.

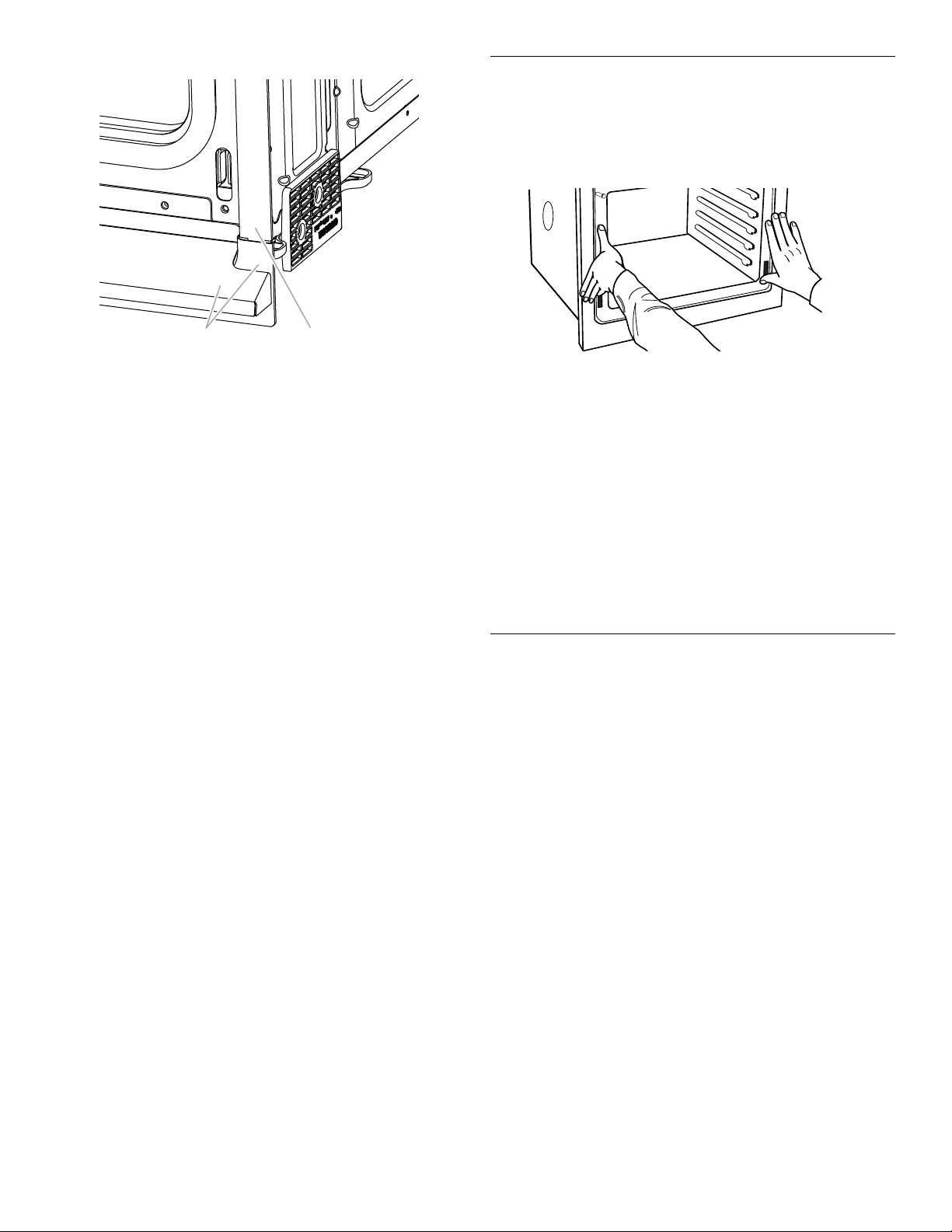

4. Using 2 or more people, pull the oven 1" (2.5 cm) out of the

cabinet cutout. Use the oven opening as an area to grip. NOTE: Pull against the seal area of the oven front frame when

lifting the oven out of the cabinet. Do not pull against the outside edges.

5. Remove the lower screw from each side of the control panel.

Tilt the control panel out enough to insert the left and right side trim covers behind the control panel. Align the side trim cover to the top and side of the mounting rail.

A. Mounting rail B. Mounting rail hole C. Grommet

Right side rear view shown

A. Control panel B. Mounting rail top C. Lower screw D. Right side trim cover E. Mounting rail side
