ELECTRIC COOKTOP

INSTALLATION INSTRUCTIONS

INSTRUCTIONS D'INSTALLATION DE LA TABLE

DE CUISSON ÉLECTRIQUE

Table of Contents / Table des matières

COOKTOP SAFETY ......................................................................1

INSTALLATION REQUIREMENTS...............................................2

Tools and Parts...........................................................................2

Location Requirements...............................................................2

Electrical Requirements..............................................................3

INSTALLATION INSTRUCTIONS.................................................4

Prepare Cooktop for Installation.................................................4

Install Cooktop............................................................................4

Make Electrical Connection........................................................6

Attach Cooktop to Countertop...................................................8

Complete Installation ..................................................................8

COOKTOP SAFETY

SÉCURITÉ DE LA TABLE DE CUISSON .................................... 9

EXIGENCES D'INSTALLATION................................................... 9

Outils et pièces........................................................................... 9

Exigences d’emplacement......................................................... 9

Spécifications électriques ........................................................ 11

INSTRUCTIONS D’INSTALLATION .......................................... 12

Préparation de la table de cuisson pour l’installation.............. 12

Installation de la table de cuisson............................................ 12

Raccordement électrique......................................................... 14

Fixation de la table de cuisson au plan de travail.................... 16

Achever l’installation ................................................................ 16

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT:

Save for local electrical inspector's use.

follow instructions.

can be killed or seriously injured if you don't

You instructions.

IMPORTANT :

À conserver pour consultation par l'inspecteur local des installations électriques.

W10353374A

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

■ Tape measure

■ ¼" (6.35 mm) nut driver

Parts supplied

■ Foam strip roll

■ Clamping brackets (2)

Parts needed

■ A UL listed or CSA approved connector for ½" (1.3 cm)

diameter conduit

■ UL listed wire connectors

Check local codes. Check existing electrical supply. See the “Electrical Requirements” section.

It is recommended that all electrical connections be made by a licensed, qualified electrical installer.

■ Marker or pencil

■ Pliers

■ Flat-blade screwdriver

■ 2½" (6.4 cm) clamping

screws (2)

Location Requirements

IMPORTANT: Observe all governing codes and ordinances. When installing cooktop, use minimum dimensions given.

■ To eliminate the risk of burns or fire by reaching over the

heated surface units, cabinet storage space located above the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5" (12.7 cm) beyond the bottom of the cabinets.

■ The cooktop must be a specified cooktop that is approved to

be installed either alone or over an undercounter built-in oven. Check the cooktop base for an approved installation label. If you do not find this label, contact your dealer to confirm that your cooktop is approved.

■ The cooktop must be installed in a level countertop.

■ Ovens approved for this type of installation will have an

approval label located on the top of the oven. If you do not find this label, contact your dealer to confirm that your oven is approved. Refer to oven manufacturer’s Installation Instructions for approval for built-in undercounter use and proper cutout dimensions.

■ The cooktop should be installed away from strong draft

areas, such as windows, doors, fans or strong heating vents. The cooktop should be located for convenient use in the kitchen.

■ Use the countertop opening dimensions that are given with

these Installation Instructions. Given dimensions are minimum clearances and provide 0" (0 cm) clearance.

■ Grounded electrical supply is required. See “Electrical

Requirements” section.

IMPORTANT: To avoid damage, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage.

Product Dimensions

A. Glass depth - black and white models - 21

Glass depth - stainless steel models - 22

B. Glass width - 30" (76.2 cm) models - 30

Glass width - 36" (91.4 cm) models - 36 C. Frame depth - 20 D. Frame width - 30" (76.2 cm) models - 28

Frame width - 36" (91.4 cm) models - 34 E. Cooktop height - 3

F. Cooktop height including conduit (located at rear of

cooktop, right side) - 5

¹⁄₄

" (51.5 cm)

³⁄₄

" (9.6 cm)

¹⁄₄

" (13.5 cm)

³⁄₄

" (55.2 cm)

¹⁄₈

" (56.4 cm)

¹³⁄₁₆

" (78.4 cm)

⁵⁄₁₆

" (92.3 cm)

¹⁵⁄₁₆

" (73.5 cm)

⁷⁄₁₆

" (87.5 cm)

Cabinet Dimensions

IMPORTANT: If installing a range hood or microwave hood

combination above the cooktop, follow the range hood or microwave hood combination installation instructions for dimensional clearances above the cooktop surface.

Electrical Requirements

WARNING

A. 30" (76.2 cm) on 30" models; 36" (91.4 cm) on 36" models B. Combustible area above countertop (shown by dashed box

above)

C. 30

" (76.2 cm) minimum clearance between top of cooktop

platform and bottom of uncovered wood or metal cabinet (24" [61 cm] minimum clearance if bottom of wood or metal cabinet is covered by not less than millboard covered with not less than No. 28 MSG sheet steel,

0.015" [0.04 cm] stainless steel, or 0.024" [0.06 cm] aluminum or 0.020

D. 13

E. 2 F. 2 0

G. 18" (45.7 cm) minimum clearance from upper cabinet to

H. Junction box or outlet: 7" (17.8 cm) minimum from top of

I. Junction box or outlet: 9" (23.0 cm) maximum from right side of

J. 29

K. 1" (2.5 cm) minimum distance to nearest left and right side

L. 1" (2.5 cm) minimum clearance between back wall and

" [0.05 cm] copper)

" (33 cm) recommended upper cabinet depth

" (5.1 cm)

¹⁄₂

" (52.0 cm) recommended cutout.

Will fit in cutout from 20

countertop within minimum horizontal clearances to cooktop

countertop

cabinet

¹⁄₂

" (74.9 cm) recommended cutout on 30" (76.2 cm) models. Will fit in cutout from 29 (76.2 cm) models. 35

¹⁄₂

" (90.2 cm) recommended cutout on 36" (91.4 cm) models. Will fit in cutout from 34 (91.4 cm) models.

combustible surface above cooktop

countertop

³⁄₈

¹⁄₁₆

⁹⁄₁₆

"-20

"-29

"-35

¹⁄₄

"[0.6 cm] flame retardant

⁹⁄₁₆

" (51.8-52.2 cm).

⁹⁄₁₆

" (73.8-75.1 cm) on 30"

⁹⁄₁₆

" (87.8-90.3 cm) on 36"

Electrical Shock Hazard Disconnect power before servicing. Use 8 gauge copper wire. Electrically ground cooktop. Failure to follow these instructions can result in death,

fire, or electrical shock.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrical installer determine that the ground path and wire gauge are in accordance with local codes.

Check with a qualified electrical installer if you are not sure the cooktop is properly grounded.

Make sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/NFPA 70-latest edition or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. O-M91-latest edition, and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

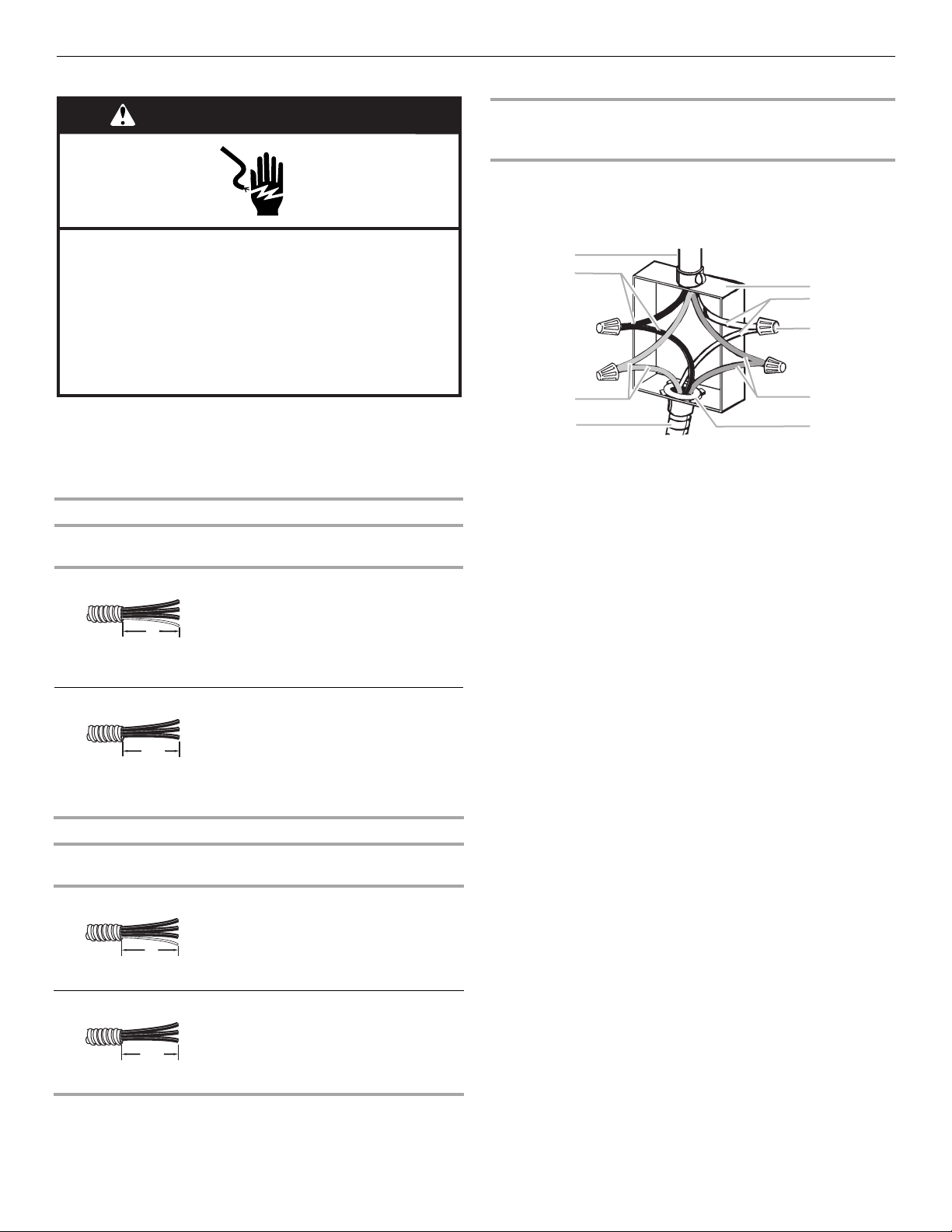

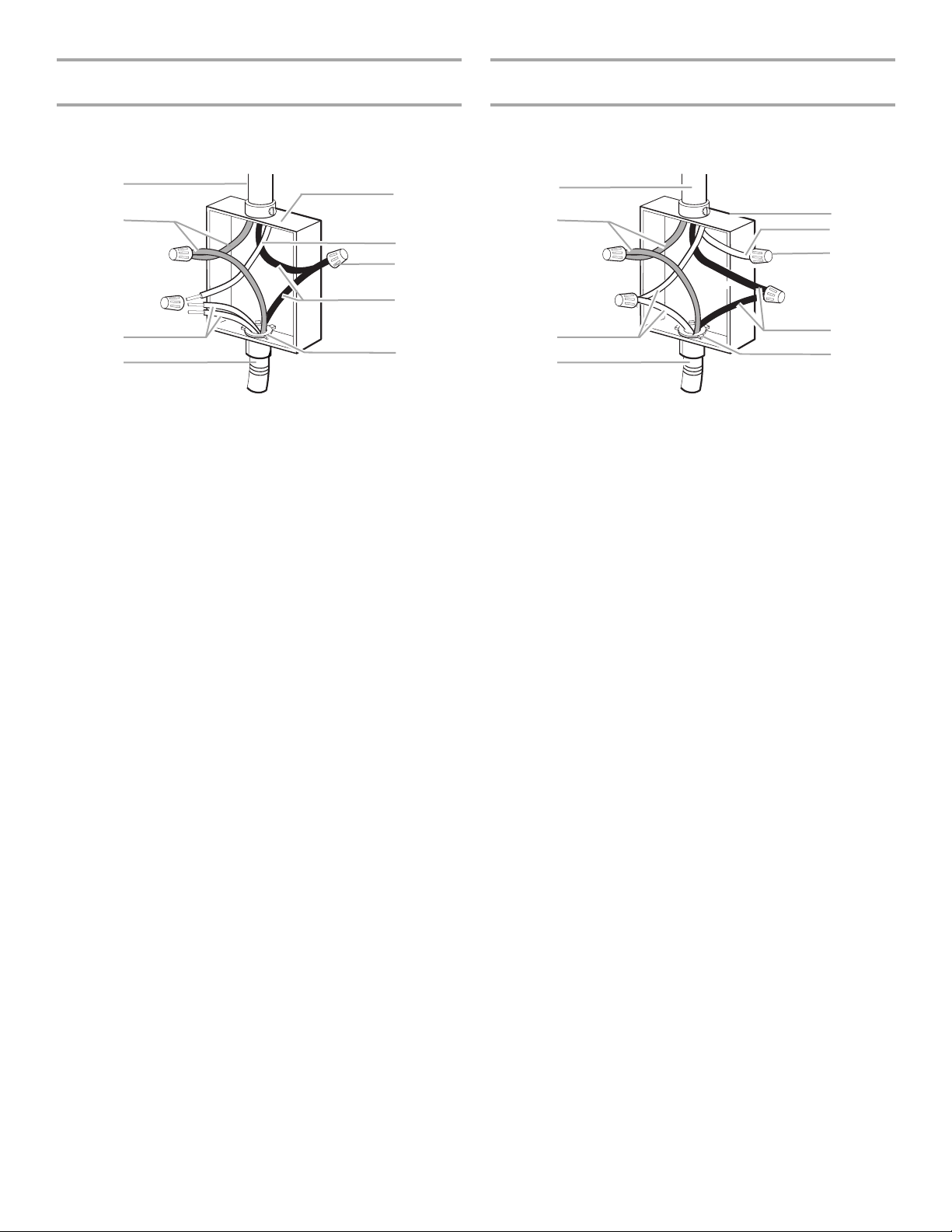

Before You Make the Electrical Connection:

To properly install your cooktop, you must determine the type of electrical connection you will be using and follow the instructions provided for it here.

■ A 3-wire or 4-wire, single phase, 120/240 volt, 60-Hz., AC

only electrical supply is required on a separate, 40-amp circuit fused on both sides of the line. The model/serial number rating plate is located on the metal cabinet underneath the cooktop. See the following illustration.

NOTES: After making the countertop cutout, some installations may require notching down the base cabinet side walls to clear the cooktop base. To avoid this modification, use a base cabinet with sidewalls wider than the cutout.

If cabinet has a drawer, a 5¹⁄₂" (14.0 cm) depth clearance from the top of the countertop to the top of the drawer (or other obstruction) in base cabinet is required.

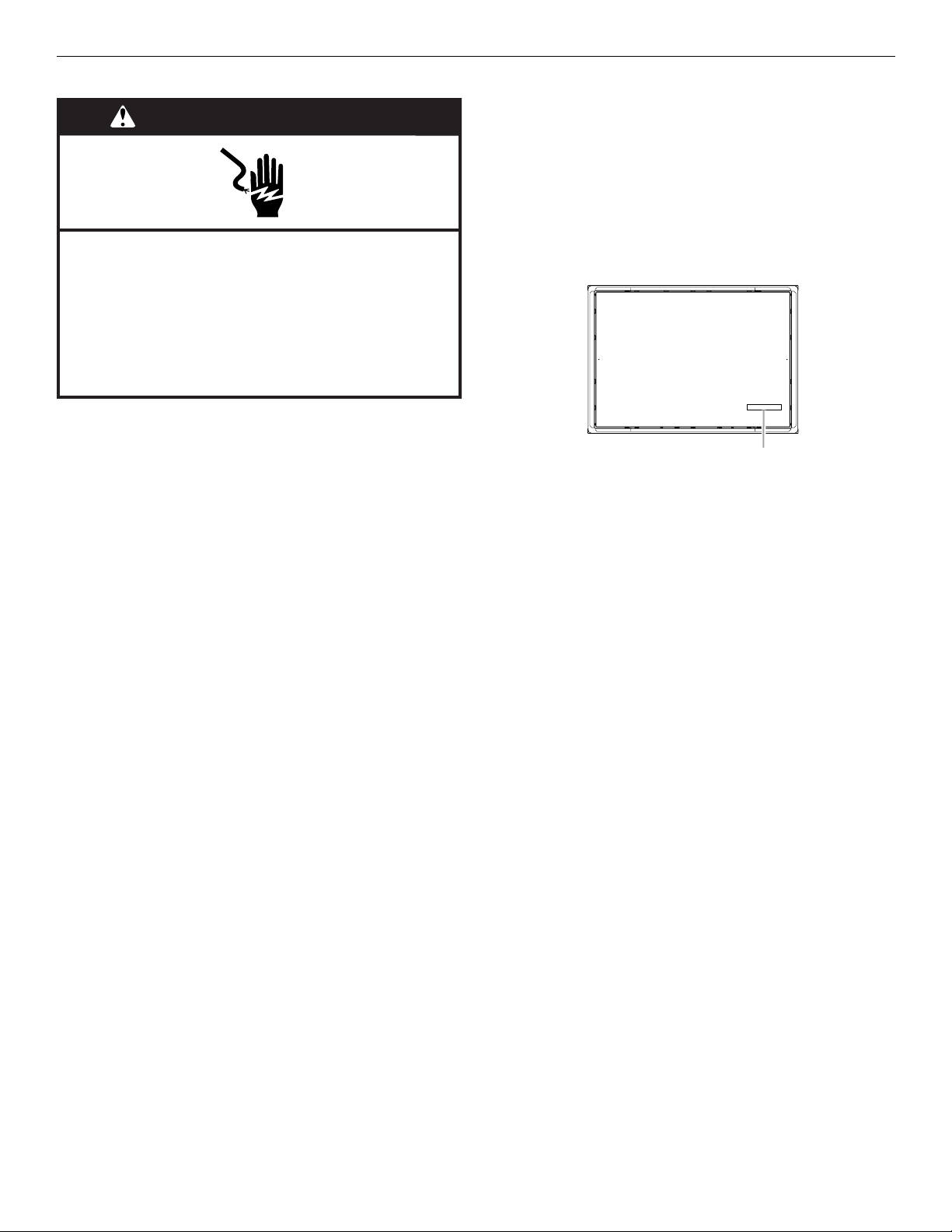

A. Model/serial number plate

■ The cooktop is rated 120/240 volt. Some models have a

neutral (white) wire.

■ The cooktop should be connected directly to the junction box

through flexible, armored or nonmetallic sheathed, copper cable. The flexible, armored cable extending from the fuse box or circuit breaker box should be connected directly to the junction box.

■ Locate the junction box to allow as much slack as possible

between the junction box and the cooktop so that the cooktop can be moved if servicing becomes necessary in the future.

INSTALLATION INSTRUCTIONS

■ Do not cut the conduit. Use the length of conduit provided.

■ A UL listed or CSA approved conduit connector must be

provided at each end of the power supply cable (at the cooktop and at the junction box). A listed conduit connector is already provided at the cooktop.

■ If the house has aluminum wiring follow the procedure below:

1. Connect a section of solid copper wire to the pigtail

leads.

2. Connect the aluminum wiring to the added section of

copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

Prepare Cooktop for Installation

WARNING

Excessive Weight Hazard Use two or more people to move and install cooktop. Failure to do so can result in back or other injury.

Decide on the final location for the cooktop. Avoid drilling into or severing existing wiring during installation.

1. Using 2 or more people, place the cooktop upside down on a

covered surface using the foam end posts from the packaging. Make sure that the knobs are not resting on the foam.

2. Remove foam strip roll from the package containing literature.

The roll contains four ¼" (0.64 cm) strips of foam. Remove one strip at a time and apply foam strip adhesive-side down around bottom of the cooktop glass.

NOTE: The foam strip helps avoid damage to the underside of the cooktop glass from debris and helps the cooktop sit flat on uneven counters.

Install Cooktop

Style 1: Cooktop over undercounter built-in oven

IMPORTANT: Clamping brackets should not be used.

1. Using 2 or more people, place cooktop right side up into the

cutout. NOTE: Make sure that the front edge of the cooktop is

parallel to the front edge of the countertop. If repositioning is needed, lift entire cooktop up from cutout to avoid scratching the countertop.

Style 2: Cooktop over cabinets

1. Determine whether your cabinet construction provides

clearance for installing clamping brackets at cooktop base ends.

30" (76.2 cm) and 36" (91.4 cm) traditional models

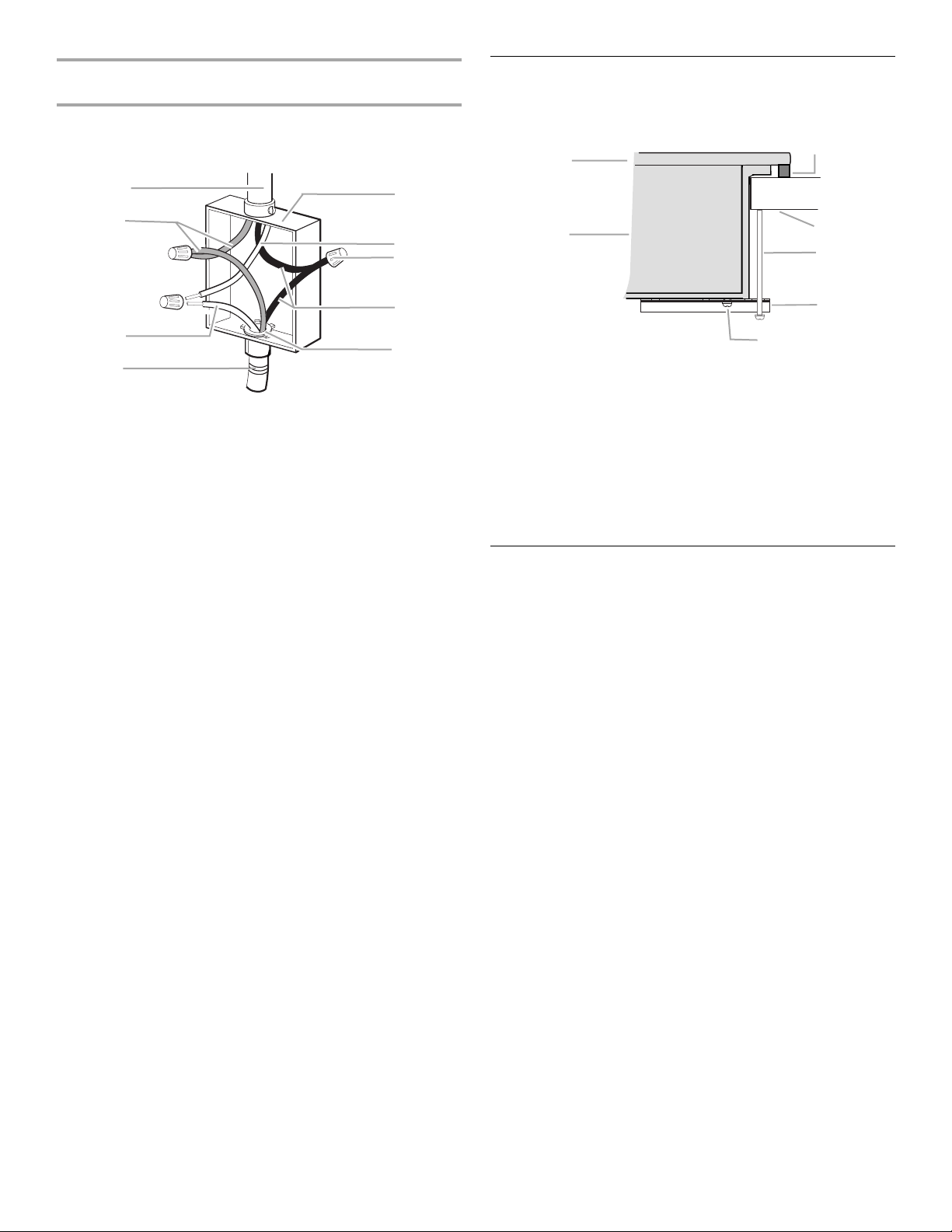

A. Cooktop base bottom B. Attachment screw C. Clamping bracket

A. Cooktop base B. ¼" (0.64 cm) Foam strip C. Cooktop

2. The clamping brackets can be installed before or after the

cooktop is placed into the cutout. Complete the following steps for the option you choose.

Installing Brackets Before Placing Cooktop in Cutout

Installing Brackets After Placing Cooktop in Cutout

1. Using 2 or more people, place the cooktop upside down on a

covered surface using the foam end posts from the packaging. Make sure that the knobs are not resting on the foam.

2. Remove the attachment screws for the bracket locations from

the bottom of the cooktop base.

3. Select bracket mounting holes that will allow the bracket to

extend far enough out from the cooktop for the installation of 2¹⁄₂" (6.4 cm) clamping screws. See the “Attach Cooktop to Countertop” section for illustration of clamping screw installation.

A. Edge of cooktop base bottom B. Clamping bracket C. Bracket mounting holes D. Bracket clamping hole E. Attachment screw

4. Attach brackets to cooktop base bottom with bracket

attachment screws using the bracket mounting holes selected in Step 3.

5. Rotate brackets so they do not extend beyond edge of

cooktop base.

6. Tighten attachment screws enough to hold brackets in place

when cooktop is placed in cutout.

7. Using 2 or more people, turn the cooktop right side up and

place in cutout. NOTE: Make sure that the front edge of the cooktop is

parallel to the front edge of the countertop. If repositioning is needed, lift entire cooktop up from cutout to avoid scratching the countertop.

8. Loosen the screws and rotate the brackets so that they are

perpendicular to the edge of the cooktop base and extend beyond its edge. Securely tighten screws.

1. Using 2 or more people, place cooktop right side up into the

cutout. NOTE: Make sure that the front edge of the cooktop is

parallel to the front edge of the countertop. If repositioning is needed, lift entire cooktop up from cutout to avoid scratching the countertop.

2. Remove the attachment screws for the selected bracket

locations from the bottom of the cooktop base.

3. Select bracket mounting holes that will allow the bracket to

extend far enough out from the cooktop for the installation of 2¹⁄₂" (6.4 cm) clamping screws.

A. Cooktop B. Cooktop base C. Attachment screw D. Clamping bracket (extends far enough beyond

cooktop base to allow installation of clamping screws)

E. 2

¹⁄₂

" (6.4 cm) clamping screw (to be installed in

“Attach Cooktop to Countertop”)

F. C o u n te r t o p

4. Attach brackets to cooktop base bottom with bracket

attachment screws using the bracket mounting holes selected in Step 3. Securely tighten screws.
