Whirlpool W10267624A - SP, W10260035A User Manual
ELECTRONIC DRYER
®
For questions about features, operation/performance, parts,
Use & Care Guide
accessories, or service, call: 1-800-253-1301
or visit our website at...
www.whirlpool.com
In Canada, call: 1-800-807-6777
or visit our website at...
www.whirlpool.ca
QUICK START GUIDE/
D
RYER USE............PG. 4
®
Para una versión en español, visite:
www.whirlpool.com
Número de pieza W10267624A
SÉCHEUSE
ÉLECTRONIQUE
Guide d’utilisation et d’entretien
Pour assistance, installation, ou service, composez le : 1-800-807-6777
ou visitez notre site internet à..
www.whirlpool.ca
TABLE OF CONTENTS
Page
DRYER SAFETY...........................................................................................2
QUICK START GUIDE/DRYER USE ..........................................................4
Drying and Cycle Tips...............................................................................6
Cycles .......................................................................................................6
Additional Features...................................................................................7
Status Lights .............................................................................................7
Lock/Unlock Control................................................................................. 7
Changing Cycles, Options, and Modifiers................................................7
Drying Rack Option...................................................................................8
DRYER CARE...............................................................................................9
Cleaning the Dryer Location.....................................................................9
Cleaning the Lint Screen...........................................................................9
Cleaning the Dryer Interior........................................................................9
Removing Accumulated Lint ..................
Vacation and Moving Care .....................................................................10
TROUBLESHOOTING ...............................................................................11
WARRANTY ...............................................................................................13
ASSISTANCE OR SERVICE..................................................BACK COVER
..................................................9
GUIDE DE DÉMARRAGE RAPIDE/
UTILISATION DE LA SÉCHEUSE....PG. 16
TABLE DES MATIÈRES
Page
SÉCURITÉ DE LA SÉCHEUSE.................................................................14
GUIDE DE DÉMARRAGE RAPIDE/UTILISATION DE LA SÉCHEUSE.. 16
Conseils pour le séchage et les programmes
Programmes ...........................................................................................18
Caractéristiques supplémentaires......
Témoins lumineux................................................................................... 19
Verrouillage/déverrouillage des comman
Changement de programmes, d'options
Option de grille de séchage....................................................................20
ENTRETIEN DE LA SÉCHEUSE............................................................... 22
Nettoyage de l'emplacemen
Nettoyage du filtre à charpie .................................................................. 22
Nettoyage de l'intérieur de la sécheuse................................................. 22
Retrait de la charpie accumulée.............................................................23
Précautions à prendre avant les vacances ou un déménagement ....... 23
DÉPANNAGE .............................................................................................24
GARANTIE..................................................................................................26
ASSISTANCE OU SERVICE............................... COUVERTURE ARRIÈRE
t de la sécheuse........................................ 22
........................................18
.................................................... 19
des......................................... 20
et de modificateurs...............20
W10260035A
W10267624A -
SP
DRYER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
follow instructions.
can be killed or seriously injured if you don't
You
instructions.
follow
2
IMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54.
The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70.

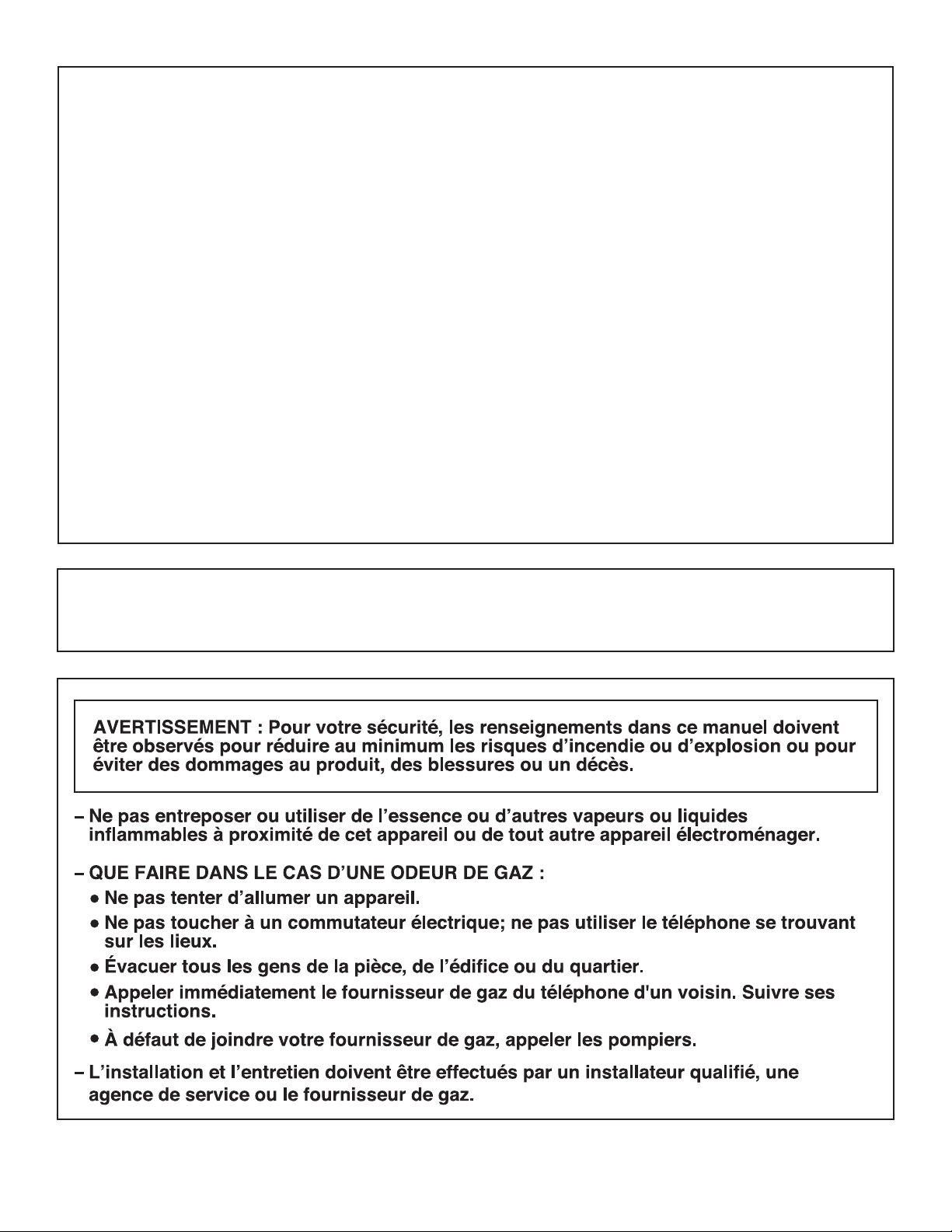

WARNING: For your safety, the information in this manual must be followed to minimize
the risk of re or explosion, or to prevent property damage, personal injury, or death.
– Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this
or any other appliance.
– WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Clear the room, building, or area of all occupants.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
•
instructions.
If you cannot reach your gas supplier, call the re department.
•
– Installation and service must be performed by a qualied installer, service agency, or
the gas supplier.
WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
If a gas leak is detected, follow the “What to do if you smell gas” instructions.
3
QUICK START GUIDE/DRYER USE
WARNING
Explosion Hazard
Keep ammable materials and vapors, such as
gasoline, away from dryer.
Do not dry anything that has ever had anything
ammable on it (even after washing).
Failure to follow these instructions can result in death,
explosion, or re.
For a summary of how to use your dryer following installation, see the QUICK START GUIDE on the next page.
No washer can completely remove oil.
Do not dry anything that has ever had any type of oil on
it (including cooking oils).
Items containing foam, rubber, or plastic must be dried
on a clothesline or by using an Air Cycle.
Failure to follow these instructions can result in death
or re.
WARNING
Fire Hazard
4
QUICK START GUIDE
NOTE: This Use and Care Guide covers several different models. Your dryer may not have all of the cycles and features described.
WARNING: To reduce the risk of re, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS
before operating this appliance. The following is a guide to using your dryer.
Please refer to specic sections of this manual for more detailed information.
START
1. Clean lint screen before each load.
2. Place laundry in dryer and shut door.
3. Press POWER.
4. Select AUTO or MANUAL Cycle.
5. Select WRINKLE SHIELD™ feature, if desired.
See “Additional Features.”
6. Select END OF CYCLE SIGNAL to turn off, if desired.
See “Additional Features.”
7. Press and Hold START to start.
AUTO CYCLES
Auto Cycles match the cycle setting to the type
of load, and adjust Dryness for optimal
performance. See “Auto Preset Cycle
Settings Chart.”
To make changes to the Dryness and/or Options
during an Auto Cycle:
1. Press PAUSE/CANCEL once.
2. Select DRYNESS and/or OPTION.
NOTE: Dryness level selections can be made only while
using Auto Cycles. Selecting More Dry, Normal, or Less
Dry automatically adjusts the sensed time needed.
3. Press and Hold START.
MANUAL CYCLES
Use Manual cycles for timed drying.
1. Press POWER.
2. Rotate the dial to a Manual Cycle.
3. Press TIMING up or down arrow buttons until the
desired drying time is displayed.
4. Press TEMP ADJUST until the desired temperature
illuminates.
5. Press and Hold START.
To make changes during a Timed Dry Cycle:
1. Press PAUSE/CANCEL once.
2. Adjust the Time, Temperature, WRINKLE SHIELD™
feature, and End of Cycle Signal.
3. Press and Hold START.
TIMED DRY - Use this cycle if items are still damp after an
Auto cycle.
QUICK DRY - Use for items requiring a short drying time.
TOUCH UP - Use this cycle to help smooth out wrinkles
from clean, dry clothes.
STOPPING OR RESTARTING
To pause/stop the dryer at any time - Open the door or
press PAUSE/CANCEL once.
To restart the dryer - Close the door. Press and Hold
START button until dryer starts.
To cancel the dryer at anytime - Press PAUSE/CANCEL
twice.
5
Drying and Cycle Tips
Select the correct cycle and dryness level or temperature for your
load. If an Auto Cycle is running, the display shows the estimated
cycle time when your dryer is automatically sensing the dryness
level of your load. If a Manual Cycle is running, the display shows
the exact number of minutes remaining in the cycle.
Cool Down tumbles the load without h
minutes of all cycles. Cool Down makes the loads easier to handle
and reduces wrinkling. The length of the Cool Down depends on
the load size and dryness level.
Drying tips
■ Follow care label directions when they are available.
■ If desired, add a fabric softener sheet. Follow package
instructions.
■ Remove the load from the dryer as soon as tumbling stops to
reduce wrinkling. This is especially important for permanent
press, knits and synthetic fabrics.
■ Avoid drying heavy work clothes with lighter fabrics. This
could cause overdrying of lighter fabrics, leading to increased
shrinkage or wrinkling.
Cycle tips
■ Dry most loads using the preset cycle settings.
■ Refer to the Auto or Manual Preset Cycle Settings chart (in the
“Cycles” section) for a guide to drying various loads.
■ Drying temperature and Dryness are preset when you
choose an Auto Cycle. You can choose a different dryness
level, depending on your load by pressing the DRYNESS
button to select MORE DRY or LESS DRY.
■ If you wish to adjust the cycle length of a Manual Cycle,
you must press TIMING Up or Down. Adjust the
temperature of a Manual Cycle by pressing TEMP
ADJUST until the desired temperature is selected.
NOTE: Y
Cycles.
ou cannot choose a Dryness Level with Manual
eat during the last few
Auto Preset Cycle Settings
Auto Cycles
Load Type
HEAVY DUTY
Heavyweight mixed loads,
cotton towels, jeans
NORMAL
Mixed loads and sturdy fabrics,
duroys, work clothes, sheets
cor
CASUAL
No-iron fabrics, sports shirts,
casual business, permanent pr
ess
DELICATE
Lightweight items, washable knits,
blouses, s
ynthetics
SUPER DELICATE
Lingerie, exercise wear, sheer
curtains
DAMP DRY
Clothes to come out suitable
for ironing, clothes will be damp
*Estimated Time with Auto D
RYNESS (Normal) setting.
Time will vary depending on load type and load size.
Manual Cycles
Use Manual Cycles to select a specific amount of drying time and
a drying temperature. When a Manual Cycle is selected, the
Estimated Time Remaining display shows the actual time
remaining in your cycle. You can change the actual time in the
cycle by pressing the TIMING up or down buttons.
Te mp Time*
(Minutes)
High 40
Medium 35
Low 35
Low 30
Extra Low 25
Low 20
Cycles
Select the drying cycle that matches the type of load you are
drying. See Auto Preset or Manual Preset Cycle Settings chart.
Cycle Control knob
Automatic Cycles
Auto Cycles allow you to match the cycle to the load you are
drying. See the following Auto Preset Cycle Settings chart. Each
cycle dries certain fabrics at the recommended temperature.
A sensor detects the moisture in the load and automatically
justs the drying time for optimal drying.
ad
Manual Preset Cycle Settings
Manual Cycles
Load Type
TIMED DRY
Heavyweight items,
bulky items, bedspreads,
lothes
work c
QUICK DRY
Small loads
TOUCH UP
Helps smooth out wrinkles
*The Timed Dry cycle will default to the last temperature used for
Timed Dry.
Temperature Default Time
(Minutes)
High* 40
Medium 27
Medium 20
6
Additional Features
WRINKLE SHIELD™ Feature
When you are unable to remove a load of clothes from the dryer
as soon as it stops, wrinkles can form. The WRINKLE SHIELD™
feature periodically tumbles, rearranges, and fluffs the load to help
keep wrinkles from forming.
■ Get up to 90 minutes of heat-free, periodic tumbling at the
end of a cycle. Cancel at any time by pressing the WRINKLE
SHIELD™ feature button.
■ During the WRINKLE SHIELD™ feature, you may continue the
option after opening and closing the dryer door by pushing
START.
NOTE: If
dryer stops after the cool down period.
Temperature
Temperature settings are used with the Manual Cycles. Press
TEMP ADJUST until the desired temperature setting illuminates.
Temperature modifiers cannot be used with the Auto Cycles.
Air Only
Use the Air Only modifier for items that require drying without heat
such as rubber, plastic and heat-sensitive fabrics. This chart
shows examples of items that can be dried using Air Only.
you do not select the WRINKLE SHIELD™ feature, the
Type of Load Time*
(Minutes)
Status Lights
You may follow the progress of your dryer with the drying Status
indicator lights.
Sensing
When a cycle is first turned on, the SENSING light illuminates until
a wet item is detected.
■ In an Auto Cycle, if a wet item has not been detected within
5 minutes, the Sensing light will turn off.
■ In a Manual Cycle, if a wet item is not detected within
5 minutes, the Sensing light will turn off and the Damp light
n on.
will tur
Wet
The WET light will turn on when a wet item has been detected in
the dryer. The Wet light will remain on until:
■ The damp dry point is reached in an Auto or Manual Cycle.
Damp
The DAMP light indicates that the load has reached the damp dry
level.
Cool Down
The COOL DOWN light illuminates during the cool down part of
the cycle. Laundry is cooling down for ease in handling.
Cycle Complete
This light illuminates when a drying cycle is finished. If the
WRINKLE SHIELD™ feature has been selected, the WRINKLE
SHIELD™ feature indicator light will also be illuminated.
The Cycle Complete light turns off 1 hour after the end of a drying
cycle (including the WRINKLE SHIELD™ cycle of 90 minutes),
when Pause/Cancel is pressed, or when the door is opened.
WRINKLE SHIELD™ Feature
The WRINKLE SHIELD™ feature light illuminates when this option
is selected. This indicator stays on with the Cycle Complete light.
Foam rubber - pillows, padded bras, stuffed toys 20 - 30
Plastic - Shower curtains, tablecloth
Rubber-backed rugs 40 - 50
Olefin, polypropylene, sheer nylon 10 - 20
*Reset time to complete dryi
ng, if needed.
s 20 - 30
When using Air Only
■ Check that coverings are securely stitched.
■ Shake and fluff pillows by hand periodically during the cycle.
■ Dry item completely. Foam rubber pillows are slow to dry.
NOTE: Auto Cycles are not available when you are using the Air
Only setting.
End of Cycle Signal
The End of Cycle Signal produces an audible sound when the
drying cycle is finished. Promptly removing clothes at the end of
the cycle reduces wrinkling.
Press and release the END OF CYCLE SIGNAL to turn off the
signal.
Hold the END OF CYCLE SIGNA
this control.
NOTE:
End of Cycle Signal is on, an audible sound will be emitted every
5 minutes until the clothes are removed, or the WRINKLE
S
When the WRINKLE SHIELD™ feature is selected and the
HIELD™ feature is finished.
L for 3 seconds to lock or unlock
Indicator lights
Other indicator lights on the control panel show when Cycle,
Temp Adjust, and End of Cycle settings are selected.
Lock/Unlock Control
This feature allows you to lock your settings to avoid unintended
use of the dryer. You can also use the control lock feature to avoid
unintended cycle or option changes during dryer operation.
To e n able the control lock feature:
Press and hold END OF CYCLE SIGN
The Lock/Unlock Control icon lights up, and a single beep tone is
heard. To unlock, press and hold END OF CYCLE SIGNAL button
for 3 seconds. The indicator light turns off.
AL button for 3 seconds.
Changing Cycles, Options, and Modifiers
You can change Auto Cycles, Timed Cycles, Options, and
Modifier anytime before pressing Start.
■ Three short tones sound if an unavailable combination is
selected. The last selection will not be accepted.
Changing Cycles after pressing Start
1. Press STOP twice. This ends the current cycle.
2. Select th
3. Press and hold START. The dryer starts at the beginning of the
new cycle.
NOTE: If
cycle, the dryer automatically shuts off.
e desired cycle and options.
you do not press Start within 5 minutes of selecting the
7
Changing Options and Modifiers after pressing Start
A
You can change an Option or Modifier anytime before the selected
Option or Modifier begins.
ress STOP once.
1. P
2. Select the new Option and/or Modifier.
3. Press and hold START to continue the cycle. NOTE: If
your dryer shuts down. Restart the selection process.
you happen to press Stop twice, the program clears and
Drying Rack Option
Use the Drying Rack to dry items such as sweaters and pillows
without tumbling. The drum turns, but the drying rack does not
move.
If your model does not have a drying rack, you may be able to
chase one for your model. To find out whether your model
pur
allows drying rack usage and for more information on ordering,
please refer to the front page of the manual or contact the dealer
from whom you purchased your dryer.
NOTE: The
not use the automatic cycle with the drying rack.
To use the drying rack
Do not remove the lint screen.
1. Open dryer doo
drying rack must be removed for normal tumbling. Do
r.
3. Put the wet items on top of the drying rack. Leave space
between the items so air can reach all the surfaces.
NOTE: Do n
rack.
4. Cl
5. Press the POWER button.
6. Select a time
chart). Items containing foam, rubber or plastic must be dried
on a clothesline or by using the Air Only temperature setting.
7. Y
Reset time as needed to complete drying. Refer to the
following table.
8. Press (and hold) START button (about 1 second). This chart shows examples of items
the suggested cycle, temperature setting and drying time. Actual
drying time will depend on the amount of moisture items hold.
Rack Dry Setting Te mp . Time*
ot allow items to hang over the edge of the drying
ose the door.
d drying cycle and temperature (see following
ou must select a time by pressing TIMING Up or Down.
that can be rack dried and
A
A. Front edge
2. Place drying rack inside dryer drum, positioning the back wire
on the ledge of the inner dryer back panel. Push down on front
edge of drying rack to secure over the lint screen.
B
A. Drying rack front edge
B. Dryer back panel
Wool Sweaters
Block to shape and lay flat on
the drying
Stuffed toys or pillows
Cotton or polyester fiber filled
Stuffed toys or pillows
Foam rubber filled
Sneakers or canvas shoes Timed
*(Minutes) Reset time to complete drying, if needed.
rack.
Timed
Dry
Timed
Dry
Timed
Dry
Dry
Low 60
Low 60
Air Only
(no heat)
Air Only
(no heat)
90
90
8
DRYER CARE
Cleaning the Dryer Location
Keep dryer area clear and free from items that would obstruct the
flow of combustion and ventilation air.
Cleaning the Lint Screen
Every load cleaning
The lint screen is located in the door opening of the dryer. A
screen blocked by lint can increase drying time.
To clean
1. P
ull the lint screen straight up. Roll lint off the screen with your
fingers. Do not rinse or wash screen to remove lint. Wet lint is
hard to remove.
3. W
et a nylon brush with hot water and liquid detergent. Scrub
lint screen with the brush to remove residue buildup.
4. Rinse screen with hot water.
5. Thoroughly dry lint screen with a clean towel. Replace screen
in dryer.
Cleaning the Dryer Interior
To clean dryer drum
1. Make a paste with powdered laundry detergent and very
warm water.
2. Apply paste to
OR
Apply a liquid, nonflammable househ
area and rub with a soft cloth until all excess dye and stains
are removed.
3. Wip
4. T
NOTE: Garments that contain unstable dyes, such as denim blue
jeans or brightly colored cotton items, may discolor the dryer
interior. These stains are not harmful to your dryer and will not
stain future loads of clothes. Dry unstable dye items inside out to
avoid transfer of dye.
e drum thoroughly with a damp cloth.
umble a load of clean cloths or towels to dry drum.
a soft cloth.
old cleaner to the stained
2. Push the lint screen firmly back into place. IMPORTANT:
■ Do not run the dryer with the lint screen loose, damaged,
blocked, or missing. Doing so can cause overheating and
damage to both the dryer and fabrics.
■ If lint falls off the screen into the dryer during removal, check
the exhaust hood and remove the lint. See “Venting
Requirements” in the Installation Instructions.
As needed cleaning
Laundry detergent and fabric softener residue can build up on the
lint screen. This buildup can cause longer drying times for your
clothes, or cause the dryer to stop before your load is completely
dry. The screen is probably clogged if lint falls off while the screen
is in the dryer.
Clean the lint screen with a nylon brus
frequently, if it becomes clogged due to a residue buildup.
To wash
1. Roll
2. W
lint off the screen with your fingers.
et both sides of lint screen with hot water.
h every 6 months, or more
Removing Accumulated Lint
From Inside the Dryer Cabinet
Lint should be removed every 2 years, or more often, depending
on dryer usage. Cleaning should be done by a qualified person.
From the Exhaust Vent
Lint should be removed every 2 years, or more often, depending
on dryer usage.
9
Loading...
