REFRIGERATOR SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
follow instructions.
can be killed or seriously injured if you don't
You instructions.
follow
W10249205A
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock, or injury to persons when using the refrigerator, follow basic precautions,
WARNING:
including the following:
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Disconnect power before servicing.
Replace all parts and panels before operating.
Remove doors from your old refrigerator.
Use nonflammable cleaner.
Keep flammable materials and vapors, such as gasoline,
away from refrigerator.
Use two or more people to move and install refrigerator.
Disconnect power before installing ice maker (on ice maker
kit ready models only).
SAVE THESE INSTRUCTIONS
Proper Disposal of Your Old Refrigerator
WARNING
Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in death or brain damage.
IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.
INSTALLATION INSTRUCTIONS
Unpack the Refrigerator
WARNING
Excessive Weight Hazard
Use two or more people to move and install refrigerator.
Failure to do so can result in back or other injury.
Before You Throw Away Your Old Refrigerator or Freezer:
Take off the doors.
Leave the shelves in place so that children may not easily
climb inside.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or “walk” the refrigerator when trying to move it, as floor damage could occur.
Remove the Packaging
Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see “Refrigerator Safety.”
IMPORTANT: Do not remove the white foam air return insert from behind the control panel on the ceiling of the refrigerator. If the insert is removed, ice may migrate down from the freezer and cause icicles to form.
2
Clean Before Using
After you remove all of the package materials, clean the inside of your refrigerator before using it. See the cleaning instructions in “Refrigerator Care.”
Important information to know about glass shelves and covers:
Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.
Location Requirements
Electrical Requirements
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
To ensure proper ventilation for your refrigerator, allow for a ½" (1.25 cm) space on each side and at the top. When installing your refrigerator next to a fixed wall, leave 2" (5.08 cm) minimum on the hinge side (some models require more) to allow for the door to swing open. If your refrigerator has an ice maker, allow extra space at the back for the water line connections.
NOTE: It is recommended that you do not install the refrigerator near an oven, radiator, or other heat source. Do not install the refrigerator in a location where the temperature will fall below 55°F (13°C).
1
/
2" (1.25 cm)
WARNING
Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,
fire, or electrical shock.
Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only, 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.
NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the control (Thermostat, Refrigerator or Freezer Control depending on the model) to OFF and then disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and reset the control (Thermostat, Refrigerator or Freezer Control depending on the model) to the desired setting. See “Using the Controls.”
2" (5.08 cm)
Water Supply Requirements
Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.
TOOLS NEEDED:
Flat-blade screwdriver
⁷⁄₁₆" (11.11 mm) and ¹⁄₂" (12.7 mm)
open-end or two adjustable wrenches
NOTE: Your refrigerator dealer has a kit available with a ¹⁄₄" (6.35 mm) saddle-type shutoff valve, a union, and copper tubing. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. Do not use a piercing-type or ³⁄₁₆" (4.76 mm) saddle valve which reduces water flow and clogs more easily.
IMPORTANT:
All installations must meet local plumbing code requirements.
Use copper tubing and check for leaks. Install copper tubing
only in areas where the household temperatures will remain above freezing.
¹⁄₄" (6.35 mm) nut
driver
¹⁄₄" (6.35 mm) drill bit
Cordless drill
3
Water Pressure
C
5. Using a cordless drill, drill a ¹⁄₄" hole in the cold water pipe you
have selected.
A cold water supply with water pressure of between 30 and 120 psi (207 and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a
reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi (207 and 827 kPa).
If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).
If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):
Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
Allow the storage tank on the reverse osmosis system to refill
after heavy usage.
If your refrigerator has a water filter, it may further reduce the
water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See “Water Filtration System.”
If you have questions about your water pressure, call a licensed, qualified plumber.
Connect the Water Supply
Read all directions before you begin. IMPORTANT: If you turn the refrigerator on before the water line is
connected, turn the ice maker OFF.
Connect to Water Line
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
3. Locate a ½" to 1¹⁄₄" (1.25 cm to 3.18 cm) vertical cold water
pipe near the refrigerator.
IMPORTANT:
Make sure it is a cold water pipe.
Horizontal pipe will work, but drill on the top side of the
pipe, not the bottom. This will help keep water away from the drill and normal sediment from collecting in the valve.
4. Determine the length of copper tubing you need. Measure
from the connection on the lower left rear of refrigerator to the water pipe. Add 7 ft. (2.1 m) to allow for cleaning. Use ¹⁄₄" (6.35 mm) O.D. (outside diameter) copper tubing. Be sure both ends of copper tubing are cut square.
A
G
B
C
DEF
A. Cold water pipe B. Pipe clamp C. Copper tubing D. Compression nut
E. Compression sleeve F. Shutoff valve
G. Packing nut
6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the ¹⁄₄" (6.35 mm) drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws slowly and evenly so washer makes a watertight seal. Do not overtighten or you may crush the copper tubing.
7. Slip the compression sleeve and compression nut onto the
copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten.
8. Place the free end of the tubing in a container or sink, and turn
ON the main water supply. Flush the tubing until water is clear. Turn OFF the shutoff valve on the water pipe. Coil the copper tubing.
Connect to Refrigerator
Style 1
1. Unplug refrigerator or disconnect power.
2. Attach the copper tube to the valve inlet using a compression
nut and sleeve as shown. Tighten the compression nut. Do not overtighten.
3. Use the tube clamp on the back of the refrigerator to secure
the tubing to the refrigerator as shown. This will help avoid damage to the tubing when the refrigerator is pushed back against the wall.
4. Turn shutoff valve ON.
5. Check for leaks. Tighten any connections (including
connections at the valve) or nuts that leak.
A B
D E
A. Tube clamp B. Tube clamp screw C. Copper tubing
D. Compression nut
E. Valve inlet
6. The ice maker is equipped with a built-in water strainer. If your
water conditions require a second water strainer, install it in the ¹⁄₄" (6.35 mm) water line at either tube connection. Obtain a water strainer from your nearest appliance dealer.
4
Style 2
A B
1. Unplug refrigerator or disconnect power.
2. Remove and discard the black nylon plug from the gray water
tube on the rear of the refrigerator.
3. If the gray water tube supplied with the refrigerator is not long
enough, a ¹⁄₄" x ¹⁄₄" (6.35 mm x 6.35 mm) coupling is needed in order to connect the water tubing to an existing household water line. Thread the provided nut onto the coupling on the end of the copper tubing.
NOTE: Tighten the nut by hand. Then tighten it with a wrench two more turns. Do not overtighten.
A B C D E F G
A. Refrigerator water tubing B. Nut (provided) C.Bulb
D.Coupling (provided)
E. Ferrule (purchased) F. Nut (purchased)
G.Household water line
4. Turn shutoff valve ON.
5. Check for leaks. Tighten any nuts or connections (including
connections at the valve) that leak.

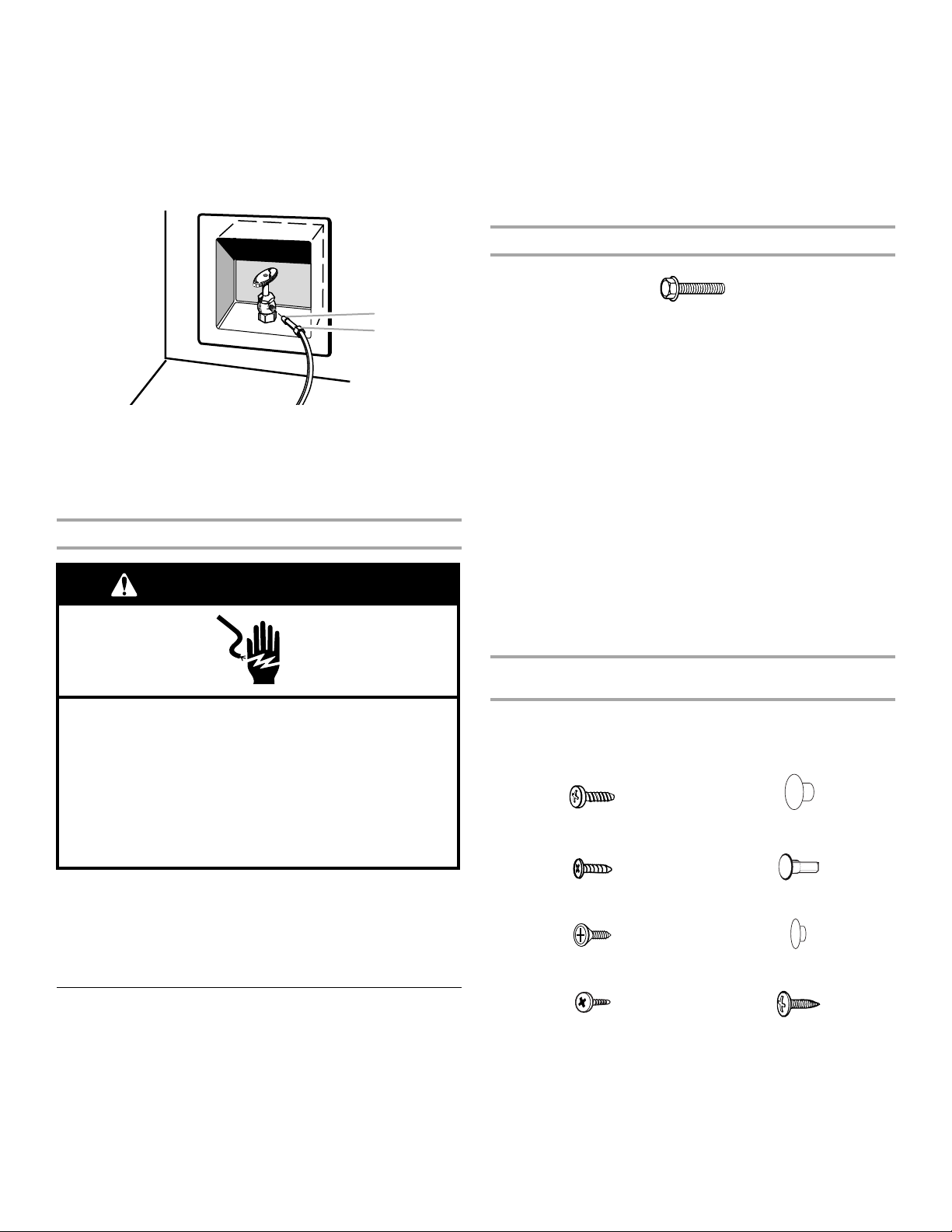

Style 3
1. Unplug refrigerator or disconnect power.
2. Remove and discard the black nylon plug from the gray water
tube on the rear of the refrigerator.
3. Thread the provided nut onto the water valve as shown. NOTE: Tighten the nut by hand. Then tighten it with a wrench
two more turns. Do not overtighten.
Complete the Installation
WARNING
Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
2. Flush the water system. See “Water Dispenser.” NOTE: Allow 24 hours to produce the first batch of ice. Discard
the first three batches of ice produced. Allow 3 days to completely fill ice container.
Refrigerator Doors
TOOLS NEEDED: ⁵⁄₁₆" hex-head socket wrench, #2 Phillips screwdriver, flat-blade screwdriver, ⁵⁄₁₆" open-end wrench, flat 2" putty knife.
IMPORTANT:
All graphics referenced in the following instructions are
included later in this section after “Final Steps.” The graphics shown are for a right-hand swing refrigerator (hinges factory installed on the right).
If you only want to remove and replace the doors, see
“Remove Doors and Hinges” and “Replace Doors and Hinges.”
Depending on your model, you may have standard (Style 1) or
contour (Style 2) doors. If you are going to reverse the door swing, follow the instructions for the appropriate door style.
Before you begin, turn the refrigerator control OFF, and
remove food and adjustable door or utility bins from doors.
A. Bulb B. Nut (provided)
4. Turn shutoff valve ON.
5. Check for leaks. Tighten any nuts or connections (including
connections at the valve) that leak.
Remove Doors and Hinges (all models)
⁵⁄₁₆
" Hex-Head Hinge Screw
1. Unplug refrigerator or disconnect power.
2. Open refrigerator door and remove base grille from the bottom
front of the refrigerator. See Base Grille graphic.
3. Close the refrigerator door and keep both doors closed until
you are ready to lift them free from the cabinet. NOTE: Provide additional support for the doors while the
hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.
5

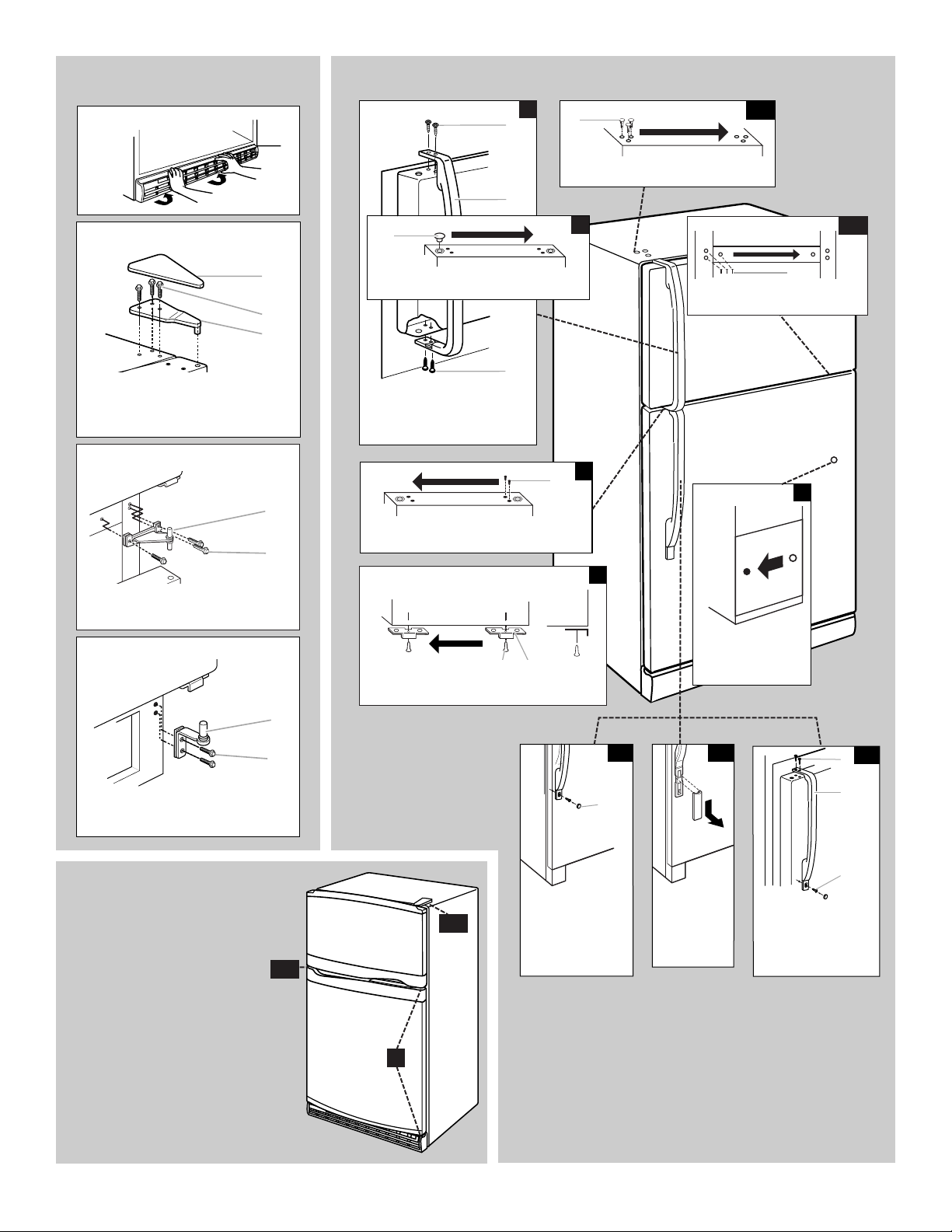

4. Remove the parts for the top hinge as shown in Top Hinge
w
graphic. Lift the freezer door free from the cabinet.
5. Remove the parts for the center hinge as shown in the Center
Hinge graphic. Lift the refrigerator door free from the cabinet.
6. Remove the parts for the bottom hinge as shown in the
Bottom Hinge graphic.
Reverse Doors–Standard Door (optional)
IMPORTANT: If you want to reverse your doors so that they open
in the opposite direction, follow these steps. If you are not reversing the doors, see “Replace Doors and Hinges.”
Door Stop Screw
Door Handle Sealing Screw
Flat-Head Handle Screw
Door Handle Seal Screw Front
Door Hinge Hole Plug
Cabinet Hinge Hole Plug
Door Handle Screw Cover
Round-Head Handle Scre
Cabinet
1. Remove ⁵⁄₁₆" hex-head hinge screws from the handle side and
move them to the opposite side. See Graphic 1-1.
2. Remove the cabinet hinge hole plugs from the cabinet top and
move them to the opposite side hinge holes as shown in Graphic 1-2.
Freezer door
1. Remove freezer handle assembly as shown. Keep all parts
together. See Graphic 2.
2. Remove the door stop. Move it to the opposite side of the
freezer door as shown in Graphic 5.
3. Position the freezer handle on opposite side of freezer door.
Assemble handles on the door as shown in Graphic 2.
4. Tighten all screws. Set aside the door until the hinges and
refrigerator compartment door are in place.
Refrigerator door
1. Remove refrigerator handle bottom trim. For Style 1, remove
the handle screw cover. See Graphic 6-1. For Style 2, slide trim down as shown in Graphic 6-2.
2. Remove the refrigerator handle assembly as shown. Keep all
parts together. See Graphic 6-3.
3. Remove the door hinge hole plug from refrigerator door. Move
it to the opposite side hinge hole as shown in Graphic 3.
4. Remove the door handle sealing screws. Move them to the
opposite side of the refrigerator door as shown in Graphic 4.
5. Remove the door handle seal screw front. Move it to the
opposite side of the refrigerator door as shown in Graphic 7.
6. Remove the door stop. Move it to the opposite side of the
refrigerator door as shown in Graphic 5.
7. Position the refrigerator handle on opposite side of the
refrigerator door as shown in Graphic 6-3. Drive the two top screws in the handle first. Align the lower portion of the handle and drive the bottom screw.
8. Align refrigerator bottom trim. For Style 1, replace the door handle screw cover. See Graphic 6-1. For Style 2, slide trim into place. See Graphic 6-2.
9. Tighten all screws. Set aside refrigerator door until bottom hinge is installed on product.
Reverse Doors–Contour Door (optional)
IMPORTANT: If you want to reverse your doors so that they open
in the opposite direction, follow these steps. If you are not reversing the doors, see “Replace Doors and Hinges.”
Cabinet
1. Remove the ⁵⁄₁₆" hex-head hinge screws from handle side and
move them to the opposite side. See Graphic 1-1.
2. Remove the cabinet hinge hole plugs from the cabinet top and
move them to the opposite side hinge holes as shown in Graphic 1-2.
Doors
1. Remove the door stops from both the freezer and the
refrigerator doors and move them to the opposite side. See Graphic 5.
Replace Doors and Hinges (all models)
NOTE: Graphic may be reversed if door swing is reversed.
1. Replace the parts for the bottom hinge as shown and tighten
screws. See Bottom Hinge graphic. Replace the refrigerator door.
NOTE: Provide additional support for the doors while the hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.
2. Assemble the parts for the center hinge as shown and tighten
all screws. See Center Hinge graphic. Replace the freezer door.
3. Assemble the parts of the top hinge as shown in the Top
Hinge graphic. Do not tighten the screws completely.
4. Line up the doors so that the bottom of the freezer door aligns
evenly with the top of the refrigerator door. Tighten all screws.
Final Steps (all models)
1. Check all the holes to make sure that hole plugs and screws
are in place. Reinstall the top hinge cover as shown in the Top Hinge graphic.
2. Replace the base grille. See Base Grille graphic.
WARNING
Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,
fire, or electrical shock.
3. Plug into a grounded 3 prong outlet.
4. Reset the controls. See “Using the Control(s).”
5. Return all removable door parts to doors and food to
refrigerator.
6
Door Removal &
Replacement
Base Grille
Top Hinge
A. Top Hinge Cover B. ⁵⁄₁₆" Hex-Head Hinge Screws C. Top Hinge
Center Hinge
A. Center Hinge B.
⁵⁄₁₆"
Hex-Head Hinge Screws
Standard Door - Door Swing Reversal (optional)
2
A
B
A
A
B
C
A. Door Hinge Hole Plug
A
A. Flat-Head Handle Screws B. Freezer Handle
A
A. Cabinet Hinge Hole Plugs
3
4
A
A
B
A. Door Handle Sealing Screws
Front View
Side View
5
1-2
A.
⁵⁄₁₆"
Hex-Head Hinge
Screws
1-1
A
1
7
Bottom Hinge
A. Bottom Hinge B. ⁵⁄₁₆" Hex-Head Hinge Screws
Contour Door -
Door Swing Reversal
(optional)
To reverse the door swing for a contour door simply reverse the hinges.
Refer to the indicated graphics found in “Standard Door - Door Swing Reversal.”
A
B
1-1
A. Door Stop Screw B. Door Stop
1-2
5
B
A
A. Door Handle
A
Screw Cover
6-1
A. Door Handle
Seal Screw Front
6-2
A. Flat-Head
Handle Screw
B. Refrigerator Handle
C. Handle Screw
A
B
C
6-3
7
Adjust the Doors
Door Closing
Your refrigerator has two front adjustable rollers – one on the right and one on the left. If your refrigerator seems unsteady or you want the doors to close easier, adjust the refrigerator's tilt using the instructions below.
IMPORTANT: To comply with American Disabilities Act (ADA) guidelines, fully retract the rollers into the cabinet to lower the refrigerator.
1. Remove the base grille. See the Base Grille graphic in
“Refrigerator Doors.” The two leveling screws are part of the front roller assemblies which are at the base of the refrigerator on either side.
2. Use a screwdriver to adjust the leveling screws. Turn the
leveling screw to the right to raise that side of the refrigerator or turn the leveling screw to the left to lower that side. It may take several turns of the leveling screws to adjust the tilt of the refrigerator.
NOTE: Having someone push against the top of the refrigerator takes some weight off the leveling screws and rollers. This makes it easier to adjust the screws.
REFRIGERATOR USE
Using the Controls
For your convenience, your refrigerator controls are preset at the factory. When you first install your refrigerator, make sure that the controls are still preset to the mid-settings as shown.
NOTE: To turn your refrigerator off, turn the refrigerator control to the word OFF or until the word OFF appears. Your product will not cool when the refrigerator control is set to OFF.
Mid-setting “3”
Mid-setting “3”
3. Open both doors again to make sure that they close as easily
as you like. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws to the right. It may take several more turns, and you should turn both leveling screws the same amount.
4. Replace the base grille.
Align Doors
If the space between your doors looks uneven, you can adjust it using the instructions below:
1. Pry off the top hinge cover.
2. Loosen the top hinge screws using a ⁵⁄₁₆" socket or wrench.
3. Have someone hold the door in place or put a spacer between
the doors while you tighten the top hinge screws.
4. Replace the top hinge cover.
IMPORTANT:
Give your refrigerator time to cool down completely before
adding food. It is best to wait 24 hours before you put food into the refrigerator.
If you add food before the refrigerator has cooled completely,
your food may spoil. Adjusting the Refrigerator and Freezer Controls to a higher (colder) than recommended setting will not cool the compartments any faster.
Adjusting Controls
The mid-settings indicated in the previous section should be correct for normal household usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.
If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked.
If you need to adjust temperatures, use the settings listed in the chart below as a guide. On models with two controls, adjust the refrigerator temperature first. Wait at least 24 hours between adjustments and then recheck the temperatures.
CONDITION/REASON: ADJUSTMENT:
REFRIGERATOR too warm REFRIGERATOR or
FREEZER too warm/too little ice
REFRIGERATOR too cold REFRIGERATOR or
FREEZER too cold FREEZER or TEMPERATURE
TEMPERATURE Control one setting higher
FREEZER or TEMPERATURE Control one setting higher
MAX ice production switch
TEMPERATURE Control one setting lower
Control one setting lower
8
Crisper Humidity Control
(on some models)
You can control the amount of humidity in the moisture-sealed crisper. Adjust the control to any setting between LOW and HIGH.
LOW (open) for best storage of fruits and vegetables with skins. HIGH (closed) for best storage of fresh, leafy vegetables.
Ice Maker
Turning the Ice Maker On/Off
To turn the ice maker ON, simply lower the wire shutoff arm. To manually turn the ice maker OFF, lift the wire shutoff arm to the
OFF (arm up) position and listen for the click. NOTE: Your ice maker has an automatic shutoff. As ice is made,
the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position. Do not force the wire shutoff arm up or down.
Ice Production Rate
Allow 24 hours to produce the first batch of ice. Discard the
first three batches of ice produced.
The ice maker should produce approximately 8 to 12 batches
of ice in a 24-hour period.
To increase ice production, lower the freezer and refrigerator
temperature. See “Using the Control(s).” Wait 24 hours between adjustments.
For maximum ice production (on some models), push the
switch to ICE PLUS. The ice maker should produce 16 to 20 batches of ice in a 24-hour period in the Ice Plus mode.
Remember
The quality of your ice will be only as good as the quality of the
water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.
Do not use anything sharp to break up the ice in the bin. This
can cause damage to the ice container and the dispenser mechanism.
Do not store anything on top of or in the ice maker or ice bin.
Water Dispenser
IMPORTANT:
After connecting the refrigerator to a water source, flush the
water system. Use a sturdy container to depress and hold the water dispenser lever for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser lever (5 seconds on, 5 seconds off) for an additional 2 minutes. This will flush air from the filter and water dispensing system. Additional flushing may be required in some households. As air is cleared from the system, water may spurt out of the dispenser.
Allow several hours for the refrigerator to cool down and chill
water.
Dispense enough water every week to maintain a fresh supply.
To Dispense Water:
There are two water dispenser buttons for use with different sizes of containers.
1. Press a sturdy glass against the back button or hold a
container under the dispenser while pressing the front button.
2. Remove the glass or release the front button to stop
dispensing.
Water Filtration System
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.
Water Filter Status Light (on some models)
The water filter status light will help you know when to change your water filter. The light will change from green to yellow. This tells you that it is almost time to change the filter. It is recommended that you replace the water filter when the status light changes to red.
The disposable water filter should be replaced at least every 6 months OR earlier if the flow of water to your water dispenser or ice maker decreases noticeably.
After changing the water filter, reset the water filter status light. The status light will change from red to green when the system is reset.
Non-Indicator Water Filter (on some models)
If your refrigerator does not have a water filter status light, you should change the disposable water filter at least every 6 months OR earlier if the flow of water to your water dispenser or ice maker decreases noticeably.
Changing the Water Filter
1. Locate the filter cap in the front base grille. Rotate the cap
counterclockwise to a vertical position and pull the cap and filter out through the base grille.
NOTE: There will be water in the filter. Some spilling may occur.
9
2. Remove the cap by sliding it off the end of the used filter. The
cap will slide to the left or right. IMPORTANT: Do not discard the cap. It is part of your
refrigerator. Keep the cap to use with the replacement filter.
3. Take the new filter out of its packaging and remove the cover
from the O-rings. Discard the cover.
4. Slide the cap (removed in Step 2) onto the new filter. See
illustration in Step 2.
5. With the cap in the vertical position, push the new filter into
the base grille until it stops. Rotate the cap clockwise to a horizontal position. Flush the water system. See “Flushing the Water System After Replacing Filter.”
Flushing the Water System After Replacing Filter
Use a sturdy container to depress the water dispenser bar until the water begins to flow. Flush the water system by dispensing and discarding 2 to 3 gal. (8 to 12 L) of water. Flushing the system will take approximately 5 minutes and will help clear air from the line. See “Water Dispenser.”
NOTE: As air is cleared from the system, water may spurt out of the dispenser.
Using the Dispenser Without the Water Filter
You can run the dispenser without a water filter. Your water will not be filtered.
1. Remove the base grille water filter.
2. Slide the cap off the end of the filter. IMPORTANT: Do not discard the cap. It is part of your
refrigerator. Keep the cap to use with the replacement filter.
3. With the cap in the vertical position, insert the cap into the base grille until it stops.
4. Rotate the cap to a horizontal position.
REFRIGERATOR CARE
Cleaning
WARNING
Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.
Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid buildup of odors. Wipe up spills immediately.
IMPORTANT:
Because air circulates between both sections, any odors
formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To avoid odor transfer and drying out of food, wrap or cover foods tightly.
For stainless steel models, stainless steel is corrosion-
resistant and not corrosion-proof. To help avoid corrosion of your stainless steel, keep your surfaces clean by using the following cleaning instructions.
To Clean Your Refrigerator:
NOTE: Do not use abrasive or harsh cleaners such as window
sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.
1. Unplug refrigerator or disconnect power.
2. Hand wash, rinse, and dry removable parts and interior
surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.
3. Clean the exterior surfaces. Painted metal: Wash painted metal exteriors with a clean,
soft cloth or sponge and a mild detergent in warm water. Rinse surfaces with clean, warm water and dry immediately to avoid water spots.
Stainless steel: Wash stainless steel surfaces with a clean, soft cloth or sponge and a mild detergent in warm water. Rinse surfaces with clean, warm water and dry immediately to avoid water spots.
NOTE: When cleaning stainless steel, always wipe with the grain to avoid cross-grain scratching.
4. There is no need for routine condenser cleaning in normal home operating environments. If the environment is particularly greasy or dusty, or there is significant pet traffic in the home, the condenser should be cleaned every 2 to 3 months to ensure maximum efficiency.
If you need to clean the condenser:
Remove the base grille.
Use a vacuum cleaner with a soft brush to clean the grille,
the open areas behind the grille and the front surface area of the condenser.
Replace the base grille when finished.
5. Plug in refrigerator or reconnect power.
10

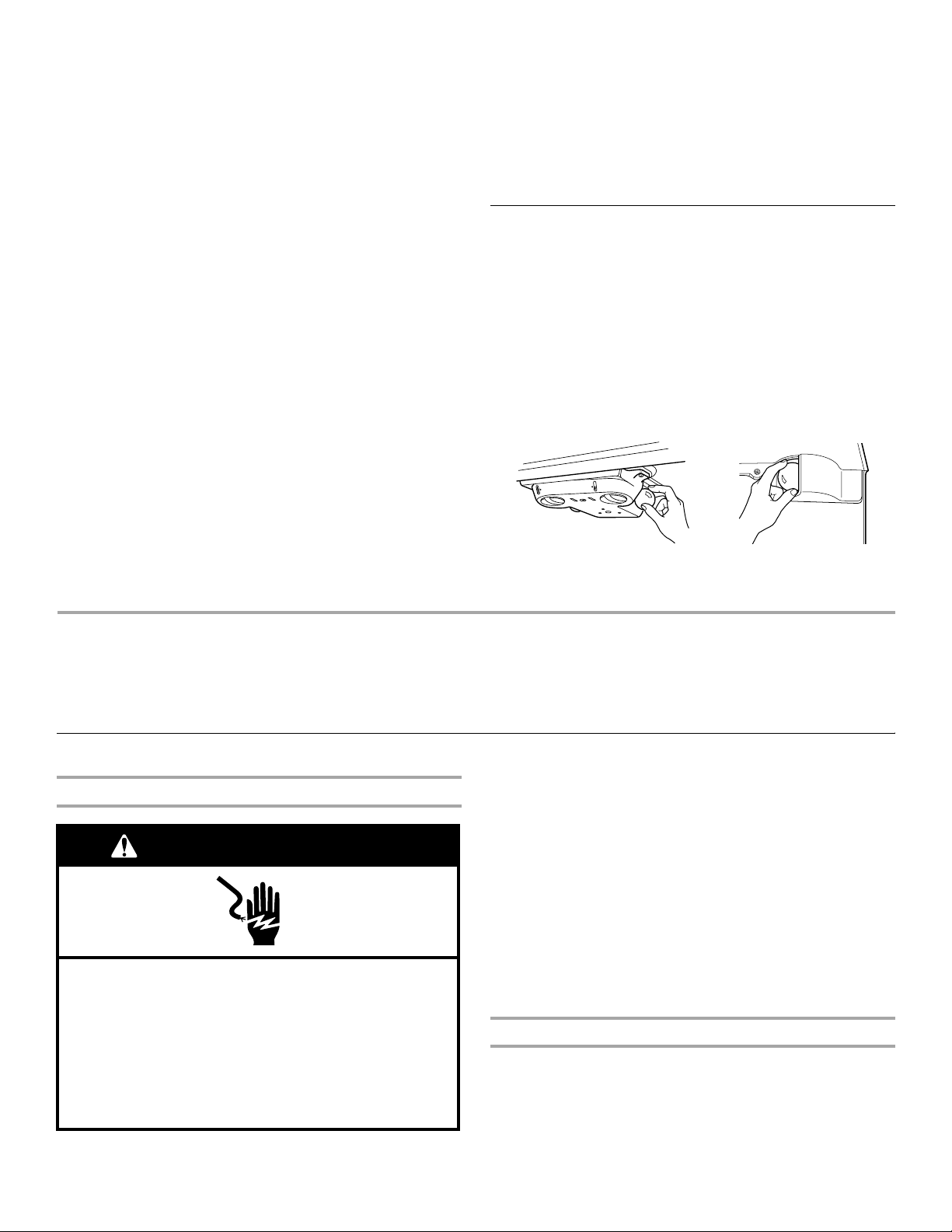

Changing the Light Bulbs
WARMER
COOLER
RECOMMENDED SETTING
REFRIGERATOR
WARMER
COOLER
RECOMMENDED SETTING
FREEZER
ALLOW 24 HOURS BETWEEN ADJUST
MEN
TS
NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the bulb with an appliance bulb of the same size, shape, and wattage.
1. Unplug refrigerator or disconnect power.
2. Remove the bulb from behind the control panel in the
refrigerator or from behind the light shield in the freezer (on some models). Replace it with an appliance bulb of the same wattage.
TROUBLESHOOTING
3. Plug in refrigerator or reconnect power.
1
ARMER
W
WARMER
1 2
R
F E R
3
3
O
C E R
4
L
O O C
5
2
FREEZER
3
3
G N I T
T E S
D E D
N E M
M O C
R
E R
O T A
R
E G I
4
G IN T
T E
S D E
D N
E M M
5
R E L
O O
C
S T N
E
M T S
U
J D A
N E E
W
T E B
S
R U O
H 4
2 W O
L L A
R E
First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)
to possibly avoid the cost of a service call.
In the U.S.A., www.whirlpool.com In Canada, www.whirlpool.ca
Refrigerator Operation
The refrigerator will not operate
WARNING
Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,
fire, or electrical shock.
Power cord unplugged? Plug into a grounded 3 prong outlet.
Outlet working? Plug in a lamp to see if the outlet is working.
Household fuse blown or circuit breaker tripped? Replace
the fuse or reset the circuit breaker. If the problem continues, call an electrician.
Controls on? Make sure the refrigerator controls are on. See
“Using the Control(s).”
New installation? Allow 24 hours following installation for the
refrigerator to cool completely. NOTE: Adjusting the temperature controls to coldest setting
will not cool either compartment more quickly.
The motor seems to run too much
Your new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The unit may run even longer if the room is warm, a large food load is added, doors are opened often, or if the doors have been left open.
The refrigerator seems noisy
Refrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with explanations.
Buzzing - heard when the water valve opens to fill the ice
maker
Pulsating - fans/compressor adjusting to optimize
performance
Hissing/Rattling - flow of refrigerant, movement of water
lines, or from items placed on top of the refrigerator
Sizzling/Gurgling - water dripping on the heater during
defrost cycle
Popping - contraction/expansion of inside walls, especially
during initial cool-down
Water running - may be heard when ice melts during the
defrost cycle and water runs into the drain pan
Creaking/Cracking - occurs as ice is being ejected from the
ice maker mold.
The doors will not close completely
Door blocked open? Move food packages away from door.
Bin or shelf in the way? Push bin or shelf back in the correct
position.
11
The doors are difficult to open
WARNING
Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.
Gaskets dirty or sticky? Clean gaskets and contact surfaces
with mild soap and warm water. Rinse and dry with soft cloth.
Temperature and Moisture
Temperature is too warm
New installation? Allow 24 hours following installation for the
refrigerator to cool completely.
Door(s) opened often or left open? Allows warm air to enter
refrigerator. Minimize door openings and keep doors fully closed.
Large load of food added? Allow several hours for
refrigerator to return to normal temperature.
Controls set correctly for the surrounding conditions?
Adjust the controls a setting colder. Check temperature in 24 hours. See “Using the Control(s).”
There is interior moisture buildup
NOTE: Some moisture buildup is normal.
Humid room? Contributes to moisture buildup.
Door(s) opened often or left open? Allows humid air to enter
refrigerator. Minimize door openings and keep doors fully closed.
Water filter installed on the refrigerator? Remove filter and
operate ice maker. If ice volume improves, then the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.
Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”
The ice cubes are hollow or small
NOTE: This is an indication of low water pressure.
Water shutoff valve not fully open? Turn the water shutoff
valve fully open.
Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line.
Water filter installed on the refrigerator? Remove filter and
operate ice maker. If ice quality improves, then the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.
Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”
Questions remain regarding water pressure? Call a
licensed, qualified plumber.
Off-taste, odor or gray color in the ice
New plumbing connections? New plumbing connections
can cause discolored or off-flavored ice.
Ice stored too long? Discard ice. Wash ice bin. Allow
24 hours for ice maker to make new ice.
Odor transfer from food? Use airtight, moisture proof
packaging to store food.
Are there minerals (such as sulfur) in the water? A water
filter may need to be installed to remove the minerals.
Water filter installed on the refrigerator? Gray or dark
discoloration in ice indicates that the water filtration system needs additional flushing. Flush the water system before using a new water filter. Replace water filter when indicated. See “Water Filtration System.”
The water dispenser will not operate properly
Ice and Water
The ice maker is not producing ice or not enough ice
Refrigerator connected to a water supply and the supply
shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.
Kink in the water source line? A kink in the line can reduce
water flow. Straighten the water source line.
Ice maker turned on? Make sure wire shutoff arm or switch
(depending on model) is in the ON position.
New installation? Wait 24 hours after ice maker installation
for ice production to begin. Wait 72 hours for full ice production.
Freezer door closed completely? Firmly close the freezer
compartment door. If the freezer compartment door will not close all the way, see “The doors will not close completely,” earlier in this section.
Large amount of ice recently removed? Allow 24 hours for
ice maker to produce more ice.
Ice cube jammed in the ice maker ejector arm?
Remove ice from the ejector arm with a plastic utensil.
12
Refrigerator connected to a water supply and the supply
shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.
Kink in the water source line? Straighten the water source
line.
New installation? Flush and fill the water system. See “Water
Dispenser.”
Is the water pressure at least 35 psi (241 kPa)? The water
pressure to the home determines the flow from the dispenser. See “Water Supply Requirements.”
Water filter installed on the refrigerator? Remove filter and
operate dispenser. If water flow increases, the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.
Refrigerator door closed completely? Close the door firmly.
If it does not close completely, see “The doors will not close completely,” earlier in this section.
Recently removed the doors? Make sure the water
dispenser wire/tube assembly has been properly reconnected. See “Refrigerator Doors.”
Reverse osmosis water filtration system connected to
your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”
Water is leaking from the dispenser system
Water from the dispenser is warm
NOTE: One or two drops of water after dispensing is normal.
Glass not being held under the dispenser long enough?
Hold the glass under the dispenser 2 to 3 seconds after releasing the dispenser lever.
New installation? Flush the water system. See “Water
Dispenser.”
Recently changed water filter? Flush the water system. See
“Water Dispenser.”
Water on the floor near the base grille? Make sure the water
dispenser tube connections are fully tightened. See “Refrigerator Doors.”
ACCESSORIES
To order stainless steel cleaner or replacement filters, call 1-800-442-9991 and ask for the part number listed below or contact your authorized Whirlpool dealer. In Canada, call 1-800-807-6777.
WATER FILTER CERTIFICATIONS
NOTE: Water from the dispenser is only chilled to 50°F (10°C).
New installation? Allow 24 hours after installation for the
water supply to cool completely.
Recently dispensed large amount of water? Allow 24 hours
for water supply to cool completely.
Water not been recently dispensed? The first glass of water
may not be cool. Discard the first glass of water.
Refrigerator connected to a cold water pipe? Make sure
the refrigerator is connected to a cold water pipe. See “Water Supply Requirements.”
Stainless Steel Cleaner and Polish:
Order Part #4396095 In Canada, Order Part #31462B Replacement Filter:
Order Part #4396701 (L200V / NL120V / NLC120V)
13
PRODUCT DATA SHEETS
®
Base Grille Water Filtration System
Model WF-L200V Capacity 200 Gallons (757 Liters)
Model WF-NL120V Capacity 120 Gallons (454 Liters)
System tested and certified by NSF International against NSF/ANSI Standard 53 for the reduction of Lead, Mercury, Benzene, p-dichlorobenzene, O-Dichlorobenzene, Toxaphene, Ethyl Benzene, 1,2,4-trichlorobenzene and against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor and Particulate Class III.
This system has been tested according to ANSI/NSF 42/53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in ANSI/NSF 42/53.
Substance Reduction Aesthetic Effects
Chlorine Taste/Odor Particulate Class lll
Contaminant Reduction
Lead:@ pH 6.5 Lead: @ pH 8.5
Mercury: @ pH 6.5 Mercury: @ pH 8.5
Benzene 0.005 mg/L 0.0157 mg/L 0.015 mg/L ± 10% 0.002 mg/L 0.00083 mg/L 87.26% 94.71% p-dichlorobenzene 0.075 mg/L 0.210 mg/L 0.225 mg/L ± 10% 0.0005 mg/L 0.0005 mg/L 99.76% 99.76% O-Dichlorobenzene 0.60 1.84 1.8 ± 10% 0.20 0.0418 89.13 97.73 Toxaphene 0.003 0.0143 0.015 ± 10% 0.0012 0.0010 91.60 93.00 Ethyl Benzene 0.70 2.00 2.1 ± 10% 0.40 0.085 80.00 95.75 1,2,4- trichlorobenzene 0.07 0.232 0.21 ± 10% 0.0041 0.0016 98.23 99.31
NSF Reduction Requirements
50%
*
85%
NSF Reduction Requirements
0.01mg/L
0.01mg /L
0.002 mg/L
0.002 mg/L
Average Influent
1.9 mg/L 49333/mL
Average Influent
0.14 mg/L
0.15 mg/L
0.0059 mg/L
0.0054 mg/L
Influent Challenge Concentration
2.0 mg/L ± 10% At least 10,000 particles/mL
Influent Challenge Concentration
0.15 mg/L ± 10%
0.15 mg /L ± 10%
0.006 mg/L ± 10%
0.006 mg /L ± 10%
Maximum Effluent
0.07 mg/L 640/mL**
Maximum Effluent
0.0014 mg/L
0.0069 mg/L
0.0009 mg/L
0.0007mg /L
Average Effluent
0.06 mg/L 312/mL
Average Effluent
0.0011 mg/L
0.0042 mg/L
0.0004 mg/L
0.00043 mg/L
Minimum% Reduction
>75%
98.7%
Minimum% Reduction
99.00%
95.40%%
84.74%
87.03%
Average% Reduction
>75%
99.0%
Average% Reduction
99.21%
97.20%
93.22%
92.03%
Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 63°F (17.2°C).
It is essential that operational, maintenance, and filter
replacement requirements be carried out for the product to perform as advertised.
Model WF-L200V: The filter monitor system measures the
Refer to the front cover or “Accessories” section for the
Manufacturer’s name, address and telephone number.
Refer to the “Warranty” section for the Manufacturer’s limited
warranty. amount of water that passes through the filter and alerts you to replace the filter. When 90% of the filter’s rated life is used, the filter indicator light changes from green to yellow. When 100% of the filter’s rated life is used, the filter indicator light changes from yellow to red, and it is recommended that you replace the filter. Use replacement filter L200V / NL120V, part #4396701. 2007 suggested retail price of $34.99 U.S.A./ $45.99 Canada. Prices are subject to change without notice.
Application Guidelines/Water Supply Parameters
Water Supply Water Pressure Water Temperature Service Flow Rate
City or Well 30 - 120 psi (207 - 827 kPa) 33° - 100°F (0.6° - 37.8°C)
0.5 GPM (1.9 L/min.) @ 60 psi
Model WF-NL120V: Change the water filter every 6 months. Use replacement filter L200V / NL120V, part #4396701. 2007 suggested retail price of $34.99 U.S.A./ $45.99 Canada. Prices are subject to change without notice.
The product is for cold water use only.
Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the system.
Class Ill particle size: > 5 to < 15 um
*
Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.
**
These contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.
NSF is a registered trademark of NSF International.
14
Base Grille Water Filtration System
Model WF-NLC120V Capacity 120 Gallons (454 Liters)
System tested and certified by NSF International against NSF/ANSI Standard 53 for the reduction of Lead, Mercury, Benzene, p-dichlorobenzene, Cysts, Turbidity, Asbestos, Endrin, O-Dichlorobenzene, Toxaphene, Ethyl Benzene, 1,2,4-trichlorobenzene and against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor and Particulate Class I.
This system has been tested according to ANSI/NSF 42/53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in ANSI/NSF 42/53.
Substance Reduction Aesthetic Effects
Chlorine Taste/Odor Particulate Class l
Contaminant Reduction
Lead: @ pH 6.5 Lead: @ pH 8.5
Mercury: @ pH 6.5 Mercury: @ pH 8.5
Benzene 0.005 mg/L 0.0153 mg/L 0.015 mg/L ± 10% 0.0036 mg/L 0.0014 mg/L 76.47% 90.84% p-dichlorobenzene 0.075 mg/L 0.215 mg/L 0.225 mg/L ± 10% 0.0037 mg/L 0.0010 mg/L 98.27% 99.52% Asbestos 99.0%** 842 x 10
Cysts Turb idit y
Endrin 0.002 0.0056 0.006 ± 10% 0.0007 0.0004 87.50 92.85 O-Dichlorobenzene 0.60 1.84 1.8 ± 10% 0.33 0.071 82.06 96.14 Toxaphene 0.003 0.0143 0.015 ± 10% 0.001 0.001 93.00 93.00 Ethyl Benzene 0.70 2.00 2.1 ± 10% 0.60 0.169 70.00 91.55 1,2,4- trichlorobenzene 0.07 0.232 0.21 ± 10% 0.0025 0.0007 98.92 99.69
NSF Reduction Requirements
50%
*
85%
NSF Reduction Requirements
0.01mg/L
0.01mg /L
0.002 mg/L
0.002 mg/L
99.95%
0.5 NTU
Average Influent
1.9 mg/L 5,300,000/mL
Average Influent
0.14 mg/L
0.15 mg /L
0.0058 mg/L
0.0055 mg/L
165,500/mL
11.75 NTU
7
Influent Challenge Concentration
2.0 mg/L ± 10% At least 10,000 particles/mL
Influent Challenge Concentration
0.15 mg/L ± 10%
0.15 mg /L ± 10%
0.006 mg/L ± 10%
0.006 mg /L ± 10%
107 to 108 fibers/L 50,000/L min.
11 ± 1 NTU
††
Maximum Effluent
0.12 mg/L 50,000/mL**
Maximum Effluent
0.001 mg/L
0.001 mg/L
0.0005 mg/L
0.0013 mg /L
1.6 x 107 mg/L 1.6 x 107 mg/L 99.81 99.81% 1 mg/L
0.38 NTU
Average Effluent
0.08 mg/L 15,725/mL
Average Effluent
0.001 mg/L
0.001 mg/L
0.0003 mg/L
0.0005 mg/L
1 mg/L
0.22 NTU
Minimum% Reduction
>75%
99.0%
Minimum% Reduction
99.29%
99.32%
91.37%
76.36%
99.99%
96.76%
Average% Reduction
>75%
99.7%
Average% Reduction
99.29%
99.32%
94.82%
90.90%
99.99%
98.12%
Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 63°F (17.2°C).
It is essential that operational, maintenance, and filter
replacement requirements be carried out for the product to
Refer to the “Warranty” section for the Manufacturer’s limited
warranty. perform as advertised.
Model WF-NLC120V: Change the water filter every 6 months.
Use replacement cartridge NLC120V, part #4396701. 2007 suggested retail price of $34.99 U.S.A./$45.99 Canada. Prices are subject to change without notice.
The product is for cold water use only.
Do not use with water that is microbiologically unsafe or of
Application Guidelines/Water Supply Parameters
Water Supply Water Pressure Water Temperature Service Flow Rate
City or Well 30 - 120 psi (207 - 827 kPa) 33° - 100°F (0.6° - 37.8°C)
0.5 GPM (1.89 L/min.) @ 60 psi
unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.
Refer to the front cover or “Accessories” section for the
Manufacturer’s name, address and telephone number.
Class I particle size: >0.5 to <1 um
*
Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.
**
These contaminants are not necessarily in your water supply. Performance may vary based on local water conditions.
††
Fibers greater than 10 um in length
Based on the use of Cryptosporidium parvum oocysts
® NSF is a registered trademark of NSF International.
15
Loading...
+ 34 hidden pages
