REFRIGERATOR USER INSTRUCTIONS

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING, please visit our website at www.whirlpool.com for additional information. If you still need assistance, call us at 1-800-253-1301. In Canada, visit our website at www.whirlpool.ca or call us at 1-800-807-6777.

You will need your model and serial number, located on the inside wall of the refrigerator compartment.

Table of Contents / Índice / Table des matières

REFRIGERATOR SAFETY ................................1

INSTALLATION INSTRUCTIONS.....................2

REFRIGERATOR USE.......................................9

REFRIGERATOR CARE ..................................10

TROUBLESHOOTING .....................................11

WARRANTY .....................................................13

SEGURIDAD DEL REFRIGERADOR..............14

INSTRUCCIONES DE INSTALACIÓN............15

USO DE SU REFRIGERADOR........................22

CUIDADO DE SU REFRIGERADOR ..............23

SOLUCIÓN DE PROBLEMAS ........................24

GARANTÍA .......................................................26

SÉCURITÉ DU RÉFRIGÉRATEUR .................27

INSTRUCTIONS D’INSTALLATION ...............28

UTILISATION DU RÉFRIGÉRATEUR.............35

ENTRETIEN DU RÉFRIGÉRATEUR...............37

DÉPANNAGE ...................................................38

GARANTIE .......................................................40

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

follow instructions.

can be killed or seriously injured if you don't

You instructions.

W10214256A

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electric shock, or injury to persons when using the refrigerator, follow basic precautions,

WARNING:

including the following:

■

Plug into a grounded 3 prong outlet.

■

Do not remove ground prong.

■

Do not use an adapter.

■

Do not use an extension cord.

■

Disconnect power before servicing.

■

Replace all parts and panels before operating.

■

Remove doors from your old refrigerator.

Use nonflammable cleaner.

■

Keep flammable materials and vapors, such as gasoline,

away from refrigerator.

■

Use two or more people to move and install refrigerator.

■

Disconnect power before installing ice maker (on ice maker

kit ready models only).

SAVE THESE INSTRUCTIONS

Proper Disposal of Your Old Refrigerator

WARNING

Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

INSTALLATION INSTRUCTIONS

Unpack the Refrigerator

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

Remove the Packaging

■ Remove tape and glue residue from surfaces before turning

on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

■ Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see “Refrigerator Safety.”

Before You Throw Away Your Old Refrigerator or Freezer:

■ Take off the doors.

■ Leave the shelves in place so that children may not easily

climb inside.

■ On some models, shelves, bins, door shelf rails, and other

feature parts may be packaged in the Interior FeaturePak. Follow the instructions contained in the package for proper assembly.

■ There are four bolts that secure the refrigerator to the shipping

case. Keep these bolts because they are the refrigerator's leveling legs.

■ Dispose of/recycle all packaging materials.

IMPORTANT: Do not remove the white foam air return insert that is located behind the control panel on the ceiling of the refrigerator (on some models). The insert is part of the refrigerator and not part of the packing material. If the insert is removed, ice may migrate down from the freezer and cause icicles to form.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or “walk” the refrigerator when trying to move it, as floor damage could occur.

Clean Before Using

After you remove all of the package materials, clean the inside of your refrigerator before using it. See the cleaning instructions in “Refrigerator Care.”

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

Location Requirements

Electrical Requirements

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

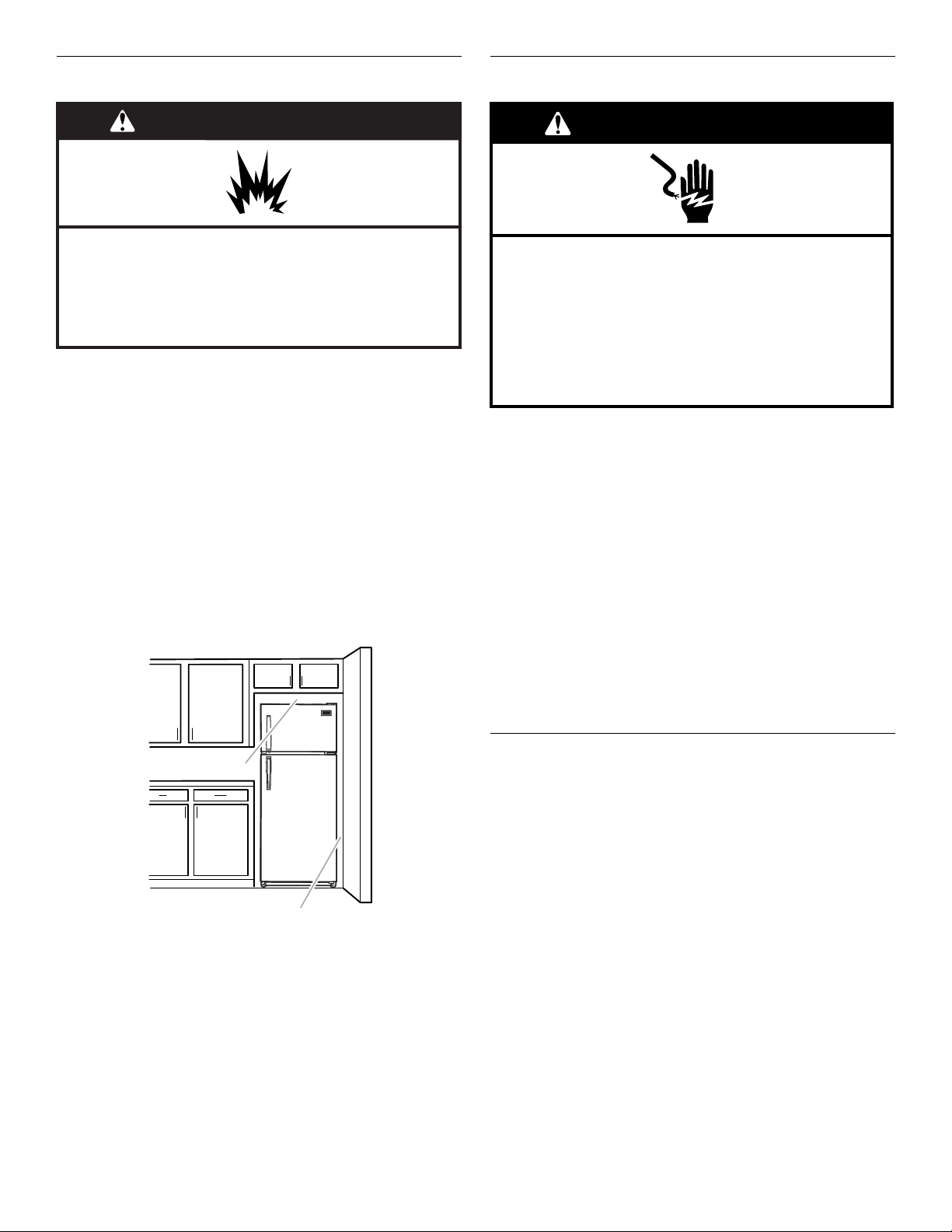

To ensure proper ventilation for your refrigerator, allow for a ¹⁄₂" (12.70 mm) space on each side. Allow 3" (7.5 cm) of space between overhead cabinets and refrigerator top. Allow at least 1" (25.40 mm) between back of cabinet and the wall. If your refrigerator has an ice maker, make sure you leave some extra space at the back for the water line connections.

■ If you are installing your refrigerator next to a fixed wall, leave

2" (5.08 cm) minimum on the hinge side (depending on your model) to allow for the door to swing open.

■ Level the refrigerator. See “Adjust the Doors.”

NOTE: It is recommended that you do not install the refrigerator near an oven, radiator, or other heat source. Do not install in a location where the temperature will fall below 55°F (13°C).

3" (7.5 cm)

Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the control (Thermostat, Refrigerator or Freezer Control depending on the model) OFF and then disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and reset the control (Thermostat, Refrigerator or Freezer Control depending on the model) to the desired setting. See “Using the Control(s).”

Water Supply Requirements

Read all directions before you begin.

IMPORTANT:

■ If you turn the refrigerator on before the water line is

connected, turn the ice maker OFF.

■ All installations must meet local plumbing code requirements.

■ Use copper tubing and check for leaks. Install copper tubing

only in areas where the household temperatures will remain above freezing.

TOOLS NEEDED: Flat-blade screwdriver, ⁷⁄₁₆" and ¹⁄₂" open-end wrenches or 2 adjustable wrenches, ¹⁄₄" nut driver and drill bit, cordless drill. Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed.

NOTE: Your refrigerator dealer has a kit available with a ¹⁄₄" (6.35 mm) saddle-type shutoff valve, a union, and copper tubing. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. Do not use a piercing-type or ³⁄₁₆" (4.76 mm) saddle valve which reduces water flow and clogs more easily.

2" (5.08 cm)

Water Pressure

A cold water supply with water pressure of between 30 and 120 psi (207 and 827 kPa) is required to operate the ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the ice maker is still not operating properly:

■ Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

■ Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

If you have questions about your water pressure, call a licensed, qualified plumber.

Connect the Water Supply

(on some models)

Read all directions before you begin. IMPORTANT: If you turn the refrigerator on before the water line is

connected, turn the ice maker OFF.

Connect to Water Line

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Locate a ¹⁄₂" to 1¹⁄₄" (1.27 cm to 3.18 cm) vertical cold water

pipe near the refrigerator.

IMPORTANT:

■ Make sure it is a cold water pipe.

■ Horizontal pipe will work, but drill on the top side of the

pipe, not the bottom. This will help keep water away from the drill and normal sediment from collecting in the valve.

4. Determine the length of copper tubing you will need. Measure

from the connection on lower left rear of refrigerator to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use ¹⁄₄" (6.35 mm) O.D. (outside diameter) copper tubing. Be sure both ends of copper tubing are cut square.

5. Using a cordless drill, drill a ¹⁄₄" hole in the cold water pipe you

have selected.

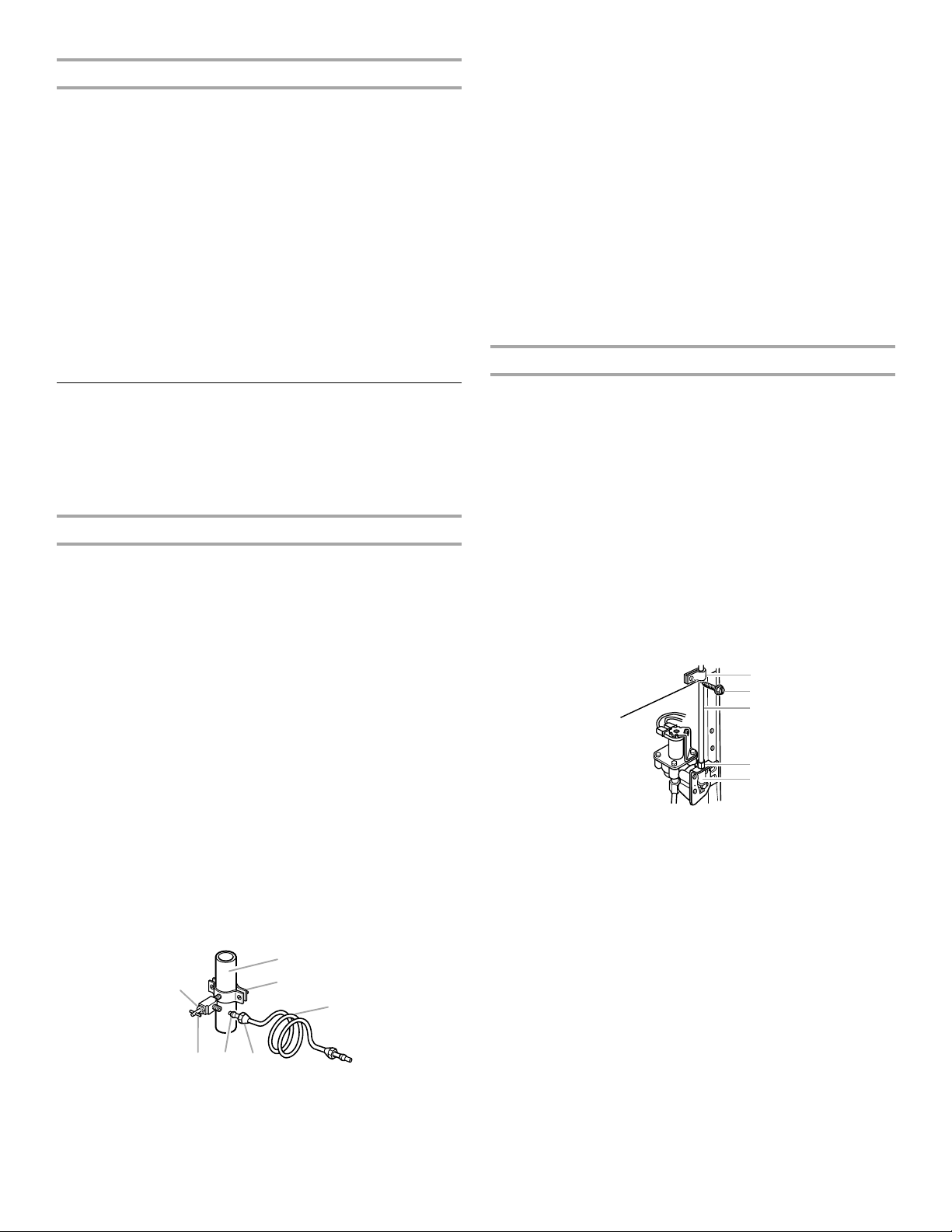

A. Cold water pipe B. Pipe clamp C. Copper tubing D. Compression nut

DEF

E. Compression sleeve F. Sh u t of f va l ve

G. Packing nut

6. Fasten the shutoff valve to the cold water pipe with the pipe

clamp. Be sure the outlet end is solidly in the ¹⁄₄" drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws slowly and evenly so washer makes a watertight seal. Do not overtighten or you may crush the copper tubing.

7. Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten.

8. Place the free end of the tubing in a container or sink, and turn

ON the main water supply. Flush the tubing until water is clear. Turn OFF the shutoff valve on the water pipe. Coil the copper tubing.

Connect to Refrigerator

NOTE: On kit models, assemble water valve to refrigerator per kit

instructions.

Style 1

1. Unplug refrigerator or disconnect power.

2. Attach the copper tube to the valve inlet using a compression

nut and sleeve as shown. Tighten the compression nut. Do not overtighten.

3. Use the tube clamp on the back of the refrigerator to secure

the tubing to the refrigerator as shown. This will help avoid damage to the tubing when the refrigerator is pushed back against the wall.

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any connections (including

connections at the valve) or nuts that leak.

A B

D E

A. Tube clamp B. Tube clamp screw C. Copper tubing

D. Compression nut

E. Valve inlet

6. The ice maker is equipped with a built-in water strainer. If your

water conditions require a second water strainer, install it in the ¹⁄₄" (6.35 mm) water line at either tube connection. Obtain a water strainer from your nearest appliance dealer.

Style 2

1. Unplug refrigerator or disconnect power.

2. Disconnect the tube clamp on the back of the product and

insert the copper tubing through the clamp as shown.

3. Attach the copper tube to the valve inlet using a compression

nut and sleeve as shown.

4. Tighten the compression nut. Do not overtighten. Reattach the

tube clamp and tube to the back of the cabinet.

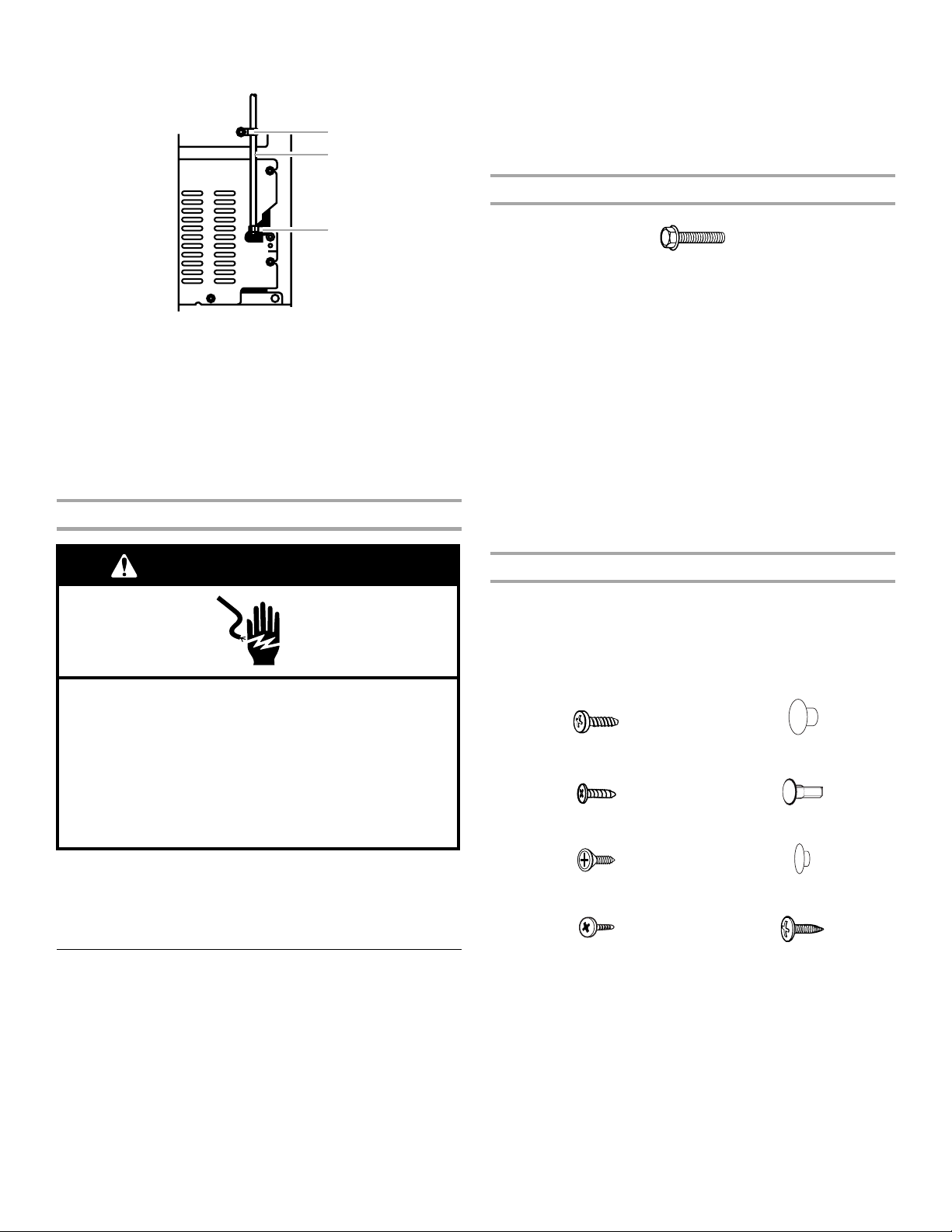

A. Tube clamp B. Copper tubing

C. Compression nut

5. Turn shutoff valve ON. Check for leaks. Tighten any

connections (including connections at the valve) or nuts that leak.

6. The ice maker is equipped with a built-in water strainer. If your

water conditions require a second water strainer, install it in the ¹⁄₄" (6.35 mm) water line at either tube connection. Obtain a water strainer from your nearest appliance dealer.

Complete the Installation

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

Refrigerator Doors

TOOLS NEEDED: ⁵⁄₁₆" hex-head socket wrench, #2 Phillips screwdriver, flat-blade screwdriver, ⁵⁄₁₆" open-end wrench, flat 2" putty knife.

IMPORTANT:

■ Before you begin, turn the refrigerator control OFF. Unplug

refrigerator or disconnect power.

■ Remove food and adjustable door or utility bins from doors.

■ If you are only removing and replacing the doors, see the

“Remove Doors and Hinges” and “Replace Doors and Hinges” sections.

■ Depending on your model, you may have standard (Style 1) or

contoured (Style 2) doors. If you are also going to reverse the door swing, follow the instructions for the appropriate door style.

Remove Doors and Hinges

⁵⁄₁₆" Hex-Head Hinge Screw

1. Unplug refrigerator or disconnect power.

2. Close the refrigerator door and keep both doors closed until

you are ready to lift them free from the cabinet. NOTE: Provide additional support for the doors while the

hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.

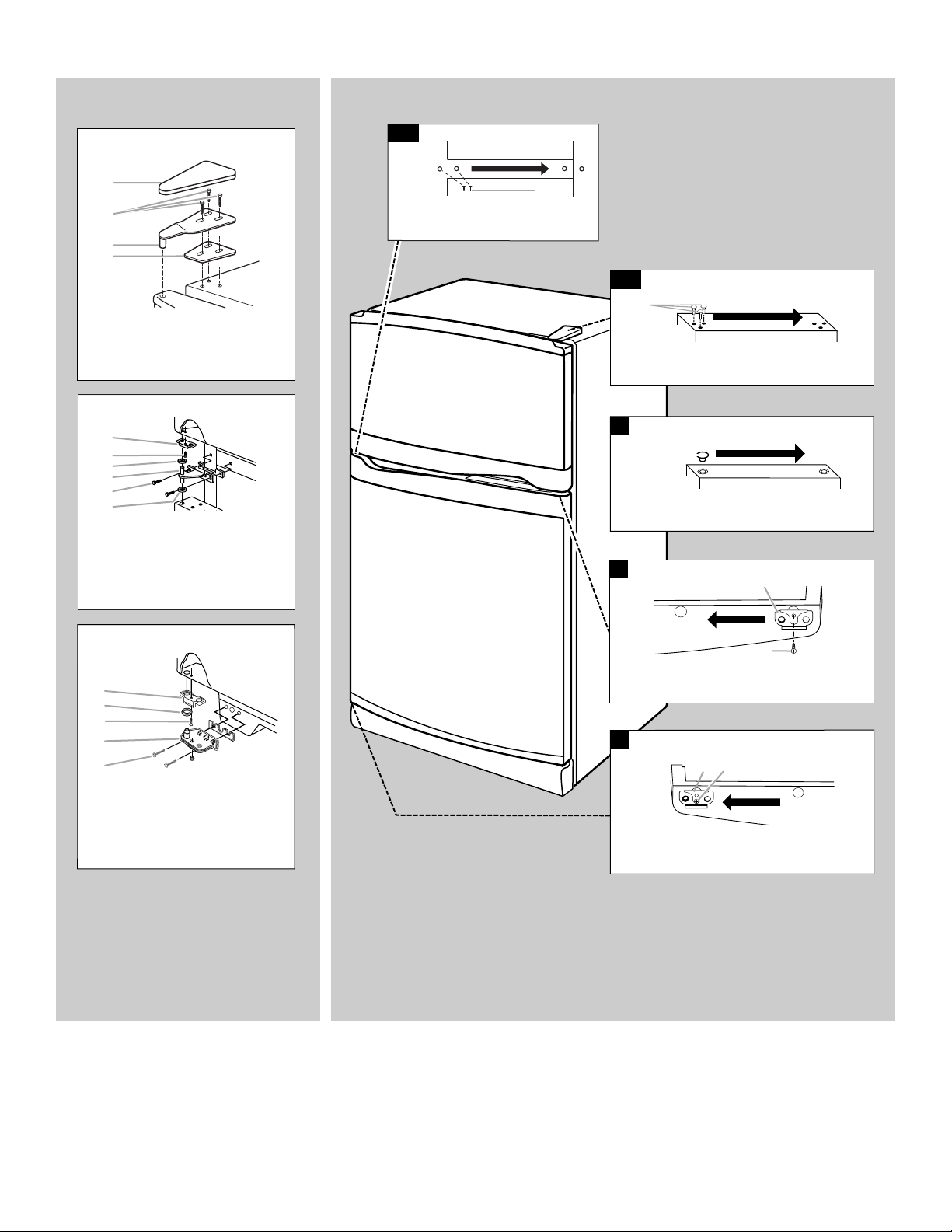

3. Remove the parts for the top hinge as shown in Top Hinge

graphic. Lift the freezer door free from the cabinet.

4. Remove the parts for the center hinge as shown in the Center

Hinge graphic. Lift the refrigerator door free from the cabinet.

5. Remove the parts for the bottom hinge as shown in the

Bottom Hinge graphic.

Reverse Doors (optional)

IMPORTANT: If you want to reverse your doors so that they open

in the opposite direction, follow these steps. If you are not reversing the doors, see “Replace Doors and Hinges.”

Style 1 - Standard

Graphics follow these instructions.

1. Plug into a grounded 3 prong outlet. NOTE: Allow 24 hours to produce the first batch of ice. Discard

the first three batches of ice produced. Allow 3 days to completely fill ice container.

Door Stop Screw

Door Handle Sealing Screw

Flat-Head Handle Screw

Door Handle Seal Screw Front

Door Hinge Hole Plug

Cabinet Hinge Hole Plug

Door Handle Screw Cover

Round-Head Handle Scre

Cabinet

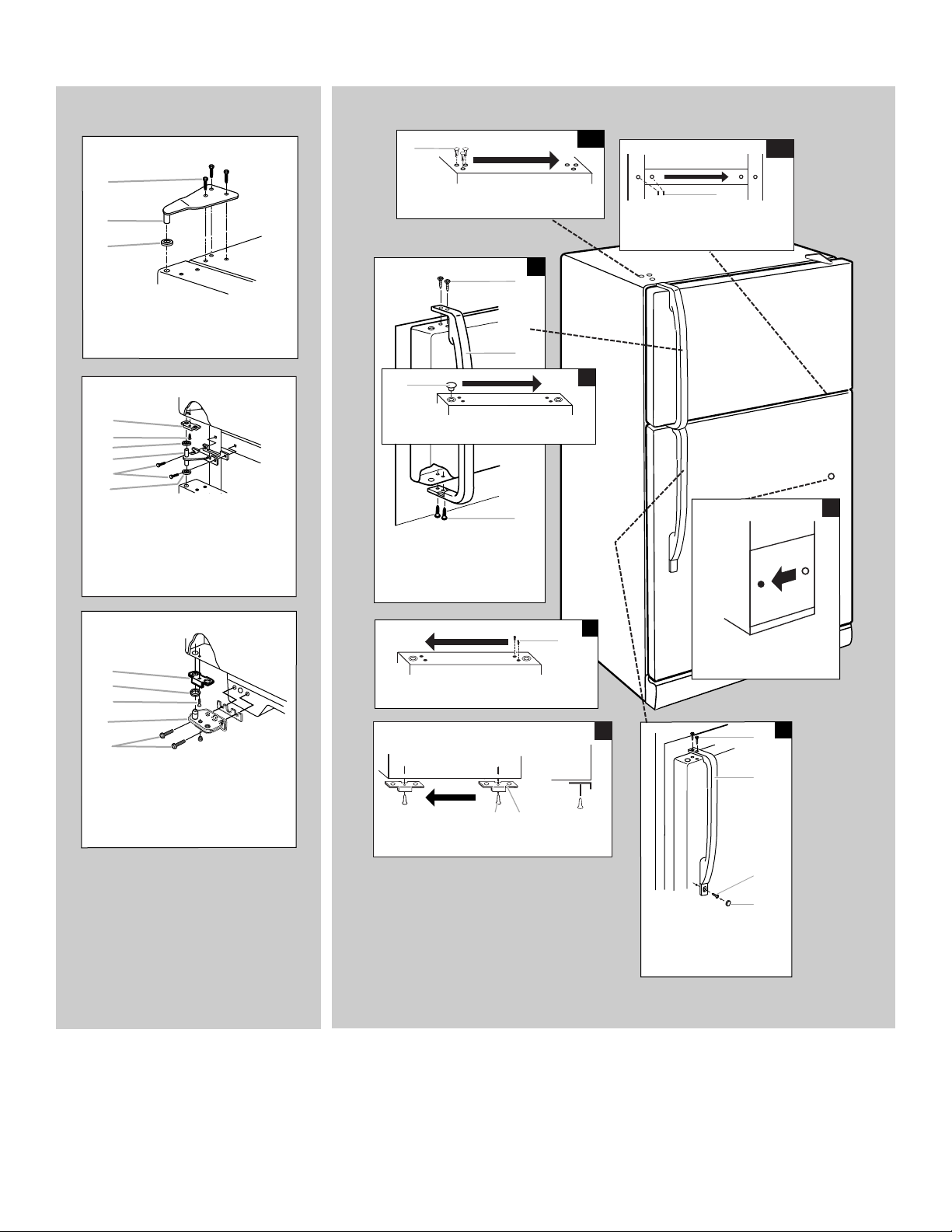

1. Remove ⁵⁄₁₆" hex-head hinge screws from handle side and

move them to opposite side. See Graphic 1-1.

2. Remove cabinet hinge hole plugs from cabinet top and

move them to opposite side hinge holes as shown. See Graphic 1-2.

Freezer door

1. Remove freezer handle assembly as shown. Keep all parts

together. See Graphic 2.

2. Remove door hinge hole plug. Move to opposite side as

shown. See Graphic 3.

3. Remove door handle sealing screws. Move to opposite side of

freezer door as shown. See Graphic 4.

4. Remove door stop. Move to opposite side of freezer door as

shown. See Graphic 5.

5. Position freezer handle on opposite side of freezer door.

Assemble handle on door as shown. See Graphic 2.

6. Tighten all screws. Set aside door until hinges and refrigerator

compartment door are in place.

Refrigerator door

1. Remove the screw cover. See Graphic 6.

2. Remove refrigerator handle assembly as shown. Keep all

parts together. See Graphic 6.

3. Remove door hinge hole plug from refrigerator door. Move to

opposite side hinge hole as shown. See Graphic 3.

4. Remove door handle sealing screws. Move to opposite side of

refrigerator door as shown. See Graphic 4.

5. Remove door handle seal screw front. Move to opposite side

of refrigerator door as shown. See Graphic 7.

6. Remove door stop. Move to opposite side of refrigerator door

as shown. See Graphic 5.

7. Position refrigerator handle on opposite side of the refrigerator

door as shown. See Graphic 6. Drive top two screws in handle first. Align lower portion of handle and drive bottom screw.

8. Replace screw cover. See Graphic 6.

9. Tighten all screws. Set aside refrigerator door until bottom

hinge is installed on refrigerator.

Style 2 - Contoured

Graphics follow these instructions.

Door Hinge

Hole Plug

Cabinet Hing

Hole Plug

Replace Doors and Hinges

NOTE: Graphic may be reversed if door swing is reversed.

1. Replace the parts for the bottom hinge as shown. Tighten

screws. Replace the refrigerator door. NOTE: Provide additional support for the doors while the

hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.

2. Assemble the parts for the center hinge as shown and tighten

all screws. See Center Hinge graphic. Replace the freezer door.

3. Assemble the parts for the top hinge as shown. See Top Hinge

graphic. Do not tighten screws completely.

4. Line up the doors so that the bottom of the freezer door aligns

evenly with the top of the refrigerator door. Tighten all screws.

Final Steps

1. Check all holes to make sure that hole plugs and screws are in

place. Reinstall top hinge cover. See Top Hinge graphic.

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

Cabinet

1. Remove ⁵⁄₁₆" hex-head hinge screws from handle side and

move them to opposite side. See Graphic 1-1.

2. Remove cabinet hinge hole plugs from the cabinet top and

move them to opposite side hinge holes as shown. See Graphic 1-2.

Doors

1. Remove door hinge hole plug from top of freezer door. Move

to opposite side as shown. See Graphic 2.

2. Remove door stop from both the freezer and refrigerator

doors and move to the other side. See Graphic 3.

2. Plug into a grounded 3 prong outlet.

3. Reset the controls. See “Using the Control(s).”

4. Return all removable door parts to doors and food to

refrigerator.

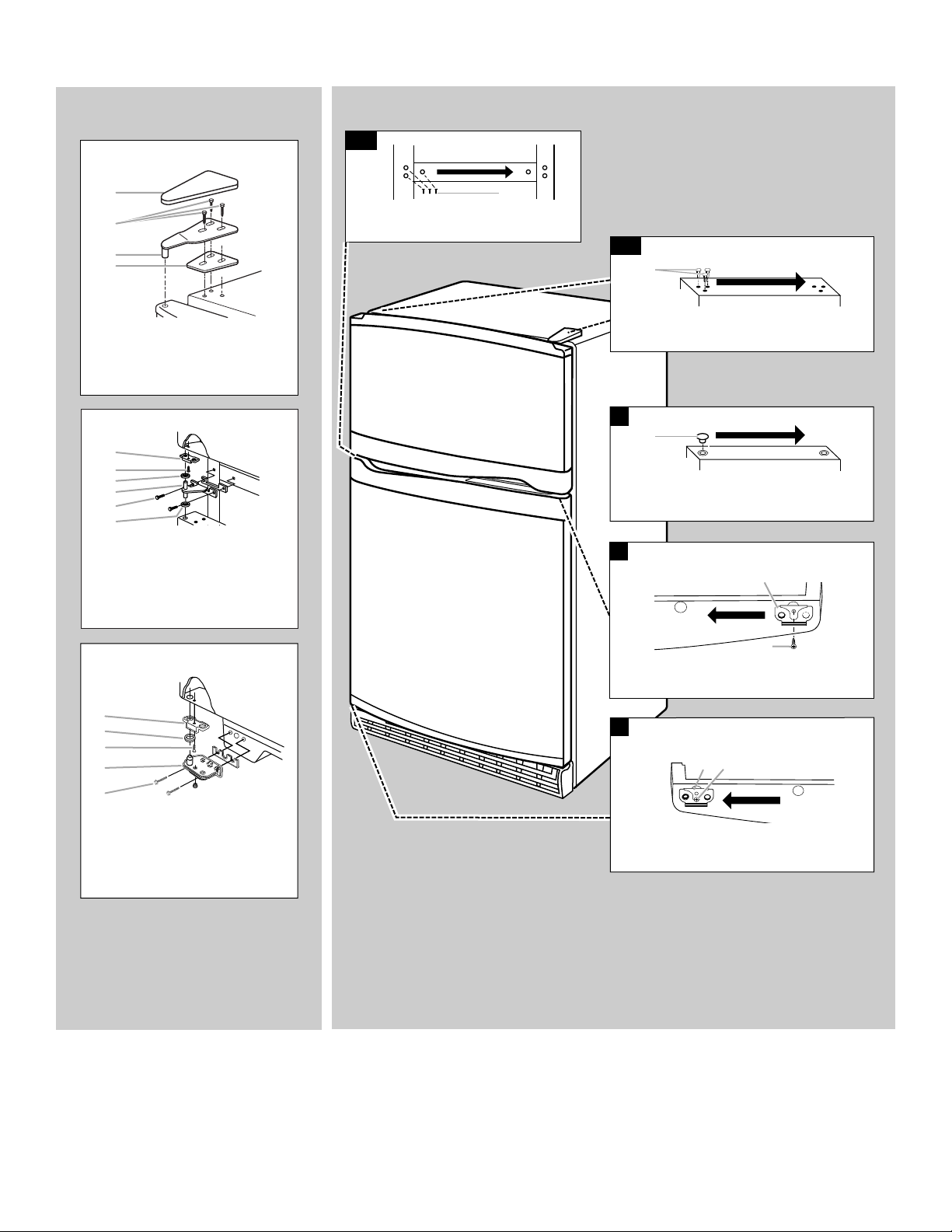

Style 1 - Standard

Door Removal &

Replacement

Top Hinge

A. 5/16" Hex-Head Hinge Screws B. Top Hinge C. Spacer

Center Hinge

B C D

E F

A. Door Stop B. Door Stop Screw

C. Spacer

D. Center Hinge

E. 5/16" Hex-Head Hinge Screws

F. Spacer

Bottom Hinge

A B C

Door Swing Reversal (optional)

A. Cabinet Hinge Hole Plugs

A. Door Hinge Hole Plug

A. Flat-Head Handle Screws B. Freezer Handle

A. Door Handle Sealing Screws

Front View

Side View

1-2

/16" Hex-Head Hinge

Screws and Washers

1-1

A. Door Handle

Seal Screw Front

A. Door Stop B. Spacer

C. Door Stop Screw

D. Bottom Hinge

E. 5/16" Hex-Head Hinge Screws

A. Door Stop Screw B. Door Stop

A. Flat-Head Handle Screw

B. Refrigerator Handle C. Handle Screw

D. Screw Cover

Style 2 - Contoured

Door Removal &

Replacement

Top Hinge

C D

A. Top Hinge Cover

/16" Hex-Head Hinge Screws C. Top Hinge D. Spacer

Center Hinge

A B

C D

E F

A. Door Stop B. Door Stop Screw

C. Spacer

D. Center Hinge

E. 5/16" Hex-Head Hinge Screws

F. Spacer

1-1

Door Swing Reversal (optional)

A. 5/16" Hex-Head Hinge

Screws and Washers

1-2

A. Cabinet Hinge Hole Plugs

A. Door Hinge Hole Plug

Removal of Door Stops

Bottom Hinge

A B

A. Door Stop B. Spacer

C. Door Stop Screw

D. Bottom Hinge

E. 5/16" Hex-Head Hinge Screws

A. Door Stop B. Door Stop Screw

Reinstallation of Door Stops

A. Door Stop B. Door Stop Screw

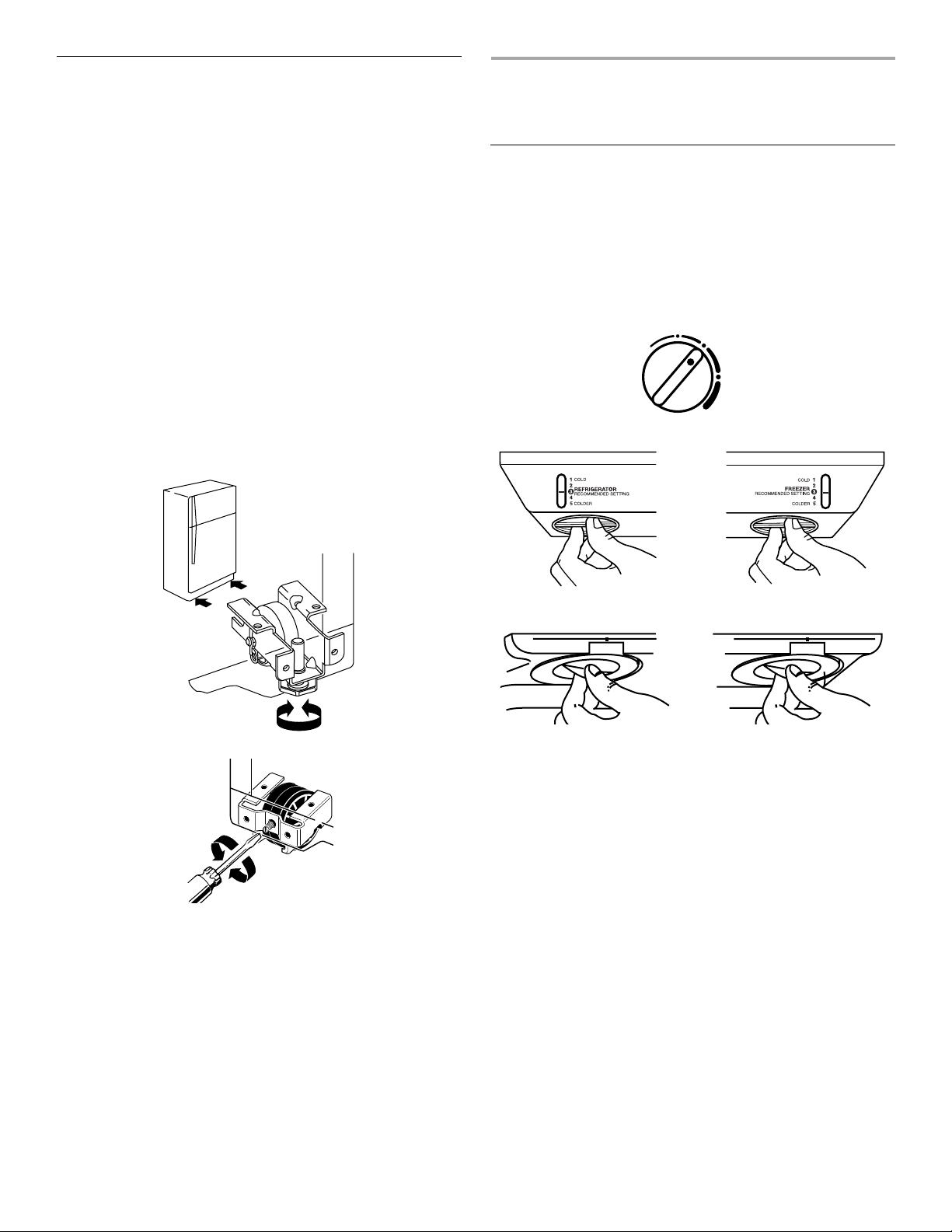

Adjust the Doors

Your refrigerator has two front adjustable rollers – one on the right and one on the left. If your refrigerator seems unsteady or you want the doors to close easier, adjust the refrigerator's tilt using the instructions below.

Depending on your model, your refrigerator may have leveling legs (Style 1) or leveling screws (Style 2). They are part of the front roller assemblies which are found at the base of the refrigerator on either side.

1. Turn the leveling legs or leveling screws to the right to raise

that side of the refrigerator or to the left to lower that side. It may take several turns to adjust the tilt of the refrigerator.

NOTE: Having someone push against the top of the refrigerator takes some weight off the leveling screws and rollers. This makes it easier to adjust the screws.

2. Open both doors again and be sure that they close as easily

as you like. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws to the right. It may take several more turns, and you should turn both leveling screws the same amount.

Style 1

REFRIGERATOR USE

Using the Controls

For your convenience, your refrigerator controls are preset at the factory. When you first install your refrigerator, make sure that the controls are still preset to the mid-settings as shown.

NOTE: To turn your refrigerator off, turn the refrigerator control to the word OFF or until the word OFF appears. Your product will not cool when the refrigerator control is set to OFF.

Mid-setting “3”

Mid-setting “4”

normal

coldestoff

Style 2

3. Using a level, be sure that the refrigerator is still level side to

side. Readjust if necessary.

REFRIGERATOR

FREEZER

IMPORTANT:

■ Give your refrigerator time to cool down completely before

adding food. It is best to wait 24 hours before you put food into the refrigerator.

■ If you add food before the refrigerator has cooled completely,

your food may spoil. Adjusting the Refrigerator and Freezer Controls to a higher (colder) than recommended setting will not cool the compartments any faster.

Adjusting Controls

The mid-settings indicated in the previous section should be correct for normal household usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked.

If you need to adjust temperatures, use the settings listed in the chart below as a guide. On models with two controls, adjust the refrigerator temperature first. Wait at least 24 hours between adjustments and then recheck the temperatures.

CONDITION/REASON: ADJUSTMENT:

REFRIGERATOR section too warm

- Door opened often, large amount of food added or room temperature very warm

FREEZER section too warm/ice not made fast enough

- Door opened often, or large amount of food added or very cold room temperature (can’t cycle often enough)

- Heavy ice usage

Adjust REFRIGERATOR or TEMPERATURE Control one setting higher

Adjust FREEZER or TEMPERATURE Control one setting higher

Remember

■ Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced.

■ The quality of your ice will be only as good as the quality of the

water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.

■ Do not store anything on top of the ice maker or in the ice

storage bin.

REFRIGERATOR section too cold

- Controls not set correctly for your conditions

FREEZER section too cold

- Controls not set correctly for your conditions

Adjust REFRIGERATOR or TEMPERATURE Control one setting lower

Adjust FREEZER or TEMPERATURE Control one setting lower

Ice Maker

(on some models - Accessory)

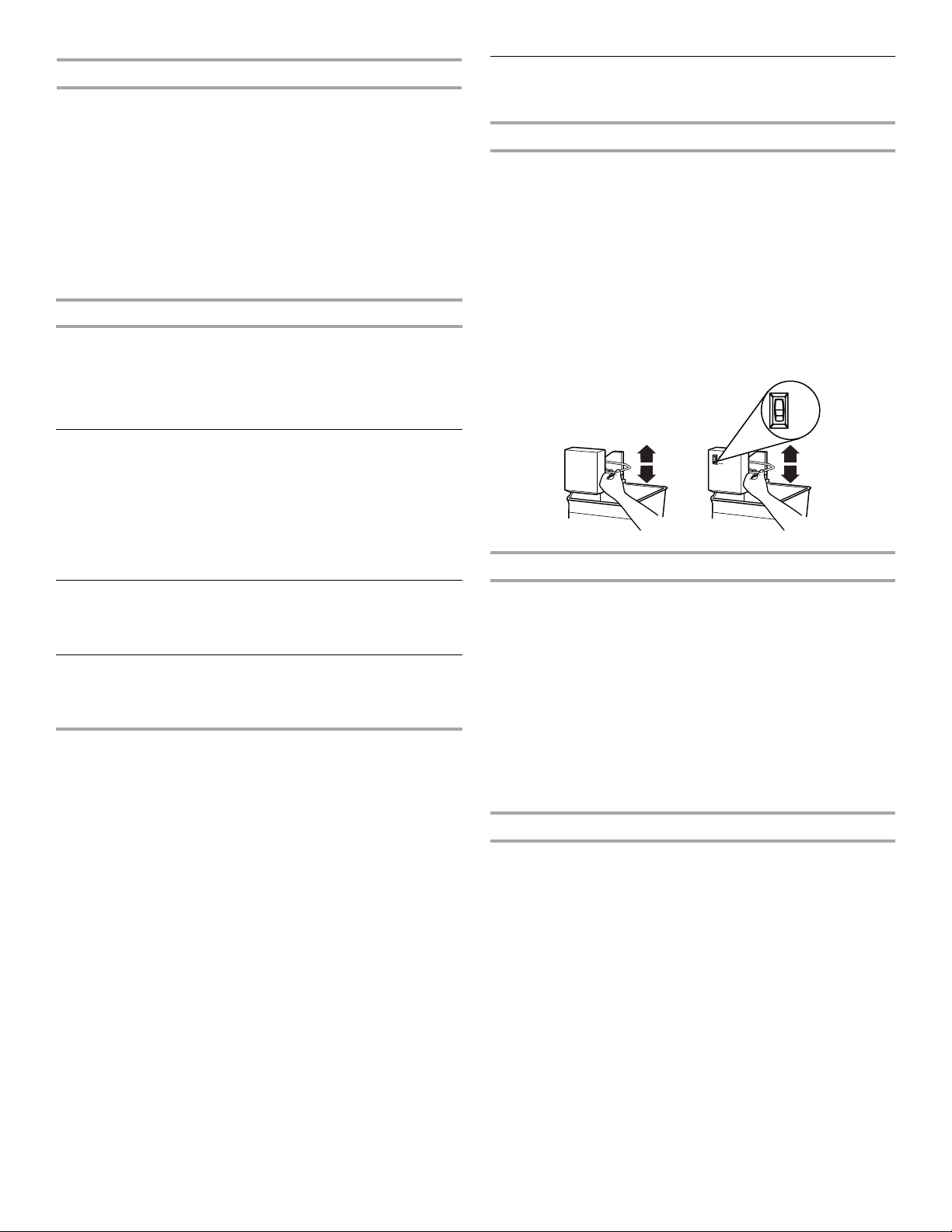

Turning the Ice Maker On/Off

NOTE: Do not force the wire shutoff arm up or down.

■ To turn the ice maker on, simply lower the wire shutoff arm.

NOTE: Your ice maker has an automatic shutoff. As ice is made, the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position.

■ To manually turn the ice maker off, lift the wire shutoff arm to

the OFF (arm up) position and listen for the click to make sure the ice maker will not continue to operate.

MAX

NORMAL

Ice Production Rate

■ NORMAL Ice Production: The ice maker should produce

approximately 8 to 12 batches of ice in a 24-hour period. If ice is not being made fast enough, turn the Freezer Control toward a higher (colder) number in half number steps. (For example, if the control is at 3, move it to between 3 and 4.) Wait 24 hours and, if necessary, gradually turn the Freezer Control to the highest setting, waiting 24 hours between each increase.

■ MAXIMUM Ice Production (on some models): The ice maker

should produce approximately 16 to 20 batches of ice in a 24hour period. If your refrigerator has the maximum ice production feature, push the switch to MAX.

REFRIGERATOR CARE

Cleaning

WARNING

Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost automatically. However, clean both compartments about once a month to avoid buildup of odors. Wipe up spills immediately.

IMPORTANT:

■ Because air circulates between both sections, any odors

formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To avoid odor transfer and drying out of food, wrap or cover foods tightly.

■ For stainless steel models, stainless steel is corrosion-

resistant and not corrosion-proof. To help avoid corrosion of your stainless steel, keep your surfaces clean by using the following cleaning instructions.

To Clean Your Refrigerator:

NOTE: Do not use abrasive or harsh cleaners such as window

sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

1. Unplug refrigerator or disconnect power.

2. Hand wash, rinse, and dry removable parts and interior

surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.

3. Clean the exterior surfaces. Painted metal: Wash painted metal exteriors with a clean,

soft cloth or sponge and a mild detergent in warm water. Rinse surfaces with clean, warm water and dry immediately to avoid water spots.

Stainless steel: Wash stainless steel surfaces with a clean, soft cloth or sponge and a mild detergent in warm water. Rinse surfaces with clean, warm water and dry immediately to avoid water spots.

NOTE: When cleaning stainless steel, always wipe with the grain to avoid cross-grain scratching.

4. Clean the condenser coils regularly. Coils may need to be

cleaned as often as every other month. This may help save energy.

■ Pull refrigerator out away from the wall. See “Unpack the

Refrigerator.”

■ Vacuum coils when they are dusty or dirty.

■ Roll refrigerator back into place. Make sure to leave

1" (2.5 cm) between the cabinet back and the wall.

■ Check to see that the refrigerator is level.

5. Plug in refrigerator or reconnect power.

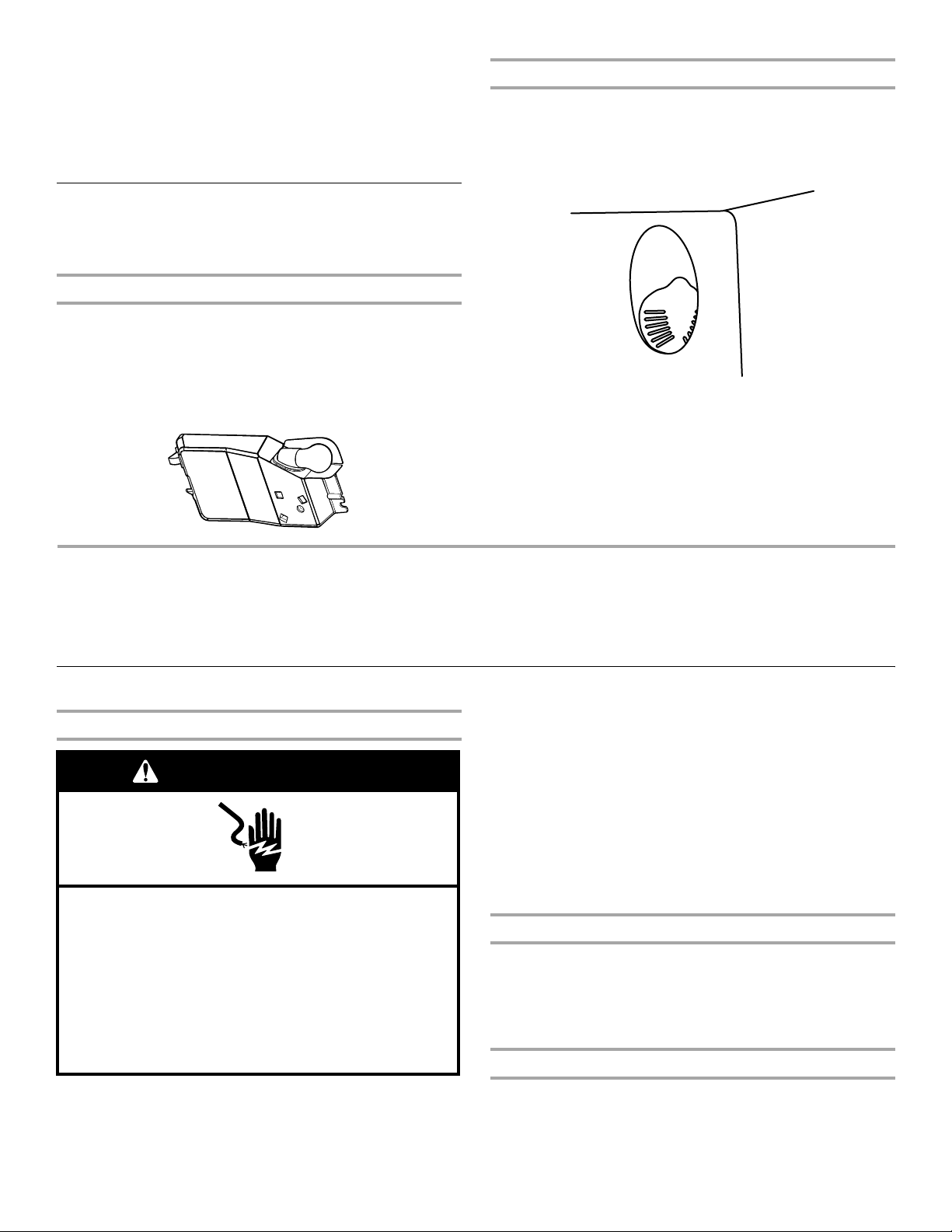

Changing the Light Bulbs

NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with one of the same size, shape, and wattage.

Refrigerator Light

Freezer Light

1. Unplug refrigerator or disconnect power.

2. Remove the freezer shelf.

3. Remove the freezer light shield by pushing down.

1. Unplug refrigerator or disconnect power.

2. Reach behind the control panel and unscrew the bulb.

3. Replace the bulb with a 40-watt appliance bulb.

4. Plug in refrigerator or reconnect power.

TROUBLESHOOTING

First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)

to possibly avoid the cost of a service call.

In the U.S.A., www.whirlpool.com In Canada, www.whirlpool.ca

Refrigerator Operation

The refrigerator will not operate

WARNING

4. Remove the light bulb and replace with one of the same size, shape and wattage.

5. Replace the light shield.

6. Plug in refrigerator or reconnect power.

■ Household fuse blown or circuit breaker tripped? Replace

the fuse or reset the circuit breaker. If the problem continues, call an electrician.

■ Control(s) on? Make sure the refrigerator control is on. See

“Using the Control(s).”

■ New installation? Allow 24 hours following installation for the

refrigerator to cool completely. NOTE: Adjusting the temperature control(s) to coldest setting

will not cool the refrigerator more quickly.

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

■ Power cord unplugged? Plug into a grounded 3 prong outlet.

■ Is outlet working? Plug in a lamp to see if the outlet is

working.

The motor seems to run too much

Your new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The unit may run even longer if the room is warm, a large food load is added, the door is opened often, or if the door has been left open.

The refrigerator seems noisy

Refrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with explanations.

■ Pulsating - fans/compressor adjusting to optimize

performance.

■ Hissing/Rattling - flow of refrigerant, movement of water

lines, or from items placed on top of the refrigerator.

■ Popping - contraction/expansion of inside walls, especially

during initial cool-down.

■ Water running/dripping - may be heard when ice melts

during defrosting and water runs into the drain pan.

Ice and Water

The ice maker is not producing ice or not enough ice

The door will not close completely

■ Door blocked open? Move food packages away from door.

■ Bin or shelf in the way? Push bin or shelf back in the correct

position.

■ Crisper cover in the way? Make sure the crisper cover is fully

pushed in, so that the back rests on the supports.

The door is difficult to open

WARNING

Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.

■ Gaskets dirty or sticky? Clean gaskets and contact surfaces

with mild soap and warm water. Rinse and dry with soft cloth.

Temperature and Moisture

Temperature is too warm

■ Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.

■ Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line.

■ Ice maker turned on? Make sure wire shutoff arm or switch

(depending on model) is in the ON position.

■ New installation? Wait 24 hours after ice maker installation

for ice production to begin. Wait 72 hours for full ice production.

■ Large amount of ice recently removed? Allow 24 hours for

ice maker to produce more ice.

■ Ice cube jammed in the ice maker ejector arm?

Remove ice from the ejector arm with a plastic utensil.

■ Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”

The ice cubes are hollow or small

NOTE: This is an indication of low water pressure.

■ Water shutoff valve not fully open? Turn the water shutoff

valve fully open.

■ Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line.

■ Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure. See “Water Supply Requirements.”

■ Questions remain regarding water pressure? Call a

licensed, qualified plumber.

■ New installation? Allow 24 hours following installation for the

refrigerator to cool completely.

■ Door opened often or left open? Allows warm air to enter

refrigerator. Minimize door openings and keep door fully closed.

■ Large load of food added? Allow several hours for

refrigerator to return to normal temperature.

■ Control(s) set correctly for the surrounding conditions?

Adjust the control(s) a setting colder. Check temperature in 24 hours. See “Using the Control(s).”

There is interior moisture buildup

NOTE: Some moisture buildup is normal.

■ Humid room? Contributes to moisture buildup.

■ Door opened often or left open? Allows humid air to enter

refrigerator. Minimize door openings and keep door fully closed.

Off-taste, odor or gray color in the ice

■ New plumbing connections? New plumbing connections

can cause discolored or off-flavored ice.

■ Ice stored too long? Discard ice. Wash ice bin. Allow

24 hours for ice maker to make new ice.

■ Odor transfer from food? Use airtight, moisture proof

packaging to store food.

■ Are there minerals (such as sulfur) in the water? A water

filter may need to be installed to remove the minerals.

+ 28 hidden pages
