x 10" (8.3 x 25.4 cm) vent system
x 10" (8.3 x 25.4 cm) vent system
Maximum length = 35 ft. (10.7 m)
1 - 90° elbow = 5 ft. (1.5 m)
8 ft. (2.4 m) straight = 8 ft. (2.4 m)
1 - wall cap = 0 ft. (0 m)
Length of x
10" (8.3 x 25.4 cm) system = 13 ft. (3.9 m)
NOTE: Flexible vent is not recommended
x 10"
(8.3 x 25.4 cm)
90° elbow =
5 ft. (1.5 m)
x 10"
(8.3 x 25.4 cm)
flat elbow =
12 ft. (3.7 m)
x 10"
(8.3 x 25.4 cm)
wall cap =
0 ft. (0 m)
2 ft.
(0.6 m)
6 ft. ( 1.8 m)
wall cap
x 10"
(8.3 x 25.4 cm)
elbow
Maximum length = 35 ft. (10.7 m)
1 - 90° elbows = 5 ft.
(1.5 m)
8 ft. (2.4 m) straight = 8 ft.
(2.4 m)
1 - wall cap = 0 ft.
(0 m)
Length of 7"
(17.8 cm) system = 13 ft.
(3.9 m)
NOTE: Flexible vent is not recommended
7" (17.8 cm) vent system
x 10"
(8.3 x 25.4 cm) to
7" (17.8 cm) =
4.5 ft. (1.4 m)
90° elbow =
5 ft. (1.5 m)
45° elbow =
2.5 ft. (0.8 m)
x 10"
(8.3 x 25.4 cm)
to 7" (17.8 cm)
90° elbow =
5 ft. (1.5 m)
7" (17.8 cm)
wall cap =
0 ft. (0 m)
7" (17.8 cm) vent system
Wall cap
90˚ elbow
2 ft
(0.6 m)
6 ft (1.8 m)

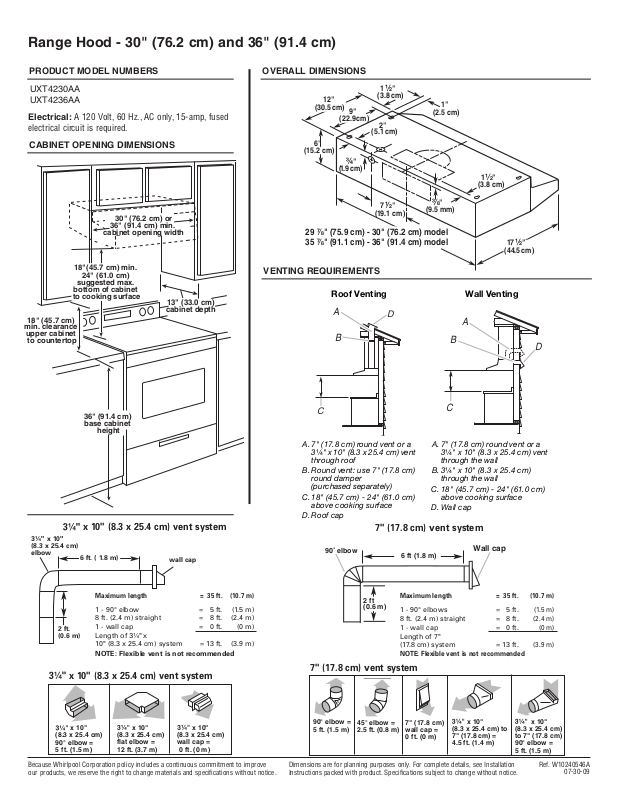

Range Hood - 30" (76.2 cm) and 36" (91.4 cm)
PRODUCT MODEL NUMBERS OVERALL DIMENSIONS
UXT4230AA
UXT4236AA
Electrical: A 120 Volt, 60 Hz., AC only, 15-amp, fused
electrical circuit is required.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10240546A
07-30-09
CABINET OPENING DIMENSIONS
VENTING REQUIREMENTS
A
D
30" (76.2 cm) or
36" (91.4 cm) min.
cabinet opening width
12"
(30.5 cm)
6"
(15.2 cm)
9"
(22.9 cm)
³⁄₄
"
(1.9 cm)
29 ⁷⁄₈" (75.9 cm) - 30" (76.2 cm) model
35 ⁷⁄₈" (91.1 cm) - 36" (91.4 cm) model
1
¹⁄₂
(3.8 cm)
2"
(5.1 cm)
7
¹⁄₂
(19.1 cm)
"
1"
(2.5 cm)
1
¹⁄₂
"
(3.8 cm)
³⁄₈
"
"
(9.5 mm)
17
¹⁄₂
"
(44.5 cm)
18" (45.7 cm)
min. clearance
upper cabinet
to countertop
18"(45.7 cm) min.
24" (61.0 cm)
suggested max.
bottom of cabinet
to cooking surface
36" (91.4 cm)
base cabinet
height
13" (33.0 cm)
cabinet depth
Roof Venting Wall Venting
A
B
C
. 7" (17.8 cm) round vent or a
3¹⁄₄" x 10" (8.3 x 25.4 cm) vent
through roof
B. Round vent: use 7" (17.8 cm)
round damper
(purchased separately)
C. 18" (45.7 cm) - 24" (61.0 cm)
above cooking surface
D. Roof cap
D
A
B
C
A. 7" (17.8 cm) round vent or a
3¹⁄₄" x 10" (8.3 x 25.4 cm) vent
through the wall
B. 3¹⁄₄" x 10" (8.3 x 25.4 cm)
through the wall
C. 18" (45.7 cm) - 24" (61.0 cm)
above cooking surface
D. Wall cap
