Whirlpool UC 148 A/Z PRODUCT DESCRIPTION SHEET

1gb37094a.fm Page 1 Wednesday, November 26, 2003 10:47 AM

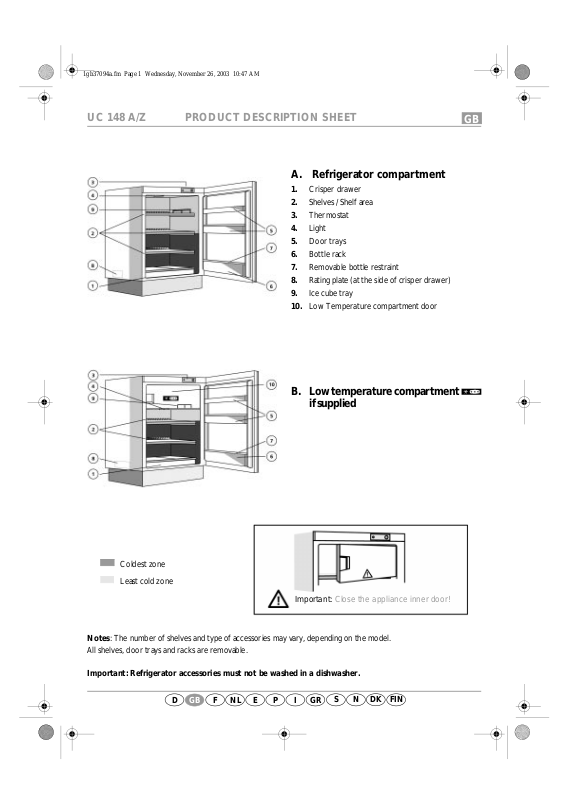

UC 148 A/Z PRODUCT DESCRIPTION SHEET

A. Refrigerator compartment

1. C risper dra wer

2. Shelves / Shelf area

3. Thermostat

4. Light

5. Door trays

6. Bot tle rack

7. Removable bottle restraint

8. Rating plate (at the side of crisper drawer)

9. Ice cube tray

10. Low Temperature compartment door

B. Low temperature compartment

if supplied

GB

Coldest zone
Least cold zone

Important: Close the appliance inner door!

Notes: The number of shelves and type of accessories may vary, depending on the model.
All shelves, door trays and racks are removable.

Important: Refrigerator accessories must not be washed in a dishwasher.

D F NL E P GR

GB

I

S N FIN

DK

1gb37094a.fm Page 2 Wednesday, November 26, 2003 10:47 AM

UC 148 A/Z

Controls

Thermostat set to ●: no refrigeration, no light.
Thermostat set to 1: least cold internal temperature.
Thermostat set to 4: coldest internal temperature.

A. Thermostat knob
B. Light switch
C. Thermostat control reference

The average recommended thermostat setting is 2-3.

Removing the light diffuser

1. Push the tab towards the left

2. Remove the cover

5019 100 37094/A

D F NL E P GR

GB

I

Printed in Italy 11/03

S N FIN

DK
