Whirlpool TKD 796, TKD 795, ADL 347, ADL 357/S, DW 950 User Manual

0 (0)

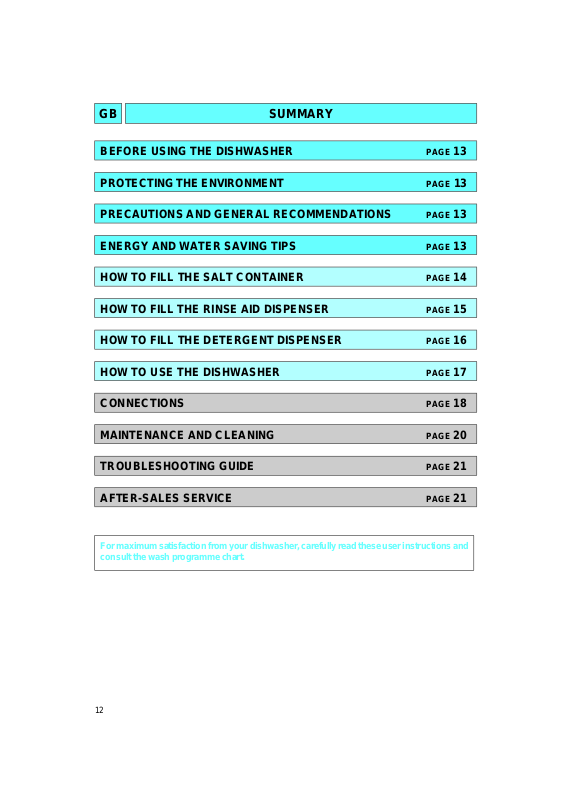

GB SUMMARY

BEFORE USING THE DISHWASHER

PROTECTING THE ENVIRONMENT

PRECAUTIONS AND GENERAL RECOMMENDATIONS

ENERGY AND WATER SAVING TIPS

HOW TO FILL THE SALT CONTAINER

HOW TO FILL THE RINSE AID DISPENSER

HOW TO FILL THE DETERGENT DISPENSER

HOW TO USE THE DISHWASHER

CONNECTIONS

PAGE

MAINTENANCE AND CLEANING

TROUBLESHOOTING GUIDE

AFTER-SALES SERVICE

For maximum satisfaction from your dishwasher, carefully read these user instructions and consult the wash programme chart.

PAGE

BEFORE USING THE DISHWASHER

• After unpacking, make sure the appliance is

undamaged and that the door closes correctly. Do not use the appliance if it is damaged. If in doubt, consult your local retailer.

• Keep potentially hazardous packaging (plastic bags etc.) out of the reach of children.

PROTECTING THE ENVIRONMENT

1. Packing

The packing box may be fully recycled as confirmed by the recycling symbol .

PRECAUTIONS AND GENERAL RECOMMENDATIONS

Child safety

• Do not allow children to play with the

dishwasher.

• Store the detergent, rinse aid and salt in a dry place out of the reach of children.

General recommendations

• Only use detergents, rinse aids and

regeneration salts specially recommended for use in domestic dishwashers.

• On completion of the wash programme switch off the dishwasher and turn off the water tap.

• Before cleaning or carrying out maintenance, switch off the appliance, disconnect the mains plug and turn off the water tap.

• If a fault occurs, switch off the appliance and turn off the water tap.

• The open dishwasher door can only support the weight of the loaded rack when pulled out. Do not rest objects on the open door or sit or stand on it since the appliance may topple over.

• This appliance is designed for use in the home in compliance with its intended purpose.

• All water and electrical connections must be carried out by a qualified technician in compliance with the manufacturer's instructions (refer to the enclosed installation booklet) and current local safety regulations.

2. Appliance

The appliance is built from reusable materials. If you decide to scrap the dishwasher, it must be disposed of in compliance with local waste disposal laws. Before scrapping, cut off the power cable so that the appliance cannot be connected to the mains.

• If necessary, the power cable may be replaced with one the same o btained from our After-Sales Service. The power cable must only be replaced by a qualified technician.

• For appliances with water-stop system:

The water inlet hose and plastic casing contain electrical components. Do not therefore cut the hose or immerse the plastic casing in water. If the hose is damaged switch off the appliance immediately.

• Do not use solvents inside the dishwasher: risk of explosion!

• Load capacity: -12 place settings

EC Declaration of Conformity

This appliance has been designed, constructed and distributed in compliance with the safety requirements of EC Directives:

• 73/23/EC

• 89/336/EC

• 93/68/EC.

ENERGY AND WATER SAVING TIPS

• Do not rinse crockery under running water.

• Always fully load the dishwasher before

switching on or set the wash programme to half load (if available) if one rack only is loaded.

• If ecological energy sources are available such as solar panel heating, heat pumps or centralised heating systems, the appliance may be connected to the hot water mains up to a maximum temperature of 60°C. Make sure the water inlet hose is of the correct type. Refer to the “Connections” chapter in these user instructions.

HOW TO FILL THE SALT CONTAINER

Check the water hardness level in your area.

Consult your local Water Board or check your last water bill.

• Set the water hardness by turning the selector (if fitted) inside the door (top left) with a screwdriver. Use the table below to set the dial to the required setting.

Selector

setting

0 1 soft 0 - 5 0 - 9 1 1 - 2 medium 6 - 10 10 - 18 2 2 medium 11 - 15 19 - 27 3 3 medium-hard 16 - 21 28 - 37 4 4 hard 22 - 28 38 - 50 5 4 very hard 29 - 35 51 - 63 6 4 extremely hard 36 - 60 64 - 107

If the water hardness level falls within category 1 (soft), no salt is required.

Water hardness

German degrees

°dH

• If the water hardness level exceeds category 1-2 (medium), before using the dishwasher for the first time, fill the salt container and run a wash cycle so that any excess saline solution discharged is immediately removed by the water to prevent corrosion. The pre-rinse cycle is not sufficient for this purpose.

• Check the salt level regularly.

• Important: Only use regeneration salts recommended for use in domestic dishwashers. Do not fill the salt container with detergent as this will cause irreparable damage to the water softener system.

To fill the salt container:

Remove the lower rack.

Unscrew the cap by turning it counter-clockwise.

If the dishwasher is new, fill the salt container to the rim with water.

Fill the container to the rim with salt (max. 2 kg) and stir with a spoon handle.

Screw the cap back on by turning it clockwise.

Salt level indicator

The dishwasher is equipped with an electric or visual salt level indicator depending on the model installed.

French

degrees

°fH

Electric indicator:

The salt level indicator lamp on the control panel illuminates when the salt container is empty.

Visual indicator:

The red float is clearly visible in the cap window when the salt container is full. The red float lowers and is no longer visible when the salt container is empty.
