Page 1

Self-Cleaning

Electric Range

A Note to You .............. 2

Range Safety ............... 3

Parts and Features ...... 6

Using Your Range........7

Using the Self-

Cleaning Cycle .......... 23

Caring for Your

Range ........................26

Troubleshooting ........ 32

Requesting Assistance or

Service ......................34

MODELS TES325G

PART NO. 8053405

Index..........................35

Warranty .................... 36

1-800-253-1301

Call our Consumer Assistance Center

with questions or comments.

Page 2

A NOTE TO YOU

Thank you for buying an ESTATE® appliance.

Your ESTATE range gives you all the functionality of name brand appliances at a value price. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable information about how to operate and maintain your appliance properly and safely. Please read it carefully.

Also, complete and mail the Product Registration Card provided with your appliance. The card helps us notify you about any new information on your appliance.

Record your model’s information

Write down the following information about your range to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label/plate.

If you need assistance or service …

first see the “Troubleshooting Guide” section of this book. After checking the “Troubleshooting Guide,” additional help can be found by checking the “Requesting Assistance or Service” section.

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Dealer name _______________________________________ Address ___________________________________________ Phone number _____________________________________ Model number _____________________________________ Serial number ______________________________________ Purchase date______________________________________

(See the “Parts and Features” section for model and serial number label/plate location.)

Our Consumer Assistance Center number is toll free.

1-800-253-1301

Page 3

RANGE SAFETY

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you and others. All safety messages will be preceded by the safety alert symbol and the word “DANGER” or

“WARNING.” These words mean:

You will be killed or seriously injured if you don’t

wDANGER

wWARNING

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

follow instructions.

You can be killed or seriously injured if you don’t follow instructions.

wWARNING

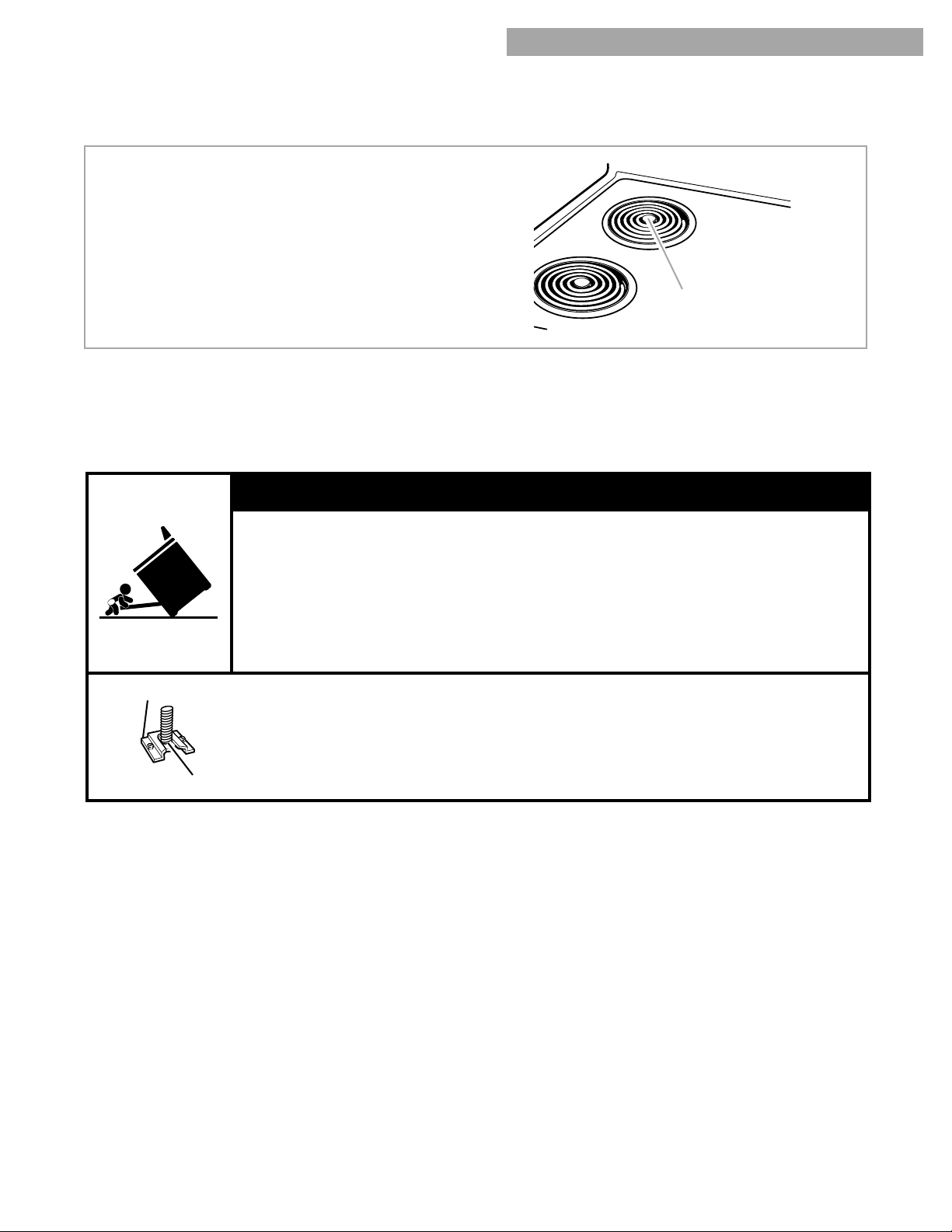

Anti-Tip Bracket

Range Foot

Tip Over Hazard A child or adult can tip the range and be killed. Connect anti-tip bracket to rear range foot. Reconnect the anti-tip bracket, if the range is moved. See the installation instructions for details. Failure to follow these instructions can result in death or serious burns to

children and adults.

Making sure the anti-tip bracket is installed:

• Slide range forward.

• Look for the anti-tip bracket securely attached to floor.

• Slide range back so rear range foot is under anti-tip bracket.

continued on next page

Page 4

RANGE SAFETY

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical

shock, injury to persons, or damage when using the range, follow basic precautions, including the following:

WARNING – TO REDUCE THE RISK OF

•

TIPPING OF THE RANGE, THE RANGE MUST BE SECURED BY PROPERLY INSTALLED ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE RANGE FORWARD, LOOK FOR ANTI-TIP BRACKET SECURELY ATTACHED TO FLOOR, AND SLIDE RANGE BACK SO REAR RANGE FOOT IS UNDER ANTI-TIP BRACKET.

CAUTION – Do not store items of interest to

•

children in cabinets above a range or on the backguard of a range – children climbing on the range to reach items could be seriously injured.

Proper Installation – Be sure the range is properly

•

installed and grounded by a qualified technician. Never Use the Range for Warming or Heating

•

the Room. Do Not Leave Children Alone – Children should

•

not be left alone or unattended in area where the range is in use. They should never be allowed to sit or stand on any part of the range.

Wear Proper Apparel – Loose-fitting or hanging

•

garments should never be worn while using the range.

User Servicing – Do not repair or replace any part

•

of the range unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.

Storage in or on the Range – Flammable

•

materials should not be stored in an oven or near surface units.

Do Not Use Water on Grease Fires – Smother

•

fire or flame or use dry chemical or foam-type extinguisher.

Use Only Dry Potholders – Moist or damp

•

potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.

DO NOT TOUCH SURFACE UNITS OR AREAS

•

NEAR UNITS – Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among those areas are the cook-top and surfaces facing the cook-top.

Use Proper Pan Size – The range is equipped

•

with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency.

Never Leave Surface Units Unattended at High

•

Heat Settings – Boilover causes smoking and greasy spillovers that may ignite.

Make Sure Reflector Pans or Drip Bowls Are in

•

Place – Absence of these pans or bowls during cooking may subject wiring or components underneath to damage.

Protective Liners – Do not use aluminum foil to

•

line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire.

Glazed Cooking Utensils – Only certain types of

•

glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for range-top service without breaking due to the sudden change in temperature.

Utensil Handles Should Be Turned Inward and

•

Not Extend Over Adjacent Surface Units – To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

Do Not Soak Removable Heating Elements –

•

Heating elements should never be immersed in water.

– SAVE THESE INSTRUCTIONS –

Page 5

IMPORTANT SAFETY INSTRUCTIONS

RANGE SAFETY

Use Care When Opening Door – Let hot air or

•

steam escape before removing or replacing food. Do Not Heat Unopened Food Containers –

•

Build-up of pressure may cause container to burst and result in injury.

Keep Oven Vent Ducts Unobstructed.

•

Placement of Oven Racks – Always place oven

•

racks in desired location while oven is cool. If rack must be moved while oven is hot, do not let potholder contact hot heating element in oven.

DO NOT TOUCH HEATING ELEMENTS OR

•

INTERIOR SURFACES OF OVEN – Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns – among these surfaces are oven vent openings and surfaces near these openings, oven doors, and windows of oven doors.

For self-cleaning ranges –

Do Not Clean Door Gasket – The door gasket is

•

essential for a good seal. Care should be taken not to rub, damage, or move the gasket.

Do Not Use Oven Cleaners – No commercial oven

•

cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.

Clean Only Parts Listed in Manual.

•

Before Self-Cleaning the Oven – Remove broiler

•

pan and other utensils.

For units with ventilating hood –

Clean Ventilating Hoods Frequently – Grease

•

should not be allowed to accumulate on hood or filter.

When flaming foods under the hood, turn the fan

•

off. The fan, if operating, may spread the flame.

– SAVE THESE INSTRUCTIONS –

Page 6

PARTS AND FEATURES

OFF

O R

HIRLPO

OFF

N IO T

A R O

P R O

OFF

Oven vent

(p. 21)

PUSH TO TURN

Electronic

oven control

(pp.14-17,

OFF

TIMER

SELF - CLEANING OVENSELF - CLEANING OVEN

BAKE

BROIL START ?ART ? HEA HEAT

CLEAN

DOOR LOCKEDDOOR LOCKED

CLOCK

TEMP/

TIMERTIMER

SELF

TIME

CANCEL

CLEAN

BROIL

BAKE

OFFOFF

START

CANCELCANCEL

ENTERENTER

5 SEC5 SEC

PUSH TO TURN

Manual oven

19-20)

light switch

(p. 31)

Plug-in coil element with one-piece reflector bowl

(pp. 7, 26, 28, 29)

Anti-tip bracket

(p. 21)

Door stop clip

(p. 30, 31)

Model and serial number plate

(behind left side of storage drawer)

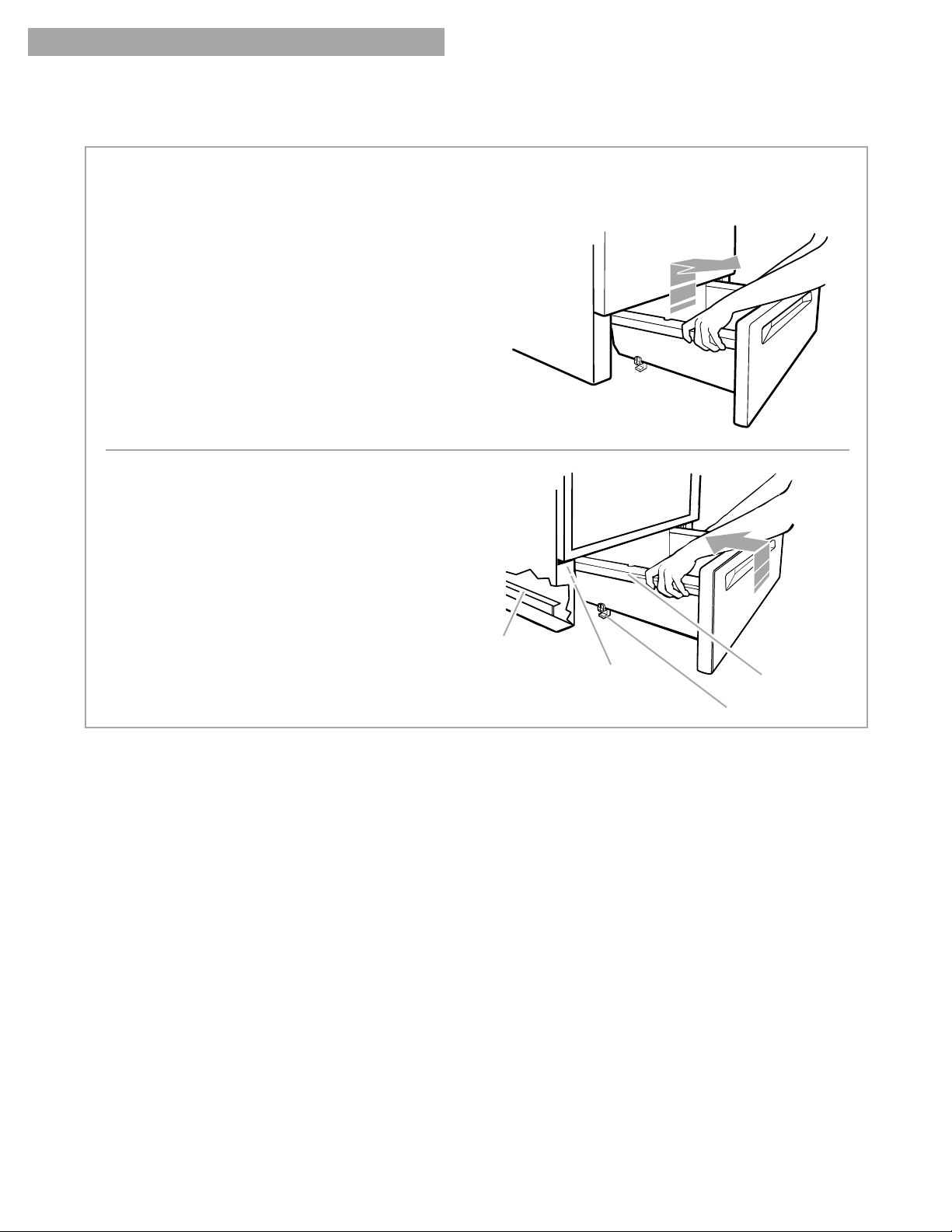

Removable storage drawer

(p. 22)

Control panel

(pp. 6, 26)

Door latch

Gasket

(p. 27)

Broil element

(p. 18)

Bake element

(p. 15)

CONTROL PANEL

Surface heating indicator light

(lights up when a coil element is on)

FROM

WHIRLPOOL

CORPORATION

OFF

Left front control knob

PUSH TO TURN

Left rear control knob

Coil element marker

Electronic oven control

OFF

BROIL

START ?

HEAT

CLEAN

BAKE

DOOR LOCKED

TIMER

BROIL

SELF

CLEAN

TIME

SELF - CLEANING OVENSELF - CLEANING OVEN

CLOCK TIMER

CANCEL

START

ENTER

OFF

CANCEL

5 SEC

Right rear control knob

(shows which coil element you are setting)

OFF

PUSH TO TURN

Right front control knob

OFF

Page 7

USING YOUR RANGE

USING THE COIL ELEMENTS

Using the control knobs

Push in the control knobs before turning them to a

setting. You can set them anywhere between HI and OFF.

Coil element heat settings

Use the following chart as a guide.

wWARNING

Fire Hazard Turn off all controls when done cooking. Failure to do so can result in death or fire.

SETTING HI

6-8

2-4

RECOMMENDED USE

To start food cooking.

•

To bring liquid to a boil.

•

To hold a boil.

•

To quickly brown or sear food.

•

To maintain a slow boil.

•

To fry poultry or meat.

•

To make pudding, sauce, or gravy.

•

To stew or steam food.

•

To simmer food.

•

To keep food warm.

•

To melt chocolate or butter.

•

Page 8

USING YOUR RANGE

USING THE COIL ELEMENTS (CONT.)

Home canning information

To protect your range:

Use flat-bottomed canners on all types of

•

1" 1"

Surface cooking area

centered correctly, trap heat and can cause damage to the cooktop.

Do not place your canner on two coil elements at

•

the same time. The type of material the canner is made of

•

determines the length of heating time. Refer to the “Characteristics of cookware materials” chart later in this section for more information.

When canning for long periods of time, allow

•

elements and the surrounding surfaces to cool down.

Pan

cooktops. Canners with rippled or ridged bottoms do not allow good contact with the surface.

Center the canner over

•

the largest coil element. Do not extend more than one inch outside the coil element. Large diameter canners/pans, if not

Alternate use of the coil elements between

•

batches or prepare small batches at a time. Start with hot water, cover with a lid, and bring

•

to a boil; then reduce heat to maintain a boil or required pressure levels in a pressure canner.

On coil element model, keep your reflector bowls

•

clean so that they will always reflect heat well. For up-to-date information on canning, contact

•

your local U.S. Government Agricultural Department Extension Office or companies who manufacture home canning products.

Optional canning kit

Most water-bath or pressure canners have large diameters. If you do canning with them at high heat settings for long periods of time, you can shorten the life of regular coil elements. This can also damage the cooktop. If you plan to use the cooktop for canning, we recommend the installation of a Canning Kit. Order the kit (Part No. 242905) from your dealer or authorized service company.

Cookware tips

Select a pan that is about the same size as

•

the surface cooking area. Cookware should not extend more than 1 inch (2.5 cm) outside the area.

For best results and greater energy

•

efficiency, use only flat-bottomed cookware that makes good contact with the surface cooking area. Cookware with rounded, warped, ribbed (such as some porcelain enamelware), or dented bottoms could cause uneven heating and poor cooking results.

Cookware designed with slightly indented

•

bottoms or small expansion channels can be used.

Cookware with a non-stick finish has heating

•

characteristics of the base material. Use flat bottom cookware for best heat

•

conduction from the surface cooking area to the cookware. Determine flatness with the ruler test. Place the edge of a ruler across the bottom of the cookware. Hold it up to the light. No light should be visible under the ruler. Rotate the ruler in all directions and look for any light.

Do not leave empty cookware, or cookware which

•

has boiled dry, on a hot surface cooking area. The cookware could overheat, causing damage to the cookware or the surface cooking area.

Page 9

USING YOUR RANGE

CHARACTERISTICS OF COOKWARE MATERIALS

The pan material affects how fast heat transfers from the coil element through the pan mat erial and how evenly heat spre ads over the pan bot tom. Choose pans that provide the best cooking results.

Aluminum

Cast iron

Ceramic or ceramic glass

Copper

Earthenware

Porcelain enamel-on-steel or enamel-on-cast iron

Stainless steel

• Heats quickly and evenly.

• Use for all types of cooking.

• Medium or heavy thickness is best for most cooking.

• Used as a core or base in cookware to provide even heating.

• Heats slowly and evenly.

• Good for browning and frying.

• Maintains heat for slow cooking.

• Can be coated with porcelain enamel.

• Heats s low ly a nd uneve nly.

• Use on low to medium settings.

• Follow manufacturer’s instructions.

• Heats very quickly and evenly.

• Used as a core or base in cookware to provide even heating.

• Can be used for cooktop cooking if recommended by the manufacturer.

• Use on low settings.

• See cast iron and stainless steel.

• Heats q uick ly b ut une ve nly.

• A core or base of aluminum or copper on the cookware provides even heating.

• Can be coated with porcelain enamel.

Page 10

USING YOUR RANGE

USING THE OVEN

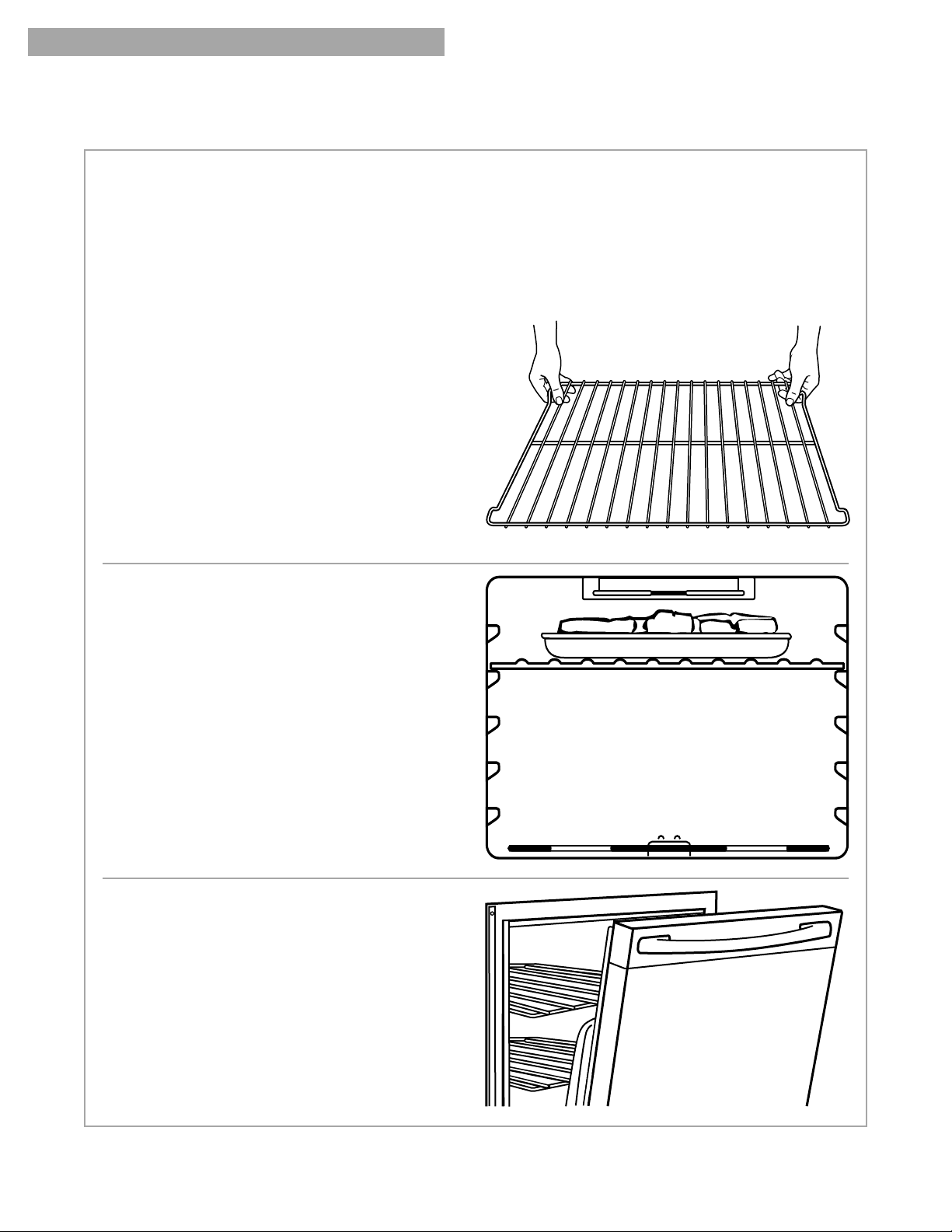

Positioning racks and pans

Place the oven racks where you need them before turning on the oven.

To move a rack, pull it out to the stop position,

•

raise the front edge and lift it out. Be sure the rack(s) is level.

•

Use pot holders or oven mitts to protect your hands

•

if rack(s) must be moved while the oven is hot. For best performance, cook on one rack. Place

•

the rack so the top of the food will be centered in the oven.

When cooking with two racks, arrange the racks

•

on the 2nd and 4th rack guides.Two sheets of cookies may be baked if sheets are switched at approximately three quarters of the total bake time. Increase baking time, if necessary.

For best results allow 2 inches of space around

•

each pan and between pans and oven walls.

Hot air must circulate around the pans in the oven

for even heat to reach all parts of the oven. This results in better baking.

Where to place pans:

WHEN YOU HAVE

1 pan 2 pans

3 or 4 pans

PLACE

In center of the oven rack. Side by side or slightly

staggered. In opposite corners on

each oven rack. Stagger pans so no pan is directly over another.

Rack placement for specific foods:

FOOD

Frozen pies, large roasts, turkeys, angel food cakes

Bundt cakes, most quick breads, yeast breads, casseroles, meats

Cookies, biscuits, muffins, cakes, nonfrozen pies

RACK POSITION

1st or 2nd rack guide from bottom

2nd rack guide from bottom

2nd or 3rd rack guide from bottom

NOTE: For information on where to place your rack when broiling, see “Broiling guidelines” later in this section.

Page 11

USING YOUR RANGE

BAKEWARE CHOICES

Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe.

BAKEWARE TYPE

Light color ed aluminum

Dark aluminum and ot her bakeware with dark, dull, and/or non-stick finish

Ovenproof glassware, ceramic glass, or ceramic

Insulated cookie sheets or baking pans

Stainless steel • May need to increase baking time.

Stoneware

BEST USED FOR

• Light golden crusts

• Even browning

• Brown, crisp crusts

• Little or no bottom browning • Place in the bottom third of oven.

• Light, golde n crusts

• Uneven browning

• Crisp crusts

GUIDELINES

• Use temperature and time recommended in recipe.

• May reduce baking temperature 25°F.

• Use suggested baking time.

• Use temperature and time recommended in recipe for pies, breads, and casseroles.

• Place rack in center of oven.

• May reduce baking temperature 25°F.

• May need to increase baking time.

• Follow manufacturer's ins tructions.

USING ALUMINUM FOIL

Do not line the oven bottom with foil or other liners.

Use aluminum foil to catch spillovers from pies or

•

casseroles by placing foil on the oven rack below. Foil should be turned up at edges and be at least 1 inch larger than dish.

Do not cover the entire

•

rack with aluminum foil. It will reduce air circulation and give you poor cooking results.

•

It could affect the oven surface as well as the quality of your baking.

Place tent-shaped foil loosely over meat or poultry

•

to slow down surface browning for long term roasting. Remove foil for the last 30 minutes.

Use narrow strips of foil to shield piecrust edges if

•

browning too quickly.

Page 12

USING YOUR RANGE

THE ELECTRONIC OVEN CONTROL

TIMER

BAKE

Indicator lights

(see below)

Bake pad

(pp. 15, 17)

Broil pad

(p. 19)

BROIL

START ?

HEAT

CLEAN

DOOR LOCKED

BAKE

Self clean pad

(p. 24)

BROIL

SELF

CLEAN

TIME

Temperature/ time pad

(pp. 13-15, 17, 19, 24)

SELF - CLEANING OVENSELF - CLEANING OVEN

CLOCKCLOCK

TIMER

CANCEL

START

Clock/timer pad

(pp. 13, 14)

ENTER

5 SEC

OFF

CANCEL

Electronic

display

Start/enter pad

(pp. 12-15, 17,

19, 24)

Off/cancel pad

(pp. 14, 16, 19,

24, 25)

Display

When you first plug in the range, “PF” will appear

•

on the display until you press any command pad. If “PF” again appears on the display, your electricity was off for a while. You will need to reprogram any temperature adjustments you may have made. See the “Adjusting the oven temperature control” section.

When you are using the oven, the display will

•

show preheat times and temperature settings. When you are not cleaning or cooking with the

•

oven, the display will show the time of day. When setting a function, if you do not press

•

START/ENTER within 5 seconds, the Start? indicator light will flash. If you do not press START/ENTER within 5 minutes, the function will be canceled.

Indicator lights

An indicator light to the left of the display lights up when you are in a setting. An indicator light on the display lights up when the oven is on.

Using the control lock

The control lock lets you disable the control panel command pads. The control lock comes in handy when you want to prevent others from using the oven.

NOTES:

You can only use the control lock when the oven

•

is not in use or the control has not been set. Set the control lock when cleaning the control

•

panel to prevent yourself from accidentally turning on the oven.

You must reset the control lock if the power goes

•

out for more than 1 second.

To lock the control panel:

Press and hold START/ENTER for 5 seconds.

You will hear a single tone and “Loc” will

START

ENTER

To unlock the control panel:

Press and hold START/ENTER for 5 seconds.

START

ENTER

appear on the temperature display for 5 seconds. “Loc” and “START?” will then appear whenever a command pad

5 SEC

is pressed.

You will hear a single tone and “Loc” and “START?” will disappear from the temperature display.

5 SEC

Page 13

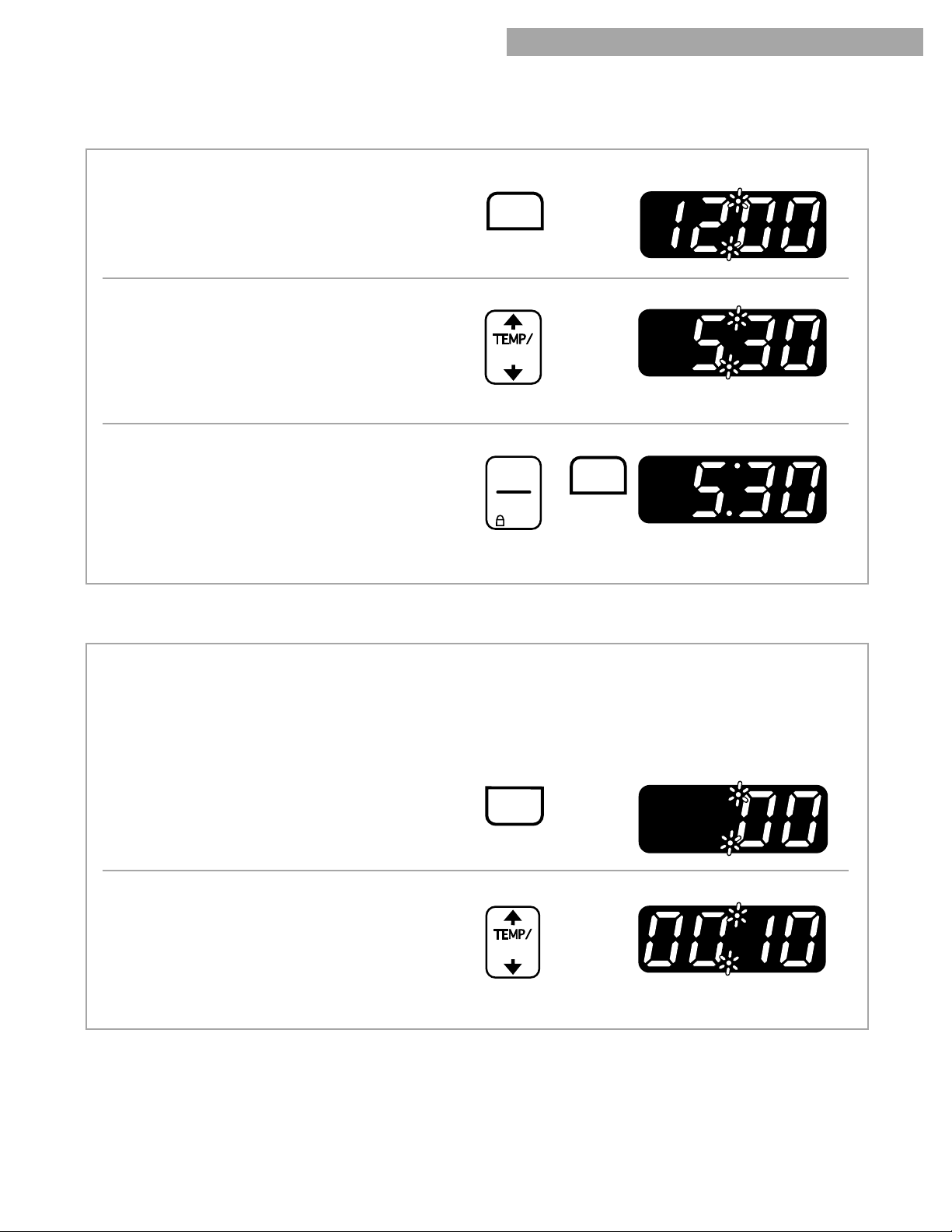

SETTING THE CLOCK

USING YOUR RANGE

1. Press CLOCK.

2. Set the time.

Press the “up” (s) or “down” (t) pad(s) until the desired time shows on the display.

3. Start the clock.

NOTES:

To see the time of day when the clock time is

•

not on the display, press CLOCK. You must reset the clock if the power goes off

•

for more than 1 second.

PRESS YOU SEE

CLOCK

PRESS YOU SEE

TIME

(example for 5:30)

PRESS YOU SEE

CLOCK

START

ENTER

5 SEC

USING THE MINUTE TIMER

The minute timer does not start or stop the oven. It works like a kitchen timer. You can set the minute timer in hours and minutes up to 12 hours, 59 minutes. The minute timer will display minutes and seconds for settings under 1 hour.

1. Press TIMER.

The timer indicator light will light up.

2. Set the countdown time.

Press the “up” (s) or “down” (t) pad(s) until the desired time shows on the display.

PRESS YOU SEE

TIMER

• • CANCEL

PRESS YOU SEE

TIME

(example for 10 minutes)

Page 14

USING YOUR RANGE

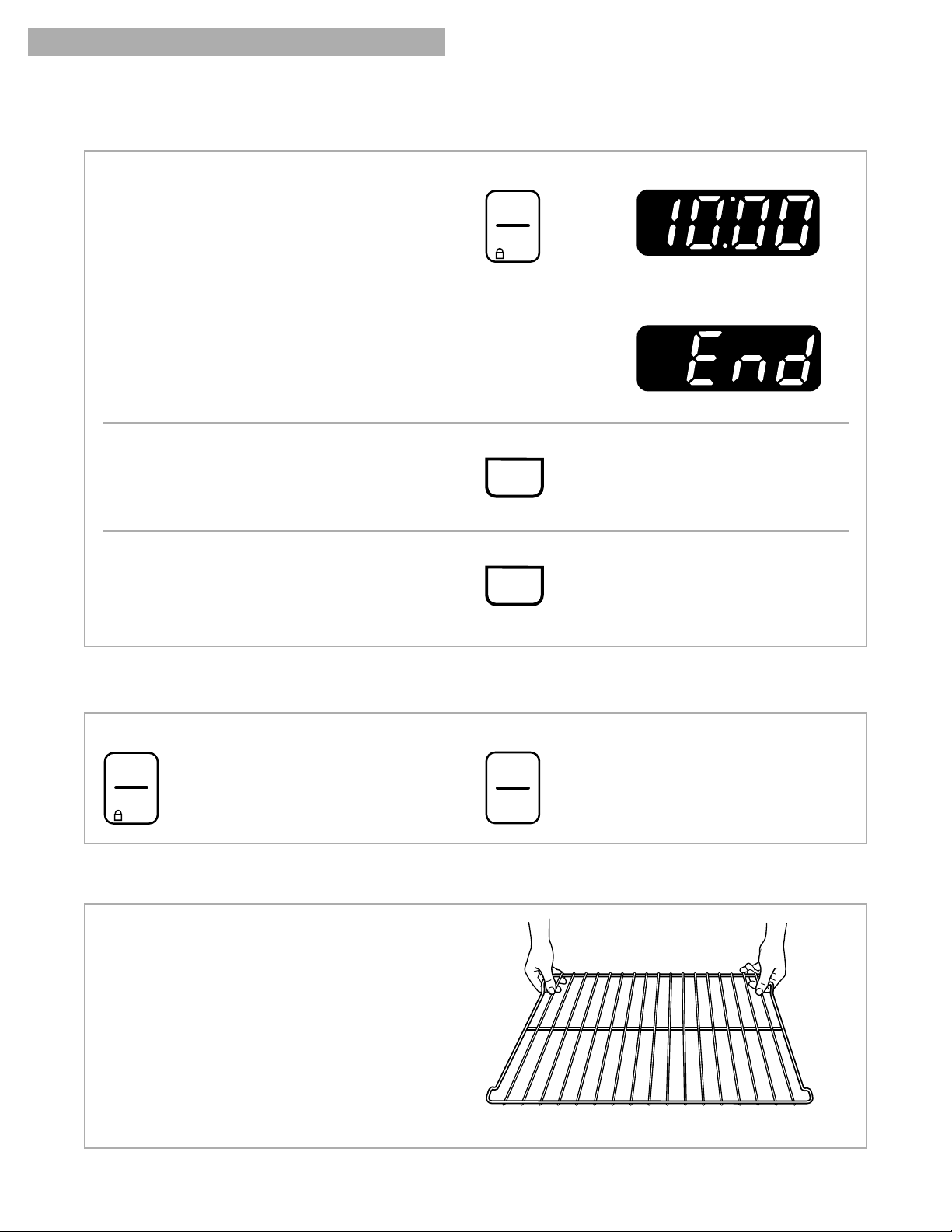

USING THE MINUTE TIMER (CONT.)

3. Press START to begin the countdown

immediately. If START is not pressed, the countdown will automatically begin after 1 minute. If Bake or Broil features are also being used, the countdown will start after 5 seconds.

When the time is up: You will hear four 1-second tones.

NOTE: To see the countdown time when the minute timer is not on the display, press the minute timer pad.

4. Turn off the minute timer.

To cancel the minute timer during the countdown

PRESS YOU SEE

START

ENTER

5 SEC

(display counts down)

YOU SEE

PRESS YOU SEE

TIMER

• • CANCEL

twice

PRESS YOU SEE

TIMER

• • CANCEL

twice

(previous display)

STARTING/CANCELING A FUNCTION

After setting a function for the first time, you

must press START/ENTER to start

START

ENTER

the function.

5 SEC

BAKING/ROASTING

1. Place the racks where you need them in the oven.

For more information, see “Positioning racks and pans” under “Using the oven” earlier in this section.

NOTE: Do not place food directly on the oven door or the oven bottom.

OFF/CANCEL will cancel any function except for the

clock, minute timer, or control lock.

OFF

CANCEL

Front of rack

Rear of rack

Page 15

BAKING/ROASTING (CONT.)

USING YOUR RANGE

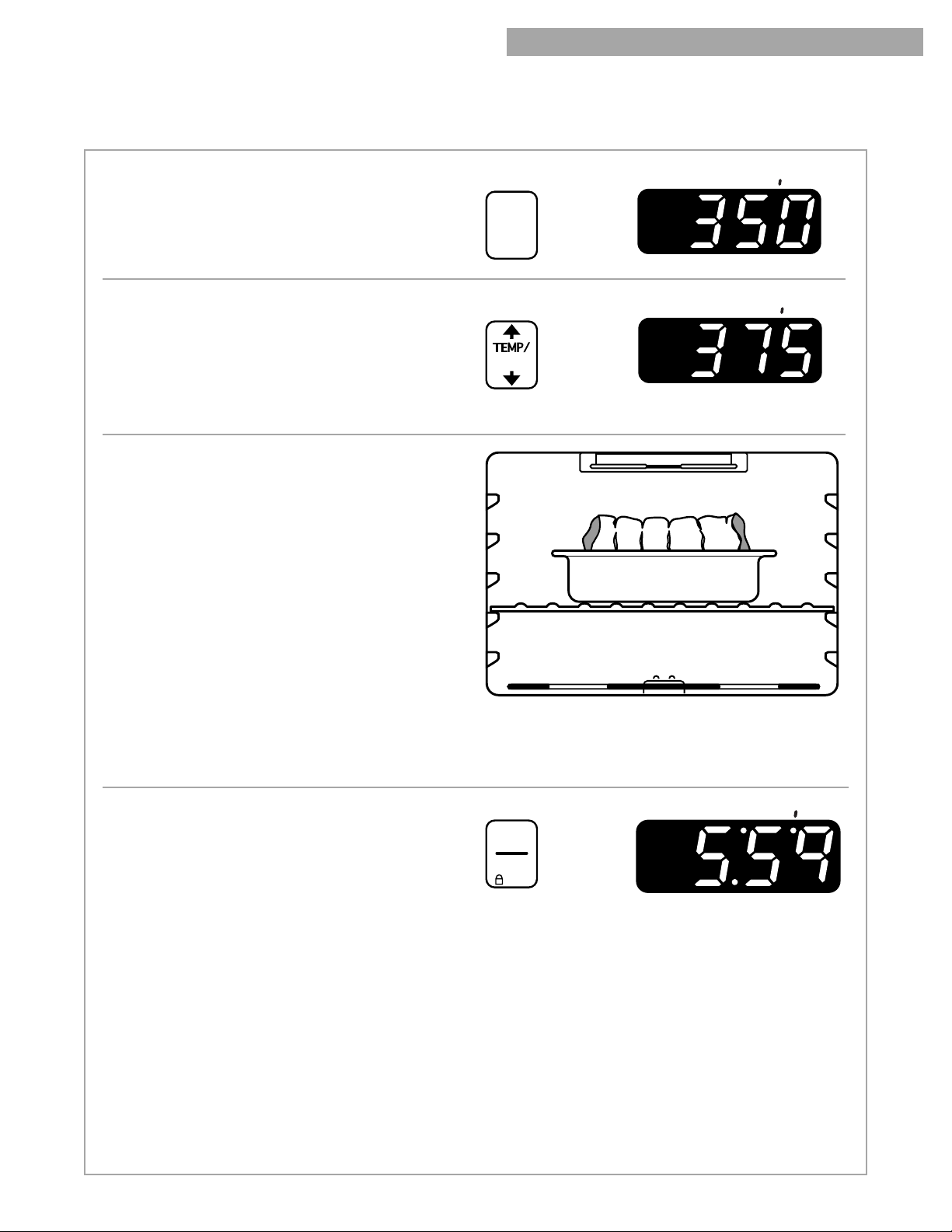

2. Choose the bake setting.

The bake indicator light will light up.

3. Set the temperature (optional).

Do this step if you want to set a temperature other than 350°F. Press ▲ to raise the temperature or ▼ to lower the temperature in 5°F amounts. You can set a temperature anywhere from 170°F to 500°F. Use these pads until the temperature you want shows on the display.

4. When roasting, put your food in the oven.

You do not have to preheat the oven when roasting, unless your recipe recommends it.

During baking/roasting, the elements will turn on and off to keep the oven temperature at the setting.

NOTE: The top element helps heat during baking/roasting, but does not turn red.

Roasting meats and poultry

For even cooking, place the meat on a rack in a

•

shallow pan. This keeps the meat out of the drippings and allows the heat to circulate better.

Use a meat thermometer for the most accurate

•

doneness. Insert it so the tip is in the center of the largest muscle or thickest portion of the meat or poultry. Make sure the thermometer is not touching bone, fat, or the bottom of the pan.

PRESS YOU SEE

BAKE

PRESS YOU SEE

TIME

(example for bake at 375°F)

5. Press START/ENTER.

A preheat conditioning time counts down the approximate preheat time after the oven temperature has been set and START has been pressed. The heat, bake, and on indicator lights will light up. The oven control automatically sets pre-heating times based on the oven temperature you select:

For 245°F and less, the preheating time is

•

3 minutes. For 250°F-445°F, the preheating time is

•

6 minutes. For 450°F and above, the preheating time is

•

10 minutes.

The oven is preheated and ready to use when you hear a 1-second tone, the on indicator light goes off, the preheat conditioning ends, and the set temperature is displayed.

The preheat and set temperatures may be differ-

ent at the end of the countdown. This is normal.

PRESS YOU SEE

START

ENTER

5 SEC

(example for set temperature of 350°F)

NOTES:

When the oven temperature is greater than 170°F,

•

no preheating time will be shown on the display. You can change the temperature setting any time

•

after pressing START/ENTER. You do not have to press START/ENTER again.

The preheating time will not change if you reset the

•

temperature before the countdown time ends. If you are baking/roasting while the minute timer is

•

counting down, you can see the set baking/roasting temperature for 5 seconds by pressing BAKE.

ONON

Page 16

USING YOUR RANGE

BAKING/ROASTING (CONT.)

6. When baking, put your food in the oven after the

preheat conditioning time ends. During baking/roasting, the elements will turn

on and off to keep the oven temperature at the setting.

NOTE: The top element helps heat during baking/roasting, but does not turn red.

7. After cooking, turn off the oven.

Saving energy

To avoid loss of heat, open the oven door as little

•

as possible.

Use a timer to keep track of cooking time.

•

Plan your meals for the most efficient use of the

•

oven by cooking more than one food at a time, or baking while the oven is still hot after cooking a meal.

PRESS YOU SEE

(time of day or minute

OFF

CANCEL

timer countdown)

Page 17

ADJUSTING THE OVEN TEMPERATURE CONTROL

Although your new oven is properly adjusted to provide accurate temperatures, it may cook faster or slower than your old oven.

If you are not satisfied with the baking/roasting results, you can change the offset temperature by following the steps below.

NOTE: DO NOT measure oven temperature with a thermometer. Opening the oven door will lower the oven temperature and give you an incorrect reading. Also, the thermometer temperature reading will change as your oven cycles.

1. Press and hold BAKE for 4 seconds.

The display will show 350°F for 4 seconds. Then you will see the current offset temperature, for example “00,” if you have not already adjusted the temperature.

PRESS YOU SEE

BAKE

USING YOUR RANGE

(factory setting of “0”)

2. Set the new offset temperature.

Press s to raise the temperature or t to lower the temperature in 10°F amounts. You can set the temperature change to as low as -30°F or as high as +30°F. A minus (-) sign will appear before the number when decreasing the temperature setting. The minus sign shows the oven will be cooler by the displayed amount. There is no sign in front of the number when increasing the temperature setting.

3. Enter the adjustment.

NOTE: The offset temperature resets to “00” if

the power goes out for more than 1 second.

How to determine the amount of adjustment needed

The chart at the right tells you how much to adjust the offset temperature to get the cooking results you want. You can figure out cooking results by the amount of browning, moistness, and rising times for baked foods.

PRESS YOU SEE

TIME

(example when making oven 10°F cooler)

PRESS YOU SEE

START

ENTER

5 SEC

TO COOK FOOD ...

A little more Moderately more Much more A little less Moderately less Much less

(time of day or minute timer countdown)

ADJUST BY THIS NUMBER OF DEGREES (FAHRENHEIT)

+10 +20 +30

-10

-20

-30

Page 18

USING YOUR RANGE

BROILING

NOTES:

Do not preheat when broiling, unless your recipe

•

recommends it. Leave the door partly open whenever you use

•

the oven to broil. This lets the oven stay at the proper temperatures.

See “Broiling guidelines” later in this section.

•

1. Place the rack where you need it.

You need to place the rack so that the surface of the food is at least 3 inches away from the broil element. See “Broiling guidelines” later in this section.

Front of rack

2. Put your food on the broiler pan and place the

pan in the center of the oven rack.

3. Close the door to the broil stop position.

The broil stop position lets the door stay open by itself about 5 inches.

Rear of rack

Page 19

BROILING (CONT.)

USING YOUR RANGE

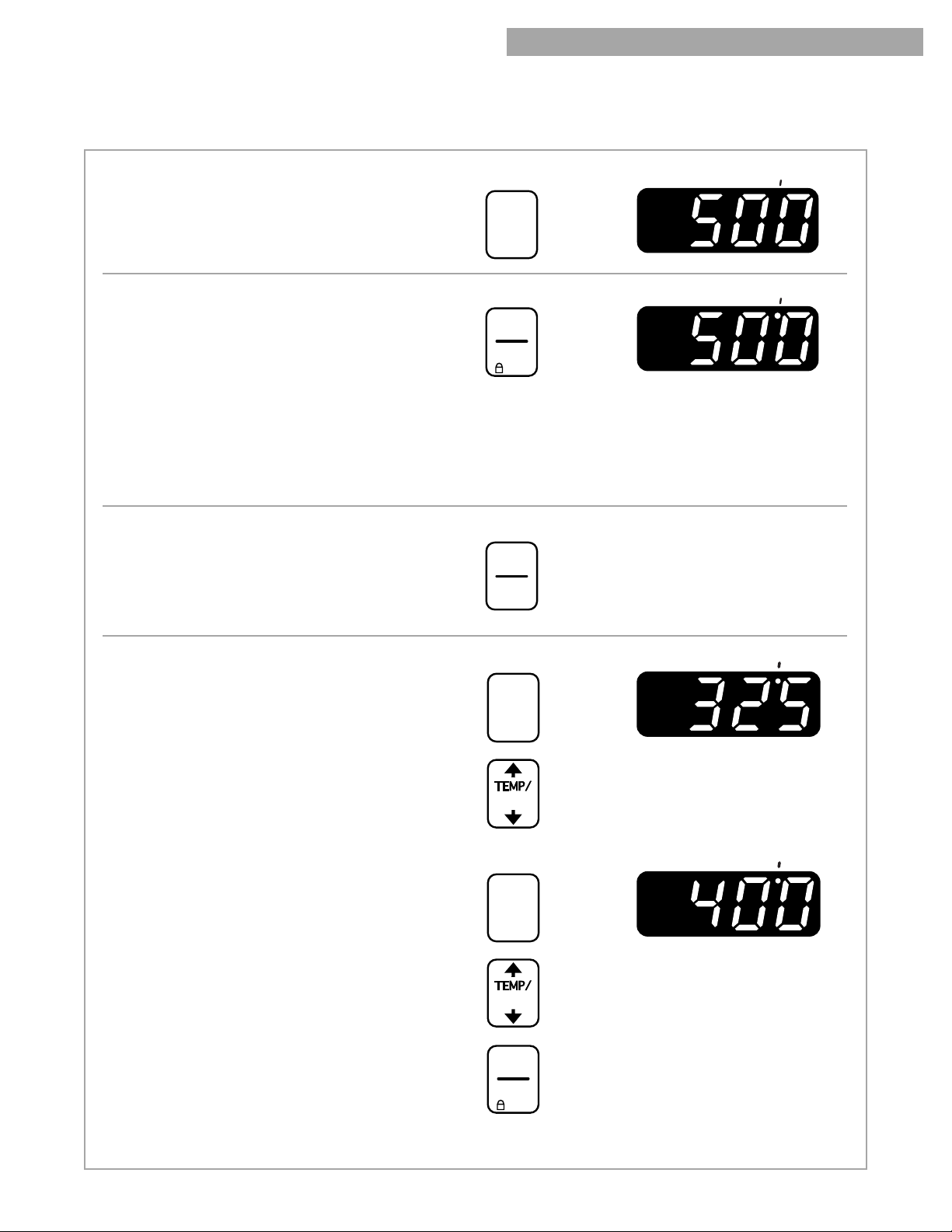

4. Press BROIL.

The broil indicator light will light up.

5. Start the oven.

The on and heat indicator lights will light up.

NOTES:

You can change the temperature setting any

•

time after pressing START/ENTER. To change the setting, see “To broil at a lower temperature” below.

If you are broiling while the minute timer is

•

counting down, you can see the set broiling temperature for 5 seconds by pressing BROIL.

6. When broiling is done, turn off the oven.

PRESS YOU SEE

BROIL

PRESS YOU SEE

START

ENTER

5 SEC

PRESS YOU SEE

(time of day or minute timer

OFF

CANCEL

countdown)

To broil at a lower temperature:

If food is cooking too fast, press BROIL and

•

press the t temp pad until “325°F” shows on the display.

If you want food to broil slower from the start,

•

press the broil pad and press the t temp pad so a temperature between 300°F and 500°F shows on the display. Press START/ENTER.

Lower temperature settings let the broil burner cycle and slow cooking results. The lower the temperature, the slower the cooking.

NOTE: Fish and chicken are some foods that may cook better if you use lower broiling temperatures.

PRESS YOU SEE

BROIL

(example shows broil at 325°F)

TIME

PRESS YOU SEE

BROIL

(example shows broil at 400°F)

TIME

START

ENTER

5 SEC

Page 20

USING YOUR RANGE

BROILING (CONT.)

Broiling guidelines

Use only the broiler pan and grid provided. They

•

are designed to drain extra juices from the cooking surface. This drainage helps prevent spatter and smoke.

To make sure the juices drain well, do not cover

•

the grid with foil. Trim excess fat to reduce spattering. Slit the fat

•

on the edges to prevent curling. Use tongs to turn meat to avoid losing juices.

•

Recommended rack positions are numbered from the bottom (1) to the top (5). For best results, place food 3 inches or more from the broil element.

Pull out oven rack to stop position before turning

•

or removing food. After broiling, remove the pan from the oven

•

when removing the food. Drippings will bake on the pan if left in the heated oven, making cleaning more difficult.

For easier cleaning, line the bottom of the pan

•

with aluminum foil. Clean the pan and grid as soon as possible after each use.

APPROXIMATE TIME

RACK

MEAT Steak, 1" thick

medium rare medium well done

Hamburger Patties, 3⁄4" thick, 1⁄4 lb well done Pork Chops, 1" thick Ham Slice, 1⁄2" thick, precooked Frankfurters Lamb Chops, 1" thick Chicken

bone-in pieces boneless breasts

Fish

fillets 1⁄4-1⁄2" thick steaks 3⁄4-1" thick

NOTE: Times are guidelines only and may need to be adjusted for individual tastes.

POSITION

4 4 4 4 4

3 4

SIDE 1

14-15 15-16 18-19

13-14 20-22 8-10 5-7 14-17

17-20 11-16

8-10 16-18

(MINUTES)

SIDE 2

7-8 8-9 9-10

7-8 10-11 4-5 3-4 8-9

17-20 11-16

4-5 8-9

Page 21

USING YOUR RANGE

THE OVEN VENT

Hot air and moisture escape from the oven through a vent under the left rear coil element. You can cook on this coil element or keep food warm on it while the oven is on. The vent is needed for air circulation. Do not block the vent by using extra large pans or covers. You will get poor baking/ roasting results.

NOTE: Never leave plastic utensils over the vent. They could melt.

Oven vent

THE ANTI-TIP BRACKET

The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without the anti-tip bracket fastened down properly.

Anti-Tip Bracket

Range Foot

wWARNING

children and adults.

Making sure the anti-tip bracket is installed:

• Slide range forward.

• Look for the anti-tip bracket securely attached to floor.

• Slide range back so rear range foot is under anti-tip bracket.

Page 22

USING YOUR RANGE

THE STORAGE DRAWER

Use the storage drawer to store cookware. You can remove the drawer to make it easier to clean under the range.

Removing the storage drawer:

1. Empty the drawer before you remove it. Pull the

drawer straight out to the first stop. (The stops are small, round objects formed in the slide rail. They keep the drawer from sliding all the way out.) Then lift the front of the drawer and pull it out to the second stop.

2. Lift the back of the drawer slightly and slide it all

the way out.

Replacing the storage drawer:

1. Position the drawer so that the lower drawer

guides rest just inside the front frame lip.

2. Lift the front of the drawer and push it in until the

metal stops on the drawer slide rails clear the upper drawer guides. Then slide the drawer closed.

Lower slide rail

(inside drawer opening)

Upper drawer guides

(on inside walls)

Drawer

slide rail

Lower drawer guide

Page 23

USING THE SELF-CLEANING CYCLE

wWARNING

Burn Hazard Do not touch the oven during the Self-Cleaning cycle. Keep children away from oven during Self-Cleaning cycle. Do not use commercial oven cleaners in your oven. Failure to follow these instructions can result in burns, or illness from inhaling

dangerous fumes.

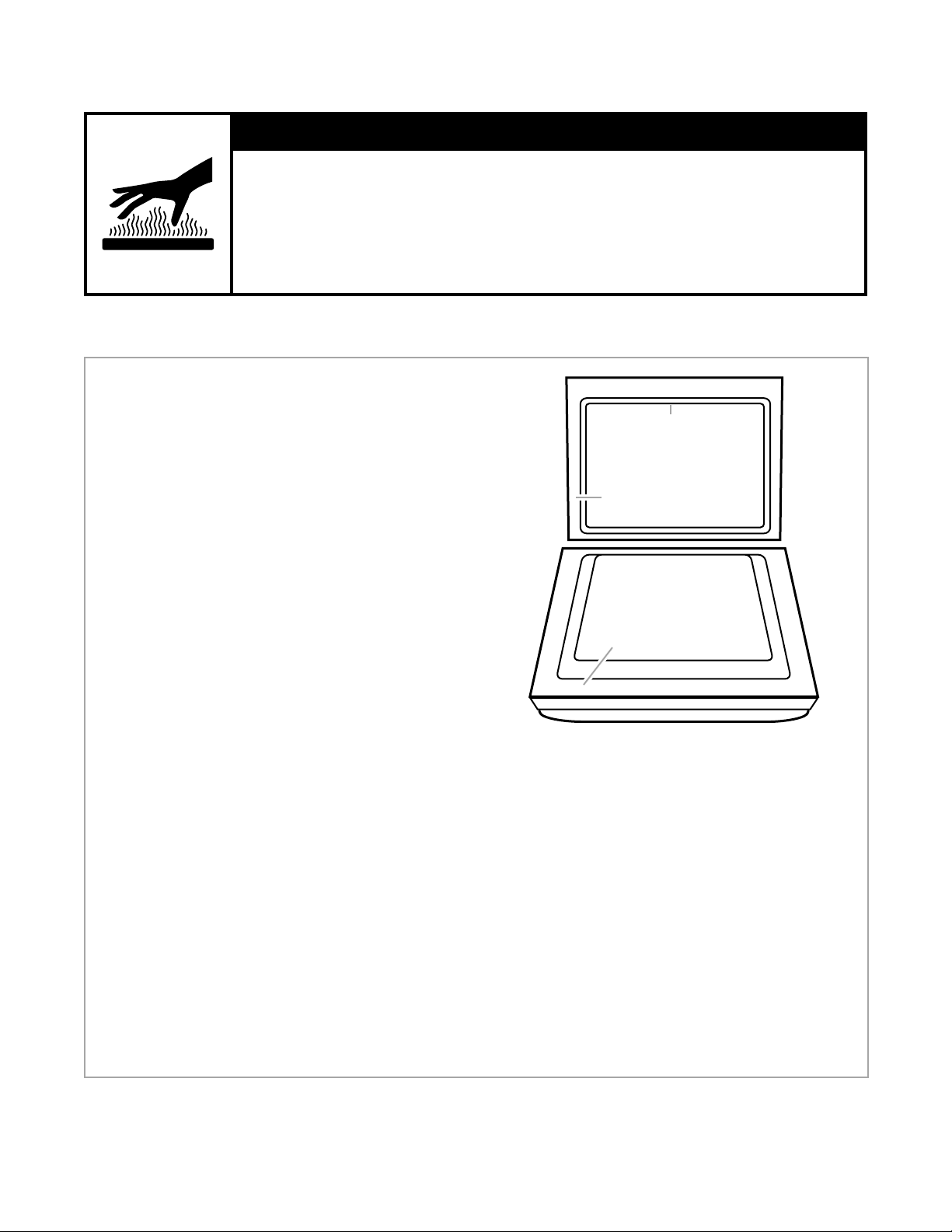

BEFORE YOU START

Before you start the Self-Cleaning cycle, make sure you:

Hand-clean the areas shown. They do not get hot

•

enough during the Self-Cleaning cycle for soil to burn away. Use hot water and detergent or a soapy, steel-wool pad for cleaning.

NOTE: DO NOT clean, move, or bend the gasket. You may get poor cleaning, baking, and roasting.

Do not let water, cleaner, etc., enter slots on door

•

and frame. Remove the broiler pan and grid and any

•

cookware/bakeware being stored in the oven. Wipe out any loose soil or grease. This will help

•

reduce smoke during the Self-Cleaning cycle. Wipe up food spills containing sugar as soon as

•

possible after the oven cools down. When sugar is heated to a high temperature in the SelfCleaning cycle, the high temperature can cause the sugar to burn and react with the porcelain. This can cause staining and etching or pitting.

Remove the oven racks from the oven if you

•

want them to remain shiny. You can clean the oven racks in the Self-Cleaning cycle, but they will become harder to slide. (See the “Cleaning chart” in the “Caring for Your Range” section.) If you clean the racks in the Self-Cleaning cycle, place them on the 2nd and 4th rack guides. (The guides are counted from bottom to top.)

Heat and odors are normal during the Self-

•

Cleaning cycle. Keep the kitchen well ventilated by opening a window or by turning on a vent hood or other kitchen vent during the cycle.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle. Move birds to another closed and well ventilated room.

TIPS:

Keep the kitchen well ventilated during the

•

Self-Cleaning cycle to help get rid of heat, odors, and smoke.

Clean the oven before it gets heavily soiled.

•

Cleaning a very soiled oven takes longer and results in more smoke than usual.

Do not block the vent during the Self-Cleaning

•

cycle. Air must move freely for best cleaning results. Do not leave plastic utensils on the cooktop. They

•

may melt. Do not leave any foil in the oven during the Self-

•

Cleaning cycle. Foil could burn or melt and damage the oven surface.

DO NOT hand-clean gasket

Hand-clean frame

Hand-clean door around edge

Page 24

USING THE SELF-CLEANING CYCLE

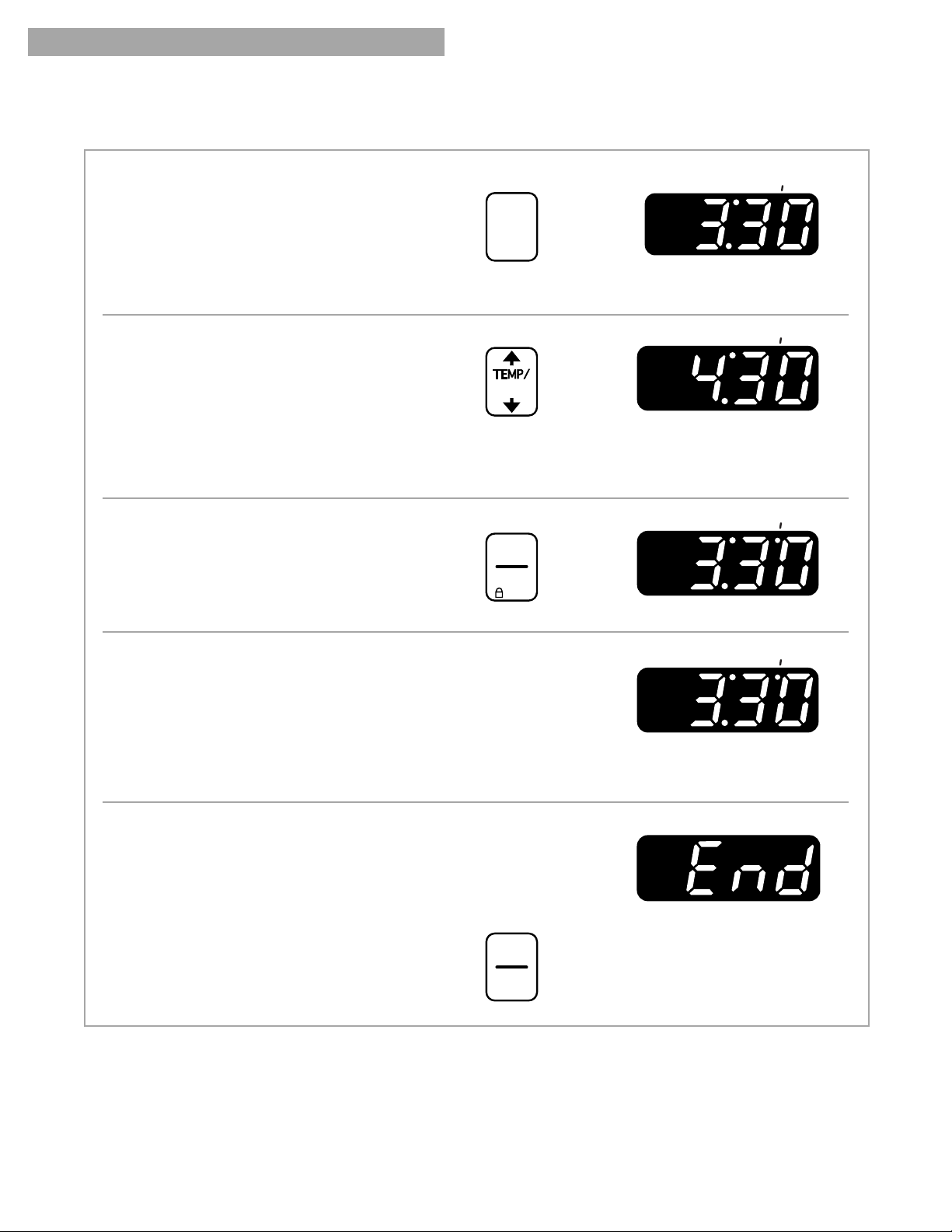

SETTING THE CONTROLS

1. Press SELF CLEAN.

The clean indicator light will light up. This will automatically set a 31⁄2-hour

Self-Cleaning cycle.

NOTE: There will be a 30-minute cool-down

⁄2 hour before the cycle is over.

2. Set the cleaning time (optional).

If you want a Self-Cleaning cycle longer or shorter than 31⁄2 hours, use the hour and minute pads to set the cleaning time you want. Press the “up” (s) or “down” (t) pad(s) until a time between 21⁄2-41⁄2 hours shows on the display.

Use 21⁄2 hours for light soil.

•

Use 31⁄2-41⁄2 hours for average to heavy soil.

•

3. Start the oven.

NOTE: The on and heat indicator lights will

light up.

PRESS YOU SEE

SELF

CLEAN

PRESS YOU SEE

TIME

(example for 4 hours, 30 minutes)

PRESS YOU SEE

START

ENTER

5 SEC

4. After Self-Cleaning cycle starts:

The door locked indicator light will light up when the oven door locks.

NOTE: If you open the door before starting the Self-Cleaning cycle, “door” will show on the display. If you do not close the door within 5 minutes, the cycle will be canceled.

5. After Self-Cleaning cycle ends and the oven

reaches normal baking/roasting temperatures: The clean, door locked, and on indicator lights

will go out.

Press OFF/CANCEL to clear the display.

PRESS

OFF

CANCEL

YOU SEE

Page 25

SETTING THE CONTROLS (CONT.)

6. After the oven cools to room temperature,

wipe off any residue or ash with a damp cloth or sponge.

If needed, touch up spots with a mildly abrasive cleanser or cleaning sponge.

USING THE SELF-CLEANING CYCLE

To stop the self-cleaning cycle at any time:

If the oven temperature is above normal broiling temperatures, the Self-Cleaning cycle will start a 30-minute cool down. The clean and door locked indicator lights will stay on.

HOW THE CYCLE WORKS

The Self-Cleaning cycle uses very high heat to burn away soil and grease. During the cycle, the oven gets much hotter than it does for normal baking or broiling. This high heat breaks up the soil or grease and burns it away.

Your oven is automatically preset for a 31⁄2-hour Self-Cleaning cycle.

The graph at the right shows you what happens in a 31⁄2-hour Self-Cleaning cycle. Notice that the heating stops 1⁄2 hour before the 31⁄2-hour setting is up.

PRESS YOU SEE

OFF

CANCEL

875°F ( 468°C )

CLEANING CYCLE

OVEN SHUT OFF

( normal broiling temperature )

T emperature

DOOR LOCKS

START 11 2 3 STOP

Time In Hours

DOOR UNLOCKS

ONON

Page 26

CARING FOR YOUR RANGE

wWARNING

Explosion Hazard

Do not store flammable materials such as gasoline near this appliance. Doing so can result in death, explosion, or fire.

CLEANING CHART

Before cleaning, always make sure all controls are off and the range is cool. Refer to instructions on all cleaning products before using them to clean your range.

PART CLEANING METHOD SPECIAL INSTRUCTIONS Control Knobs

Soap and water

•

Dishwasher

•

• DO NOT use steel wool or

abrasive cleaners.

• Pull knobs straight away from

control panel.

• Wash, rinse and dry with soft

cloth.

Control Panel

Exterior Surfaces*

(excluding control panel and oven door glass)

Soap and water

•

Spray glass cleaner

•

Soap and water

•

Mild liquid cleaner

•

Spray glass cleaner

•

• Wash, rinse and dry with soft

cloth.

• Apply spray cleaner to paper

towel, do not spray directly on panel.

• DO NOT use abrasive or harsh

cleaners like chlorine bleach, ammonia or oven cleaners.

• Wash, rinse and dry with soft

cloth.

Non-abrasive plastic scrubbing pad

•

Coil Elements • DO NOT clean or immerse in

• Gently clean around the model

and serial plate; too much scrubbing could remove the numbers.

water. Spatters and spills will burn off.

Chrome reflector bowls*

Light to moderate soil

•

Heavy to burned-on soils

•

*When the cooktop is cool, remove all spills and clean. Food spills containing acids, such as vinegar and tomato, may affect the finish.

Soap and water

•

Non-abrasive plastic scrubbing pad

•

Dishwasher

•

Solution of 1/2 cup ammonia to

•

1 gallon water

Non-abrasive plastic scrubbing pad

•

Mild abrasive powdered cleanser

•

or commercial oven cleaner

• Wash, rinse and dry with soft

cloth.

• Soak bowls for 20 minutes, then

scrub with plastic pad.

Page 27

CARING FOR YOUR RANGE

CLEANING CHART (CONT.)

PART CLEANING METHOD SPECIAL INSTRUCTIONS Surface under cooktop

Light to moderate soil

•

Heavy soils

•

Soap and water

•

Soapy steel wool pad

•

• Wash, rinse and dry with soft

cloth.

• Rinse thoroughly and dry.

Oven door glass

Oven cavity

Food spills containing

•

sugar and/or milk

All other spills

•

Oven racks

Broiler pan and grid

Soap and water

•

Non-abrasive plastic scrubbing pad

•

Spray glass cleaner

•

Soap and water

•

Self-cleaning cycle

•

Soap and water

•

Steel wool pad

•

Self-cleaning cycle

•

Soap and water

•

Steel wool pad

•

Dishwasher

•

Solution of 1/2 cup ammonia to

•

1 gallon water

Mild abrasive cleanser or

•

commercial oven cleaner

• Wash, rinse and dry with soft

cloth.

• Wipe with paper towel.

When oven cools, wash, rinse

•

and dry with soft cloth or sponge.

See the “Using the self-cleaning

•

cycle” section.

Wash, rinse and dry.

•

Place on 2nd and 4th rack

•

guides. Racks will discolor and become harder to slide. After cleaning, apply vegetable oil to rack guides for easier sliding.

Wash, rinse and dry.

•

Soak for 20 minutes, then scrub

•

with plastic scrubbing pad.

Page 28

CARING FOR YOUR RANGE

COIL ELEMENTS AND REFLECTOR BOWLS

Removing

1. Make sure all coil elements are off and cool

before removing coil elements and reflector bowls.

2. Push in the edge of the coil element, opposite

the receptacle. Then lift it just enough to clear the reflector bowl.

3. Pull the coil element straight away from the

receptacle.

OFF

4. Lift out the reflector bowl. See the “Cleaning

chart” earlier in this section for cleaning instructions.

Replacing

1. Make sure all coil elements are off and cool

before replacing coil elements and reflector bowls.

2. Line up openings in the reflector bowl with the

coil element receptacle.

OFF

Page 29

COIL ELEMENTS AND REFLECTOR BOWLS (CONT.)

3. Hold the coil element as level as possible with

the terminal just started into the receptacle. Push the coil element terminal into the receptacle.

4. When the terminal is pushed into the receptacle

as far as it will go, push down the edge of the coil element opposite the receptacle.

CARING FOR YOUR RANGE

NOTE: Reflector bowls reflect heat back to the cookware on the coil elements. They also help catch spills. When they are kept clean, they reflect heat better and look new longer.

LIFT-UP COOKTOP

NOTE: Do not drop the cooktop. Damage could result to the porcelain and the cooktop frame.

1. Lift the front of the cooktop at both front corners

until the support rods lock into place.

2. Wipe the surface under the cooktop with warm,

soapy water and a sponge. Use a soapy steelwool pad on heavily soiled areas.

3. To lower the cooktop, lift the cooktop from both

sides while pressing the support rods back to unlock them. Lower the cooktop into place.

If a reflector bowl changes color, some of your cookware may not be flat enough, or some may be too large for the coil element. In either case, some of the heat that is meant to go into or around cookware goes down and heats the reflector bowl. This extra heat can cause it to change color.

Page 30

CARING FOR YOUR RANGE

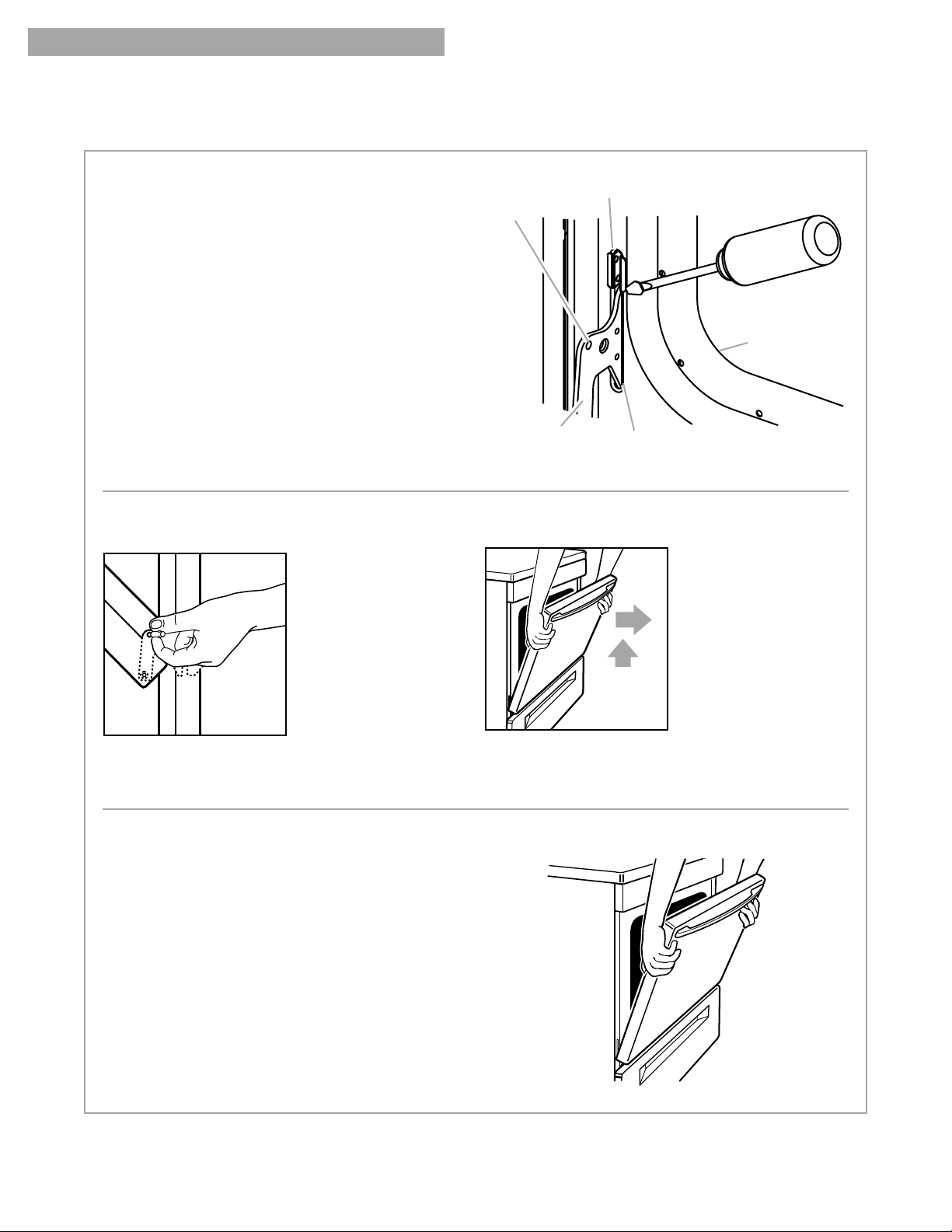

REMOVING THE OVEN DOOR

For normal use of your range, you do not need to remove the door. However, if you find it necessary to remove the door, follow the instructions in this section.

NOTE: The oven door is heavy. Before removing the door:

1. Use a putty knife or screwdriver and insert it at

the bottom corner of the door stop clip.

2. Pry door stop clip free and remove from front

frame hinge slot. Take care not to scratch porcelain.

3. Repeat procedure for other door stop clip.

Door removal pin hole

Door stop clip

Range

To remove:

1. Open the oven door. Insert door removal pins,

included with your range, into both hinge hangers. Do not remove

the pins while the door is removed from the range.

2. Carefully close the door until it rests against the

door removal pins.

To replace:

NOTE: The door removal pins you inserted must still be in both hinges.

Hinge hanger

Front frame hinge slot

3. Grasp the door on the sides with your fingers on

the front of the door and your thumbs on the inside surface.

4. Pull door straight up, then toward you. Hinge

hangers will slide out of front frame hinge slot.

1. Grasp the door on the sides with your fingers

on the front of the door and your thumbs on the inside surface.

Page 31

REMOVING THE OVEN DOOR (CONT.)

CARING FOR YOUR RANGE

2. Hold oven door so that the top edge of each

hinge hanger is horizontal. Insert hinge hangers into the front frame hinge slots.

3. Rotate top of door toward range. Slide hinge

hangers down onto front frame support pins.

NOTE: Make sure the hinge hangers are fully seated and engaged on the support pins.

4. Insert the door stop clip with the angular surface

at the top of the frame hinge slot, then push in the bottom of the clip until flanges are flush with the front frame.

5. Open the door completely and remove the door

removal pins. Save door removal pins for future use.

6. Close the door.

Door stop clip

Door removal pin hole

Range

Hinge hanger

Support pins

Front frame hinge slot

Angular surface of door stop clip

THE OVEN LIGHT

The oven light will come on when you open the oven door.

To turn the light on or off when the oven door is closed:

Push the oven light switch on the backguard.

•

To replace the oven light:

1. Unplug range or disconnect power.

2. Remove the glass bulb cover in the back of

the oven by turning it counterclockwise.

3. Remove the light bulb from its socket. Replace

the bulb with a 40-watt appliance bulb.

4. Replace the bulb cover by turning it clockwise.

5. Plug in range or reconnect power.

NOTE: The oven light will not work during the

Self-Cleaning cycle.

Page 32

TROUBLESHOOTING

Most cooking problems often are caused by little things you can find and fix without tools of any kind. Check the lists below and on the next page before calling for assistance or service. If you still need help, see “Requesting Assistance or Service” on page 34.

RANGE DOES NOT WORK

PROBLEM

Nothing works

The oven does not work

The coil elements will not work

CAUSE

The range is not plugged into a properly grounded live outlet with the proper

•

voltage. (See Installation Instructions.) You have blown a household fuse or tripped a circuit breaker.

•

The control knob is not set correctly. Push in the control knobs before

•

turning them.

You have not set the electronic control correctly. Refer to the proper

•

instructions.

You have blown a household fuse or tripped a circuit breaker.

•

The coil elements are not plugged in all the way. (See “Replacing” on

•

page 28.) You have not set the control knobs correctly. Push the control knobs in

•

before turning them to a setting.

WHEN SELF-CLEANING YOUR OVEN

PROBLEM

The Self-Cleaning cycle will not work

CAUSE

You did not press START/ENTER.

•

The door is not closed all the way.

•

Page 33

COOKING RESULTS

PROBLEM SOLUTION

TROUBLESHOOTING

Cookware not level on cooktop (Check to see if liquids

are level in cookware) Excessive heat on cooktop

in areas around cookware The oven temperature

seems too low or too high Slow baking or roasting

Baked items too brown on bottom

Unevenly baked items

Crust edge browns before pie is done

Level the range. (See the Installation Instructions.)

•

Insert coil correctly.

•

Use cookware with a flat bottom.

•

Choose cookware the same size or slightly larger than the element.

•

Adjust the oven temperature control. (See “Adjusting the oven temperature

•

control” section.)

Increase baking or roasting time.

•

Increase temperature 25° F.

•

Preheat oven to selected temperature before placing food in when

•

preheating is recommended.

Choose bakeware that will allow 2 inches of air space around all sides.

•

Open oven door to check food when timer signals shortest time suggested

•

in recipe.

Oven peeking can make cooking times longer.

•

Preheat oven to selected temperature before placing food in oven.

•

Choose bakeware that will allow 2 inches of air space around all sides.

•

Position rack higher in oven.

•

Decrease oven temperature 15° to 25° F.

•

Level the range.

•

Bake in center of oven with 2 inches of space around each pan.

•

Check to make sure batter is level in pan.

•

Shield edge with foil.

•

DISPLAY MESSAGES

PROBLEM

The display is showing “PF”

“F” followed by a number shows on the display

The indicator light(s) is flashing

If none of these items are causing your problem, see “Requesting Assistance or Service” on page 34.

CAUSE

There has been a power failure. Press OFF/CANCEL to clear the display.

•

Press OFF/CANCEL to clear the display. If an “F” code appears again,

•

call for service. (See “If You Need Assistance or Service” on page 34.) The function(s) indicated may not be working. Refer to the section in this Use

•

and Care Guide discussing the function. If the indicator light(s) keeps flashing, call for service. (See “If You Need Assistance or Service” on page 34.)

Page 34

REQUESTING ASSISTANCE OR SERVICE

To avoid unnecessary service calls, please check the “Troubleshooting” section. It may save you the cost of a service call. If you still need help, follow the instructions below.

IF YOU NEED ASSISTANCE OR SERVICE

Call the Whirlpool Consumer Assistance Center

toll free at 1-800-253-1301. Our consultants are available to assist you.

When calling:

Please know the purchase date, and the complete model and serial number of your appliance (see the “A Note to You” section). This information will help us better respond to your request.

Our consultants provide assistance with:

Features and specifications on our full line

•

of appliances Installation information

•

Use and maintenance procedures

•

IF YOU NEED REPLACEMENT PARTS

If you need to order replacement parts, we recommend that you only use FSP® factory authorized parts. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new ESTATE® appliance.

Accessory and repair parts sales

•

Specialized customer assistance (Spanish speak-

•

ing, hearing impaired, limited vision, etc.) Referrals to local dealers, service companies, and

•

repair parts distributors Whirlpool service technicians are trained to fulfill

the product warranty and provide after-warranty service, anywhere in the United States.

To locate the authorized Whirlpool service company in your area, you can also look in your telephone directory Yellow Pages.

To locate FSP replacement parts in your area, call our Consumer Assistance Center telephone number or your nearest authorized service center.

FOR FURTHER ASSISTANCE

If you need further assistance, you can write to us with any questions or concerns at:

Estate Brand Home Appliances Consumer Assistance Center c/o Correspondence Dept. 2000 North M-63 Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

Page 35

INDEX

TOPIC PAGE

ANTI-TIP BRACKET ................................................... 21

ASSISTANCE .............................................................34

BAKING

Aluminum foil ..........................................................11

Bakeware................................................................ 11

Pans ....................................................................... 10

Racks................................................................10, 14

Setting cycle ........................................................... 15

Tips ......................................................................... 16

BROILING

Grid......................................................................... 18

Guidelines............................................................... 20

Pan ................................................................... 18, 20

Rack positions ..................................................18, 20

Setting cycle ........................................................... 19

CLEANING

Broiler pan and grid ................................................ 27

Coil elements .............................................. 26, 28, 29

Control knobs ......................................................... 26

Control panel ..........................................................26

Exterior surfaces .................................................... 26

Oven cavity ............................................................. 27

Oven door glass ..................................................... 27

Oven racks .............................................................27

Reflector bowls .......................................... 26, 28, 29

Surface under cooktop........................................... 27

Self-cleaning cycle ........................................... 23-25

TOPIC PAGE

ELECTRONIC OVEN CONTROL

Canceling ............................................................... 14

Clock ...................................................................... 13

Control lock ............................................................12

Display .................................................................... 12

Indicator lights ........................................................ 12

Minute timer .....................................................13, 14

Starting ...................................................................14

FEATURES ...................................................................6

LIFT-UP COOKTOP ................................................... 29

MODEL AND SERIAL NUMBER .................................. 2

OVEN DOOR ........................................................ 33, 31

OVEN TEMPERATURE

Adjusting ................................................................ 17

Setting ..............................................................15, 19

OVEN VENT ...............................................................21

PANS.......................................................................... 10

PARTS.......................................................................... 6

RACKS .......................................................................10

ROASTING

Pans ....................................................................... 10

Racks................................................................10, 14

Setting cycle ........................................................... 15

Tips ......................................................................... 16

COIL ELEMENTS

Coil element markers ............................................... 6

Control knobs ........................................................... 7

Control setting guide ................................................ 7

Surface heating indicator light ................................. 6

CONTROL PANEL

Coil element markers ............................................... 6

Control knobs ........................................................... 6

Surface heating indicator light ................................. 6

COOKWARE

Canning .................................................................... 8

Materials ...................................................................9

Tips ........................................................................... 8

SAFETY ................................................................3, 4, 5

SELF-CLEANING CYCLE

Before you start ...................................................... 23

How the cycle works ..............................................25

Setting the controls ..........................................24, 25

Tips ......................................................................... 23

SERVICE .................................................................... 34

STORAGE DRAWER ..................................................22

TROUBLESHOOTING .......................................... 32, 33

WARRANTY ............................................................... 36

Page 36

WARRANTY

ESTATE® ELECTRIC RANGE

LENGTH OF WARRANTY FULL ONE-YEAR

WARRANTY

FROM DATE OF PURCHASE

WHIRLPOOL WILL NOT PAY FOR A. Service calls to:

1. Correct the installation of your range.

2. Instruct you how to use your range.

3. Replace house fuses or correct house wiring.

4. Replace owner-accessible light bulbs.

B. Repairs when your range is used in other than normal, single-family household use. C. Pickup and delivery. Your range is designed to be repaired in the home. D. Damage to your range caused by accident, misuse, fire, flood, acts of God, or use of products not

approved by Whirlpool.

E. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this

exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Outside the United States, a different warranty may apply. For details, please contact your authorized Whirlpool dealer.

If you need service, first see the “Troubleshooting” section of this book. After checking “Troubleshooting,” additional help can be found by checking the “Requesting Assistance or Service” section, or by calling our Consumer Assistance Center telephone number, 1-800-253-1301, from anywhere in the U.S.A.

WHIRLPOOL WILL PAY FOR

FSP® replacement parts and repair labor to correct defects in materials or workmanship. Service must be provided by an authorized Whirlpool service company.

3/98

PART NO. 8053405

4/98
