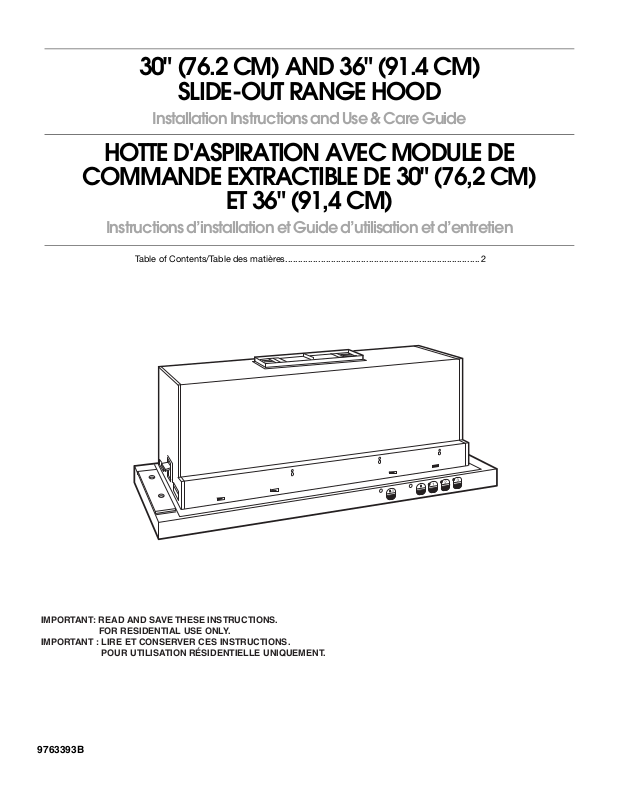

Whirlpool Slide-Out Range Hood User Manual

0 (0)

30" (76.2 CM) AND 36" (91.4 CM)

SLIDE-OUT RANGE HOOD

Installation Instructions and Use & Care Guide

HOTTE D'ASPIRATION AVEC MODULE DE

COMMANDE EXTRACTIBLE DE 30" (76,2 CM)

ET 36" (91,4 CM)

Instructions d’installation et Guide d’utilisation et d’entretien

Table of Contents/Table des matières.............................................................................2

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. FOR RESIDENTIAL USE ONLY. IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS. POUR UTILISATION RÉSIDENTIELLE UNIQUEMENT.

9763393B

TABLE OF CONTENTS

TABLE DES MATIÈRES

RANGE HOOD SAFETY .................................................................3

INSTALLATION REQUIREMENTS................................................4

Tools and Parts ............................................................................4

Location Requirements................................................................ 4

Venting Requirements..................................................................5

Electrical Requirements ...............................................................7

INSTALLATION INSTRUCTIONS..................................................7

Prepare Location..........................................................................7

Install Range Hood.....................................................................10

Electrical Connection .................................................................11

Connect the Vent System ..........................................................11

Optional Front Trim Kits.............................................................12

RANGE HOOD USE......................................................................12

KWVU Model Series...................................................................12

GZ and IH Model Series.............................................................13

RANGE HOOD CARE...................................................................13

Cleaning......................................................................................13

Replacing the Bulb.....................................................................14

WIRING DIAGRAMS.....................................................................15

ASSISTANCE OR SERVICE.........................................................17

In the U.S.A. ...............................................................................17

In Canada ...................................................................................17

WARRANTY ..................................................................................18

SÉCURITÉ DE LA HOTTE D’ASPIRATION ................................19

EXIGENCES D’INSTALLATION...................................................21

Outils et composants .................................................................21

Exigences d'emplacement.........................................................21

Exigences concernant l’évacuation ...........................................22

Spécifications électriques ..........................................................24

INSTRUCTIONS D'INSTALLATION.............................................24

Préparation de l'emplacement...................................................24

Installation de la hotte ................................................................27

Raccordement électrique...........................................................28

Raccordement du circuit d'évacuation......................................28

Ensembles de garniture avant (facultatif)...................................29

UTILISATION DE LA HOTTE .......................................................29

Modèles de série KWVU ............................................................29

Modèles de série GZ et IH ........................................................30

ENTRETIEN DE LA HOTTE..........................................................30

Nettoyage ...................................................................................30

Remplacement de l'ampoule .....................................................31

SCHÉMAS DE CÂBLAGE ............................................................32

ASSISTANCE OU SERVICE.........................................................34

GARANTIE.....................................................................................35

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the

manufacturer. If you have questions, contact the manufacturer.

■ Before servicing or cleaning the unit, switch power off at

service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

■ Installation work and electrical wiring must be done by

qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

■ Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

■ When cutting or drilling into wall or ceiling; do not damage

electrical wiring and other utilities.

■ Ducted fans must always be vented outdoors. CAUTION: For general ventilating use only. Do not use

to exhaust hazardous or explosive materials and vapors.

CAUTION: To reduce risk of fire and to properly exhaust

air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY

METAL DUCTWORK.

follow instructions.

can be killed or seriously injured if you don't

You instructions.

WARNING: TO REDUCE THE RISK OF A RANGE TOP

GREASE FIRE:

■ Never leave surface units unattended at high settings.

Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

■ Always turn hood ON when cooking at high heat or when

flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).

■ Clean ventilating fans frequently. Grease should not be

allowed to accumulate on fan or filter.

■ Use proper pan size. Always use cookware appropriate for

the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO

PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or

metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

■ NEVER PICK UP A FLAMING PAN - you may be burned.

■ DO NOT USE WATER, including wet dishcloths or towels -

a violent steam explosion will result.

■ Use an extinguisher ONLY if:

– You know you have a class ABC extinguisher, and you

already know how to operate it.

– The fire is small and contained in the area where it

started. – The fire department is being called. – You can fight the fire with your back to an exit.

Based on "Kitchen Fire Safety Tips" published by NFPA.

SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tool s ne ed ed

■ Level

■ Drill

■ 1¹⁄₄" drill bit

■ ³⁄₈" (8 mm) nut driver or ratchet

■ Pencil

■ Pliers

■ Wire stripper or utility knife

■ Tape measure or ruler

■ Caulking gun and weatherproof caulking compound

■ Phillips screwdriver

■ Flat-blade screwdriver

■ Saber or keyhole saw

■ Vent clamps

■ Metal snips

Parts needed

■ Home power supply cable

■ Tw o ¹⁄₂" (12.7 mm) UL listed or CSA approved strain reliefs

For vented installations, you will also needed:

■ 1 wall or roof cap

■ Metal vent system

For non-vented (recirculating) installations, you will also need:

■ Charcoal Filter Kit Part Number 883140. See “Assistance or

Service” section to order.

Optional parts needed:

■ Wood filler strips for cabinets with recessed bottoms. Length

and thickness determined by recess dimensions. See “Prepare Location” section.

■ Two, 1" x 1" x 5" (25.4 x 25.4 x 127 mm) wood pieces for

cabinet floor. See “Prepare Location” section.

■ Four, 1¹⁄₄" (31.8 mm) wood screws

Parts supplied

Remove parts from packages. Check that all parts are included.

■ 2 screws

■ Damper

■ Plastic cover (used for customized front panel)

■ Hardware package

Location Requirements

IMPORTANT: Observe all governing codes and ordinances. Have a qualified technician install the range hood. It is the

installer’s responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located behind the left filter on the rear wall of the range hood.

Range hood location should be away from strong draft areas, such as windows, doors, and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance. Consult your cooktop/ range manufacturer installation instructions before making any cutouts.

Grounded electrical outlet is required. See “Electrical Requirements” section.

The range hood is factory set for vented installations through the roof or wall. For non-vented (recirculating) installations see “NonVented (recirculating) Installation Through the Soffit/Cabinet” in the “Prepare Location” section. Charcoal Filter Kit Part Number 883140 is available from your dealer or an authorized parts distributor.

All openings in ceiling and wall where range hood will be installed must be sealed.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A*, or latest edition, or with local codes.

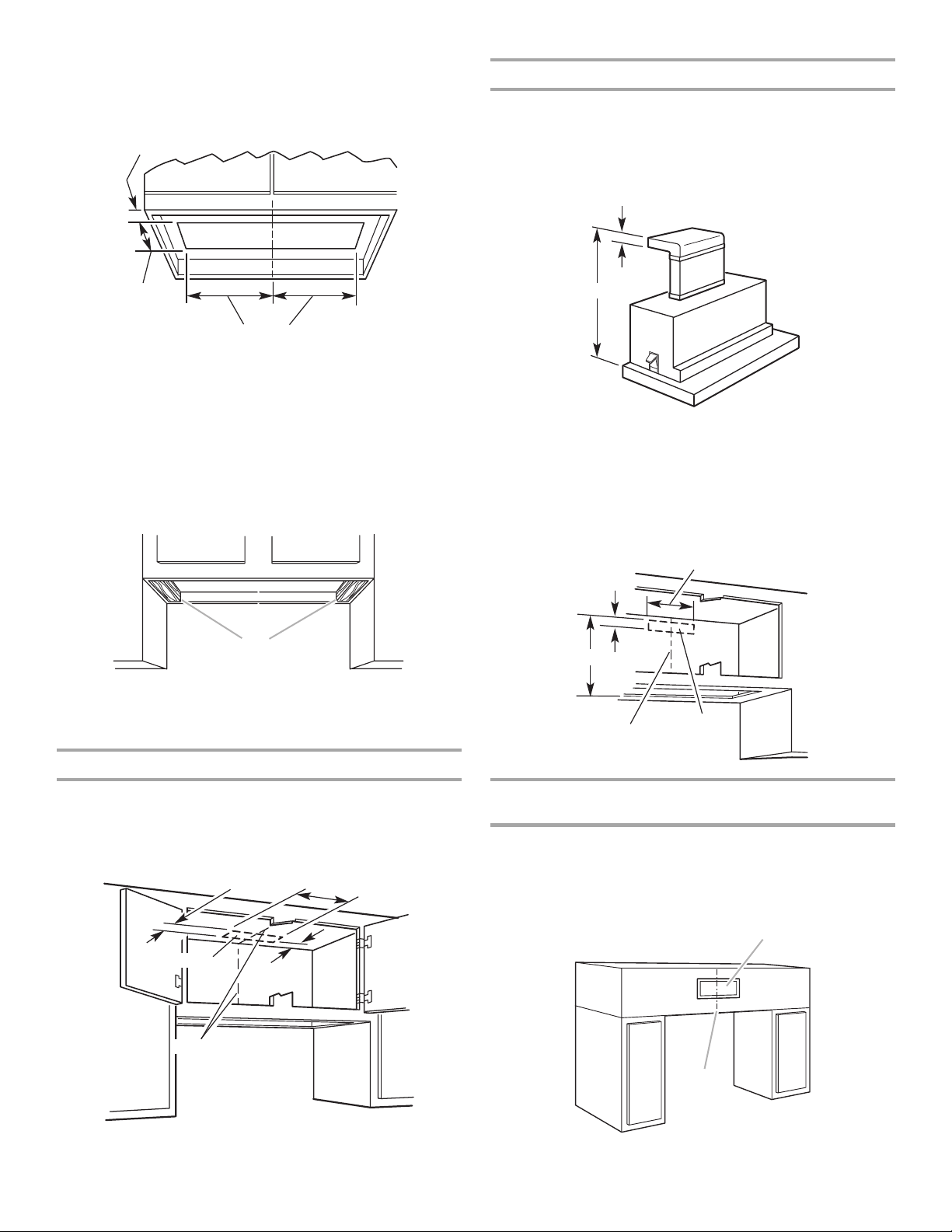

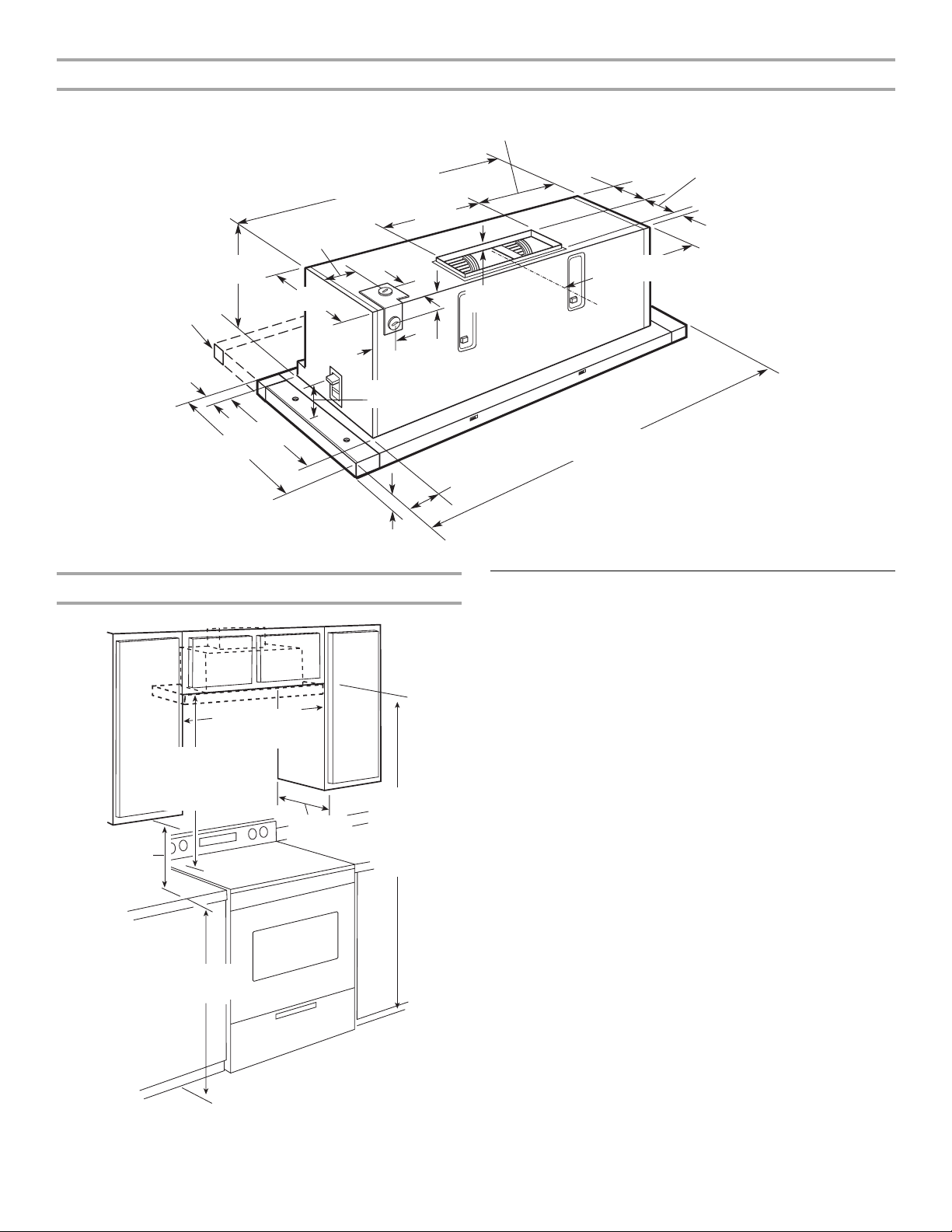

Product Dimensions

Shelf extends

7" (17.8 cm)

(25.4 mm)

(27.9 cm)

9¹⁄₂"

(24.1 cm)

11"

FRONT OF RANGE HOOD

30" (76.2 cm) model: 26" (66.0 cm) 36" (91.4 cm) model: 32" (81.3 cm)

2³⁄₈" (6.0 cm)

(5.1 cm)

(20.3 cm)

1⁵⁄₈" (41.3 mm)

⁵⁄₈" to 2¹⁄₈" (1.6 cm to 5.4 cm)

9¹⁄₈"

(23.2 cm)

(3.6 cm)

1⁷⁄₁₆"

30" (76.2 cm) model: 8" (20.3 cm) 36" (91.4 cm) model: 11" (27.9 cm)

10"

(25.4 cm)

¹⁄₄"

(6.4 mm)

1¹⁄₄" (31.8 mm)

30" (76.2 cm) model: 29⁷⁄₈" (75.9 cm) 36" (91.4 cm) model: 35⁷⁄₈" (91.1 cm)

(5.1 cm)

4³⁄₈" (11.1 cm)

30" (76.2 cm) model: 13" (33.0 cm) 36" (91.4 cm) model: 16" (40.6 cm)

3¹⁄₄" (8.3 cm)

BACK OF

RANGE HOOD

³⁄₈" (9.5 mm)

Cabinet Dimensions

24" (61 cm) min. 30" (76.2 cm)

suggested max. bottom of cabinet to cooking surface

15" (38.1 cm) min. clearance upper cabinet to countertop

36" (91.4 cm) base cabinet height

30" (76.2 cm) or 36" (91.4 cm) min.

cabinet opening width

13" (33 cm)

cabinet depth

Venting Requirements

(vented models only)

■ Vent system must terminate to the outside, except for non-

vented (recirculating) installations.

■ Do not terminate the vent system in an attic or other enclosed

area.

■ Do not use a 4" (10.2 cm) laundry-type wall caps.

■ Use a metal vent only. A rigid metal vent is recommended.

Plastic or metal foil vent is not recommended.

■ The length of vent system and number of elbows should be

kept to a minimum to provide efficient performance.

For the most efficient and quiet operation:

■ Use no more than three 90° elbows.

■ Make sure there is a minimum of 24" (61.0 cm) of straight

vent between the elbows if more than 1 elbow is used.

■ Do not install 2 elbows together.

■ The vent system must have a damper. If the roof or wall cap

has a damper, do not use the damper supplied with the range hood.

■ Use clamps to seal all joints in the vent system.

■ Use caulking to seal exterior wall or roof opening around the

cap.

■ The size of the vent should be uniform.

Cold weather installations

An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup air

Local building codes may require the use of makeup air systems when using ventilation systems with greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.

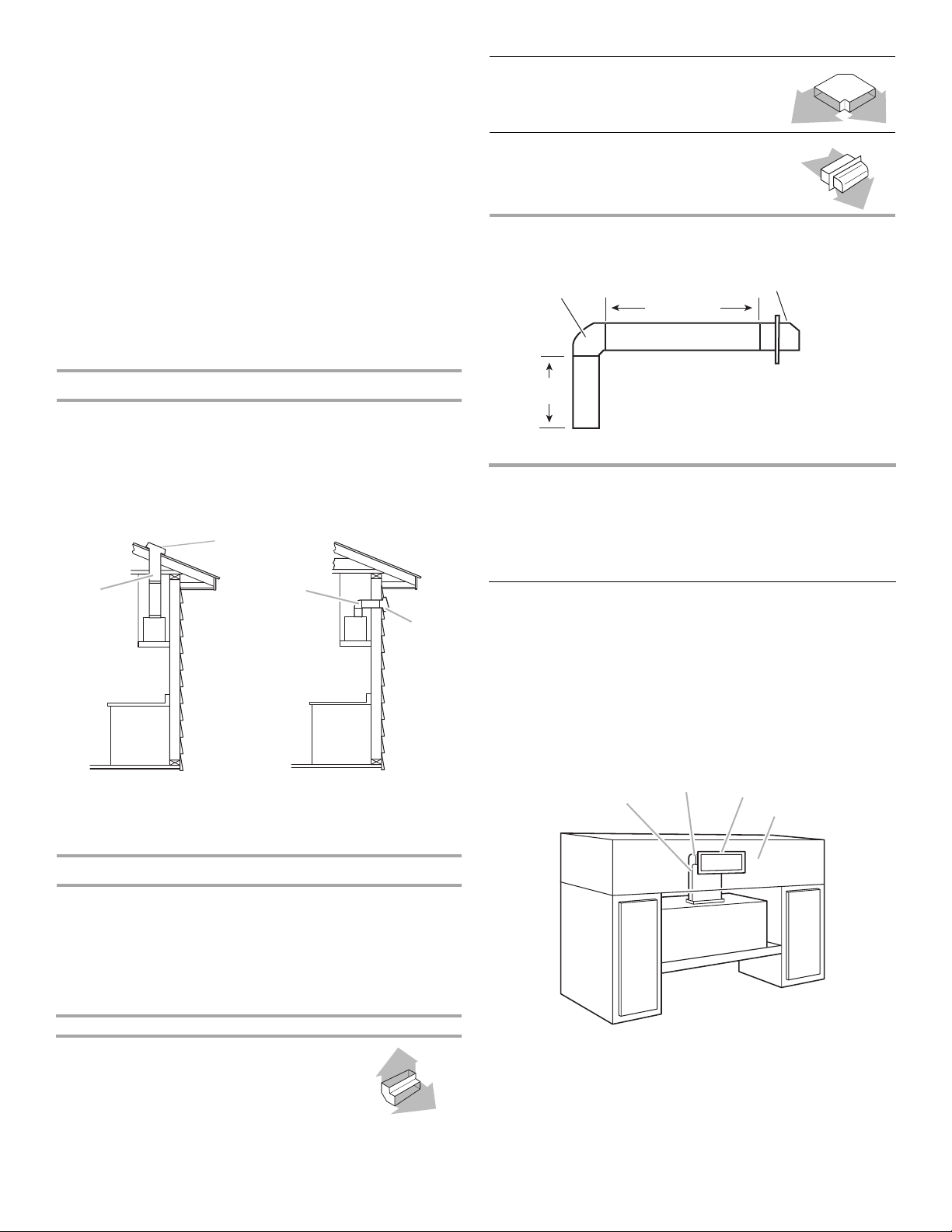

Venting Methods

Example vent system 3¹⁄₄"

x 10" (8.3 cm x 25 cm)

90˚ elbow

Wall cap

6 ft (1.8 m)

This range hood is factory set for venting through the roof or through the wall.

The vent system needed for installation is not included. A 3¹⁄₄" x 10" (8.3 cm x 25 cm) rectangular vent system is recommended.

Roof Venting Wall Venting

A. 3¹⁄₄" x 10" (8.3 cm x 25 cm)

vent through the roof

B. Roof cap

A. 3¹⁄₄" x 10" (8.3 cm x 25 cm)

vent through the wall

B. Wall cap

3 ft

(0.93 m)

Maximum Length = 26 ft (8 m)

1 - 90° elbow = 5 ft (1.5 m) 1 - wall cap = 0 ft (0 m) 9 ft (2.8 m) straight = 9 ft (2.8 m) System length = 14 ft (4.3 m)

Non-Vented (recirculating) Installations Through the Soffit/Cabinet

If it is not possible to vent cooking fumes and vapors to the outside, the range hood can be used in the non-vented (recirculating) version, using an activated carbon filter. Charcoal Filter Kit Part Number 883140 is available from the dealer or an authorized parts distributor. Damper installation is not required.

Calculate Vent System Length

The recommended vent system length is 3¹⁄₄" x 10" (8.3 cm x 25 cm) vent with maximum length of 26 ft (8 m) for vent system. For the best performance, use no more than three 90° elbows.

To calculate the length of the system, add the equivalent feet (meters) for each of the vent pieces used in the system.

Vent Piece 3¹⁄₄" x 10" (8.3 cm x 25 cm)

3¹⁄₄" x 10" (8.3 cm x 25.4 cm) 90° elbow

3¹⁄₄" x 10" (8.3 cm x 25.4 cm) flat elbow

3¹⁄₄" x 10" (8.3 cm x 25.4 cm) wall cap

5.0 ft (1.5 m)

12.0 ft (3.7 m)

0.0 ft (0.0 m)

A. 3¹⁄₄" x 10" (8.3 cm x 25 cm) vent

¹⁄₄" x 10" (8.3 cm x 25 cm) elbow

B. 3 C. Vent cover D. Soffit

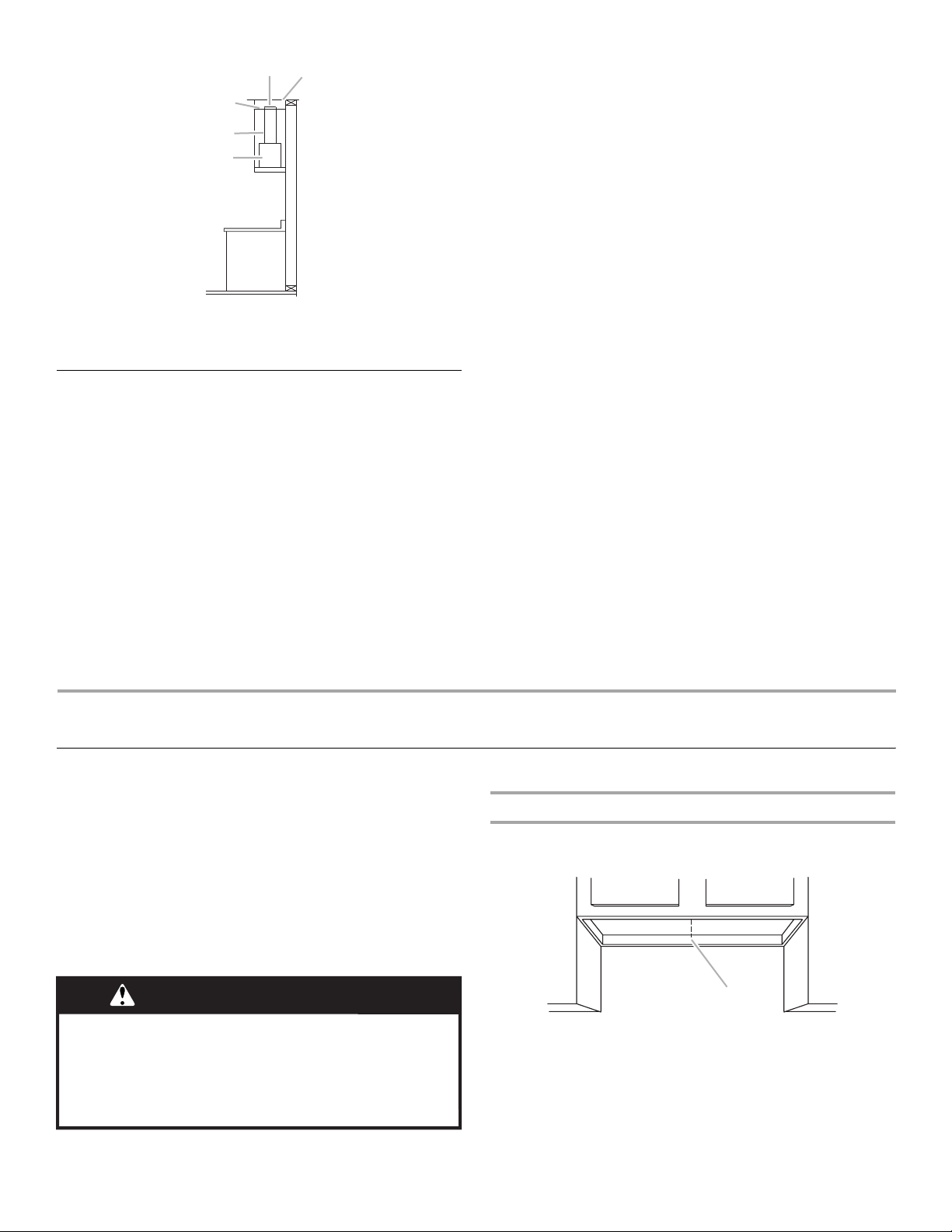

A. Range hood B. Vent system C. Top of cabinet

D. Vent cover

E. Ceiling or soffit

Electrical Requirements

For GZ or IH model series:

WARNING: To reduce the risk of fire or electrical shock, do not

use this fan with any solid state speed control device.

For KWVU model series:

This fan is suitable for use with solid state speed controls. Observe all governing codes and ordinances. Ensure that the electrical installation is adequate and in

conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

INSTALLATION INSTRUCTIONS

Prepare Location

■ It is recommended that the vent system be installed before

the range hood is installed.

■ Before making cutouts, make sure there is proper clearance

within the ceiling or wall for vent fittings.

1. Disconnect power.

2. Determine which venting method to use: roof, wall, or non-

vented.

3. Select a flat surface for assembling the range hood. Place

covering over that surface.

■ A 120 Volt, 60 Hz., AC only, 15-amp, fused electrical circuit is

required.

■ If the house has aluminum wiring, follow the procedure

below:

1. Connect a section of solid copper wire to the pigtail

leads.

2. Connect the aluminum wiring to the added section of

copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

■ Wire sizes and connections must conform with the rating of

the appliance as specified on the model/serial rating plate. The model/serial plate is located behind the filter on the rear wall of the range hood.

■ Wire sizes must conform to the requirements of the National

Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

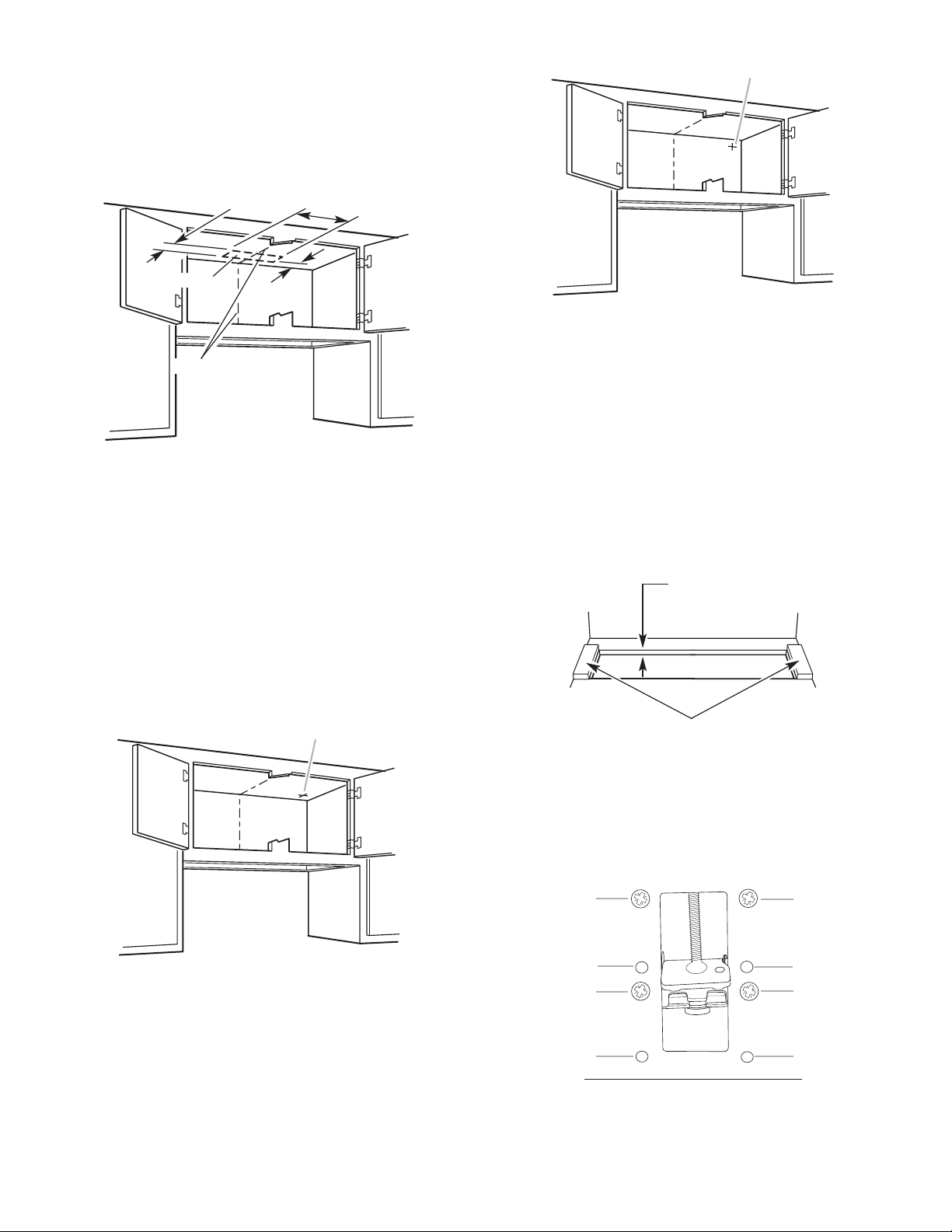

Range Hood Cabinet Cutout

1. Determine and clearly mark a centerline on the underside of

the cabinet.

WARNING

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

4. Using 2 or more people, lift range hood onto covered surface.

A. Centerline

2. Measure and mark lines as shown for your size of range

hood. Use a saber saw or keyhole saw to cut an opening through the underside of the cabinet.

¹⁄₂"

(3.8 cm)

³⁄₁₆"

(23.3 cm)

30" (76.2 cm) hood - 13 36" (91.4 cm) hood - 16

The finished cutout size will be: 30" (76.2 cm) range hood - 9³⁄₁₆" x 26¹⁄₈" (23.3 cm x 66.4 cm) 36" (91.4 cm) range hood - 9³⁄₁₆" x 32¹⁄₈" (23.3 cm x 81.6 cm)

¹⁄₁₆" ¹⁄₁₆"

(33.2 cm) (40.8 cm)

3. If the cabinet bottom is recessed above a support frame,

wood filler strips need to be installed on the right and left sides of the cutout to provide sides of clearance for the sliding screen. Wood filler strips should be flush with or recessed ¹⁄₁₆" to ¹⁄₈" (1.6 mm to 3.2 mm) from the bottom of the support frame.

Transfer measurement A and B to the cabinet back wall. Measure from the underside of the cabinet or wood filler strips, if used. Mark the cutout as shown. Use a saber saw or keyhole saw to cut a rectangular opening for the vent.

10 ³⁄₄"

(27.3 cm)

A. Wood filler strips

4. Complete cabinet preparation following the instructions for

your type of installation.

Venting Outside Through the Roof

Measure and mark the lines as shown. Use a saber saw or keyhole saw to cut a rectangular opening for the vent.

(10.2 cm)

Cutout

Centerline

(25.4 mm)

³⁄₄"

(27.3 cm)

Centerline

Cutout

Non Vented (recirculating) Installation Through the Soffit/Cabinet

Measure and mark a rectangular vent opening in the soffit using the method shown for venting through the wall. Measure and mark the same centerline on the soffit above the range hood area.

A. Vent cover

B. Centerline

Venting Outside Through the Wall

Assemble the vent that you will use over the vent opening. Do not attach the vent at this time. Measure from the top of the screen housing to the top of the vent opening (A) and back to the bottom of the vent opening (B). Remove the vent.

Use the vent cover from the Charcoal Filter Kit or other vent cover as a template to outline an opening for the vent. Use a saber saw or keyhole saw to cut a rectangular opening for the vent system.

The range hood can be vented inside through the top of the cabinet.

(10.2 cm)

Cutout

Centerline

(25.4 mm)

³⁄₄"

(27.3 cm)

The Charcoal Filter Kit Part Number 883140 must be used.

5. Install the vent system according to the method needed. Use

B A

caulking to seal the exterior wall or roof opening.

6. Determine wiring knockout. To wire through the top wiring knockout:

Measure and mark a parallel line either 10⁵⁄₈" (27.0 cm) for the 30" (76.2 cm) range hood or 11⁵⁄₈" (29.5 cm) for the 36" (91.4 cm) range hood to the right of the centerline on the cabinet ceiling. Mark a point on this line that is 4" (10.2 cm) from the back wall of the cabinet. Drill a 1¹⁄₄" (3.2 cm) diameter hole through the cabinet ceiling.

A. Wiring cutout

8. Measure the thickness of the cabinet floor, including the filler

strips, if used. If the thickness is less than ⁵⁄₈" (15.9 mm), install wood filler strips that are a minimum length of 5" (12.7 cm) onto the cabinet floor. The mounting bracket adjusts from ⁵⁄₈" (15.9 mm) to 2¹⁄₈" (54.0 mm) for the wood filler strips.

A. Less than B. Wood fillers (thickness as required)

⁵⁄₈

" (15.9 mm)

9. The spring loaded brackets are factory set to accommodate a

thickness between 1³⁄₁₆" and 2¼". If your cabinet bottom is less than 1³⁄₁₆" thick, the spring loaded brackets can be removed and repositioned down from the top setting (A), to the bottom setting (B), by removing the 4 Phillips screws.

To wire through the rear wiring knockout:

Measure and mark a parallel line either 11³⁄₈" (29.8 cm) for the 30" (76.2 cm) range hood or 14³⁄₈" (36.5 cm) for the 36" (91.4 cm) range hood to the right of the centerline on the cabinet back wall. Mark a point on this line that is 8¹⁄₄" (21.0 cm) from the bottom of the cabinet. Drill a 1¹⁄₄" (3.2 cm) diameter hole through the wall.

A. Wiring cutout

7. Run the wiring through the wall or cabinet according to the national Electrical Code and all local codes and ordinances.

Use caulking to seal around wire opening. NOTE: Do not turn on power until installation is complete.

B A

A. Top setting - factory installed B. Bottom setting

10. Attach the damper to the vent opening. If the roof cap or wall

cap has a damper, do not attach the damper to the range hood.

A. Damper

11. Remove the top or rear knockout from the wiring opening, depending on which one will be used. Install a UL listed or CSA approved ½" strain relief.

Install Range Hood

1. Using 2 or more people, lift the range hood into its final

position and feed the home power supply cable through the wiring opening in the range hood.

2. Check that the mounting brackets overlap the cabinet bottom

or wood filler strips.

3. Center the range hood.

A. Wiring knockouts

12. Place the range hood on its back side on a covered surface. a) Slide the range hood screen forward.

b) Remove the metal grease filters. See “Range Hood Care”

section.

c) Remove the terminal box cover. d) Close the range hood screen. e) Screw the mounting brackets up to the top position.

A. Terminal box cover

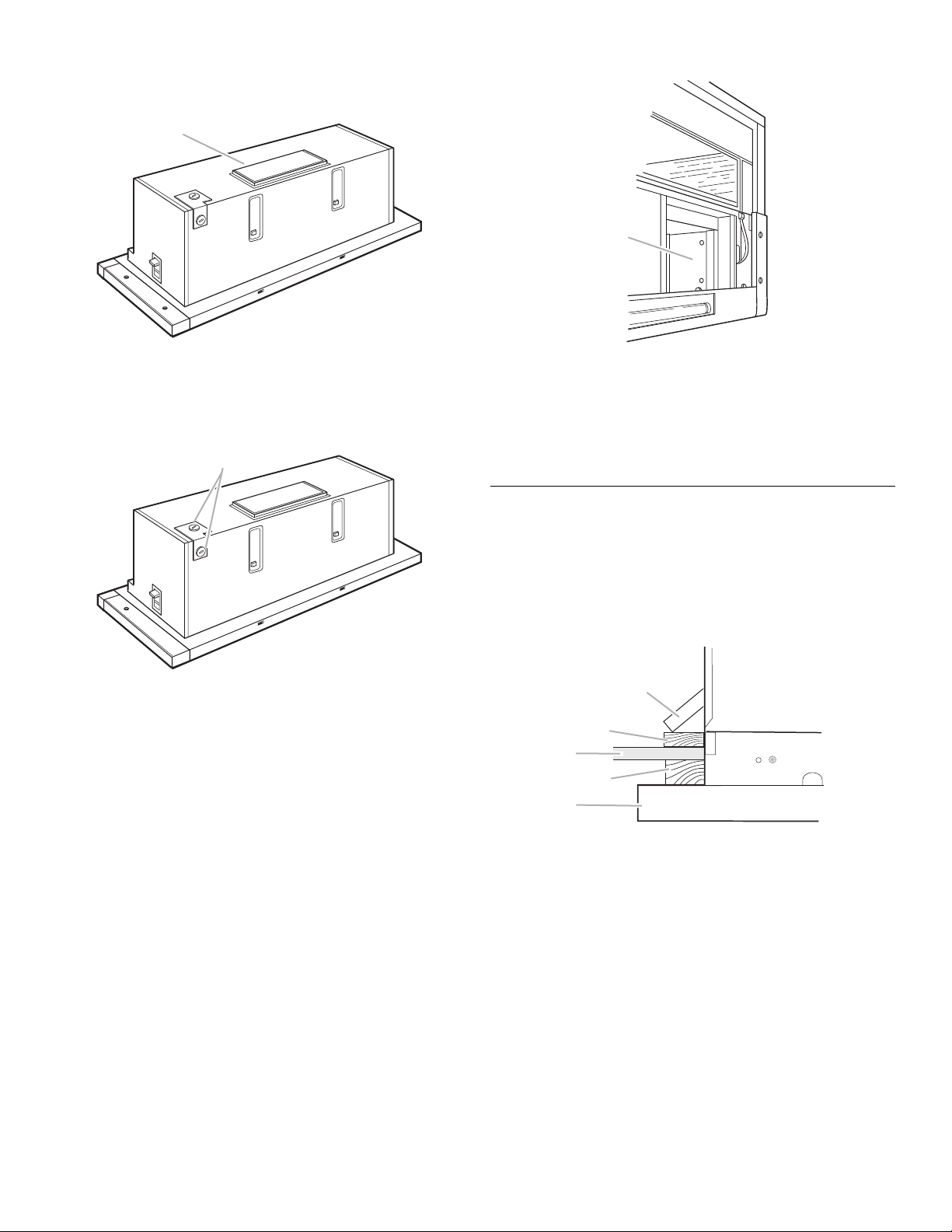

A. Mounting bracket B. Optional wood filler strip C. Cabinet bottom D. Optional wood filler strip for recessed cabinet E. Slide-out range hood

4. Check that the front panel is parallel with the cabinet front

when the screen is pushed in. Slide the screen forward. Tighten the mounting bracket screws so that the range hood is secured to the cabinet.

A. Mounting bracket screw B. Flat-blade screwdriver

NOTE: For some non-vented (recirculating) installations using the charcoal filter kit, it may be easier to attach the vent system to the range hood before lifting the range hood into its final position. Seal the connection with clamps.

5. Align the range hood front panel with the cabinet. Slide the screen forward. Locate the 2 screws on each side and turn them counterclockwise to loosen the screws. Adjust the front of the vent vertically, ³⁄₈" (9.5 mm) up or down, or horizontally, ³⁄₄" (19 mm) front to back, until the front is flush with the cabinet. Tighten the screws. If it is necessary to adjust the given dimensions, lower and add or remove the filler strips or redrill mounting holes.

WARNING

A. Phillips screwdriver B. Adjustment screws

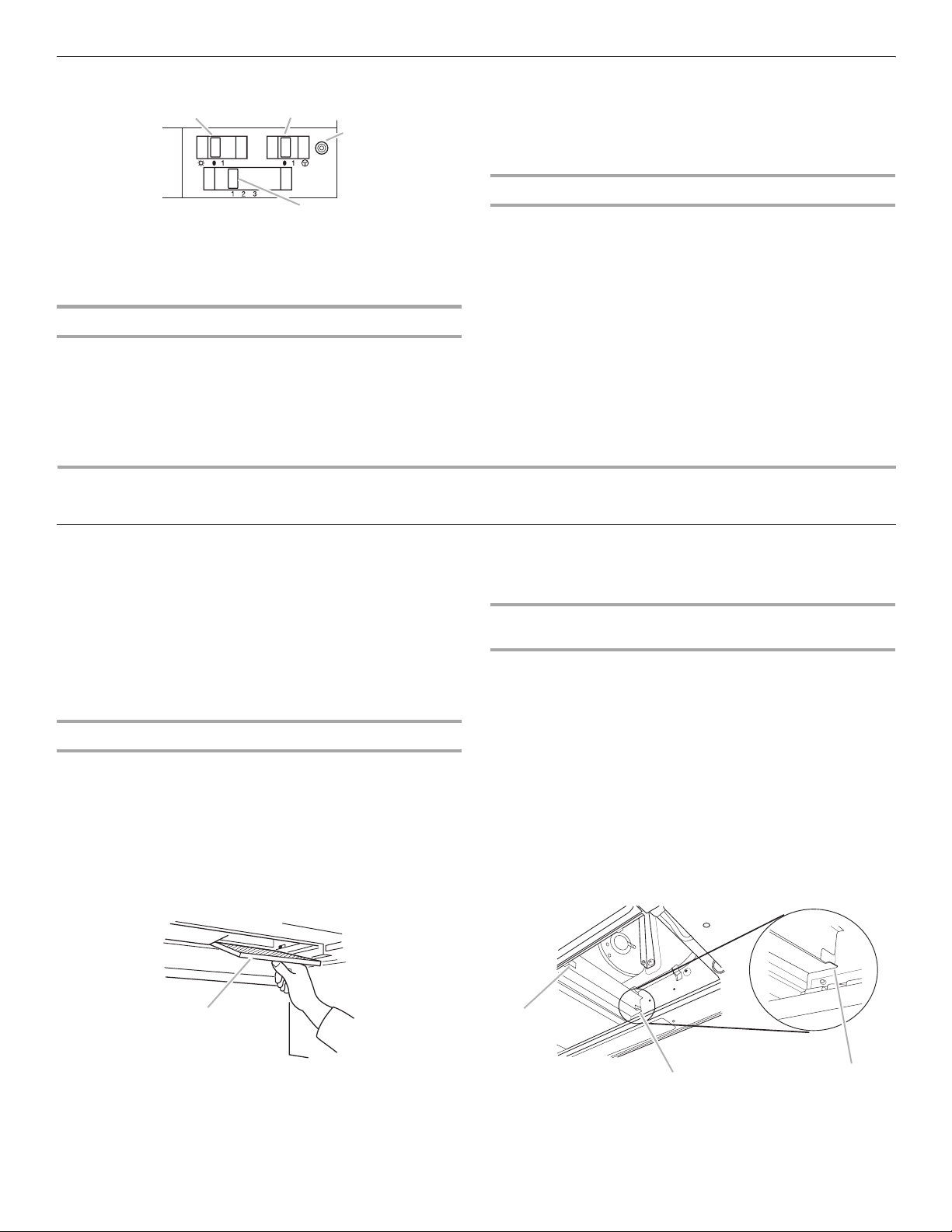

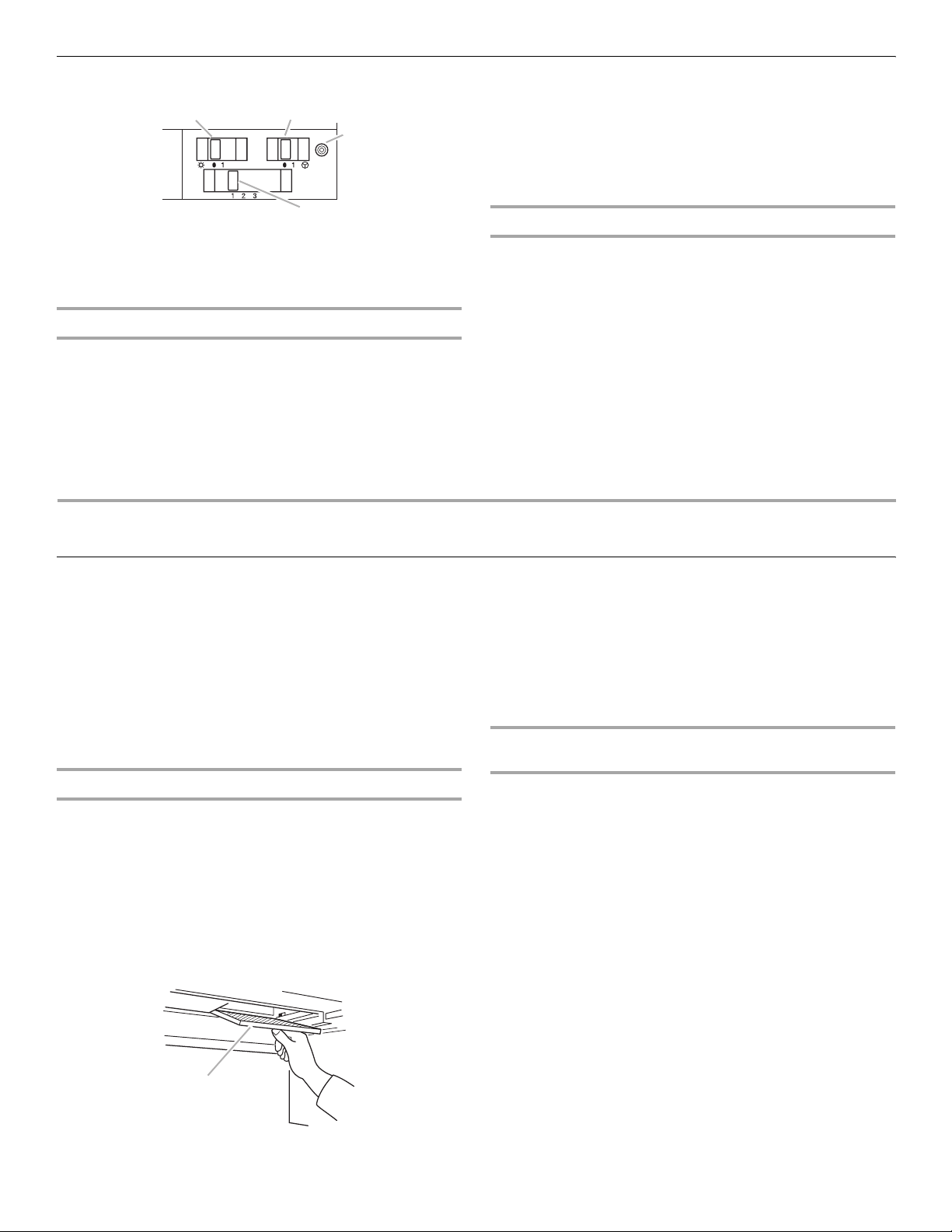

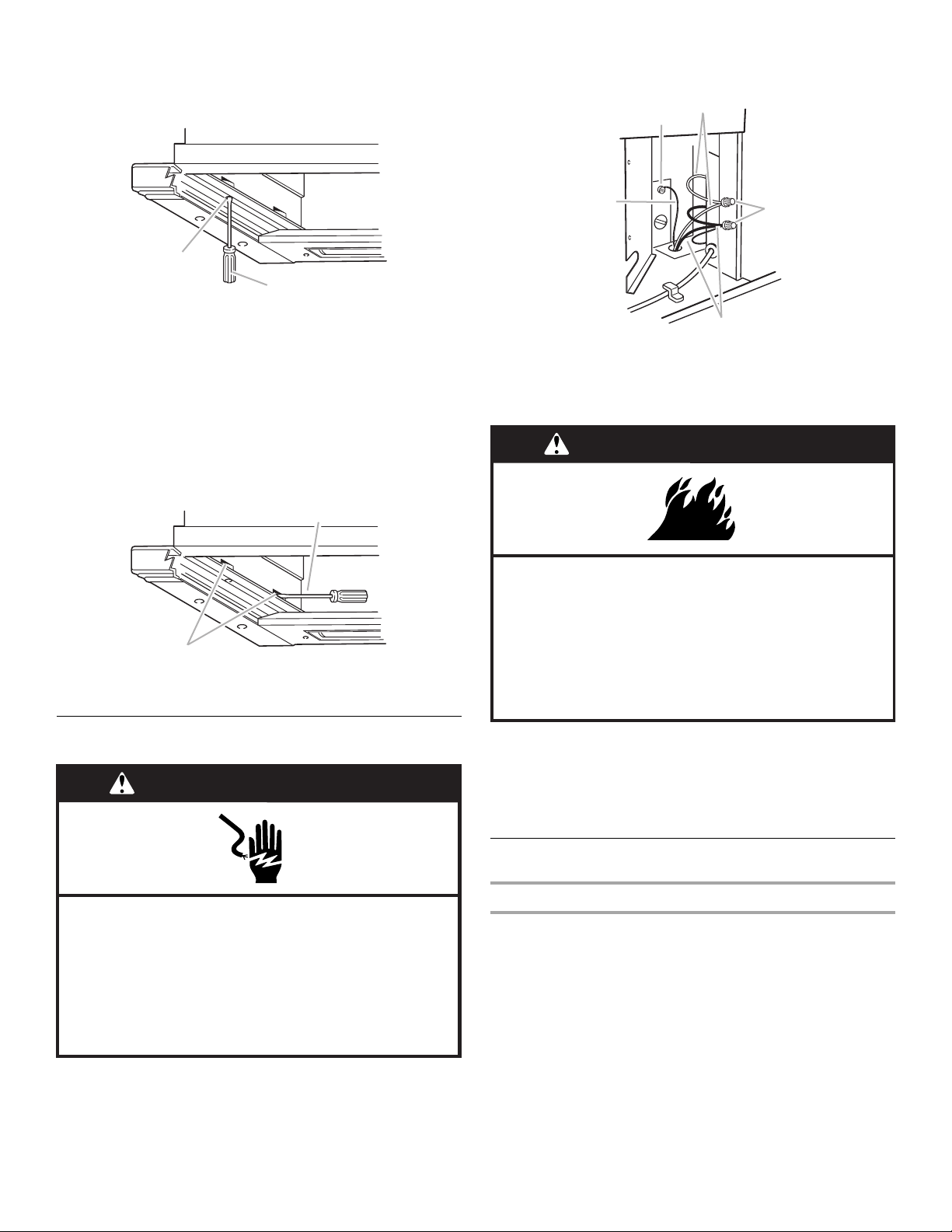

Electrical Connection

WARNING

Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.

1. Disconnect power.

2. Use UL listed wire connectors and connect black wires (D)

together.

3. Use UL listed wire connectors and connect white wires (A)

together.

Fire Hazard Electrically ground the blower. Use copper wire. Connect ground wire to green ground screw in

terminal box. Failure to do so can result in death, fire, or

electrical shock.

4. Connect the green (or bare) ground wire from the home

power supply to the green ground screw inside the range hood terminal box.

5. Tighten strain relief screw.

6. Install terminal box cover.

Connect the Vent System

Vented Installations

1. Replace the metal filters. See “Range Hood Care” section.

2. Connect the vent system to the range hood vent opening.

Seal the connection with clamps.

3. Reconnect power.

4. Check the operation of the range hood fan and light.

5. Push the range hood screen back in.

Non-Vented (recirculating) Installations

1. Connect the vent system to the range hood vent opening.

Seal the connection with clamps.

2. Install Charcoal Filter Kit Part Number 883140. See “Range

Hood Care” section.

3. Replace metal grease filters. See “Range Hood Care”

section.

4. Reconnect power.

5. Check the operation of the range hood fan and light.

6. Push the range hood screen back in.

To order replacement kits, see the “Assistance or Service” section.

A. White wires B. Green ground screw C. Ground wire

D. Black wires

E. Wire connectors

+ 25 hidden pages
