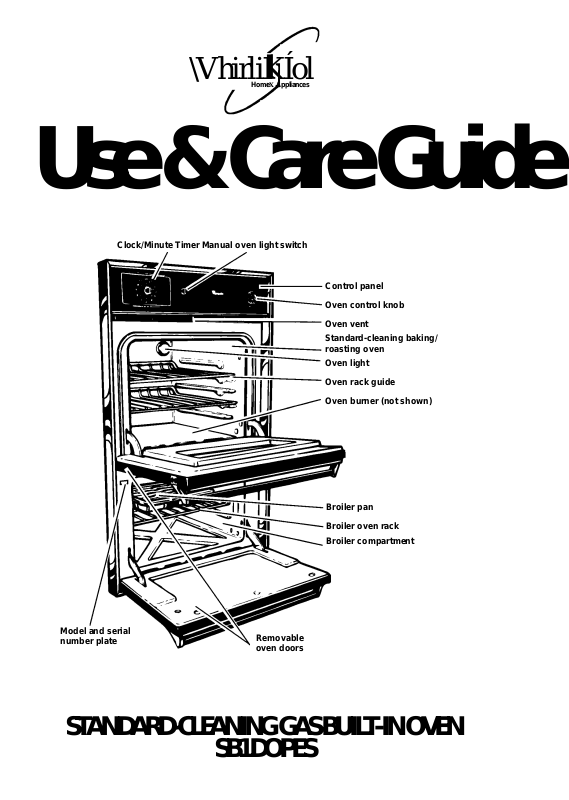

Page 1
\VhirliKÍol
HomeX Appliances
Use & Care Guide
Clock/Minute Timer Manual oven light switch
Control panel
Oven control knob
Oven vent
Standard-cleaning baking/
roasting oven
Oven light
Oven rack guide
Oven burner (not shown)
Broiler pan
Broiler oven rack
Broiler compartment
Model and serial
number plate
Removable
oven doors
STANDARD-CLEANING GAS BUILT-IN OVEN
SB1DOPES
Page 2
Con te nts
Page
Important Safety Instructions
Using Your Oven
Setting the clock
Using the Minute Timer
Using the oven control ..................................6
Baking/roasting (upper oven)
Broiling (lower compartment)

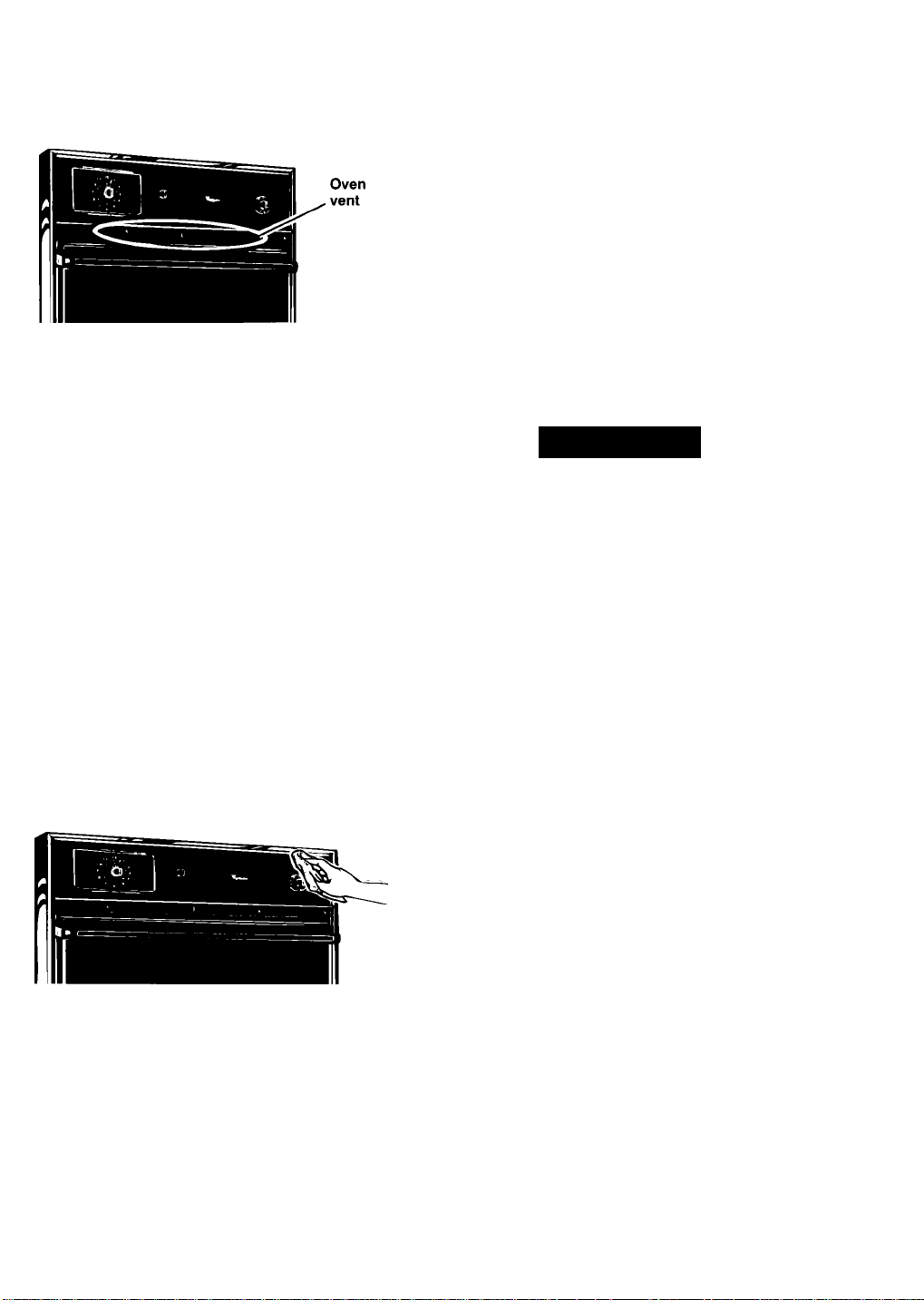

The oven vent................................................9
Caring For Your Oven
Control panel and knobs................................9
Removable oven doors................................10
The standard-cleaning oven and broiler
compartment............................................11
Cleaning tips................................................12
The oven light
If You Need Service Or Assistance
Whiripooi Cooking Product Warranty
©1990 Whirlpool Corporation
Remove the Consumer Buy Guide label. It will be
easier to remove before the oven is used. To
remove any remaining glue:
• Rub briskly with thumb to make a ball, then
remove.
or
• Soak area with liquid hand dishwashing
detergent before removing glue as described
above.
Do not use sharp instruments, rubbing alcohol,
flammable fluids or abrasive cleaners. These can
damage the finish. See “Important Safety
Instructions” on page 3.
............................................
............................................
....................................
..............................................
........................
.................................
....................
.....................
..............
.........
3
5
5
5
6
7
9
13
14
16
Thank you for buying a Whiripooi appliance.
Please complete and mail the Owner Registra
tion Card provided with this product. Then
complete the form below. Have this information
ready if you need service or call with a question.
• Copy model and serial numbers from plate
(located as shown) and purchase date from
sales slip.
• Keep this book, the Cooking Guide and sales
slip together in a handy place.
Model Number
Serial Number
Purchase Date
Service Company Phone Number
You are responsible for:
• Installing the oven where it is protected from the
elements, and in a wall or cabinet strong
enough to support its weight. (See the Installa
tion Instructions.)
• Making sure the oven is not used by anyone
unable to operate it properly.
• Properly maintaining the oven.
• Using the oven only for jobs expected of a
home oven.
Page 3
Imp ort an t Sa fe ty I nst ruc tio ns
Gas ovens have been thoroughly tested for safe and efficient operation. However, as with any appliance,
there are specific installation and safety precautions which must be followed to ensure safe and satisfac
tory operation.
AWARNING
To reduce the risk of fire, electrical shock, injury to persons, or
damage when using the oven, follow basic precautions, including
the following:
• FOR YOUR SAFETY •
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE
VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE. THE FUMES CAN CREATE A FIRE
HAZARD OR EXPLOSION.
• FOR YOUR SAFETY •
IF YOU SMELL GAS:
1. OPEN WINDOWS.
2. DON’T TOUCH ELECTRICAL SWITCHES.
3. EXTINGUISH ANY OPEN FLAMES.
4. IMMEDIATELY CALL YOUR GAS SUPPLIER.
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN CAUSE INJURY OR
PROPERTY DAMAGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFORMATION CONSULT A
QUALIFIED INSTALLER, SERVICE AGENCY, MANUFACTURER
(DEALER) OR THE GAS SUPPLIER.
-IMPORTANT-
TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION BOOK
WITH THE UNIT.
TO THE CONSUMER: PLEASE READ AND KEEP THIS BOOK
FOR FUTURE REFERENCE.
Page 4
Important Safety Instructions Continued
• Install or locate the oven only in accordance
with the provided Installation Instructions. It
is recommended that the oven be installed
by a qualified installer. The oven must be
properly connected to the proper gas supply
and checked for leaks. The oven must also
be properly connected to electrical supply
and grounded.
• Gas fuels and combustion can result in
potential exposure to chemicals known to
cause cancer or reproductive harm. For
example, benzene is a chemical which is a
part of the gas supplied to the oven. It is
consumed in the flame during combustion.
However, exposure to a small amount of
benzene is possible if a gas leak occurs.
Formaldehyde, carbon monoxide and soot
are by-products of incomplete combustion.
Properly adjusted burners with a bluish
rather than a yellow flame will minimize
incomplete combustion.
• Do not operate the oven if it is not working
properly, or if it has been damaged.
• Do not use the oven for warming or heating
the room. Persons could be burned or
injured, or a fire could start.
• Do not attempt to light the oven burner
during a power failure. Personal injury could
result.
• Use the oven only for its intended use as
described in this manual.
• Do not wear loose or hanging garments
when using the oven. They could ignite if
they touch a hot surface and you could be
burned.
• Do not touch interior surfaces of oven.
Interior surfaces of an oven become hot
enough to cause burns. During and after
use, do not touch, or let clothing or other
flammable materials contact interior
surfaces of oven until they have had
sufficient time to cool. Other surfaces of the
oven may become hot enough to cause
burns; such as, the oven vent opening, the
surface near the vent opening, the oven
door and the oven door window.
• Use only dry potholders. Moist or damp
potholders on hot surfaces may result in
burns from steam. Do not use a towel or
bulky cloth for a potholder. They could catch
on fire.
' Do not heat unopened containers. They
could explode. The hot contents could
cause burns and container particles could
cause injury.
' Grease is flammable and should be handled
carefully. Let fat cool before attempting to
handle it. Wipe spill-overs immediately.
' Do not use water on grease fires. Never
pick up a flaming pan. Smother flaming pan
by covering with a well-fitted lid, cookie
sheet or flat tray. Flaming grease outside of
pan can be extinguished with baking soda
or, if available, a multipurpose dry chemical
or foam-type extinguisher.
' Use care when opening oven door. Let hot
air or steam escape before removing or
replacing food.
' Always position oven rack(s) in desired
location while oven is cool.
' Do not store flammable materials in or near
the oven. They could explode or burn.
• Do not store things children might want
above the oven. Children could be burned
or injured while climbing on it.
• Do not leave children alone or unattended
in area where the oven is in use. They
should never be allowed to sit or stand on
any part of the oven. They could be burned
or injured.
> Never use a match or other flame to look for
a gas leak. Explosion and injury could
result.
> Know where your main gas shut off valve is
located.
' Keep oven vents unobstructed.
' Clean your oven regularly. See care and
cleaning instructions in this manual.
> Be sure all oven parts are cool before
cleaning.
> Do not clean door seal. It is essential for a
good seal. Care should be taken not to rub,
damage, or move the seal. Clean only parts
recommended in this Use and Care Guide.
> Do not repair or replace any part of the
oven unless specifically recommended in
this manual. All other servicing should be
referred to a qualified technician.
> Disconnect the electrical supply before
servicing the oven.
-SAVE THESE INSTRUCTIONS-
Page 5
Us ing Yo ur O ven
This oven is equipped with an electronic ignitor.
The electronic ignitor automatically lights the
oven burner each time it is used. This oven
cannot be used in case of prolonged power
failure.
Setting the clock

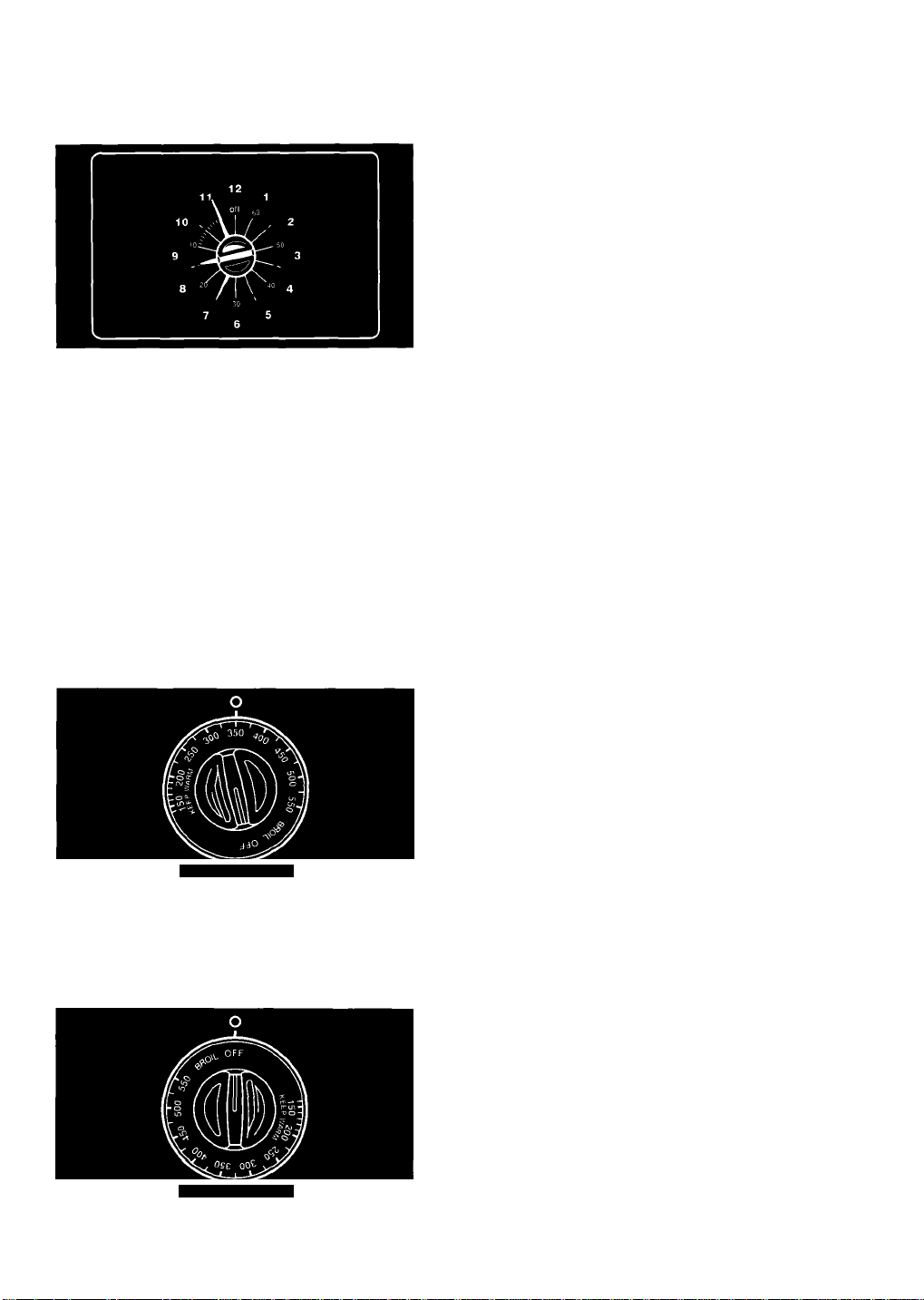

Push in and turn the Minute Timer Knob to set
the Ciock.
1. Push in Minute Timer Knob and turn in
either direction until clock shows the correct
time of day.
2. Let the Minute Timer Knob pop out. Turn
clockwise until Minute Timer hand points to
OFF. The clock setting will change if you
push in the knob when turning.
Using the Minute Timer
The Minute Timer does not start or stop the oven.
It works like a kitchen timer. Set it in minutes up
to an hour. You will hear a buzzer when the set
time is up.
Do not push in the knob when setting the
Minute Timer.
1. Without pushing it in, turn the Minute Timer
Knob until the timer hand passes the setting
you want.
Page 6
Using Your Oven
Continued
2. Without pushing in, turn the knob back to the
setting you want.
When the time is up, a buzzer will sound.
To stop the buzzer, turn the Minute Timer
hand to OFF.
NOTE: Pushing in and turning the Minute Timer
Knob changes the clock setting.
Using the oven control
The oven control is used to control the upper
oven temperature for baking or roasting, or to
broil in the lower broiler compartment. Baking and
broiling cannot be done at the same time.
Baking/roasting (upper oven)
1. Position the rack(s) properly before turning on
the oven. To change rack position, pull rack
out to stop, raise front edge and lift out.
The rack(s) should be placed so the top of
the food will be centered in the oven. Always
leave at least 1 1/2 to 2 inches (4-5 cm)
between the sides of the pan and the oven
walls and other pans. For more information,
see the Cooking Guide.

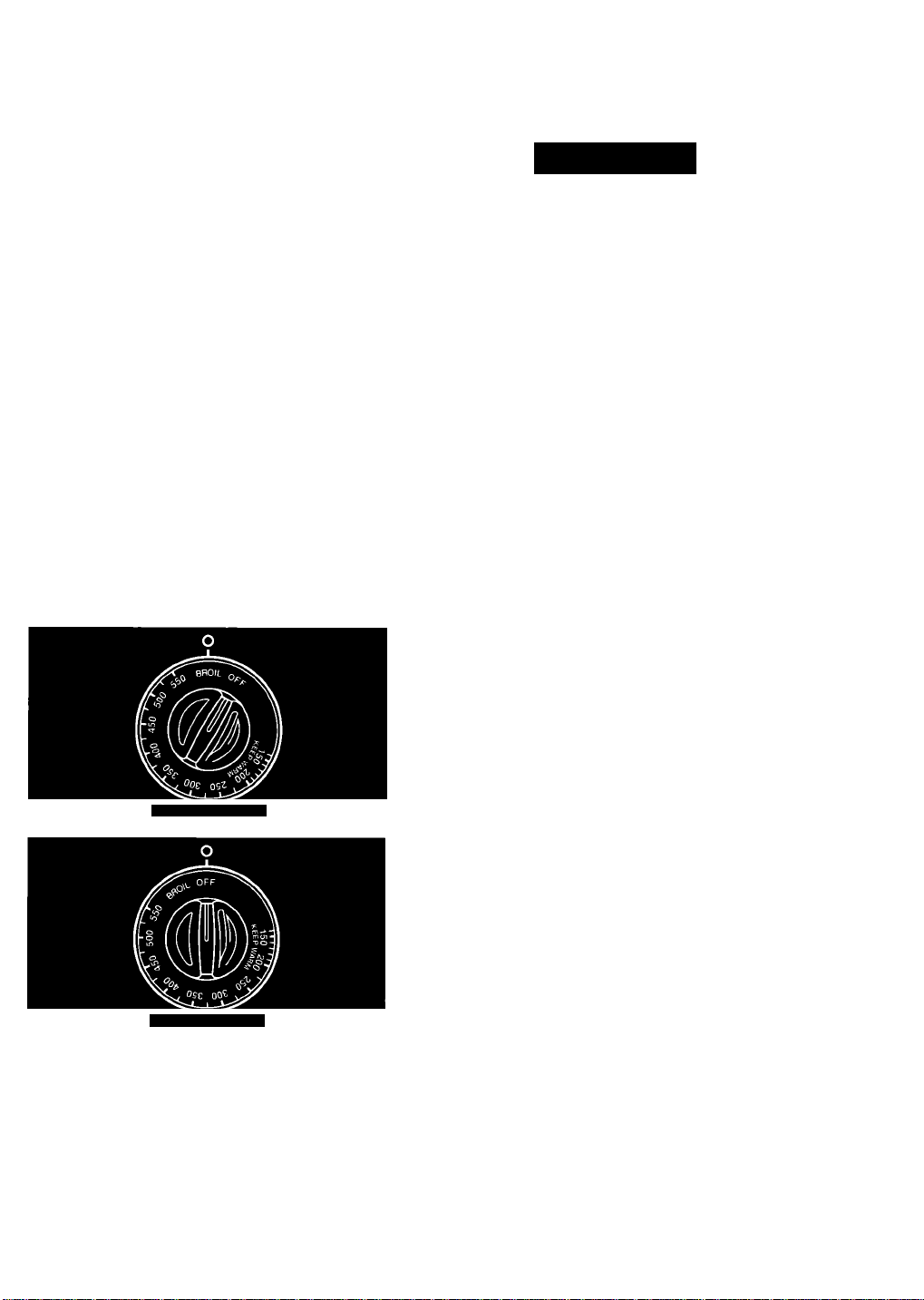

OVEN CONTROL
OVEN CONTROL
2. Push in and turn the Oven Control to the
baking temperature you want. The oven
burner will automatically light in 50-60
seconds.
3. Preheat the oven for 10 minutes. Put food in
the oven.
NOTE: Do not place food directly on the oven
bottom.
4. During baking, the oven burner will turn on
and off to keep the oven temperature at the
setting.
When baking is done, turn the Oven Control
Knob to OFF.
Page 7
AWARNING
Explosion, Fire and Personal Injury Hazard
• If the flame should go out while cooking,
or if there is a strong gas odor, turn the
oven burner OFF. Wait five minutes for
the gas odor to disappear before reiighting burner. If gas odor is stili present,
see safety note on page 3. Faiiure to
foliow these precautions could result in
explosion or fire.
• Do not attempt to iight the oven burner
during a power failure. Personal injury
could result.
Broiling (iower compartment)
Always broil with both the oven and broiler
compartment doors completely closed.

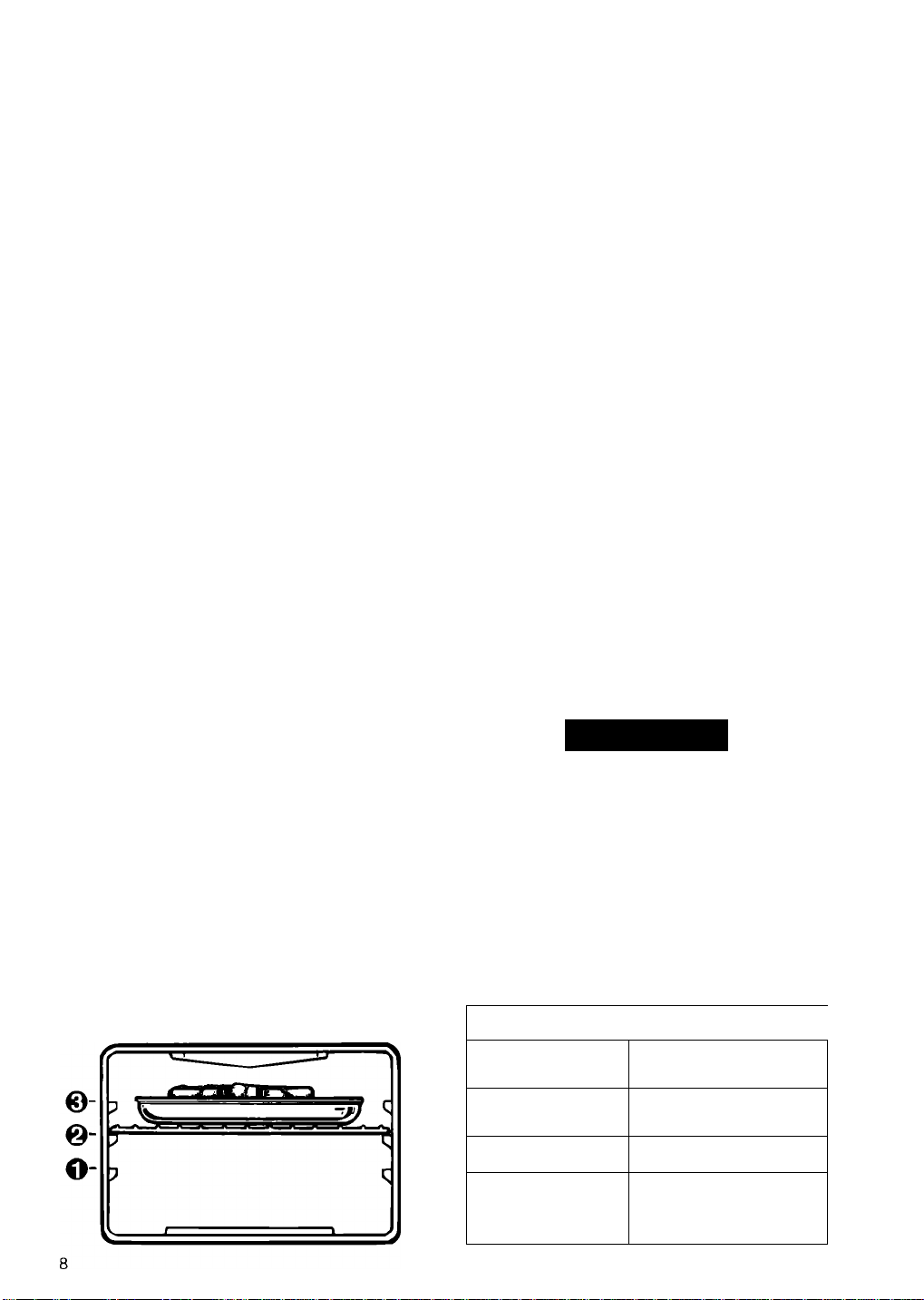

1. Position the broiler rack before turning on the
broiler. Refer to the chart on page 8 for
recommended rack positions.
2. Preheat at BROIL for 5 minutes with oven
door closed. Do not preheat with broiler pan
in place.
3.
To preheat, push in and turn the Oven
Control Knob to BROIL. The broiler will
automatically light in 50-60 seconds.
4.
After preheating, put food on the broiler pan.
OVEN CONTROL
OVEN CONTROL
5. When broiling is done, turn the Oven Control
Knob to OFF.
Page 8
Using Your Oven
Continued
Broiling tips
• Use the broiler pan and grid for broiling. They
are designed to drain excess liquid and fat
away from the cooking surface to help prevent
spatter, smoke or fire.
• If you broil small quantities, you may want to
use a small broiler pan. They are available in
the housewares section of many department
stores.
• For best broiling results, preheat at BROIL for 5
minutes. Do not preheat with broiler pan in
place.
• Rack position determines how infra-red rays
cook your food. The lower the position, the
more broiler grid area covered by the rays.
See “Rack position chart" below for more
information.
• To sear meat, place broiler pan at one of the
higher rack positions so that meat is very near
the flame.
• Small steaks, hamburger patties, etc., may be
broiled in the higher rack positions.
• To cook large steaks and other thick cuts of
meat well done, move them to a lower rack
position after searing.
• Refer to a broiling chart in a reliable cookbook
for correct broiling times.
• After broiling, remove the broiler pan from the
oven when you remove the food. Drippings will
bake on the pan if it is left in the heated oven.
AWARNING
Fire Hazard
• Place meat the correct distance from the
burner. Meat placed too close to the
burner may spatter, smoke, burn or catch
fire during broiling.
• To ensure adequate grease drainage, do
not use cookie sheets or similar pans for
broiling. Also, covering the broiier grid
with foil is not recommended. Poor
drainage of grease may resuit in fire, if
foii is used, cut siits in foii to correspond
with ail openings in broiier grid. Grease
can then drain away and cooi in pan.
Rack position chart
RACK posmoN
FROM BOTTOM
3
2
1
Rare steaks and
hamburgers
Medium steaks and fish
Well-done foods such as
chicken, lobster, ham
slices and pork chops
FOOD
Page 9
Ca rin g F or Y our Ov en
The oven vent
Hot air and moisture escape from the oven
through a vent located under the control panel.
The vent is needed for air circulation. Do not
block the vent. Poor baking will result.
^WARNING
Burn, Electrical Shock, Fire and Explosion
Hazard

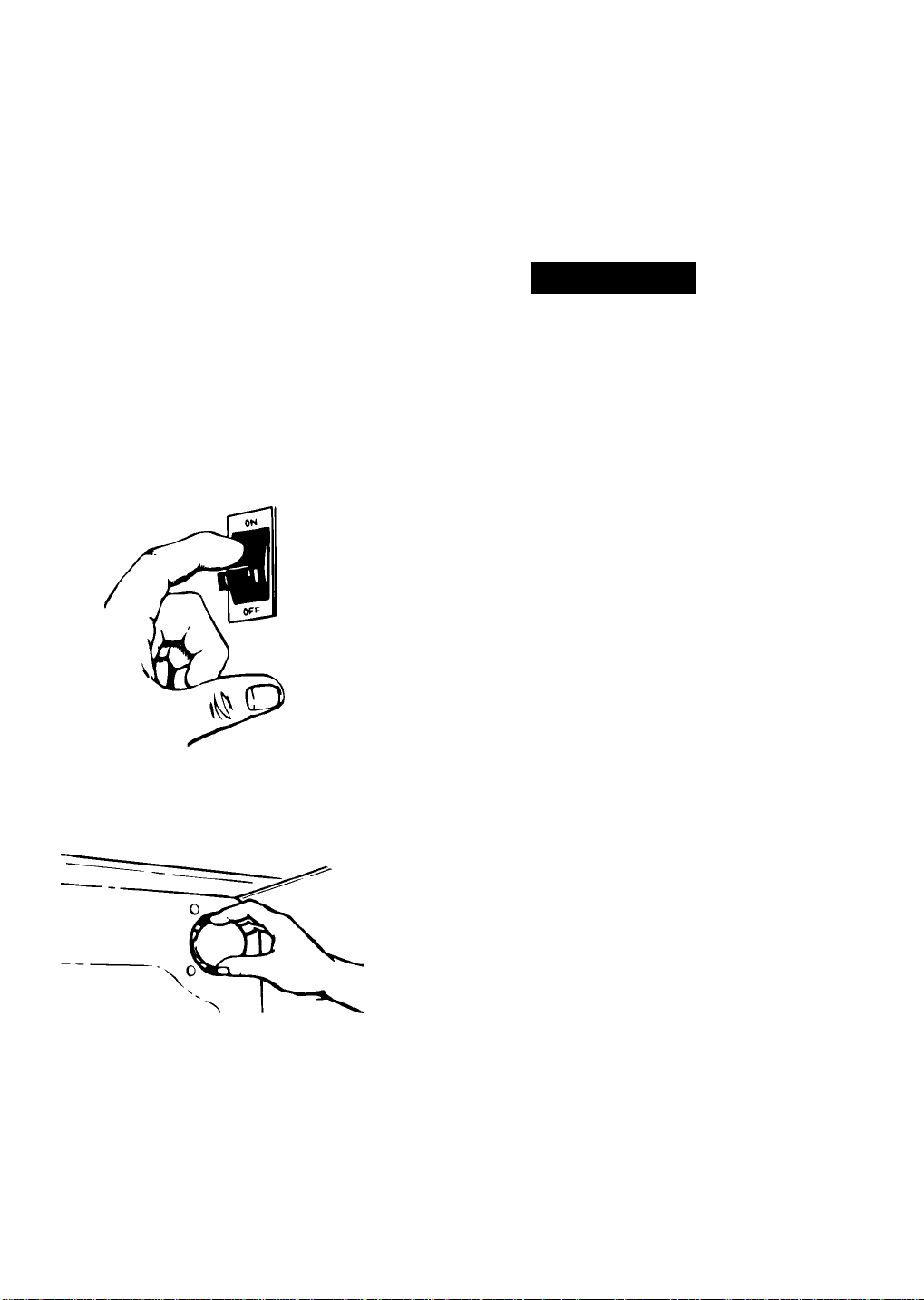

• Make sure all controls are OFF and the
oven is cool before cleaning.
• Do not use bleach or rust removers.
• Do not use gasoline or other flammable
liquids or vapors to clean this or any other
appliance.
• Keep the appliance area clear and free
from combustible materials, gasoline and
other flammable vapors and liquids.
• Do not obstruct the flow of combustion
and ventilation air.
Failure to follow these guidelines could
result in burns, electrical shock, fire or
explosion.
Control panel and knobs
1. Turn control knobs to the OFF position.
2. Pull control knobs straight off.
3. Use warm, soapy water or spray glass cleaner
and a soft cloth to wipe the control panel.
Rinse and wipe dry with a soft cloth.
Page 10
Caring For Your Oven
Continued

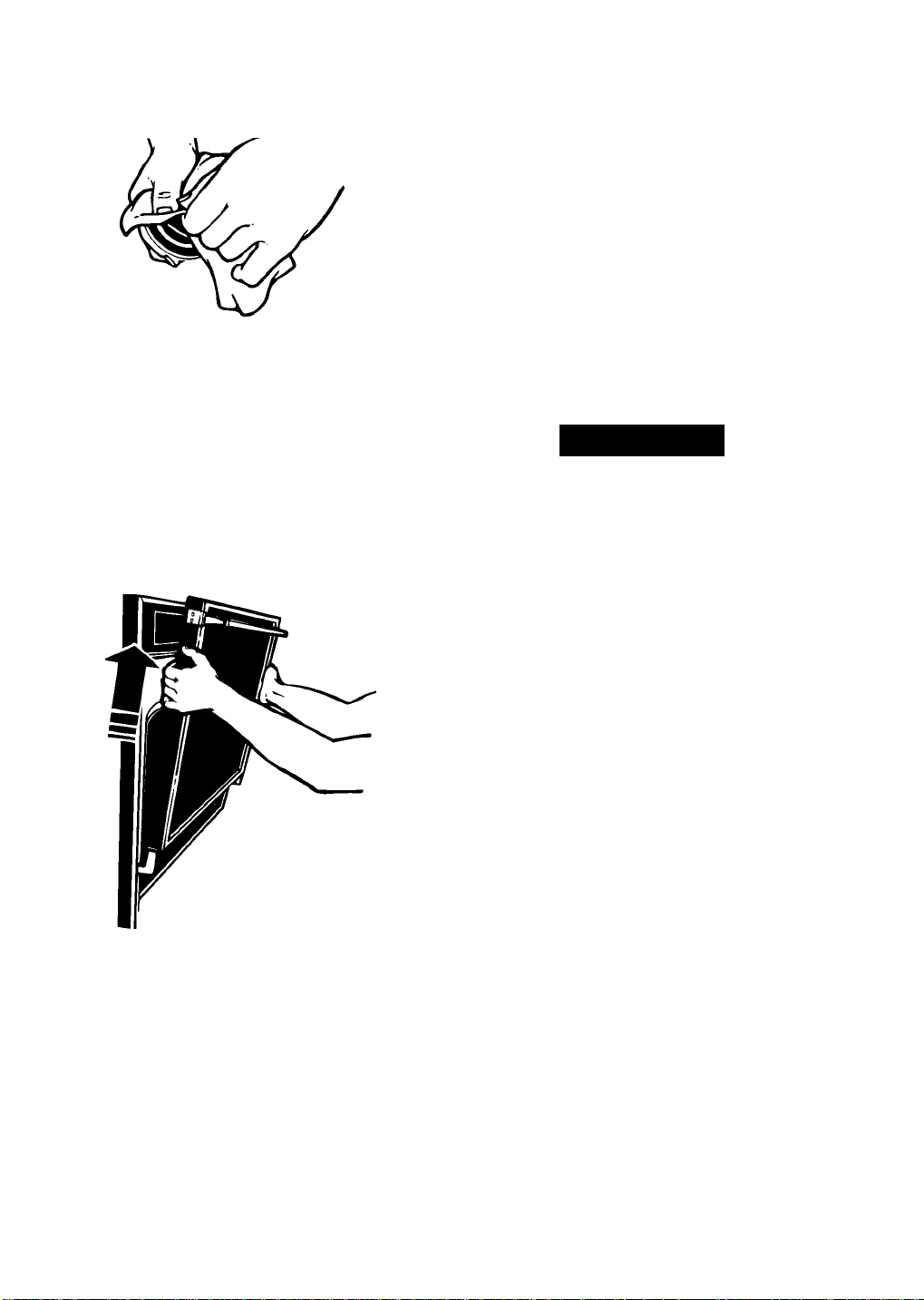

4. Wash control knobs in warm, soapy water.
Rinse well and dry with a soft cloth. Do not
soak.
5. Replace control knobs by pushing them firmly
into place.
NOTE: When cleaning, never use steel wool,
abrasives, or commercial oven cleaners which
may damage the finish. After cleaning, make sure
all control knobs point to the OFF position.
Removable oven doors
Removing the oven doors will help make it easier
to clean the ovens.
AWARNING
Burn and Electrical Shock Hazard
Make sure all controls are OFF and the
ovens are cool before removing oven
doors. Failure to do so can result in burns
or electrical shock.
1. Open a door to the first stop position.
2. Hold the door at both sides and lift it at the
same angle it is in.
3. To replace, fit the bottom corners of the door
over the ends of the hinges.
Push the door down evenly. The door will
close only when it is on the hinges correctly.
10
Page 11
The standard-cleaning oven and broiler compartment
The standard oven and broiler compartment have
to be hand cleaned. Use warm, soapy water,
soapy steel wool pads or a commercial oven
cleaner. See “Cleaning tips” on page 12 for
further instructions.
^WARNING
Do not allow commercial oven cleaner to
contact the heat seal, thermostat or
exterior surfaces of the oven. Damage will
occur.
Using foil
To catch sugar or starch spills from pies and
casseroles, use a piece of heavy-duty aluminum
foil or a shallow pan on the lower rack (on rack
under container in broiler compartment), slightly
larger than the cooking container. This may,
however, result in poor baking.
NOTE: Do not use foil or foil liner to cover the
oven floor. Poor baking results could occur.
11
Page 12
Caring For Your Oven
Continued
Cleaning tips
Control knobs
Clean with warm, soapy water and a soft cloth.
• Wash, rinse and dry well.
• Do not soak.
Control panel
Clean with warm, soapy water or spray glass
cleaner and a soft cloth.
• Wash, rinse and dry well.
• Follow directions provided with the cleaner.
Exterior surfaces (other than control panel)
Clean with warm, soapy water and a soft cloth.
• Wipe off regularly when oven is cool.
Use a non-abrasive plastic scrubbing pad for
heavily-soiled areas.
• Do not use abrasive or harsh cleaners.
NOTE: Do not allow food containing acids (such
as vinegar, tomato or lemon juice) to remain on
surface. Acids may remove the glossy finish.
Also, wipe up milk or egg spills when oven is
cool. Be careful when cleaning around model and
serial number plate; the numbers wipe off easily.
Broiler pan, grid and rack
Clean with warm, soapy water or a soapy steel
wool pad.
• Clean after each use.
• Wash, rinse and dry well.
• After broiler oven is cool, wipe interior with
warm, damp cloth. For heavily-soiled areas, use
a soapy steel wool pad.
Oven racks
Clean with warm, soapy water or soapy steel
wool pads.
• Wash, rinse and dry. Use soapy steel wool
pads for heavily-soiled areas.
Oven door glass
Use spray glass cleaner or warm, soapy water
and a non-abrasive plastic scrubbing pad.
• Make sure oven is cool.
• Follow directions provided with the cleaner.
• Wash, rinse and dry well.
Standard-cleaning oven and broiler
compartment
Clean with warm, soapy water or soapy steel
wool pads.
• Make sure oven is cool
• Remove door for easier access.
• Clean heavily-soiled areas or stains. Rinse well
with water.
OR
Use commercial oven cleaners.
• Remove door for easier access.
• Place newspaper on floor to protect floor
surface.
• Follow directions provided with the oven
cleaner.
• Rinse well with clear water.
• Use in well-ventilated room.
• Do not allow commercial oven cleaners to
contact the heat seal, thermostat or exterior
surfaces of the range. Damage will occur.
Place piece of heavy-duty aluminum foil or
shallow pan, slightly larger than the cooking
container, on lower rack (on rack under container
in broiler compartment) to catch spill-overs.
12
Page 13
The oven light
The oven light in the upper oven will come on
when you turn the Oven Light Switch on the
control panel. Turn the switch again to turn off the
light.
AWARNING
Electrical Shock and Personal Injury
Hazard
• Make sure oven and light bulb are cool
and power to the oven has been turned
off before replacing the light bulb. Failure
to do so could result in electrical shock
or burns.
• Be careful not to drop the bulb. Broken
glass could cause injury.
To replace the oven light:
1. Disconnect power at the main power supply.
2. Remove the light bulb from its socket. Replace
with a 40-watt appliance bulb. Reconnect
power at the main power supply.
13
Page 14
If You Ne ed Ser vic e O r A ssi sta nce ...
We suggest you follow these steps:
1. Before calling for assistance...
Performance problems often result from little
things you can find and fix without tools of any
kind.
If nothing operates:
• Is the gas turned on?
• Is the power supply cord connected to a live
circuit with the proper voltage? (See Installation
Instructions.)
• Have you checked your home’s main fuses or
circuit breaker box?
• Have instructions in this book been followed?
• Is the Oven Control Knob turned to a tempera
ture setting or BROIL?
• Is the flow of combustion and/or ventilation air
to the unit obstructed? Do not obstruct air
flow to and around unit.
• Recheck suspected defect.
If oven burner fails to light:
• Is the oven connected to electrical power?
• Have you checked your home’s main fuses or
circuit breaker box?
If control knob will not turn:
• Did you push in before trying to turn?
If cooking results are not what you expected:
• Is the oven level?
• If needed, have you preheated the oven as the
recipe calls for?
• If broiling, have you completely closed the oven
and broiler compartment doors? The broiler
provides best cooking results with both doors
closed.
• Are you following a tested recipe from a reliable
source?
• Are you using pans recommended in the
Cooking Guide?
• If baking, have you allowed 1 1/2 to 2 inches
(4-5 cm) on all sides of the pans for air
circulation?
• Are the pans the size called for in the recipe?
See the Cooking Guide for more information on
cooking problems and how to solve them.
14
Page 15
2. If you need assistance*... Call Whirlpool COOL-LINE® service assis
tance telephone number. Dial free from
anywhere in the U.S.:
1-800-253-1301
and talk with one of our trained consultants. The
consultant can Instruct you in how to obtain
satisfactory operation from your appliance or, if
service is necessary, recommend a qualified
service company in your area.
If you prefer, write to: '
Mr. Donald Skinner
Director of Consumer Relations
Whirlpool Corporation
2000 M-63
Benton Harbor, Ml 49022
Please Include a daytime phone number in your
correspondence.
3. If you need service*...
Whirlpool has a nationwide
network of authorized
J WhirlpooP'^ service
WniTipOOi companies. Whirlpool
service technicians are
trained to fulfill the product
warranty service, anywhere in the United States.
To locate the authorized Whirlpool service
company in your area, call our COOL-LINE®
service assistance telephone number (see Step
2) or look in your telephone directory Yellow
Pages under:
APPLIANCES - HOUSEHOLD - ELECTRICAL APPLIANCES -
MAJOR - SERVICE & REPAIR MAJOR - REPAIRING & PARTS
WASHING MACHINES, DRYERS
WHIRLPOOL APPLIANCES
XY2 SERVICE CO
warranty and provide after
OR
& IRONERS - SERVICING
AUTHORIZED WHIRLPOOL SERVICE
SEHVICE COMPANIES
123 Maple
............
999-9999
4. If you need FSP" replacement parts*...
FSP Is a registered trademark of Whirlpool
Corporation for quality parts. Look for this symbol
of quality whenever you need a replacement part
for your Whirlpool appliance. FSP replacement
parts will fit right and work right, because they are
made to the same exacting specifications used to
build every new Whirlpool appliance.
To locate FSP replacement parts in your area,
refer to Step 3 above or call the Whirlpool COOL
LINE service assistance number in Step 2.
5. If you are not satisfied with how the
problem was solved*...
• Contact the Major Appliance Consumer Action
Panel (MACAP). MACAP is a group of indepen
dent consumer experts that voices consumer
views at the highest levels of the major appli
ance industry.
• Contact MACAP only when the dealer, autho
rized servicer or Whirlpool have failed to
resolve your problem.
Major Appliance Consumer Action Panel
20 North Wacker Drive
Chicago, IL 60606
• MACAP will in turn inform us of your action.
*When requesting assistance, please provide:
model number, serial number, date of pur
chase, and a complete description of the prob
lem. This information is needed in order to
better respond to your request.
15
Page 16
WHI RLP OOL *
Ga s Co oki ng Pro duc t W arr ant y
GR002
LENGTH OF WARRANTY
FULL ONE-YEAR WARRANTY
From Date of Purchase
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of the cooking product.
2. Instruct you how to use the cooking product.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace owner accessible light bulbs.
B. Repairs when the cooking product is used in other than normal, single-family household use.
C. Pick-up and delivery. This product is designed to be repaired in the home.
D. Damage to the cooking product caused by accident, misuse, fire, flood, acts of God or use of
products not approved by Whirlpool.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages
so this limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please contact your authorized
Whirlpool distributor or military exchange.
If you need service, first see the “Service and Assistance” section of this book. After checking “Service
and Assistance,” additional help can be found by calling our COOL-LINE® service assistance telephone
number, 1-800-253-1301, from anywhere in the U.S.
WHIRLPOOL WILL PAY FOR
FSP® replacement parts and repair labor to correct defects in
materials or workmanship. Service must be provided by an
authorized Whirlpool®” service company.
' Registered Trademark /SM Service Mark of Whirlpool Corporation
Part No. 36-302993-03-0/4320779
©1990 Whirlpool Corporation
Printed in U.S.A.
Loading...
