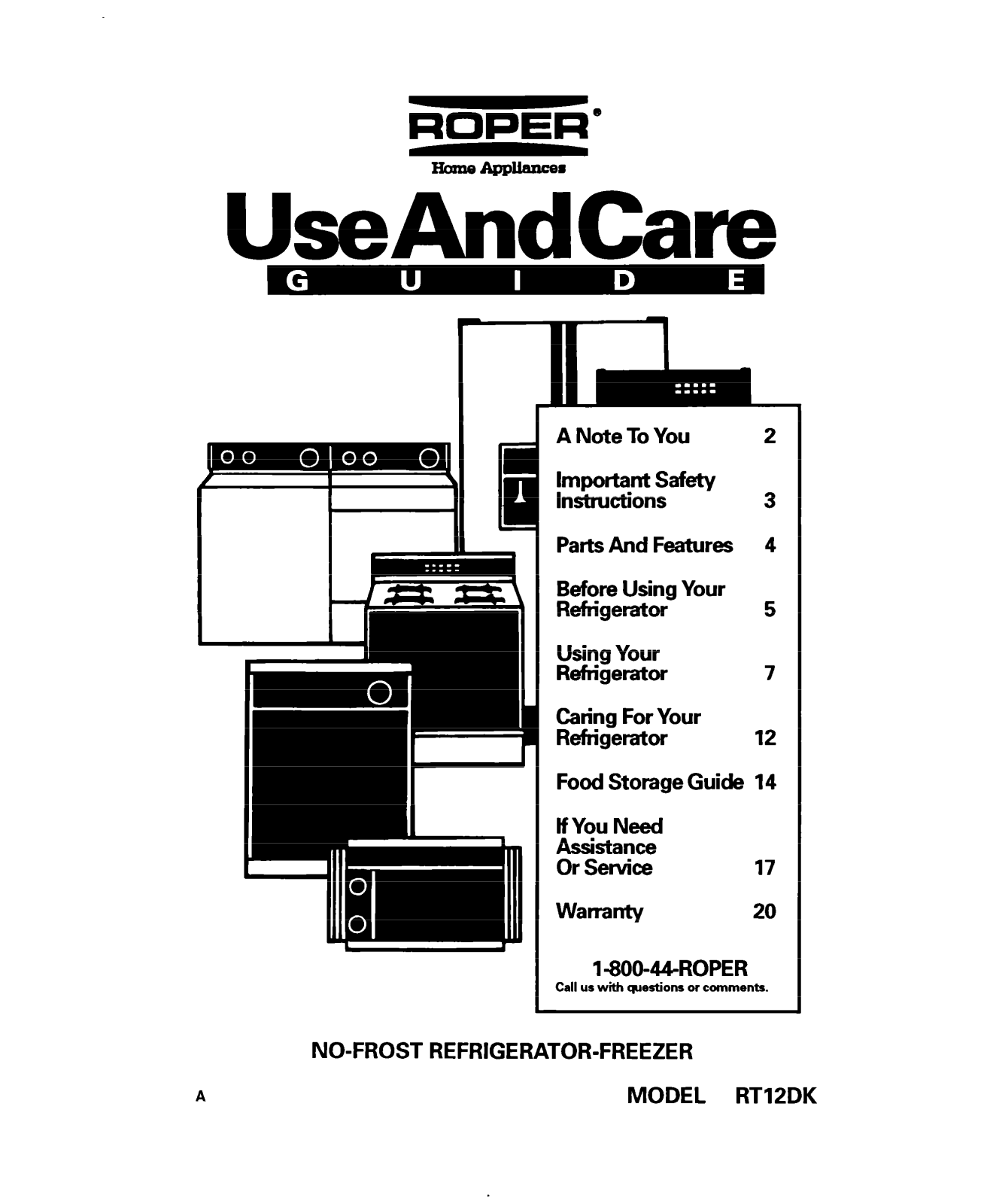

Whirlpool RTIZDK User Manual
A Note To You
2
Important Safety
Instructions 3
Parts And Features 4
Before Using Your
Refrigerator 5

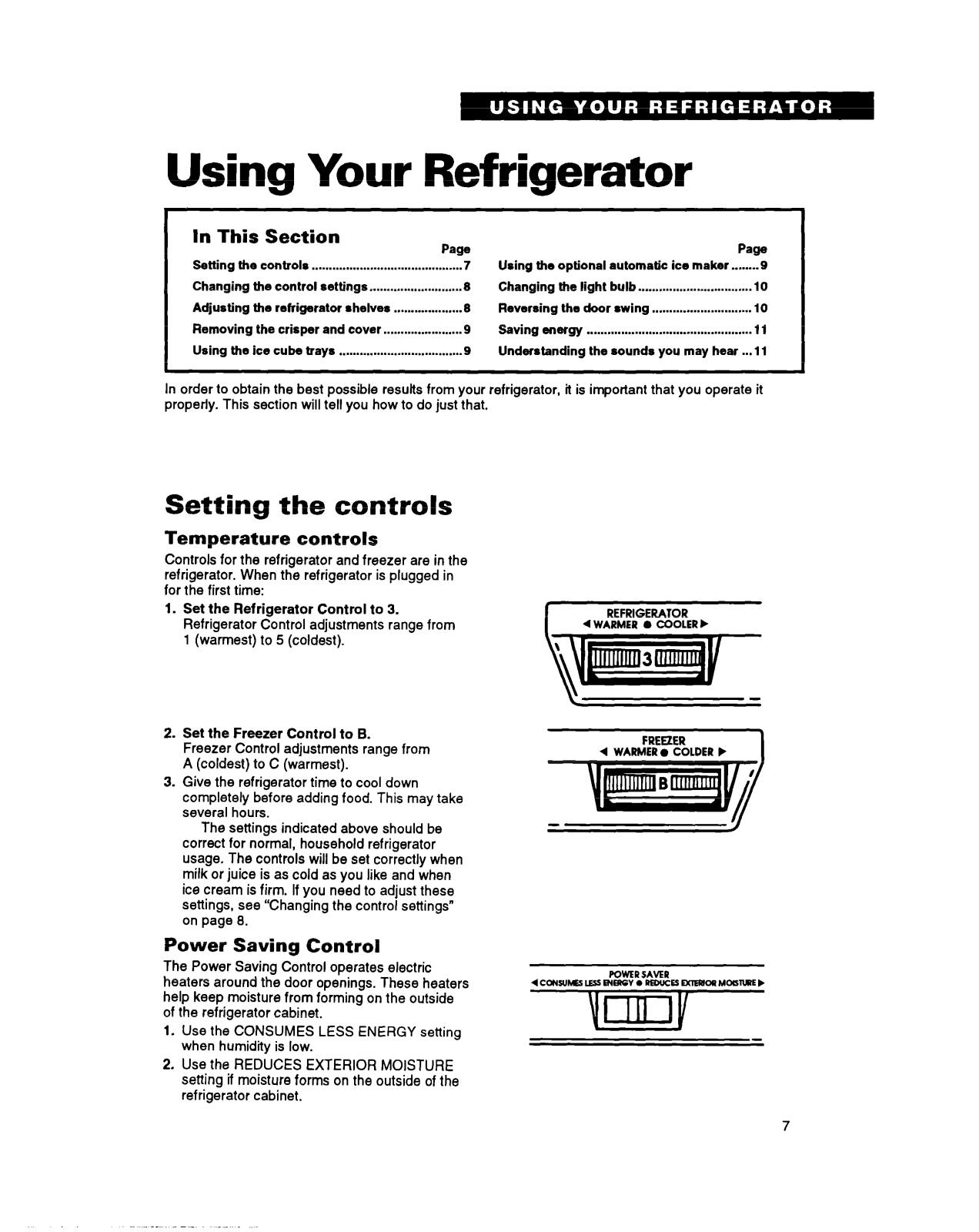

Using Your
Reiiigerator
7
Caring For Your
Refrigerator
12

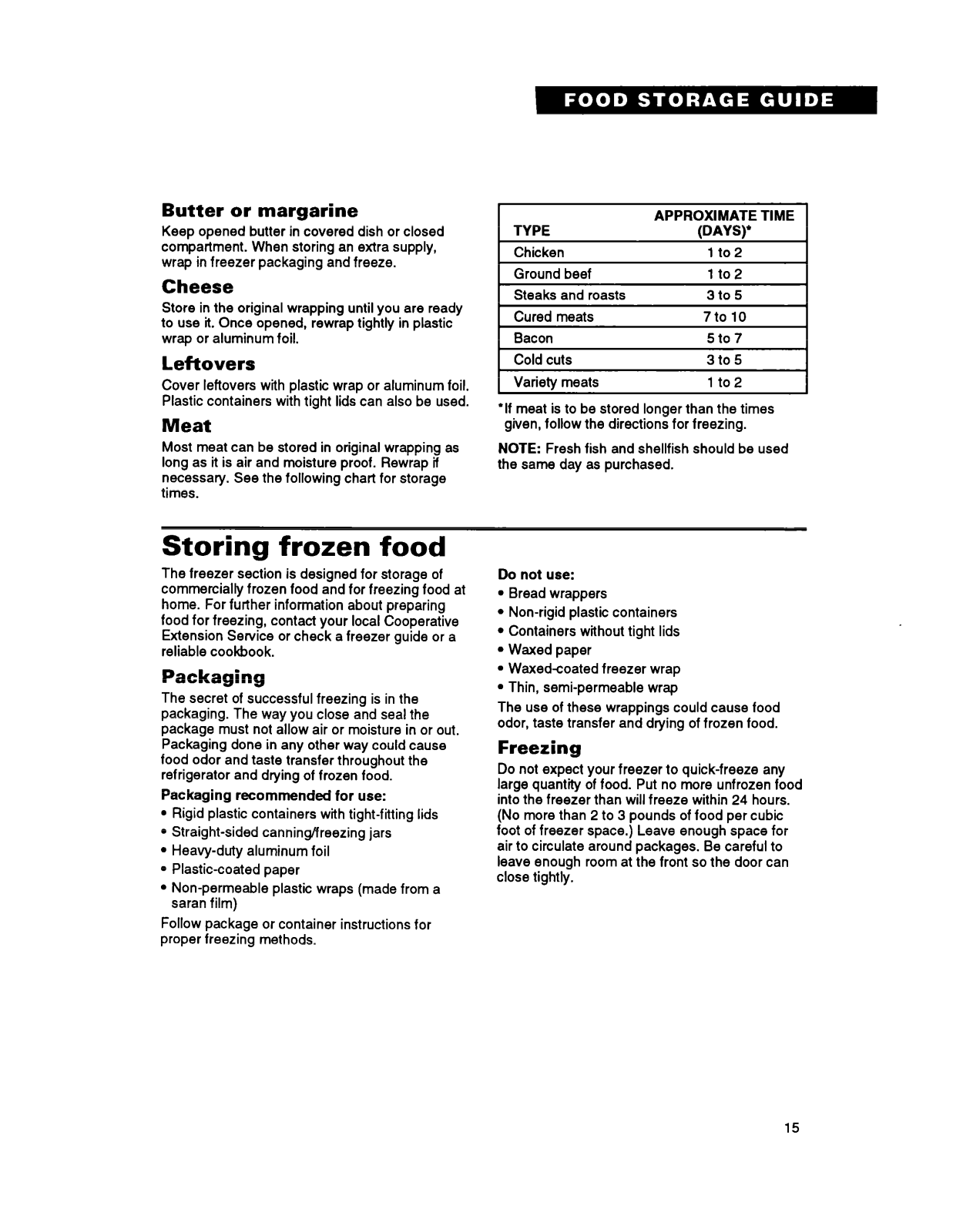

Food Storage Guide 14
If You Need
Assistance
Or Service 17
A

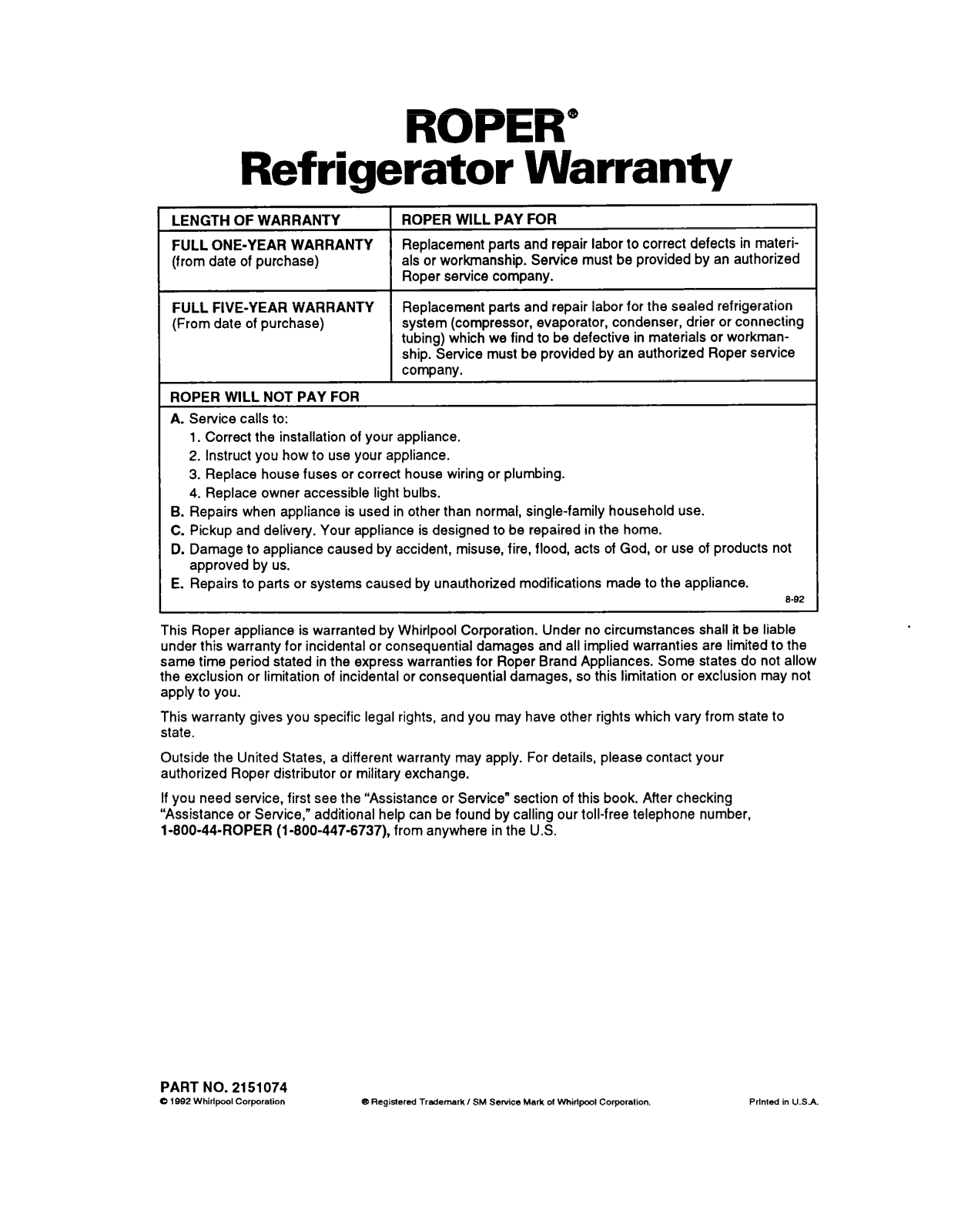

Warranty 20
I-BOO-44-ROPER
Call us with qmstions of comments.
NO-FROST REFRIGERATOR-FREEZER
MODEL RTIZDK

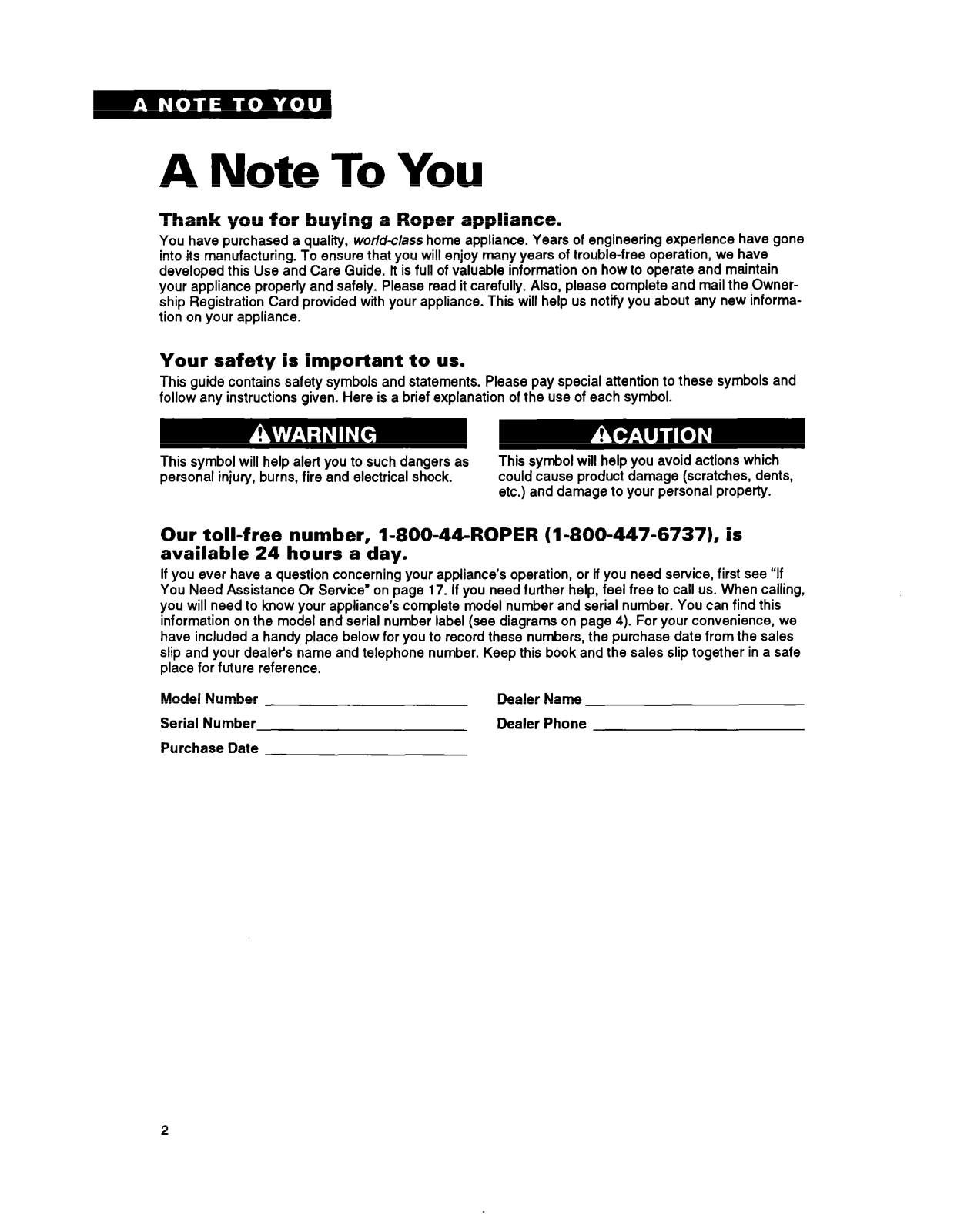

A Note To You
Thank you for buying a Roper appliance.
You have purchased a quality, world-class home appliance. Years of engineering experience have gone
into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have
developed this Use and Care Guide. It is full of valuable information on how to operate and maintain
your appliance properly and safely. Please read it carefully. Also, please complete and mail the Ownership Registration Card provided with your appliance. This will help us notify you about any new information on your appliance.
Your safety is important to us.
This guide contains safety symbols and statements. Please pay special attention to these symbols and
follow any instructions given. Here is a brief explanation of the use of each symbol.
This symbol will help alert you to such dangers as
personal injury, burns, fire and electrical shock.
This symbol will help you avoid actions which
could cause product damage (scratches, dents,
etc.) and damage to your personal property.
Our toll-free number, 1-SOO-44-ROPER (l-800-447-67371, is
available 24 hours a day.
If you ever have a question concerning your appliance’s operation, or if you need service, first see “If
You Need Assistance Or Service” on page 17. If you need further help, feel free to call us. When calling,
you will need to know your appliance’s complete model number and serial number. You can find this
information on the model and serial number label (see diagrams on page 4). For your convenience, we
have included a handy place below for you to record these numbers, the purchase date from the sales
slip and your dealer’s name and telephone number. Keep this book and the sales slip together in a safe
place for future reference.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Phone

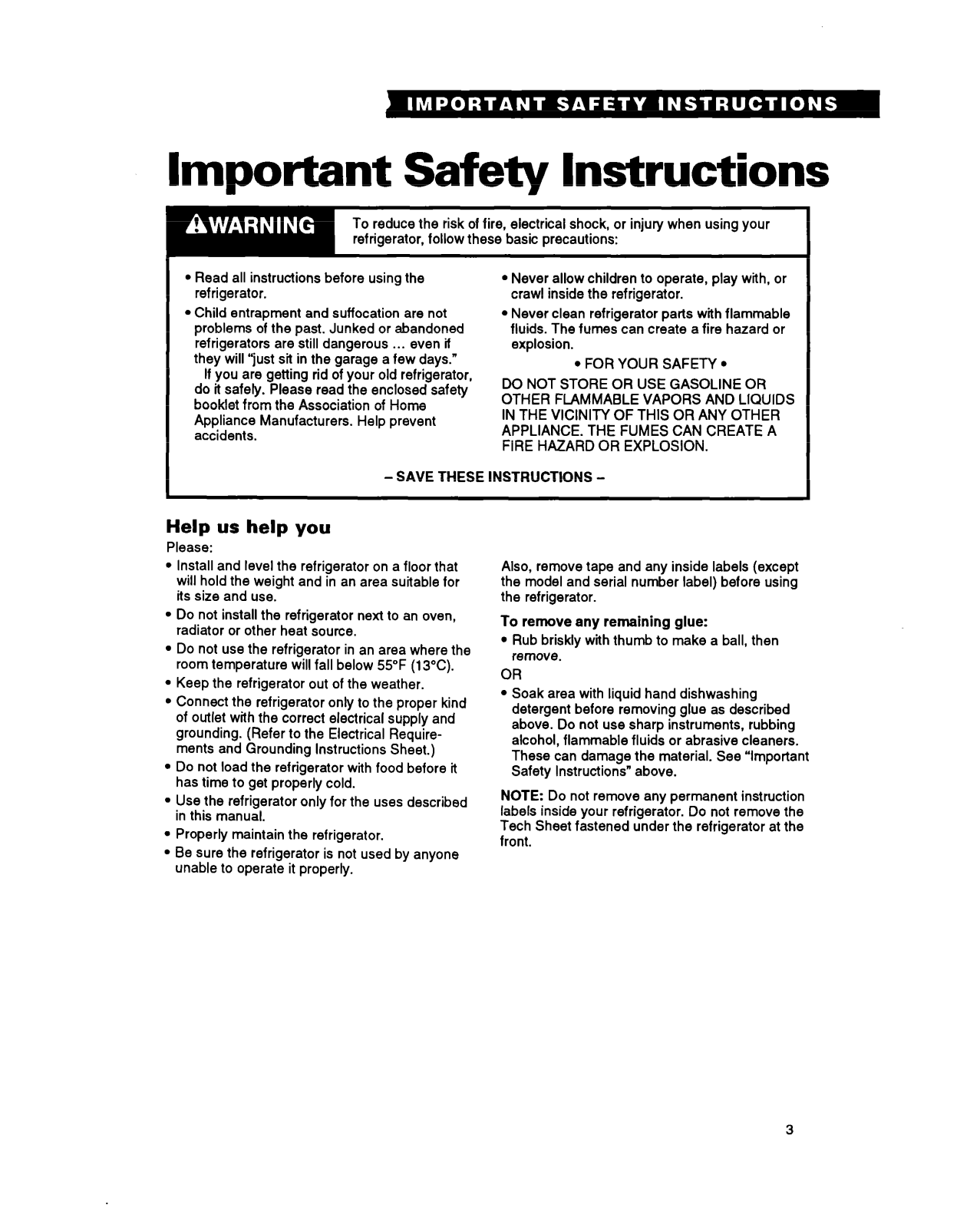

Important Safety Instructions
To reduce the
refrigerator, follow these basic precautions:
l
Read all instructions before using the
refrigerator.
l
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators are still dangerous . . . even if
they will “just sit in the garage a few days.”
If you are getting rid of your old refrigerator,
do it safely. Please read the enclosed safety
booklet from the Association of Home
Appliance Manufacturers. Help prevent
accidents.
I
- SAVE THESE INSTRUCTIONS -
Help us help you
Please:
l
Install and level the refrigerator on a floor that
will hold the weight and in an area suitable for
its size and use.
l
Do not install the refrigerator next to an oven,
radiator or other heat source.
l
Do not use the refrigerator in an area where the
room temperature will fall below 55°F (13°C).
l
Keep the refrigerator out of the weather.
l
Connect the refrigerator only to the proper kind
of outlet with the correct electrical supply and
grounding. (Refer to the Electrical Requirements and Grounding Instructions Sheet.)
l
Do not load the refrigerator with food before it
has time to get properly cold.
l
Use the refrigerator only for the uses described
in this manual.
. Properly maintain the refrigerator.
l
Be sure the refrigerator is not used by anyone
unable to operate it properly.
risk of fire,
electrical shock,
l
Never allow children to operate, play with, or
or injury when using your
crawl inside the refrigerator.
l
Never clean refrigerator parts with flammable
fluids. The fumes can create a fire hazard or
explosion.
. FOR YOUR SAFETY.
DO NOT STORE OR USE GASOLINE OR
OTHER FLAMMABLE VAPORS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY OTHER
APPLIANCE. THE FUMES CAN CREATE A
FIRE HAZARD OR EXPLOSION.
Also, remove tape and any inside labels (except
the model and serial number label) before using
the refrigerator.
To remove any remaining glue:
l
Rub briskly with thumb to make a ball, then
remove.
OR
l
Soak area with liquid hand dishwashing
detergent before removing glue as described
above. Do not use sharp instruments, rubbing
alcohol, flammable fluids or abrasive cleaners.
These can damage the material. See “Important
Safety Instructions” above.
NOTE: Do not remove any permanent instruction
labels inside your refrigerator. Do not remove the
Tech Sheet fastened under the refrigerator at the
front.

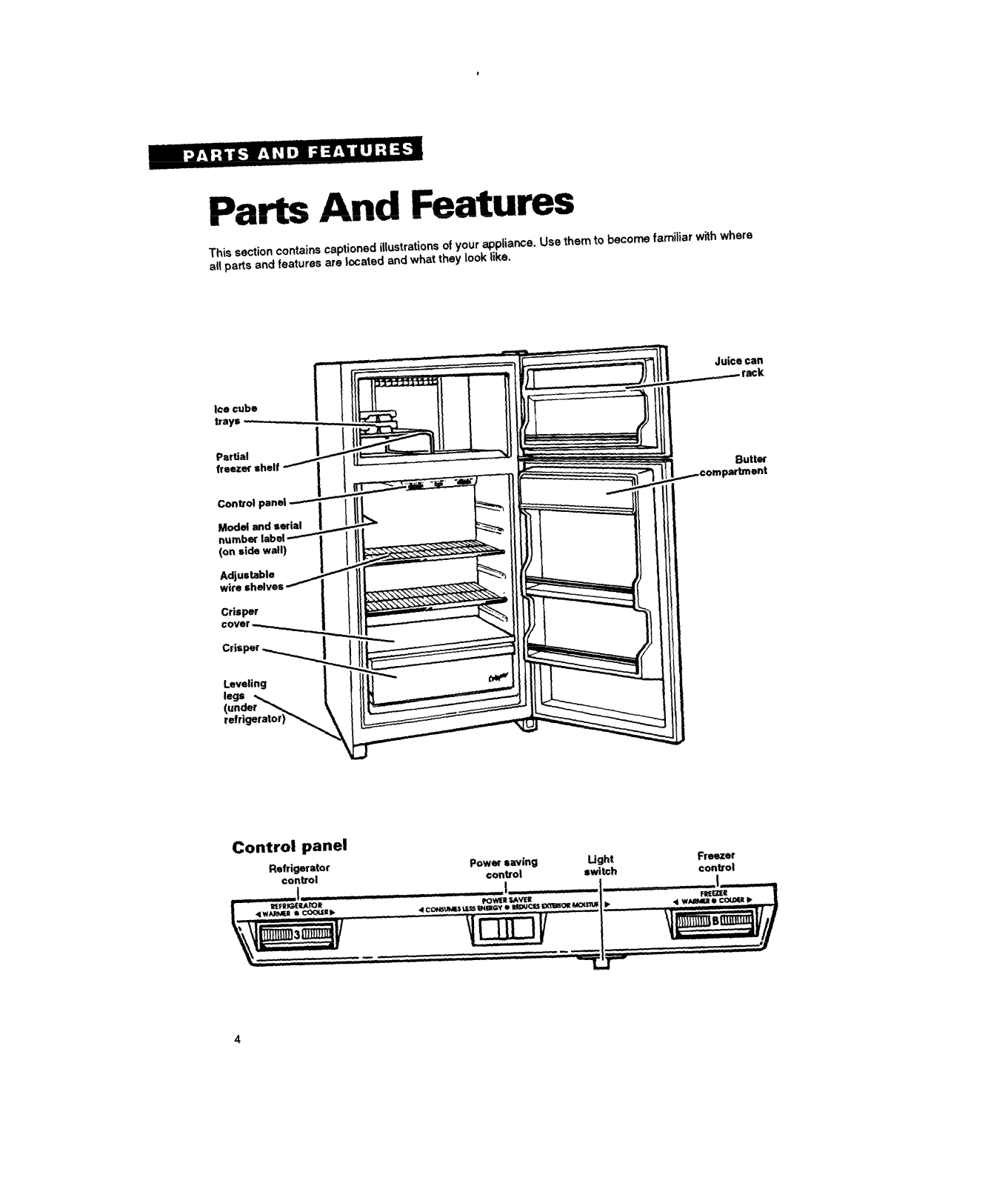

Parts
This section contains captioned illustrations of your appliance. Use them to become familiar with where
all
parts and features are located and what they look like.
Ice cubs
trays
And Features
Control panel
Refrigerator
control
Light
switch
,compartment
Butter
Freezer
control
4

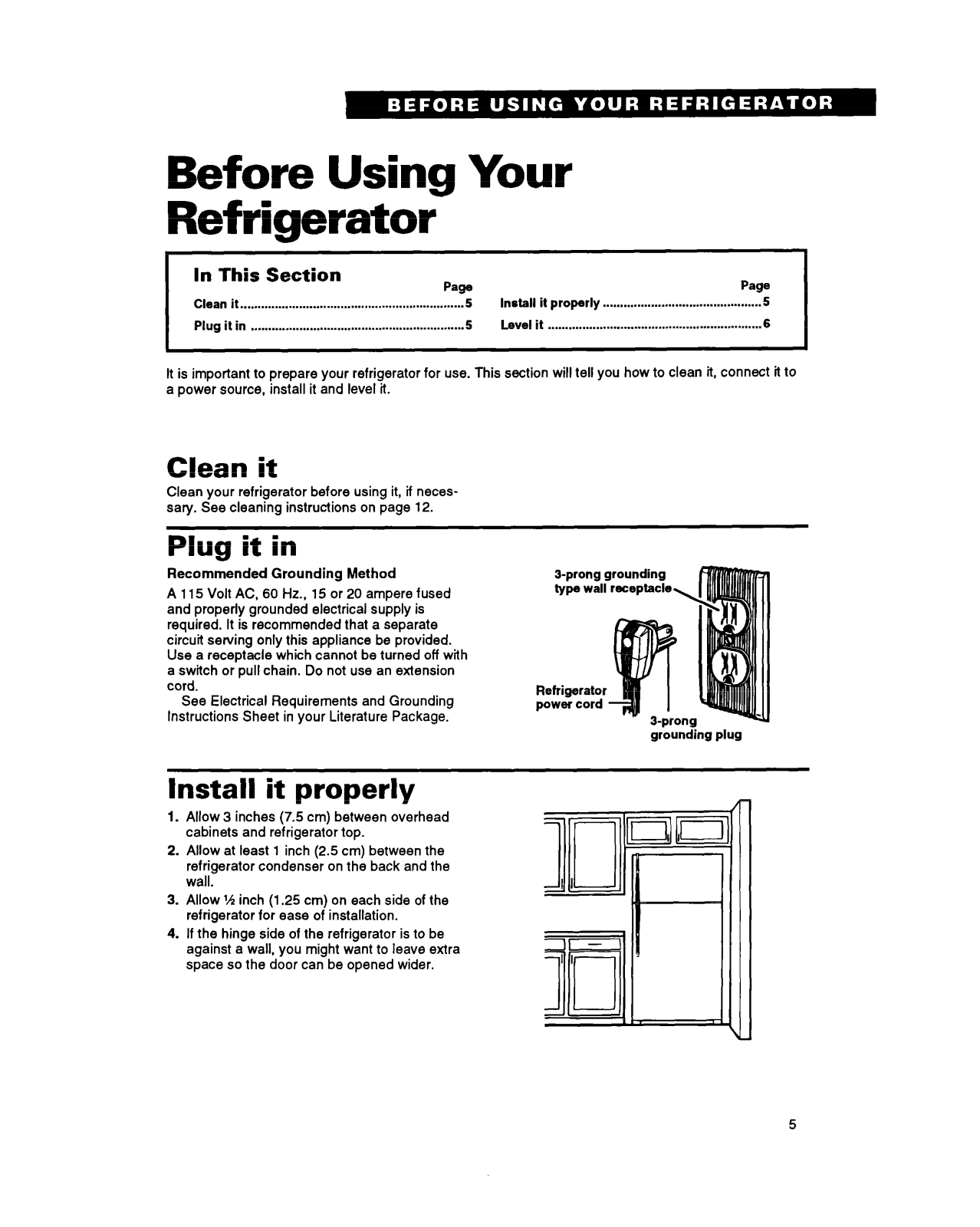

Before Using Your Refrigerator
In This Section
Page
Clean it . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Plug it in
It is important to prepare your refrigerator for use. This section will tell you how to clean it, connect it to
a power source, install it and level it.
.~........~...................................................
Install it properly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Level it
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..~...........................
Page
5
6
Clean it
Clean your refrigerator before using it, if necessary. See cleaning instructions on page 12.
Plug it in
Recommended Grounding Method
A 115 Volt AC, 60 Hz., 15 or 20 ampere fused
and properly grounded electrical supply is
required. It is recommended that a separate
circuit serving only this appliance be provided.
Use a receptacle which cannot be turned off with
a switch or pull chain. Do not use an extension
cord.
See Electrical Requirements and Grounding
Instructions Sheet in your Literature Package.
a-prong grounding
type wall receptacle
Refrigerator
power cord
grounding plug
Install it properly
1.
Allow 3 inches (7.5 cm) between overhead
cabinets and refrigerator top.
2. Allow at least 1 inch (2.5 cm) between the
refrigerator condenser on the back and the
wall.
3. Allow I,4 inch (1.25 cm) on each side of the
refrigerator for ease of installation.
4. If the hinge side of the refrigerator is to be
against a wall, you might want to leave extra
space so the door can be opened wider.
5

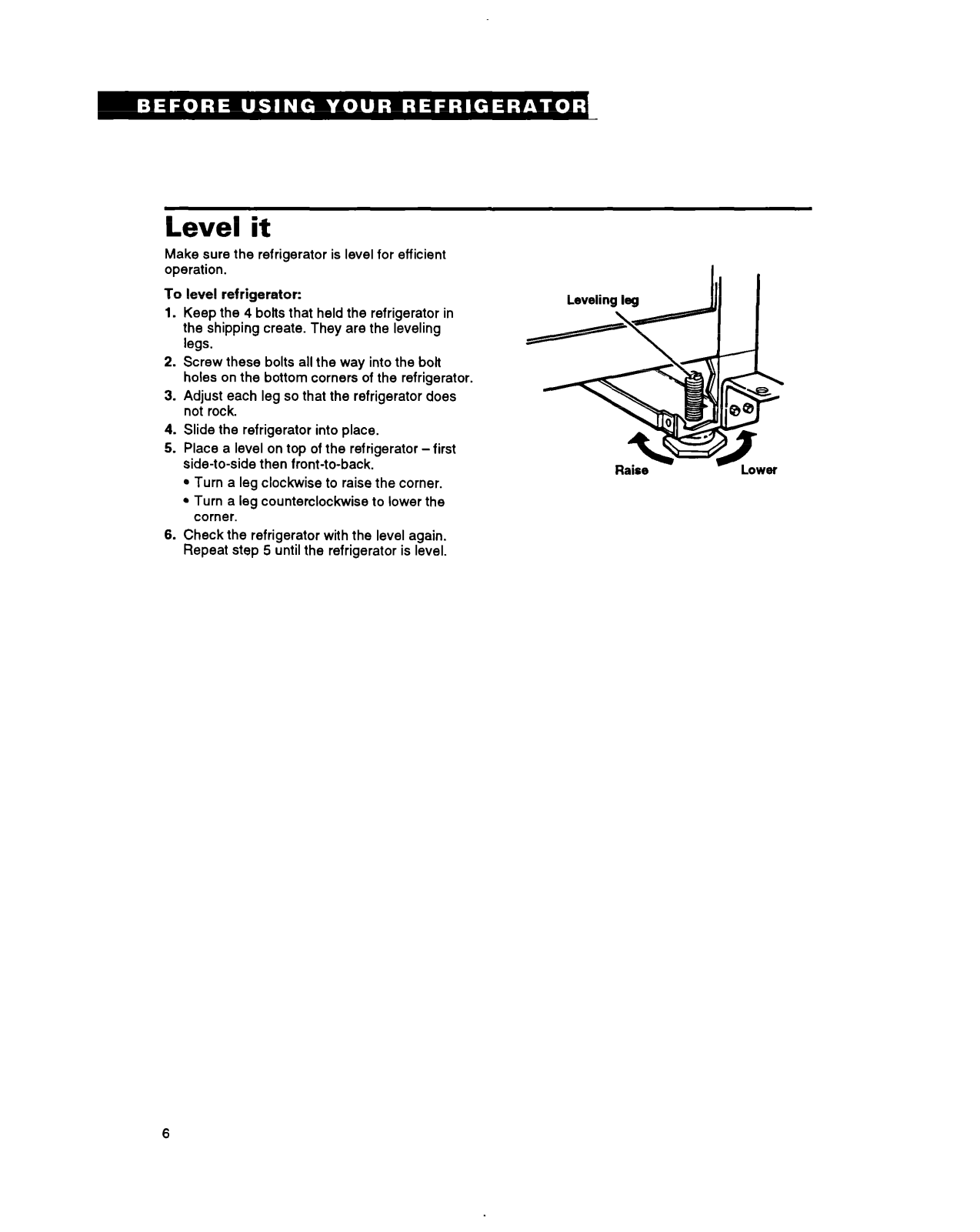

Level it
Make sure the refrigerator is level for efficient
operation.
To level refrigerator:
1. Keep the 4 bolts that held the refrigerator in
the shipping create. They are the leveling
legs.
2. Screw these bolts all the way into the bolt
holes on the bottom corners of the refrigerator.
3. Adjust each leg so that the refrigerator does
not rock.
4. Slide the refrigerator into place.
5. Place a level on top of the refrigerator -first
side-to-side then front-to-back.
l
Turn a leg clockwise to raise the corner.
l
Turn a leg counterclockwise to lower the
corner.
6. Check the refrigerator with the level again.
Repeat step 5 until the refrigerator is level.
