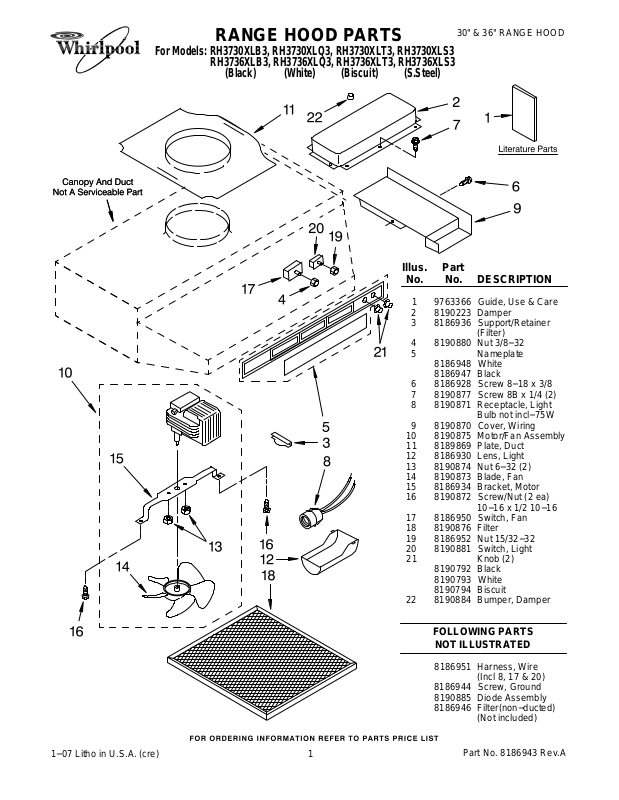

RANGE HOOD PARTS
30" & 36" RANGE HOOD
For Models: RH3730XLB3, RH3730XLQ3, RH3730XLT3, RH3730XLS3 RH3736XLB3, RH3736XLQ3, RH3736XLT3, RH3736XLS3
(Black) (White) (Biscuit) (S.Steel)
Illus. |
Part |
|
No. |
No. |
DESCRIPTION |
1 |
9763366 |
Guide, Use & Care |
2 |
8190223 |
Damper |
3 |
8186936 |
Support/Retainer |
|
|
(Filter) |
4 |
8190880 |
Nut 3/8−32 |
5 |
|
Nameplate |
|
8186948 |
White |
|
8186947 |
Black |
6 |
8186928 |
Screw 8−18 x 3/8 |
7 |
8190877 |
Screw 8B x 1/4 (2) |
8 |
8190871 |
Receptacle, Light |
|
|
Bulb not incl−75W |
9 |
8190870 |
Cover, Wiring |
10 |
8190875 |
Motor/Fan Assembly |
11 |
8189869 |
Plate, Duct |
12 |
8186930 |
Lens, Light |
13 |
8190874 |
Nut 6−32 (2) |
14 |
8190873 |
Blade, Fan |
15 |
8186934 |
Bracket, Motor |
16 |
8190872 |
Screw/Nut (2 ea) |
|
|
10−16 x 1/2 10−16 |
17 |
8186950 |
Switch, Fan |
18 |
8190876 |
Filter |
19 |
8186952 |
Nut 15/32−32 |
20 |
8190881 |
Switch, Light |
21 |
|
Knob (2) |
|
8190792 |
Black |
|
8190793 |
White |
|
8190794 |
Biscuit |
22 |
8190884 |
Bumper, Damper |
FOLLOWING PARTS
NOT ILLUSTRATED
8186951 Harness, Wire
(Incl 8, 17 & 20)
8186944 Screw, Ground
8190885 Diode Assembly
8186946 Filter(non−ducted)
(Not included)
|
|
|
|
|
