Whirlpool RH2330XJT1, RH2330XJZ1, RH2330XJQ1, RH2330XJB1 User Manual

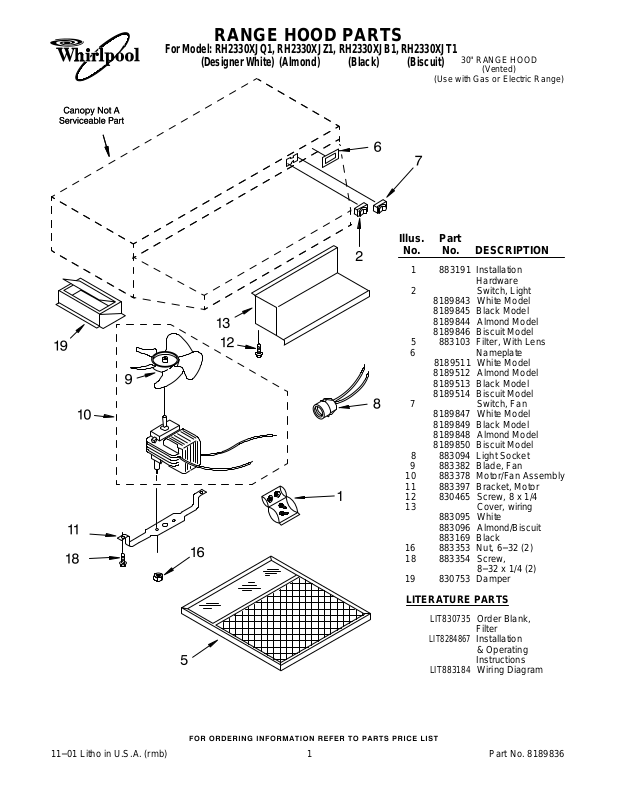

RANGE HOOD PARTS

For Model: RH2330XJQ1, RH2330XJZ1, RH2330XJB1, RH2330XJT1
(Designer White) (Almond)	(Black)	(Biscuit)	30" RANGE HOOD
			(Vented)

(Use with Gas or Electric Range)

																																					Illus.		Part
																																					No.		No.	DESCRIPTION
					1																																		883191	Installation
																																								Hardware
					2																																			Switch, Light
																																							8189843	White Model
																																							8189845	Black Model
																																							8189844	Almond Model
																																							8189846	Biscuit Model
										5																													883103	Filter, With Lens
					6																																			Nameplate
																																							8189511	White Model
																																							8189512	Almond Model
																																							8189513	Black Model
																																							8189514	Biscuit Model
					7																																			Switch, Fan
																																							8189847	White Model
																																							8189849	Black Model
																																							8189848	Almond Model
																																							8189850	Biscuit Model
					8																																		883094	Light Socket
					9																																		883382	Blade, Fan
					10																																		883378	Motor/Fan Assembly
					11																																		883397	Bracket, Motor
					12																																		830465	Screw, 8 x 1/4
					13																																			Cover, wiring
																																							883095	White
																																							883096	Almond/Biscuit
																																							883169	Black
					16																																		883353	Nut, 6−32 (2)
					18																																		883354	Screw,
																																								8−32 x 1/4 (2)
																					19																		830753	Damper
																																						LITERATURE PARTS
																																							LIT830735	Order Blank,
																																								Filter
																																							LIT8284867	Installation
																																								& Operating
																																								Instructions
																																							LIT883184	Wiring Diagram

11−01 Litho in U.S.A. (rmb)

1

Part No. 8189836
