Page 1
4.65 Cubic Foot Oven
MODELS RF370PXG RF370LXG RF374PXG RF376LXG
8053398
A Note to You ............2
Range Safety ............3
Parts and Features....6
Using Your Range ....8
Using the Self-
Cleaning Cycle ........26
Caring for Your
Range ......................29
Troubleshooting ......36
Requesting
Assistance or
Service ....................38
Index ........................39
Warranty ..................40
1-800-253-1301
Call our Consumer Assistance Center
with questions or comments.
Self-Cleaning
Electric Ranges
Page 2
Our Consumer Assistance Center number is toll free.
A NOTE TO YOU
Thank you for buying a WHIRLPOOL®appliance.
The Whirlpool Brand is committed to designing quality products that consistently perform for you to make your
life easier. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide.
It is full of valuable information about how to operate and maintain your appliance properly and safely. Please
read it carefully.
Also, please complete and mail the Product Registration Card provided with your appliance. The card helps us
notify you about any new information on your appliance.
Please record your model’s information.
Whenever you call to request service for your appliance,
you need to know your complete model number and
serial number. You can find this information on the
model and serial number label/plate (see diagram in
the “Parts and Features” section).
Please also record the purchase date of your appliance
and your dealer’s name, address, and telephone number.
Keep this book and the sales slip together in a safe place for future reference. It is important
for you to save your sales receipt showing the date of purchase. Proof of purchase will assure
you of in-warranty service.
2
1-800-253-1301
To find detailed product information, the location of the nearest Whirlpool dealer or authorized servicer, to
purchase an accessory item, or register your appliance on-line, please visit our Web site at
www.whirlpool.com
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Address
Dealer Phone
Page 3
3
RANGE SAFETY
continued on next page
You will be killed or seriously injured if you don’t
follow instructions.
You can be killed or seriously injured if you don’t
follow instructions.
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word “DANGER” or
“WARNING.” These words mean:
wDANGER
wWARNING
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
wWARNING

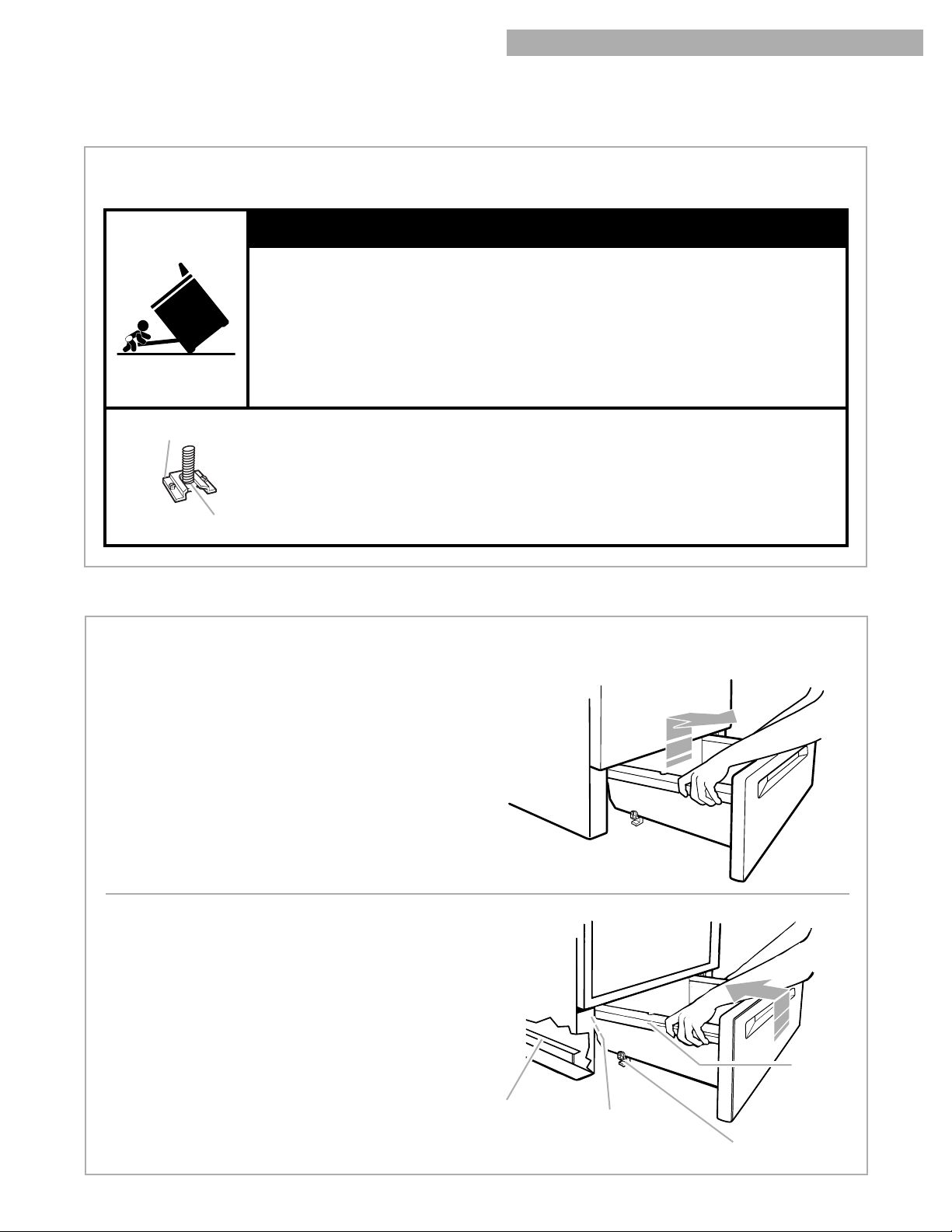

Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns
to children and adults.
Making sure the anti-tip bracket is installed:
•
Slide range forward.
•
Look for the anti-tip bracket securely attached to floor.
•
Slide range back so rear range foot is under anti-tip bracket.
Anti-Tip Bracket
Range Foot
Page 4
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using
the range, follow basic precautions, including the
following:
•
WARNING – TO REDUCE THE RISK OF
TIPPING OF THE RANGE, THE RANGE MUST
BE SECURED BY PROPERLY INSTALLED
ANTI-TIP DEVICES. TO CHECK IF THE DEVICES
ARE INSTALLED PROPERLY, SLIDE RANGE
FORWARD, LOOK FOR ANTI-TIP BRACKET
SECURELY ATTACHED TO FLOOR, AND SLIDE
RANGE BACK SO REAR RANGE FOOT IS
UNDER ANTI-TIP BRACKET.
•
CAUTION – Do not store items of interest to
children in cabinets above a range or on the
backguard of a range – children climbing on the
range to reach items could be seriously injured.
•
Proper Installation – Be sure the range is properly
installed and grounded by a qualified technician.
•
Never Use the Range for Warming or Heating
the Room.
•
Do Not Leave Children Alone – Children should
not be left alone or unattended in area where the
range is in use. They should never be allowed to
sit or stand on any part of the range.
•
Wear Proper Apparel – Loose-fitting or hanging
garments should never be worn while using
the range.
•
User Servicing – Do not repair or replace any part
of the range unless specifically recommended in
the manual. All other servicing should be referred
to a qualified technician.
•
Storage in or on the Range – Flammable
materials should not be stored in an oven or
near surface units.
•
Do Not Use Water on Grease Fires – Smother
fire or flame or use dry chemical or foam-type
extinguisher.
•
Use Only Dry Potholders – Moist or damp
potholders on hot surfaces may result in burns
from steam. Do not let potholder touch hot
heating elements. Do not use a towel or other
bulky cloth.
4
RANGE SAFETY
IMPORTANT SAFETY INSTRUCTIONS
•
DO NOT TOUCH SURFACE UNITS OR AREAS
NEAR UNITS – Surface units may be hot even
though they are dark in color. Areas near surface
units may become hot enough to cause burns.
During and after use, do not touch, or let clothing
or other flammable materials contact surface
units or areas near units until they have had
sufficient time to cool. Among those areas are
the cook-top and surfaces facing the cook-top.
•
Use Proper Pan Size – The range is equipped
with one or more surface units of different size.
Select utensils having flat bottoms large enough
to cover the surface unit heating element. The
use of undersized utensils will expose a portion
of the heating element to direct contact and may
result in ignition of clothing. Proper relationship of
utensil to burner will also improve efficiency.
•
Never Leave Surface Units Unattended at High
Heat Settings – Boilover causes smoking and
greasy spillovers that may ignite.
•
Make Sure Reflector Pans or Drip Bowls Are in
Place – Absence of these pans or bowls during
cooking may subject wiring or components
underneath to damage.
•
Protective Liners – Do not use aluminum foil to
line surface unit drip bowls or oven bottoms,
except as suggested in the manual. Improper
installation of these liners may result in a risk of
electric shock, or fire.
•
Glazed Cooking Utensils – Only certain types of
glass, glass/ceramic, ceramic, earthenware, or
other glazed utensils are suitable for range-top
service without breaking due to the sudden
change in temperature.
•
Utensil Handles Should Be Turned Inward and
Not Extend Over Adjacent Surface Units – To
reduce the risk of burns, ignition of flammable
materials, and spillage due to unintentional
contact with the utensil, the handle of a utensil
should be positioned so that it is turned inward,
and does not extend over adjacent surface units.
•
Do Not Soak Removable Heating Elements –
Heating elements should never be immersed
in water.
– SAVE THESE INSTRUCTIONS –
Page 5
5
RANGE SAFETY
•
Do Not Cook on Broken Cook-Top – If cook-top
should break, cleaning solutions and spillovers
may penetrate the broken cook-top and create a
risk of electric shock. Contact a qualified technician immediately.
•
Clean Cook-Top With Caution – If a wet sponge
or cloth is used to wipe spills on a hot cooking
area, be careful to avoid steam burn. Some
cleaners can produce noxious fumes if applied
to a hot surface.
•
Use Care When Opening Door – Let hot air or
steam escape before removing or replacing food.
•
Do Not Heat Unopened Food Containers –
Build-up of pressure may cause container to
burst and result in injury.
•
Keep Oven Vent Ducts Unobstructed.
•

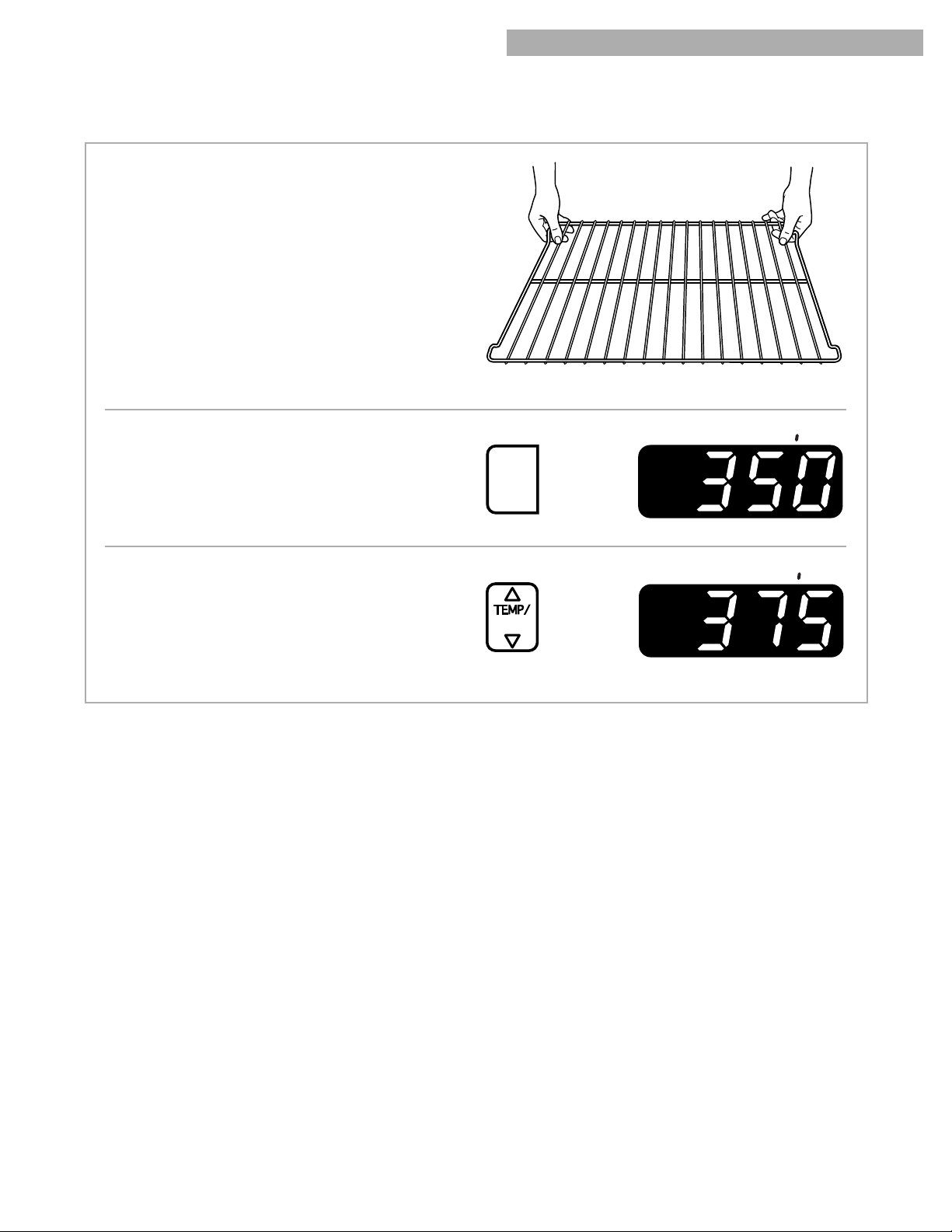

Placement of Oven Racks – Always place oven
racks in desired location while oven is cool. If
rack must be moved while oven is hot, do not let
potholder contact hot heating element in oven.
•
DO NOT TOUCH HEATING ELEMENTS OR
INTERIOR SURFACES OF OVEN – Heating
elements may be hot even though they are dark
in color. Interior surfaces of an oven become hot
enough to cause burns. During and after use, do
not touch, or let clothing or other flammable
materials contact heating elements or interior
surfaces of oven until they have had sufficient
time to cool. Other surfaces of the appliance may
become hot enough to cause burns – among
these surfaces are oven vent openings and
surfaces near these openings, oven doors, and
windows of oven doors.
IMPORTANT SAFETY INSTRUCTIONS
– SAVE THESE INSTRUCTIONS –
For self-cleaning ranges –
•
Do Not Clean Door Gasket – The door gasket is
essential for a good seal. Care should be taken not
to rub, damage, or move the gasket.
•
Do Not Use Oven Cleaners – No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
•
Clean Only Parts Listed in Manual.
•
Before Self-Cleaning the Oven – Remove broiler
pan and other utensils.
For units with ventilating hood –
•
Clean Ventilating Hoods Frequently – Grease
should not be allowed to accumulate on hood
or filter.
•
When flaming foods under the hood, turn the fan
off. The fan, if operating, may spread the flame.
Page 6
6
PUSH TO TURN
PUSH TO TURN
LO
2
3
4
5
6
7
8
HI
LO
2
3
4
5
6
7
8
HI
LO
2
3
4
5
6
7
8
HI
LO
2
3
4
5
6
7
8
HI
OFF
OFF
OFF
OFF
ON
PARTS AND FEATURES
Oven vent
(p. 24)

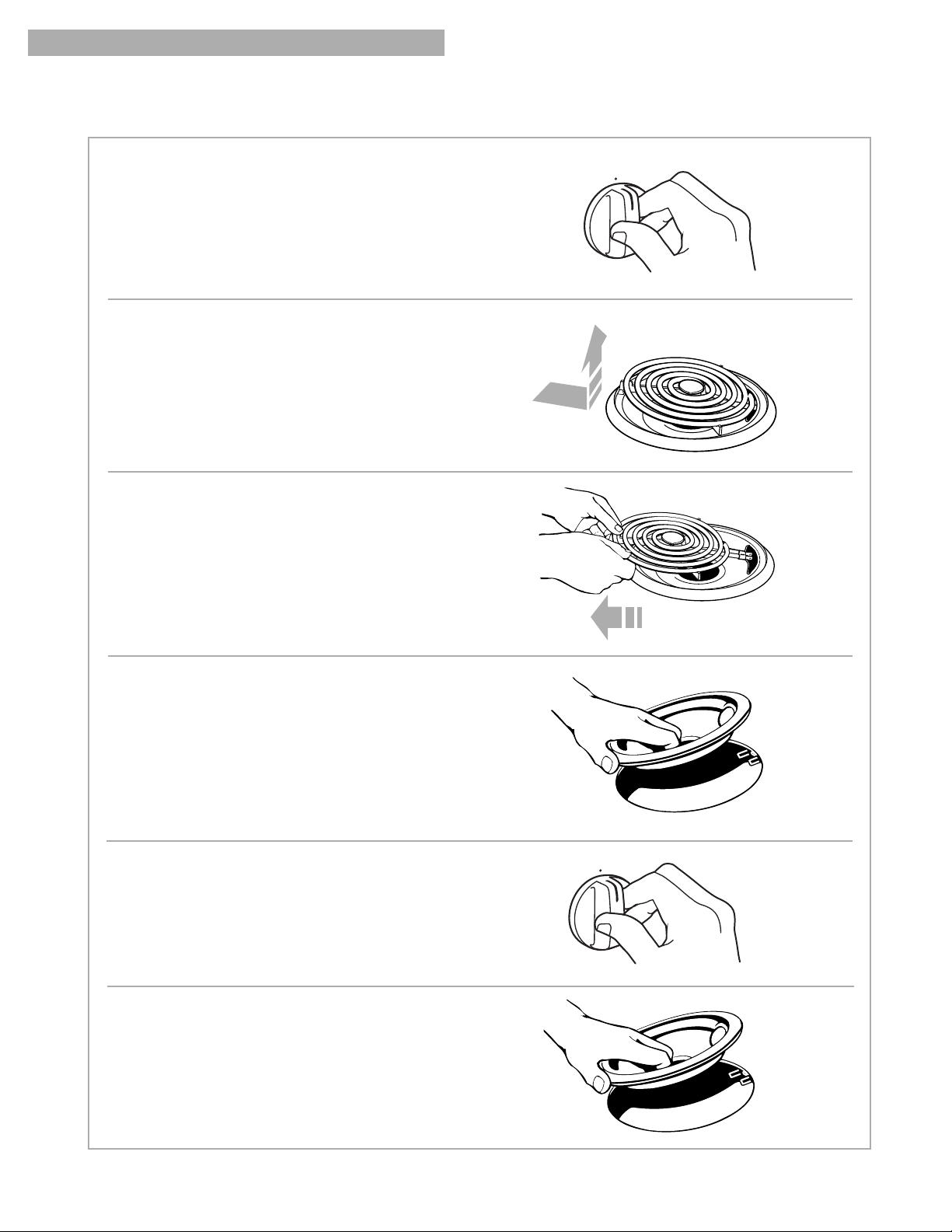

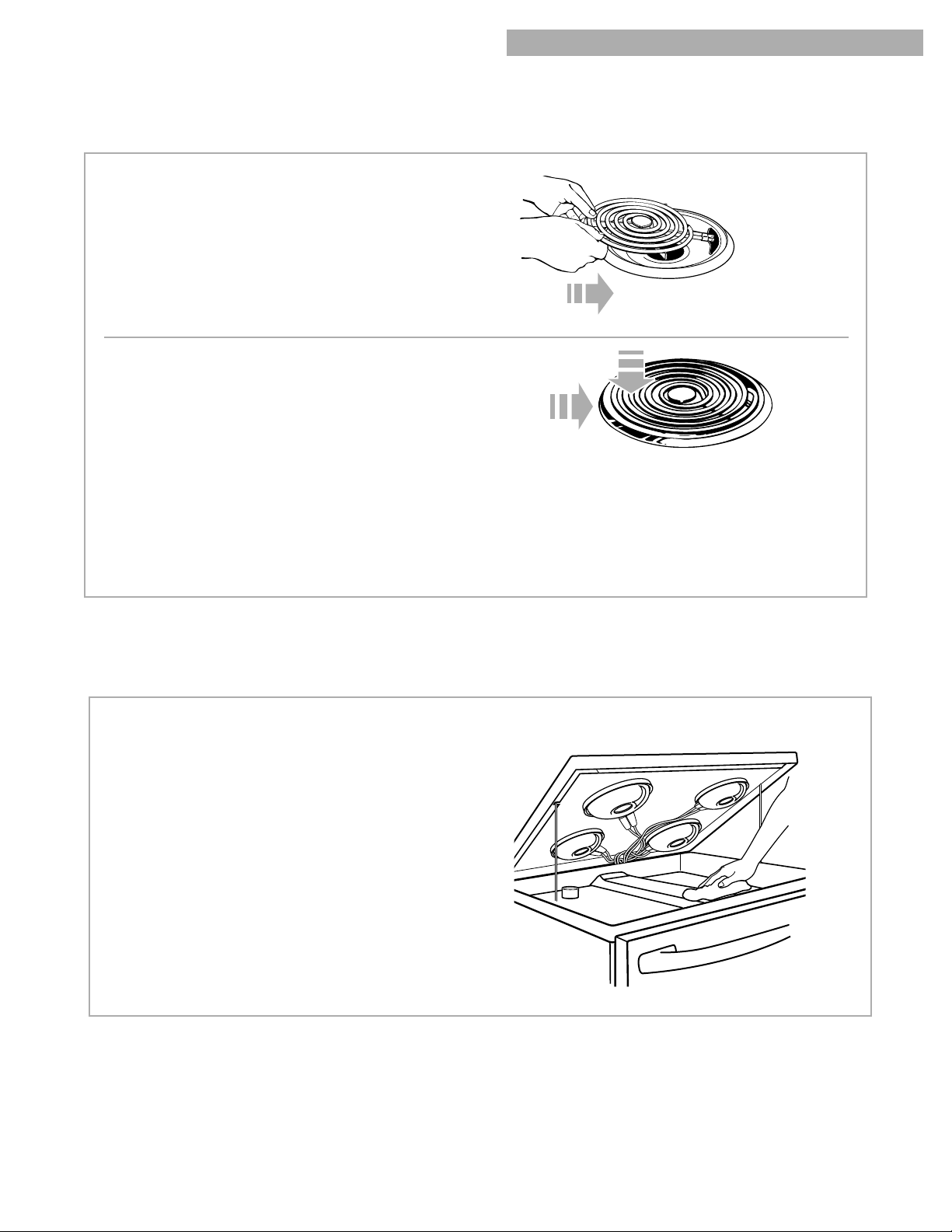

Plug-in coil element
with one-piece
reflector bowl
(pp. 29, 32-33)
Anti-tip bracket
(p. 25)

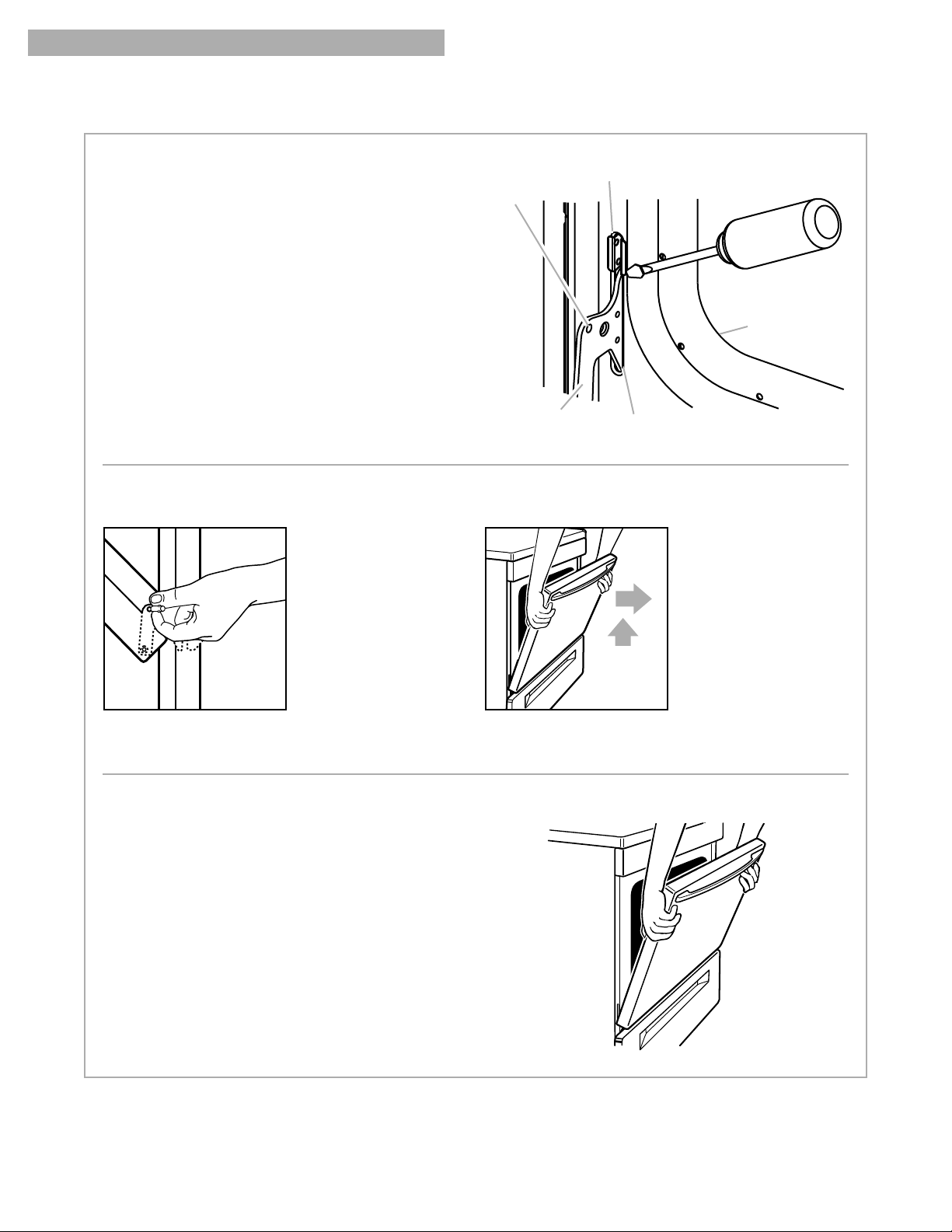

Door stop clip
(p. 34-35)
Model and
serial number
plate
(behind left side
of storage drawer)
Removable
storage drawer
(p. 25)
(Models RF370PXG and RF370LXG)
Left rear
control knob
Left front
control knob
Right rear
control knob
Right front
control knob
Surface heating
indicator light
(lights up when a
coil element is on)
Coil element marker
(shows which coil
element you are setting)

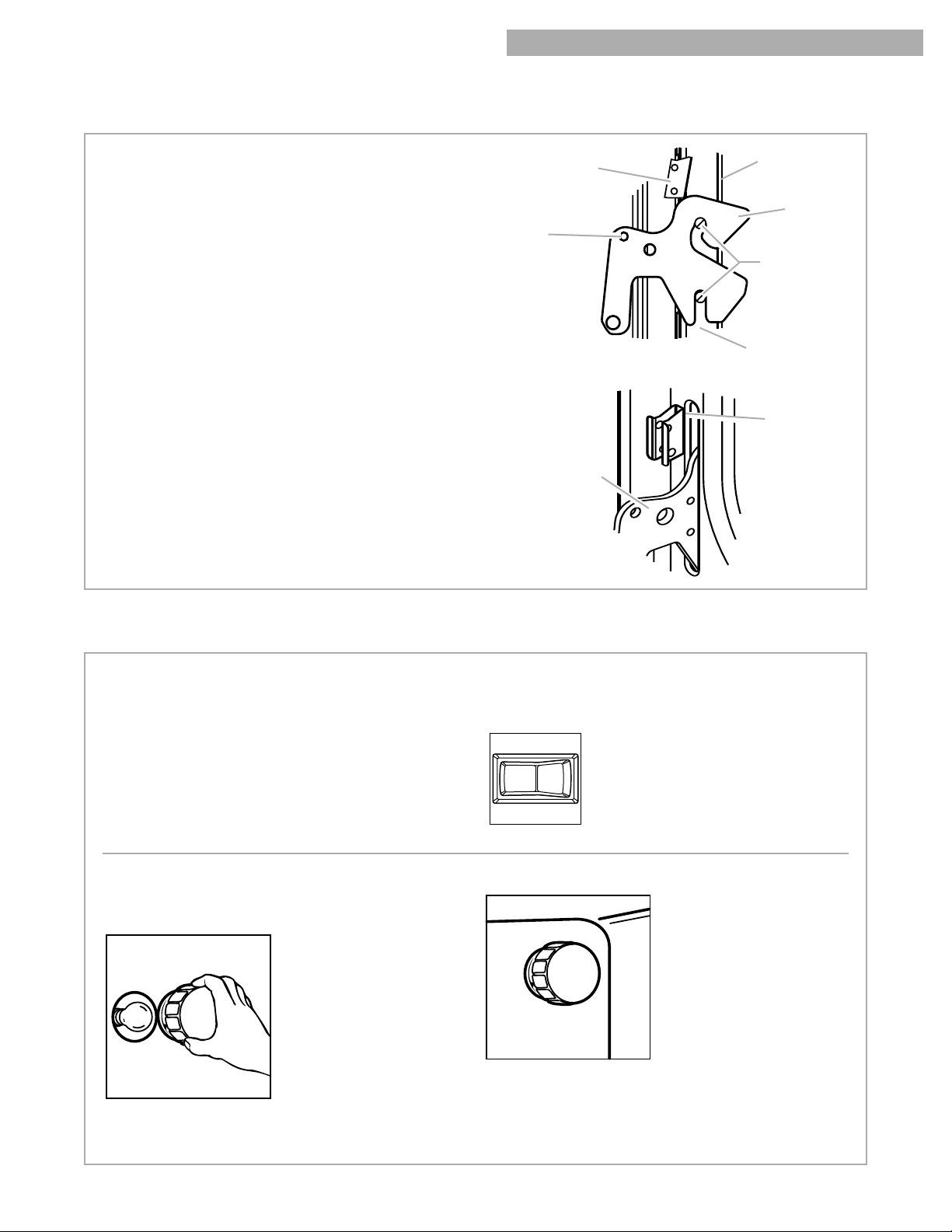

Manual oven
light switch
(p. 35)

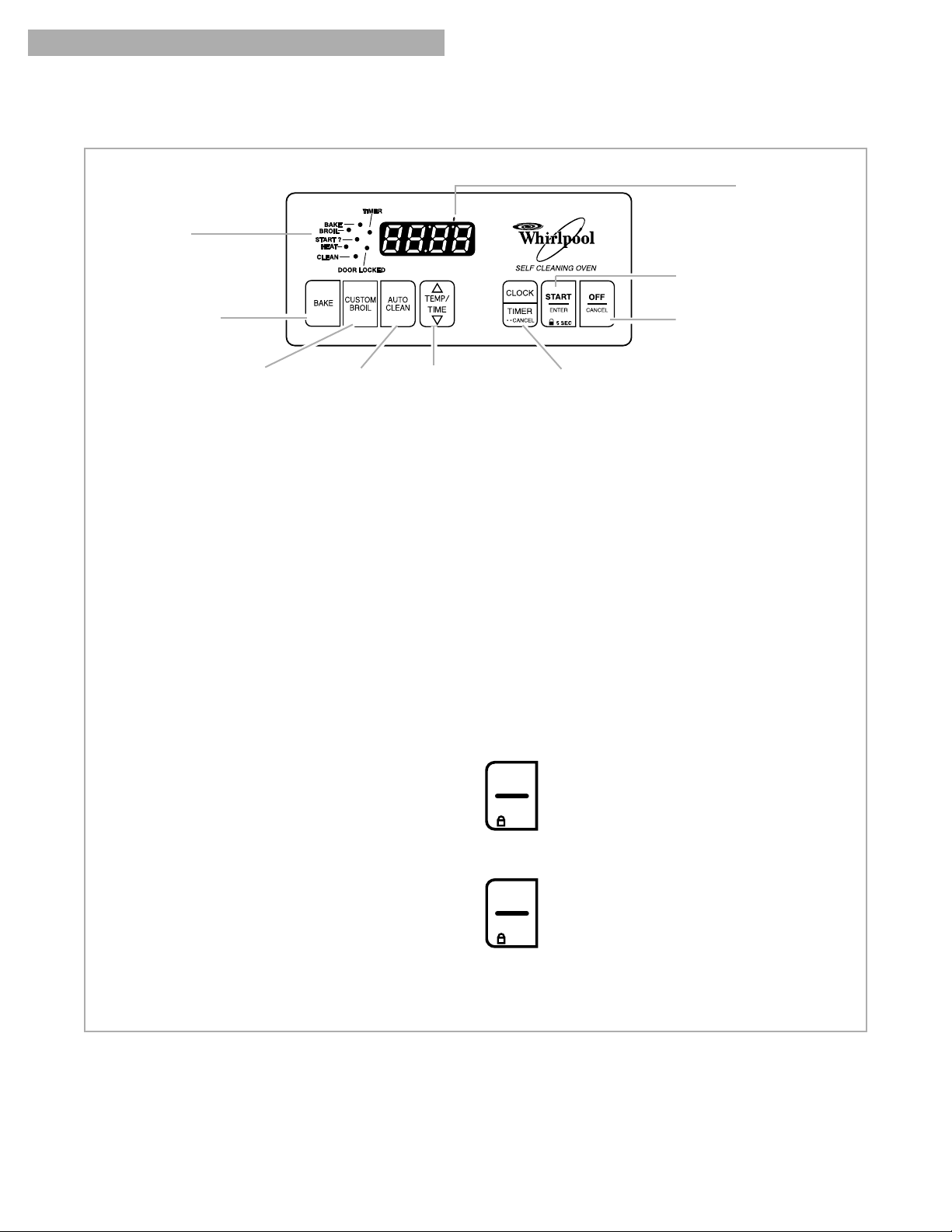

Electronic
oven control
(pp. 14-16)
Control panel
(pp. 6, 29)
Automatic oven
light switch
(p. 35)
Gasket
(p. 26)
Broil element
(not shown)
(p. 21)
Bake element
(p. 19)
Electronic
oven control
CONTROL PANEL
Page 7
PARTS AND FEATURES
PUSH TO TURN
PUSH TO TURN
LO
2
3
4
5
6
7
8
HI
LO
2
3
4
5
6
7
8
HI
LO
2
3
4
5
6
7
8
HI
LO
2
3
4
5
6
7
8
HI
OFF
OFF
OFF
OFF
ON
Electronic
oven control
(pp. 14-16)
Manual oven
light switch
(p. 35)
Control panel
(pp. 7, 29)
Automatic oven
light switch
(p. 35)
Hot surface
indicator
light
(p. 11)
Gasket
(p. 26)
Broil element
(not shown)
(p. 21)
Bake element
(p. 19)
(Model RF374PXG shown)
(Model RF376LXG not shown)
Oven vent
(p. 24)
CLEANTOP
®
ceramic glass
cooktop
(pp. 11, 29, 31)
Surface
cooking
area
(pp. 9-11)
Anti-tip bracket
(p. 25)
Door stop clip
(p. 34-35)
Model and serial
number plate
(behind left side
of storage drawer)
Removable
storage drawer
(p. 25)
7
CONTROL PANEL
Left rear
control knob
Left front
control knob
Right rear
control knob
Right front
control knob
Surface heating
indicator light
(lights up when a
surface cooking
area is on)
Surface cooking area marker
(shows which surface cooking
area you are setting)
Electronic
oven control
Page 8
RECOMMENDED USE
•
To start food cooking.
•
To bring liquid to a boil.
•
To hold a boil.
•
To quickly brown or sear food.
•
To maintain a slow boil.
•
To fry poultry or meat.
•
To make pudding, sauce, or gravy.
•
To stew or steam food.
•
To simmer food.
•
To keep food warm.
Using the control knobs
Push in the control knobs before turning them to a
setting. You can set
them anywhere between
HI and OFF.
Surface cooking area heat settings
Use the following chart as a guide.
8
USING YOUR RANGE
wWARNING
Fire Hazard
Turn off all controls when done cooking.
Failure to do so can result in death or fire.
SETTING
HI
6-8
5
2-4
LO
USING THE SURFACE COOKING AREAS
Easy ways to save energy
•
To help shorten your cooking time, use the
least amount of liquid possible.
•
Preheat your pots and pans only when
recommended and for the shortest time possible.
•
Start your food on a higher heat setting, then
turn the control to a lower setting to finish
cooking.
Page 9
9
USING THE SURFACE COOKING AREAS (CONT.)
USING YOUR RANGE
Home canning information
To protect your range:
•
Use flat-bottomed canners on all types of
cooktops, especially
ceramic glass. Canners
with rippled or ridged
bottoms do not allow
good contact with the
surface.
• Center the canner over
the largest surface
cooking area. Do not
extend more than one
inch outside the surface
cooking area. Large diameter canners/pans, if not
centered correctly, trap heat and can cause
damage to the cooktop.
•
Do not place your canner on two surface cooking
areas at the same time.
•
The type of material the canner is made of determines the length of heating time. Refer to the
“Characteristics of cookware materials” chart later
in this section for more information.
•
When canning for long periods of time, allow
elements and the surrounding surfaces to cool
down.
1" 1"
Pan
Surface
cooking area
•
Alternate use of the surface cooking areas
between batches or prepare small batches at a
time.
•
Start with hot water, cover with a lid, and bring to
a boil; then reduce heat to maintain a boil or
required pressure levels in a pressure canner.
•
On coil element model, keep your reflector bowls
clean so that they will always reflect heat well.
•
For up-to-date information on canning, contact
your local U.S. Government Agricultural Department Extension Office or companies who
manufacture home canning products.
Optional canning kit
(Coil element model)
Most water-bath or pressure canners have large
diameters. If you do canning with them at high heat
settings for long periods of time, you can shorten
the life of regular coil elements. This can also
damage the cooktop. If you plan to use the cooktop for canning, we recommend the installation of a
Canning Kit. Order the kit (Part No. 242905) from
your dealer or authorized service company.
continued on next page
Page 10
10
Cookware tips
USING THE SURFACE COOKING AREAS (CONT.)
The pan material affects how fast heat transfers from the surface cooking area through the p an material and how
evenly heat spreads over the pan bottom. Choo se pans that provide the best cooking results.
Aluminum
• Heats quickly and evenly.
• Use for all types of cooking.
• Medium or heavy thickness is best for most cooking.
• Used as a core or base in cookware to provide even heating.
Cast iron
• Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Can be coated with porcelain enamel.
Ceramic or
ceramic glass
• Heats s low ly a nd uneve nly.
• Use on low to medium settings.
• Follow manufacturer’s instructions.
Copper
• Heats very quickly and evenly.
• Used as a core or base in cookware to provide even heating.
Earthenware
• Can be used for cooktop cooking if recommended by the
manufacturer.
• Use on low settings.
Porcelain enamel-on-steel or
enamel-on-cast iron
• See cast iron and stainless steel.
Stainless steel
• Heats q uick ly b ut une ve nly.
•
A core or base of aluminum or copper on the cookware provides
even heating.
• Can be coated with porcelain enamel.
CHARACTERISTICS OF COOKWARE MATERIALS
USING YOUR RANGE
• Select a pan that is about the same size as the
surface cooking area. Cookware should not extend
more than 1 inch (2.5 cm) outside the area.
• For best results and greater energy
efficiency, use only flat-bottomed cookware that
makes good contact with the surface cooking area.
Cookware with rounded, warped, ribbed (such as
some porcelain enamelware), or dented bottoms
could cause uneven heating and poor cooking results.
• Cookware designed with slightly indented bottoms
or small expansion channels can be used.
• Cookware with a non-stick finish has heating
characteristics of the base material.
• Check for rough spots on the bottom of metal or
glass cookware which will scratch the ceramic
glass surface.
• Use flat bottom cookware for best heat
conduction from the surface cooking area to the
cookware. Determine flatness with the ruler test.
Place the edge of a ruler across the bottom of the
cookware. Hold it up to the light. No light should
be visible under the ruler. Rotate the ruler in all
directions and look for any light.
• Do not leave empty cookware, or cookware which
has boiled dry, on a hot surface cooking area. The
cookware could overheat, causing damage to the
cookware or the surface cooking area.
Page 11
Hot surface indicator light
(Model RF
374
PXG)
The hot surface indicator light on the cooktop will
glow when a surface cooking area
becomes too hot to touch. The
indicator light will continue to glow as
long as the surface cooking area is too
hot to touch, even after it is turned off.
11
Using the ceramic glass cooktop
(Model RF376LXG shown)
Cooking on the ceramic glass cooktop is similar
to cooking on coil
elements. There are,
however, a few
differences:
•
The surface cooking
area will glow red when
the element is turned
on. You will see the
element cycling on and
off – even on the HI
setting – to help the
area stay at the temperature setting you chose.
•
Do not cook foods directly on the cooktop.
•
Do not cook popcorn that comes in prepackaged
aluminum containers on the cooktop. The
container could leave aluminum marks on the
cooktop that cannot be removed completely.
•
Make sure the bottoms of pots and pans are
clean and dry before using them. Food and water
particles left on the bottoms can leave deposits on
the cooktop when it is heated.
Hot surface indicator lights
(Model RF376LXG)
One of the hot surface indicator lights on the
cooktop will glow when a surface
cooking area becomes too hot to
touch. The indicator light will
continue to glow as long as the
surface cooking area is too hot to
touch, even after it is turned off.
USING YOUR RANGE
USING THE SURFACE COOKING AREAS (CONT.)
HOT SURFACEHOT SURFACE
•
Lift pots and pans onto and off of the cooktop.
Sliding pots and pans on the cooktop could leave
marks that are difficult to remove or could leave
permanent marks.
•
Dropping a heavy or hard object on the cooktop
could crack it. Be careful when using heavy skillets
and large pots. Do not store jars or cans above the
cooktop.
•
Do not use the cooktop as a cutting board.
•
Do not allow anything that could melt, such as
plastic, to come in contact with the cooktop while
it is hot.
•
Sugary spills and soils can cause pitting. See
“Cleaning the ceramic glass cooktop” in the
“Caring for Your Range” section for more
information.
•
Wiping off the cooktop before and after each use
will help keep the surface free from stains and give
you the most even heating. See “Cleaning the
ceramic glass cooktop” in the “Caring for Your
Range” section for care and cleaning suggestions.
HOT SURFACE
HOT SURFACE
Page 12
12
USING YOUR RANGE
USING THE OVEN

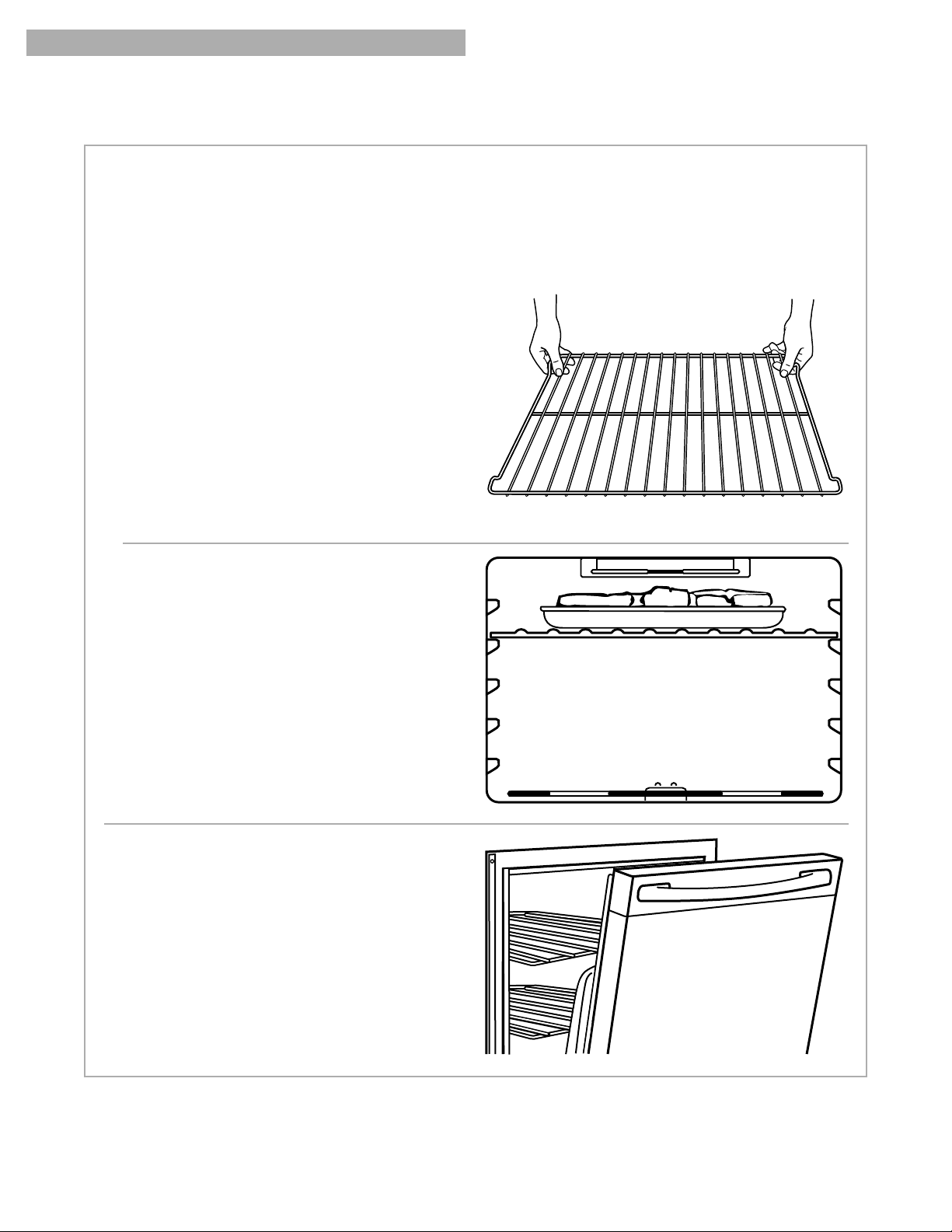

Positioning racks and pans
Place the oven racks where you need them before
turning on the oven.
•
To move a rack, pull it out to the stop position,
raise the front edge and lift it out.
•
Be sure the rack(s) is level.
•
Use pot holders or oven mitts to protect your hands
if rack(s) must be moved while the oven is hot.
•
For best performance, cook on one rack. Place the
rack so the top of the food will be centered in the
oven.
•
When cooking with two racks, arrange the racks
on the 2nd and 4th rack guides.Two sheets of
cookies may be baked if sheets are switched at
approximately three quarters of the total bake time.
Increase baking time, if necessary.
•
For best results allow 2 inches of space around
each pan and between pans and oven walls.
Hot air must circulate
around the pans in the
oven for even heat to
reach all parts of the
oven. This results in
better baking.
Where to place pans:
WHEN YOU HAVE
1 pan
2 pans
3 or 4 pans
PLACE
In center of the oven rack.
Side by side or slightly
staggered.
In opposite corners on
each oven rack. Stagger
pans so no pan is directly
over another.
Rack placement for specific foods:
FOOD
Frozen pies, large
roasts, turkeys, angel
food cakes
Bundt cakes, most
quick breads, yeast
breads, casseroles,
meats
Cookies, biscuits,
muffins, cakes,
nonfrozen pies
RACK POSITION
1st or 2nd rack
guide from bottom
2nd rack guide
from bottom
2nd or 3rd rack
guide from bottom
NOTE: For information on where to place your rack
when broiling, see “Broiling guidelines” later in this
section.
Page 13

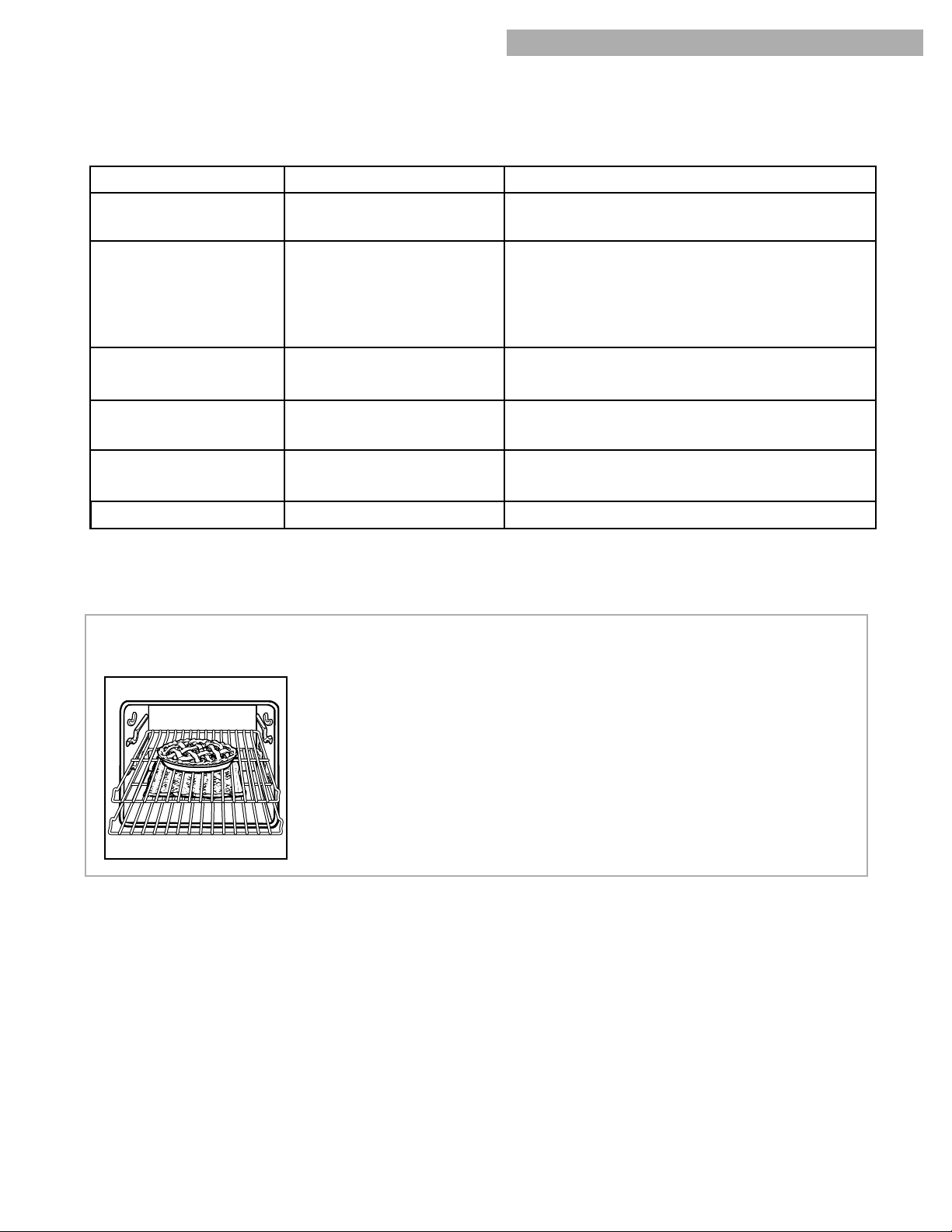

13
USING YOUR RANGE
USING ALUMINUM FOIL
BAKEWARE CHOICES
Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe.
BAKEWARE TYPE
Light color ed aluminum
• Light golden crusts
• Even browning
• Use temperature and time recommended
in recipe.
Dark aluminum and other
bakeware with dark, dull,
and/or non-stick finish
• Brown, crisp crusts
• May reduce baking temperature 25°F.
• Use suggest ed bak ing time.
• Use temperature and time recommended in recipe
for pies, breads, and casseroles.
• Place rack in center of oven.
Ovenproof glassware,
ceramic glass, or ceramic
• Brown, crisp crusts
• May reduce baking temperature 25°F.
Insulated cookie sheets or
baking pans
• Little or no bottom browning • Place in the bottom third of oven.
• May need to increase baking time.
Stainless steel • May need to increase baking time.
• Crisp crusts
Stoneware
• Follow manufacturer's instructions.
• Light, golde n crusts
• Uneven browning
BEST USED FOR
GUIDELINES
•
Use aluminum foil to catch spillovers from pies
or casseroles by placing foil on the oven rack
below. Foil should be
turned up at edges and
be at least 1 inch larger
than dish.
•
Do not cover the
entire rack with aluminum foil. It will reduce
air circulation and give
you poor cooking
results.
•
Do not line the oven bottom with foil or other liners.
It could affect the oven surface as well as the
quality of your baking.
•
Place tent-shaped foil loosely over meat or poultry
to slow down surface browning for long term
roasting. Remove foil for the last 30 minutes.
•
Use narrow strips of foil to shield piecrust edges if
browning too quickly.
Page 14
14
USING YOUR RANGE
THE ELECTRONIC OVEN CONTROL
ON
Bake pad
(p. 17)
Using the control lock
The control lock lets you disable the control panel
command pads. The control lock comes in handy
when you want to prevent others from using
the oven.
NOTES:
•
You can only use the control lock when the oven
is not in use or the control has not been set.
•
Set the control lock when cleaning the control
panel to prevent yourself from accidentally turning
on the oven.
To lock the control panel:
Press and hold START/ENTER for 5 seconds.
You will hear a single tone and “Loc” will
appear on the temperature display for
5 seconds. “Loc” will then appear whenever
a command pad is pressed.
To unlock the control panel:
Press and hold START/ENTER for 5 seconds.
You will hear a single tone and “Loc” will
disappear from the temperature display.
START
5 SEC
ENTER
Electronic
display
Start/enter pad
(p. 16)
Off/cancel pad
(p. 16)
Temperature/
time pad
(pp. 15, 17,
20, 22, 27)
Clock/timer pad
(pp. 15, 16)
Custom broil
pad
(p. 22)
Auto clean
pad
(p. 27)
Display/clock
•
When you first plug in the range, “PF” will appear
on the display/clock until you press any command pad. If “PF” again appears on the display,
your electricity was off for a while.
•
When you are using the oven, the display will
show preheat times and temperature settings.
•
When you are not using the oven, the display
shows the time of day.
•
When showing the time of day, the display will
show the hours and minutes.
•
When you are using the minute timer, the display
will count down each minute.
•
When setting a function, if you do not press
START/ENTER within 5 seconds, the Start?
indicator light will flash. If you do not press
START/ENTER within 5 minutes, the function will
be canceled.
Indicator lights
An indicator light to the left of the display lights up
when you are in a setting. An indicator light on the
display lights up when the oven is on.
START
5 SEC
ENTER
Indicator
lights
(see below)
Page 15
15

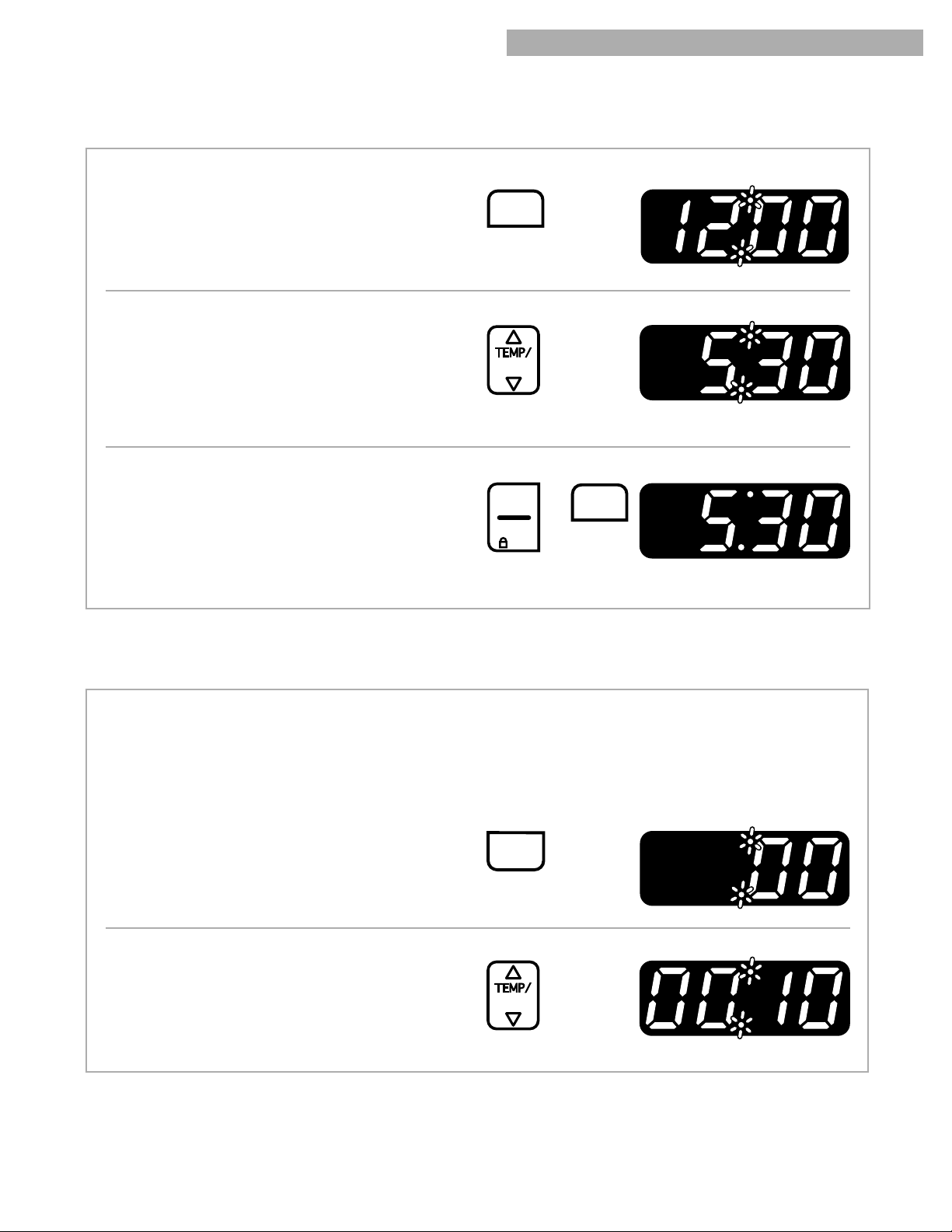

SETTING THE CLOCK
USING YOUR RANGE
1. Press CLOCK.
2. Set the time.
Press the “up” (s) or “down” (t) pad(s) until
the correct time shows on the display.
3. Start the clock.
NOTES:
•
To see the time of day when the clock time
is not on the display, press CLOCK.
•
You must reset the clock if the power goes
off for more than 1 second.
PRESS YOU SEE
PRESS YOU SEE
TIME
(example for 5:30)
START
5 SEC
ENTER
OR
PRESS YOU SEE
CLOCK
USING THE ELECTRONIC MINUTE TIMER
The minute timer does not start or stop the oven.
It works like a kitchen timer. It can be set in hours
and minutes up to 12 hours, 59 minutes. The
minute timer will display minutes and seconds for
settings under 1 hour.
1. Press TIMER.
The timer indicator light will light up.
2. Set the interval to be timed.
Press the “up” (s) or “down” (t) pad(s) until
the correct time shows on the display.
TIMER
• • CANCEL
PRESS YOU SEE
PRESS YOU SEE
TIME
(example for 10 minutes)
CLOCK
Page 16
16
USING THE ELECTRONIC MINUTE TIMER (CONT.)
USING YOUR RANGE
STARTING/CANCELING A FUNCTION
(display counts down)
YOU SEE
PRESS YOU SEE

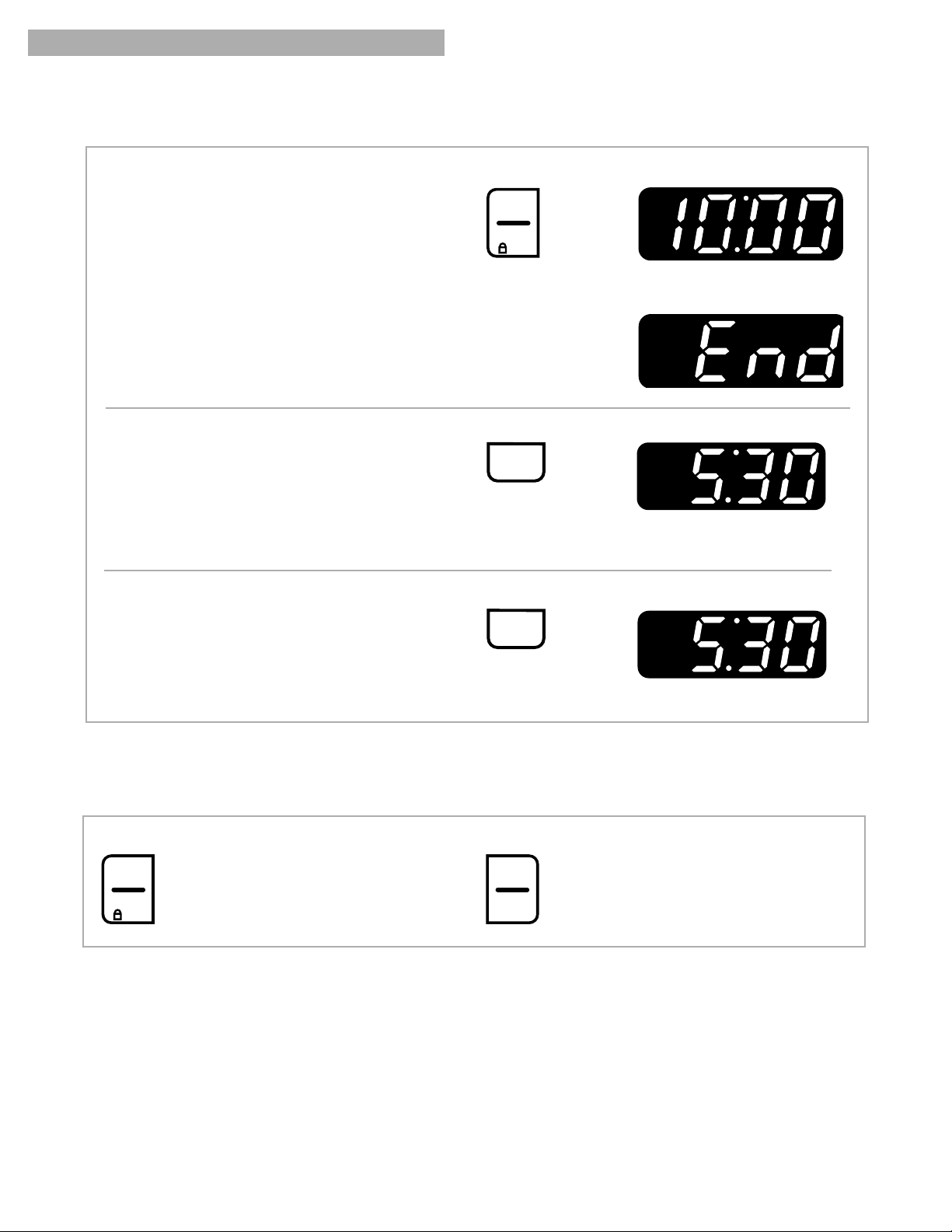

3. Start the minute timer.
The minute timer will begin counting down
immmediately after the timer is started.
When the time is up:
You will hear four 1-second tones.
NOTE: To display the time of day while the
minute timer is counting down, press CLOCK.
4. To clear the display, turn off the minute timer.
To cancel the minute timer during
the countdown:
After setting a function for the first time, you
must press START/ENTER to start
the function.
OFF/CANCEL will cancel any function except for the
clock, minute timer, or control lock.
START
5 SEC
ENTER
OFF
CANCEL
TIMER
• • CANCEL
PRESS
TIMER
• • CANCEL
PRESS
(twice)
YOU SEE
(time of day)
YOU SEE
(time of day)
START
ENTER
5 SEC
Page 17
17
USING YOUR RANGE
BAKING/ROASTING
continued on next page
1. Place the racks where you need them.
For more information, see “Positioning racks
and pans” in “Using the oven” earlier in this
section.
NOTE: Do not place food directly on the oven door or
the oven bottom.
2. Choose the bake setting.
The bake indicator light will light up.
3. Set the temperature (optional).
Do this step if you want to set a temperature
other than 350°F. Press ▲ to raise the tempera-
ture or ▼ to lower the temperature in 5°F
amounts. You can set a temperature anywhere
from 170°F to 500°F. Use these pads until
the desired temperature shows on the display.
Front of rack
Rear of rack
BAKE
ON
PRESS YOU SEE
TIME
ON
(example for bake at 375°F)
PRESS YOU SEE
Page 18
4. When roasting, put your food in the oven.
You do not have to preheat the oven when roasting, unless your recipe recommends it.
18
BAKING/ROASTING (CONT.)
USING YOUR RANGE
Roasting meats and poultry
•
For even cooking, place the meat on a rack in a
shallow pan. This keeps the meat out of the drippings and allows the heat to circulate
better.
•
Use a meat thermometer for the most accurate
doneness. Insert it so the tip is in the center of the
largest muscle or thickest portion of the meat or
poultry. Make sure the thermometer is not touching
bone, fat, or the bottom of the pan.

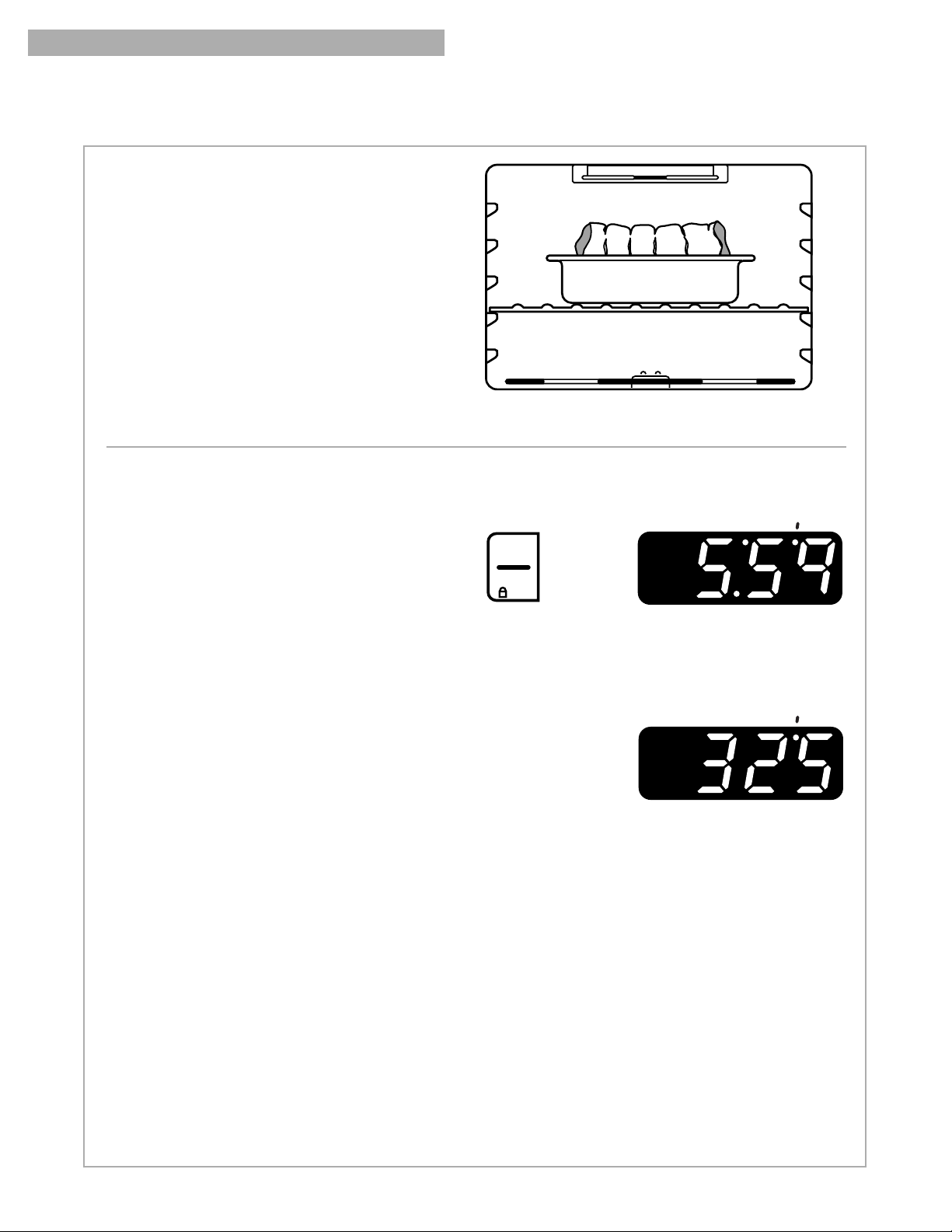

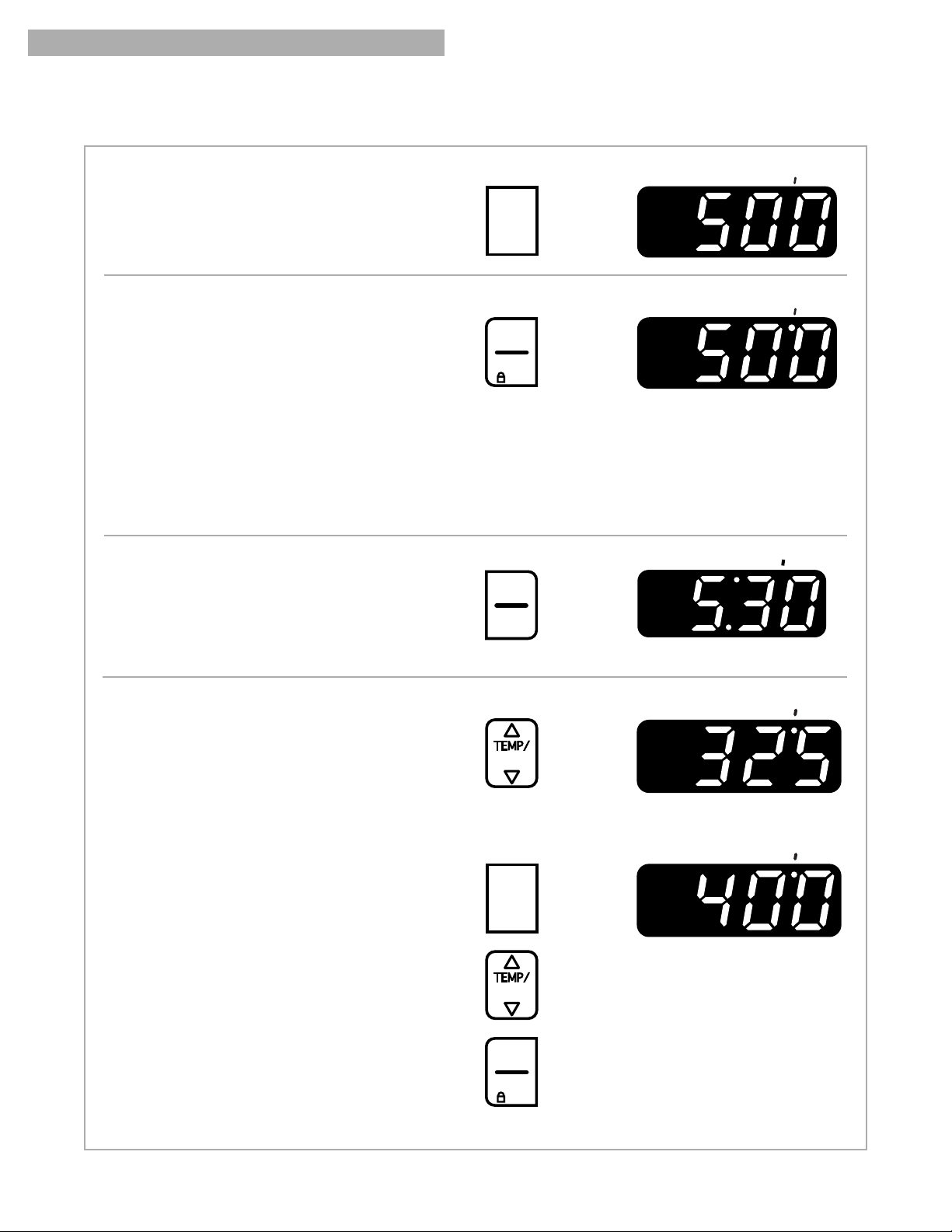

5. Press START/ENTER.
A preheat conditioning time counts down the
approximate preheat time after the oven
temperature has been set and START has been
pressed. The heat, bake, and on indicator lights
will light up. The oven control automatically sets
preheating times based on the oven temperature
you select:
•
For 245°F and less, the preheating time is
3 minutes.
•
For 250°F-445°F, the preheating time is
6 minutes.
•
For 450°F and above, the preheating time is
10 minutes.
The oven is preheated and ready to use when you
hear a 1-second tone, the on indicator light goes
off, the countdown is finished, and the set temperature is displayed.
The preheat and set temperatures may be
different at the end of the countdown. This
is normal.
NOTES:
•
When the oven temperature is greater than
170°F, no preheat conditioning time will be
shown in the display.
•
You can change the temperature setting any time
after pressing START/ENTER. You do not have to
press START/ENTER again.
•
The preheat conditioning time will not change if
you reset the temperature before the countdown
time ends.
•
If you are baking/roasting while the minute timer
is counting down, you can see the set
baking/roasting temperature for 5 seconds
by pressing BAKE.
ON
START
5 SEC
ENTER
(example for set temperature
of 325°F)
PRESS YOU SEE
YOU SEE
ON
Page 19
19
NOTE: DO NOT measure the oven temperature with
a thermometer. Opening the oven door will lower
the oven temperature and give you an incorrect
reading. Also, the thermometer temperature reading
will change as your oven cycles.

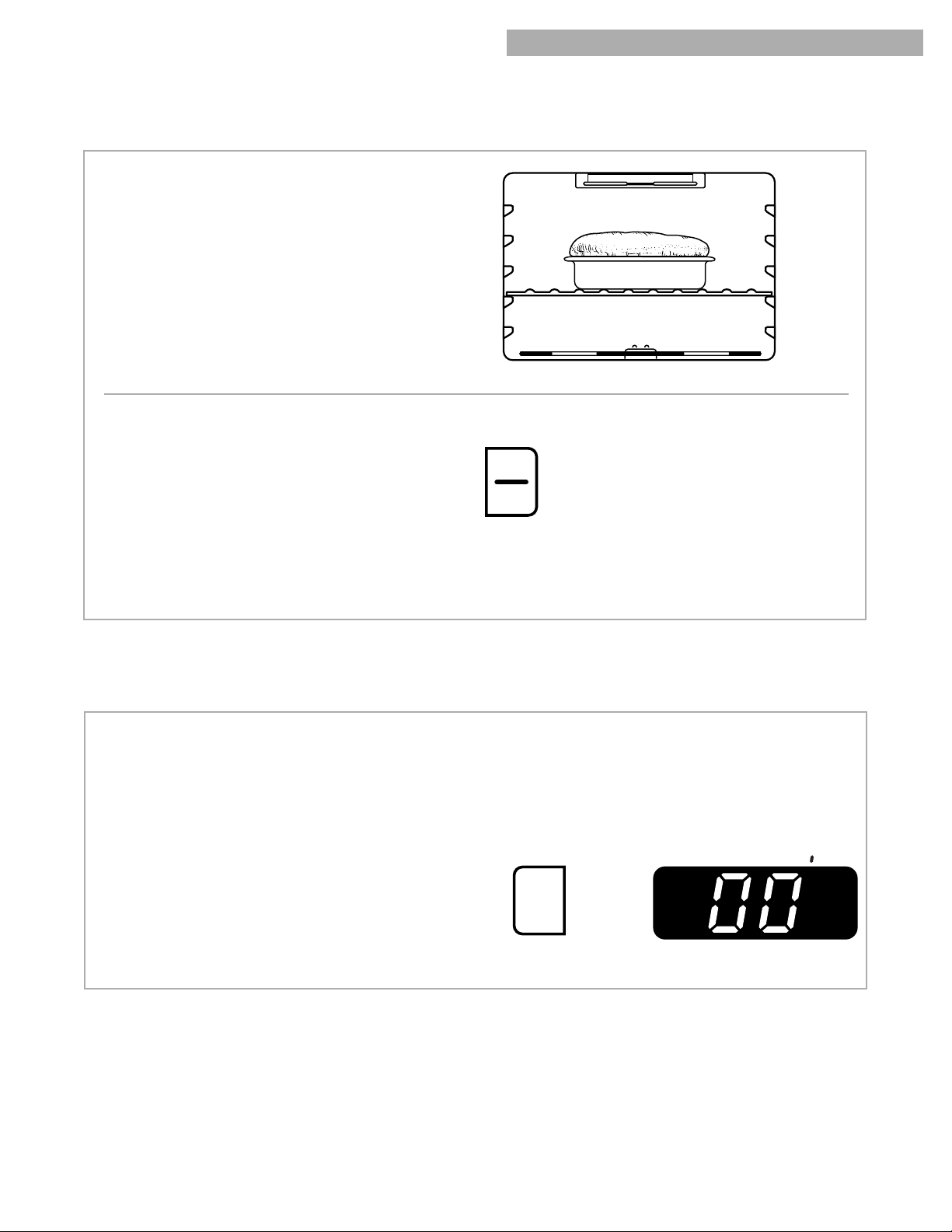

6. When baking, put your food in the oven after the
preheat conditioning time ends.
During baking/roasting, the elements will turn on
and off to keep the oven temperature at the setting.
NOTE: The top element helps heat during
baking/roasting, but does not turn red.
7. After cooking, turn off the oven.
USING YOUR RANGE
BAKING/ROASTING (CONT.)
PRESS YOU SEE
OFF
CANCEL
(time of day or minute
timer countdown)
Saving energy
•
To avoid loss of heat, open the oven door as little
as possible.
•
Use a timer to keep track of cooking time.
•
Plan your meals for the most efficient use of the
oven by cooking more than one food at a time, or
baking while the oven is still hot after cooking a
meal.
Although your new oven is properly adjusted to
provide accurate temperatures, it may cook faster or
slower than your old oven.
If you are not satisfied with the baking/roasting
results, you can change the offset temperature by
following the steps below.
1. Press and hold BAKE for 5 seconds.
The display will show the current offset temperature, for example “00,” if you have not already adjusted the temperature.
ADJUSTING THE OVEN TEMPERATURE CONTROL
(factory setting of “0”)
BAKE
ON
PRESS YOU SEE
Page 20
20
USING YOUR RANGE
ADJUSTING THE OVEN TEMPERATURE CONTROL (CONT.)

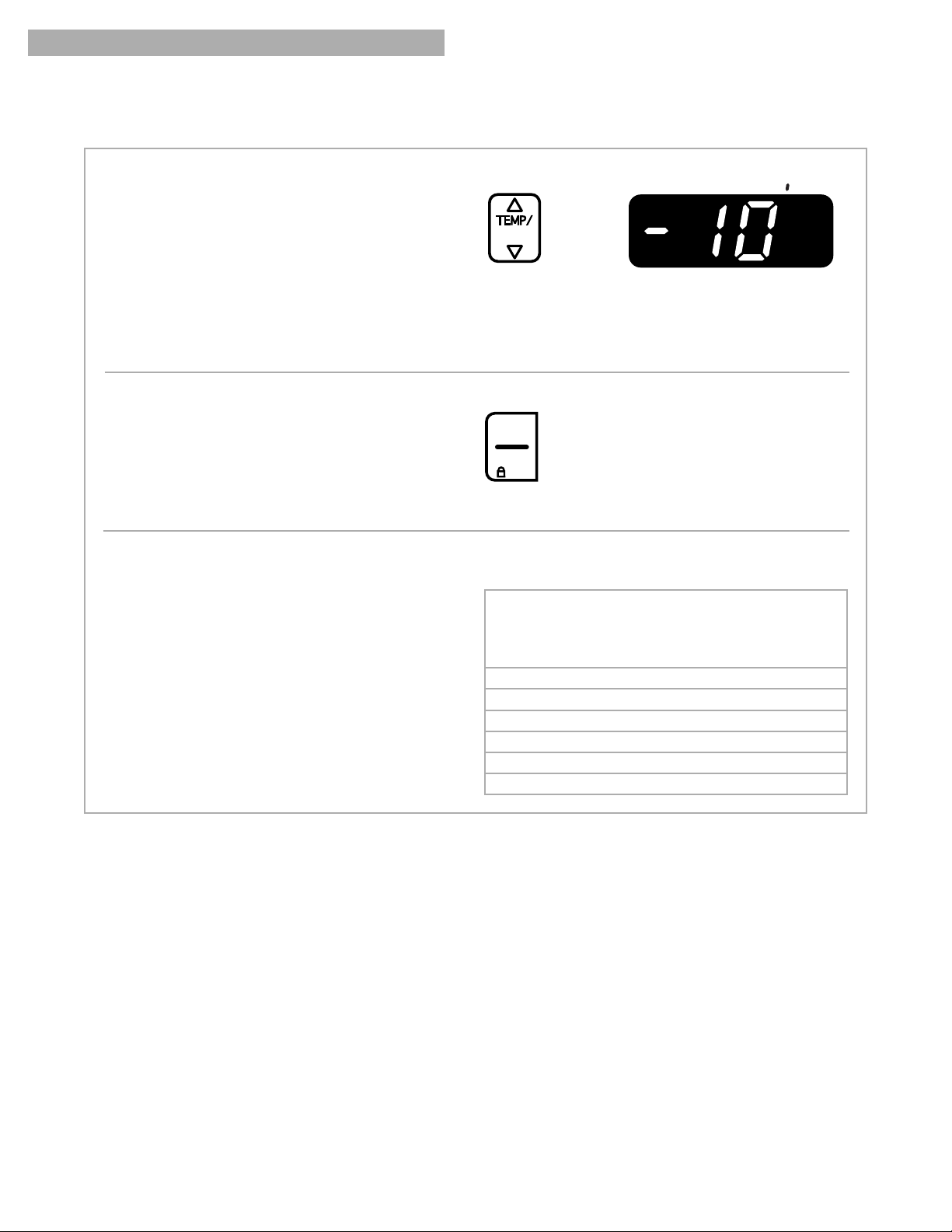

2. Set the new offset temperature.
Press s to raise the temperature or t to lower
the temperature in 10°F amounts. You can set
the temperature change to as low as -30°F or as
high as +30°F. A minus (-) sign will appear before
the number when decreasing the temperature
setting. The minus sign shows the oven will be
cooler by the displayed amount. There is no sign
in front of the number when increasing the
temperature setting.
3. Enter the adjustment.
NOTE: The oven control will stay adjusted even
after a power failure.
How to determine the amount of
adjustment needed
The chart at the right tells you how much to adjust
the offset temperature to get the cooking results
you want. You can figure out cooking results by the
amount of browning, moistness, and rising times for
baked foods.
PRESS YOU SEE
START
5 SEC
ENTER
(time of day or minute
timer countdown)
TO COOK
FOOD ...
A little more
Moderately more
Much more
A little less
Moderately less
Much less
ADJUST BY
THIS NUMBER
OF DEGREES
(FAHRENHEIT)
+10
+20
+30
-10
-20
-30
TIME
ON
(example when making
oven 10°F cooler)
PRESS YOU SEE
Page 21
NOTES:
•
Do not preheat when broiling, unless your recipe
recommends it.
•
Leave the door partly open whenever you use the
oven to broil. This lets the oven stay at the proper
temperatures.

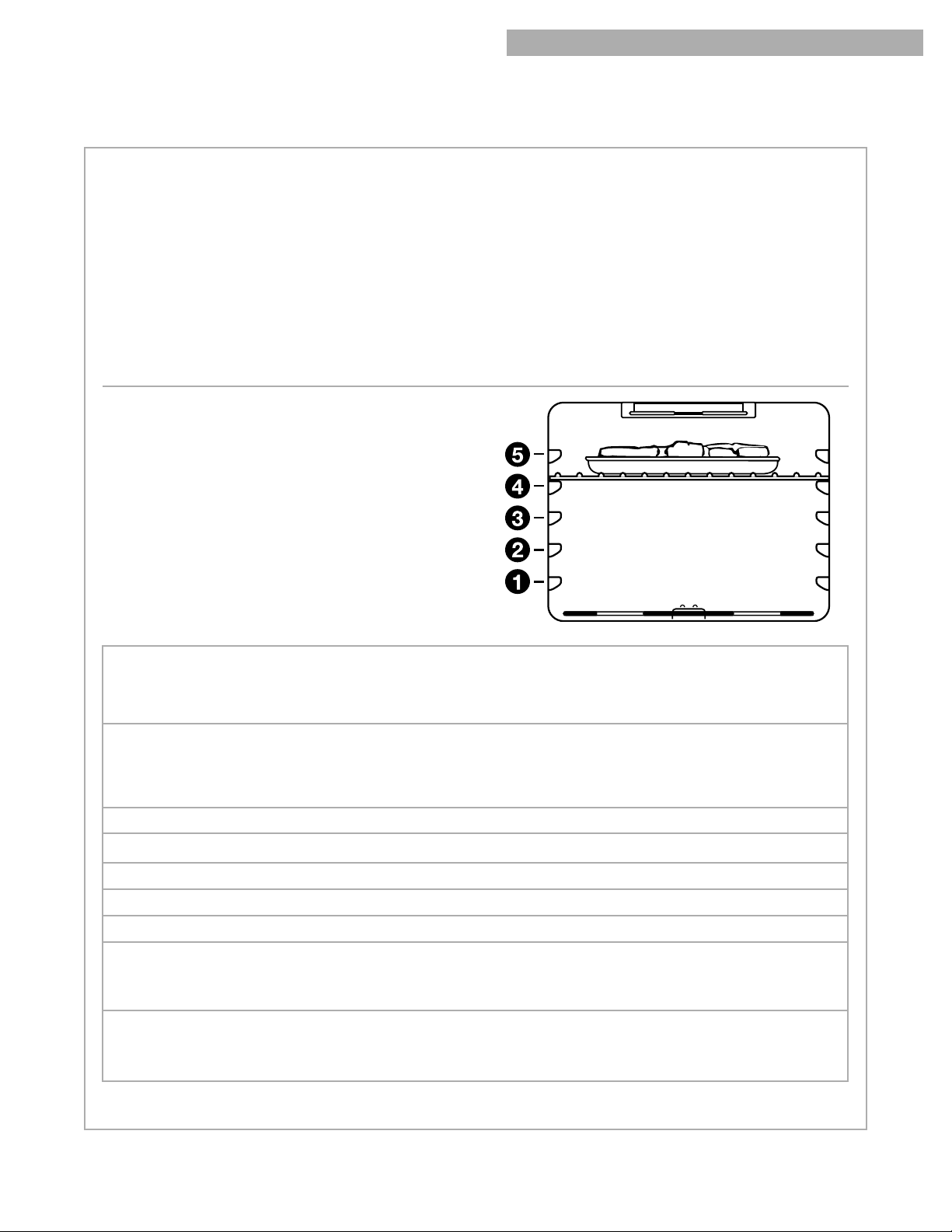

1. Place the rack where you need it.
You need to place the rack so that the surface of
the food is at least 3 inches away from the broil
element. See “Broiling guidelines” later in this
section.
2. Put your food on the broiler pan and place the
pan in the center of the oven rack.
3. Close the door to the broil stop position.
The broil stop position lets the door stay open
by itself about 5 inches.
21
BROILING
USING YOUR RANGE
Front of rack
Rear of rack
Page 22
22
BROILING (CONT.)
USING YOUR RANGE
4. Press CUSTOM BROIL.
The broil indicator light will light up.
5. Start the oven.
The on and heat indicator lights will light up.
NOTES:
•
You can change the temperature setting any
time after pressing START/ENTER. To change
the setting, see “To custom broil at a lower
temperature” below.
•
If you are broiling while the minute timer is
counting down, you can see the set broiling
temperature for 5 seconds by pressing
CUSTOM BROIL.
6. After broiling, turn off the oven.
To custom broil at a lower temperature:
•
If food is cooking too fast, press the t temp pad
until “325°F” shows on the display.
•
If you want food to broil slower from the start,
press CUSTOM BROIL and press the t temp
pad so a temperature between 300°F and 500°F
shows on the display. Press START/ENTER.
Lower temperature settings let the broil heating ele-
ment cycle and slow cooking results. The lower the
temperature, the slower the cooking.
NOTE: Fish and chicken are some foods that may
cook better if you use lower broiling temperatures.
CUSTOM
BROIL
PRESS YOU SEE
ON
PRESS YOU SEE
START
5 SEC
ENTER
ON
OFF
CANCEL
TIME
ON
(example shows broil at 325°F)
TIME
START
5 SEC
ENTER
CUSTOM
BROIL
ON
(example shows broil at 400°F)
PRESS YOU SEE
PRESS YOU SEE
PRESS YOU SEE
(time of day)
ON
Page 23
MEAT
Steak, 1" thick
medium rare
medium
well done
Hamburger Patties, 3⁄4" thick, 1⁄4 lb well done
Pork Chops, 1" thick
Ham Slice, 1⁄2" thick, precooked
Frankfurters
Lamb Chops, 1" thick
Chicken
bone-in pieces
boneless breasts
Fish
fillets 1⁄4-1⁄2" thick
steaks 3⁄4-1" thick
23
USING YOUR RANGE
BROILING (CONT.)
Recommended rack positions are numbered from
the bottom (1) to the top (5). For best results, place
ood 3 inches or more from the broil element.
APPROXIMATE TIME
(MINUTES)
SIDE 1
14-15
15-16
18-19
13-14
20-22
8-10
5-7
14-17
17-20
11-16
8-10
16-18
SIDE 2
7-8
8-9
9-10
7-8
10-11
4-5
3-4
8-9
17-20
11-16
4-5
8-9
RACK
POSITION
4
4
4
4
4
4
3
4
4
NOTE: Times are guidelines only and may need to be adjusted for individual tastes.
Broiling guidelines
•
Use only the broiler pan and grid provided. They
are designed to drain extra juices from the
cooking surface. This drainage helps prevent
spatter and smoke.
•
To make sure the juices drain well, do not cover
the grid with foil.
•
Trim excess fat to reduce spattering. Slit the fat
on the edges to prevent curling.
•
Use tongs to turn meat to avoid losing juices.
•
Pull out oven rack to stop position before turning
or removing food.
•
After broiling, remove the pan from the oven
when removing the food. Drippings will bake on
the pan if left in the heated oven, making cleaning
more difficult.
•
For easier cleaning, line the bottom of the pan
with aluminum foil. Clean the pan and grid as
soon as possible after each use.
Page 24

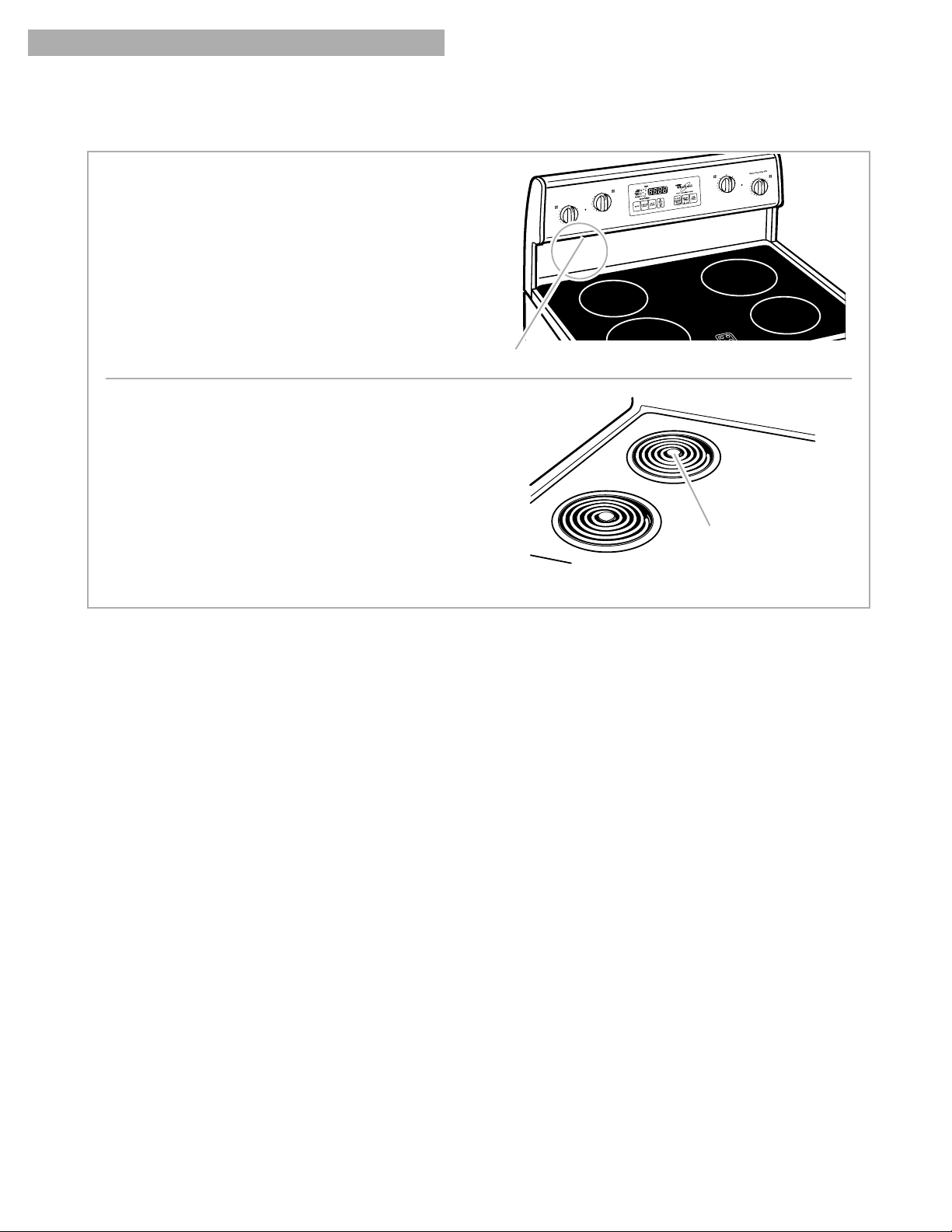

Coil element model
(Models RF37OPXG and RF37OLXG)
Hot air and moisture escape from the oven through
a vent under the left rear coil element. You can cook
on this unit or keep food warm on it while the oven
is on. The vent is needed for air circulation. Do not
block the vent by using extra large pans or
covers. You will get poor baking/roasting results.
NOTE: Never leave plastic utensils over the vent.
They could melt.
2424
THE OVEN VENT
Ceramic glass cooktop model
(Models RF
374
PXG and RF376LXG)
Hot air and moisture escape from the oven through
a vent on the backguard below the control panel.
The vent lets air circulate properly. Be careful not
to block the vent, or you could get poor baking/
roasting results.
PUSH TO TURN
PUSH TO TURN
LO
2
3
4
5
6
7
8
HI
LO
2
3
4
5
6
7
8
HI
LO
2
3
4
5
6
7
8
HI
LO
2
3
4
5
6
7
8
HI
OFF
OFF
OFF
OFF
HOT SURFACEHOT SURFACE
ONON
Oven vent
USING YOUR RANGE
Oven vent
Page 25
Use the storage drawer to store cookware. You can
remove the drawer to make it easier to clean under
the range.
Removing the storage drawer:
1. Empty the drawer before you remove it. Pull the
drawer straight out to the first stop. (The stops
are small, round objects formed in the slide rail.
They keep the drawer from sliding all the way
out.) Then lift the front of the drawer and pull it
out to the second stop.
2. Lift the back of the drawer slightly and slide it all
the way out.
Replacing the storage drawer:
1. Position the drawer so that the lower drawer
guides rest just inside the front frame lip.
2. Lift the front of the drawer and push it in until the
metal stops on the drawer slide rails clear the
upper drawer guides. Then slide the drawer
closed.
2525
USING YOUR RANGE
Making sure the anti-tip bracket is installed:
•
Slide range forward.
•
Look for the anti-tip bracket securely attached to floor.
•
Slide range back so rear range foot is under anti-tip bracket.
THE ANTI-TIP BRACKET
The range will not tip during normal use. However, the range can tip if you apply too much force or weight
to the open door without the anti-tip bracket fastened down properly.
wWARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns
to children and adults.
Anti-Tip Bracket
Range Foot
THE STORAGE DRAWER
Drawer
slide rail
Lower slide rail
(inside drawer
opening)
Lower
drawer guide
Upper drawer
guides
(on inside walls)
Page 26
26
USING THE SELF-CLEANING CYCLE

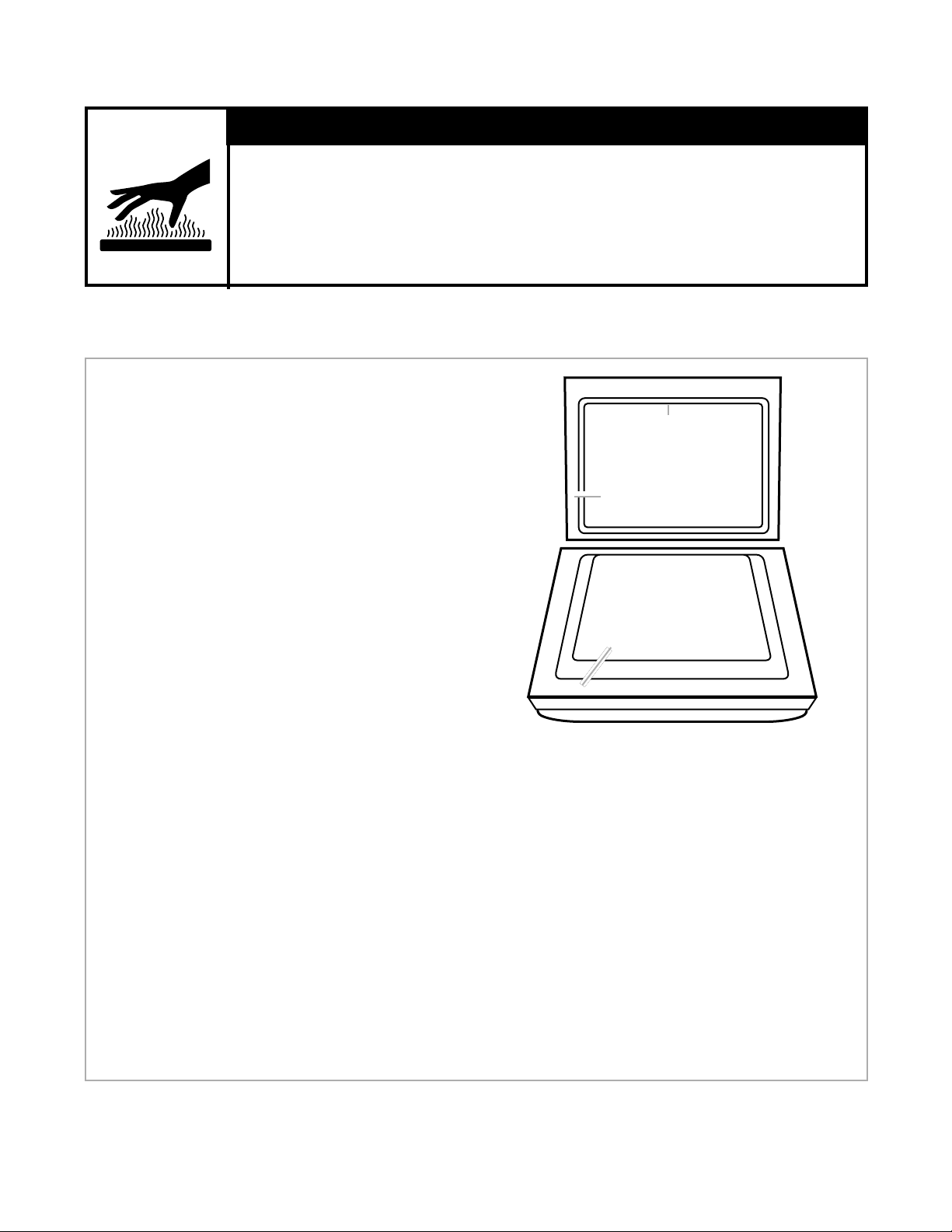

wWARNING
Burn Hazard
Do not touch the oven during the Self-Cleaning cycle.
Keep children away from oven during Self-Cleaning cycle.
Do not use commercial oven cleaners in your oven.
Failure to follow these instructions can result in burns, or illness from inhaling
dangerous fumes.
Before you start the Self-Cleaning cycle, make
sure you:
•
Hand-clean the areas shown. They do not get hot
enough during the Self-Cleaning cycle for soil to
burn away. Use hot water and detergent or a
soapy, steel-wool pad for cleaning.
NOTE: DO NOT clean, move, or bend the gasket.
You may get poor cleaning, baking, and roasting.
•
Do not let water, cleaner, etc., enter slots on door
and frame.
•
Remove the broiler pan and grid and any
cookware/bakeware being stored in the oven.
•
Wipe out any loose soil or grease. This will help
reduce smoke during the Self-Cleaning cycle.
•
Wipe up food spills containing sugar as soon as
possible after the oven cools down. When sugar
is heated to a high temperature in the SelfCleaning cycle, the high temperature can cause
the sugar to burn and react with the porcelain.
This can cause staining and etching or pitting.
•
Remove the oven racks from the oven if you want
them to remain shiny. You can clean the oven
racks in the Self-Cleaning cycle, but they will
become harder to slide. (See the “Cleaning chart”
in the “Caring for Your Range” section.) If you
clean the racks in the Self-Cleaning cycle, place
them on the 2nd and 4th rack guides. (The guides
are counted from bottom to top.)
•
Heat and odors are normal during the SelfCleaning cycle. Keep the kitchen well ventilated
by opening a window or by turning on a vent
hood or other kitchen vent during the cycle.
IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the
Self-Cleaning cycle. Move birds to another closed
and well ventilated room.
DO NOT
hand-clean
gasket
Hand-clean
frame
Hand-clean
door around
edge
TIPS:
•
Keep the kitchen well ventilated during the
Self-Cleaning cycle to help get rid of heat, odors,
and smoke.
•
Clean the oven before it gets heavily soiled.
Cleaning a very soiled oven takes longer and
results in more smoke than usual.
•
Do not block the vent during the Self-Cleaning
cycle. Air must move freely for best cleaning results.
•
Do not leave plastic utensils on the cooktop. They
may melt.
•
Do not leave any foil in the oven during the
Self-Cleaning cycle. Foil could burn or melt and
damage the oven surface.
•
The oven light will not work during the
Self-Cleaning cycle.
BEFORE YOU START
Page 27
27
SETTING THE CONTROLS
USING THE SELF-CLEANING CYCLE

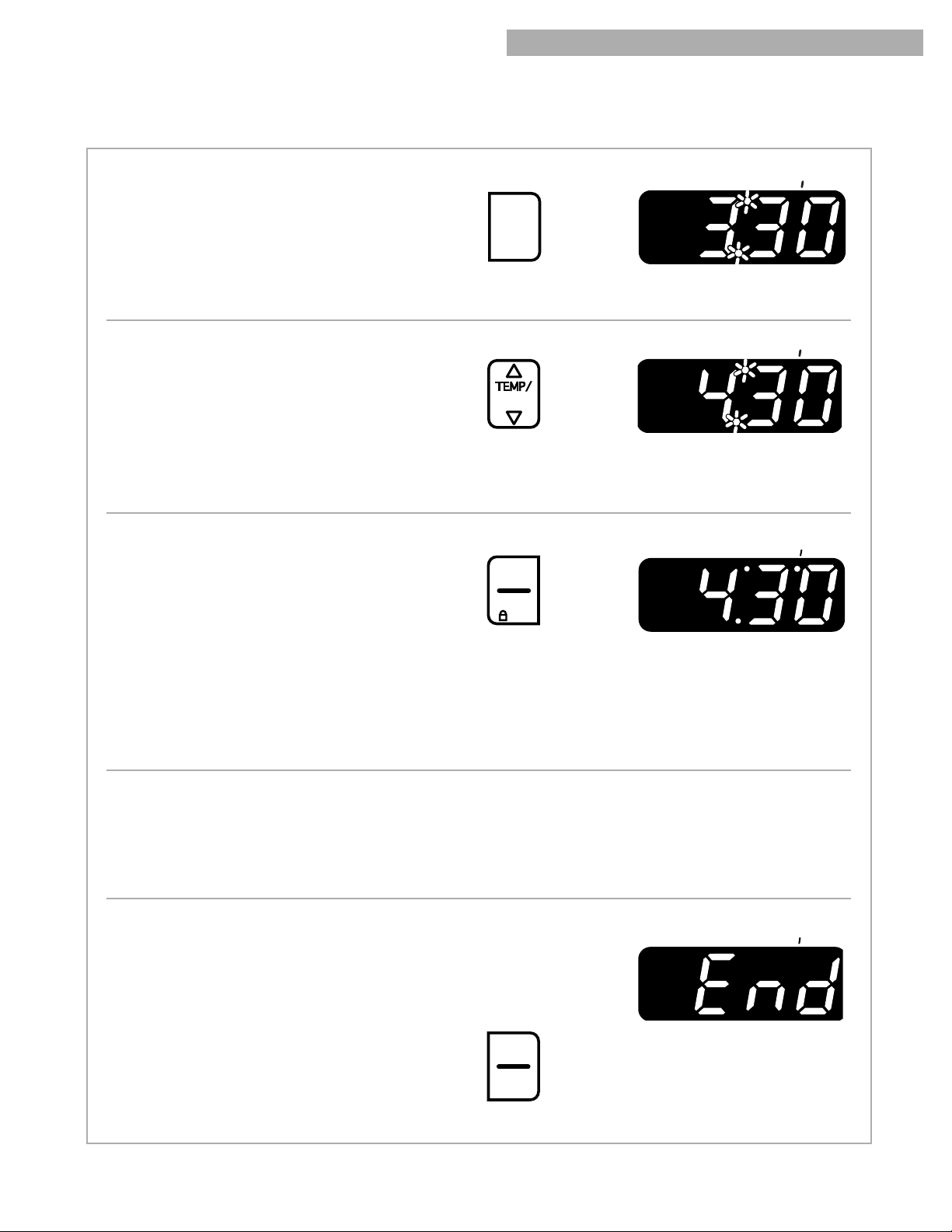

1. Press AUTO CLEAN.
The clean indicator light will light up.
This will automatically set a 31⁄2-hour
Self-Cleaning cycle.
NOTE: There will be a 30-minute cool-down
1
⁄2 hour before the cycle is over.
2. Set the cleaning time (optional).
If you want a Self-Cleaning cycle longer or
shorter than 31⁄2 hours, use the hour and minute
pads to set the cleaning time you want. Press
the “up” (s) or “down” (t) pad(s) until a time
between 21⁄2-41⁄2 hours shows on the display.
•
Use 21⁄2 hours for light soil.
•
Use 31⁄2-41⁄2 hours for average to heavy soil.
3. Start the oven.
The on and heat indicator lights will
light up.
NOTES:
•
Make sure the door is closed all the way. If the
door is open even a little, it will not lock. If the
door is closed, it will lock after you press
START/ENTER.
•
Do not attempt to open the oven door while
locking.
4. After Self-Cleaning cycle starts:
The door locked indicator light will light up when
the oven door locks.
5. After Self-Cleaning cycle ends and the oven
reaches normal baking/roasting temperatures:
The clean, door locked, and on indicator lights
will go out and the door unlocks.
Press OFF/CANCEL to clear the display.
AUTO
CLEAN
PRESS YOU SEE
ON
PRESS YOU SEE
TIME
ON
(example for 4 1⁄2-hour
cleaning time)
START
5 SEC
ENTER
PRESS YOU SEE
YOU SEE
PRESS
OFF
CANCEL
ON
ON
Page 28
28
SETTING THE CONTROLS (CONT.)
USING THE SELF-CLEANING CYCLE

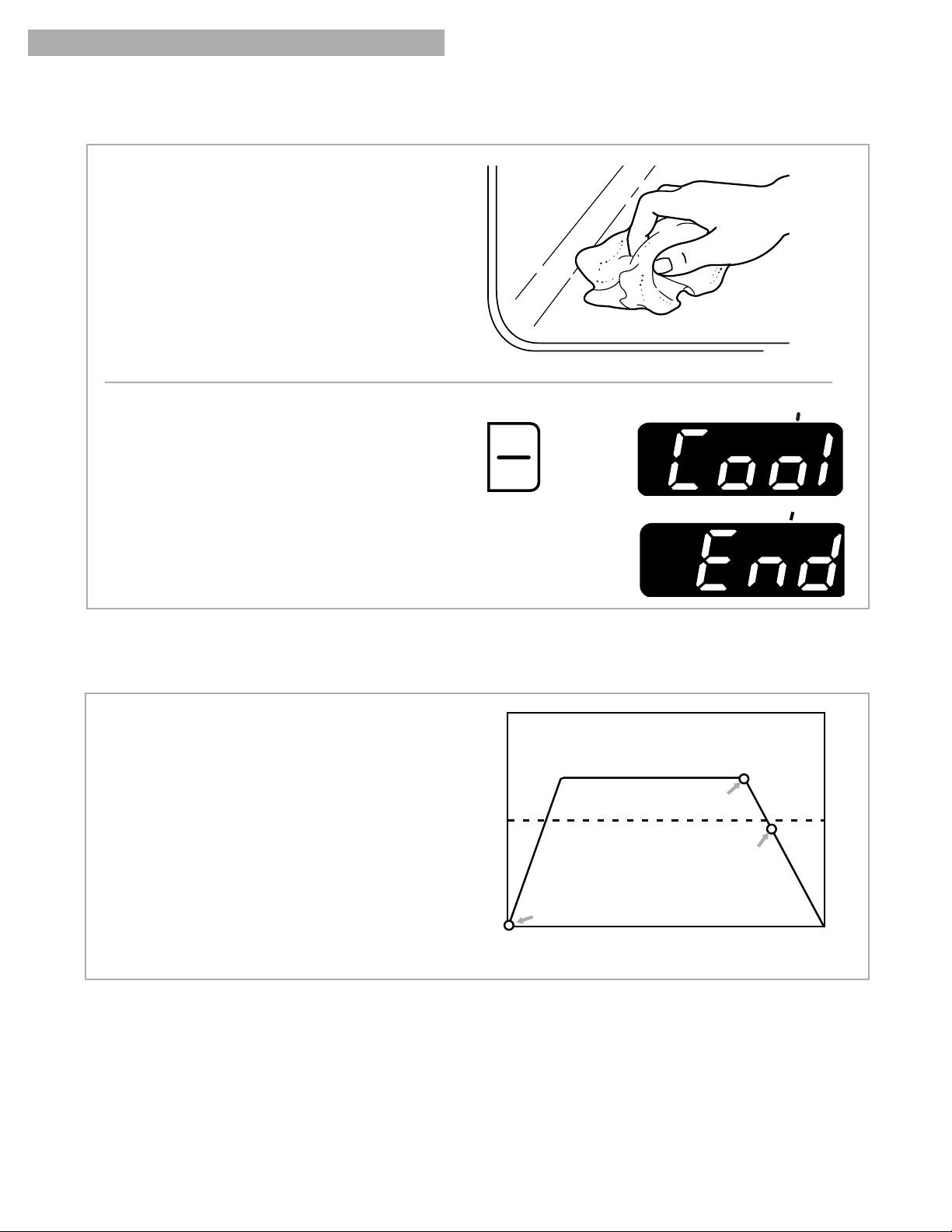

6. After the oven cools to room temperature, wipe
off any residue or ash with a damp cloth or
sponge.
If needed, touch up spots with a mild abrasive
cleanser or cleaning sponge.
To stop the self-cleaning cycle at
any time:
If the oven temperature is above normal broiling
temperatures, the Self-Cleaning cycle will start a
30-minute cool down. The clean and door locked
indicator lights will stay on.
PRESS YOU SEE
OFF
CANCEL
ON
HOW THE CYCLE WORKS
The Self-Cleaning cycle uses very high heat to
burn away soil and grease. During the cycle, the
oven gets much hotter than it does for normal baking or broiling. This high heat breaks up the soil or
grease and burns it away.
Your oven is automatically preset for a 31⁄2-hour
Self-Cleaning cycle.
The graph at the right shows you what happens
in a 31⁄2-hour Self-Cleaning cycle. Notice that the
heating stops 1⁄2 hour before the 31⁄2-hour setting
is up.
875°F ( 468°C )
CLEANING CYCLE
OVEN SHUT OFF
DOOR UNLOCKS
DOOR LOCKS
( normal broiling temperature )
START 11 2 3 STOP
Time In Hours
T emperature
ON
Page 29
29
CARING FOR YOUR RANGE
CLEANING CHART
Before cleaning, always make sure all controls are off and the range is cool. Refer to instructions on all
cleaning products before using them to clean your range.
wWARNING
Explosion Hazard
Do not store flammable materials such as gasoline near this appliance.
Doing so can result in death, explosion, or fire.
PART CLEANING METHOD SPECIAL INSTRUCTIONS
Control Knobs
•
Soap and water
•
Dishwasher
• DO NOT use steel wool or
abrasive cleaners.
• Pull knobs straight away from
control panel.
• Wash, rinse and dry with soft cloth.
Control Panel
•
Soap and water
• Wash, rinse and dry with soft cloth.
Exterior Surfaces*
(excluding ceramic glass cooktop,
control panel and oven door glass)
•
Soap and water
•
Mild liquid cleaner
•
Spray glass cleaner
• DO NOT use abrasive or harsh
cleaners like chlorine bleach,
ammonia or oven cleaners.
• Wash, rinse and dry with soft cloth.
•
Spray glass cleaner
• Apply spray cleaner to paper towel;
do not spray directly on panel.
• Gently clean around the model
and serial plate; too much
scrubbing could remove the
numbers.
•
Non-abrasive plastic scrubbing
pad
Chrome reflector bowls*
(Models RF370PXG and RF370LXG)
• Light to moderate soil
•
Soap and water
•
Non-abrasive plastic scrubbing
pad
• Wash, rinse and dry with soft cloth.
• Soak bowls for 20 minutes, then
scrub with plastic pad.
•
Solution of 1/2 cup ammonia to
1 gallon water
•
Non-abrasive plastic scrubbing
pad
•
Mild abrasive powdered cleanser
or commercial oven cleaner
•
Heavy to burned-on soils
•
Dishwasher
Coil Elements
(Models RF370PXG and RF370LXG)
• DO NOT clean or immerse in water.
Spatters and spills will burn off.
*When the cooktop is cool, remove all spills and clean. Food spills containing acids, such as vinegar and tomato,
may affect the finish.
Ceramic glass cooktop
(Models RF374PXG and RF376LXG)
•
See the “Cleaning the ceramic
glass cooktop” section.
Page 30
30
CLEANING CHART (CONT.)
CARING FOR YOUR RANGE
PART CLEANING METHOD SPECIAL INSTRUCTIONS
Surface under cooktop
(Models RF370PXG and RF370LXG)
• Light to moderate soil
•
Soap and water
• Wash, rinse and dry with soft
cloth.
• Rinse thoroughly and dry.
Oven cavity
•
Food spills containing
sugar and/or milk
•
All other spills
•
Soap and water
•
Self-cleaning cycle
•
When oven cools, wash, rinse
and dry with soft cloth or sponge.
•
See the “Using the self-cleaning
cycle” section.
•
Soapy steel wool pad
•
Heavy soils
Oven racks
•
Soap and water
•
Steel wool pad
•
Wash, rinse and dry.
•
Self-cleaning cycle
•
Place on 2nd and 4th rack
guides. Racks will discolor and
become harder to slide. After
cleaning, apply vegetable oil to
rack guides for easier sliding.
Broiler pan and grid
•
Soap and water
•
Steel wool pad
•
Dishwasher
•
Wash, rinse and dry.
•
Solution of 1/2 cup ammonia to
1 gallon water
•
Mild abrasive cleanser or
commercial oven cleaner
•
Soak for 20 minutes, then scrub
with plastic scrubbing pad.
Oven door glass
•
Soap and water
•
Non-abrasive plastic scrubbing pad
• Wash, rinse and dry with soft
cloth.
•
Spray glass cleaner
• Wipe with paper towel.
Page 31
31
CARING FOR YOUR RANGE
*To order additional Cooktop Polishing Creme (Part No. 3184477), call 1-800-253-1301. You will hear a
recording. Follow the steps to place an order.
CLEANING THE CERAMIC GLASS COOKTOP (
MODELS
RF
374
PXG
AND
RF376LXG
)
Your cooktop is designed for easy care. It has been prepolished at the factory for improved protection and
easier cleaning. Foods spilled directly on the cooktop will not burn off as on open-coil elements. Because of
this, you should keep the surface dust free and soil free before heating. Use the Cooktop Polishing Creme,
included with your range, to clean and maintain the cooktop.
WHAT TO USE
• Paper towel
• Clean, damp sponge
• Cooktop Polishing Creme*
• Non-abrasive cleanser
• Cooktop Polishing Creme*
• Razor scraper in a holder
• Paper towel
• Clean, damp sponge
• Cooktop Polishing Creme*
HOW TO CLEAN
DO NOT use steel wool, plastic cleaning pads, abrasive
powdered cleansers, chlorine bleach, rust remover,
ammonia, or glass cleaners with ammonia. They may
damage the cooktop surface.
Wipe as soon as Hot Surface Indicator Light goes off.
Rinse thoroughly and dry.
Rub into soil using damp paper towel. Rinse and dry.
Rub creme into soil using paper towel. Reapply creme
to remaining spots. Hold razor scraper as flat to surface
as possible, scrape spots. Polish entire cooktop with
creme and paper towel. Rinse and dry. Store razor
blades out of reach of children.
Wipe while ceramic glass surface is warm. Rinse
thoroughly and dry.
Before heating cooktop again, rub into area using damp
paper towel. Rinse and dry.
To prevent scratches and abrasions, use the Cooktop
Polishing Creme regularly. Scratches and abrasions do
not affect cooking performance. After many cleanings,
they will become less visible.
PART
Ceramic glass
cooktop
Light to
moderate soil
Heavy soil, dark
streaks, specks,
and discoloration
Burned-on soils
Sugary spills
(jellies, candy
syrups)
Metal marks from
copper, aluminum
pans
Tiny scratches or
abrasions
NOTE: Always wipe your cooktop with clean water and dry it well after using the cleanser to prevent streaking
or staining.
• Cooktop Polishing Creme*
Page 32
32
2. Line up openings in the reflector bowl
with the coil element receptacle.
CARING FOR YOUR RANGE
BAKE
OFF
BAKE
Replacing
1. Make sure all coil elements are off and
cool before replacing coil elements and
reflector bowls.
COIL ELEMENTS AND REFLECTOR BOWLS (MODELS RF
37
O
PXG AND RF37O
LXG)
3. Pull the coil element straight away from
the receptacle.
4. Lift out the reflector bowl. See the “Cleaning
chart” earlier in this section for cleaning
instructions.
2. Push in the edge of the coil element, opposite
the receptacle. Then lift it just enough to clear
the reflector bowl.
BAKE
OFF
BAKE
Removing
1. Make sure all coil elements are off and
cool before removing coil elements and
reflector bowls.
Page 33
33
CARING FOR YOUR RANGE
COIL ELEMENTS AND REFLECTOR BOWLS (MODELS RF
37
O
PXG AND RF37O
LXG) (CONT.)
4. When the terminal is pushed into the receptacle
as far as it will go, push down the edge of the
coil element opposite the receptacle.
NOTE: Reflector bowls reflect heat back to the
cookware on the coil elements. They also help
catch spills. When they are kept clean, they
reflect heat better and look new longer.
If a reflector bowl changes color, some of your
cookware may not be flat enough, or some may be
too large for the coil element. In either case, some
of the heat that’s meant to go into or around cookware goes down and heats the reflector bowl. This
extra heat can cause it to change color.
3. Hold the coil element as level as possible with
the terminal just started into the receptacle. Push
the coil element terminal into the receptacle.
NOTE: Do not drop the cooktop. Damage could
result to the porcelain and the cooktop frame.
1. Lift the front of the cooktop at both front corners
until the support rods lock into place.
2. Wipe the surface under the cooktop with warm,
soapy water and a sponge. Use a soapy steelwool pad on heavily soiled areas.
3. To lower the cooktop, lift the cooktop from both
sides while pressing the support rods back to
unlock them. Lower the cooktop into place.
LIFT-UP COOKTOP (MODELS RF
37
O
PXG AND RF37O
LXG)
Page 34
34
To remove:
1. Open the oven door. Insert door removal pins,
included with your
range, into both hinge
hangers. Do not re-
move the pins while
the door is removed
from the range.
CARING FOR YOUR RANGE
REMOVING THE OVEN DOOR
For normal use of your range, you do not need to
remove the door. However, if you find it necessary
to remove the door, follow the instructions in this
section.
NOTE: The oven door is heavy.
Before removing the door:
1. Use a putty knife or screwdriver and insert it at
the bottom corner of the door stop clip.
2. Pry door stop clip free and remove from front
frame hinge slot. Take care not to scratch
porcelain.
3. Repeat procedure for other door stop clip.
Door removal
pin hole
Hinge
hanger
Range
Front frame
hinge slot
Door stop clip
3. Grasp the door on the sides with your fingers on
the front of the door
and your thumbs on
the inside surface.
2. Carefully close the door until it rests against the
door removal pins.
To replace:
NOTE: The door removal pins you inserted must
still be in both hinges.
1. Grasp the door on the sides with your fingers
on the front of the door and your thumbs on the
inside surface.
4. Pull door straight up, then toward you. Hinge
hangers will slide out of front frame hinge slot.
Page 35
35
The oven light will come on when you open the
oven door.
To turn the light on or off when the oven
door is closed:
•
Push the oven light switch on the backguard.
To replace the oven light:
1. Unplug range or disconnect power.
2. Remove the glass bulb cover in the back of
the oven by turning
it counterclockwise.
3. Remove the light bulb from its socket.
Replace the bulb with a 40-watt appliance bulb.
Door removal
pin hole
CARING FOR YOUR RANGE
REMOVING THE OVEN DOOR (CONT.)
THE OVEN LIGHT
4. Replace the bulb cover by turning it clockwise.
5. Plug in range or reconnect power.
NOTE: The oven light will not work during the
Self-Cleaning cycle.
Range
Front frame
hinge slot
2. Hold oven door so that the top edge of each
hinge hanger is horizontal. Insert hinge hangers
into the front frame hinge slots.
3. Rotate top of door toward range. Slide hinge
hangers down onto front frame support pins.
NOTE: Make sure the hinge hangers are fully
seated and engaged on the support pins.
4. Insert the door stop clip with the angular surface
at the top of the frame hinge slot, then push in
the bottom of the clip until flanges are flush with
the front frame.
5. Open the door completely and remove the door
removal pins. Save door removal pins for future
use.
6. Close the door.
Hinge
hanger
Door stop
clip
Angular surface of door
stop
clip
Door removal
pin hole
Support pins
Page 36
36
PROBLEM
The Self-Cleaning cycle
will not work
PROBLEM
Nothing works
CAUSE
•
The range is not plugged into a properly grounded live outlet with the proper
voltage. (See Installation Instructions.)
•
You have blown a household fuse or tripped a circuit breaker.
•
The control knob is not set correctly. Push in the control knobs before
turning them.
•
You have not set the electronic control correctly. Refer to setting the
electronic oven control section. (See pages 17-19.)
•
You have blown a household fuse or tripped a circuit breaker.
•
The coil elements are not plugged in all the way (Models RF370PXG and
RF370LXG). (See “Replacing” on pages 32-33.)
•
You have not set the control knobs correctly. Push the control knobs in
before turning them to a setting.
TROUBLESHOOTING
Most cooking problems often are caused by little things you can find and fix without tools of any
kind. Check the lists below and on the next page before calling for assistance or service. If you
still need help, see “Requesting Assistance or Service” on page 38.
RANGE DOES NOT WORK
The oven does not work
The surface cooking
areas will not work
WHEN SELF-CLEANING YOUR OVEN
CAUSE
•
You did not press START/ENTER.
•
The door is not closed all the way.
Page 37
37
DISPLAY MESSAGES
COOKING RESULTS
TROUBLESHOOTING
PROBLEM
The display is showing
“PF”
“F” followed by a
number shows on
the display
CAUSE
•
There has been a power failure. Press OFF/CANCEL to clear the display,
then reset the clock. (See page 15.)
•
Press OFF/CANCEL to clear the display. If an “F” code appears again, call
for service. (See “If You Need Assistance or Service” on page 39.)
If none of these items are causing your problem, see “Requesting Assistance or Service” on page 38.
PROBLEM SOLUTION
Cookware not level
on cooktop
•
Level the range. (See the Installation Instructions.)
•
Insert coil correctly.
•
Use cookware with a flat bottom.
Excessive heat on cooktop
in areas around cookware
•
Choose cookware the same size or slightly larger than the element.
The oven temperature
seems too low or too high
•
Adjust the oven temperature control. (See “Adjusting the oven temperature
control” section.)
Slow baking or roasting
•
Preheat oven to selected temperature before placing food in oven.
•
Choose bakeware that will allow 2 inches of air space around all sides.
•
Position rack higher in oven.
•
Decrease oven temperature 15° to 25° F.
•
Increase baking or roasting time.
•
Increase temperature 25° F.
•
Preheat oven to selected temperature before placing food in when
preheating is recommended.
•
Choose bakeware that will allow 2 inches of air space around all sides.
•
Open oven door to check food when timer signals shortest time suggested
in recipe.
•
Oven peeking can make cooking times longer.
•
Level the range.
•
Bake in center of oven with 2 inches of space around each pan.
•
Check to make sure batter is level in pan.
•
Shield edge with foil.
Baked items too brown
on bottom
Unevenly baked items
Crust edge browns
before pie is done
(Check to see if liquids
are level in cookware)
Page 38
38
Call the Whirlpool Consumer Assistance
Center toll free at 1-800-253-1301.
Our consultants are available to
assist you.
When calling:
Please know the purchase date, and
the complete model and serial number of your
appliance (see the “A Note to You” section).
This information will help us better respond to
your request.
Our consultants provide assistance with:
•
Features and specifications on our full line
of appliances
•
Installation information
•
Use and maintenance procedures
REQUESTING ASSISTANCE OR SERVICE
To avoid unnecessary service calls, please check the “Troubleshooting” section. It may save you
the cost of a service call. If you still need help, follow the instructions below.
IF YOU NEED ASSISTANCE OR SERVICE
IF YOU NEED REPLACEMENT PARTS
If you need to order replacement parts, we recommend that you only use FSP® factory authorized
parts. FSP replacement parts will fit right and work
right, because they are made to the same exacting
specifications used to build every new
WHIRLPOOL® appliance.
To locate FSP replacement parts in your area, call
our Consumer Assistance Center telephone number
or your nearest authorized service center.
FOR FURTHER ASSISTANCE
If you need further assistance, you can write to
Whirlpool with any questions or concerns at:
Whirlpool Brand Home Appliances
Consumer Assistance Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
•
Accessory and repair parts sales
•
Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.)
•
Referrals to local dealers, service companies, and
repair parts distributors
Whirlpool service technicians are trained to fulfill
the product warranty and provide after-warranty
service, anywhere in the United States.
To locate the authorized Whirlpool service company
in your area, you can also look in your telephone
directory Yellow Pages.
Please include a daytime phone number in your
correspondence.
Page 39
39
INDEX
TOPIC PAGE
ANTI-TIP BRACKET....................................................25
ASSISTANCE ..............................................................38
BAKING
Aluminum foil ..........................................................13
Bakeware ................................................................13
Pans ........................................................................12
Racks ................................................................12, 17
Setting cycle............................................................17
Tips..........................................................................19
BROILING
Grid..........................................................................23
Guidelines................................................................23
Pan ....................................................................21, 23
Rack positions ........................................................23
Setting cycle............................................................22
CLEANING
Broiler pan and grid ................................................30
Ceramic glass cooktop ....................................29, 31
Coil elements ..............................................29, 32, 33
Control knobs..........................................................29
Control panel ..........................................................29
Exterior surfaces ....................................................29
Oven cavity ............................................................30
Oven door glass......................................................30
Oven racks ..............................................................30
Reflector bowls ..........................................29, 32, 33
Self-cleaning cycle..................................................26
Surface under cooktop ..........................................30
CONTROL PANEL
Coil element markers ................................................6
Control knobs............................................................8
Surface cooking area markers..................................7
Surface heating indicator light..............................6, 7
COOKWARE
Canning ....................................................................9
Materials..................................................................10
Tips..........................................................................10
ELECTRONIC OVEN CONTROL
Canceling ................................................................16
Clock ......................................................................15
Control lock ............................................................14
Display ....................................................................14
Indicator lights ........................................................14
Minute timer ............................................................15
Starting....................................................................16
TOPIC PAGE
FEATURES ................................................................6, 7
LIFT-UP COOKTOP ....................................................33
MODEL AND SERIAL NUMBER ..................................2
OVEN DOOR ........................................................34, 35
OVEN LIGHT ..............................................................35
OVEN TEMPERATURE
Adjusting ..........................................................19, 20
Setting ..............................................................17, 22
OVEN VENT ................................................................24
PANS ..........................................................................12
PARTS ......................................................................6, 7
RACKS..................................................................12, 17
ROASTING
Pans ........................................................................12
Racks ................................................................12, 17
Setting cycle............................................................17
Tips..........................................................................18
SAFETY ................................................................3, 4, 5
SELF-CLEANING CYCLE
Before you start ......................................................26
How the cycle works ..............................................28
Setting the controls ................................................27
Stopping the cycle ..................................................28
Tips..........................................................................26
SERVICE ....................................................................38
STORAGE DRAWER ..................................................25
SURFACE COOKING AREAS
Ceramic glass cooktop ..........................................11
Coil element markers ................................................6
Control knobs......................................................8, 29
Control setting guide ................................................8
Hot surface indicator lights ................................7, 11
Surface cooking area markers..................................7
Surface heating indicator light..............................6, 7
TROUBLESHOOTING ..........................................36, 37
WARRANTY ................................................................40
Page 40
LENGTH OF WARRANTY
FULL ONE-YEAR
WARRANTY
FROM DATE OF PURCHASE
FULL FIVE-YEAR
WARRANTY
FROM DATE OF PURCHASE
WHIRLPOOL WILL PAY FOR
FSP®replacement parts and repair labor to correct defects in materials
or workmanship. Service must be provided by an authorized Whirlpool
service company.
Ceramic glass cooktop only: FSP replacement parts and repair labor for
CLEANTOP®ceramic glass cooktop.
Whirlpool warrants that:
–The ceramic glass cooktop will not discolor
–The ceramic glass cooktop pattern will not wear off
–The rubber seal between the ceramic glass cooktop and porcelain edge will
not crack
–The ceramic glass cooktop will not crack due to thermal shock
–The surface unit elements will not burn out
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of your range.
2. Instruct you how to use your range.
3. Replace house fuses or correct house wiring.
4. Replace owner-accessible light bulbs.
B. Repairs when your range is used in other than normal, single-family household use.
C. Pickup and delivery. Your range is designed to be repaired in the home.
D. Damage to your range caused by accident, misuse, fire, flood, acts of God, or use of products not
approved by Whirlpool.
E. Repairs to CLEANTOP ceramic glass cooktop if it has not been cared for as recommended in this
Use and Care Guide.
F. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
4/98
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or
limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Outside the United States, a different warranty may apply. For details, please contact your authorized
Whirlpool dealer.
If you need service, first see the “Troubleshooting” section of this book. After checking “Troubleshooting,”
additional help can be found by checking the “Requesting Assistance or Service” section, or by calling the
Whirlpool Consumer Assistance Center telephone number, 1-800-253-1301, from anywhere in the U.S.A.
8053398
© 1998 Whirlpool Corporation ® Registered Trademark of Whirlpool, U.S.A. Printed in U.S.A.
5/98
WARRANTY
WHIRLPOOL®ELECTRIC RANGE
Loading...
