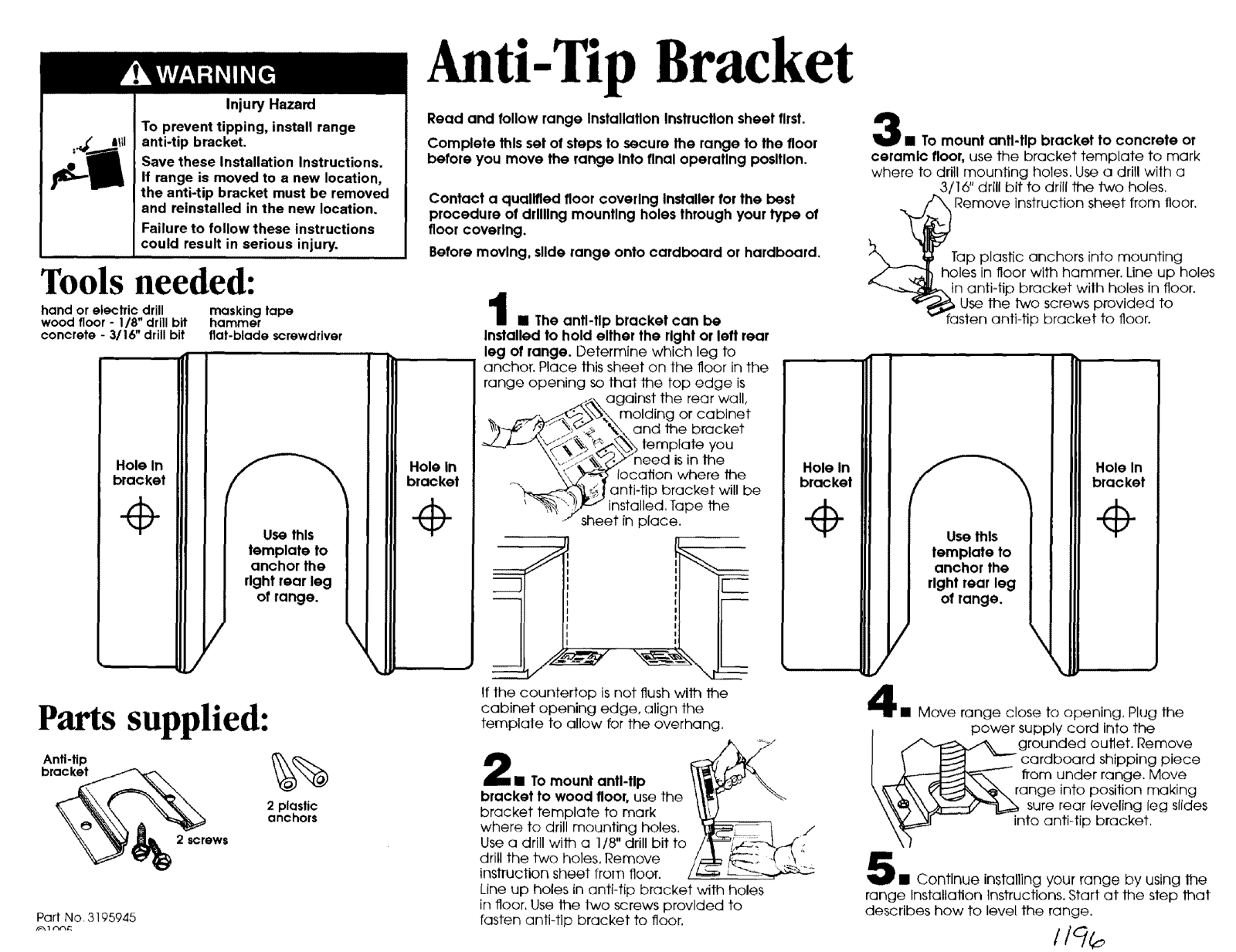

Whirlpool RF365PXKW Installation Guide
Injury Hazard
To prevent tipping, install range
anti-tip bracket.
Save these Installation Instructions.
If range is moved to a new location,
the anti-tip bracket must be removed
and reinstalled in the new location.
Failure to follow these instructions
could result in serious injury.
Tools needed:
hand or electric drill masking tape
wood floor - I/8" drill bit hammer
concrete - 3/16" drill bit flat-blade screwdriver
Hole In
l_acket
÷
Use thls
template to
anchor the
right rear leg
of range.
Anti-Tip Bracket
Read and follow range Installation Instruction sheet first.
Complete thls set of steps to secure the range to the floor
before you move the range Into final operatlng posltlon.
Contact a qualified floor coverlng Installer for the best
procedure of drllllng mounting holes through your type of
floor coverlng.
Before movlng, slide range onto cardboard or hardboard.
III The antl-tlp bracket can be
Installed to hold either the right or left rear
leg of range. Determine which leg to
anchor, Place this sheet on the floor in the
range opening so that the top edge is
_X aagainst the rear wall,
molding or cabinet
andthebracket
:_-_ _>_ template you
Hole In
bracket
÷
_"_,i ;-&,<;'_/X_'need is in the
\
_---_"locafion where the
anti-tipbracketwi,be
installed, Tape the
-" sheet in place.
i '
bracket
Hole In
÷
11 To mount antl-tlp bracket to concrete or
ceramic floor, use the bracket template to mark
where to drill mounting holes. Use a drill wilh a
3/16" drill bit to drill the two holes,
Remove instruction sheet from floor.
Tap plastic anchors into mounting
holes in floor with hammer. Line up holes
in anti4ip bracket with holes in floor.
Use the two screws provided to
fasten anti-tip bracket to floor.
Hole In
bracket
Use thls
template to
anchor the
rlghf rear leg
of range.
÷
Parts supplied:
Anti-tip
bracket
2 screws
Part No 3195945
2 plastic
anchors
5 ,
If the countertop is not flush with the
cabinet opening edge, align the
template to allow for the overhang.
11To mount antl-tlp
bracket to wood floor, use the
bracket template to mark
where to drill mounting holes,
Use a drill with a 1/8" drill bit to
drill the two holes, Remove
instruction sheet from floor.
Line up holes in anti-tip bracket with holes
in floor, Use the two screws provided to
fasten anti-tip bracket to floor.
Move range close to opening, Plug the
power supply cord into the
cardboard shipping piece
from under range. Move
ange into position making
sure rear levering leg slides
_rounded outlet. Remove
into anti-tip bracket,
5m Continue installing your range by using the
range Installation instructions. Start at the step that
describes how to level the range.
