Whirlpool RF 280 PRODUCT DESCRIPTION

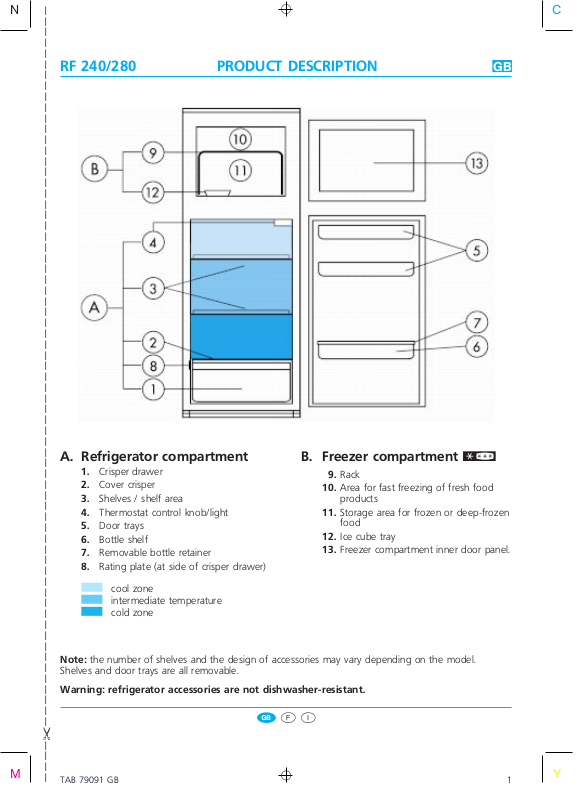

PRODUCT DESCRIPTIONRF 240/280 GB

A. Refrigerator compartment

1. Crisper drawer

2. Cover crisper

3. Shelves / shelf area

4. Thermostat control knob/light

5. Door trays

6. Bottle shelf

7. Removable bottle retainer

8. Rating plate (at side of crisper drawer)

cool zone intermediate temperature cold zone

Note: the number of shelves and the design of accessories may vary depending on the model. Shelves and door trays are all removable.

Warning: refrigerator accessories are not dishwasher-resistant.

B. Freezer compartment

9. Rack

10. Area for fast freezing of fresh food

products

11. Storage area for frozen or deep-frozen

food

12. Icecubetray

13. Freezer compartment inner door panel.

RF 240/280

Controls

A. Thermostat knob B. Light switch C. Thermostat setting index D. Bulb (15 W max.)

Thermostat set to Thermostat set to 1: warmest internal temperature Thermostat set to 7: coldest internal temperature

It is advisable to set the thermostat to positions 2-3

Note: external air temperature, the frequency with which the door is opened and the position of the

appliance may affect the internal temperature of the refrigerator. Set the thermostat accordingly.

x: refrigerator and lights off

Freezing

Forbestresults,turnthethermostatknobA half a notch towards the lower numbers when storing food in the freezer compartment.

Removing the light

Undo by turning anticlockwise, as shown in the illustration.
