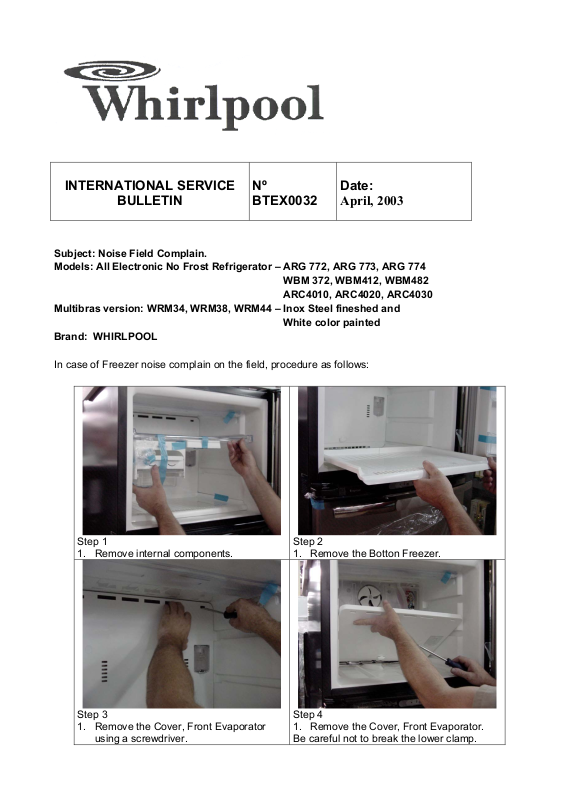

Page 1
INTERNATIONAL SERVICE
BULLETIN
Subject: Noise Field Complain.
Models: All Electronic No Frost Refrigerator – ARG 772, ARG 773, ARG 774
Multibras version: WRM34, WRM38, WRM44 – Inox Steel fineshed and
Brand: WHIRLPOOL
In case of Freezer noise complain on the field, procedure as follows:
Nº
BTEX0032
WBM 372, WBM412, WBM482
ARC4010, ARC4020, ARC4030
White color painted
Date:
April, 2003
Step 1
1. Remove internal components.
Step 3
1. Remove the Cover, Front Evaporator
using a screwdriver.
Step 2
1. Remove the Botton Freezer.
Step 4
1. Remove the Cover, Front Evaporator.
Be careful not to break the lower clamp.
Page 2
Cavity
number
location
Step 5
1. Identify the cavity number of the fan.
Step 7
1. Verify if there is any contact between the
conector or wiring and the liner.
Step 6
1. In case of the cavity number is 2 or 3,
change the fan blade (# 000.415.183) by
one from the cavity 1 or 4.
Step 8
1. Protect the return duct
Use protection with handle.
Step 9
1. Remove the screws from the cover rear
Be careful not to let the screws fall in the
ducts of the product, it can block the drain or
damper.
Step 10
1. Release the lamp and subsequently the
cover rear
Page 3

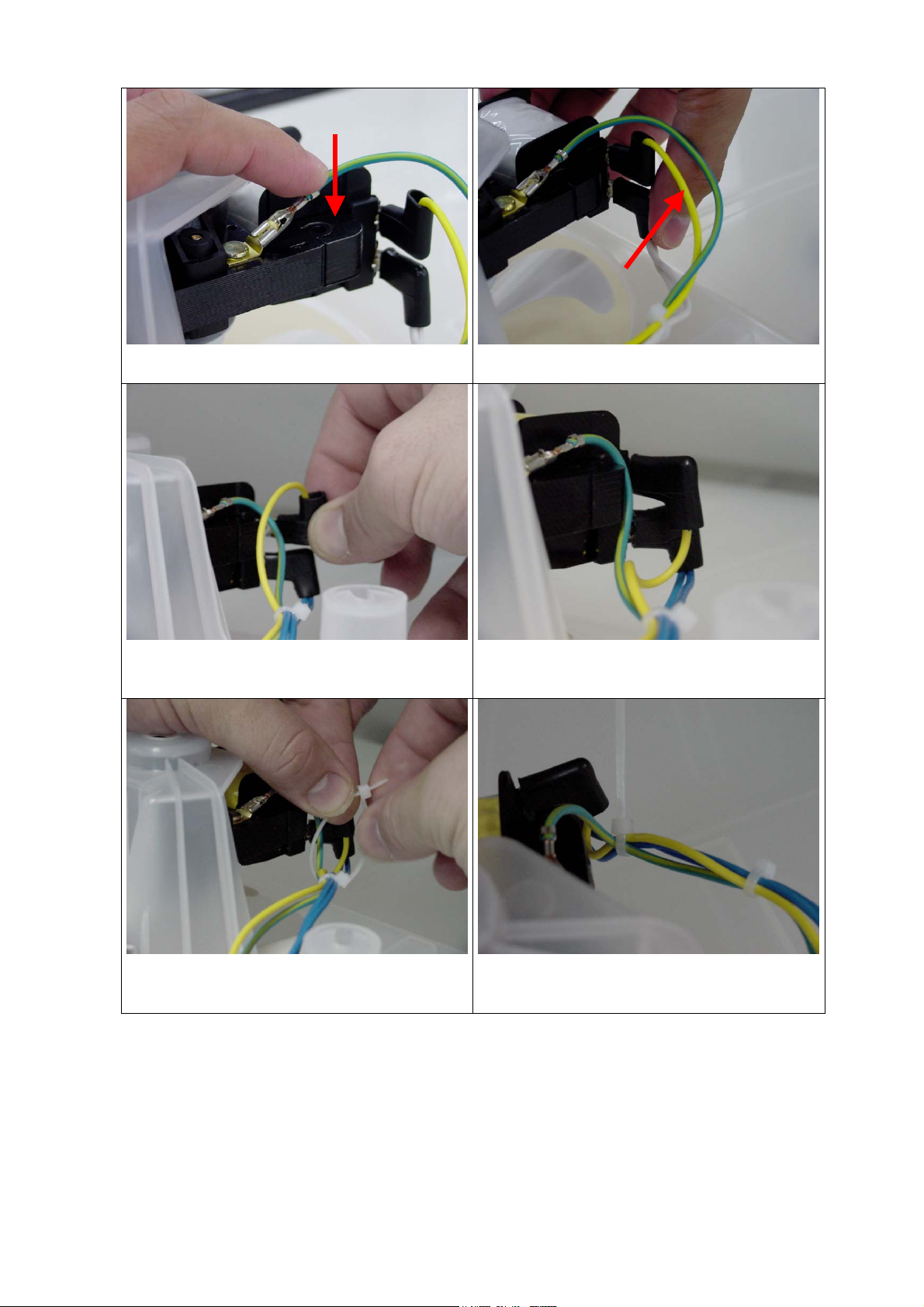

Step 11
1. Push the ground wiring.
Step 12
1. Bend the bottom conector.
Step 13
1. Remove the upper conector.
Step 15
1. Fix the wiring with a plastic strap
(# 031.630.100).
Step 14
1. Put the upper conector in the opposite
way.
Step 16
1. Put the strap as shown above.
Page 4

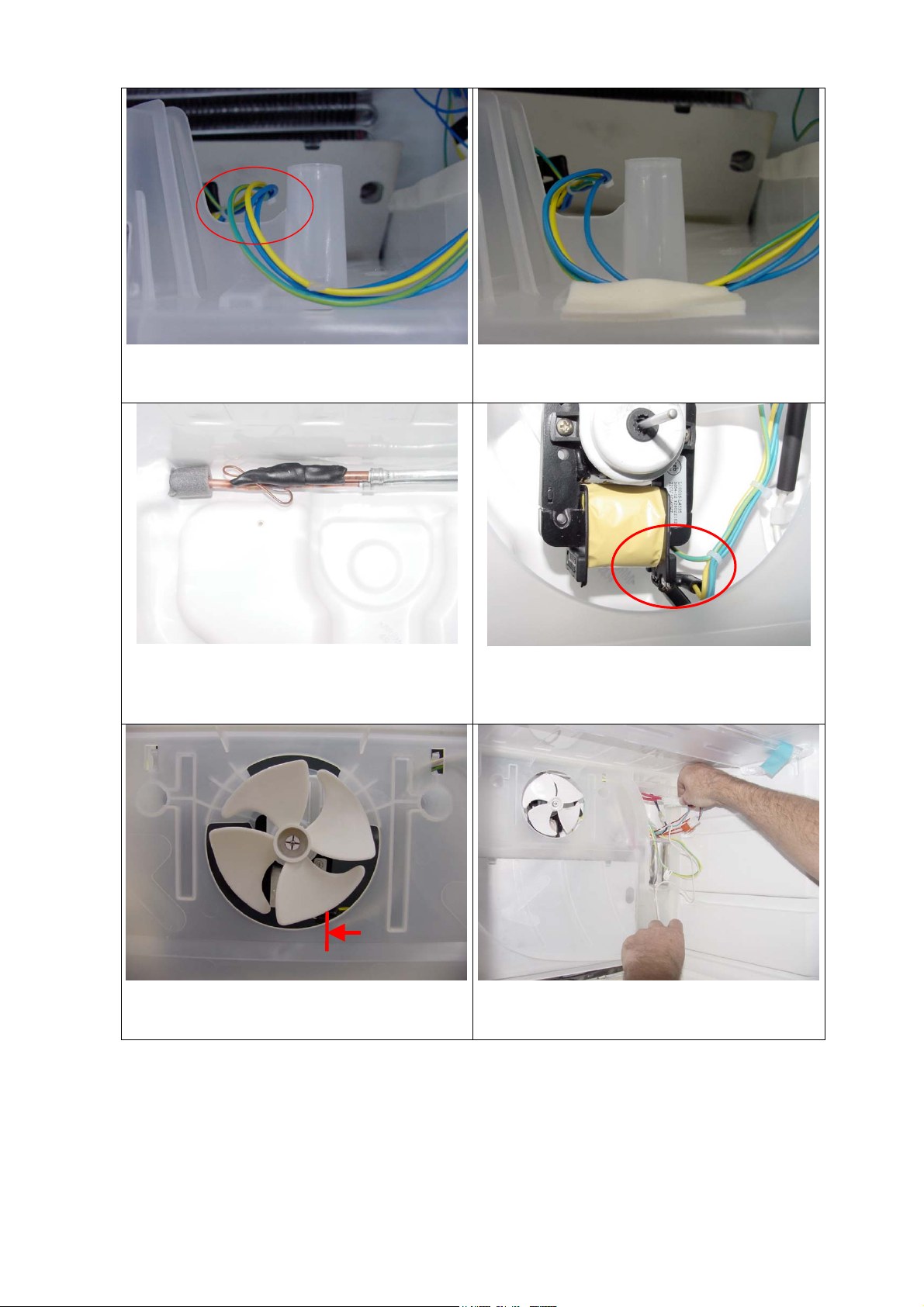

Step 17
1. Put the wiring avoiding contact between
the wiring and the cover, rear evaporator.
Step 18
1. Put a bit of the adhesive insulation
(# 004.224.353).
Step 19
1. Check if the black shield is not touching
the liner.
Step 21
1. Put the motor in the center position .
Step 20
1. Assembly the cover rear and verify if there
is no contact between the conectors and the
cabinet liner.
Step 22
1. Store the net on the upright compartiment
in the back cover.
Page 5

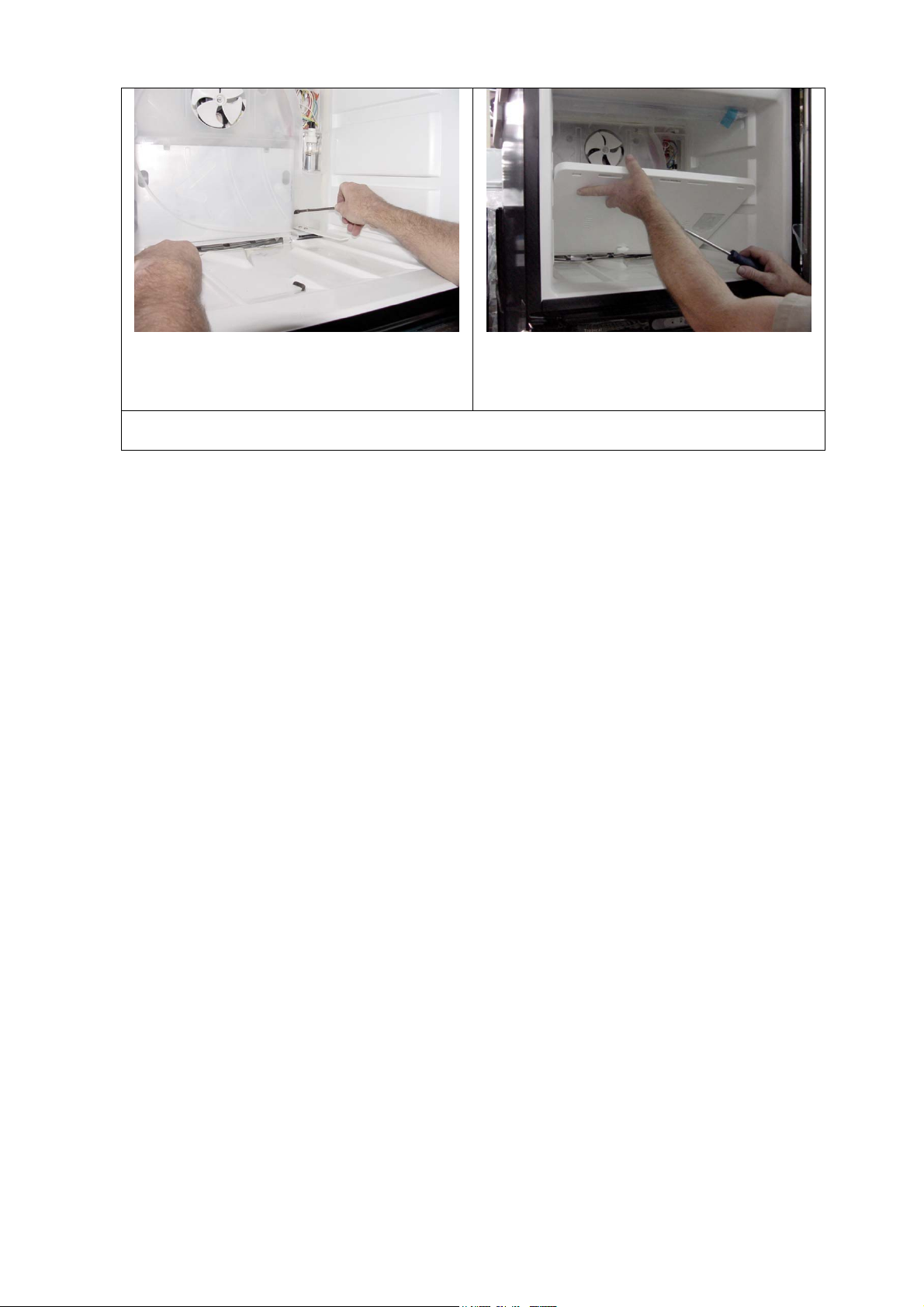

Step 23
1. Fix the back cover.
Certifiy that the duct protection is well
attached.
Step 25
Replace the internal components, that was removed.
International Services
Multibrás S/A Eletrodomésticos
Step 24
1. Place and attach front cover.
Be careful not to break attachment hooks.
