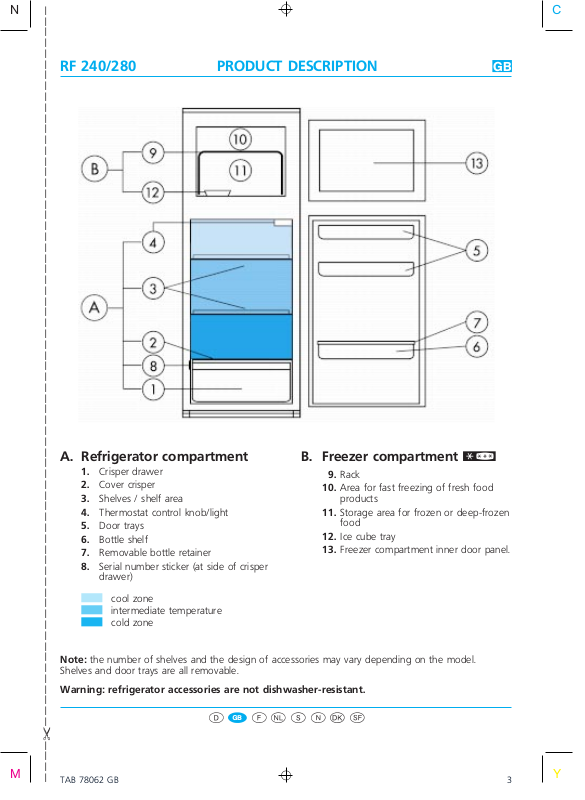

PRODUCT DESCRIPTIONRF 240/280 GB

A. Refrigerator compartment

1. Crisper drawer

2. Cover crisper

3. Shelves / shelf area

4. Thermostat control knob/light

5. Door trays

6. Bottle shelf

7. Removable bottle retainer

8. Serialnumbersticker(atsideofcrisper

drawer)

cool zone intermediate temperature cold zone

Note: the number of shelves and the design of accessories may vary depending on the model. Shelves and door trays are all removable.

Warning: refrigerator accessories are not dishwasher-resistant.

345678

B. Freezer compartment

9. Rack

10. Area for fast freezing of fresh food

products

11. Storage area for frozen or deep-frozen

food

12. Icecubetray

13. Freezer compartment inner door panel.

RF 240/280

Controls

A. Thermostat control B. Light switch C. Yellow backlighted button D. Thermostat setting index E. Bulb (15 W max.)

To remove the bulb, turn anticlockwise, as shown in the illustration.

Thermostat set to Thermostat set to 1: highest internal temperature Thermostat set to 7: lowest internal temperature

It is advisable to set the thermostat to 2-3

Note: external air temperature, the frequency with which the door is opened and the position of the

appliance may affect the internal temperature of the refrigerator. Set the thermostat accordingly.

When the external air temperature is lower than + 16 (light on)

x: refrigerator and lights off

C press the yellow backlighted button (C)

Freezing

To guarantee best results when freezing turn the thermostat control “A” half a notch towards the lower numbers

Removing the light

Undo by turning anticlockwise, as shown in the illustration.

Note: if ice forms on the rear wall of the refrigerator compartment, check that the yellow backlighted button is switched off before you c all After-sales Service. If the yellow button (C) is illuminated, deactivate it (light switched off)
