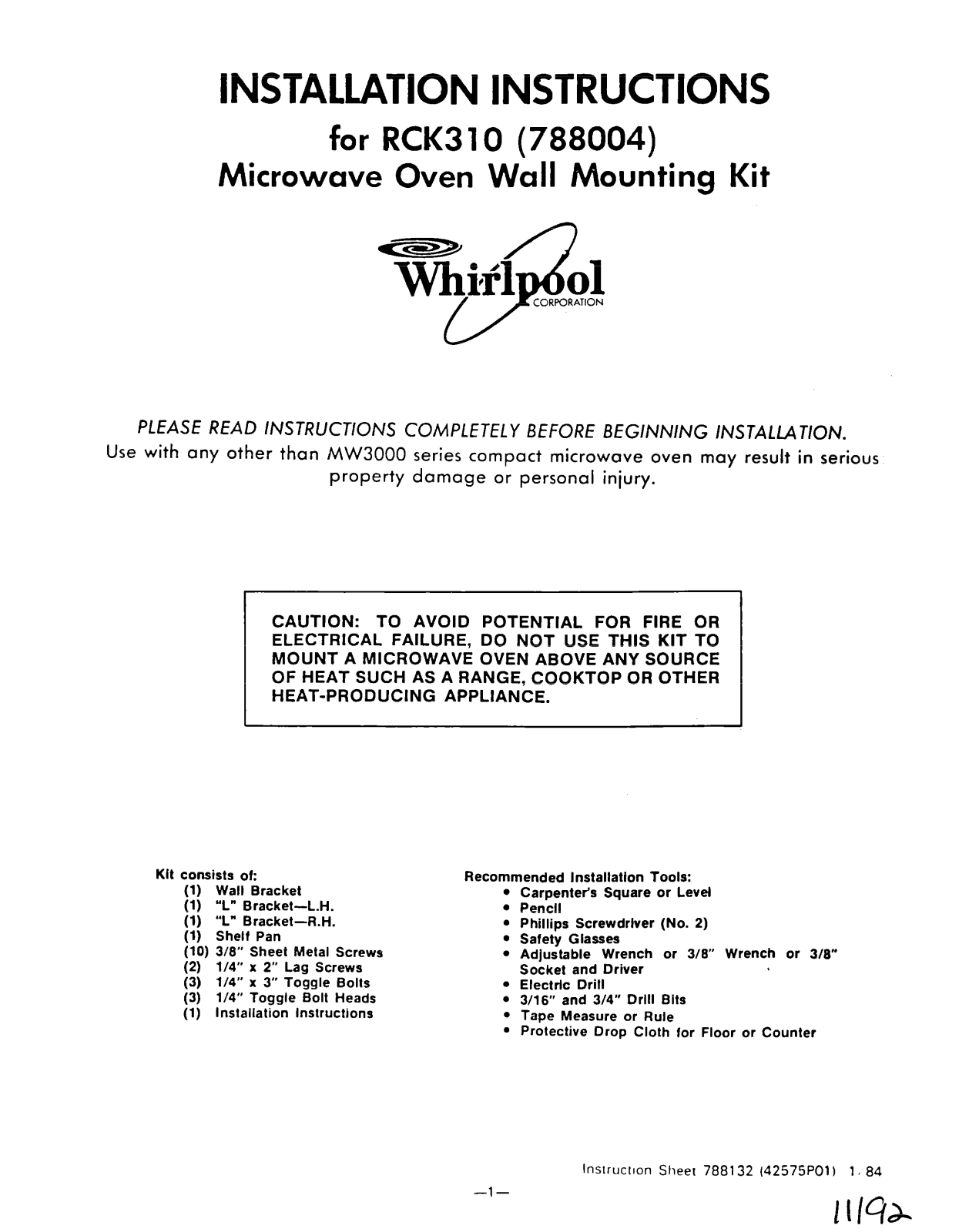

Whirlpool RCK310 Installation Instructions

INSTALLATION INSTRUCTIONS

for RCK3 10 (788004)

Microwave Oven Wall Mounting Kit

PLEASE READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING INSTAllATION.

Use with any other than MW3000 series compact microwave oven may result in serious

property damage or personal injury.

CAUTION: TO AVOID POTENTIAL FOR FIRE OR
ELECTRICAL FAILURE, DO NOT USE THIS KIT TO
MOUNT A MICROWAVE OVEN ABOVE ANY SOURCE
OF HEAT SUCH AS A RANGE, COOKTOP OR OTHER
HEAT-PRODUCING APPLIANCE.

Ktt consists ot

(1) Wall Bracket
(1) “L” Bracket-L.H.
(1) “L” Bracket-R.H.
(1) Shelf Pan
(10) 3/S” Sheet Metal Screws
(2) l/4" x 2" Lag Screws
(3) l/4" x 3" Toggle Bolls
(3) l/4” Toggle Bolt Heads
(1) Installation lnslructions

Recommended lnstallatton Tools:

. Carpenter’s Square or Level

l

Pencil

l

Phillips Screwdrlver (No. 2)

l

Safety Glasses

l

Adjustable Wrench or 318” Wrench or 3/S”
Socket and Driver

l

Electric Drill

l

3/16” and 3/4” Drill Bits

l

Tape Measure or Rule

l

Protective Drop Cloth for Floor or Counter

-l-

Inslrucllon Sheer 788132 (42575POl) 1,84

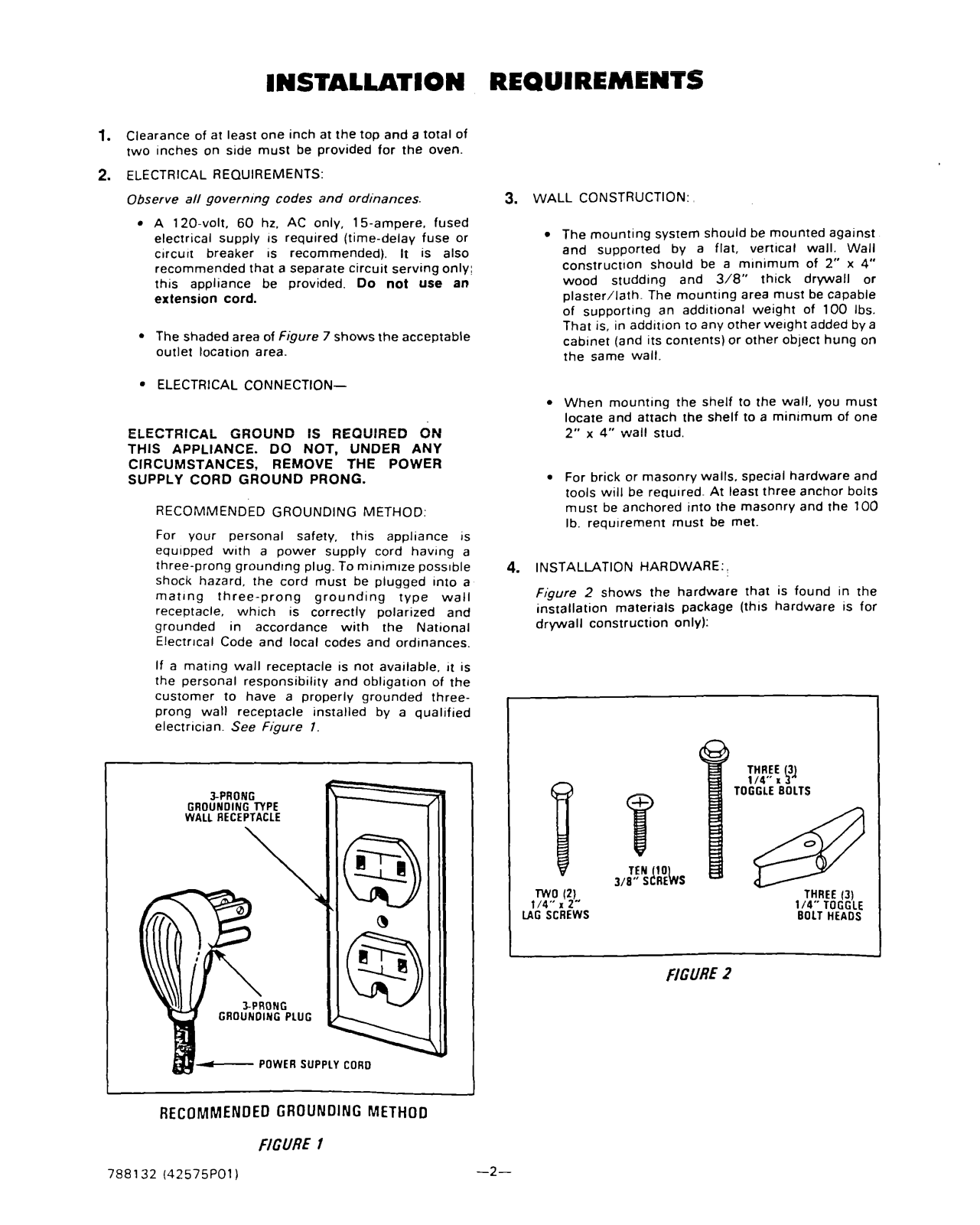

INSTALLATION

1. Clearance of at least one inch at the top and a total of
two Inches on side must be provided for the oven.

2. ELECTRICAL REQUIREMENTS:
Observe all governrng codes and ordinances.

l

A 120.volt, 60 hz. AC only, 15-ampere. fused

electrical supply IS required (time-delay fuse or
crrcurt breaker IS recommended). It is also
recommended that a separate circuit serving only;
this appliance be provided.

extension cord.

l

The shaded area of Figure 7 shows the acceptable
outlet location area.

. ELECTRICAL CONNECTION-

ELECTRICAL GROUND IS REQUIRED ON

THIS APPLIANCE. DO NOT, UNDER ANY

CIRCUMSTANCES, REMOVE THE POWER
SUPPLY CORD GROUND PRONG.

RECOMMENDED GROUNDING METHOD:
For your personal safety, this appliance is

equrpped wrth a power supply cord havrng a
three-prong groundrng plug. To mlnimrze possrble
shock hazard, the cord must be plugged Into a
mating three-prong grounding type wall
receptacle,

grounded in

ElectrIcal Code and local codes and ordrnances.

If a mating wall receptacle is not available, It is
the personal responsrbrlrty and obligatron of the
customer to have a properly grounded three-

prong wall receptacle installed by a qualified
electrician. See Figure 1

which is correctly polarized and

accordance with the National

Do not use an

REQUIREMENTS

3.

WALL CONSTRUCTION:

l

The mounting system should be mounted against
and supported by a flat, vertical wall. Wall
constructron should be a minimum of 2” x 4”
wood studding and 3/8” thick drywall or

plaster/lath. The mounting area must be capable
of supportrng an additional weight of 100 Ibs.
That is, in addition to any other weight added by a

cabinet (and its contents) or other object hung on

the same wall.

l

When mounting the shelf to the wall, you must

locate and attach the shelf to a minrmum of one
2” x 4” wall stud.

l

For brick or masonry walls, specral hardware and
tools will be required. At least three anchor bolts
must be anchored into the masonry and the 100

lb. requirement must be met.

4.

INSTALLATION HARDWARE:,
Figure 2 shows the hardware that is found in the

installation materials package (this hardware is for
drywall construction only):

- POWER SUPPLY CORD

RECOMMENDED GROUNDING METHOD

788132 (42575POl)

FIGURE I

-2-

FIGURE 2

0

4

THREE (3)

l/4” TOGGLE

BOLT HEADS
