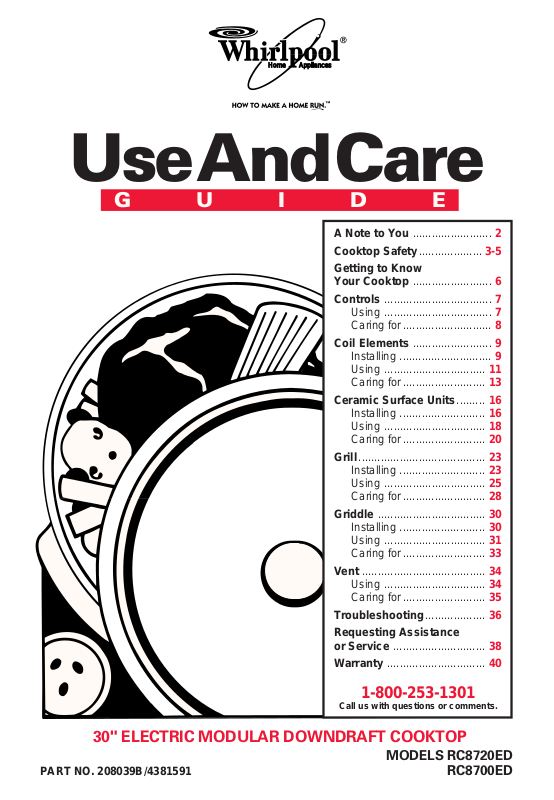

Page 1

Home Appliances

Use And Care

GUIDE

A Note to You ......................... 2

Cooktop Safety.................... 3-5

Getting to Know

Your Cooktop ......................... 6

Controls .................................. 7

Using .................................. 7

Caring for............................ 8

Coil Elements ......................... 9

Installing ............................. 9

Using ................................ 11

Caring for.......................... 13

Ceramic Surface Units......... 16

Installing ........................... 16

Using ................................ 18

Caring for.......................... 20

Grill........................................ 23

Installing ........................... 23

Using ................................ 25

Caring for.......................... 28

Griddle .................................. 30

Installing ........................... 30

Using ................................ 31

Caring for.......................... 33

Vent ....................................... 34

Using ................................ 34

Caring for.......................... 35

Troubleshooting................... 36

Requesting Assistance

or Service ............................. 38

Warranty ............................... 40

30" ELECTRIC MODULAR DOWNDRAFT COOKTOP

PART NO. 208039B/4381591

1-800-253-1301

Call us with questions or comments.

MODELS RC8720ED

RC8700ED

Page 2

A Note to You

Thank you for buying a WHIRLPOOL® appliance.

Because your life is getting busier and more complicated, WHIRLPOOL cooktops are easy to use, save time, and help you manage your home better. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable information about how to operate and maintain your appliance properly and safely. Please read it carefully.

Also, please complete and mail in the Product Registration Card provided with your appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for your appliance, you need to know your complete model number and serial number. You can find this information on the model and serial number plate (see diagram on page 6 for location of plate).

Please also record the purchase date of your appliance and your dealer’s name, address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Model Number __________________________ Serial Number __________________________ Purchase Date __________________________ Dealer Name ___________________________ Dealer Address _________________________ Dealer Phone ___________________________

Our Consumer Assistance Center number is toll-free 24 hours a day.

1-800-253-1301

Page 3

Cooktop Safety

Your safety is important to us.

This guide contains safety statements under warning symbols. Please pay special attention to these symbols and follow any instructions given. Here is a brief explanation of the use of the symbol.

IMPORTANT SAFETY INSTRUCTIONS

wWARNING

This symbol alerts you to such dangers as fire, electrical shock, burns, and personal injury.

wWARNING

General

•Read all instructions before using

the cooktop.

•Install or locate the cooktop only

in accordance with the provided Installation Instructions. The cooktop must be installed by a qualified installer. The cooktop must be properly connected to electrical supply and grounded.

•CAUTION: Do not store things

children might want above the cooktop. Children could be burned or injured while climbing on it.

•Do not leave children alone or

unattended in area where the cooktop is in use. They should never be allowed to sit or stand on any part of the cooktop. They could be burned or injured.

•Do not operate the cooktop if it is

damaged or not working properly.

To reduce the risk of fire, electrical shock, injury to persons, or damage when using the cooktop, follow basic precautions, including the following:

•Do not use the cooktop for warm-

ing or heating the room. Persons could be burned or injured, or a fire could start.

•Use the cooktop only for its in-

tended use as described in this manual.

•Do not touch surface units or

areas near units. Surface units could be hot even though they are dark in color. Areas near surface units become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near surface units until they have had sufficient time to cool.

continued on next page

Page 4

COOKTOP SAFETY

•Do not wear loose or hanging

garments when using the cooktop. They could ignite if they touch a hot surface unit and you could be burned.

•Use only dry pot holders. Moist or

damp pot holders on hot surfaces could result in burns from steam. Do not let pot holder touch hot heating elements. Do not use a towel or bulky cloth for a pot holder. It could catch on fire.

•Do not heat unopened containers.

They could explode. The hot contents could cause burns and container particles could cause injury.

•Do not store flammable materials

on or near the cooktop. The fumes could create an explosion and/or fire hazard.

penetrate the broken cooktop and

create a risk of electrical shock. Contact a qualified technician immediately.

•Select a pan with a flat bottom

that is about the same size as the surface unit. If pan is smaller than the surface unit, some of the heating element will be exposed and could result in the igniting of clothing or pot holders. Correct pan size also improves cooking efficiency.

•Check to be sure glass cooking

utensils are safe for use on the cooktop. Only certain types of glass, glass-ceramic, ceramic, earthenware, or other glazed utensils are suitable for cooktops without breaking due to the sudden change in temperature.

•Never leave surface units un-

attended at high heat settings. A boilover could result and cause smoking and greasy spillovers that could ignite.

When using the cooktop

•Make sure the reflector bowls are

in place during cooking. Cooking without reflector bowls could subject the wiring and components underneath them to damage.

•Do not line reflector bowls or grill

basin with aluminum foil or other liners. Improper installation of these liners could result in a risk of electrical shock or fire.

•Do not cook on a broken cooktop.

If cooktop should break, cleaning solutions and spillovers could

•Turn pan handles inward, but not

over other surface units. This will help reduce the chance of burns, igniting of flammable materials, and spills due to bumping of the pan.

Page 5

COOKTOP SAFETY

Grease

•Grease is flammable. Do not allow

grease to collect around cooktop. Wipe spillovers immediately.

•Do not use water on grease fires.

Never pick up a flaming pan. Smother flaming pan by covering with a well-fitted lid, cookie sheet, or flat tray. Flaming grease outside of pan can be extinguished with baking soda or, if available, a multipurpose dry chemical or foam-type extinguisher.

Care and cleaning

•Clean cooktop with care. Some

cleaners could produce noxious fumes if applied to a hot surface. If a wet paper towel is used to wipe spills on a hot cooking area, be careful to avoid steam burns.

•Do not soak removable heating

elements in water. The element will be damaged and shock or fire could result.

•Do not repair or replace any part

of the cooktop unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.

•Disconnect the electrical supply

before servicing the cooktop.

•Keep all switches off when unit is

not in use.

•Clean only parts listed in this

manual and use procedures recommended.

•This appliance has been tested

for safe performance using conventional cookware. Do not use any devices or accessories that are not specifically recommended in this manual. Do not use eyelid covers for the surface units or stovetop grills. The use of devices or accessories that are not expressly recommended in this manual can create serious safety hazards, result in performance problems, and reduce the life of the components of the appliance.

– SAVE THESE INSTRUCTIONS –

Page 6

Getting

to Know Your

Cooktop

This section contains captioned illustrations of your cooktop. Use them to become familiar with the location and appearance of all parts and features. To help you find information on specific parts and features quickly, page references are included.

Optional grill cover accessory

(p.n. RCM50DB/Q) (pp. 25, 26, 29)

Optional griddle accessory

(p.n. RCM40DB) (pp. 30-33)

Optional grill element, grillrocks, and grates

(p.n. RCM20DB) (pp. 23, 28, 29, 33)

Vent

Basins Model and serial

number plate

NOTE: Grill and griddle accessories can be

installed in either basin on Model RC8700ED. Coil and ceramic surface unit accessories can be installed in both basins on Model RC8700ED. On Model RC8720ED, the right side has nonremovable coil surface units.

Air grille

Optional ceramic surface

unit accessory

(p.n. RCM30DB/DQ)

(pp. 16-22)

Optional coil surface

unit accessory

(p.n. RCM10DB/DQ)

(pp. 9-15)

(Model RC8720ED comes

with nonremovable coil

surface units)

Control panel

(pp. 7, 8)

Vent Chamber

Drain jars

(Model RC8720ED only has

one jar, in the left bay.)

(p. 29)

Control panel

Vent fan control knob

(p. 34)

Left rear control knob

(pp. 7, 8)

Left front control knob

(pp. 7, 8)

Right rear control knob

(pp. 7, 8)

Right front

control knob

(pp. 7, 8)

Surface unit

indicator light

(p. 7)

Page 7

Controls

Using

Your cooktop’s easy-to-use controls will work for all of the accessories. Please review this section before cooking with your cooktop to learn the few basics you’ll need to use them correctly.

Turning the knobs

Push down on control knobs before turning them to a setting. You can set

them anywhere between HI and LO.

NOTES:

• When the knob is set in any position,

other than OFF, you can turn it in any direction without pushing down.

• When using the grill element (see pages

23-28), you can use either the whole grill area or only half the grill area. To use the whole area, turn on both the front and rear control knobs. To use half the area, turn on only one of the control knobs.

Until you get used to the settings, use the following as a guide for surface element cooking.

SETTING RECOMMENDED USE

HI • To start foods cooking.

• To bring liquids to a boil.

7-10 • To hold a rapid boil.

• To fry chicken.

5-6

3-4

LO-2 • To keep food warm until

• Most frying, including

pancakes.

• To cook large amounts

of vegetables.

• For gravy, pudding, and

icing.

• To keep food cooking

after starting it on a higher setting.

ready to serve.

wWARNING

Surface unit indicator light

The Surface Unit Indicator Light on the

control panel will glow when any surface unit/grill element control knob is on.

Fire Hazard

Turn off all controls when done cooking.

Failure to do so can result in death, fire, or burns.

Page 8

CONTROLS

Caring for controls

NOTE: Let cooktop cool before cleaning.

Use this chart to help you clean your control knobs and panel.

PART Control knobs

Control panel

WHAT TO USE

Sponge and warm, soapy water

Dishwasher

Sponge and warm, soapy water

Paper towel and mild liquid soap

HOW TO CLEAN

• Turn knobs to OFF and pull

straight away from control panel.

• Wash, rinse, and dry well. Do

not soak.

• Do not use steel wool or gritty

cleansers. They may damage the finish.

• Replace knobs. Make sure all

knobs point to OFF.

• Wash, wipe with clean water,

and dry well.

• Do not use steel wool or gritty

cleansers. They may damage the finish.

• Do not spray cleaner directly on

panel. Spray cleaner on paper towel.

Page 9

Coil Elements

Installing

You can install extra coil elements in the left basin (Model RC8720ED) or both basins (Model RC8700ED) of your cooktop. To get the coil element accessory, order Part Number RCM10DB/DQ from a Whirlpool service company or dealer (see Step 2 on page 38) or call the Whirlpool Consumer Assistance Center toll-free 1-800-253-1301.

To install:

Terminal

receptacle

Terminal

plug

1. Make sure the control knobs are

turned off.

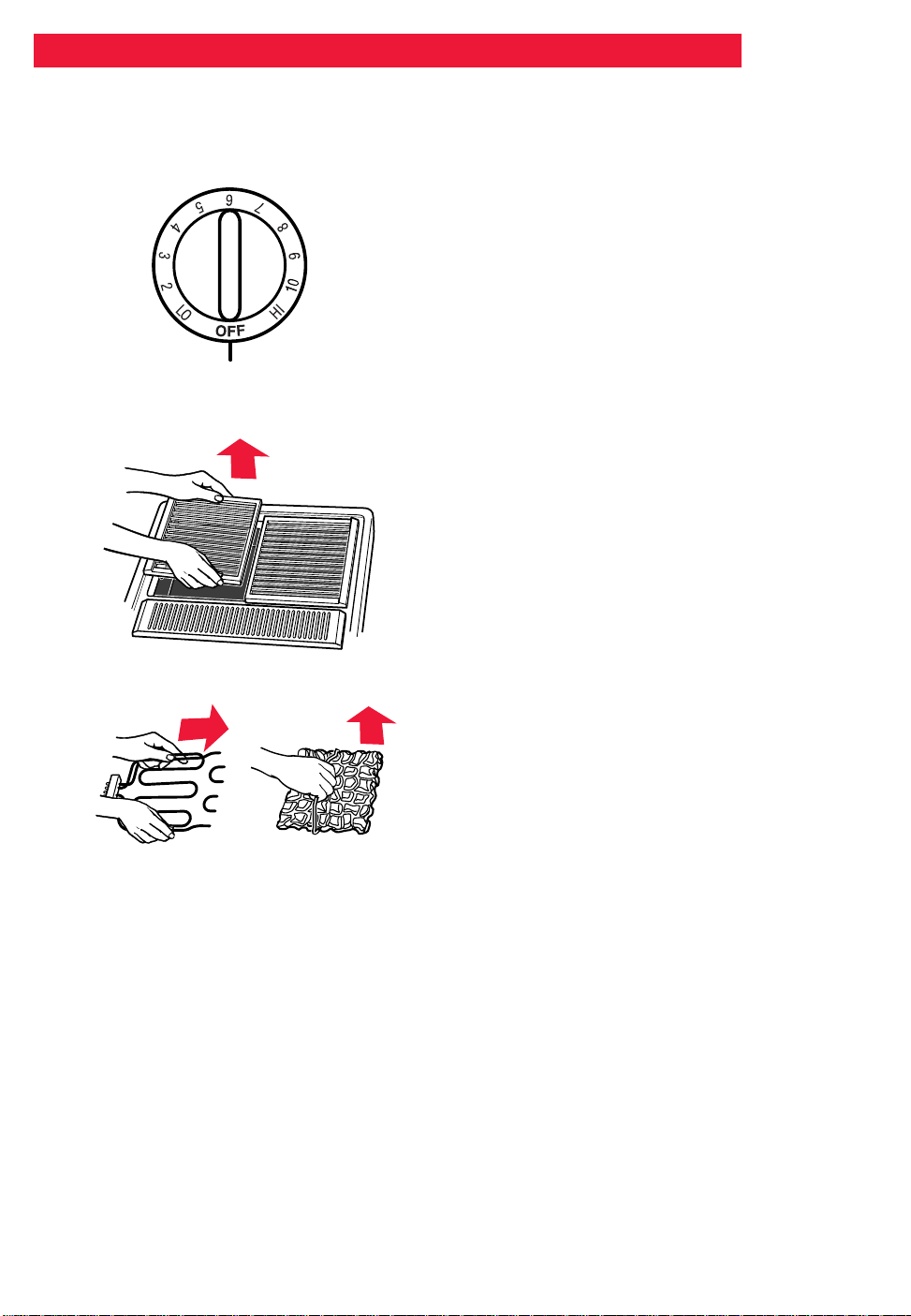

2. If the grill grates, element, and grill-rocks

are in place, remove them before installing coil elements. Clean out any grease that may be in the basin. (See page 24 for more information.)

Terminal

receptacle

Terminal

plug

4. Slide the accessory towards the recep-

tacle until the terminal plug is firmly set in receptacle.

5. Lower the opposite end of the accessory

into the cooktop until it is flush with the surface.

3. Position the accessory terminal plug

towards the terminal receptacle.

continued on next page

Page 10

COIL ELEMENTS

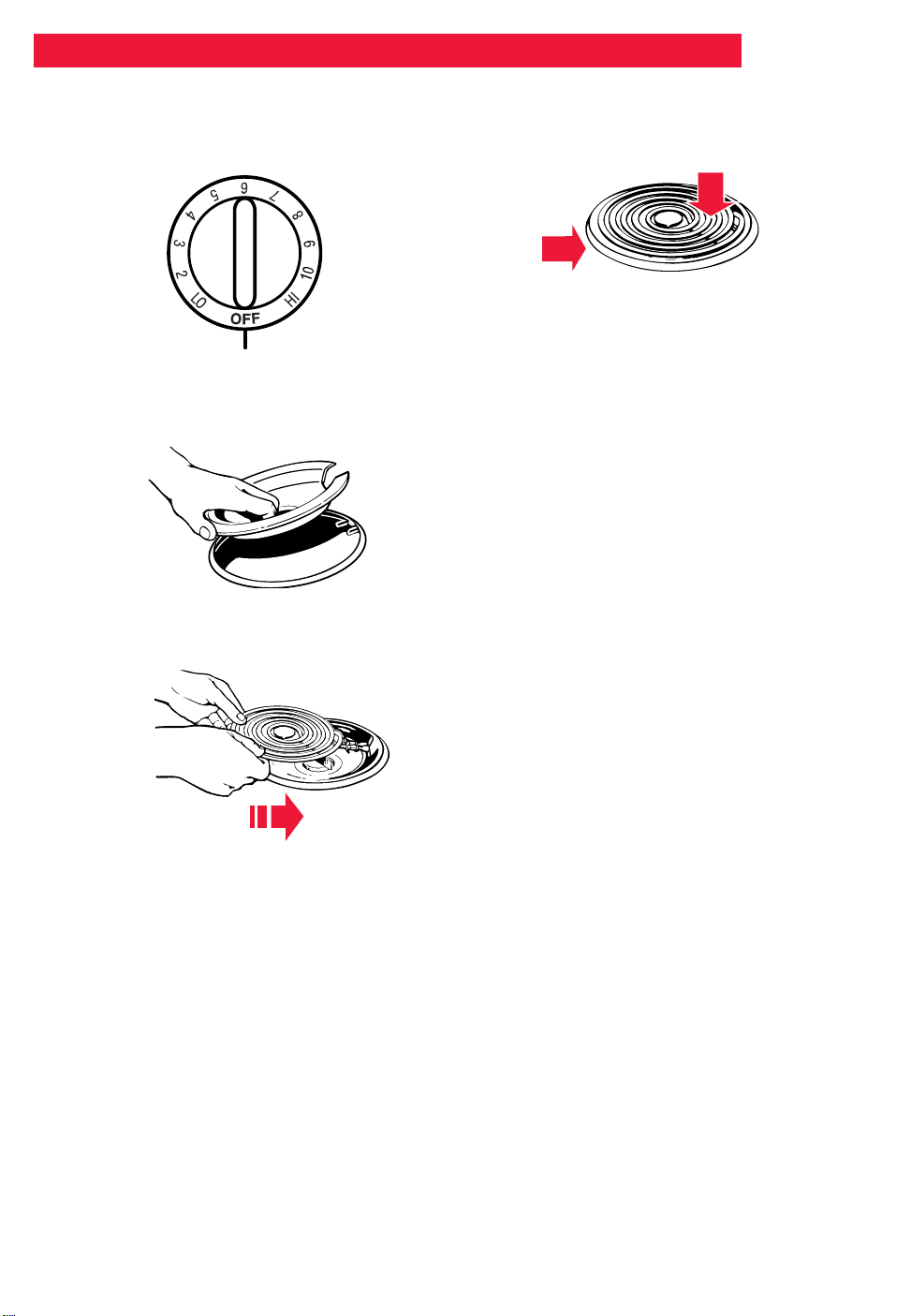

To remove:

1. Make sure the control knobs are turned

off and the cooktop is cool.

Tab

Opening

Terminal

receptacle

3. To pull out the accessory, hold it by the

sides and slide away from the terminal receptacle. Lift out when fully unplugged.

NOTE: Do not stack accessories where they

may fall or be damaged.

2. Lift up on the “tab” located on the

accessory until the top of the accessory clears the opening of the cooktop by about two inches. Lifting the accessory too high while still set firmly in receptacle could damage the terminal plug.

Page 11

Using

COIL ELEMENTS

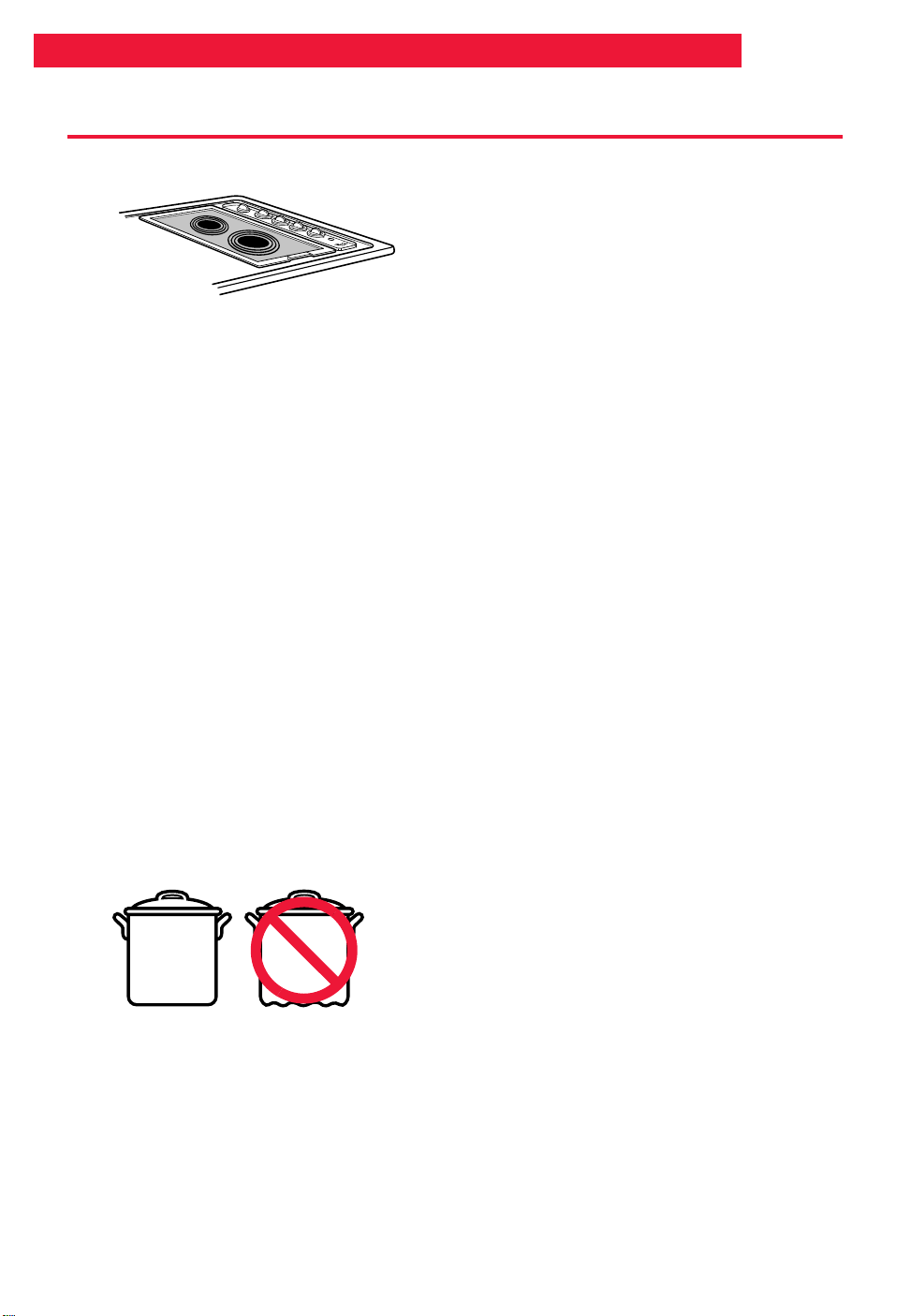

Cookware tips

• Select a pan that is about the same size

as the surface unit.

• NOTE: For best results and greater

energy efficiency, use only flat-bottomed

cookware that makes good contact with the surface units. Cookware with rounded, warped, ribbed (such as some porcelain enamelware), or dented bottoms could cause severe overheating, which damages the cookware and/or surface unit.

You can, however, use the newer cookware available with slightly indented bottoms or very small expansion channels. This cookware is specially designed to provide the good contact needed for best cooking results.

Also, woks, canners, and teakettles with flat bottoms suitable for use on your cooktop are now available in most stores that sell housewares.

• The pan should have straight sides and a

tight-fitting lid.

• Choose medium to heavy gauge (thick-

ness) pans that are fairly lightweight.

• The pan material (metal or glass) affects

how fast heat transfers from the surface unit through the pan material and how evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.

• Handles should be made of sturdy, heat-

resistant material and be securely attached to the pan.

NOTES:

• If a surface unit stays red for a long time,

the bottom of the pan is not flat enough or is too small for the surface unit, or the control has been left on HI after boiling. Prolonged usage of utensils that are too large could result in damage to the surface unit, cooktop, wiring, and surrounding areas. To prevent damage, use correct utensils and turn control down to continue cooking.

• Do not leave an empty utensil, or one

which has boiled dry, on a hot surface unit. The utensil could overheat and damage the utensil or surface unit.

Page 12

COIL ELEMENTS

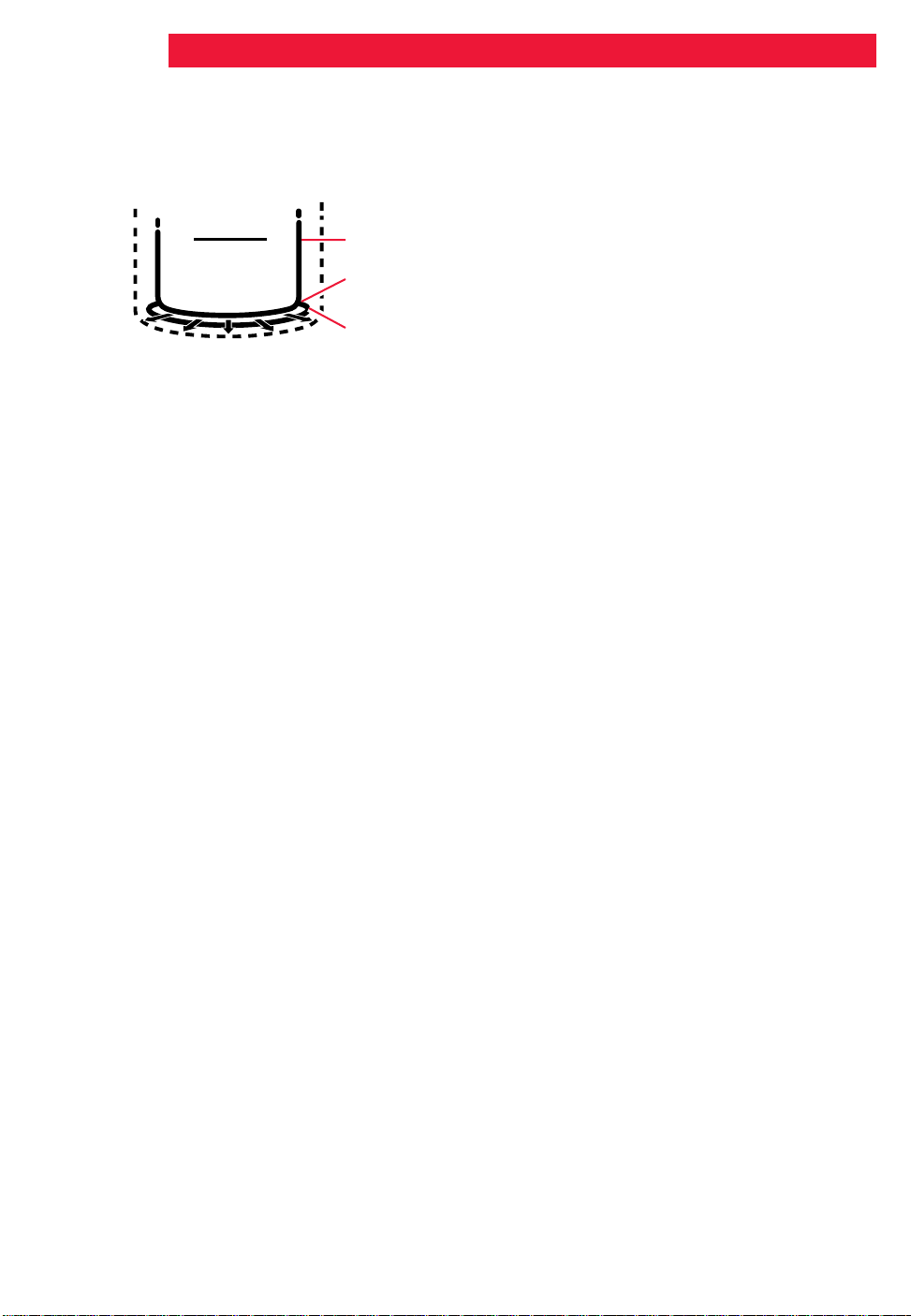

Home canning information

To protect your cooktop:

• Use flat-bottomed canners/pans for best

results.

• Use the largest surface unit for best

results. Also, use a canner/pan which can be centered over the surface unit and which does not extend more than one inch outside surface unit area. Large diameter canners/pans, if not properly centered, trap heat and can cause damage to the cooktop.

• Do not place canner on two surface units

at the same time. Too much heat will build up and will damage the cooktop.

• Start with hot water. This reduces the

time the control is set on high. Reduce heat setting to lowest position needed to keep water boiling.

• Keep reflector bowls clean for best heat

reflection.

• To prolong the life of the elements:

– Prepare small batches at a time. – Do not use elements for canning all

day.

• Refer to your canner manual for specific

instructions.

Energy saving tips

Although the energy used for cooking is usually a very small percentage of the total energy used in the home, cooking energy can be used efficiently. Here are some tips to help you save energy when using your cooking product:

• Use pans with flat bottoms, straight sides,

and tight-fitting lids.

• Match the pan to the surface unit size.

• Cook with a minimum of liquid or fat to

help shorten cooking time.

• Preheat pans only when recommended

and for the shortest time possible.

• Start food on higher heat settings, then set

surface unit control on low or off to finish cooking. Use retained heat for cooking when possible.

• Turn on the surface unit only after placing

filled pan on the unit.

• Plan your meals for the most efficient use

of the cooktop.

Page 13

Caring for coil elements

Your coil element cooktop is designed for easy care. You can do most cleaning with items found around your home. Cleaning your coil element cooktop whenever spills or soiling occurs will help to keep it looking and working like new.

NOTE: Let cooktop cool before cleaning.

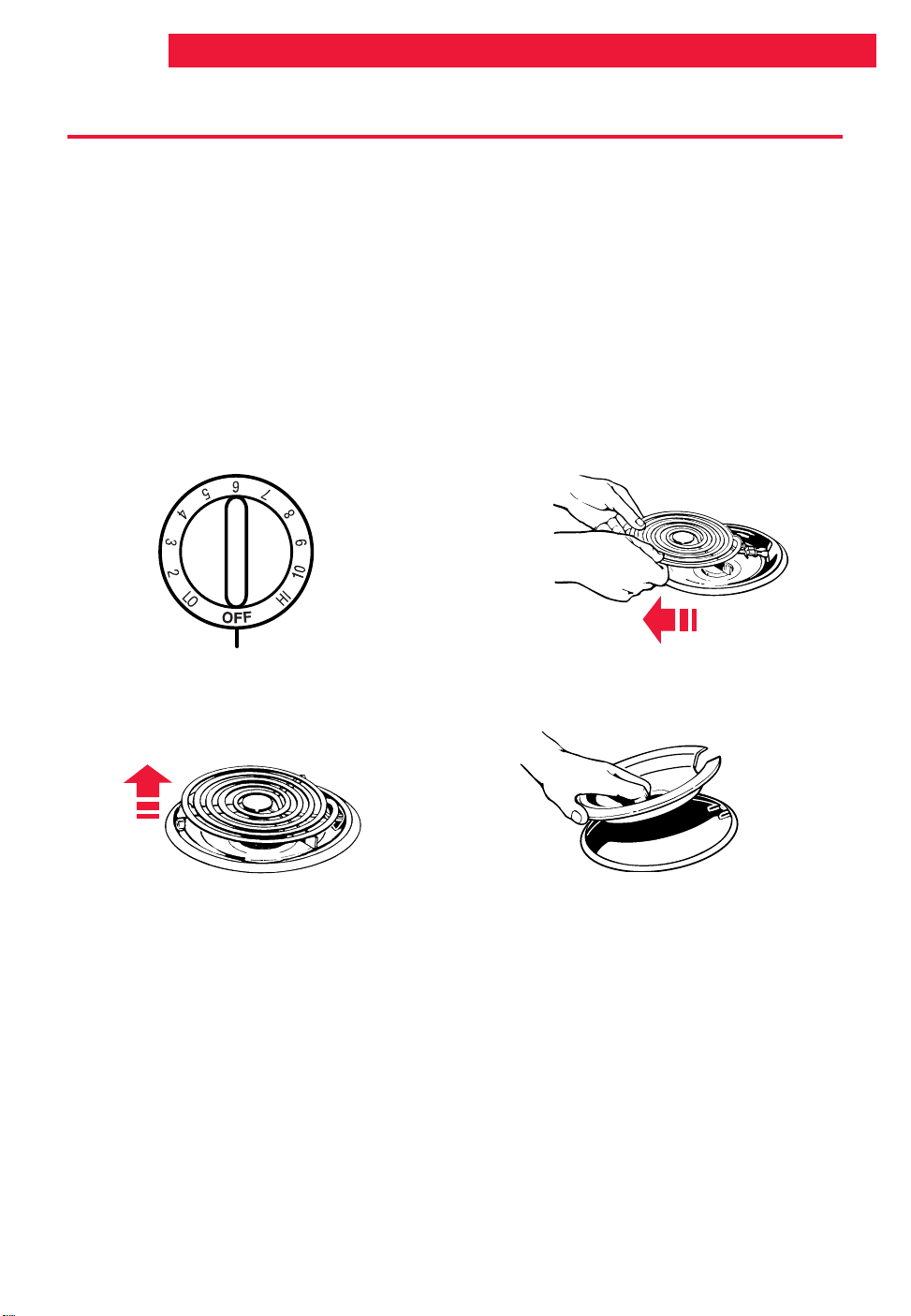

Removing elements and reflector bowls

Removing

COIL ELEMENTS

1. Make sure all surface units are off and

cool before removing surface units and reflector bowls.

2. Lift the edge of the unit, opposite the

receptacle, just enough to clear the reflector bowl.

3. Pull the surface unit straight away from

the receptacle.

4. Lift out the reflector bowl. See “Cleaning

chart” on page 15 for cleaning instructions.

Page 14

COIL ELEMENTS

Replacing

1. Make sure all surface units are off and

cool before replacing surface units and reflector bowls.

2. Line up openings in the reflector bowl

with the surface unit receptacle.

4. While terminal is pushed into the

receptacle as far as it will go, push down the edge of the surface unit

opposite the receptacle.

NOTE: Reflector bowls reflect heat back to

the utensils on the surface units. They also help catch spills. When they are kept clean, they reflect heat better and look new longer.

If a reflector bowl gets discolored, some of your utensils may not be flat enough, or some may be too large for the surface unit. In either case, some of the heat that’s meant to go into or around a utensil goes down and heats the reflector bowl. This extra heat can discolor it.

3. Hold the surface unit as level as possible

with the terminal just started into the receptacle. Push the surface unit terminal into the receptacle.

Page 15

Cleaning chart

Use this chart to clean all parts of your coil element cooktop.

COIL ELEMENTS

PART Surface units

Chrome reflector bowls

Exterior surfaces

(other than control panel)/area under

cooktop

NOTE: Never immerse the cartridge in water to clean. This can damage wiring. A drain hole

within the cartridge permits drainage of normal spills into the porcelain basin pan where it will drain into the grease container. If needed, you can wipe the bottom of the cartridge clean with detergent solution.

WHAT TO USE

No cleaning required

Warm, soapy water and a nonabrasive, plastic scrubbing pad

Sponge and warm, soapy water

HOW TO CLEAN

• Spatters or spills will burn off.

• Do not immerse in water.

• Wash, rinse, and dry well.

• Clean often.

• Do not use gritty or harsh

cleansers.

• Wash, wipe with clean water,

and dry well.

• Use nonabrasive, plastic scrubbing

pad on heavily soiled areas.

• Do not use gritty or harsh cleans-

ers. They may damage the finish.

NOTE: Do not allow foods containing

acids (such as vinegar, tomato, or lemon juice) to remain on surface. Acids may remove the glossy finish. Also wipe up milk or egg spills when cooktop is cool.

Page 16

Ceramic Surface Units

Installing

You can install ceramic surface units in the left basin (Model RC8720ED) or both basins (Model RC8700ED) of your cooktop.

NOTE: The pictures in this section show the

ceramic surface unit installed in the left basin, where the receptacle is in the front wall of the basin. To get the ceramic surface unit accessory, order Part Number RCM30DB/DQ from a Whirlpool service company or dealer (see Step 2 on page 38) or call the Whirlpool Consumer Assistance Center toll-free 1-800-253-1301.

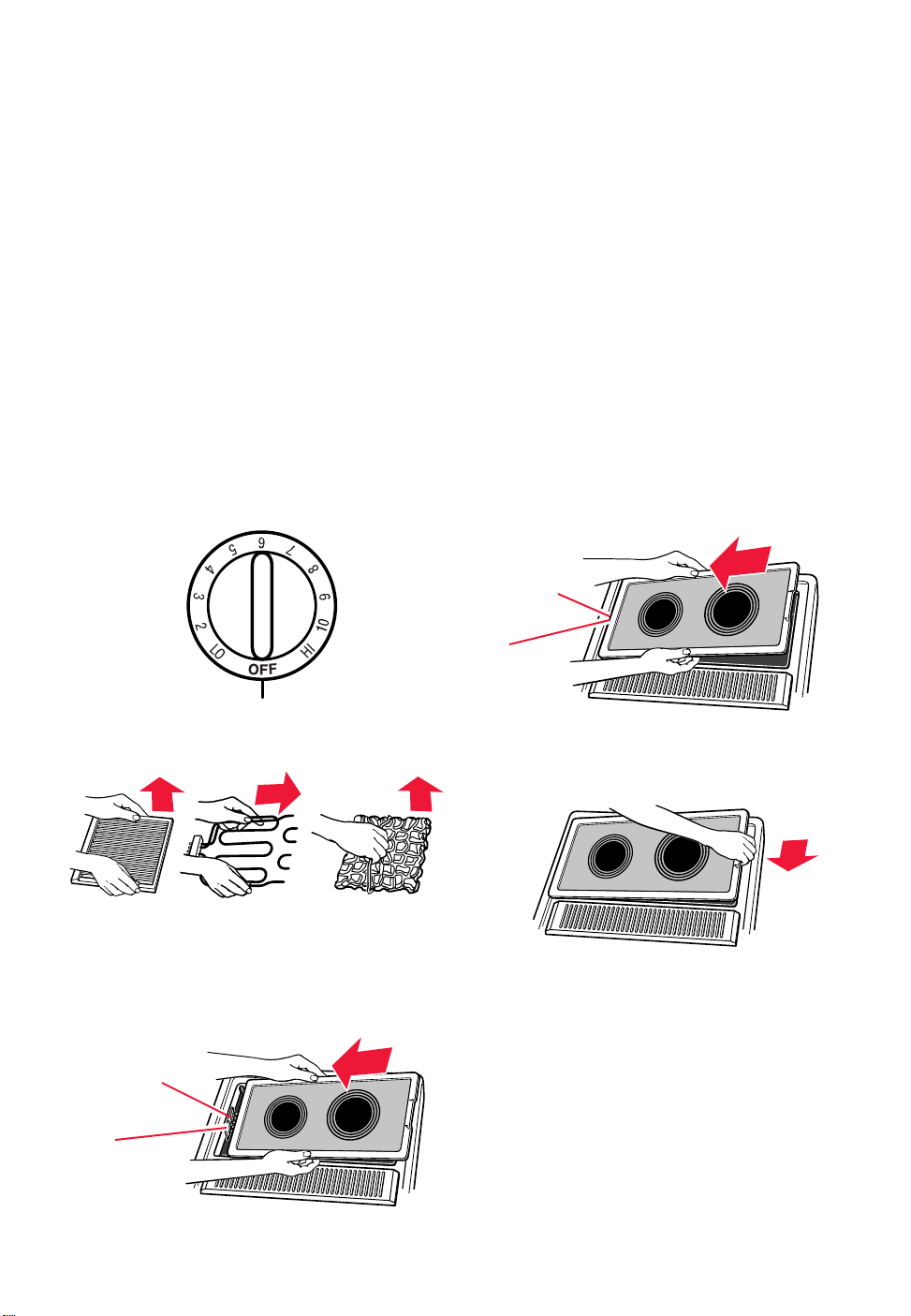

To install:

Terminal receptacle

Terminal plug

1. Make sure the control knobs are

turned off.

2. If the grill grates, element, and grill-rocks

are in place, remove them before installing ceramic surface units. Clean out any grease that may be in the basin. (See page 24 for more information.)

Terminal receptacle

Terminal plug

3. Position the accessory terminal plug

towards the terminal receptacle.

4. Slide the accessory towards the recep-

tacle until the terminal plug is firmly set in receptacle.

5. Lower the opposite end of the accessory

into the cooktop until it is flush with the surface.

Page 17

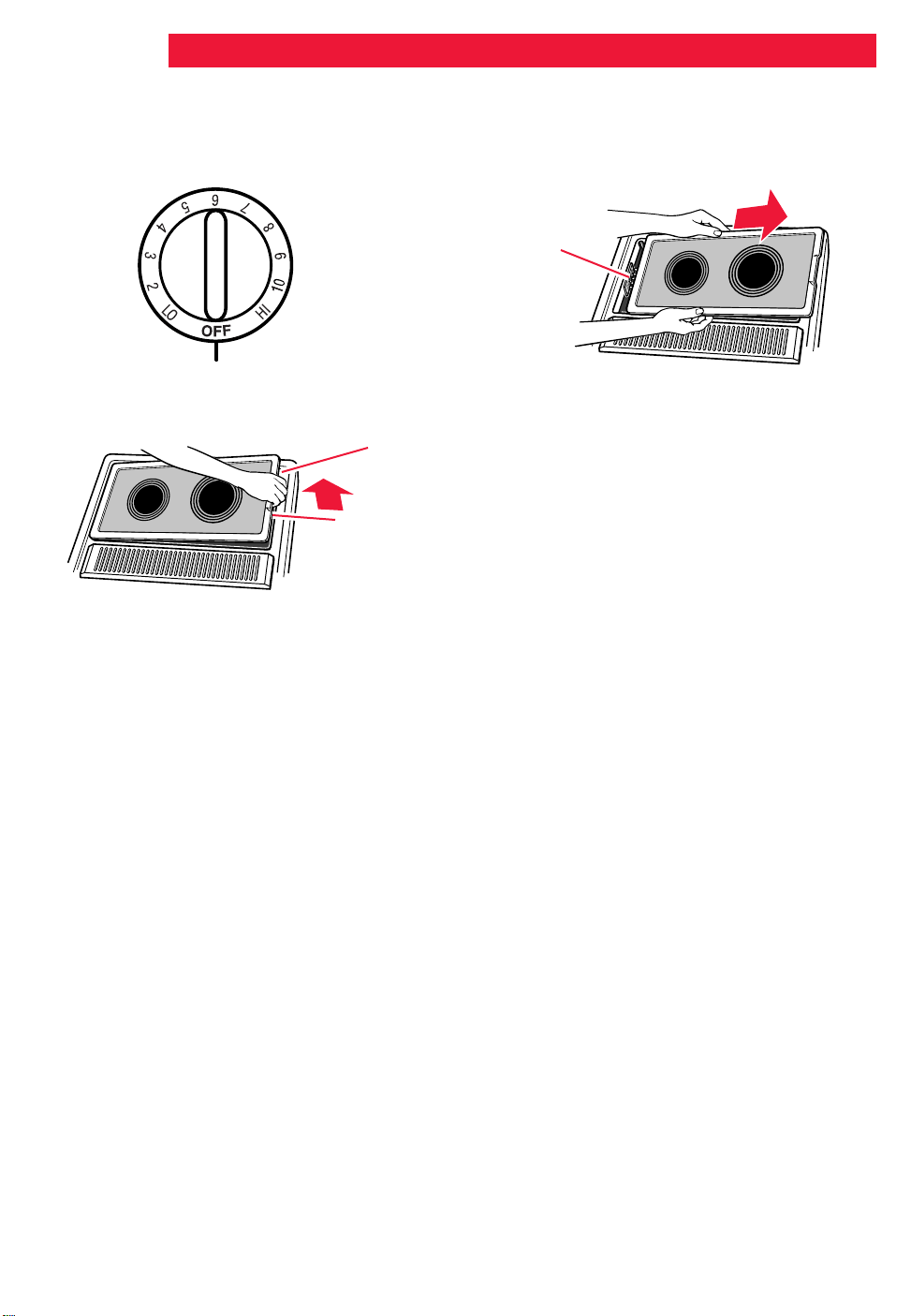

To remove:

CERAMIC SURFACE UNITS

Terminal receptacle

1. Make sure the control knobs are turned

off and the cooktop is cool.

Tab

Opening

2. Lift up on the “tab” located on the

accessory until the top of the accessory clears the opening of the cooktop by about two inches. Lifting the accessory too high while still set firmly in receptacle could damage the terminal plug.

3. To pull out of the terminal, hold acces-

sory by the sides and slide away from the terminal receptacle. Lift out when fully unplugged.

NOTE: Do not stack accessories where they

may fall or be damaged. Never store other materials on top of a glass-ceramic accessory since this could damage or mar the surface.

Page 18

CERAMIC SURFACE UNITS

Using

Cooking on the ceramic glass cooktop is almost the same as cooking on coil surface units. There are, however, a few differences:

• The surface unit will glow red when it is

turned on. You will see the element cycling on (glowing red) and off – even on HI setting – to maintain the proper temperature setting you have selected.

• Sliding metal pans on ceramic glass

cooktop surface could leave marks. Wiping off the cooktop before and after each use will help keep the surface free from stains and provide the most even heating. See pages 20-22 for care and cleaning suggestions.

• When preparing foods which can be

easily scorched or over-cooked, start cooking at a lower temperature setting and gradually increase temperature as needed.

• Do not use or place plastic items any-

where on the cooktop.

Cookware tips

• Select a pan that is about the same size

as the surface unit.

Also, woks, canners, and teakettles with flat bottoms suitable for use on your cooktop are now available in most stores that sell housewares.

• The pan should have straight sides and a

tight-fitting lid.

• Choose medium to heavy gauge (thick-

ness) pans that are fairly lightweight.

• The pan material (metal or glass) affects

how fast heat transfers from the surface unit through the pan material and how evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.

• Handles should be made of sturdy, heat-

resistant material and be securely attached to the pan.

• With your hand, feel the bottom of your

pans while they are cool for nicks and scratches. Nicks and scratches on pan bottoms will scratch the ceramic glass cooktop.

• Make sure bottoms of pans are clean and

dry before using on cooktop.

• Avoid spillovers on cooktop. Use pans

with tall sides.

• Do not cook food directly on cooktop.

NOTE: Do not leave an empty utensil, or

one which has boiled dry, on a hot surface unit. The utensil could overheat and damage the utensil or surface unit.

• NOTE: For best results and greater

energy efficiency, use only flat-bottomed

cookware that makes good contact with the surface units. Cookware with rounded, warped, ribbed (such as some porcelain enamelware), or dented bottoms could cause uneven heating and poor cooking results.

Page 19

CERAMIC SURFACE UNITS

Home canning information

center over

surface unit

1" 1"

1 inch

maximum

overhang

• Acceptable canning pots should not be

oversized and must have a flat bottom.

• Use the largest surface unit for best

results. Also, use a canner/pan which can be centered over the surface unit.

• Start with hot water. This reduces the

time the control is set on high. Reduce heat setting to lowest position needed to keep water boiling.

• Refer to your canner manual for specific

instructions.

Pan Flat Bottom

Surface unit

Energy saving tips

• Use pans with flat bottoms, straight sides,

and tight-fitting lids.

• Match the pan to the surface unit size.

• Cook with a minimum of liquid or fat to

help shorten cooking time.

• Preheat pans only when recommended

and for the shortest time possible.

• Start food on higher heat settings, then set

surface unit control on low or off to finish cooking. Use retained heat for cooking when possible.

• Turn on the surface unit only after placing

filled pan on the unit.

• Plan your meals for the most efficient use

of the cooktop.

Page 20

CERAMIC SURFACE UNITS

Caring for ceramic surface units

This cooktop is designed for easy care. However, ceramic cooktops need to be maintained differently than standard electric open-coil elements. Foods spilled directly on the cooktop will not burn off as on open-coil elements. Because of this, the surface should be dust free and soil free before heating.

Your cooktop has been prepolished at the factory for improved protection and cleanability. The Cooktop Polishing Creme (see ordering information on page 21), a razor scraper, and paper towels or a sponge are all you need to clean your cooktop. For proper cleaning methods, please review “Cleaning tips” on pages 21. Follow them after each use to ensure top performance and to preserve that uniquely elegant look.

To avoid damaging the cooktop, follow these instructions:

• Sugar spills and soils (such as jellies and

candy syrups) can cause pitting on the cooktop if not removed while the ceramic surface is still warm. Remove as soon as possible after the spill occurs.

• Do not use the cooktop as a cutting

board.

• Do not allow anything that could melt (such

as plastic or aluminum foil) to come in contact with the surface while it is hot.

• Do not use the ceramic cooktop to cook

popcorn that comes in prepackaged aluminum containers. The container could leave aluminum marks on the cooktop that cannot be removed completely.

• Do not use steel wool, plastic cleaning

pads, abrasive, powdered cleansers, chlorine bleach, rust remover, ammonia, or glass cleaning products with ammonia. These could damage the cooktop surface.

• Dropping heavy or hard objects on the

cooktop could crack it. Be careful with heavy skillets. Do not store jars or cans above the cooktop.

Page 21

CERAMIC SURFACE UNITS

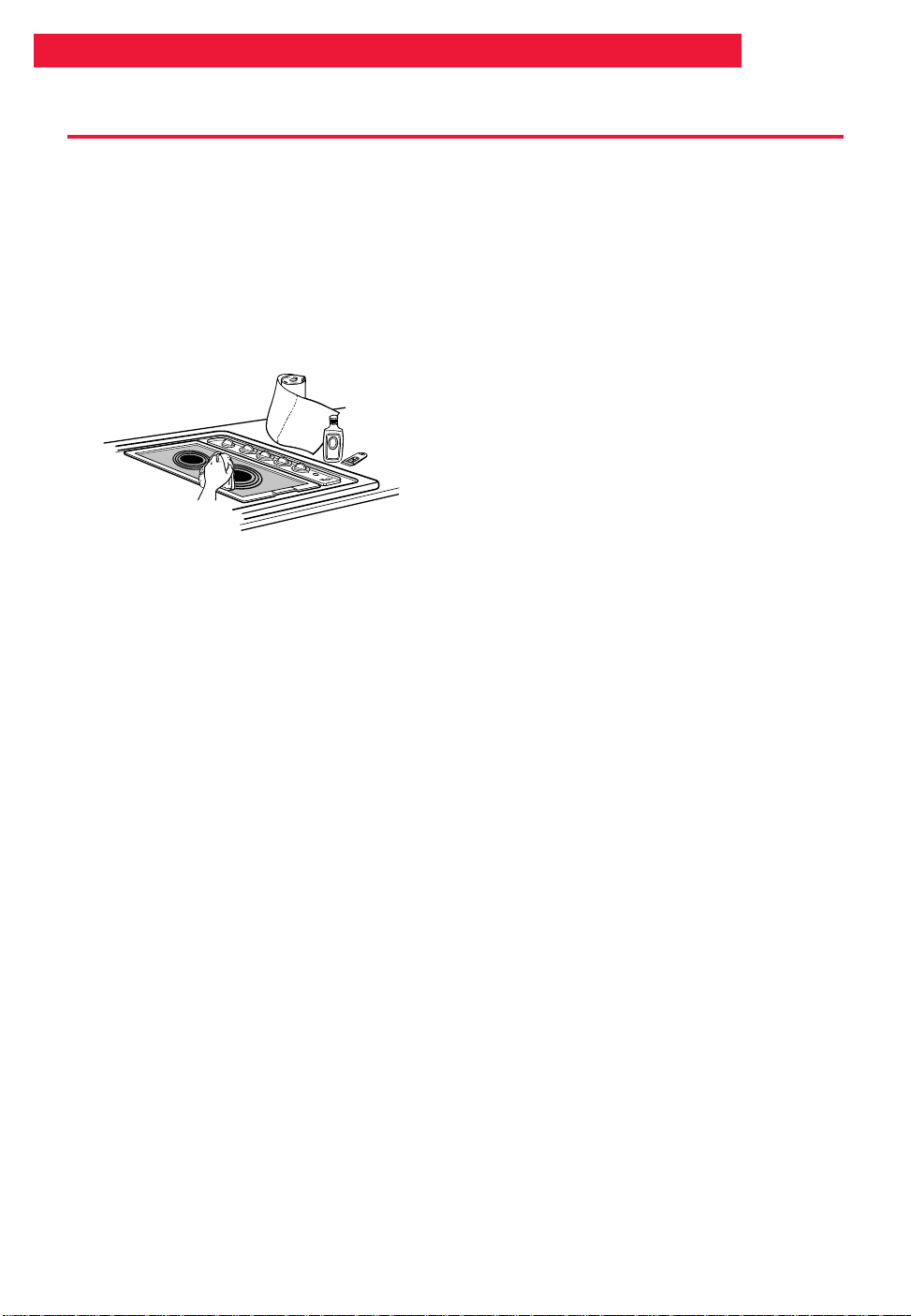

Cleaning tips

What to use:

• Cooktop Polishing Creme with paper

towel or clean, damp sponge – This creme has been developed especially for cleaning and protecting your cooktop. When using, follow instructions on container.

• Razor scraper – Use to remove cooked-

on soils from your ceramic cooktop. To avoid scratches, keep the razor blade as flat against the cooktop as possible. Store

razor blades out of reach of children.

Steps to follow:

1. Most spills can be wiped off easily using

a paper towel or clean, damp sponge as soon as Surface Unit Indicator Light(s) goes off and cooktop is cool.

2. For stubborn spills, rub Cooktop Polish-

ing Creme into cooked-on soil using a paper towel. If some soil remains, leave some creme on the spot(s) and follow Step 3.

3. Carefully scrape spots with the razor

scraper.

4. Finish by polishing entire cooktop with

Cooktop Polishing Creme and a paper towel.

To obtain order information for Cooktop Polishing Creme (Part No. 3184477) or razor scraper (Part No. 3183488), write to:

Whirlpool Corporation Attention: Customer Service Dept. 1900 Whirlpool Drive LaPorte, IN 46350

Call 1-800-253-1301 to order. You must have a major credit card to order by phone.

How to keep your cooktop looking like new:

IF THERE ARE Sugary spills

and soils (such

as jellies and candy syrups)

Dark streaks, specks, and discoloration

Metal marks

(from copper or aluminum pans)

Tiny scratches or abrasions

WHAT TO DO

To prevent pitting on the cooktop, carefully use a single-edge razor blade held with a pot holder to scrape the melted material or sugary boilover to a cooler area of the cooktop. Use several layers of paper towels to wipe up the spillover, being careful not to burn yourself. When the element has cooled, use the razor blade to scrape off the remaining soil.

Use Cooktop Polishing Creme or nonabrasive cleanser with damp paper towel or sponge.

Use Cooktop Polishing Creme or nonabrasive cleanser with damp paper towel or sponge before heating the cooktop again. If heated before cleaning, metal marks may not come off.

Scratches and abrasions do not affect cooking. In time, they will become less visible as a result of cleaning. To prevent scratches and abrasions, use Cooktop Polishing Creme regularly.

NOTE: Always wipe with clean water and dry

your cooktop thoroughly after using cleanser to prevent streaking or staining.

Page 22

CERAMIC SURFACE UNITS

Cleaning chart

PART Exterior surfaces

(other than control panel and cooktop)/

area under cooktop

WHAT TO USE

Sponge and warm, soapy water

HOW TO CLEAN

• Wash, wipe with clean water, and

dry well.

• Use nonabrasive, plastic scrubbing pad

on heavily soiled areas.

• Do not use gritty or harsh cleansers.

They may damage the finish.

NOTE: Do not allow foods containing

acids (such as vinegar, tomato, or lemon juice) to remain on surface. Acids may remove the glossy finish. Also, wipe up milk or egg spills when cooktop is cool.

Page 23

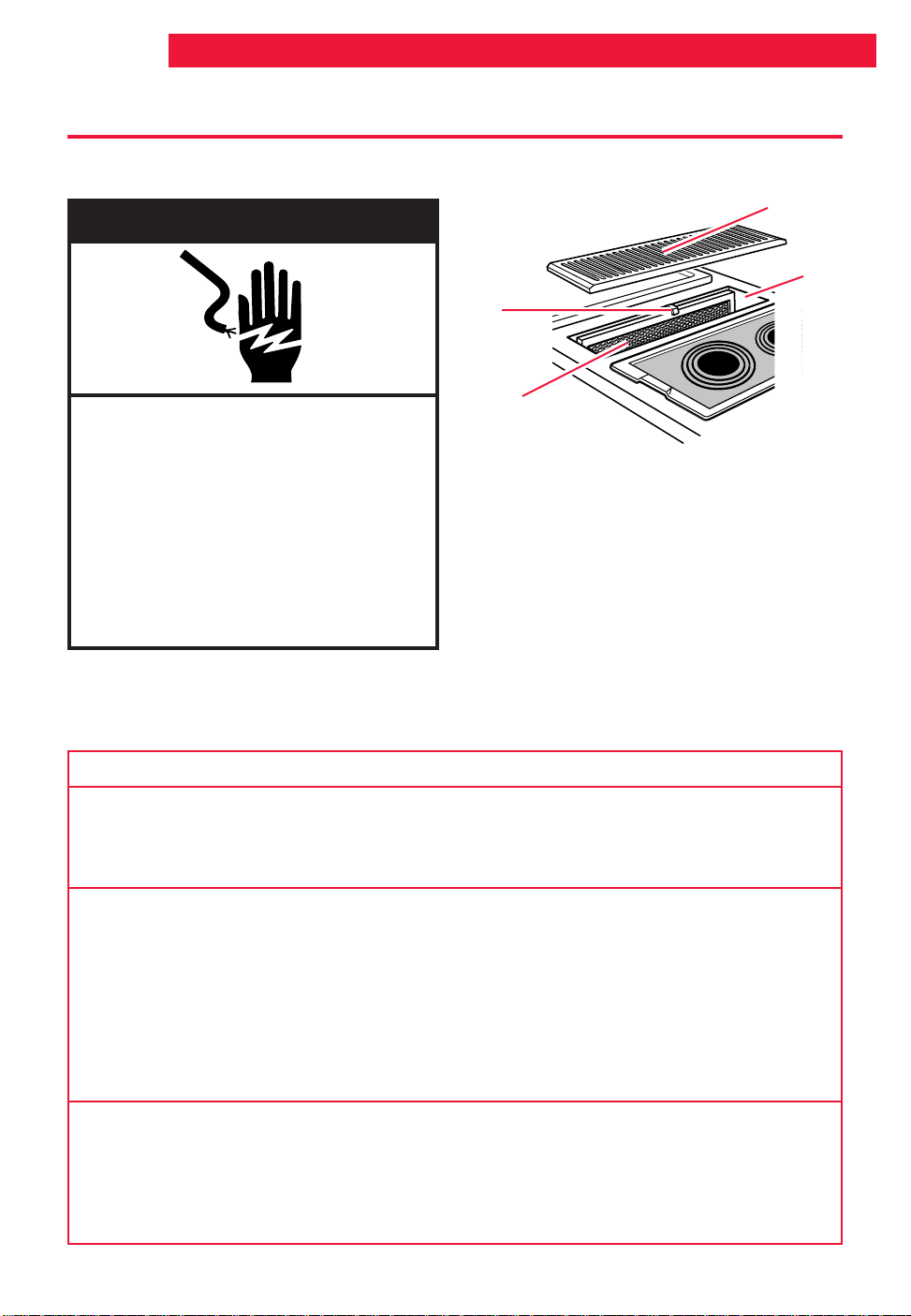

Grill

Installing

The grill is made up of two black grill grates, a grill element, and two grill-rocks. To get the grill accessory, order Part Number RCM20DB from a Whirlpool service company or dealer (see Step 2 on page 38) or call the Whirlpool Consumer Assistance Center toll-free

1-800-253-1301.

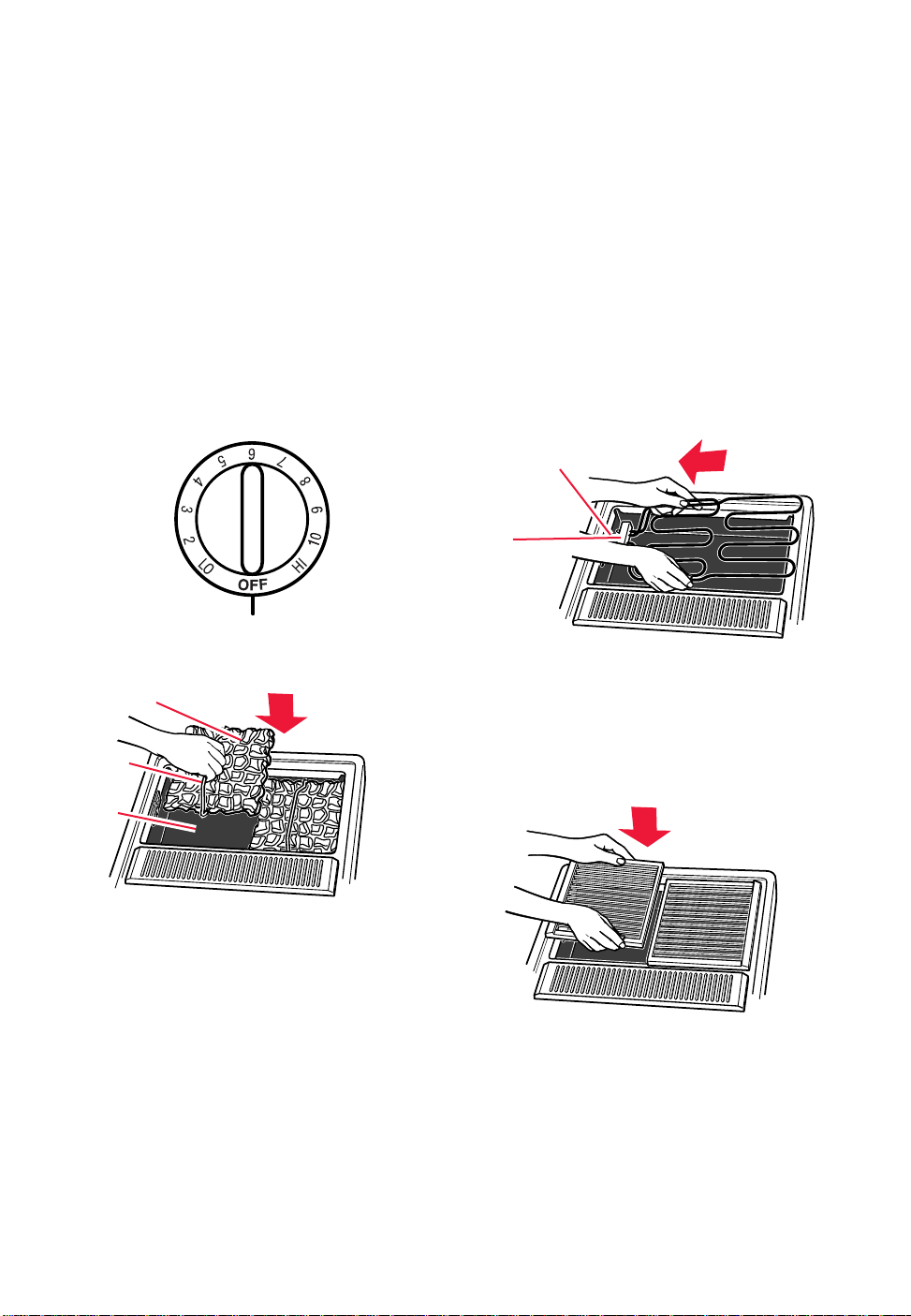

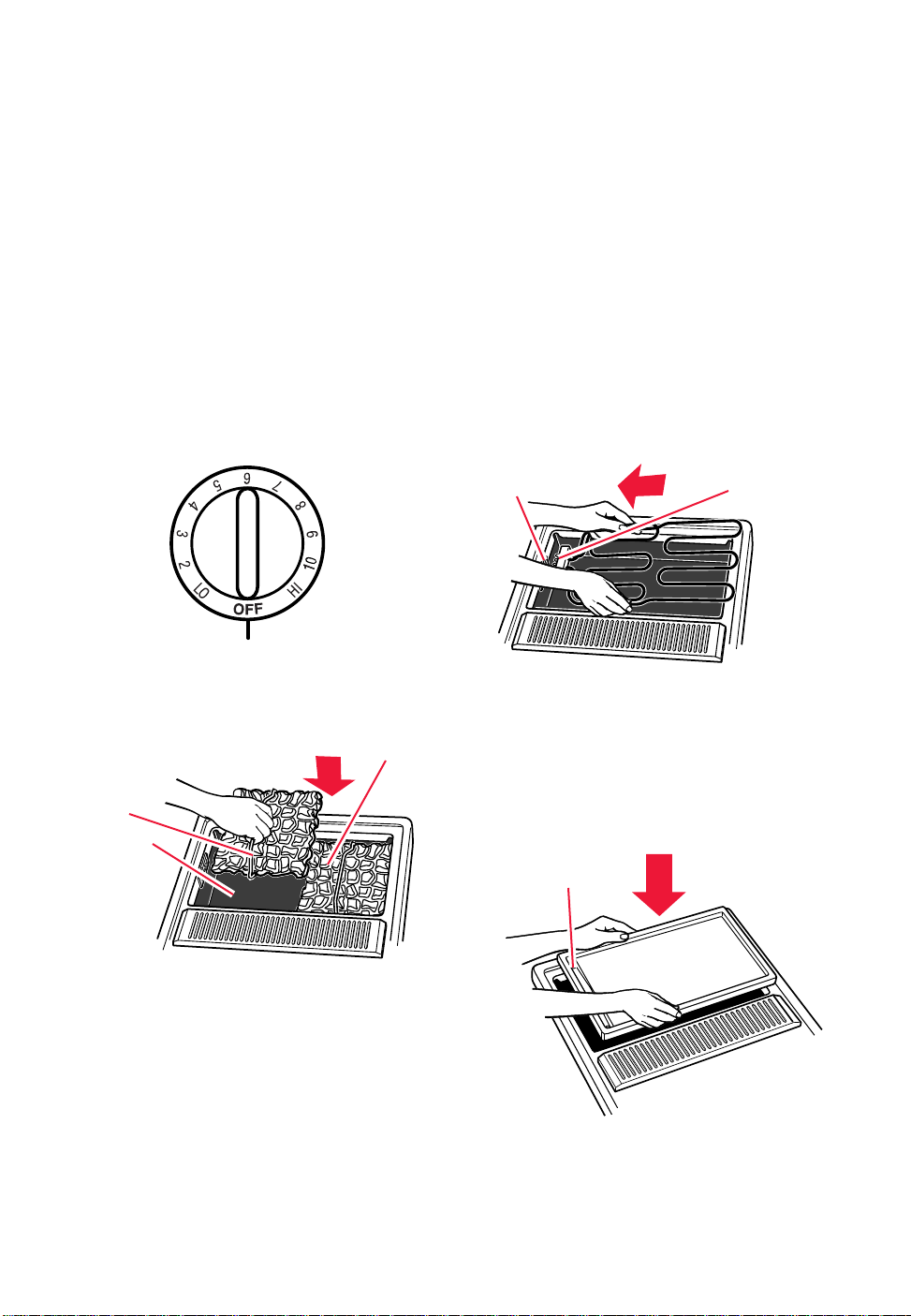

To install:

1. Make sure the control knobs are turned off.

Grill-rocks

Handle

Terminal receptacle

Terminal plug

3. Position the grill element with the

terminal plug towards the terminal receptacle. Slide the element towards the receptacle until the terminal plug is all the way inside it. The grill element should rest on the handles of the grill-rocks.

Basin

2. Place the two grill-rocks in the basin.

The basin must be empty. The grill-rock handles must run parallel to the front of the cooktop. You have to use the grillrocks because they hold up the grill element.

4. Place the grill grates on the top of the

cooktop.

continued on next page

Page 24

GRILL

To remove:

1. Make sure the control knobs are turned

off and the grill is cool.

2. Remove the grill grates.

3. Pull the grill element away from the

receptacle until it is unplugged. Remove the grill-rocks.

NOTE: Lifting the element too high while

the plug is still in the receptacle could damage the plug.

Page 25

Using

Before you use the grill for the first time:

1. Wash with warm, soapy water. Rinse

and dry. Never use a metal scrubbing

pad or gritty cleanser on the grill; these will damage the nonstick surface.

2. After cleaning, lightly wipe the cooking

surface with cooking oil. This will prevent the food from sticking.

GRILL

• Do not cover the entire cooking surface

with meat. Leave space between the food items to help smoke and steam clear away quickly.

What to use while grilling

• Use tongs with long handles or spatulas

for turning meats. Do not use forks because they make holes in the meat, letting juices run out.

Grilling tips

Choosing meat

• For best results, buy top grade meat.

Meat that is at least 3/4" thick will grill better than thinner cuts.

Preparing to grill

• Meat that usually has a lot of fat will smoke

more when cooking and could cause flareups. However, fatty meat cooks faster than lean meat. Trim fat from meat before placing on the grill to prevent a large amount of smoke or flare-ups.

• Remove the grill cover before heating the

grill. Because a heated grill cover would not look hot, someone could be burned if they touched the cover. Heating the grill cover could also damage the finish.

• Precondition grates by brushing them

with vegetable oil or spraying them with a nonstick coating prior to each use.

• Score fat on the edges of steak, but do not

cut into the meat. This will prevent curling while cooking.

• Preheat the grill on the HI setting for five or

ten minutes. Preheating makes meat taste and look better. It also lets you quickly sear the meat to help keep juices in.

• The fan turns on by itself while you are

using the grill. Do not use the grill if the fan does not go on.

What not to use in the grill area

• Do not use aluminum foil.

• Do not use charcoal or wood chips.

While cooking

• Before turning, let one side of meat cook

until it is as done as you want, or cook until juices appear on the top of the meat. Turn steaks and hamburgers just once; turning and moving food causes it to lose juice.

• When basting meats or putting sauces on

food, remember that extra sauce winds up inside your grill and does not improve the food’s flavor. Put on sauces during the last 15-20 minutes of cooking unless the recipe tells you to do it differently. If you put on too much of a sugary sauce, it will leave a caramel-like glaze on the grill grates and grill-rocks. This glaze is hard to clean.

• There are many meat marinades which

will help make less expensive cuts of meat tender for cooking on the grill.

• Some foods, such as poultry and nonoily

fish, may need some extra fat. Brush with oil or melted butter from time to time while grilling.

• To help keep juices in meat, salt after

turning meat or after cooking is done.

continued on next page

Page 26

GRILL

Grilling tips (continued)

• If meat begins to cook too quickly, turn

the grill control knob to a lower setting.

• Grease drippings will ignite occasionally

to produce harmless puffs of flame for a second or two. This is normal while cooking. If you have too many flare-ups: you need to clean the grill interior, you have not trimmed the meat properly, or there is too much fat in the meat.

• The grill element should glow a bright

cherry red.

What not to do while cooking

• Do not let optional grill-rocks become

overloaded with grease. Clean after

each use.

• Do not leave the optional grill while it is

cooking.

After grilling

• Clean the basin area after each use. Do

not allow the area under the grill to become overloaded with grease.

• If grilled foods are done cooking before

you are ready to serve them, turn the control knob to a low setting. Cover meat with a single sheet of foil. Food will continue to cook.

• Do not place the grill cover over a heated

grill. Let the grill cool before putting the cover in place.

NOTES:

• Do not set utensils or other items that

could cause scratches on the grill cover. Do not set very hot containers on the cover or handles, since these could mar or change the color of the cover.

• Use the cover over the grill grates or

griddle only. Do not place the cover over the coil or ceramic surface units.

wWARNING

Fire Hazard Grease can cause large flare-ups. To put out fire: Make sure vent system has been

switched on. Turn grill control off, cover grill with

large metal pan, and remove food from grill.

Do not put water on a grease fire. To prevent fire and burns: Do not use pots or pans on grill.

They will become very hot. Failure to follow the above can result

in death, fire, or burns.

NOTES:

• Use only nylon or plastic utensils. The use

of metal utensils could scratch the nonstick coating.

• When using nylon or plastic utensils, do

not leave them on the grill. They could melt.

Page 27

Grill chart

Preheat on HI for 5 or 10 minutes for best flavor. Cooking times and control settings are approximate due to differences in meats and electrical voltage. Use the following

COOKING TIME

FOOD Steak (1⁄2-3⁄4")

• Rare

• Medium

• Well-done

Steak (1-11⁄4")

• Rare

• Medium

• Well-done

Hamburgers (3-4 oz)

SETTING

HI HI HI

(in minutes)

9-12 12-19 16-23

10-17 19-26 24-32

15-25

GRILL

chart as a guide to determine which cooking times and settings work best for you. You may need to adjust the cooking times to get the taste and/or doneness you want.

COMMENTS

Turn after half the time. Turn after half the time. Turn after half the time.

Turn after half the time.

Pork chops (1⁄2-3⁄4") Fully-cooked smoked

pork chops Ham slices (1⁄2") Fully-cooked

sausages

• Hot dogs, brats

• Polish

Fresh sausage

• Links

• Patties

(21⁄2" diameter)

• Italian sausage

Lamb chops

Chicken

• Boneless breasts

• Pieces, bone-in

HI 10

HI HI

10 10

30-40

10-15 15-20

5-10 10-20

10-15 15-20

25-35

25-35 45-60

Turn occasionally.

Turn once. Turn once.

Turn occasionally. Turn once.

Turn occasionally. Turn occasionally.

Pierce casing with a fork. Turn once.

Turn occasionally. Brush with glaze, if desired.

Turn occasionally. Turn occasionally. Brush with

marinade or glaze during last 10 minutes.

continued on next page

Page 28

GRILL

FOOD Fish

• Steaks (1")

• Fillets (1⁄2")

(with skin on)

• Shrimp

(skewered)

SETTING

COOKING TIME

(in minutes)

20-30

10-15

8-12

COMMENTS

Brush with butter. Turn after half the time.

Start skin side down. Brush with butter. Turn after half the time.

Turn and brush with butter or marinade often.

Garlic bread Hot dog and

hamburger buns

HI 10

2-4 2-3

Turn after half the time.

Caring for grill

NOTE: Let cooktop cool before cleaning.

Cleaning your grill whenever spills or soiling occurs will help to keep it looking and working like new.

PART Grates

WHAT TO USE

Warm, soapy water and a nonabrasive plastic scrubbing pad

Dishwasher

HOW TO CLEAN

• Wash, rinse, and dry well.

• For heavy soil soak in hot, soapy water

mixed with a cleanser, such as household ammonia.

NOTE: Do not use metal brushes,

abrasive scouring pads, or other scrubbers made to clean outdoor grills. These will remove the finish as well as scratch the grates. Do not clean in a selfcleaning oven or use oven cleaners.

Page 29

GRILL

PART Grill-rocks

Element

Drain jars

(under cooktop basin(s))

WHAT TO USE

Warm, soapy water and a nonabrasive plastic scrubbing pad

Dishwasher Bristle brush Oven cleaner

Warm, soapy water and a sponge or nonabrasive plastic scrubbing pad

Dishwasher

HOW TO CLEAN

• Wash, rinse, and dry well. Clean often or

after any large build-up of grease. You can wash grill-rocks in a dishwasher instead if you have first removed burned-on soil.

• For heavy soil, soak in hot, soapy water

mixed with cleanser, such as household ammonia.

• Stubborn spots, such as burned-on

sauces, can be scrubbed with a stiff bristle brush. You can also use an oven cleaner. Follow manufacturer’s directions. Spray on the cleaner and let it soak overnight. Do

not clean grill-rocks in a self-cleaning oven.

• No cleaning is needed. Spatters or spills

will burn off. Do not put in water.

• Empty the jar from time to time to prevent

spillovers.

• Unscrew and remove the jar to empty it. If

the jar is broken replace it with any heattempered jar, such as a canning jar. The jar should have a standard screw neck.

Cover

Area under grill

Warm, soapy water and a sponge

Warm, soapy water and a sponge or nonabrasive plastic scrubbing pad

Paper towels and household cleanser

• Wash, rinse, and dry well.

• Do not clean in a dishwasher.

• Wash, wipe with clean water, and dry well.

• Use nonabrasive, plastic scrubbing pad on

heavily soiled areas.

• For heavy soil, soak paper towels in

household cleanser and lay them on the soil for at least 1⁄2 hour or longer.

• To remove stubborn soil, spray with an

oven cleaner, let it soak overnight, wipe with clean water, and dry well.

Page 30

Griddle

Installing

You can install a griddle accessory on the left basin of your cooktop (and in the right basin of model RC8700ED). To use this accessory you must have grill accessory Part Number RCM20DB. To get the griddle accessory, order Part Number RCM40DB from a Whirlpool service company or dealer (see Step 2 on page 38) or call the Whirlpool Consumer Assistance Center toll-free

1-800-253-1301.

Terminal receptacle

Terminal plug

1. Make sure the grill element and grill-

rocks are installed and the control knobs are turned off.

Grill-rock

Handle Basin pan

2. If grill element is not installed, place

the two grill-rocks into an empty basin pan. The grill-rock handles must run parallel to the front of the cooktop. You have to use the grill-rocks because they hold up the grill element.

Position the grill element with the terminal plug towards the terminal receptacle. Slide the element towards the receptacle until the terminal plug is all the way inside it. The grill element should rest on the handles of the grill-rocks.

NOTE: Do not use the grill grates.

Drain holes

3. Place the griddle over the grill element so

that the drain holes are in front. This will let extra grease collect in the drain jar.

NOTE: The bottom of the griddle should

make contact with the top of the grill element.

Page 31

Using

Before using the griddle for the first time:

1. Wash griddle in warm, soapy water.

Rinse and dry well.

2. Preheat griddle for five minutes at the

settings shown in the “Griddle chart” on page 32.

3. After preheating, lightly wipe the top of

the griddle with cooking oil. This prevents sticking. You don’t have to grease the griddle every time you use it. Do not use shortening or butter to grease the griddle.

NOTE: If the griddle is seasoned prior to

preheating, the oil forms a varnish-like finish on the griddle. This finish is difficult to remove.

Griddling tips

• Place food right on the cooking surface of

the griddle.

• Turn off the griddle element when cooking

is finished. Leaving the element on will damage the griddle.

• Do not use cookware on the griddle. Use

only plastic or nylon kitchen utensils on the griddle. Metal could damage the nonstick cooking surface.

GRIDDLE

wWARNING

Fire Hazard

Be sure the griddle controls are off and the griddle is cool and covered when not in use.

Failure to do so can result in fire or burns.

Page 32

GRIDDLE

Griddle chart

Preheat for five to ten minutes at the settings listed below. Do not preheat on HI. Griddling times are guidelines only and may need to be adjusted to get the taste and/or

doneness you want. Also, low voltage and elements not close enough to the griddle may affect the cooking times and control settings.

FOOD Sausage patties Bacon

(slice)

Ham slice Hamburgers Fish sticks

(frozen)

Hot dogs Buns French toast Grilled cheese

sandwiches Pancakes Eggs

CONTROL SETTING

9-10 10

9 9 8

10 9 10 9

10 8

APPROXIMATE COOKING TIME (in minutes) FIRST SIDE

4-5 3-5

4 6 5-7

5-6 3 2-3 4

2 2-3

SECOND SIDE

2-4 2

2 5 5-6

4-5

2-3 3

1-2 1 or less

Page 33

Caring for griddle

NOTE: Let cooktop cool before cleaning.

You must clean your griddle after each use to keep the finish in good shape.

GRIDDLE

PART Griddle

Grill-rocks

Element

Area under grill-rocks

WHAT TO USE

Warm, soapy water and a nonabrasive plastic scrubbing pad

Dishwasher

Warm, soapy water and a sponge or nonabrasive plastic scrubbing pad

Paper towels and household cleanser

HOW TO CLEAN

• Wash once griddle has cooled. Do not put

a hot griddle in cold water.

• For heavy soil, use a nonabrasive scrub-

bing pad.

NOTE: Do not wash in a dishwasher.

Strong detergents can remove some of the nonstick finish.

• Wash, rinse, and dry well. Clean often or

after any large build-up of grease. You can wash grill-rocks in a dishwasher instead if you have first removed burnedon soil.

• No cleaning is needed. Spatters or spills

will burn off. Do not put in water.

• Wash, wipe with clean water, and dry well.

• Use nonabrasive, plastic scrubbing pad on

heavily soiled areas.

• For heavy soil, soak paper towels in

household cleanser and lay them on the soil for at least 1⁄2 hour or longer.

Page 34

Vent

Using

The built-in vent system removes cooking vapors, odors, and smoke from foods prepared on the cooktop, grill, and griddle. The vent system will go on by itself when the grill element or griddle is being used.

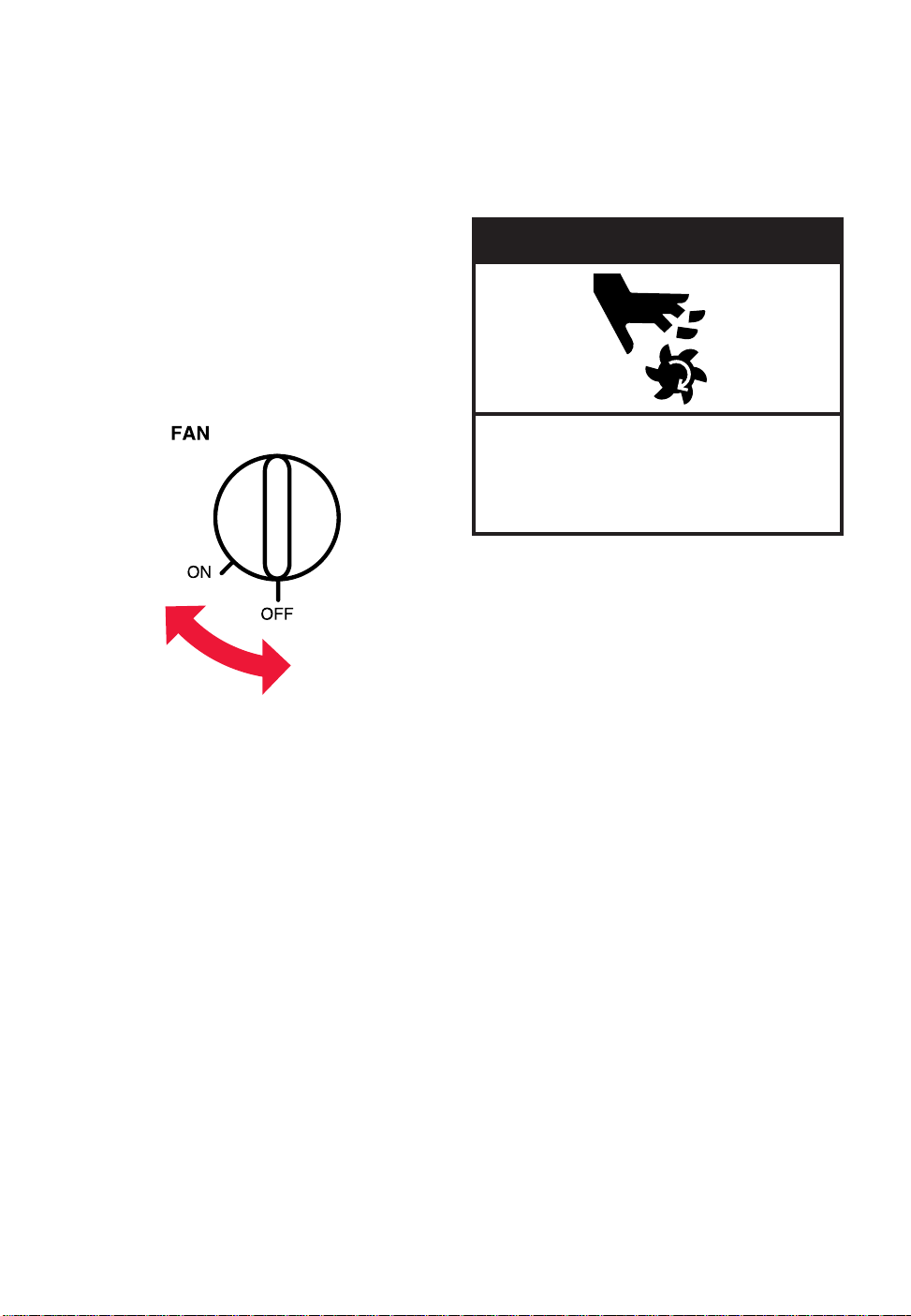

To turn on the vent system yourself:

wWARNING

Cut Hazard

Do not put hands into vent when fan or controls are on.

Doing so can result in serious cuts.

• Turn the vent fan knob to ON.

• You can manually control the vent fan

only when using the coil or ceramic surface units. You cannot manually control the vent fan while you are using the grill or griddle.

• If the vent fan turns on automatically, it

will turn off automatically when you turn off the grill or griddle. If you turn the vent fan on manually, you will need to shut it off manually.

Page 35

VENT VENT

Caring for vent

Air grille

wWARNING

Removal tab

Electrical Shock Hazard

Disconnect the electrical supply before servicing the cooktop.

Turn fan and cooktop controls off before cleaning the vent system.

Do not put hand into vent when fan or controls are on.

Failure to follow these instructions can result in death, electrical shock, serious injury, or cuts.

NOTE: The vent fan system turns on by

itself when the grill or griddle is used. To keep your vent system working well, clean it regularly using the chart below.

PART Air grille

WHAT TO USE

Warm, soapy water and a sponge

Dishwasher

HOW TO CLEAN

• Wash, rinse, and dry well.

Filter

Vent

Filter

Vent

Warm, soapy water and a sponge

Dishwasher

Warm, soapy water and a sponge

Spray household cleaner and a paper towel

• Clean in sink or dishwasher when soiled.

NOTE: Do not run the ventilation system without

the filter. Filter should always be placed at an angle. As you face the front of the cooktop, the top of the filter should rest against the left side of the vent opening and the bottom of the filter should rest against the right side of the ventilation chamber, at the bottom. If the filter is flat against the fan wall, the ventilation system will not work well.

• Clean whenever the chamber becomes soiled.

Page 36

Troubleshooting

Most cooking problems often are caused by little things you can find and fix without tools of any kind. Check the lists below and on the next page before calling for assistance or service. If you still need help, see “Requesting Assistance or Service” on page 38.

If nothing operates, check the following:

Is the cooktop wired into a live circuit with the proper voltage? (See Installation Instructions.)

▼

Have you blown a household fuse or tripped a circuit breaker?

▼

Other possible problems and their causes:

PROBLEM The surface units

will not operate

Grill does not work properly

Control knob(s) will not turn

Venting results are not what you expected

CAUSE

• You have blown a household fuse or tripped a circuit

breaker.

• You have not plugged in coil elements all the way.

• You have not set the control knobs correctly. Push control

knobs in before turning to a setting.

• You have not left space between food items.

• You have not preheated the grill for the proper amount of time.

• Food was partially frozen or very cold before grilling. This will

make cooking time longer.

• You are not pushing in before turning.

• Exhaust fan is not turned on.

• Vent filters are not clean or are not in place.

• Vent duct or outside opening is blocked.

• There is a draft in room where cooktop is installed.

• Meat is not well trimmed.

Cooking results are not what you expected

• Vent system has not been installed according to the

Installation Instructions.

• The cooktop is not level. (See Installation Instructions.)

Page 37

TROUBLESHOOTING

PROBLEM Cooking results are

not what you expected

(continued)

If none of these items was causing your problem, see “Requesting Assistance or Service” on page 38.

CAUSE

• The recipe you are using may need to be altered to improve

the taste or appearance of the food.

• You are using a pan that is not the correct type or size.

Refer to a reliable cookbook or recipe for recommended pan type and size.

• The cooking utensil is too large or too small for the surface

unit being used. Pan should be the same size or slightly larger than the surface unit being used.

Page 38

Requesting Assistance or Service

Before calling for assistance or service, please check “Troubleshooting” on pages 36-37. It may save you the cost of a service call. If you still need help, follow the instructions below.

1. If you need assistance* …

Call the Whirlpool Consumer Assistance

Center telephone number. Dial toll-free from anywhere in the U.S.A.:

1-800-253-1301

and talk with one of our trained consultants. The consultant can instruct you in how to obtain satisfactory operation from your appliance or, if service is necessary, recommend a qualified service company in your area.

If you prefer, write to:

Mr. William Clark Consumer Assistance Representative Whirlpool Corporation 2000 North M-63 Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

3. If you need FSP replacement parts …

FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your WHIRLPOOL appliance. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new WHIRLPOOL appliance.

To locate FSP replacement parts in your area, refer to Step 2 or call the Whirlpool Consumer Assistance Center number in Step 1.

4. If you are not satisfied

with how the problem was solved …

• Contact the Major Appliance Consumer

Action Program (MACAP). MACAP is a

group of independent consumer experts

2. If you need service* …

Whirlpool has a nationwide network of

authorized Whirlpool service companies. Whirlpool service technicians are trained to fulfill the product warranty and

provide after-warranty service, anywhere in the United States. To locate the authorized Whirlpool service company in your area, call our Consumer Assistance

that voices consumer views at the highest levels of the major appliance industry.

• Contact MACAP only when the dealer,

authorized servicer, and Whirlpool have failed to resolve your problem.

Major Appliance Consumer Action Program 20 North Wacker Drive Chicago, IL 60606

• MACAP will in turn inform us of your

action.

Center telephone number (see Step 1) or look in your telephone directory Yellow Pages under:

•APPLIANCE-HOUSEHOLD- • WASHING MACHINES &

MAJOR, SERVICE & REPAIR DRYERS, SERVICE & REPAIR

- See:

Whirlpool Appliances or -

Authorized Whirlpool Service Authorized Whirlpool Service

Example:

XYZ Service Co.) (

(

See:

Whirlpool Appliances or

Example:

XYZ Service Co.)

* When asking for help or service:

Please provide a detailed description of the problem, your appliance’s complete model and serial numbers, and the purchase date. (See page 2.) This information will help us respond properly to your request.

Page 39

WHIRLPOOL

Electric Modular Downdraft

Cooktop Warranty

LENGTH OF WARRANTY FULL ONE-YEAR

WARRANTY

From Date of Purchase

WHIRLPOOL WILL NOT PAY FOR

A.Service calls to:

1. Correct the installation of your cooktop.

2. Instruct you how to use your cooktop.

3. Replace house fuses or correct house wiring.

B.Repairs when your cooktop is used in other than normal, single-family household use. C.Pickup and delivery. Your cooktop is designed to be repaired in the home.

D.Damage to your cooktop caused by accident, misuse, fire, flood, acts of God, or

use of products not approved by Whirlpool.

E.Repairs to ceramic accessory if it has not been cared for as recommended

in this Use and Care Guide.

F. Repairs to parts or systems caused by unauthorized modifications made to the

appliance.

WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Outside the United States, a different warranty may apply. For details, please contact your authorized Whirlpool dealer.

If you need service, first see the “Troubleshooting” section of this book. After checking “Troubleshooting,” additional help can be found by checking the “Requesting Assistance or Service” section, or by calling our Consumer Assistance Center telephone number,

1-800-253-1301, from anywhere in the U.S.A.

WHIRLPOOL WILL PAY FOR

FSP® replacement parts and repair labor to correct defects in materials or workmanship. Service must be provided by an authorized Whirlpool service company.

9/95

PART NO. 208039B/4381591

10/95
