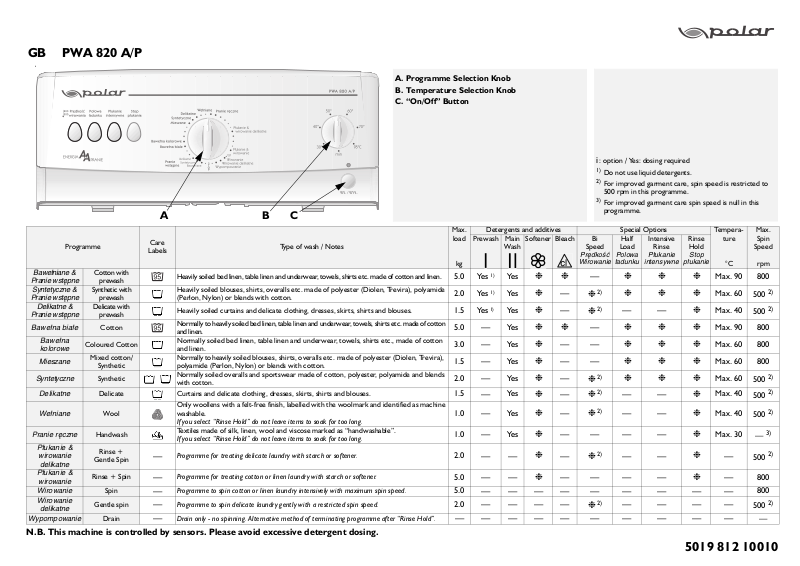

Whirlpool PWA 820A/P PROGRAM CHART

PWA 820 A/P

‘0

BA C

Programme

Bawełniane &

Pranie wstępne

Syntetyczne &

Pranie wstępne

Delikatne &

Pranie wstępne

Bawełna białe

Bawełna kolorowe

Mieszane

Syntetyczne

Delikatne

Wełniane

Pranie ręczne

Płukanie &

wirowanie

delikatne

Płukanie &

wirowanie Wirowanie Wirowanie

delikatne

Wypompowanie

Cotton with

prewash

Synthetic with

prewash

Delicate with

prewash

Cotton

Coloured Cotton

Mixed cotton/

Synthetic Synthetic

Delicate Curtains and delicate clothing, dresses, skirts, shirts and blouses.

Wool

Handwash

Rinse +

Gentle Spin

Rinse + Spin

Spin

Gentle spin

Drain

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

Care

Labels

—

— — — —

Type of wash / Notes

Heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen. Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide

(Perlon, Nylon) or blends with cotton. Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses. Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton

and linen. Normally soiled bed linen, table linen and underwear, towels, shirts etc., made of cotton and linen. Normally to heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton. Normally soiled overalls and sportswear made of cotton, polyester, polyamide and blends with cotton.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of silk, linen, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long.

Programme for treating delicate laundry with starch or softener.

Programme for treating cotton or linen laundry with starch or softener. Programme to spin cotton or linen laundry intensively with maximum spin speed. Programme to spin delicate laundry gently with a restricted spin speed. Drain only - no spinning. Alternative method of terminating programme after “Rinse Hold”.

A. Programme Selection Knob B. Temperature Selection Knob C. “On/Off” Button

Max.

load

5.0

2.0

1.5

5.0

3.0

1.5

2.0

1.5

1.0

2.0

5.0

2.0

Detergents and additives Special Options Tempera-

Prewash Main

Ye s

— — — —

—

Wash

Ye s

Ye s Ye s

Ye s

——

—— ———— — — — — — ————

————— — — — — —

Softener Bleach Bi

❉❉ ❉ ❉ ❉❉ ❉ ❉ ❉

❉ ❉

❉ ❉ ❉

Speed

Prędkość

Wirowanie

—

❉

—

❉

— —— —— —

❉

—

❉

—

❉

—— — —

—

❉

—— — —

❉

: option / Yes: dosing required

Do not use liquid detergents.

For improved garment care, spin speed is restricted to 500 rpm in this programme.

For improved garment care spin speed is null in this programme.

Half

Load

Polowa

ładunku

Intensive

Rinse

Płukanie

intensywne

Rinse Hold

Stop

płukanie

❉❉❉

——

❉ ❉❉❉ ❉❉❉ ❉❉❉

❉❉❉

——

❉

——

❉

————

ture

°C

Max. 90 800

Max. 60

Max. 40

Max. 90 800

Max. 60 800

Max. 60 Max. 40

Max. 40

Max. 30

—

5019 812 10010

Max.

Spin

Speed

rpm

500

500 500

500

—

500

800 800

500

—

CONSUMPTION DATA

Programme

Te m p e r a t u r e

Selector

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes)

Cotton 90 5.0 63* 1.80 2:05 Cotton 60 5.0 55 0.95 2:05

Cotton 40 5.0 55 0.55 2:05 Synthetic 60 2.0 56 0.80 1:30 Synthetic 40 2.0 56 0.40 1:30

Delicate 40 1.5 60 0.55 0:45

Wool 40 1.0 60 0.50 0:40

Handwash 30 1.0 60 0.30 0:50

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The data on the “Energy Label” refer to the programme “Cotton 60°C”.

* To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the

water out.

PREPARATION OF WASH CYCLE SELECT THE DESIRED OPTION

1. Load the machine, close the drum doors and check that they are properly locked.

2. Add detergents and additives into the dispenser to no more then the

“MAX”

level mark, as

follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

•Stain remover agents

• Anti-scale agents (if necessary)

3. Turn the

programme selector knob

to the

desired programme.

4. Turn the

temperature selector knob

to the

desired temperature.

Selecting or deselecting an option can be done at any time during the programme. The option will be applied as long as the corresponding programme phase has not been executed yet.

“Bi Speed” button

• Press the button to set the spin speed.

Note:

every programme has an automatic

maximum spin speed.

“Half Load” button

• Can be used for small loads and lightly soiled laundry.

• Reduces the water consumption especially during the rinses.

“Intensive Rinse” button

• One rinse cycle is added to ensure a more intensive rinse.

• This option is particularly suitable for areas with very soft water, washing baby linen and people with detergents allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from fading.

• This option is particularly recommended for the “Synthetic” and “Delicate”.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

Note:

the programme selector knob stops

on .

Appliance in “Rinse Hold”:

• Press the “Rinse Hold” button again: the programme will terminate automatically with the selected spin cycle.

• If you do not wish to spin the clothes, press the

On/Off

“

” button, turn the programme selector

knob to the “Drain” programme and press the

On/Off

“

” button again.

PROGRAMME START

Turn on the tap and press the “ The indicator light of the “

Note

: If there is a power interruption or if the

On/Off

” button.

” button lights up.

appliance is disconnected during the cycle, the programme will run again from the point where it was interrupted.

END OF WASH CYCLE

• The programme selector knob is in the Stop position.

1. Press the “

On/Off

” button to switch off the

machine.

2. Cancel the options.

3. Turn the tap off.

4. Wait for the lid to unlock (about 1 minute).

Open the lid and the drum doors and unload

the machine.

CHANGE THE PROGRAMME DURING THE WASH CYCLE

1. Switch off the machine by pressing the

On/Off

“

” button.

2. Select the new programme.

Start programme by pressing the “

On/Off

”

button again.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the programme for a certain time and continue it later:

1. Press the “

On/Off

” button.

2. After the desired pause, press again the

“On/Off”

button.

CANCEL PROGRAMME

1. Switch off the machine by pressing the

On/Off

“

” button.

2. Set the programme selector to “Drain”.

3. Press the “

On/Off

” button again to start the

“Drain” programme.

5019 812 10010
