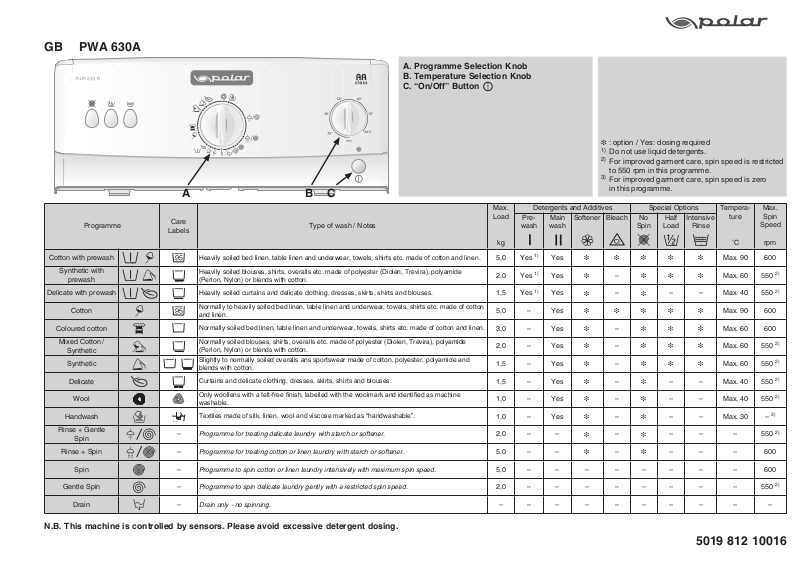

Whirlpool PWA 630A PROGRAM CHART

GB PWA 630A

Programme

Cotton with prewash

Synthetic with

prewash

Delicate with prewash

Cotton

Coloured cotton

Mixed Cotton /

Synthetic

Delicate

Wool

Handwash

Rinse + Gentle

Spin

Rinse + Spin –

A CB

Care

Labels

Heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses.

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Slightly to normally soiled overalls ans sportswear made of cotton, polyester, polyamide and blends with cotton.

Curtains and delicate clothing, dresses, skirts, shirts and blouses.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

Textiles made of silk, linen, wool and viscose marked as “handwashable”.

Programme for treating delicate laundry with starch or softener.

–

Programme for treating cotton or linen laundry with starch or softener.

Type of wash / Notes

A. Programme Selection Knob B. Temperature Selection Knob C. “On/Off” Button

Max. Load

Pre-

wash

5,0 Yes 1)Yes

2,0 Yes 1)Yes

1,5 Yes 1)Yes

5,0 – Yes

3,0 – Yes

2,0 – Yes

1,5 – Yes

1,0 – Yes

2,0 – –

5,0 – –

i : option / Yes: dosing required

Do not use liquid detergents.

For improved garment care, spin speed is restricted

to 550 rpm in this programme.

For improved garment care, spin speed is zero

in this programme.

Detergents and Additives Special Options Tempera-

Main

Softener Bleach No

wash

Spin

Half

Load

Intensive

Rinse

ture

°C

i i i i i

–

i i i

–

– – Max. 40 550

i i i i i

–

i i i

–

i i i

–

i i i

–

– – Max. 40 550

– – Max. 30 –

– – – 550

– – – 600

Max. 90 600

Max. 60 550

Max. 90 600

Max. 60 600

Max. 60 550

Max. Spin

Speed

rpm

Spin –

Gentle Spin –

Drain –

Programme to spin cotton or linen laundry intensively with maximum spin speed.

Programme to spin delicate laundry gently with a restricted spin speed.

Drain only - no spinning.

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

5,0 – – – – – – – – 600

2,0 – – – – – – – – 550

– – – – – – – – – –

5019 812 10016

CONSUMPTION DATA

Temperature

Programme

Cotton 90 5,0 63* 1,80 2:05 Cotton 60 5,0 59 0,95 2:05 Cotton 40 5,0 59 0,55 2:05

Mixed Cotton / Synthetic 60 2,0 56 0,80 1:30

Synthetic 40 2,0 56 0,40 1:05

Delicate 40 1,5 60 0,55 0:45

Wool 40 1,0 60 0,50 0:40

Handwash 30 1,0 60 0,30 0:50

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The data on the “Energy Label” refer to the programme “Cotton 60°C”.

* To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

PREPARATION OF WASH CYCLE SELECT THE DESIRED OPTION

1. Load the machine, close the drum doors and check that they are properly locked.

2. Add detergents and additives into the dispenser to no more then the “MAX” level

mark, as follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3. Turn the programme selector knob to the desired programme.

4. Turn the temperature selector knob to the desired temperature.

Selector

(°C)

Load

(kg)

Water

(l)

Selecting or deselecting an option can be done at any time during the programme. The option will be applied as long as the corresponding programme phase has not been executed yet.

“No Spin” button

• Excludes spinning from programme, press

buton. Suitable for delicate laundry Note: With the “Cotton” and “Synthetic” programmes a short spin cycle is provided in any case, even if the exclusion has been selected, in order to optimize rinsing results.

“Half Load” button

• Can be used for small loads and lightly soiled

laundry.

• Reduces the water consumption especially during the rinse.

“Intensive Rinse” button

• One rinse cycle is added to ensure a more

intensive rinse.

• This option is particulary suitable for areas with very soft water, washing baby linen and people with detergents allergies.

Energy

(kWh)

Approx. Programme

(hours : minutes)

Duration

PROGRAMME START

Turn on the tap and press the “On/Off” button. The indicator light of the “On/Off” button lights up. Note: If there is a power interruption or if the appliance is disconnected during the cycle, the programme will run again from the point where it was interrupted.

END OF WASH CYCLE

• The programme selector knob is in the Stop

position.

1. Press the “On/Off” button to switch off the machine.

2. Cancel the option.

3. Turn the tap off.

4. Wait for the lid to unlock (about 1 minute).

5. Open the lid and the drun doors and unload the machine.

CHANGE THE PROGRAMME DURING THE WASH CYCLE

1. Switch off machine by pressing the “On/Off” button.

2. Select the new programme.

3. Start programme by pressing the “On/Off” button again.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the programme for a certain time and continue it later:

1. Press the “On/Off” button.

2. After the desired pause, press again the “ON/Off” button.

CANCEL PROGRAMME

1. Switch off the machine by pressing the “On/Off” button.

2. Set the programme selector to “Drain” .

3. Press the “On/Off” button again to start the “Drain” programme .

5019 812 10016
