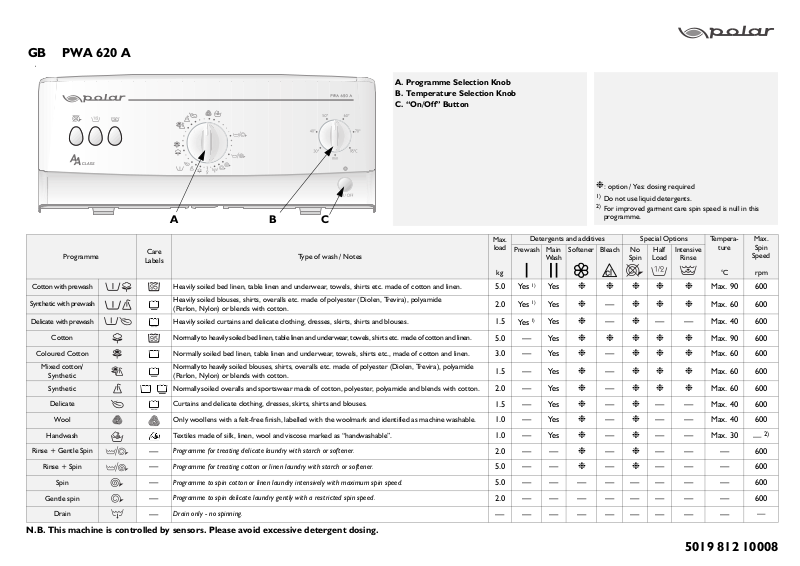

Whirlpool PWA 620A/P PROGRAM CHART
GB
‘0
PWA 620 A
BA C
A. Programme Selection Knob
B. Temperature Selection Knob
C. “On/Off” Button
❉
: option / Yes: dosing required
1)
Do not use liquid detergents.
2)
For improved garment care spin speed is null in this
programme.
Programme
Cotton with prewash
Synthetic with prewash
Delicate with prewash
Cotton
Coloured Cotton Normally soiled bed linen, table linen and underwear, towels, shirts etc., made of cotton and linen.
Mixed cotton/
Synthetic
Synthetic Normally soiled overalls and sportswear made of cotton, polyester, polyamide and blends with cotton.
Delicate Curtains and delicate clothing, dresses, skirts, shirts and blouses.
Wool Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.
Handwash Textiles made of silk, linen, wool and viscose marked as “handwashable”.
Rinse + Gentle Spin
Rinse + Spin
Spin
Gentle spin
Drain
Care
Labels
Heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.
Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide
(Perlon, Nylon) or blends with cotton.
Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses.
Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.
Normally to heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide
(Perlon, Nylon) or blends with cotton.
Programme for treating delicate laundry with starch or softener.
—
Programme for treating cotton or linen laundry with starch or softener.
—
Programme to spin cotton or linen laundry intensively with maximum spin speed.
—
Programme to spin delicate laundry gently with a restricted spin speed.
—
Drain only - no spinning.
—
Type of wash / Notes
Max.
load
kg
5.0
2.0
1.5
5.0
3.0
1.5
2.0
1.5
1.0
1.0
2.0
5.0
5.0
2.0
Detergents and additives Special Options Tempera-
Prewash Main
1)
Ye s
1)
Ye s
1)
Ye s
—
—
—
—
—
—
—
——
——
Softener Bleach No
Wash
Ye s
Ye s
Ye s
Ye s
Ye s
Ye s
Ye s
Ye s
Ye s
Ye s
❉❉❉❉❉
❉
❉
❉❉❉❉❉
❉
❉
❉
❉
❉
❉
❉
❉
Spin
❉❉ ❉
—
❉
—
❉❉ ❉
—
❉❉ ❉
—
❉❉ ❉
—
❉
—
❉
—
❉
—
❉
—
❉
—
Half
Intensive
Load
Rinse
——
——
——
——
—— —
—— —
ture
°C
Max. 90 600
Max. 60 600
Max. 40 600
Max. 90 600
Max. 60 600
Max. 60 600
Max. 60 600
Max. 40 600
Max. 40 600
Max. 30
——— ——— — —
——— ——— — —
——— — ——— — —
Max.
Spin
Speed
rpm
—
600
600
600
600
—
2)
N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.
5019 812 10008
CONSUMPTION DATA
Programme
Te m p e r a t u r e
Selector
(°C)
Load
(kg)
Water
(l)
Energy
(kWh)
Approx. Programme
Duration
(hours : minutes)
Cotton 90 5.0 63* 1.80 2:05
Cotton 60 5.0 55 0.95 2:05
Cotton 40 5.0 55 0.55 2:05
Synthetic 60 2.0 56 0.80 1:30
Synthetic 40 2.0 56 0.40 1:30
Delicate 40 1.5 60 0.55 0:45
Wool 40 1.0 60 0.50 0:40
Handwash 30 1.0 60 0.30 0:50
Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized
conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in the
table in relation to the water supply pressure and temperature, the load and the type of wash.
The data on the “Energy Label” refer to the programme “Cotton 60°C”.
* To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the
water out.
PREPARATION OF WASH CYCLE SELECT THE DESIRED OPTION
1. Load the machine, close the drum doors and
check that they are properly locked.
2. Add detergents and additives into the dispenser
to no more then the
“MAX”
level mark, as
follows:
• Programme with pre and main wash
• Main wash programme without prewash
• Fabric softeners and conditioners
• Chlorine bleach
•Stain remover agents
• Anti-scale agents (if necessary)
3. Turn the
programme selector knob
to the
desired programme.
4. Turn the
temperature selector knob
to the
desired temperature.
Selecting or deselecting an option can be done
at any time during the programme. The option
will be applied as long as the corresponding
programme phase has not been executed yet.
“No Spin” button
• Especially for delicate garments to avoid wear and
tear caused by the spin.
Note:
with the “Cotton” and “Synthetics”
programmes a short spin cycle is provided in any case,
even if the exclusion has been selected, in order to
optimize rinsing results.
“Half Load” button
• Can be used for small loads and lightly soiled
laundry.
• Reduces the water consumption especially during
the rinses.
“Intensive Rinse” button
• One rinse cycle is added to ensure a more
intensive rinse.
• This option is particularly suitable for areas with
very soft water, washing baby linen and people
with detergents allergies.
PROGRAMME START
Turn on the tap and press the “
The indicator light of the “
Note
: If there is a power interruption or if the
On/Off
On/Off
” button lights up.
” button.
appliance is disconnected during the cycle, the
programme will run again from the point where it
was interrupted.
END OF WASH CYCLE
• The programme selector knob is in the Stop
position.
1. Press the “
On/Off
” button to switch off the
machine.
2. Cancel the options.
3. Turn the tap off.
4. Wait for the lid to unlock (about 1 minute).
Open the lid and the drum doors and unload
5.
the machine.
CHANGE THE PROGRAMME DURING THE
WASH CYCLE
1. Switch off the machine by pressing the
On/Off
“
” button.
2. Select the new programme.
Start programme by pressing the “
3.
On/Off
”
button again.
PAUSE/INTERRUPT A PROGRAMME
If, for any reason, you wish to interrupt the
programme for a certain time and continue it later:
1. Press the “
On/Off
” button.
2. After the desired pause, press again the
“On/Off”
button.
CANCEL PROGRAMME
1. Switch off the machine by pressing the
On/Off
“
” button.
2. Set the programme selector to “Drain”.
3. Press the “
On/Off
” button again to start the
“Drain” programme.
5019 812 10008
