Page 1
61056209.book Page 12 Friday, March 21, 2008 6:39 PM

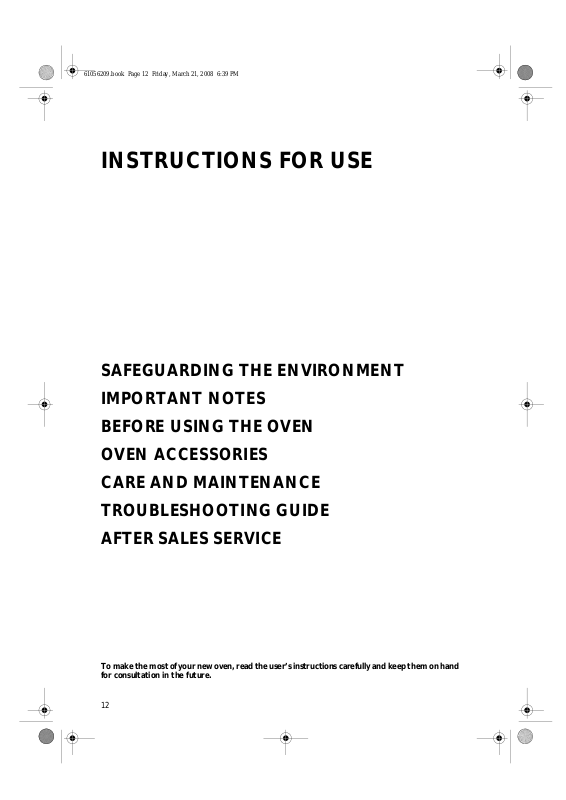

INSTRUCTIONS FOR USE
SAFEGUARDING THE ENVIRONMENT
IMPORTANT NOTES
BEFORE USING THE OVEN
OVEN ACCESSORIES
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE
AFTER SALES SERVICE
To make the most of your new oven, read the user’s instructions carefully and keep them on hand
for consultation in the future.
12
Page 2
61056209.book Page 13 Friday, March 21, 2008 6:39 PM
SAFEGUARDING THE ENVIRONMENT
Disposal of packaging materials
The packaging material is 100% recyclable and is
•
marked with the recycle symbol .
Packing materials should therefore not be
•
thrown away with household rubbish but
disposed of as directed by local authorities.
Disposal of old appliances
This appliance is marked according to the
•
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product, or on the
documents accompanying the product, indicates
that this appliance may not be treated as
household waste. Instead it shall be handed over
to the applicable collection point for the recycling
of electrical and electronic equipment.
Disposal must be carried out in accordance with
local environmental regulations for waste
disposal.
For more detailed information about treatment,
recovery and recycling of this product, please
contact your local city office, your household
waste disposal service or the shop where you
purchased the product.
Energy saving
Only pre-heat the oven if specified in the cooking
•
table of the Product Description Sheet or in your
recipe.
Use dark, black enamelled baking moulds as they
•
absorb heat very well.
IMPORTANT NOTES
Warning:
Not intended for use by young children and
•
infirm persons without supervision.
Young children should be supervised to ensure
•
they not play with the appliance.
The accessible parts of the oven may get very hot
•
during use. Keep children away.
This appliance is not intended for use by persons
•
(including children) with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge unless they have been
given initial supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
Never use abrasive materials or substances to
•
clean the GLASS, to prevent damaging it.
The unit gets very hot during use. Do not touch
•
the heating elements in the oven.
This oven is designed solely for use as a home
•
appliance for cooking food. Any other use is
forbidden. The manufacturer assumes no
responsibility for damage caused by improper or
incorrect use.
Any repairs or servicing must be carried out
•
exclusively by a qualified technician.
Never expose the oven to atmospheric agents.
•
Do not put heavy objects on the door because
•
they could damage the oven cavity and hinges.
Do not cling to the door.
Never hang anything heavy on the oven door
•
handle.
•
Do not cover the bottom of the oven with
aluminium foil or other objects.
The oven door must close properly. The door
•
seals must be kept clean.
Do not pour water directly into the inside of a
•
hot oven. The enamel coating could be damaged.
Fruit juice drippings from the baking tray may
•
leave permanent stains. We recommend the
oven be cleaned before reusing it.
Never drag pots and pans across the bottom of
•
the oven to prevent the coating from being
scratched.
13
Page 3
61056209.book Page 14 Friday, March 21, 2008 6:39 PM
Residual condensation after cooking could
•
damage the oven and surrounding kitchen units in
time. We recommend that you:
- set the lowest temperature;
- cover food;
- remove food from the oven;
- dry the wet parts when the oven is cool.
The front panel and the handle of the oven door
•
warm up when the appliance is switched on for a
long time at high temperatures.
Never touch the oven with any wet part of the
•
body and do not operate it with bare feet.
Do not pull the appliance or the power supply
•
cable to disconnect them from the electrical
supply.
Keep children away from the following
•
elements as they are sources of danger:
- the oven and its controls, especially when in
operation and immediately afterwards to
avoid injury.
- packaging (bags, polystyrene, metal parts,
etc.)
- an oven to be scrapped.
Make sure that the electrical cables of other
•
appliances used near the oven do not touch hot
parts and are not trapped in the oven door.
Some oven models are equipped with an air
•
cooling system to prevent the front of the oven
and cabinet cavity from reaching excessively high
temperatures.
Attention:
an opening located between the control panel and
the oven door. Do not obstruct the vent opening.
Do not place inflammable material in the oven or
•
nearby: a fire may break out if the oven is
inadvertently switched on.
Use oven gloves to remove pans and accessories,
•
when the oven is hot.
If alcoholic beverages are added when roasting or
•
cooking cakes and sweets (for example, rum,
cognac, wine, etc.) remember that alcohol
evaporates at high temperatures. It may happen
that vapours released by the alcohol can catch
fire when they are in contact with the electric
heating element.
Do not heat sealed containers in the oven
•
(except for packages specifically designed for this
purpose; see the manufacturer’s instructions).
The pressure that develops inside the packaging
might cause it to explode, damaging the oven.
Do not use containers made of synthetic material
•
for cooking (except for packages specifically
designed for this purpose; see the manufacturer’s
instructions). They could melt at high
temperatures.
Keep an eye on the oven if you are using a lot of
•
fat or oil. Oil and fat can overheat and catch fire!
Never pull out fully loaded shelves. Use extreme
•
caution.
Steam and smoke are vented through
BEFORE USING THE OVEN
Remove the accessories from the oven and heat
•
it 200°C for about an hour to eliminate the smell
of the protective grease and insulating materials.
Keep the window open during this operation.
14
Before using the oven, remove:
•
- stickers on the front and oven door, except
for the rating plate;
- cardboard protection and protective plastic
film from the front panel controls and other
parts of the oven;
- any sticky labels from the accessories
(for example, under the drip tray).
Page 4
61056209.book Page 15 Friday, March 21, 2008 6:39 PM
OVEN ACCESSORIES
Accessories supplied depend on the model. The
accessories provided with the oven are listed in the
Product Description Sheet provided separately (under
Accessories).
Drip tray (1)
The drip tray is designed to collect fat and food particles when it
is positioned under the grid or as a plate, such as when cooking
meat, chicken and fish with or without vegetables. Pour a little
water into the drip tray to prevent spatters of fat and smoke.
Baking tray (2)
For cooking biscuits, cakes and pizzas.
Grid (3)
The grid can be used to grill food or as a support for baking trays,
cake tins and other cooking receptacles. It can be placed on any
of the runners in the oven. The grid can be inserted with its
curved side facing upwards or downwards.
Side catalytic panels (4)
The catalytic panels have a special microporous enamel coating
that absorbs fat spatters. We recommend an automatic cleaning
cycle after cooking particularly fatty food (see “Care and
Maintenance”).
1
2
3
4
Turnspit (5)
Use the turnspit as indicated in the relevant chapter in the
Product Description Sheet supplied separately.
Kit “Grill Pan Set” (6)
The set comprises a grid (6a), an enamel drip tray (6b) and one
or two handles (6c).
This set must be placed on the grid (3) and used with the Grill
function.
5
6a
6b
6c
6
15
Page 5
61056209.book Page 16 Friday, March 21, 2008 6:39 PM
OVEN ACCESSORIES
Grease filter (7)
To be used for cooking fatty food
wall of the cavity in front of the fan.
It can be washed in the dishwasher and must not be used with
the Fan function.
. Hook it onto the rear
only
Sliding shelves(8)
They facilitate manual access during cooking and allow the grids
and drip trays to be pulled forward part way.
They are suitable for all accessories and can be washed in the
dishwasher.
CARE AND MAINTENANCE
7
8
Important:
steam cleaners.
Do not use water pressure cleaners or
Exterior of the oven
Clean with a damp cloth. If it is very dirty, add a
•
few drops of washing up detergent to the water.
Wipe with a dry cloth.
Do not use corrosive or abrasive detergents,
•
which dull the surface.
In the event that one of these products comes
into contact with the oven, immediately clean it
using a damp cloth.
Slight differences in colour on the front of the
•
appliance are determined by the different
materials used, such as glass, plastic and metal.
Ovens with aluminium front panel
Clean using a delicate detergent and a soft
•
window cleaning cloth or a microfibre cloth that
does not leave fibres on the surface. Wipe
horizontally, without exerting pressure.
Do not use corrosive products, hard sponges or
•
rough cloths. Clean the aluminium surfaces with
a dry cloth.
Accessories
Soak the accessories in water with washing up
•
detergent immediately after use. Food residues
can be easily removed using a brush or sponge.
Oven cavity
Do not use abrasive cleaners or pan scourers.
•
Use special oven cleaners and follow the
manufacturer’s instructions.
After every use, wait for the oven to cool then
•
clean it to prevent the build-up of baked-on food
residues.
With long cooking times or when cooking on
•
different levels, especially food with a high water
content (pizzas, stuffed vegetables, etc.)
condensation may form on the inside of the door
and the seal. When the oven is cool, dry the
inside of the door with a cloth or sponge.
Clean the glass of the door with a suitable liquid
•
detergent.
The oven door may be removed to facilitate
•
cleaning. To clean the upper part of the oven the
grill heating element can be lowered (only on
some models).
Self-cleaning catalytic side panels and rear
cavity (if provided) - Cleaning cycle
Heat the oven to 200° C when empty and
•
maintain this temperature for about an hour.
At the end of the cycle and when the oven has
•
cooled, use a damp sponge to remove any food
residues.
•
Never clean the self-cleaning catalytic
panels and rear cavity with abrasive
products, rough brushes, pan scourers, or
oven cleaner sprays, as they will lose their
automatic cleaning properties.
16
Page 6
61056209.book Page 17 Friday, March 21, 2008 6:39 PM
Attention: When carrying out the following operations it
is advisable to wear protective gloves. These instructions
should be carefully followed both to prevent injury and in
order not to damage the oven door and hinges.
How to remove the oven door:
Open the oven door fully (see fig. 1).
1.
Lift the two catches and push them forwards as far as they
2.
go (see fig. 2).
Remove the door by closing it partially and pulling it upwards
3.
(see fig. 3).
To remount the door:
Insert the hinges into their grooves and lower the door fully.
1.
Lower the two catches.
2.
Close the oven door fully.
3.
Attention:
to prevent injury and in order not to damage the oven door and
hinges.
These instructions should be carefully followed both
1
2
To lower the grill heating element (certain models only)
Do not attempt to clean the oven until it is cool.
Remove the side runner grids.
•
Pull
the grill heating element slightly forward and lower it
(4)
•
.
(5)
3
4
5
17
Page 7
61056209.book Page 18 Friday, March 21, 2008 6:39 PM
Changing the rear oven lamp bulb (if provided):
Disconnect the oven from the electrical supply.
1.
Let the oven cool before turning the lamp cover left to
2.
unscrew it (see fig. 1).
Change the bulb (see note).
3.
Screw the lamp cover back on.
4.
Reconnect the oven to the electrical supply.
5.
Note: use only 25 W/230 V, E-14 type, T300°C bulbs
available from After Sales Service.
Important: Do not use the oven until the lamp cover has
been repositioned.
Changing the side wall lamp
(if provided - depends on model):
Disconnect the oven from the electrical supply.
1.
Let the oven cool before removing the left side runner grid
2.
(see fig. 2). Using a screwdriver prise off the lamp cover (see
fig. 3 - 4).
Change the bulb (see note).
3.
Reposition the lamp cover and press it against the oven wall
4.
until it clicks correctly into place.
Remount the side runner grid.
5.
Reconnect the oven to the electrical supply.
6.
Note: use only 25 W/230 V, E-14 type, T300°C bulbs
available from After Sales Service.
Important: Do not use the oven until the lamp cover has
been repositioned.
1
2
Changing the side halogen lamp
(if provided - depends on model):
Disconnect the oven from the electrical supply.
1.
Let the oven cool before removing the side runner grid
2.
(see fig. 2). Using a screwdriver prise off the lamp cover (see
fig. 3 - 4).
Never replace bulbs with bare hands. Carefully remove the
3.
halogen lamp from the ceramic holder and replace it with a
new one (see note).
Reposition the lamp cover and press it against the oven wall
4.
until it clicks correctly into place.
Remount the side runner grid.
5.
Reconnect the oven to the electrical supply.
6.
Note: Use only 20 W/12 V, G4 type, T300°C bulbs,
available from After Sales Service.
Important: Do not use the oven until the lamp cover has
been repositioned.
18
3
4
Page 8
61056209.book Page 19 Friday, March 21, 2008 6:39 PM
TROUBLESHOOTING GUIDE
Oven not working:
Check for the presence of mains electrical power
•
and if the oven is connected to the electrical
supply.
Turn off the oven and restart it to see if the fault
•
persists.
AFTER SALES SERVICE
Before contacting After Sales Service:
Try to solve the problem yourself following the
1.
points described in “Troubleshooting Guide”.
Turn off the appliance and restart it to see if the
2.
fault persists.
If after the above checks the oven or cooktop
are still not working properly, contact the
nearest After Sales Service.
Please give:
A short description of the fault;
•
the oven type and model;
•
the service number (number after the word
•
Service on the rating plate), located on the
right hand edge of the oven cavity (visible
when the oven door is open). The service
number is also indicated on the guarantee
booklet;
your full address;
•
your phone number.
•
IMPORTANT:
Check that the oven control knob is not turned
•
to “0” or to the “lamp” symbol .
- If the electronic programmer (depending on
model) display presents the message
“ ”, consult the product description
sheet provided separately and/or the
electronic programmer description.
- If the electronic programmer (depending on
the model) presents the message “F XX”,
contact the nearest After Sales Service.
Specify in this case the number that follows
the letter “F”.
- Check that the mechanical programmer
(if provided) is turned to “manual”.
In the event the oven must be repaired, contact
authorised After Sales Service,
replacement parts and proper repair is guaranteed).
Failure to comply with these instructions may
compromise the safety and quality of the
product.
DECLARATION OF CONFORMITY
•
This oven is designed to come into contact
with food and complies with regulation (EC)
no.1935/2004.
•
This appliance is designed to be used for
cooking only.
Any other use (for example, for room
heating) is considered as improper use and
potentially dangerous.
•
The appliance was designed, manufactured
and sold in compliance with:
- the safety requirements of “Low
Voltage” Directive 2006/95/EC
(replacing 73/23 EEC as amended);
- the protection requirements of EMC
Directive 89/336/EEC;
- the requirements of Directive 93/68/EEC.
(use of original
an
19
Loading...
